Gaming Computer PC with 10th 11th generation Independent CPU HD-MI VGA support independent graphics card 8K 4K 2K

HDMI

VGA

LAN

USB2.0

USB3.2

COM

SSD

Memory

Power

4K 30Hz

2K 60Hz

1

6

2

2

1*MSATA

1*2.5 inch SSD/HDD

2*NB-DDR4

MAX 64G

Over 200W

6

Model

IPC400U-10th/11th generation independent CPU series

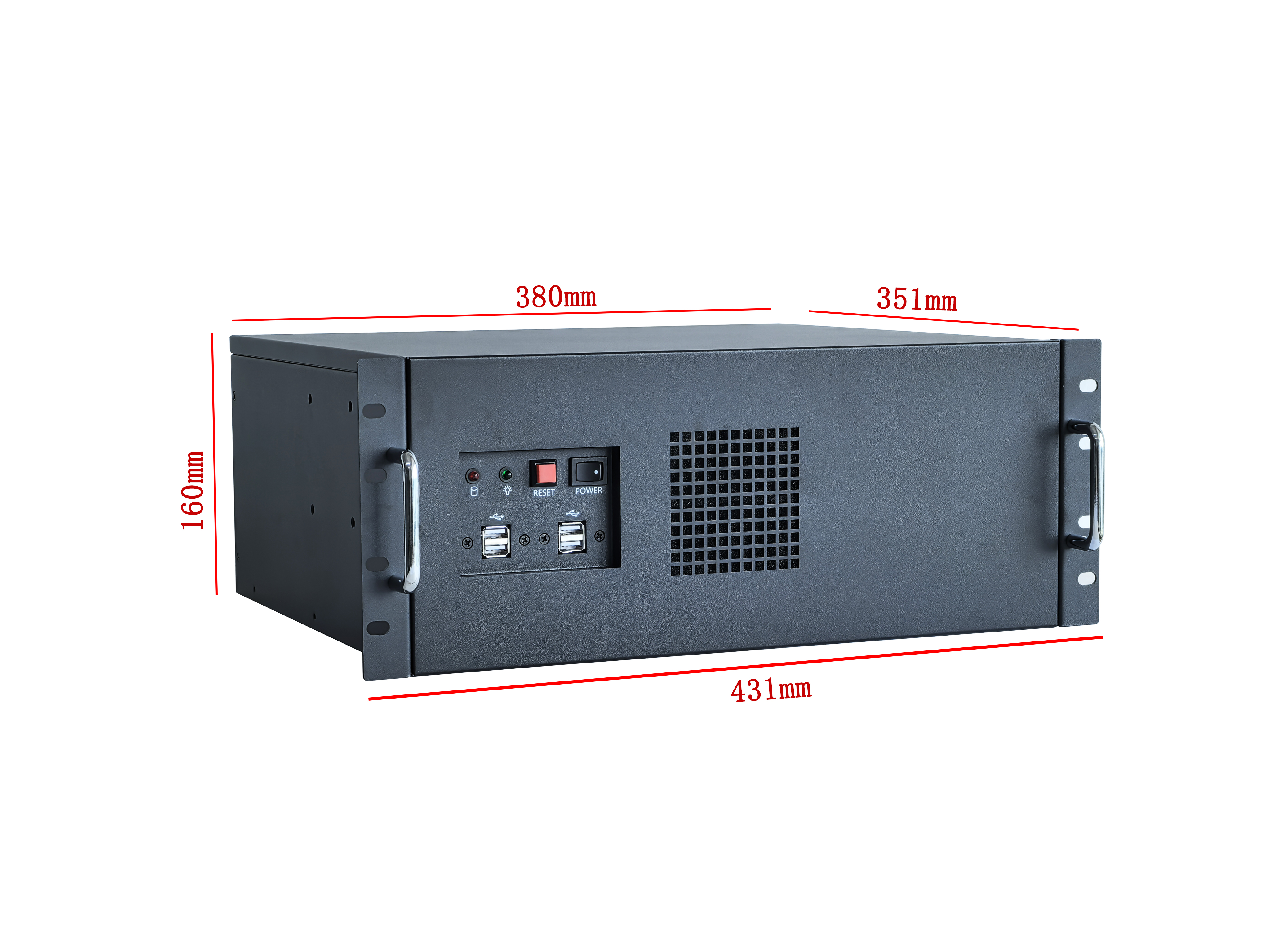

Size

380mm(L)*351mm(W)*160mm(H)

Heat Dissipation

with cooling holes and a silent fan for heat dissipation

Color

Black

Adapt to motherboard model

QM5100

power supply

ATX power supply

Suggest using a power supply of over 200W

CPU

Independent desktop 1200 pin 10th generation CPU:

Intel Core i3-10100 quad core 3.6GHz, turbo frequency 4.3GHz; Core i3-10105 quad core 3.7GHz, turbo frequency 4.4GHz;

Intel Core i3-10300 quad core 3.7GHz, turbo frequency 4.4GHz; Core i3-10305 quad core 3.8GHz, turbo frequency 4.5GHz;

Intel Core i3-10320 quad core 3.8GHz, turbo frequency 4.6GHz; Core i3-10325 quad core 3.9GHz, turbo frequency 4.7GHz;

Intel Core i5-10400 six core 2.9GHz, turbo frequency 4.3GHz; Core i5-10505 six core 3.2GHz, turbo frequency 4.6GHz;

Intel Core i5-10500 six core 3.1GHz, turbo frequency 4.5GHz; turbo frequency  i5-10600 six core 3.3GHz, turbo frequency 4.8GHz;

Intel Core i7-10700 eight core 2.9GHz, turbo frequency 4.8GHz;

Intel Core i9-10900 Ten Core 2.8GHz, Core Frequency 5.2GHz;

Independent desktop 1200 pin 11th generation CPU:

Intel Core i5-11400 six core 2.6GHz, turbo frequency 4.4GHz; Core i5-11500 six core 2.6GHz, turbo frequency 4.6GHz;

Intel Core i5-11600 six core 2.8GHz, turbo frequency 4.8GHz;

Intel Core i7-11700 8-core 2.5GHz, Intel Core 4.9GHz;

Intel Core i9-11900 8-core 2.5GHz, Intel Core 5.2GHz;

Memory

2 * NB-DDR4 memory, supports 1.2V, supports 2133/2400/2666/2933MHz memory, supports up to 64GB

Network functions

1*RJ45 LAN interface

Integrated Realtek 8111H Gigabit Network Card, supporting network on/off and network PXE functions

Supports WIFI/Bluetooth options, supports 2 * WIFI antenna poles

display function

Intel HD Graphics 630/730/750 Graphics controller, supporting single display, dual display replication, and dual display expansion

1*VGA DB15 interface

Support resolution 1920* 1080@60hz

1*HDMI 1.4 interface

Support 4K resolution of 4096/3840* 2160@30hz

The 10th generation CPU supports 4K 30Hz; 11th generation CPU supports 4K 60Hz

USB function

2*USB3.2 interface

The blue group USB is USB 3.2 Gen1

6*USB2.0 interface

The black group USB is USB 2.0

Sound function

Integrated Realtek ALC 662/897 HD digital audio decoder, 6-channel high fidelity audio controller;

Or integrate Cmedia HS-100B high fidelity USB audio chip;

1*SPK interface

Support audio output

1*MIC interface

Support microphone input

HDMI interface supports HDMI audio output

Hard disk function

1 MSATA disk; 1 2.5-inch SSD or HDD mechanical hard drive;

switch function

POWER button

On/Off button

Other I/O

2/6*COM interface

Support RS232（support Customization for2*RS485）

Operating environment

Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, non condensing

Storage temperature: -20 ℃~70 ℃;

BIOS

AMI BIOS，support power-on and start-up, scheduled start-up, remote power on/off, etc

Watch Dog

Watchdog programming, supporting hardware reset function (256 levels, 0-255 seconds)

Operating system

Windows 11、Windows 10、Linux etc
