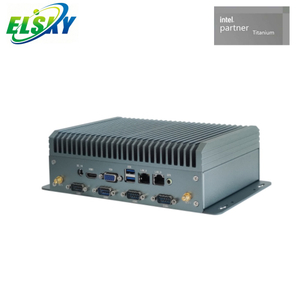

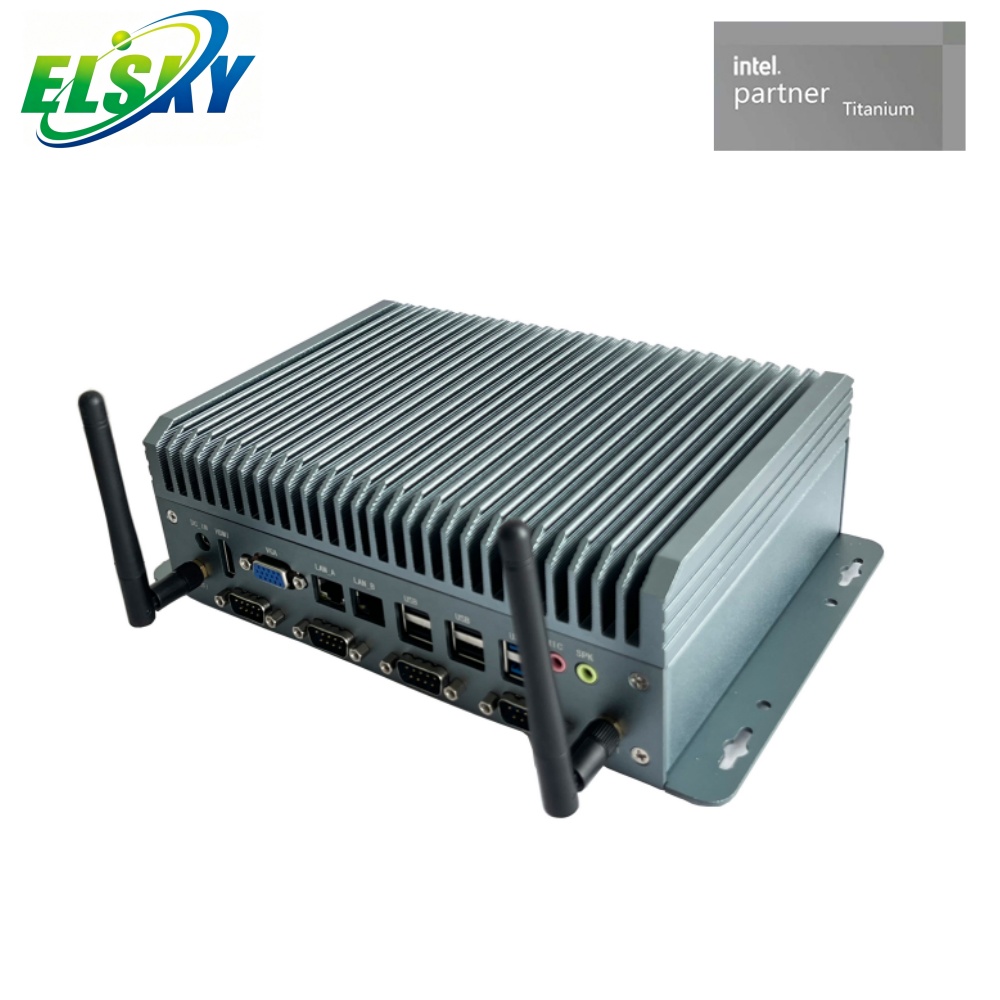

Product Advantages
Silent & Fanless Thermal Design: Utilizes a chassis-integrated passive cooling system with zero moving parts, ensuring high reliability, dust resistance, and completely silent operation in demanding industrial environments.
Flexible Multi-LAN Configuration: Offers scalable networking options with support for 2, 3, or 4 Intel i226-V Gigabit LAN ports, featuring Wake-on-LAN and PXE boot capabilities ideal for routers, firewalls, and network gateways.
Robust Industrial Connectivity: Equipped with 6 configurable COM ports (supporting RS232 by default, with COM1 switchable to RS422/RS485 via BIOS) for seamless integration with legacy industrial machinery and serial devices.
Reliable Processing Power: Powered by 8th generation Whiskey Lake or 10th generation Comet Lake Intel Core processors (i3, i5, i7), balancing dependable performance with low energy consumption.
Versatile Storage & Expansion: Supports flexible storage setups including an mSATA SSD interface and a 2.5-inch SATA drive bay, alongside a 4G/Wi-Fi Mini-PCIE expansion slot for wireless connectivity.
Wide Operating Range: Built to endure harsh conditions with a working temperature range of -10°C to 60°C and broad operating system support including Windows, Linux, Kirin, and Uniontech systems.
CPU information
CPU specifications | CPU brand | CPU model | main frequency | turbo frequency | CPU power consumption (W) | Full load power consumption approx. ( W ) |
8th generation I3 | core | 8145U | Dual-core 2.1G | 3.9G | 15 | 60 |
8 generation I5 | core | 8365U | Quad-core 1.6G | 4.1G | 15 | 60 |
| | 8265U | Quad-core 1.6G | 3.9G | 15 | 60 |
8th generation I7 | core | 8665U | Quad-core 1.9G | 4.8G | 15 | 60 |
10th generation I3 | core | 10110U | Dual-core 2.1G | 4.1G | 15 | 60 |
10th generation I5 | core | 10310U | Quad-core 1.7G | 4.4G | 15 | 60 |
| core | 10210U | Quad-core 1.6G | 4.2G | 15 | 60 |
10th generation I7 | core | 10510U | Quad-core 1.8G | 4.9G | 15 | 60 |
| core | 10610U | Quad-core 1.8G | 4.9G | 15 | 60 |
| core | 10810U | Six-core 1.1G | 4.9G | 15 | 60 |
| core | 10710U | Six-core 1.1G | 4.7G | 15 | 60 |

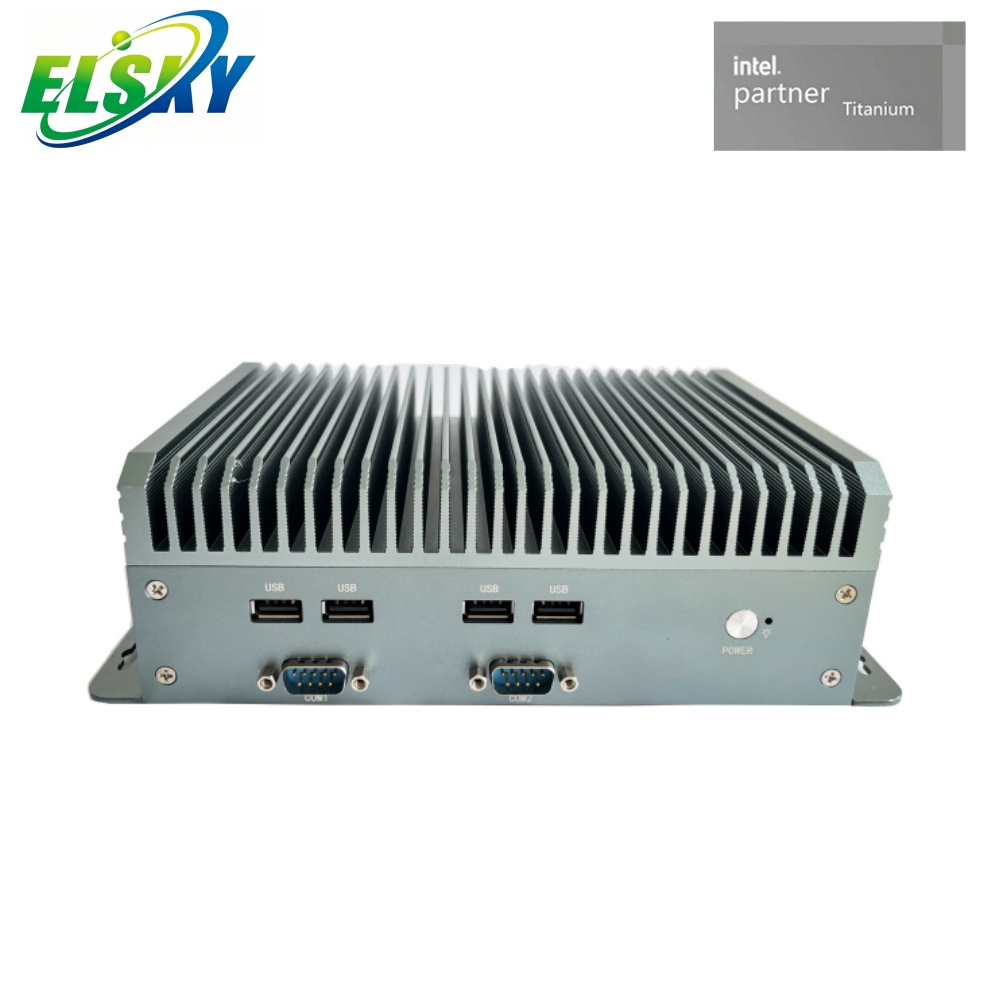

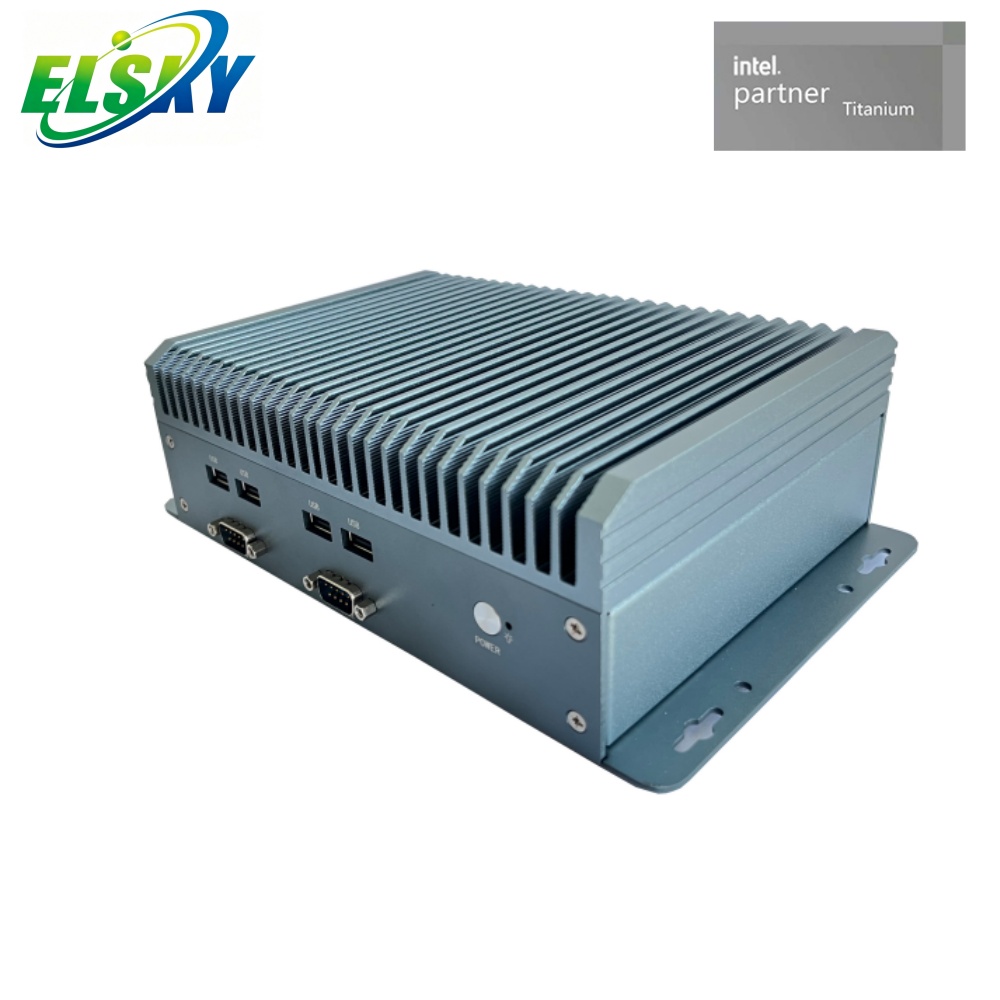

Specification

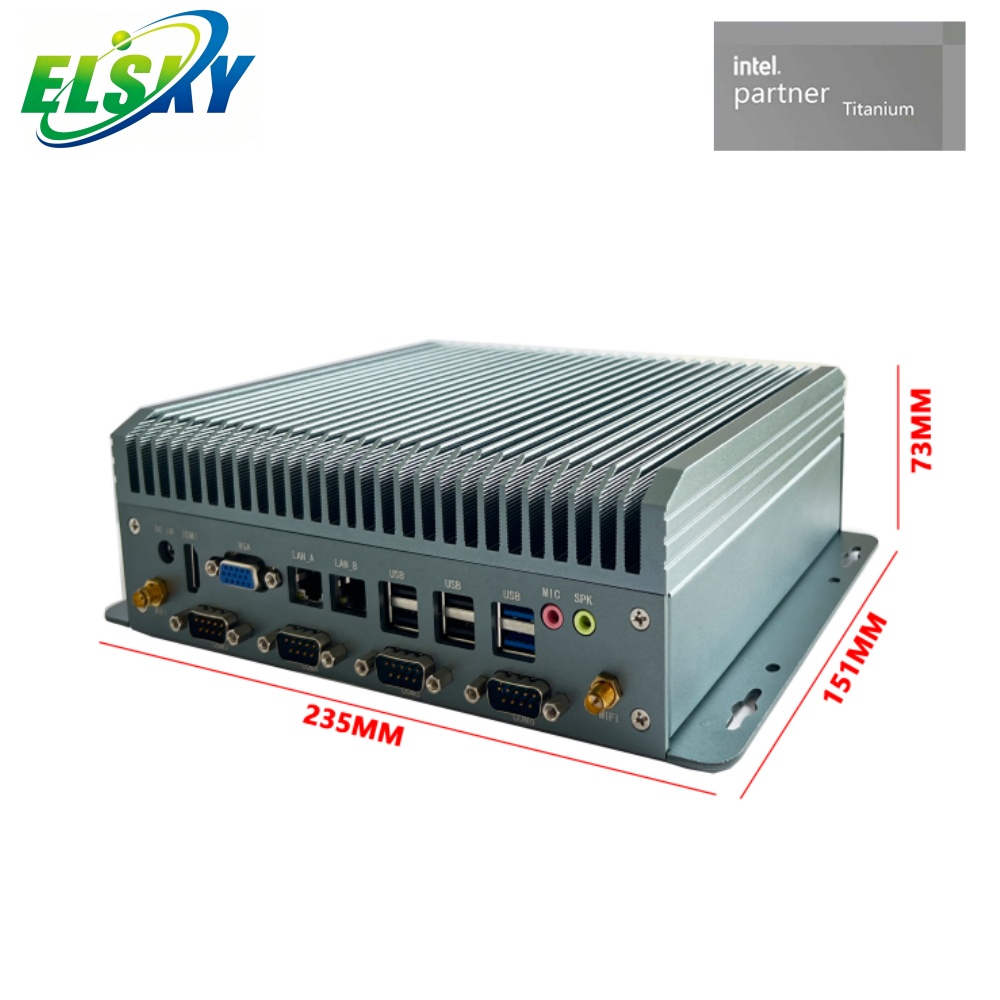

Host size | 235mm（L）*151mm（W）*73mm（H） |
Heat dissipation system | No fan + chassis integrated heat dissipation |
color | iron gray |
CPU | Support 8 generation Whiskey Lake CPU: I3-8145U, I5-8265U, I7-8665U, etc |
| Support for 10-generation Comet Lake CPU: I3-10110U, I5-10210U, I7-10510U, etc |
chip set | Haswell-U、Broadwell-U High-speed chipset |
source | 1*DC_IN | The inner diameter of the DC head is 2.5MM and supports 12V The motherboard full load power consumption is about 60W.12V7A or above is recommended |
Memory | 1*SODIMM slot | NB-DDR 4 memory, support for 2133 / 2400 / 2666 MHz memory, up to 32GB support |
Network functions | 2/3/4*LAN interface (Choose between dual network, three network and four network) | Dual network support for dual Intel i226-V Gigabit network card, Three networks support three Intel i226-V Gigabit network card; Four networks support four Intel i226-V Gigabit network card; support network wake up, PXE function; |
| 1*4G_MPCIE interface | Support WIFI, can change to support 3G / 4G / Bluetooth / WIFI, etc |
Display function | Integrated Intel UHD Graphics supercore graphics card, support single display, double display replication, double display expansion, single display under DOS |
| 1*VGA DB15 interface | Support has a resolution of 1920 * 1080@60Hz |
| 1*HDMI 1.4 interface | Support for 4K resolution 4096 / 3840 * 2160@30Hz |
USB function | 2*USB3.2 interface | Standard USB3.2 Gen1 interface, the maximum transmission broadband of 5 Gbps |
| 4/6/8*USB2.0 interface | Standard USB2.0 interface, the maximum transmission broadband of 480Mbps |
| Dual-network host support 8 USB2.0 interface / three-network host support 6 USB2.0 / four-network host support 4 * USB2.0 |
| The USB signal of Mini-PCIE is binary with F_USB2 2 / 4 / 6 / 8 / 10, and the default Mini-PCIE has no USB signal |
Sound function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller |
| 1*LINE_OUT interface | Supports audio output (green) |
| 1*MIC_IN interface | Supports microphone input (red) |
Hard disk function | 1*MSATA interface | Support the MINI _ SATA disk, support the MSATA3.0 |
| 1*SATA1 interface | Support for a 2.5-inch SSD / HDD hard disk |
Switch function | 1*POWER button | switch button |
other I/O | 6*COM | RS232 is supported by default; COM1 supports RS232 / RS422 / RS485 optional; (BIOS settings) |
| 2*WiFi Antenna interface | External WiFi antenna rod |
Operating environment | Operating temperature: -10℃ ~60℃ Operating humidity: 5%~95% relative humidity, no condensation Storage temperature: -20℃ ~70℃ |
BIOS | AMI BIOS，Support power on, timing start, remote switch equipment intelligent identification |
Watch Dog | Dog watchdog programming, supports hardware reset function (256 levels, 0~255 seconds) |
OS | Support Windows 10, Windows 11, Linux, etc |
