HDMI | DP | LAN | USB2.0 | USB3.2 | Type-C | COM | SSD | Memory | Power |
4K 60Hz | 4K 60Hz | 1 | 6 | 2 | 1. Display function 2. USB 3.2 function | 6 | 1*M.2 | 1*NB-DDR5 MAX 16G | 12V~24V wide voltage power supply |
2 | 4 | 2 |
|
PC model | M198 |
PC size | 160mm(L)*126mm(W)*57mm(H) |
Cooling System | With heat dissipation holes, no fan or silent fan for heat dissipation |
Color | Black |
Adapt to motherboard models | M198SE |
Motherboard | CPU | Supports Intel Alder Lake-N series N200, N100, N97, N95, i3-N305, etc |
Graphics card | Intel UHD Graphics， Support single display, dual display/triple display replication, dual display/triple display expansion |
Memory | 1*NB-DDR5 SODIMM memory slot, supports 4800MHz memory, maximum support 16GB |

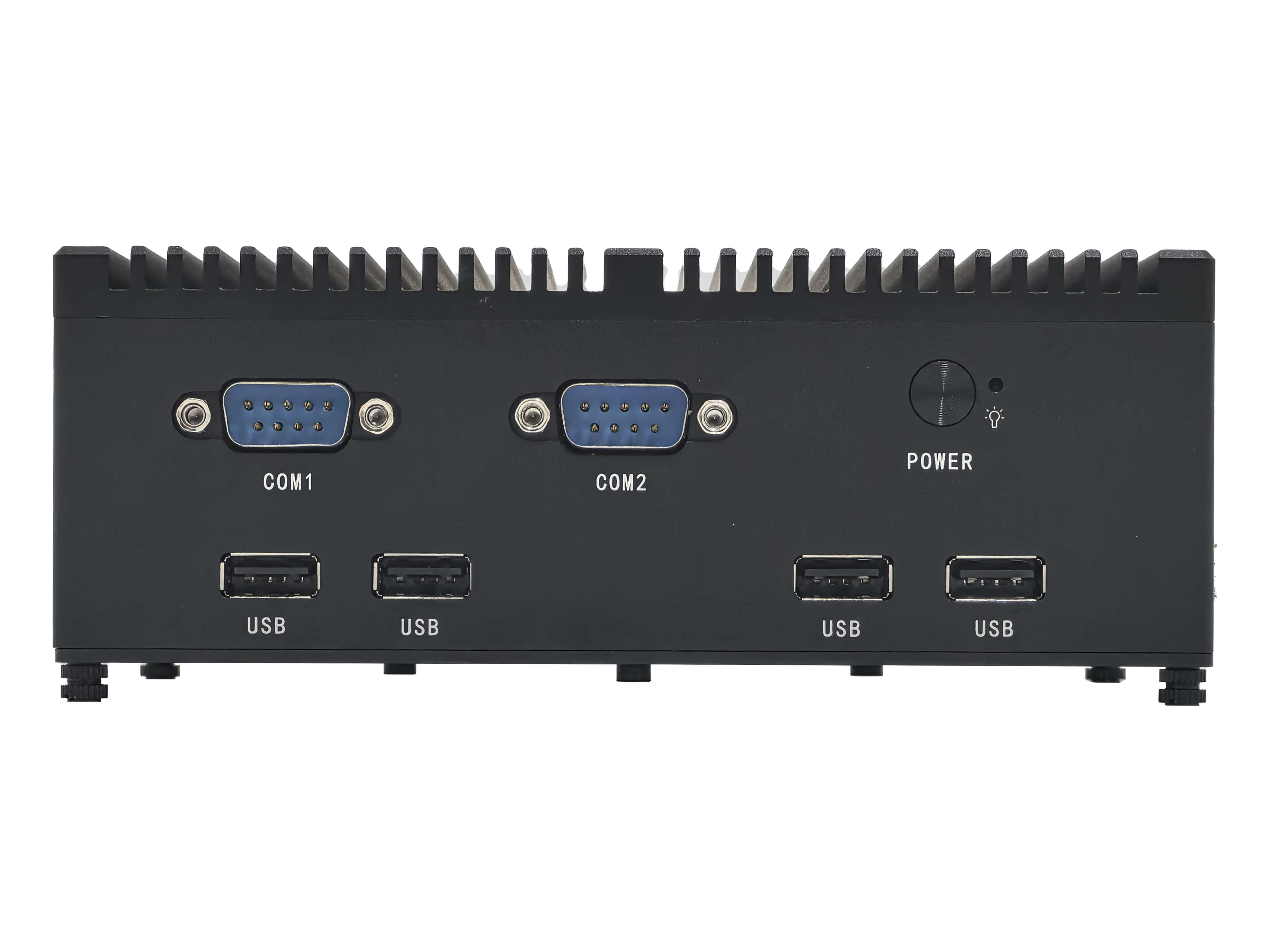

Front panel interface | POWER | 1*Switch button |
USB | 4*USB 2.0 interface |
COM | 2*COM, default support for RS232, COM1 optionally support for RS232/RS422/RS485 |

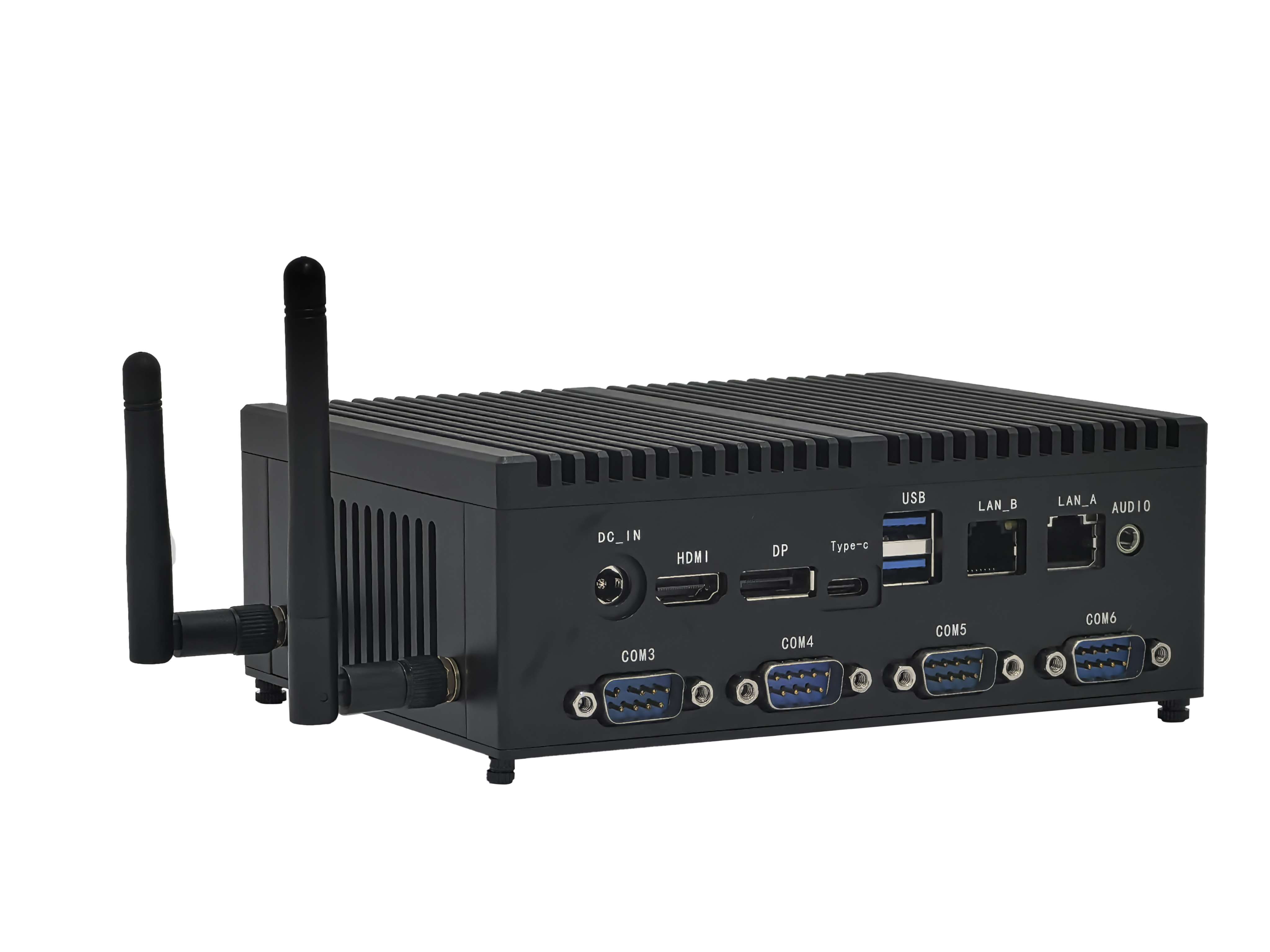

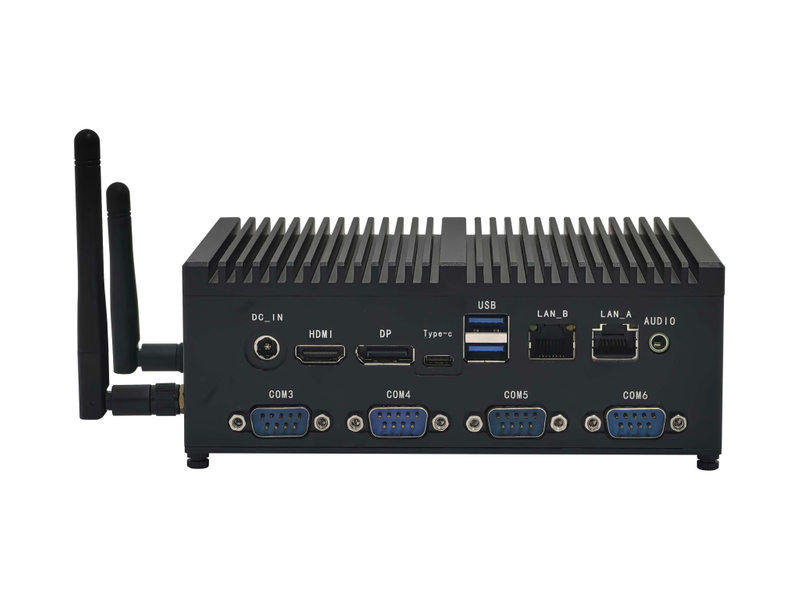

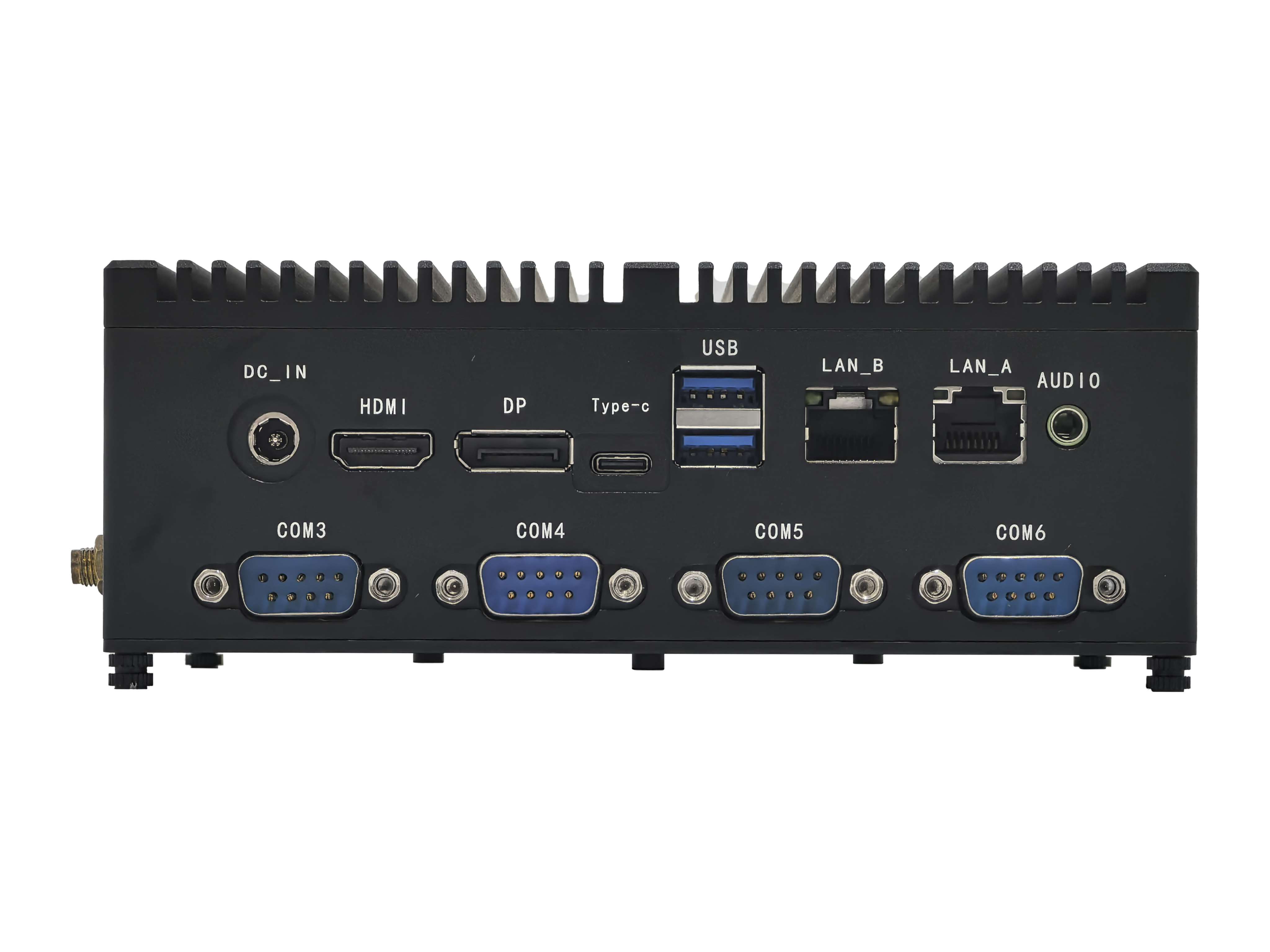

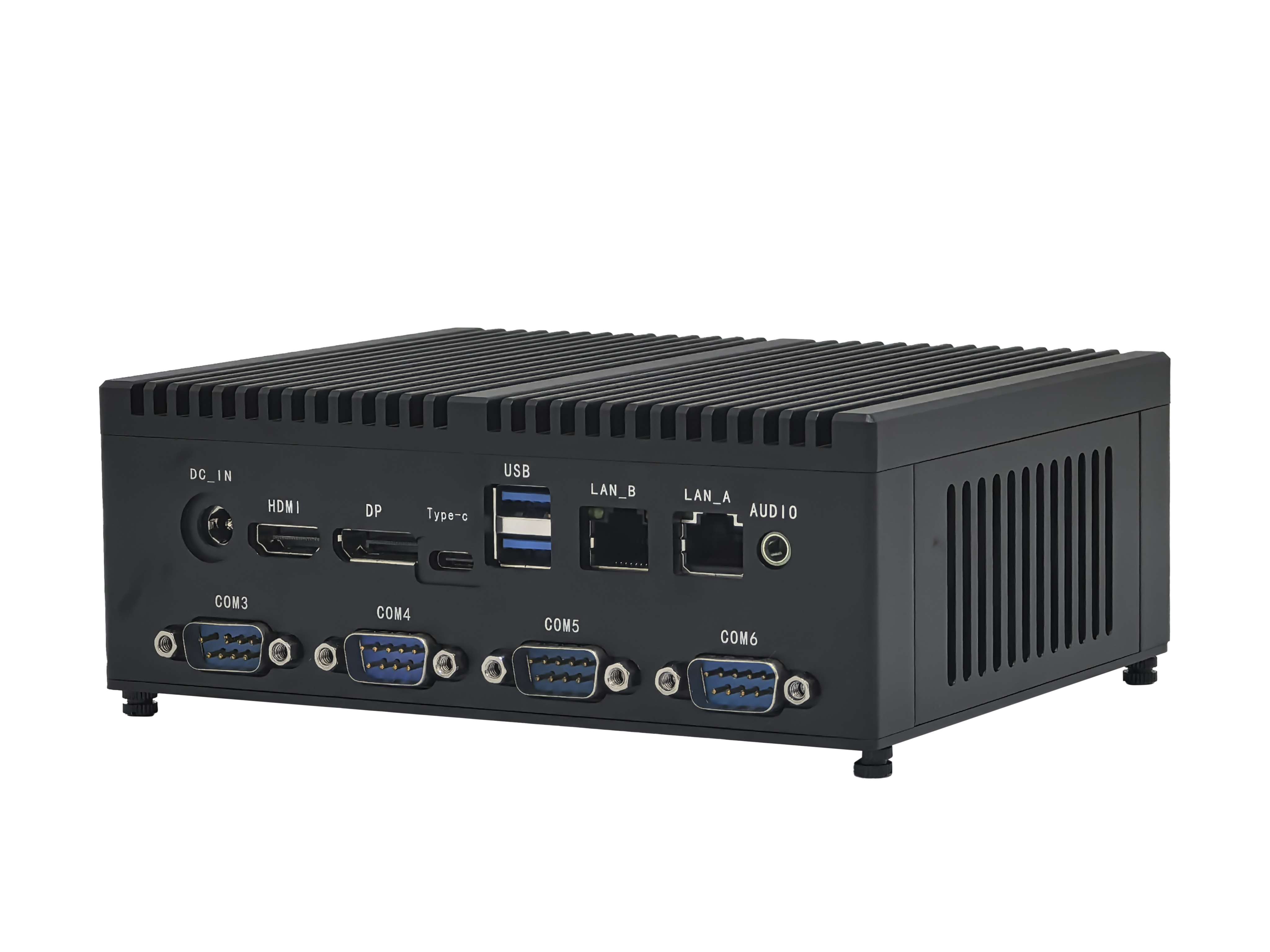

Rear panel interface | Power | 1*DC power interface, supports 12V~24V wide voltage power supply, recommended 12V/4A or 24V2A or above power supply |
Display | 1*HDMI 2.1 interface (4096/3840*2160@60HZ) 1*DP 1.4 interface (4096/3840*2160@60HZ) |
Type-C | 1*Type-C interface, supports display function and USB 3.2 function |
LAN | 2*LAN: Default supports for Realtek 8111H+Realtek 8111H Gigabit Ethernet card; Optional domestic Motorcomm YT6801+Motorcomm YT6801 gigabit network card; 1*LAN: Supports Realtek 8111H Gigabit Ethernet card; Optional domestic Motorcomm YT6801 Gigabit Ethernet card; Supports network wake-up and PXE diskless boot function |
USB | 2*USB3.2 Gen1 interface 2*USB2.0 interface (Dual network motherboard does not have this interface) |
COM | 4*COM,default support for RS232 |
Audio | 1*LINE_OUT interface, audio output |
Side panel interface | WiFi | 2*WiFi antenna interfaces |
Storage | M.2_SSD | 1*M.2 Key-M slot, supports M.2 2280 hard drive, default SATA protocol and NVME (PCIE) protocol automatic switching |
Expansion | M.2_WiFi | 1*M.2 Key-E slot, supports M.2 2230 WiFi Bluetooth module |
Operating environment | Operation temperature | -10℃ ~ 60℃ |
Storage temperature | -20℃ ~ 70℃ |
Relative humidity | 5%-95% relative humidity, no condensation |
Work vibration | 0.5g rms/5-500HZ/random/operating |
BIOS | AMI BIOS, Supports power on, timed power on, and intelligent recognition of remote power on/off devices |
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) |
Operating system | Supports Windows 11, Windows 10, Linux, etc |
