Overview
The ELSKY IPC100U is a versatile and robust Industrial PC engineered for demanding enterprise and industrial applications. This host stands out due to its broad processor compatibility, supporting Intel 2nd-15th Gen Core (i3/i5/i7/i9) CPUs, alongside support for various celeron and domestic processors, making it an excellent OEM/ODM option.
The host is perfectly suited for use as an Industrial Edge Server, managing local analytics, data processing, and AI inference at the network's perimeter. Beyond the edge, its powerful configuration and 4K dual display support make it a strong performer for High-Performance Computing (HPC), Web/Application Serving, and complex Factory Automation tasks.
In summary, the IPC100U delivers a powerful, flexible, and reliable foundation for any mission-critical industrial control or enterprise networking solution.
Features

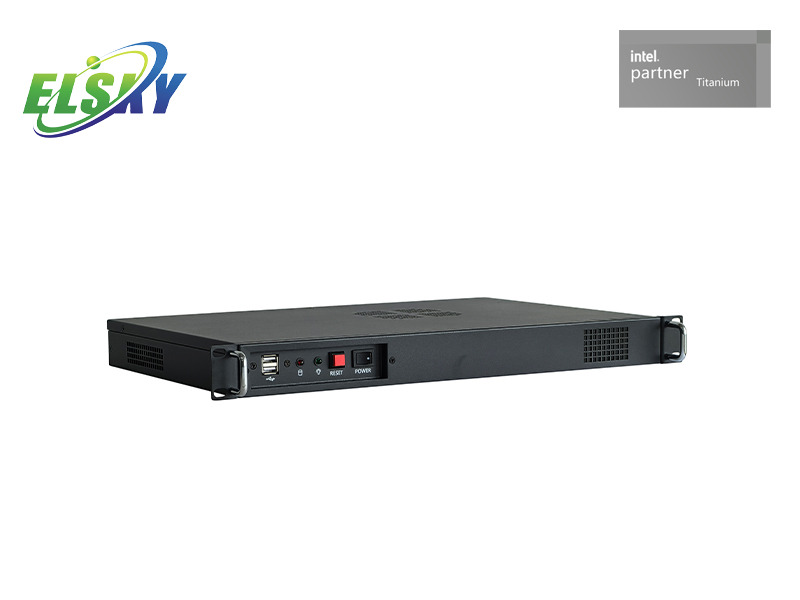

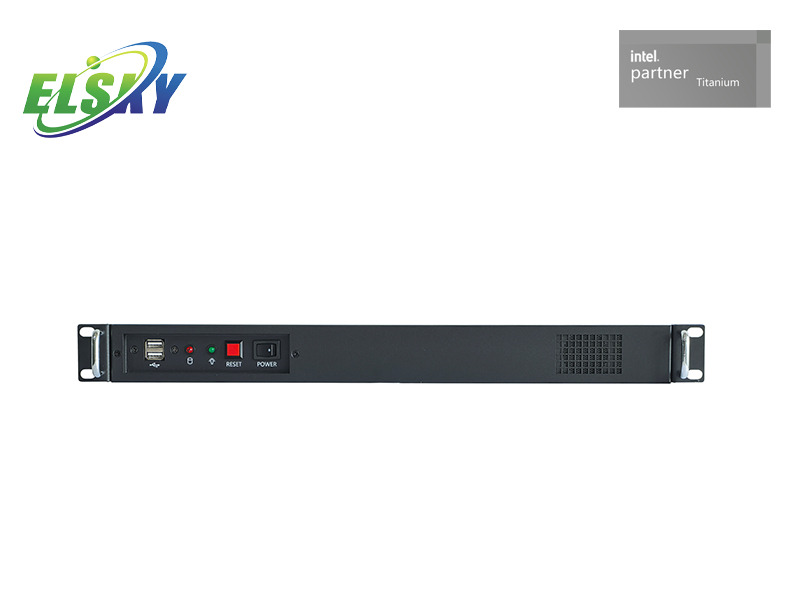

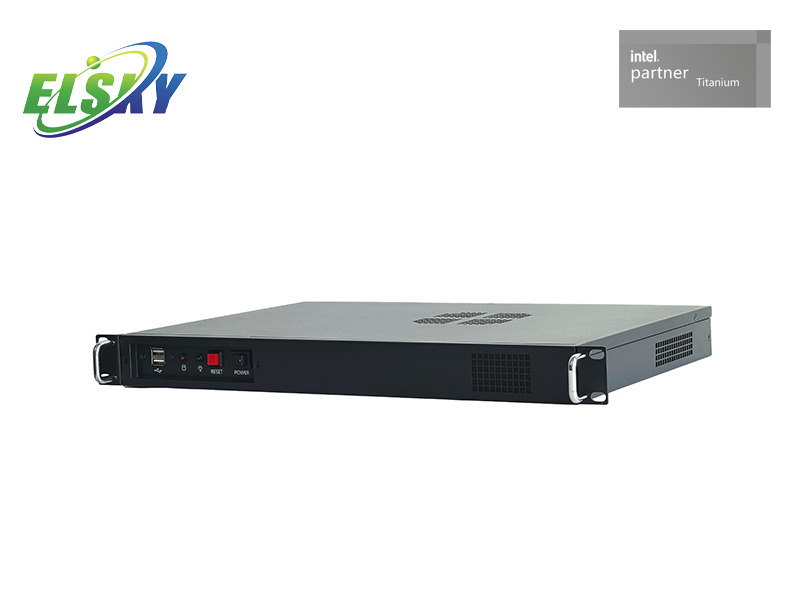

Compact Form Factor: The unit measures 430 mm×301 mm×44 mm. Its sleek black design fits easily into diverse industrial setups. The cooling system includes silent fans and air vents.
Multiple processor support: It supports Intel 2nd to 15th generation Core and Celeron processors. Users can choose i3, i5, i7, and i9 processors to meet various performance requirements.
Multi functional memory: This computer is equipped with 1-2 NB-DDR3/DDR4 slots. It supports memory speeds ranging from 1333MHz to 5600MT/s. The maximum supported memory capacity is 96 GB.
Wireless connection: This system provides M.2 slots for optional WIFI, Bluetooth, 5G, or 4G modules. It includes support for two external WIFI antenna poles.

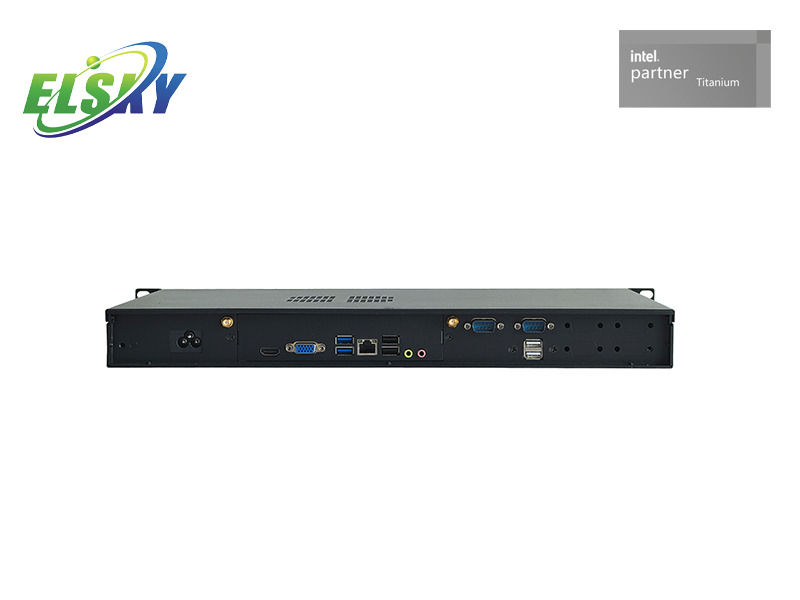

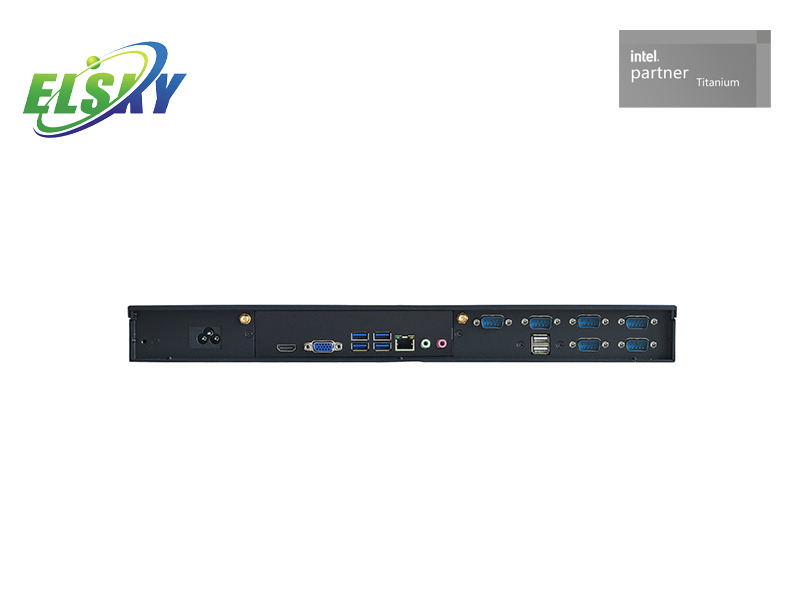

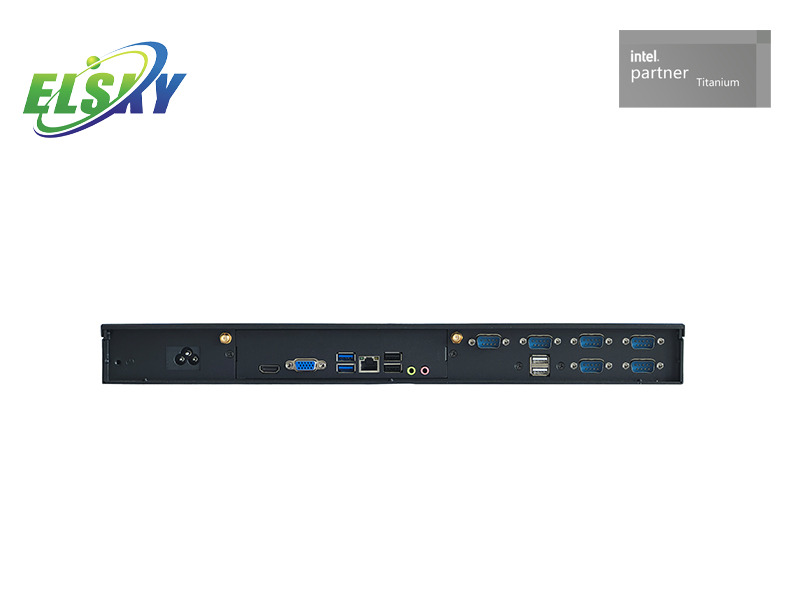

Wide range of I/O ports: The host has multiple USB ports and COM interfaces, which can be configured for RS232 or RS485 connections.
Application
Network Edge Node: The PC works as a firewall or router at branch offices. It secures traffic and manages network flow for specific company segments.
Web and Application Server: It serves HTTP requests and runs business logic for users. The host handles front-end operations for diverse applications.
High-Performance Computing (HPC) and AI: The system runs scientific calculations and financial models. It supports AI model inference for real-time deployment tasks.
Enterprise Network Services: It provides essential network roles such as a DNS server or DHCP server. It also functions effectively as a VPN gateway.
Service
ELSKY provides strong after-sales support for our IPC100U industrial computer. We aim for your satisfaction.
Warranty Coverage : All ELSKY products come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.
Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.
Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.
Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your pc hosts.
Product Specification
There are many motherboard and processor models supported by this host. Please consult us for details！
| PC model | IPC100U |
| PC size | 430mm(L)*301mm(W)*44mm(H) |
| Cooling system | With cooling holes, silent fan for cooling. |
| Color | Black
|
| Power supply | Support ATX power supply of 200W or above,or DC 12V/19V.
|
| CPU | Intel 2nd-15th generation core i3 i5 i7 i9 and celeron 1037U,J1800,J1900,J4125,J6412,3855U,3865U,J3355,N3160,N100,N97,N95,etc
|
| Memory | 1/2*NB-DDR3/DDR4 memory,maximum support 96GB |
Network function
| 1/2*RJ45 LAN port | Single gigabit network card; Dual gigabit network card; Supports Wake on LAN and PXE function; |
| Display | 1*HDMI 2.0 interface (4096/3840)*2160@60Hz ） 1*VGA interface (1920)*1080@60Hz ） Optional 1*DP interface (4096/3840)*2160@60Hz ） |
| USB function | 2*USB 3.0 port; 6*USB 2.0 port (dual network host 4*USB 2.0 port); |
| COM function | 6*COM port, default RS232; |
Audio function
| 1*LINE-OUT port, audio output; 1*MIC-IN port, microphone input; |
WiFi | 2*WiFi antenna port |
Storage
| SATA;MSATA;M.2_SSD |
| Expansion | 1*M.2-Wifi
| 1*M.2 Key-E slot, supporting M.2 2230 WiFi Bluetooth module |
| Environment | Working temperature: -10 ℃~60 ℃ Storage temperature: -20 ℃~70 ℃ Relative humidity: 5% -95%, no condensation Working vibration: 0.5g rms/5-500HZ/random/operating |
BIOS | Support power on, timed power on, remote power on/off, etc |
Watch Dog |
Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) |
| Operating system | Windows 11,Windows 10,Windows 8,Windows 7,Linux,etc |
FAQ
1.Q: What CPU generations does the IPC100U support?
A: The host supports Intel 2nd-15th gen core processors.
2.Q:What are the main applications for the IPC100U?
A: It is primarily used for Industrial Edge Servers, Web/Application Servers, and Enterprise Network Services (like DNS/DHCP). It also handles AI inference and HPC tasks well.
3.Q:Is the cooling system passive or active?
A: The system uses active cooling with a silent fan and dedicated air holes. This design ensures stable performance while maintaining a low noise level.
4.Q:Does the PC support advanced networking like 5G?
A: Yes. It provides M.2 slots for optional 5G, 4G, WIFI, and Bluetooth modules. It also offers dual Gigabit LAN ports for wired connections.
5.Q:What are the recommended operating conditions?
A: It is built for demanding environments, operating reliably in temperatures from −10∘C to 60∘C with 5%∼95% relative humidity (non-condensing).
