Product Description:
HDMI | Type-C | LAN | USB3.2 | USB2.0 | COM | SSD | Memory | Power | ||
2*HDMI 4K 60Hz | 1. Display function 2. Power supply function 3. 3.USB data | 1/2 | 2 | 4/6 | 6 | 1*M.2 1*SATA | 1*NB-DDR4 MAX 32G | 12V~24V wide voltage power supply | ||
PC model | SPC128 | |||||||||

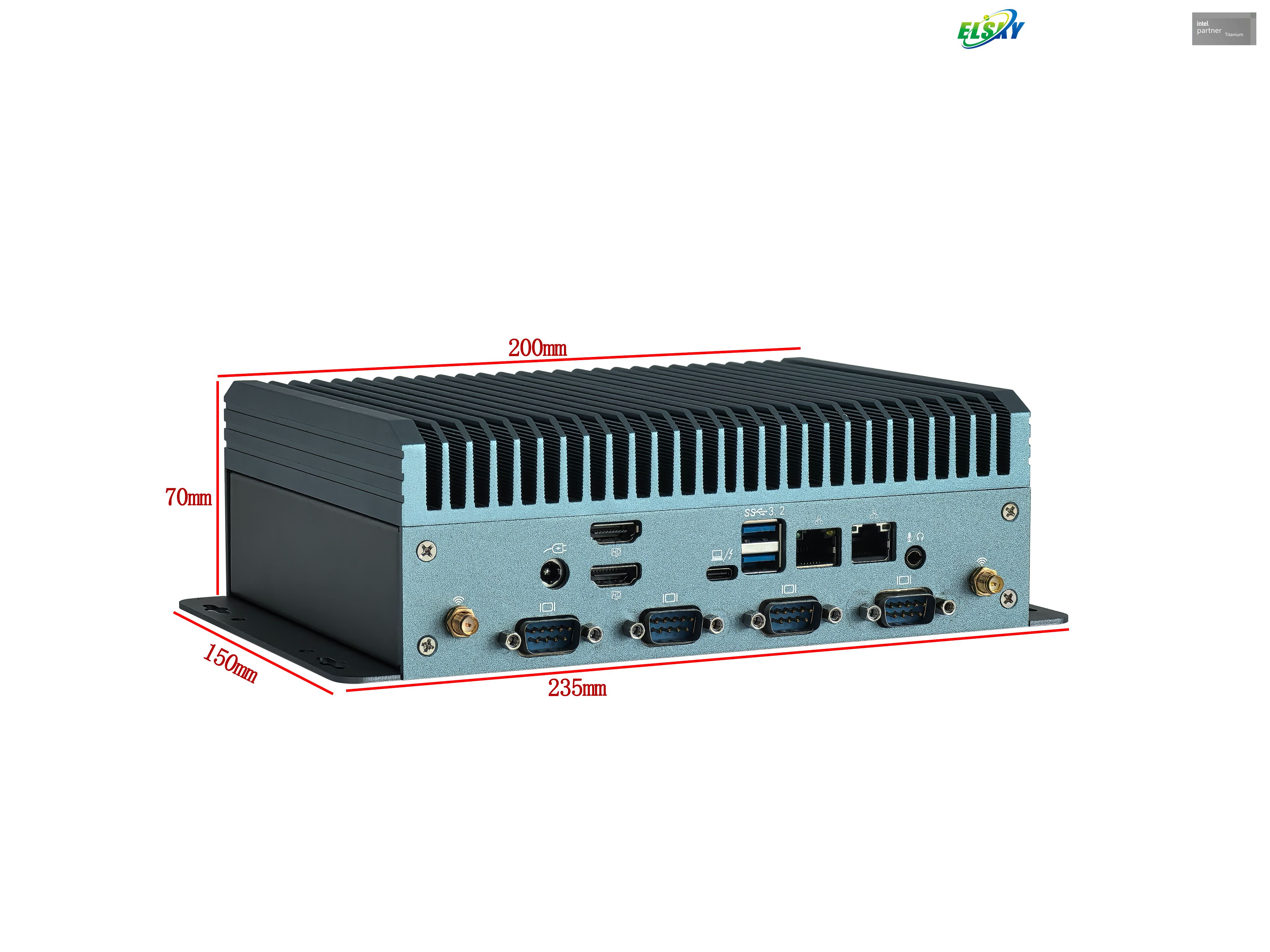

PC size | 235mm（L）*150mm（W）*70mm（H） | |||||||||
Cooling System | Fanless + integrated heat dissipation | |||||||||
Color | Iron Gray | |||||||||
Compatible motherboard models | M128SE | |||||||||
Motherboard | CPU | Support Intel Alder Lake 12 gen U、P、H series core i3-1215U、i5-1235U、i7-1260P、i9-12900H etc. Support Intel Raptor Lake 13gen U、P、H series core i3-1305U、i5-1334U、i7-1340P、i9-13900H etc. （The CPU list is shown on the next page） | ||||||||
Graphics | Intel UHD Graphics / Intel Iris Xe Graphics Graphics controller, support single display, double display replication, double display expansion | |||||||||
Memory | 1*NB-DDR4 support 2133/2400/2666/2933/3200MHz，Supports up to 32G | |||||||||

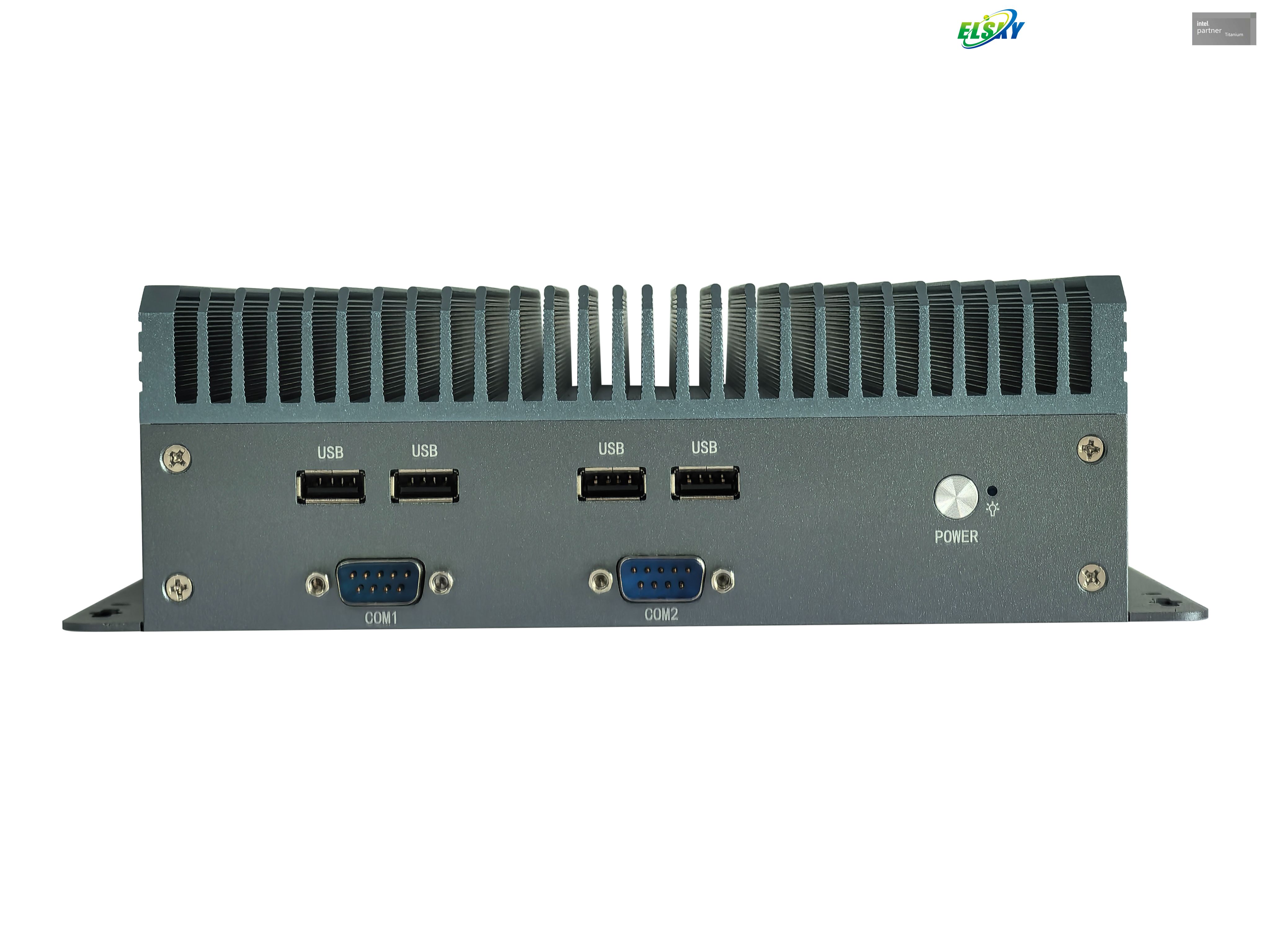

Front panel interface | POWER | 1* Switch button; with power indicator light, hard disk indicator light | ||||||||
USB | 4*USB2.0 port | |||||||||
COM | 2*COM port ，RS232 is supported by default; COM1 can optionally support RS232/RS422/RS485 | |||||||||

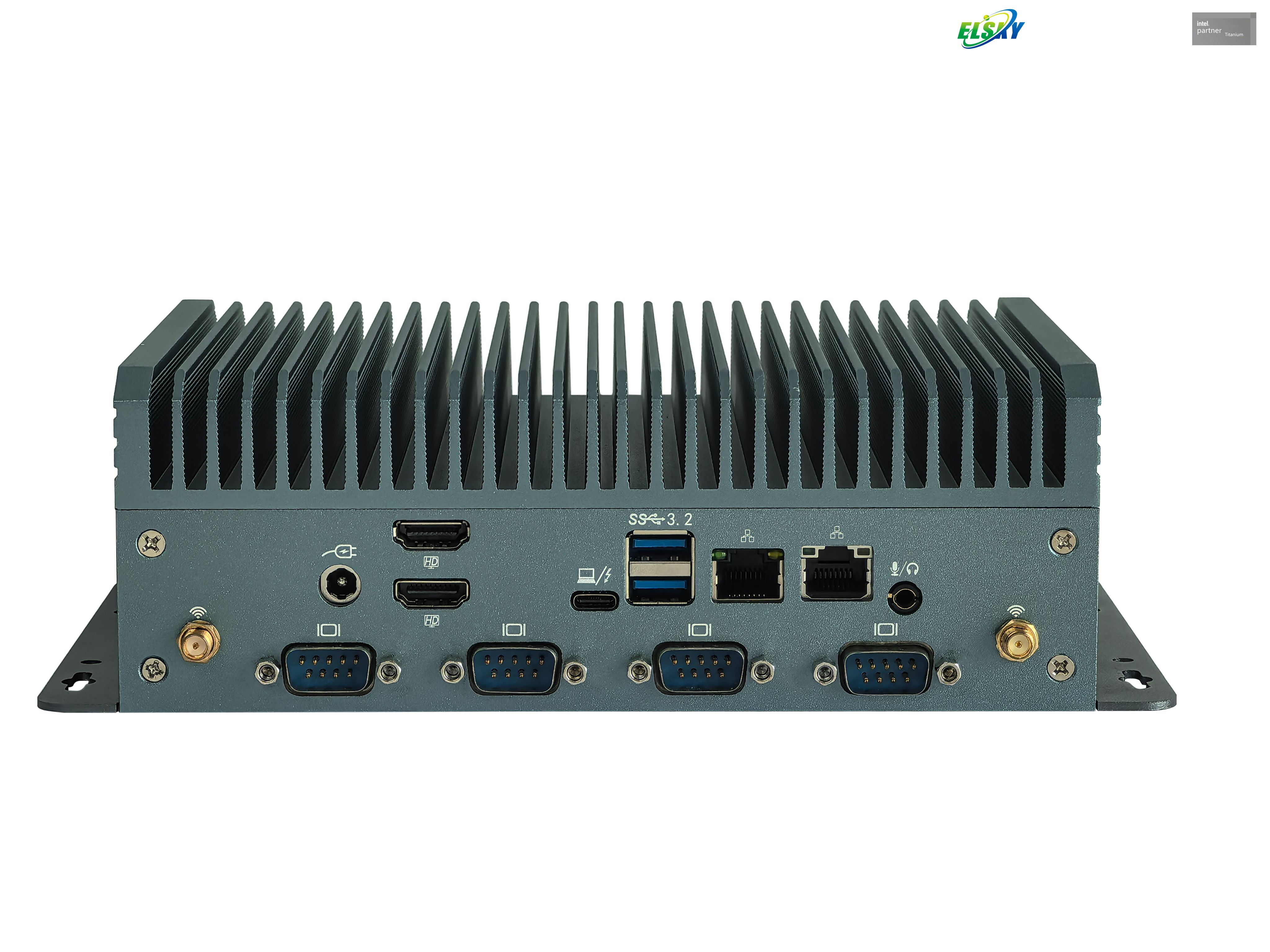

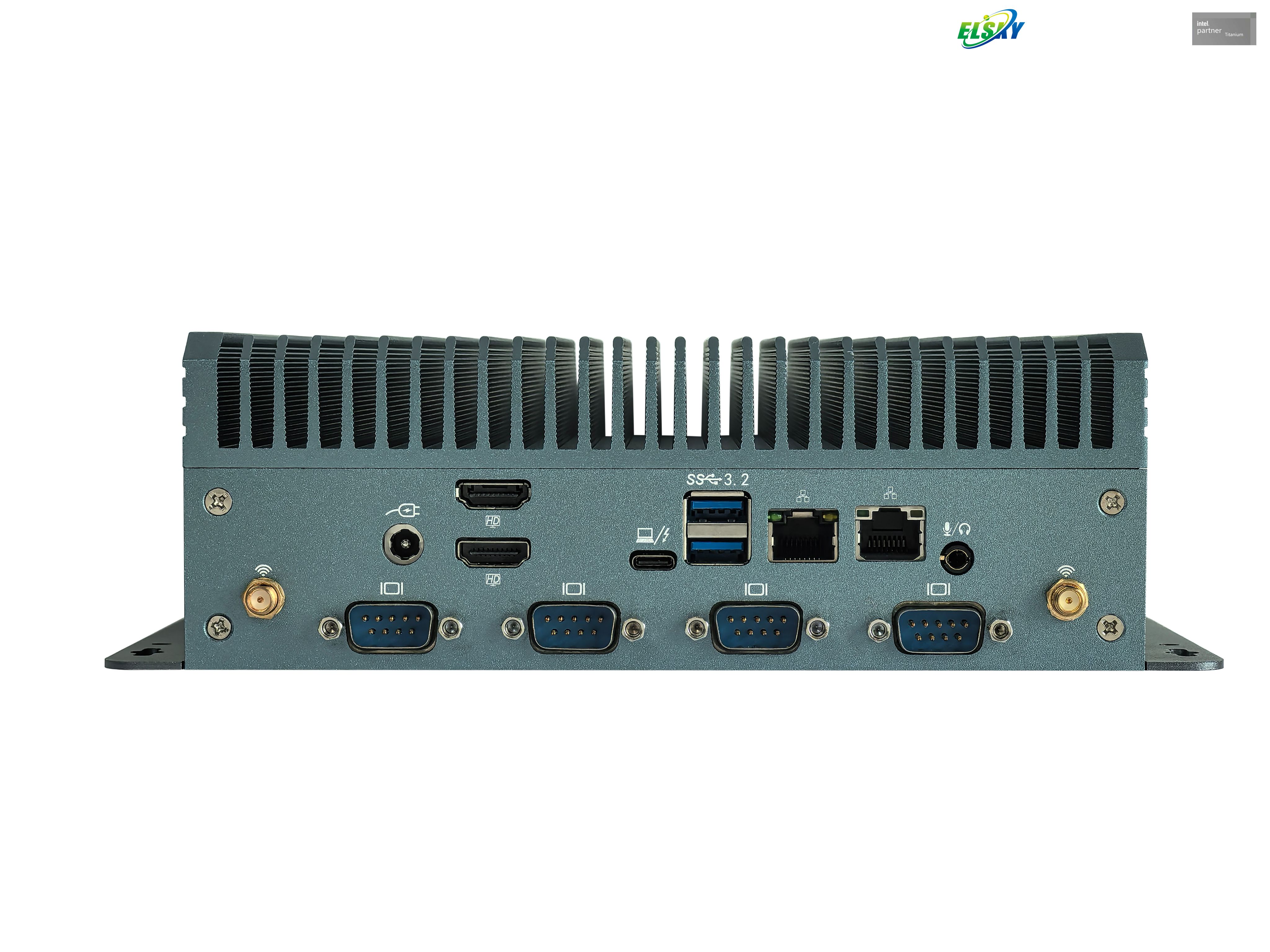

Rear panel interface | Power interface | 1*DC power interface (5.5*2.5mm), supports DC 12V~24V wide voltage supply, recommended 12V7A or above power supply | ||||||||
Display interface | 2*HDMI2.0 port （4096/3840*2160@60HZ） | |||||||||
Type-C | 1* Type-C interface with full functions, supporting display function, power supply function and USB data transmission function | |||||||||
LAN | Dual Gigabit network card: Intel i219V + Realtek 8111H Gigabit network card; optional support for Intel I219V + Yutaiwei YT6801 Gigabit network card; Single Gigabit network card: support Intel I219V Gigabit network card; support network wake-up function, network PXE function; | |||||||||
USB | 2*USB3.2 Gen1 port 2*USB2.0 Interface (single network pc support) | |||||||||
COM | 4*COM port，RS232 is supported by default； | |||||||||
Audio | 1* AUDIO interface, support LINE_OUT/MIC_IN two-in-one | |||||||||
WiFi | 2* WiFi antenna interface | |||||||||
Storage | M.2_SSD | 1*M.2 Key-M slot, supports M.2 2280 hard disk; default support for SATA and NVME (PCIE) dual protocols | ||||||||
SATA | 1*SATA3.0 hard disk interface, supports 2.5 inch SSD/HDD hard disk | |||||||||
Extensions | M.2_WiFi | 1.M.2 Key-E slot, supporting M.2 2230 WiFi Bluetooth module | ||||||||
Environment | Operating temperature | -10℃ ~ 60℃ | ||||||||
Storage temperature | -20℃ ~ 70℃ | |||||||||
Relative humidity | 5%-95% relative humidity, non-condensing | |||||||||
Working vibration | 0.5grms/5-500HZ/random/operating | |||||||||
BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | |||||||||
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |||||||||
Operating system | Supports Windows 11, Windows 10, Linux, etc. | |||||||||
Packing & Shipping:
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 0.8-1.2KG);
5Pieces/Carton(G.W. : 3.0-6.0KG);
10Pieces/Carton(G.W. : 5.0-12.0KG);
20Pieces/Carton(G.W. : 10.0-23.0KG);
Shipping
DHL: 2-4 working days; tracking website: www.dhl.com
EMS: 5-7 working days; tracking website: www.ems.com
UPS: 2-4 working days; tracking website: www.ups.com
FedEx: 3-5 working days; tracking website: www.fedex.com
TNT: 3-5 working days; tracking website: www.tnt.com
