CPU information
CPU specifications | CPU brand | CPU model | Main frequency | Turbo frequency | CPU power consumption (W) | Full load power consumption is about ( W ) |
8th generation i3 | core | 8145U | Dual core 2.1G | 3.9G | 15 | 60 |
8th generation i5 | core | 8365U | Quad core 1.6G | 4.1G | 15 | 60 |
| | 8265U | Quad core 1.6G | 3.9G | 15 | 60 |
8th generation i7 | core | 8565U | Quad core 1.8G | 4.6G | 15 | 60 |
| | 8665U | Quad core 1.9G | 4.8G | 15 | 60 |
10th generation i3 | core | 10110U | Dual core 2.1G | 4.1G | 15 | 60 |
10th generation i5 | core | 10310U | Quad core 1.7G | 4.4G | 15 | 60 |
| core | 10210U | Quad core 1.6G | 4.2G | 15 | 60 |
10th generation i7 | core | 10510U | Quad core 1.8G | 4.9G | 15 | 60 |
| core | 10610U | Quad core 1.8G | 4.9G | 15 | 60 |
| core | 10810U | Six-core 1.1G | 4.9G | 15 | 60 |
| core | 10710U | Six-core 1.1G | 4.7G | 15 | 60 |

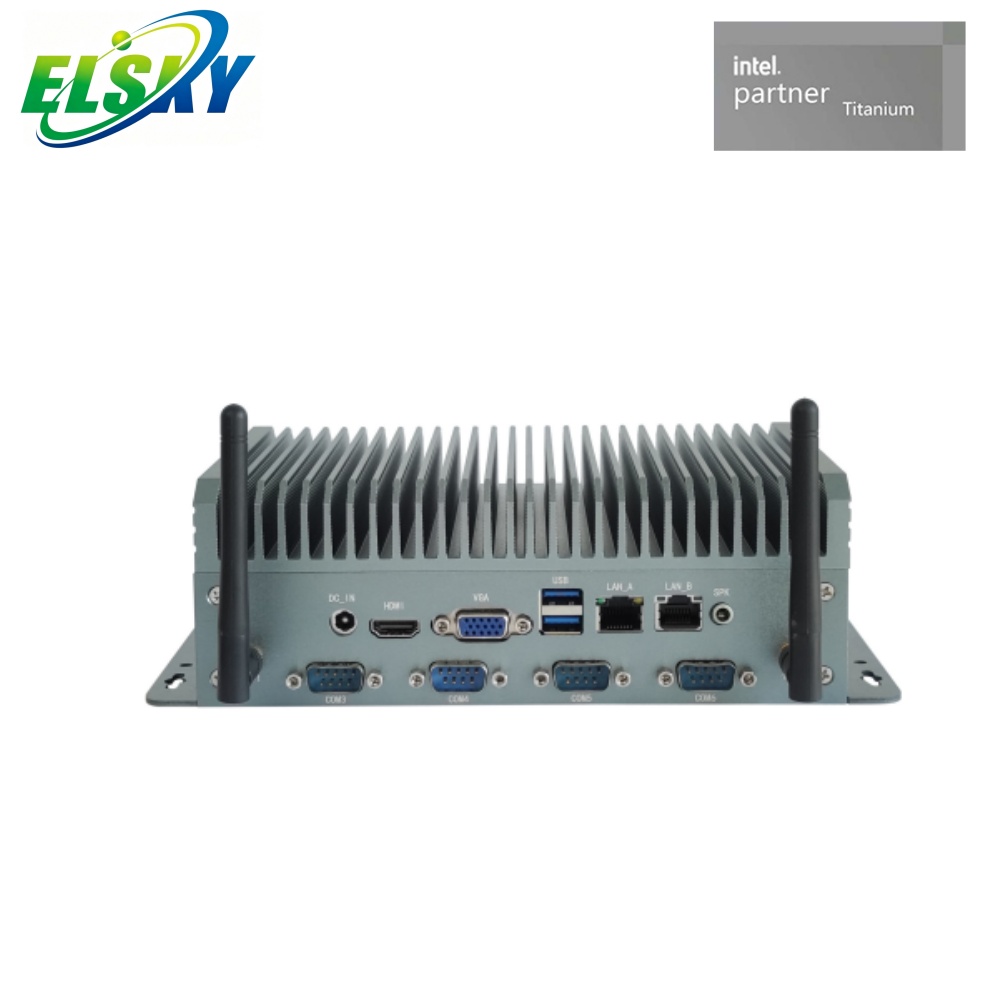

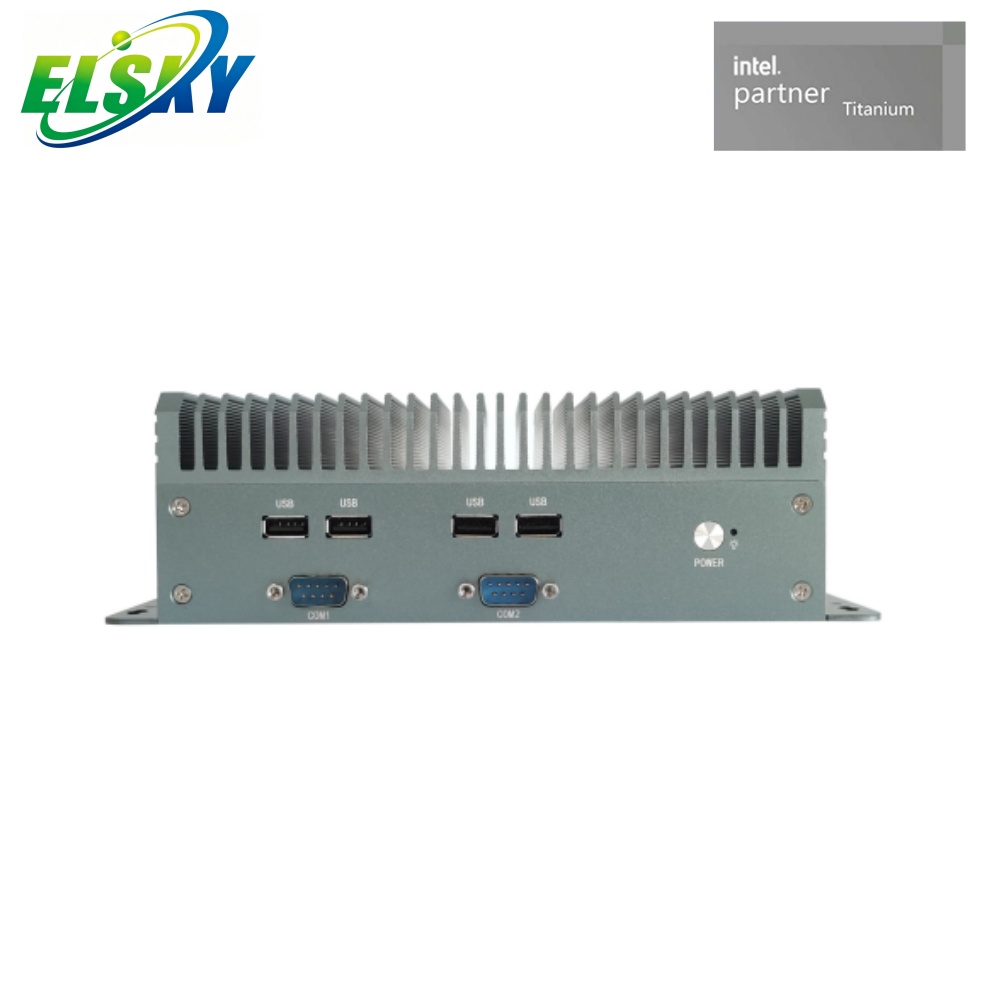

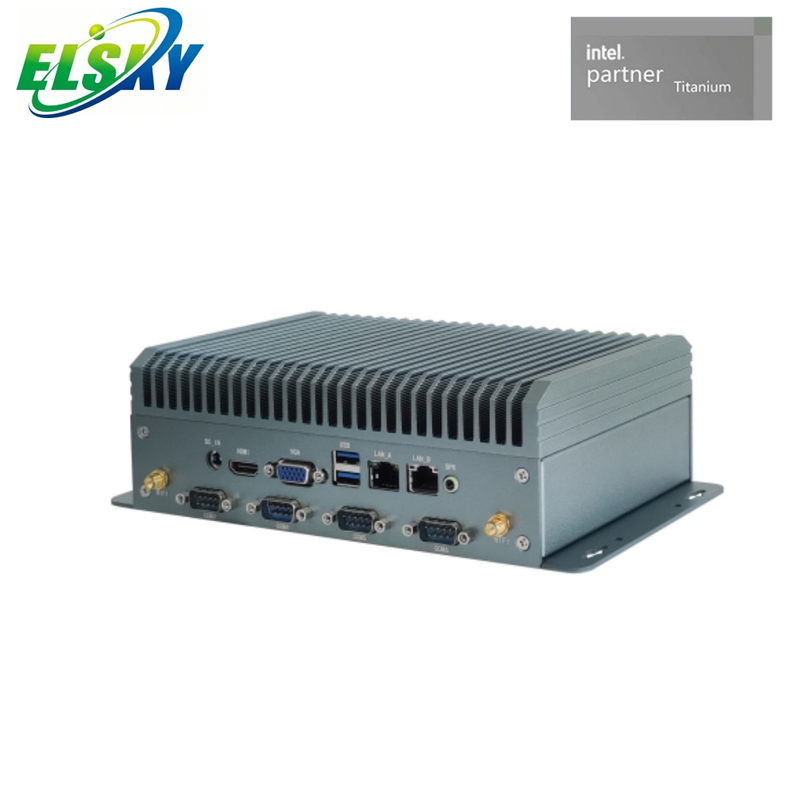

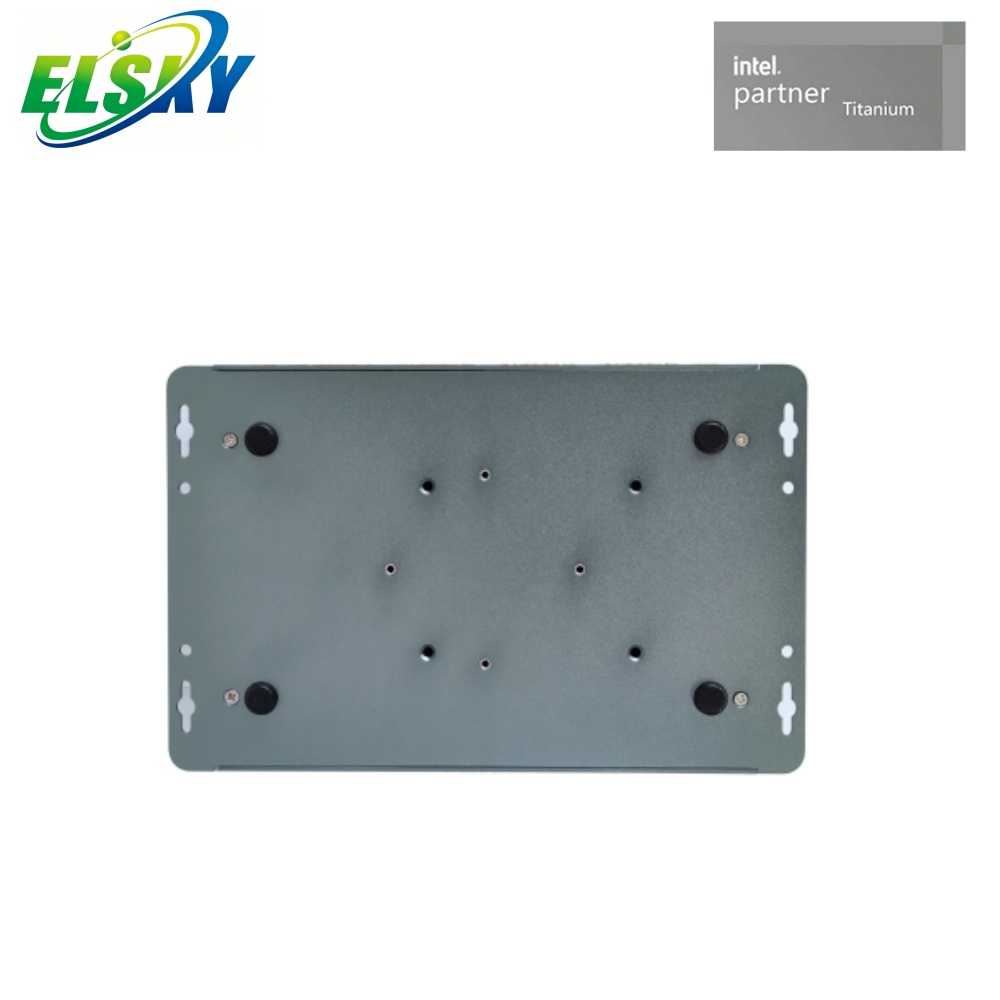

Specification
PC size | 235mm(L)*150mm(W)*70mm(H) |
Cooling system | Fanless + chassis integrated cooling |
Color | Iron gray |
CPU | Support 8th generation Whiskey Lake CPU: I3-8145U, I5-8265U, I7-8665U, etc. |
| Support 10th generation Comet Lake CPU: I3-10110U, I5-10210U, I7-10510U, etc. |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM, supporting 12V/19V The mini PC consumes about 60W when fully loaded. It is recommended to use a power supply of 12V7A or 19V4A or above |
Memory | 1*SO DIMM slot | NB-DDR4 memory, supports 2133/2400/2666/2933MHz memory, supports up to 32 GB |
Internet function | 1/2*RJ45_LAN interface | Single network supports Intel WG i219V Gigabit network card Dual network supports Intel WG i219V+Realtek 8111H dual Gigabit network card Support network wake-up and PXE diskless boot function |
| 1*Mini-PCIE interface | Supports WIFI/Bluetooth/3G/4G module, can be changed to support MSATA |
Display function | Integrated Intel UHD Graphics super core graphics card, supports single display, dual display copy, dual display expansion, single display under DOS |
| 1*HDMI1 1.4 interface | Support 4K resolution 4096/3840*2160@30Hz |
| 1*VGA DB15 interface | Support resolution 1920*1080@60Hz |
| 1*HDMI2 1.4 interface (optional) | Support 4K resolution 4096/3840*2160@30Hz |
| VGA interface and HDMI2 interface are two options. The VGA interface is supported by default and can be changed to support HDMI2 interface. |
USB function | 2*USB3.2 interface | Standard USB3. 2 Gen1 interface, maximum transmission bandwidth is 5Gbps |
| 4/6*USB2.0 interface | Standard USB2.0 interface, maximum transmission bandwidth is 480Mbps |
| Dual-network PC supports 4*USB2.0 interfaces/Dual-network PC supports 6*USB2.0 interfaces |
Sound function | Integrated Realtek ALC 662/897 HD digital audio decoder, 6-channel high-fidelity audio controller |
| 1*SPK interface | Standard 3.5 audio interface, supports audio output |
Hard drive function | 1*NGFF1 interface (M.2) | Supports Key-M interface M.2 2280 hard drive, supports SATA and NVME (PCIE) protocols by default |
| 1*SATA1 interface | Support 2.5-inch SSD/HDD hard drive |
| 1*MSATA interface (optional) | Support MINI_SATA hard disk, support MSATA3.0 |
| Mini-PCIE interface can be changed to support MSATA interface |
Switch function | 1*POWER button | switch button |
Other I/O | 6*COM | Supports RS232 by default; COM1 supports RS232/RS422/RS485 optional; (BIOS settings ) |
| 2*WiFi antenna interface | External WiFi antenna pole |
Operating environment | Working temperature: -10℃~ 60℃ Working humidity: 5%~95% relative humidity, no condensation Storage temperature: - 20℃~ 70℃ |
BIOS | AMI BIOS supports power-on, scheduled boot, and intelligent identification of remote power on and off devices. |
Watch Dog | Watchdog programming, supports hardware reset function (level 256, 0~255 seconds) |
Operating system | Support Windows 11, Windows 10, Kirin system, Tongxin system, Linux, etc. |
Product Advantages
Fanless & Silent Design: Features a chassis-integrated cooling system with zero moving parts, ensuring silent operation and high reliability in dusty or harsh industrial environments.
Flexible Processing Power: Supports both 8th and 10th generation Intel Core processors (Whiskey Lake and Comet Lake series like i3, i5, and i7), balancing performance and energy efficiency.
Rich Industrial I/O Interfaces: Equipped with 6 COM ports (supporting RS232/RS422/RS485 options) for seamless connection with legacy industrial machinery, automation tools, and serial devices.
Robust Network Capabilities: Offers single or dual Intel/Realtek Gigabit LAN options with support for network wake-up (Wake-on-LAN) and PXE diskless boot, ideal for network routing and remote management.
Versatile Storage & Expansion: Includes an M.2 slot (supporting NVMe and SATA protocols), a 2.5-inch SATA drive bay, and a Mini-PCIE interface for Wi-Fi/Bluetooth/4G or MSATA expansion.
Wide Operating Range: Built to withstand demanding conditions with a working temperature range of -10°C to 60°C and broad operating system compatibility (Windows, Linux).
RFQ:
1. What operating systems are supported by this mini PC?
The mini PC supports a wide range of operating systems, including Windows 10, Windows 11, Linux, Kirin OS, and Tongxin OS, making it suitable for both commercial and specialized industrial applications.
Yes. By default, the 6 COM ports support RS232, but COM1 can be configured via BIOS settings to support RS232, RS422, or RS485 depending on your industrial equipment requirements.
3. What kind of power supply should I use?
The device requires a DC input with a 2.5mm inner diameter, supporting 12V or 19V. Since the system consumes about 60W under full load, it is recommended to use a power supply of 12V/7A or 19V/4A (or above).
4. What storage drives are compatible with this system?
It offers high storage flexibility, featuring:
One M.2 2280 slot (Key-M) supporting both SATA and NVMe (PCIE) protocols.
One 2.5-inch SATA interface for traditional SSDs or HDDs.
An optional mSATA interface (via the Mini-PCIE slot or dedicated design).
5. What are the video output options and maximum resolutions?
The system features an integrated Intel UHD Graphics core and comes with:
One HDMI 1.4 port supporting resolutions up to 4K @ 30Hz.
One VGA DB15 port supporting up to 1920x1080 @ 60Hz (which can optionally be changed to a second HDMI port). It supports single display, dual-display duplication, and dual-display expansion.
