Overview

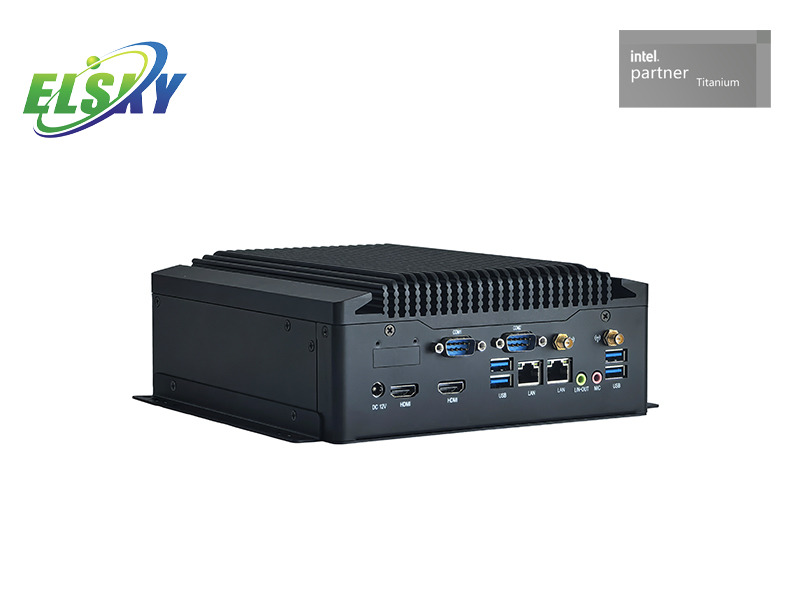

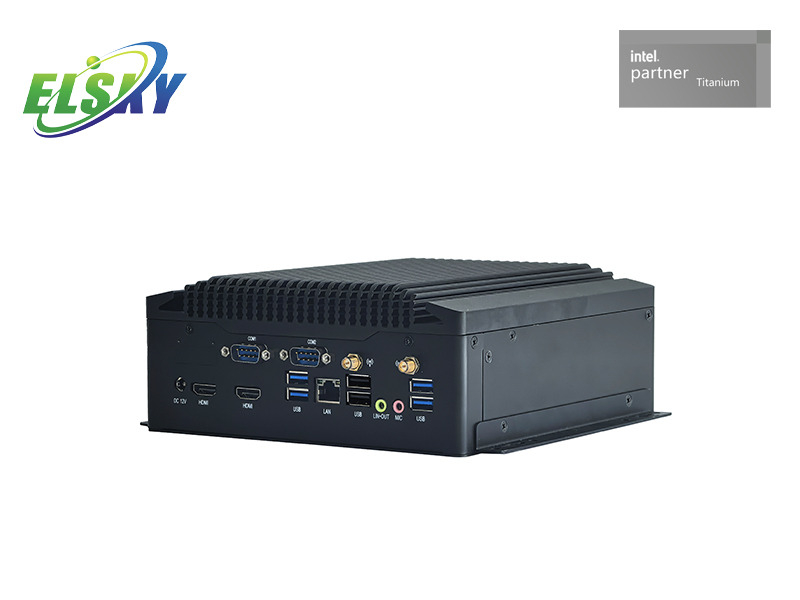

The ELSKY IPC6900 is a powerful, fanless industrial PC designed for reliable performance in harsh environments. It supports 6th generation and above Intel Core processors and offers flexible storage with M.2, MSATA, and SATA slots. The system features a fully enclosed design for durability and provides extensive connectivity with multiple USB, COM, and LAN ports.
This rugged industrial PC is ideal for various applications, including robotics control, edge computing, industrial automation, and smart transportation systems. With its fanless cooling, wide operating temperature range, and multiple display options, the IPC6900 serves as a robust and versatile solution for demanding industrial tasks.
Features
Processor: Supports Intel 6th generation and above Core processors.
Memory: NB-DDR3L/DDR4/DDR5 memory slot, 4G/8G/16G/32G/64G/96G optional.
Storage: Includes MSATA/M.2 ,2.5-inch SSD/HDD slots for flexible storage options.
Connectivity: Features multiple USB ports, COM ports, and both single or dual LAN options.
Video: Offers HDMI ports and VGA/DP port for display output.
Cooling: Uses a fanless design with an integrated heat dissipation system.
Dimensions: Compact size with dimensions of 220mm * 210mm * 80mm.
Power: Supports a DC 12V or 19V power supply.
OS: Compatible with Windows 11, Windows 10, Windows 8, Windows 7, and Linux operating systems.
Application
Industrial Control: Acts as a central control unit for production lines or as a human-machine interface. It can also serve as a data gateway for sensors and instruments.
Robotics: Manages the movement and status of robots. It handles communication between the robot and a central system.
Edge Computing: Processes real-time data from factory sensors. It filters and analyzes data locally before sending important results to the cloud.
IoT Gateway: Converts different industrial device protocols into a single, unified protocol. This allows for data to be uploaded to cloud platforms.
Smart Transportation: Functions as a front-end processing unit for traffic management systems. It is used in license plate recognition and intelligent parking systems.
Service
ELSKY provides strong after-sales support for our IPC6900 Industrial PC. We aim for your satisfaction.
Warranty Coverage : All ELSKY products come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.
Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.
Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.
Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your pc hosts.
Product Specification
Due to the compatibility of this chassis with multiple types of motherboards and processors, please contact us for specific requirements.
| PC model | IPC6900 |
| PC size | 220mm(L)*210mm(W)*80mm(H) |
Cooling system | Fanless,Integrated heat dissipation of the chassis |
Motherboard
| CPU | Intel 6th generation and above processors |
| Memory | NB-DDR3L/DDR4/DDR5 memory slot, 4G/8G/16G/32G/64G/96G optional. |

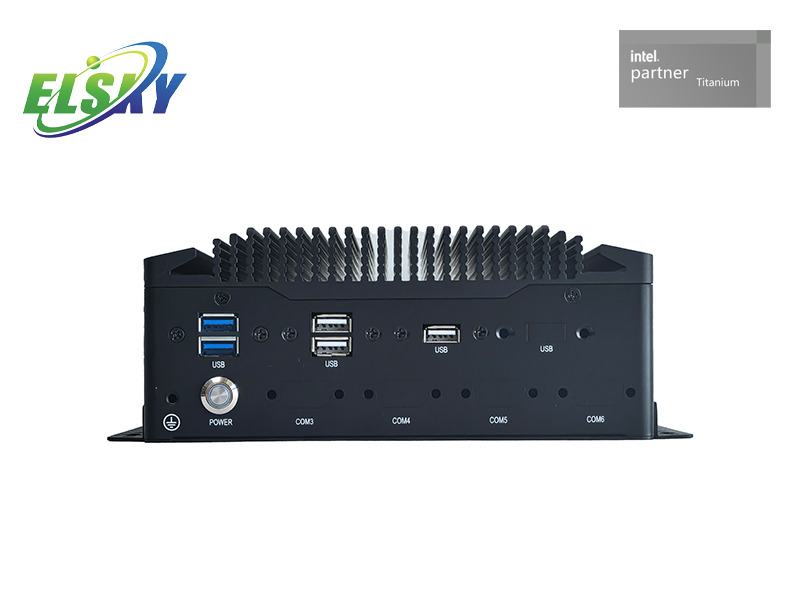

| Front panel interface | POWER | 1*Switch button; Equipped with power indicator light |
| USB | 3*USB2.0 interface 2*USB3.0 interface |
| COM | 4*COM interface,default support RS232 |

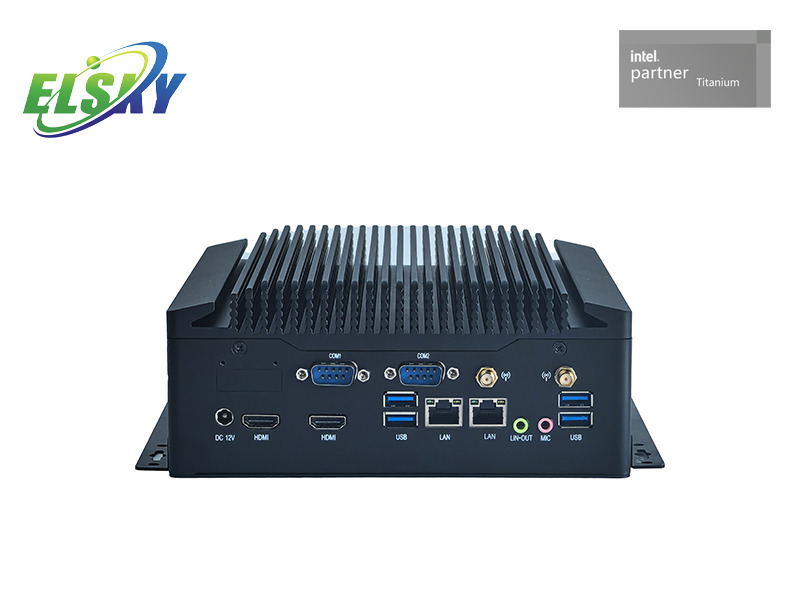

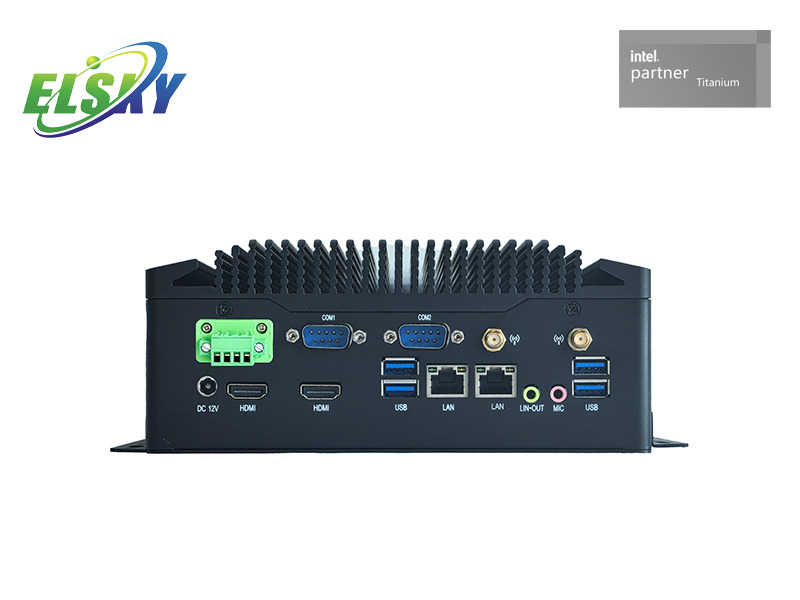

Rear panel interface | Power | 1*DC power interface (5.5 * 2.5mm), supports DC 12V/19V, recommended 12V7A or 19V5A or above power supply 1*4Pin Phoenix terminal optional, customizable wire sequence |
| Display | HDMI 1.4 interface (4096/3840)* 2160@30Hz ） Optional HDMI 1.4 interface (4096/3840)* 2160@30Hz ） Optional 1*VGA/DP interface (1920)* 1080@60Hz ） |
| LAN | 1/2*RJ45 LAN Support network wake-up and PXE functions |
| USB | 4*USB 3.2 Gen1 interface 2*USB 2.0 interface (not available on dual network hosts) |
| COM | 2*COM interface, supports RS232 by default; COM1 can optionally support RS232/RS422/RS485 |
| Audio | 1*LINE-OUT interface: supports audio output 1*MIC-IN interface: supports audio input |

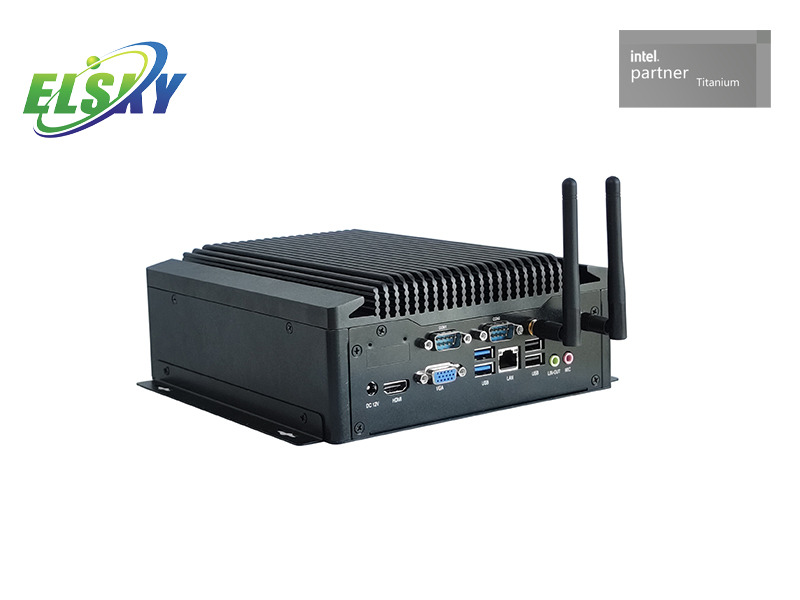

| Wifi | 2*WiFi antenna interface |
| Storage | SATA ; MSATA ;M.2-SSD
|
Expansion | Mini-PCIE | 1*Mini-PCIE slot, support WiFi/4G/Bluetooth modules,etc |
Environment | Working temperature: -10℃ ~ 60℃; Storage temperature: -20℃ ~ 70℃;
Relative humidity: 5%-95% relative humidity,no condensation;
Working vibration: 0.5g rms/5-500HZ/random/operating |
BIOS | AMI BIOS, Support power on, timed power on, and intelligent recognition of remote power on/off devices |
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) |
| Operating system | Windows 11, Windows 10, Windows 8, Windows 7, Linux, etc |
FAQ
1.Q: What type of processor does the IPC6900 support?
A: It supports 6th generation and above Intel Core processors, including various i3, i5, and i7 models.
2.Q: Does this industrial PC have a fan?
A: No, the IPC6900 is a fully enclosed, fanless industrial PC. It uses the chassis for heat dissipation, making it ideal for dusty or harsh environments.
3.Q: What are the main applications for the IPC6900?
A: It is designed for industrial automation, robotics control, edge computing, IoT gateways, and smart transportation systems.
4.Q: What kind of storage options are available?
A: The IPC6900 supports multiple storage types, including M.2 SSDs, MSATA, and SATA hard drive optional.
5.Q: Can I use this PC for multiple displays?
A: Yes, it features HDMI port and VGA/DP port. It supports both dual display expansion and replication.
6.Q: What operating systems are compatible with the IPC6900?
A: It is compatible with a range of operating systems, including Windows 11, Windows 10,Windows 8, Windows 7, and Linux.Based on different motherboard models.
