Overview
The ELSKY M108 Industrial PC is a robust and compact computing solution designed for demanding control and automation tasks.The M108 features a fanless or silent fan design, which ensures quiet operation and low maintenance, crucial for factory environments. It is powered by a choice of high-performance 8th or 10th Gen Intel Core U-series CPUs (i3, i5, i7).The integrated Watch Dog function and wide OS support (Windows 10, Windows 11, Linux) guarantee stable, continuous operation essential for mission-critical industrial applications.
Features
Powerful Processor Options: Choose from Intel 8th or 10th generation Core U-series CPU. This offers strong performance for various industrial tasks.
Quiet Design: The host uses a system of heat dissipation holes and may have no fan or a silent fan. This ensures quiet, reliable operation.
Compact Form Factor: The host size is 235mm×150mm×45mm. The small footprint makes it easy to integrate into limited spaces or machinery.
Rich I/O Connectivity: It features 6 COM interfaces (RS232/RS485), 2 USB 3.2 ports, and up to 6 USB 2.0 ports. This is ideal for connecting many peripherals and legacy equipment.
Flexible Storage Support: Provides multiple storage options: 1 M.2 slot, 1 standard 2.5-inch SSD/HDD bay, and an optional MSATA slot. Users can configure storage as needed.
Dual Display Capability: Supports simultaneous dual display using HDMI 1 (4K@30Hz) and either VGA (1920x1080@60Hz) or HDMI 2 (4K@30Hz). This is key for monitoring applications.
Application
Industrial Automation: It acts as the core control computer on the production line. The host manages and controls various devices like CNC machine tools, robotic arms, PLCs, and sensors.
Smart Manufacturing: The unit connects different pieces of industrial equipment. This includes integrating devices such as PLCs, inverters, and human-machine interfaces (HMIs).
Retail Backend Server: The PC functions as a reliable backend server for large retail locations. It manages data and operations in major supermarkets and chain stores.
Point-of-Sale (POS) Systems: It serves as the main engine for high-end POS terminals. The host ensures quick and stable processing for customer transactions.
Service
ELSKY provides strong after-sales support for our M108 industrial computer. We aim for your satisfaction.
Warranty Coverage : All ELSKY products come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.
Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.
Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.
Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your pc hosts.
Product Specification
| PC model | M108 |
| PC size | 235mm(L)*150mm(W)*45mm(H) |
| Cooling system | With heat dissipation holes, no fan or silent fan for heat dissipation |
| Color | Iron gray |
| Adapt to motherboard | M108SE |
| Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm and supports 12V / 19V. It is recommended to use the power supply above 12V7A or 19V4A; |
| CPU | Support Intel Whiskey Lake 8th gen and Comet Lake 10th gen core i3 i5 i7 cpu;
|
| Memory | 1*NB-DDR4 Memory slot, 2133/2400/2666/2933 MHz memory, max support 32GB; |
| Network function | 1/2*RJ45_LAN | Single network: Intel WG I219V Gigabit network card; Dual network: Intel WG I219V +Realtek 8111H Gigabit network card; Support network power on and off, network PXE function; |

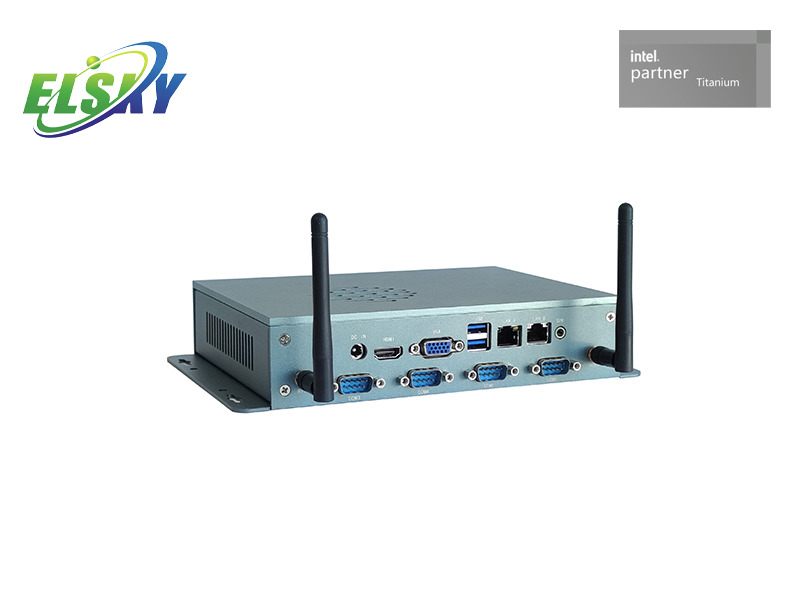

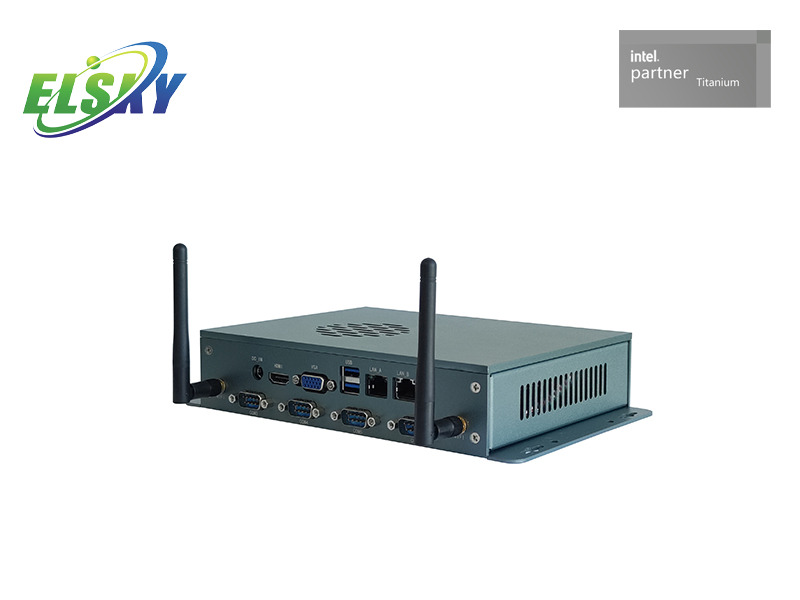

| Support WIFI/4G/Bluetooth optional, support 2*WIFI antenna rod |
| Display function | Integrated Intel UHD Graphics supercore graphics card, support single display, double display replication, double display expansion; |
| 1*VGA DB15 port | Support resolution 1920*1080@60Hz; |
1*HDMI2 1.4 port (selectable) | Support 4K resolution 4096/3840*2160@30Hz; |
| VGA interface and HDMI2 interface are selected from one another; |
| 1*HDMI1 1.4 port | Support 4K resolution 4096/3840*2160@30Hz; |
| USB function | 2*USB3.2 port | Rear standard USB3.2 Gen1 interface |
| 6*USB2.0 port | Rear standard USB2.0 interface |
| Dual network pc supports 4*USB2.0 interface |
| Sound function | Integrated Realtek ALC662/897 HD digital audio decoder, 6 channel high fidelity audio controller |
| 1*SPK port | Support audio output |
| The HDMI interface supports the HDMI audio output |
| Hard disk function | 1*M.2； 1*2.5 inch SSD or HDD; 1*MSATA optional; |
| Switch function | POWER | Switch button |
| Other I/O | 6*COM port | Support RS232 (customizable support RS485) |
| Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation; Storage temperature: -20℃~70℃; |
| BIOS | AMI BIOS,support power on, scheduled power on, remote power on and off, etc |
| Watch Dog | Watch dog programming, hardware reset function (256 level, 0~255 seconds) |
| Operating system | Support Windows 10, Windows 11, Linux, etc |
Product Model Options:
| HDMI | VGA/HDMI2 | LAN | USB2.0 | USB3.2 | COM | SSD | Memory | Power |
| 4k 30Hz | VGA:2K 60Hz HDMI2:4K 30Hz optinoal | 1 | 6 | 2 | 6 | 1*M.2 1*2.5 inch SSD/HDD Optional 1*MSATA | 1*NB-DDR4 Max 32G | 12V/19V |
| 2 | 4 | 2 |
CPU Information:
The following CPU information is for reference only, please consult us for specific needs!
CPU | CPU brand | CPU model | Main frequency | Turbo | CPU power consumption (W) | Full load power consumption(W) |
8th gen I3 | core | 8145U | Dual core 2.1G | 3.9G | 15 | 60 |
8th gen I5 | core | 8365U | Quad core 1.6G | 4.1G | 15 | 60 |
8265U | Quad core 1.6G | 3.9G | 15 | 60 |
8th gen I7 | core | 8565U | Quad core 1.8G | 4.6G | 15 | 60 |
8665U | Quad core 1.9G | 4.8G | 15 | 60 |
10th gen I3 | core | 10110U | Dual core 2.1G | 4.1G | 15 | 60 |
10th gen I5 | core | 10310U | Quad core 1.7G | 4.4G | 15 | 60 |
core | 10210U | Quad core 1.6G | 4.2G | 15 | 60 |
10th gen I7 | core | 10510U | Quad core 1.8G | 4.9G | 15 | 60 |
core | 10610U | Quad core 1.8G | 4.9G | 15 | 60 |
core | 10810U | Six core 1.1G | 4.9G | 15 | 60 |
core | 10710U | Six core 1.1G | 4.7G | 15 | 60 |
FAQ
1.Q: What CPU options are available?
A: The M108 supports 8th gen (Whiskey Lake) and 10th gen (Comet Lake) Intel Core U-series processors. Available options include i3, i5, and i7 configurations.
2.Q: How many displays does the host support?
A: The M108 can support two independent displays simultaneously. You can use HDMI 1 (4K) along with either VGA (1080P) or HDMI 2 (4K).
3.Q: What are the storage options?
A: The M108 provides three storage options: one M.2 slot, one 2.5-inch SSD/HDD bay, and an optional MSATA slot for flexible storage configurations.
4.Q: What operating systems are compatible?
A: The host supports major operating systems, including Windows 10, Windows 11, and Linux.
5.Q: What connectivity does it offer for industrial equipment?
A: It features 6 COM interfaces (RS232), which are customizable to support RS485. This is essential for connecting to PLCs and other industrial sensors.
