Overview

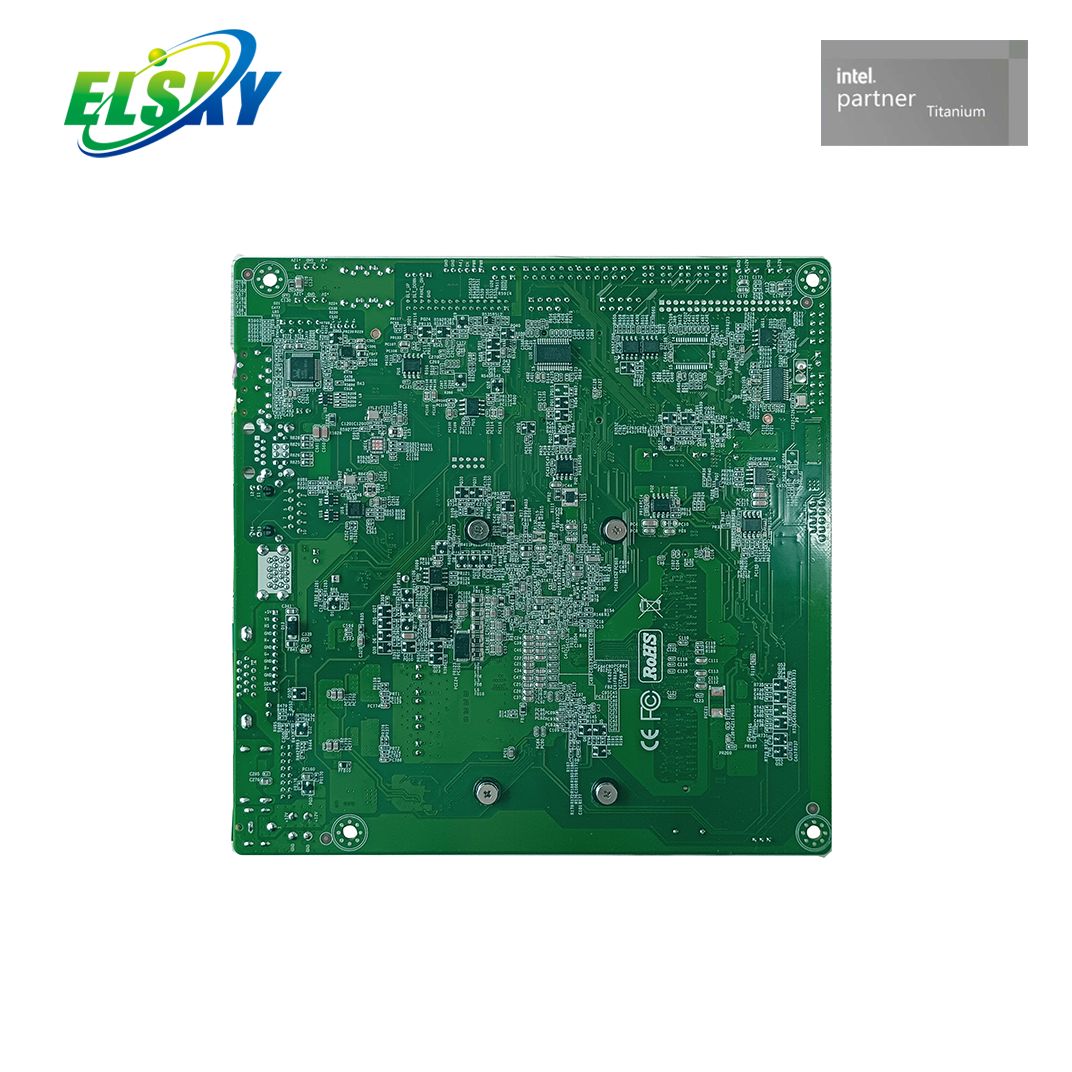

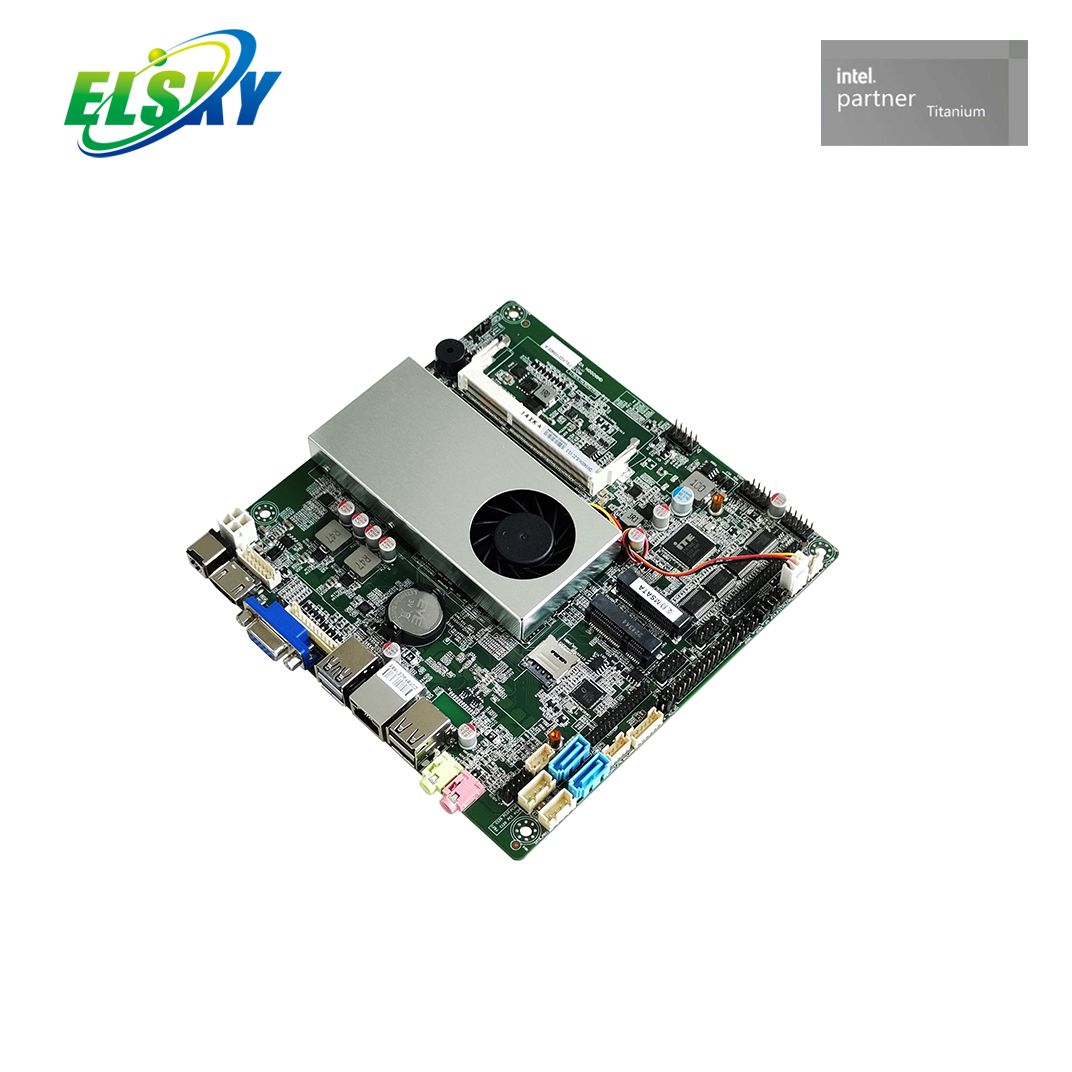

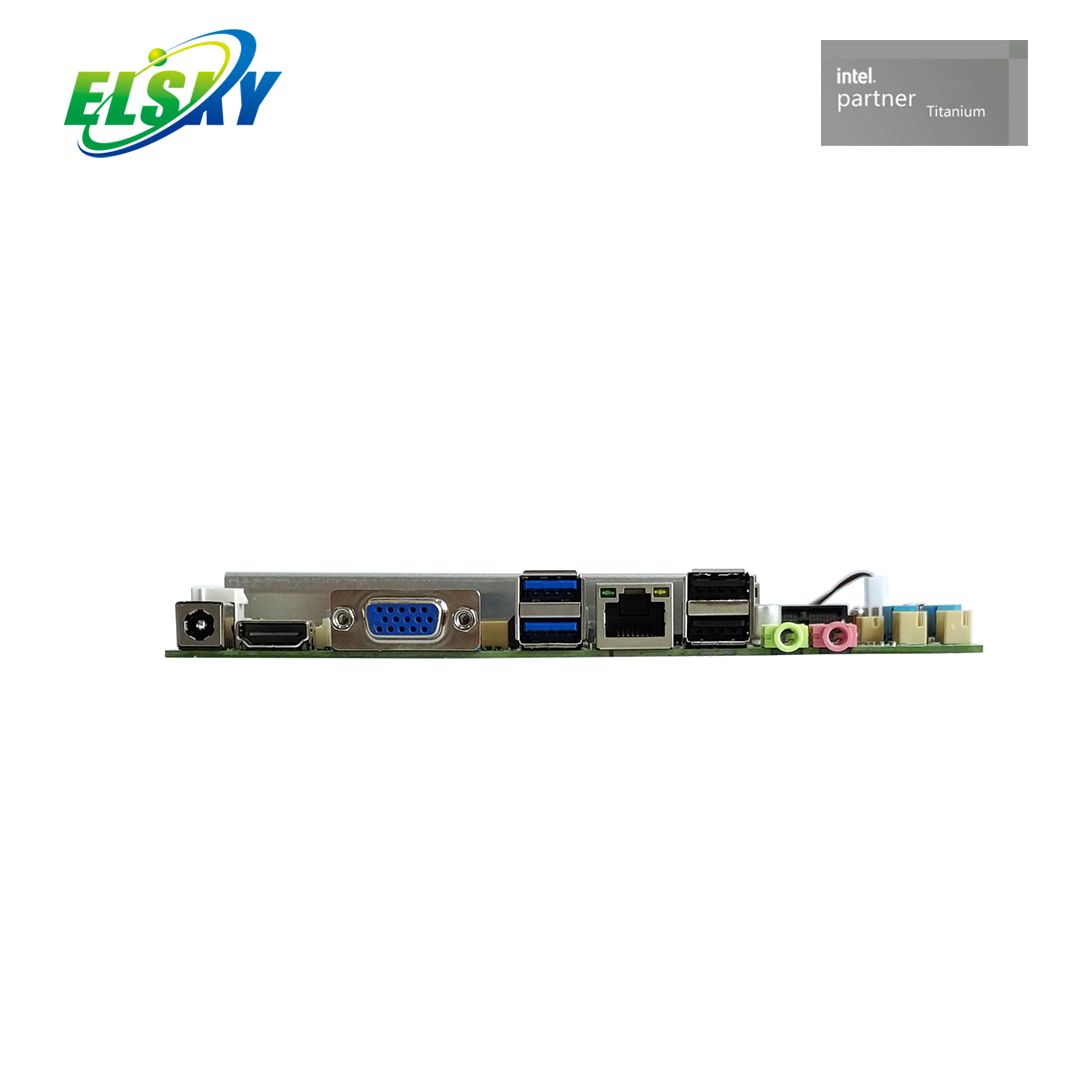

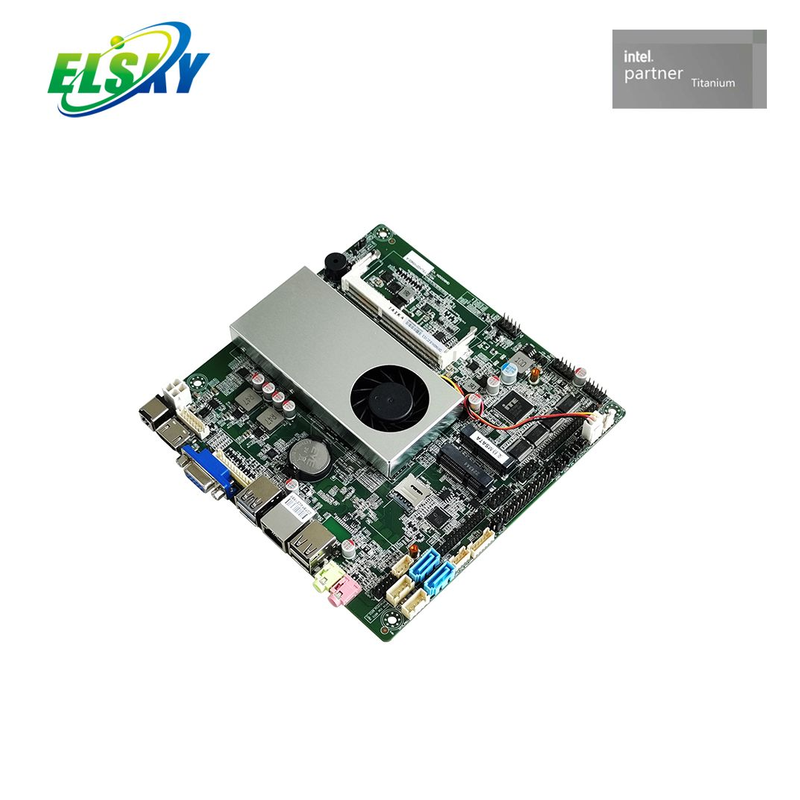

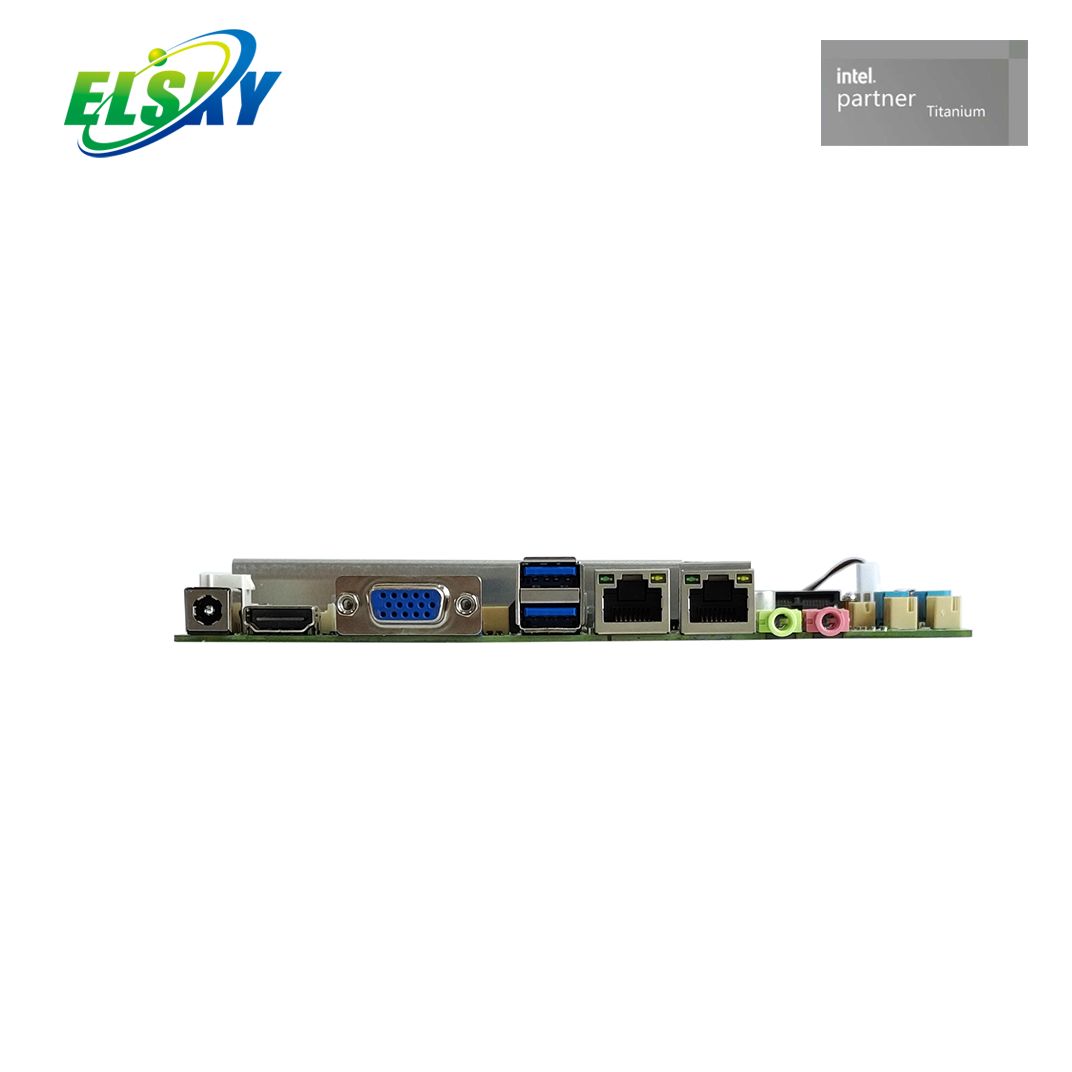

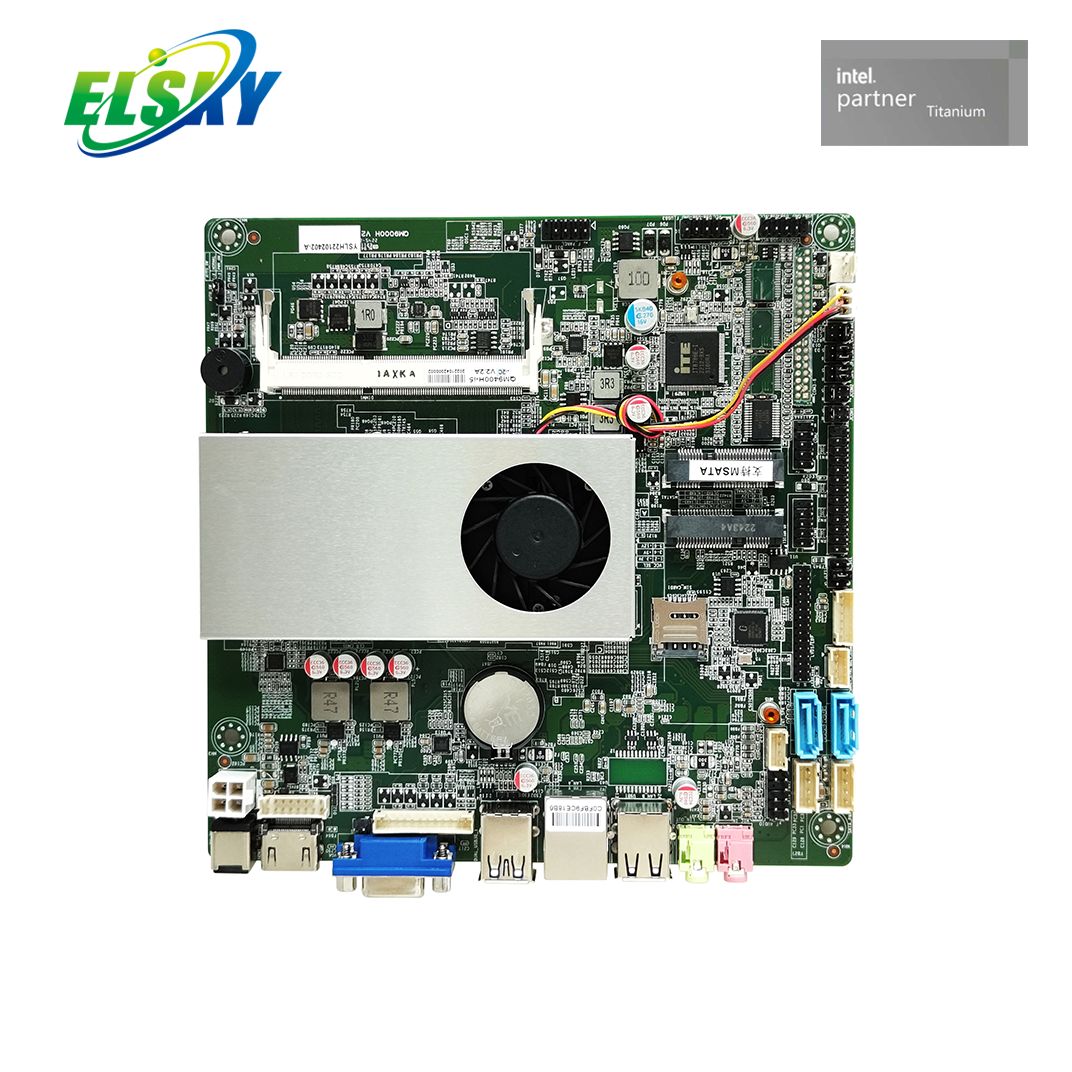

The QM9500H is a modern Mini-ITX industrial board built for efficiency and performance. Powered by Intel 5th Generation Broadwell-U processors (i3-5010U/i5-5200U/i7-5500U), it offers better graphics and power efficiency for 24/7 industrial applications.
Features
Broad Processor Compatibility: Supports Intel 5th Gen Broadwell-U processors (i3-5010U, i5-5200U, i7-5500U) for reliable industrial performance.
High-Speed Memory Support: 1 x DDR3 SODIMM slot supports up to 8GB 1600MHz memory.
Triple Display Output: HDMI 1.4 (4K@30Hz), VGA, and LVDS/EDP – ideal for digital signage.
Gigabit Network: 1 or 2 x Realtek 8111H Gigabit LAN with Wake-on-LAN and PXE.
Flexible Storage Options: 2 x SATA 3.0 ports + 1 x MSATA interface.
Rich I/O Connectivity: 6/8 x USB (2 x USB3.0) and optional 2/6 x COM ports (COM2: 232/422/485).
Industrial-Grade Durability: 24/7 operation at -10°C to 60°C. Watchdog timer with 256-level reset.
Application
Factory Automation: Connect PLCs, sensors, and HMIs with 6 COM ports and dual LAN options.
Digital Signage: 4K HDMI output for eye-catching retail and public displays.
Self-Service Kiosks: Compact Mini-ITX size fits payment terminals, ticket kiosks, and info stations.
Medical Equipment: Stable platform for diagnostic tools, patient monitors, and lab equipment.
IoT Edge Computing: Mini-PCIe 4G connectivity + MSATA storage for edge data processing.
Retail POS: Durable point-of-sale systems for busy store environments.
Why Choose Us
Tested Reliability: All boards pass 24-hour burn-in and temperature cycling tests.
4 Models, 1 Footprint: Same mounting holes, different I/O — easy to upgrade without redesign.
Custom Options: BIOS logo, COM voltage (0V/5V/12V), TTL conversion, wireless modules.
Engineering Support: Direct help with BIOS settings, driver issues, and hardware integration.
Competitive Pricing: Factory direct — no middleman markup.
Motherboard model |
CPU |
4K |
LAN |
COM |
USB |
SSD |
Memory |
power |
QM9500H-2C |
Broadwell-U 5th generation |
HDMI 4K 30Hz |
1 |
2 |
8 |
1*MSATA 2*SATA 3.0 |
1*NB DDR3 MAX 8GB |
12V/19V |
QM9500H-2L2C |
2 |
2 |
6 |
QM9500H-6C |
1 |
6 |
8 |
QM9500H-2L6C |
2 |
6 |
6 |
The motherboard defaults to 8*USB, and supports 6*USB after changing the dual network |
>> CPU information
CPU Specifications |
CPU Brand |
CPU Model |
Frequency |
Turbo |
CPU power consumption (W) |
Full load power consumption (W) |
5th generation I3 |
Intel core |
5005U |
Dual-core 2.0G |
|
15 |
40 |
5010U |
Dual-core 2.1G |
|
15 |
40 |
5015U |
Dual-core 2.1G |
|
15 |
40 |
5020U |
Dual-core 2.2G |
|
15 |
40 |
5th generation I5 |
Intel core |
5200U |
Dual-core 2.2G |
2.7G |
15 |
40 |
5250U |
Dual core 1.6G |
2.7G |
15 |
40 |
5257U |
Dual-core 2.7G |
3.1G |
15 |
40 |
5287U |
Dual-core 2.9G |
3.3G |
28 |
50 |
5300U |
Dual-core 2.3G |
2.9G |
15 |
40 |
5350U |
Dual core 1.8G |
2.9G |
15 |
40 |
5th generation I7 |
Intel core |
5500U |
Dual-core 2.4G |
3.0G |
15 |
40 |
5550U |
Dual-core 2.0G |
3.0G |
15 |
40 |
5557U |
Dual-core 3.1G |
3.4G |
28 |
50 |
5600U |
Dual-core 2.6G |
3.2G |
15 |
40 |
5650U |
Dual-core 2.2G |
3.1G |
15 |
40 |
>> Product Specifications
Motherboard size |
170mm(L)*170mm(W)*20mm(H) |
CPU processor |
QM9400H supports 4th generations of CPU: I3-4010U, I5-4200U, I7-4500U, etc. |
|
QM9500H supports 5th generations of CPU: I3-5010U, I5-5200U, I7-5500U, etc. |
Chipset |
Haswell-U, Broadwell-U high-speed chipset |
Memory support |
1*DDR3 SODIMM memory slot, support 1600MHz memory, low voltage 1.35V, maximum support 8GB |
Power supply |
1*DC_IN |
The motherboard supports 12V/19V, and the inner diameter of the DC head is 2.5MM The power consumption of the motherboard is about 40W under full load. It is recommended to use a power supply above 12V5A or 19V4A |
|
1*DC_ATX |
Display function |
4th generation integrated Intel® HD 4400 graphics controller, supports single display, dual display /triple display copy, dual display/triple display expansion, single display under DOS |
|
5th generation integrated Intel® HD 5500 graphics controller, supports single display, dual display /triple display copy, dual display/triple display expansion, single display under DOS |
|
1*VGA DB15 interface |
Support resolution 1920*1080@60Hz |
|
1*VGA_OUT pin |
Support resolution 1920*1080@60Hz (12Pin, 1*12Pin, 2.0mm) |
|
1*HDMI 1.4 interface |
Support resolution 4096/3840*2160@30Hz |
|
1*HDMI_CON pin |
Support resolution 4096/3840*2160@30Hz (16Pin, 2*8Pin, 2.0mm) |
|
1*LVDS/EDP pin |
Support resolution 1920*1080@60Hz (30Pin, 2*15Pin, 2.0mm) |
|
LVDS and EDP share pins, the default LVDS signal can be changed to EDP signal |
|
1*VCC_SEL pin |
LVDS/EDP voltage control pin (6Pin, 2*3Pin, 2.0mm) |
|
1*INVERT pin |
LVDS/EDP backlight switch control pin (6Pin, 1*6Pin, 2.0mm) |
|
1*BKLT_CTRL pin |
LVDS backlight brightness adjustment pin (4Pin, 1*4Pin, 2.0mm) |
Internet function |
1/2*RJ45 LAN interface |
100M network card and Gigabit network card are optional, support wake-up on network and PXE diskless boot function (Gigabit: single network 8111H, dual network 8111H+8111H ) (100M: single network 8106E, dual network 8106E+8106E ) |
|
1*Mini-PCIE interface |
Support WIFI/3G/4G/Bluetooth module, etc. |
Hard disk function |
1*MSATA interface |
Support MSATA disk or USB signal WIFI module |
|
2*SATA interface |
Standard SATA3.0 hard disk interface, the maximum transmission speed is 6.0 Gbps |
|
2*SATA_PWR pin |
The hard disk power supply pin can be powered by 5V or 12V. (4Pin, 1*4Pin, 2.54mm) |
Sound function |
Integrated Realtek ALC662/897 HD digital audio decoder, 6-channel high-fidelity audio controller |
|
1*LIN_OUT interface |
Support audio output (green) |
|
1*MIC_IN interface |
Support microphone input (red) |
|
1*INT_SPK pin |
Power amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm) |
|
1*F_AUDIO pin |
Standard audio pin (9Pin, 2*5Pin, 2.54mm) |
USB function |
2*USB3.0 interface |
Rear standard USB3.0 interface |
|
2*USB2.0 interface |
Rear standard USB2.0 interface |
|
1*F_USB2 pin |
Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) |
|
1*F_USB3 pin |
Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) |
Switch function |
1*F_PANEL pin |
Switch, power light, hard disk light, reset pin (9Pin, 2*5Pin, 2.54mm) |
|
1*AUTO_SW pin |
Hardware control power-on pin (3Pin, 1*3Pin, 2.0mm) |
Other I/O |
1*COM1 pin |
Serial port, only supports RS232 (9Pin, 2*5Pin, 2.54mm) |
|
1*COM2 pin |
Serial port, COM2 supports RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.54mm) |
|
COM3~COM6 pins |
Serial port, support standard RS232 (39Pin, 2*20Pin, 2.0mm) |
|
1*JCOM1 pin |
Control COM1 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm) |
|
1*JCOM2 pin |
Control COM2 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm) |
|
JP9/JP10/JP11 Pin |
COM2 supports RS422 and RS485 signal jumper settings (6Pin, 2*3Pin, 2.0mm) |
|
1*SIM_CARD card slot |
Support SIM card, need SIM card when using 3G/4G |
|
1*CLR_CMOS pin |
Motherboard reset and discharge pin (2Pin, 1*2Pin, 2.54mm) |
|
1*J_GPIO pin (optional ) |
GPIO control pin (10Pin, 2*5Pin, 2.0mm ) |
|
1*SYS_FAN pin |
System fan pin, full speed, does not support temperature control (3Pin, 1*3Pin, 2.54mm) |
|
1*CPU_FAN pin |
CPU fan pin, support temperature control (3Pin, 1*3Pin, 2.54mm) |
Operating environment |
Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing |
BIOS |
AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment |
Watch dog |
Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) |
Operating system |
Support Windows 10, Windows 8, Windows 7, Linux, etc. |
>> FAQ
1. What CPUs work with QM9500H?
Intel 5th Gen Broadwell-U: i3-5010U, i5-5200U, i7-5500U.
2. How much RAM can I install?
One DDR3 SODIMM slot supports up to 8GB 1600MHz.
3. Does it support 4K?
Yes. HDMI 1.4 outputs 4K at 30Hz.
4. Can I get dual LAN on this board?
Yes. Models with "2L" in the name have 2 x Gigabit LAN ports.
5. What power supply do I need?
12V or 19V. Full load power consumption is about 40W.
