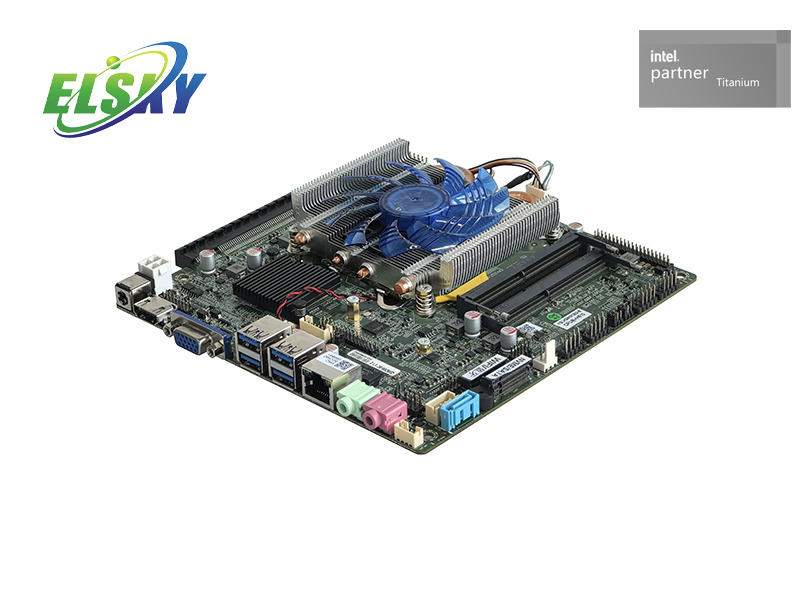

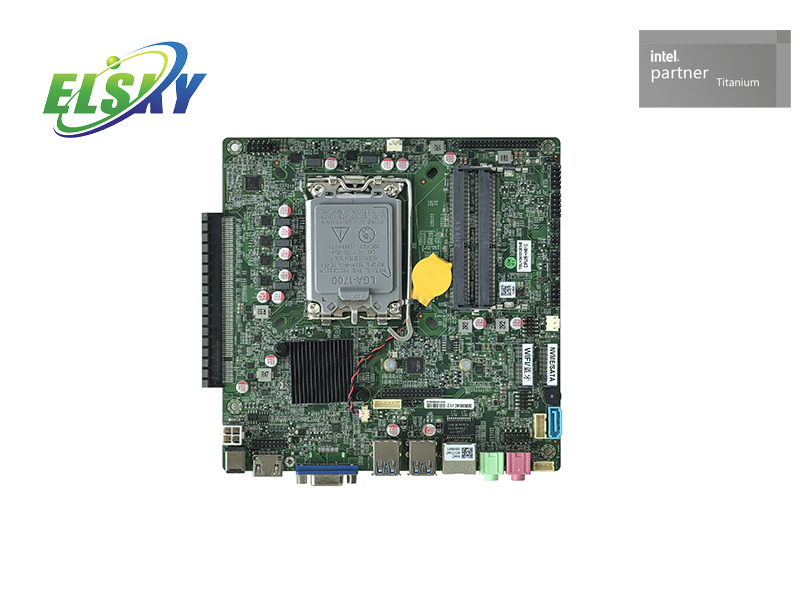

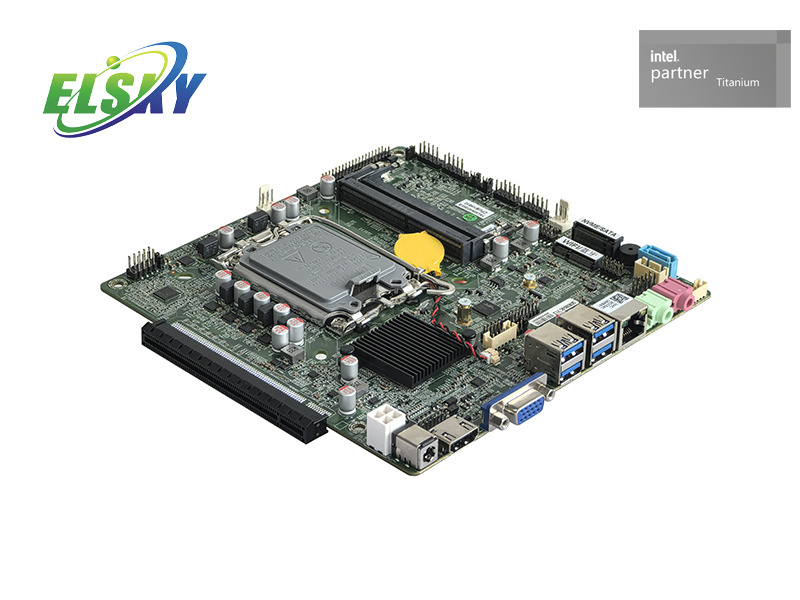

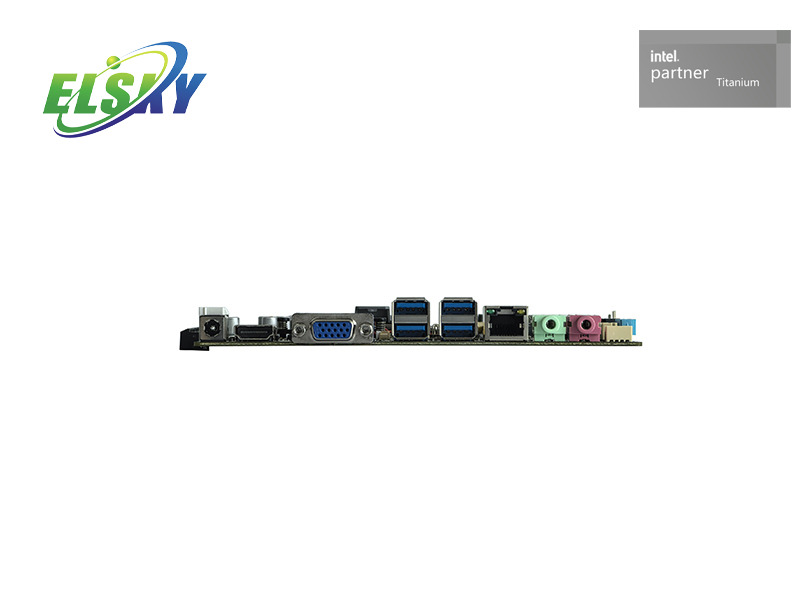

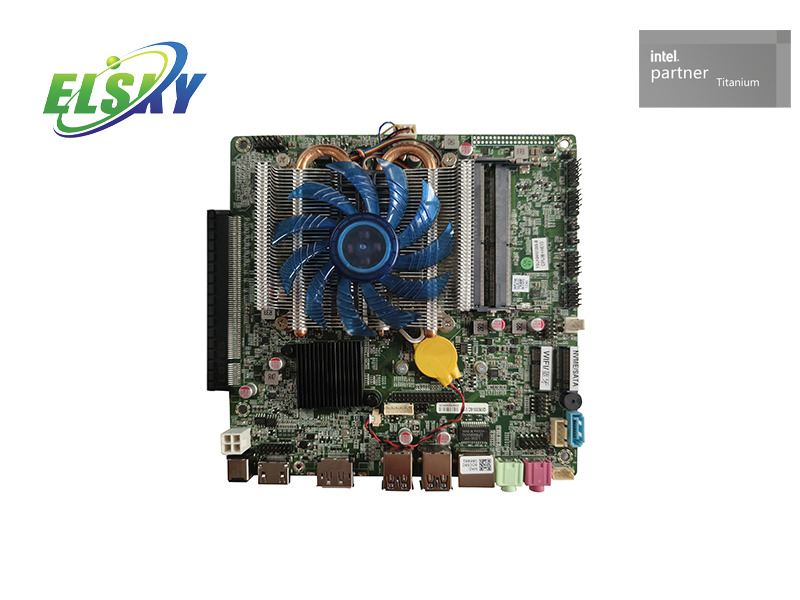

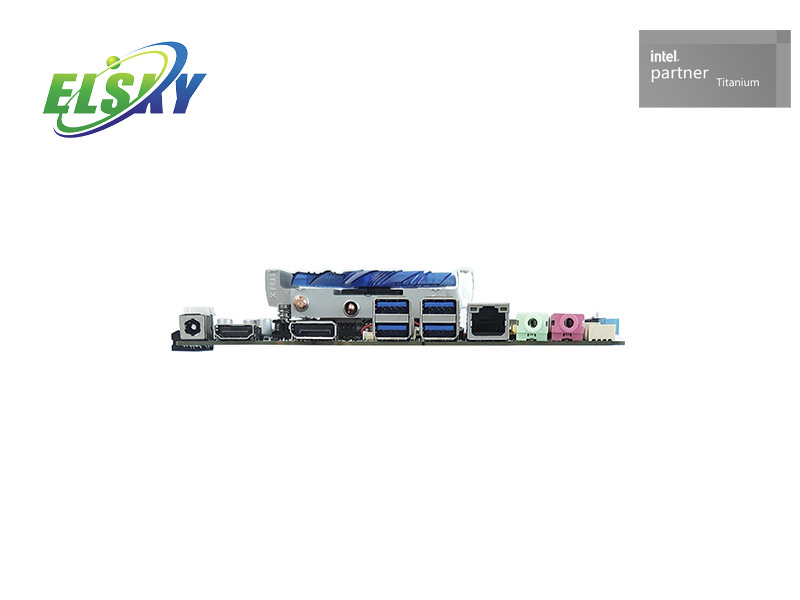

Motherboard QM6300

>> Important Note

• Power supply interface:

The motherboard DC interface specification is 5.5*2.5, a 4Pin ATX power supply interface;

The motherboard power supply supports 12V or 19V; the power consumption at full load is about 150W. It is recommended to use a power supply of 12V15A or 19V10A or above;

• Display interface:

1. The motherboard HDMI/HDMI_CON, VGA/DP, LVDS/EDP supports single display, dual display/triple display replication, dual display/triple display expansion, and single display under SHELL;

2. Choose between VGA and DP for the motherboard. The default supports VGA, but can be changed to support DP;

3. The motherboard LVDS and EDP are two options. They share pins and support LVDS by default. If you use EDP, you need to change the motherboard. EDP uses an EDP-B screen cable (20Pin backlight separate independent screen cable);

4. The motherboard HDMI interface/HDMI_CON pin supports 4K resolution 4096/3840*2160@60Hz; using the built-in HDMI_CON pin to connect to a 4K screen requires removing the external HDMI interface, otherwise some screens may be interfered;

5. The motherboard DP supports 4K resolution 4096/3840*2160@60Hz;

6. The motherboard EDP supports 4K resolution 4096/3840*2160@60Hz;

7. The motherboard supports 1 PCI-E

• M.2：

1. The motherboard M.2 -WIFI supports the Key-E interface M.2 WiFi Bluetooth module. The default PCIE signal and USB signal coexist , and the M.2 hard drive cannot be changed;

2. The motherboard NGFF supports Key-M interface M.2 2280 hard drives, but does not support M.2 2242 hard drives; it supports NVME (PCIE) protocol and SATA protocol hard drives by default, without changing the hardware and BIOS;

• USB interface:

1. The motherboard supports 8USB by default (4*USB3.2 Gen1, 4*USB2.0);

2. All USB interfaces and pins on the motherboard default to S power (not powered after shutdown), and can be changed to A power (charged after shutdown);

• COM port:

1. The motherboard optionally supports 2*COM; COM 1 port optionally supports RS232/RS422/RS485, which can be set through BIOS;

2. The motherboard COM1/2 can respectively set the ninth pin to output 0V/5V/12V through the JCOM1/2 jumper cap, and the default is 0V;

• Network card:

The motherboard supports Realtek 8111H Gigabit network card, which cannot be changed to dual network or POE power supply;

• Sound card:

The motherboard is a Realtek ALC897 sound card, the F_AUDIO pin is available, and the USB sound card cannot be changed.

>> CPU information

>> Product Specifications

>> The Characteristics of the Motherboard

1. Full variety: ELSKY motherboard covers Intel's entire product line of low-power, high-performance CPUs and chipsets.

2. Small size: Mini-ITX based, with additional embedded specialized structures.

3. High integration: On-board CPU, part of the motherboard with memory, hard disk, integrated sound and graphics network card.

4. Low-power: Within 5W-30W for most motherboards.

5. High speed: Multi-core CPU, DDR3-DDR4-DDR5 memory, M.2-MSATA storage, USB3.0, SATA3.0, Gigabit LAN card.

6. Full interfaces: The IO baffle uses standard interfaces. Multi-USB, Multi-COM, Multi-network, Multi-SATA, Multi-display interfaces.

7. Fanless: Some motherboards use fanless cooling to prevent problems with broken fans.

8. Display interfaces: VGA/HDMI/LVDS/DVI/EDP/DP display interfaces.

9. Extensibility: Provides PCI, PCIE, Mini PCIE and other expansion interfaces.

>> The Applications of the Motherboard

ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
