Motherboard model | CPU | 4K | LAN | USB2.0 | USB3.2 | Type-C | Memory（MAX） | SSD | Power |
NUC12 | Intel Alder Lake12th generation U/P/H series i3, i5, i7, i9 | 1*HDMI 4K 60Hz / 1*Mini-DP 4K 60Hz | 1 | 2 | 3 | 1 | 1*NB-DDR4 MAX 32G | 1*M.2 | +9~24V |
NUC13 | Intel Raptor Lake 13th generation U/P/H series i3, i5, i7, i9 | 1 | 2 | 3 | 1 |
>> Important Note
Power supply interface:
The motherboard DC interface specification is 5.5*2.5, which can be changed to a 4*Pin ATX interface for power supply;
The motherboard supports 9~24V wide voltage power supply, and the power consumption at full load is about 60W. It is recommended to use at least 9V 7A or above power supply;
Display interface:
1. The motherboard HDMI and Mini_DP support single display, dual display duplication, and dual display expansion;
2. The motherboard HDMI 2.0 interface supports 4K resolution 4096/38 40*2160@60Hz;
3. The motherboard Mini_DP supports 4K resolution 4096/3840*2160@60Hz;
4. To convert the motherboard Mini_DP interface to HDMI, you must use an active Mini_DP to HDMI cable, otherwise there will be no display; if you connect the Mini_DP to DP cable, you can use it directly;
M.2
1. The motherboard M.2-SATA/PCIE supports Key-M interface M.2 2280/2242 hard drives, the default is 2280, if you use 2242, you need to change the fixing screws; the default supports NVME (PCIE) protocol, and the hardware can be modified to support SATA protocol;
2. The motherboard M.2_WIFI supports the Key-E interface M.2 2230 WiFi/Bluetooth module;
USB interface:
1. The motherboard supports 5 *USB ( 3 *USB3.2, 2 *USB2.0) and 1*Type-C interface by default;
2. The motherboard's external USB interface and built-in USB pins default to S power (not powered after shutdown). The external USB1 and Type_C interfaces can be changed to A power (charged after shutdown), and the others cannot be changed to A power;
COM port:
The motherboard COM1 optionally supports RS232 / RS422/RS485 and can be set through BIOS;
Network card:
The motherboard supports Intel WG i219V single Gigabit network card, cannot be changed to dual network, and cannot be changed to POE power supply;
Sound card:
1. The motherboard supports Realtek ALC897 sound card by default;
2. The motherboard LINE_OUT audio interface supports LINE_OUT output and MIC_IN input.
>> CPU information
CPU specifications | CPU brand | CPU model | Core/Thread | Main frequency | Turbo frequency | CPU basic power consumption (W) | Maximum Turbo Power Consumption (W) |
12th generation i3 | core | 1215U | Six cores and eight threads | 1.2G | 4.4G | 15 | 55 |
1210U | Six cores and eight threads | 1.0G | 4.4G | 9 | 29 | ||
12th generation i5 | core | 1235U | Ten cores and twelve threads | 1.3G | 4.4G | 15 | 55 |
1240U | Ten cores and twelve threads | 1.1G | 4.4G | 9 | 29 | ||
1230U | Ten cores and twelve threads | 1.0G | 4.4G | 9 | 29 | ||
1245U | Ten cores and twelve threads | 1.6G | 4.4G | 15 | 55 | ||
12th generation I7 | core | 1250U | Ten cores and twelve threads | 1.1G | 4.7G | 9 | 29 |
1260U | Twelve cores and sixteen threads | 1.1G | 4.7G | 9 | 29 | ||
1265U | Ten cores and twelve threads | 1.8G | 4.8G | 15 | 55 | ||
1255U | Ten cores and twelve threads | 1.7G | 4.7G | 15 | 55 | ||
12th generation i3 | core | 1220P | Ten cores and twelve threads | 1.5G | 4.4G | 28 | 64 |
12th generation i5 | core | 1240P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 |
1250P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 | ||
12th generation I7 | core | 1280P | Fourteen cores and twenty threads | 1.8G | 4.8G | 28 | 64 |
1260P | Twelve cores and sixteen threads | 2.1G | 4.7G | 28 | 64 | ||
1270P | Twelve cores and sixteen threads | 2.2G | 4.8G | 28 | 64 | ||
12th generation i5 | core | 12450H | Eight cores and twelve threads | 2.0G | 4.4G | 45 | 95 |
12500H | Twelve cores and sixteen threads | 2.5G | 4.5G | 45 | 95 | ||
12th generation I7 | core | 12800H | Fourteen cores and twenty threads | 2.4G | 4.8G | 45 | 115 |
12700H | Fourteen cores and twenty threads | 2.7G | 4.7G | 45 | 115 | ||
12650H | Ten cores and sixteen threads | 2.3G | 4.7G | 45 | 115 | ||
12600H | Twelve cores and sixteen threads | 2.7G | 4.5G | 45 | 95 | ||
12th generation I9 | core | 12900H | Fourteen cores and twenty threads | 2.5G | 5.0G | 45 | 115 |
13th generation i3 | core | 1305U | Five cores and six threads | 1.6G | 4.5G | 15 | 55 |
1315U | Six cores and eight threads | 1.2G | 4.5G | 15 | 55 | ||
13th generation i5 | core | 1334U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 |
1335U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 | ||
1345U | Ten cores and twelve threads | 1.6G | 4.7G | 15 | 55 | ||
13th generation I7 | core | 1355U | Ten cores and twelve threads | 1.7G | 5.0G | 15 | 55 |
1365U | Ten cores and twelve threads | 1.8G | 5.2G | 15 | 55 | ||
13th generation i5 | core | 1340P | Twelve cores and sixteen threads | 1.8G | 4.6G | 28 | 64 |
1350P | Twelve cores and sixteen threads | 1.9G | 4.7G | 28 | 64 | ||
13th generation I7 | core | 1360P | Twelve cores and sixteen threads | 2.2G | 5.0G | 28 | 64 |
1370P | Fourteen cores and twenty threads | 1.9G | 5.2G | 28 | 64 | ||
13th generation i5 | core | 13420H | Eight cores and twelve threads | 2.1G | 4.60G | 45 | 95 |
13500H | Twelve cores and sixteen threads | 2.6G | 4.70G | 45 | 95 | ||
13505H | Twelve cores and sixteen threads | 2.6G | 4.70G | 45 | 115 | ||
13600H | Twelve cores and sixteen threads | 2.8G | 4.80G | 45 | 95 | ||
13th generation I7 | core | 13620H | Ten cores and sixteen threads | 2.4G | 4.90G | 45 | 115 |
13700H | Fourteen cores and twenty threads | 2.4G | 5.00G | 45 | 115 | ||
13705H | Fourteen cores and twenty threads | 2.4G | 5.00G | 45 | 115 | ||
13800H | Fourteen cores and twenty threads | 2.5G | 5.20G | 45 | 115 | ||
13th generation I9 | core | 13900H | Fourteen cores and twenty threads | 2.6G | 5.40G | 45 | 115 |

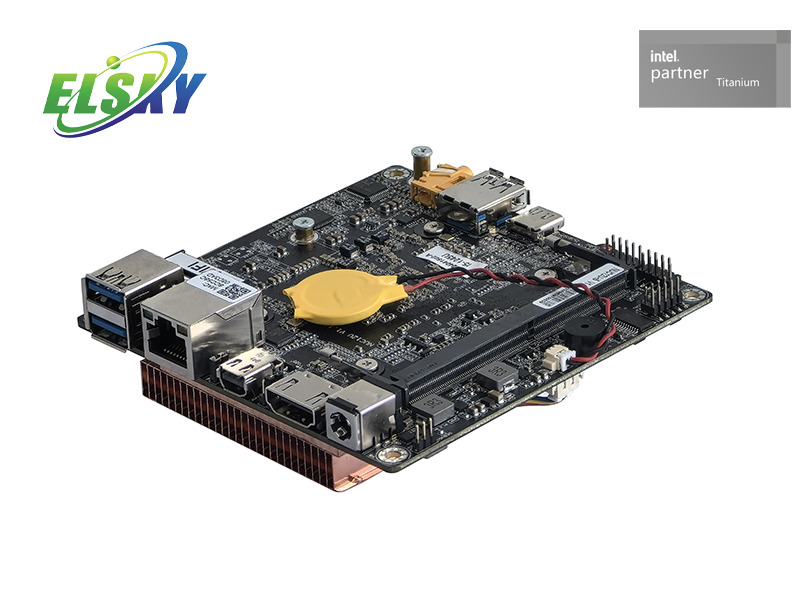

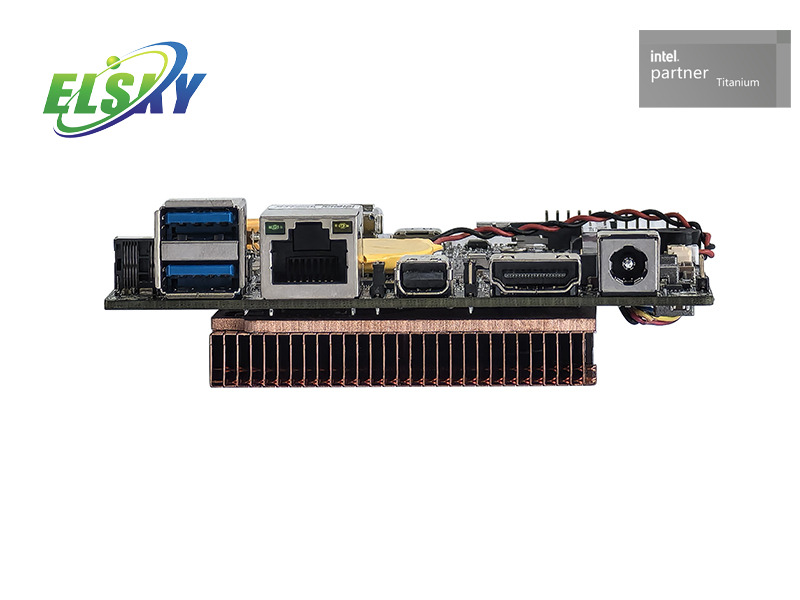

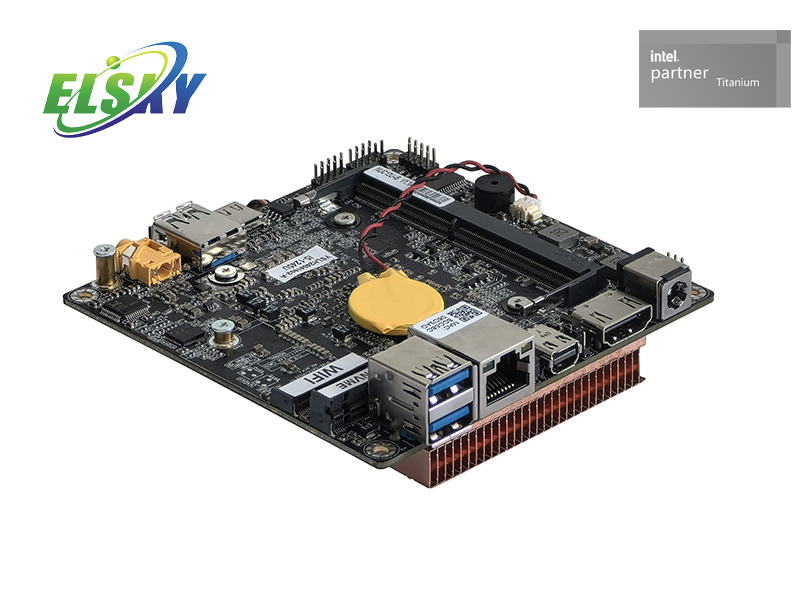

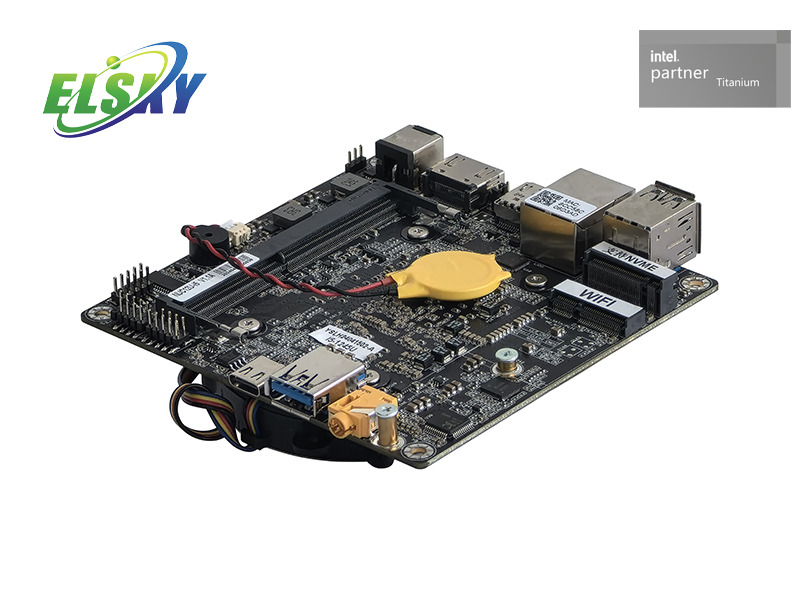

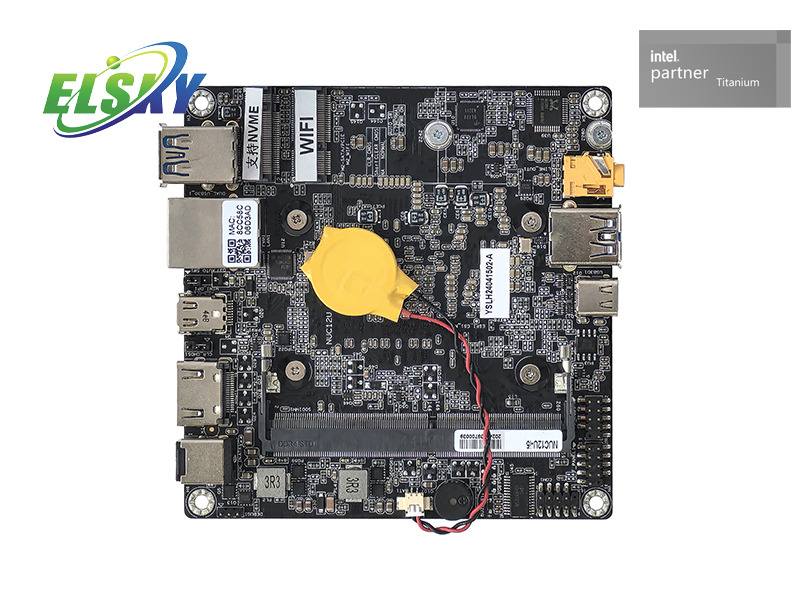

>> Product Specifications
| Motherboard size | 100mm(L)*100mm(W)*32mm(H) | |
| CPU processor | NUC12 | Supports 12th generation Intel Alder Lake U/P/H series i5-1235U, i5-1240P, i7-12600H, etc. |
| NUC13 | Supports 13th generation Intel Raptor Lake U/P/H series i5-1335U, i7-1360P, i9-13900H, etc. | |
| Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM and supports 9~24V wide voltage power supply. |
| (Can be changed to 4Pin ATX) | The power consumption of the motherboard is about 60W. It is recommended to use at least 9V7A or above power supply | |
| Memory | 1*NB-DDR4 supports 2133/2400/2666/ 2933/3200MHz memory, up to 32G | |
| Display function | Integrated Intel UHD Graphics super core graphics card, supports single display, dual display duplication, and dual display expansion | |
| 1*Mini-DP interface | Support 4K resolution 4096/3840*2160@60Hz | |
| 1*HDMI 2.0 interface | Support 4K resolution 4096/3840*2160@60Hz | |
| Internet function | 1*LAN interface | Intel WGi219V Gigabit network card, supports network wake-up, PXE function |
| 1*M.2_WIFI interface | Support Key-E interface M.2 2230 WIFI/Bluetooth module | |
| Hard drive function | 1*M.2-SATA/PCIE interface | Supports Key-M interface M.2 2280/2242 hard disk, supports NVME (PCIE) protocol by default, and can change the hardware to support SATA protocol |
| Sound function | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller; | |
| 1*LINE_OUT interface | Support LINE_OUT output and MIC_IN input | |
| The motherboard HDMI interface supports HDMI display audio output | ||
| The motherboard Mini-DP interface supports DP monitor audio output | ||
| USB function | 2*USB3.2 interface | Rear standard USB3.2 Gen1 interface, maximum transmission bandwidth is 5Gbps |
| 1*Type-C interface | Standard Type-C3.0 interface, can connect USB devices | |
| 1*F_USB2 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
| Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm) |
| 1*AUTO_SW pin | Hardware power-on control pin (3Pin, 1*3Pin, 2.0mm) | |
| Other I/O | 1*COM1 pin | Support standard RS232 /RS422/ RS485 optional (BIOS settings) |
| (9Pin, 2*5Pin, 2. 0 mm) | ||
| 1*CLR_CMOS pin | Motherboard discharge, clear pin (3Pin, 1*3Pin, 2.0mm) | |

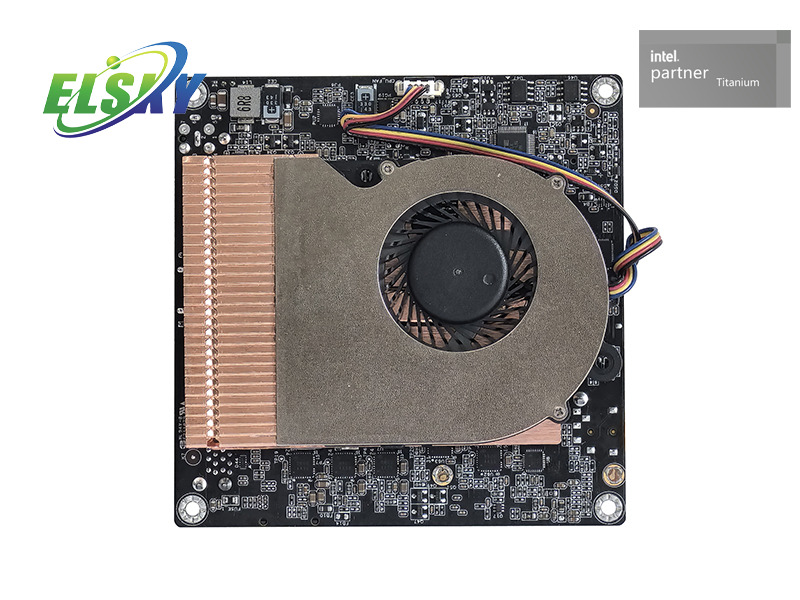

| 1*CPU_FAN pin | CPU fan pin, supports temperature control (4Pin, 1*4Pin, 1.25mm) | |
| Operating environment | Working temperature: -10℃~60℃; | |
| Working humidity: 5%~95% relative humidity, no condensation | ||
| BIOS | AMI BIOS supports power-on, scheduled boot, and intelligent identification of remote power on and off devices. | |
| Watch Dog | Watchdog programming, supports hardware reset function (level 256, 0~255 seconds) | |
| Operating system | Support Windows 10, Windows 11, LINUX, etc. | |
