| Availability: | |
|---|---|
| Quantity: | |
Motherboard model | CPU | 4K | LAN | COM | USB2.0 | USB3.2 | Memory | SSD | Power |

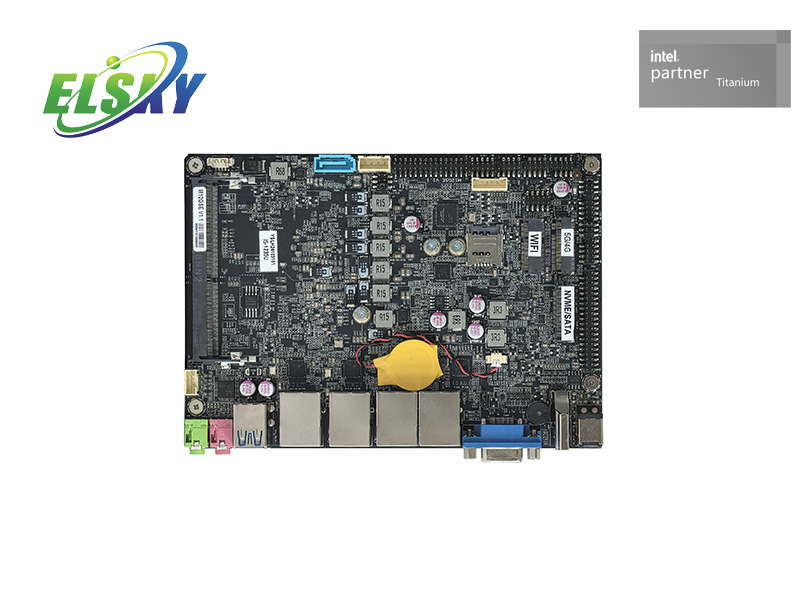

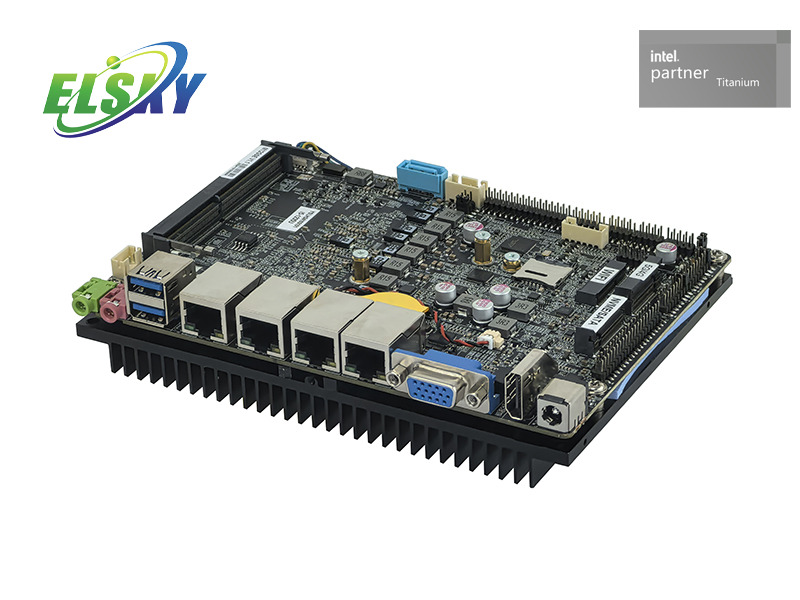

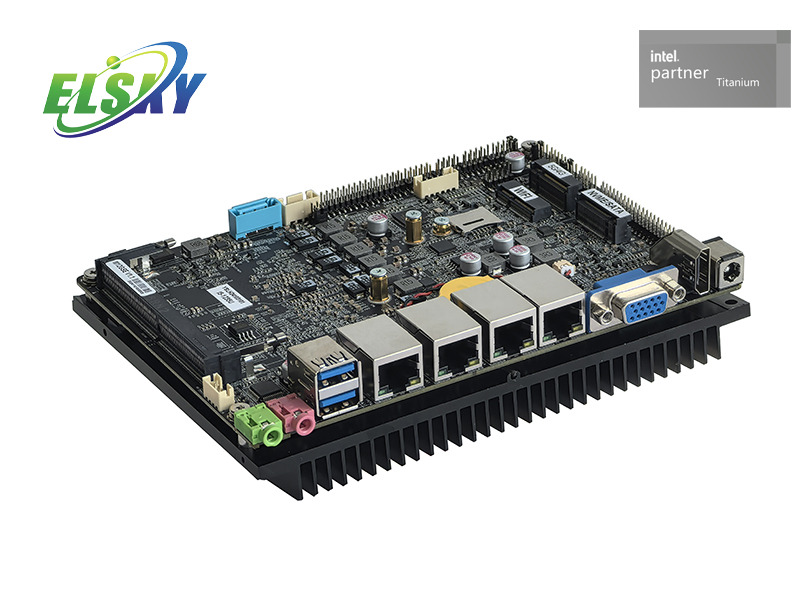

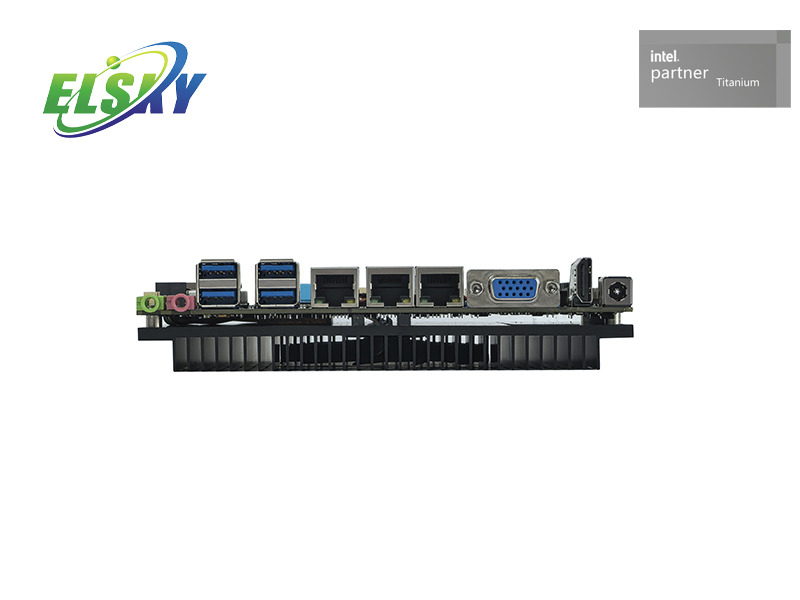

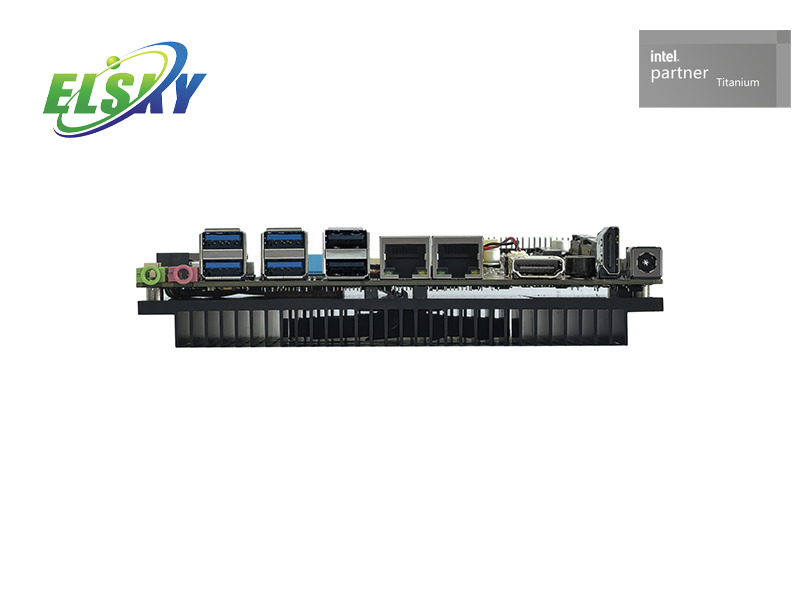

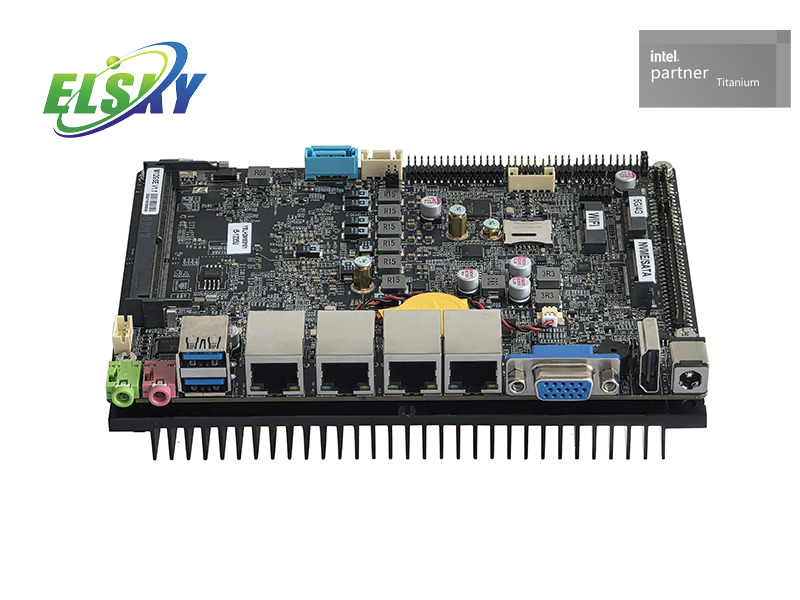

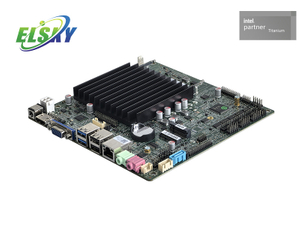

4-inch motherboard M12GSE | Support Intel Alder Lake 12th generation U/P/H series i3, i5, i7, i9 Support Intel Raptor Lake 13th generation U/P/H series i3, i5, i7, i9 | support | 2 | 6 | 6 | 4 | 1*NB-DDR4 32G (MAX) | 1*M.2 1*SATA | +12V/19V |
3 | 6 | 4 | 4 | ||||||
4 | 6 | 4 | 2 | ||||||
| The default setting of the quad-network motherboard is 6*USB available, and 4*USB can be available after supporting M.2 4G and Bluetooth | |||||||||
>> Important Note
Power supply interface:
The motherboard DC interface specification is 5.5*2.5, and can be changed to 4Pin ATX interface power supply;
The motherboard power supply supports 12V or 19V;
The maximum turbo power consumption of the U series CPU is 55W, and it is recommended to use a 12V 7A or higher power supply;
The maximum turbo power consumption of the P series CPU is 64W, and it is recommended to use a 12V 7A or higher power supply;
The maximum turbo power consumption of the H series CPU is 115W, and it is recommended to use a 12V 10A or higher power supply;
Display interface:
1. The motherboard VGA /HDMI2, HDMI1, LVDS/EDP supports single display, dual display/triple display copy, dual display/triple display expansion, and dual display under SHELL;
2. The motherboard supports VGA and HDMI2 signals. The default is to support VGA. It can be changed to support HDMI2 2.0 interface, which requires hardware and BIOS changes .
3. The motherboard supports one vertical HDMI 1 2.0 interface , which can be changed to support dual HDMI, both supporting 4K resolution 4096/3840*2160@60Hz;
4. The motherboard supports LVDS and EDP signals. The default is to support LVDS, which can be changed to support EDP. The pins are shared. EDP uses EDP-B screen cable (20Pin backlight is separated and independent). EDP supports 4K resolution 4096/3840*2160@60Hz;
M.2:
1. Motherboard NGFF (M.2_SSD) supports Key-M interface, default M.2 2280 hard disk, optional M.2 2242 hard disk; default support NVME (PCIE) protocol and SATA protocol coexistence, automatic switching;
2. The motherboard M.2_WIFI supports the default PCIE signal of the Key-E interface, but no USB signal. It supports the M.2 WIFI module by default, but does not support the Bluetooth module. It can be changed to support the WIFI/Bluetooth module. After the change, there is no signal on the 2nd/4th/6th/8th/10th pin of the F_USB2 pin.
3. The motherboard M2_4G/5G supports the Key-B interface. The default M.2 5G (3052/3042) module can be changed to support the M.2 4G (3042) module. After the change, there is no signal on the 1st/3rd/5th/7th pin of the F_USB2 pin; (Note: 5G needs to occupy the USB3.0 signal, and 4G needs to occupy the USB2.0 signal)
4. After the motherboard M2_4G/5G is connected to the 3042 specification 4G/5G module, the M.2_WIFI module cannot be connected at the same time, there will be interference, and only one can be selected; the 3052 specification 5G module and the M.2_WIFI module can be connected at the same time without interference;
5. After the motherboard is changed to triple network/dual network, the USB3.0 signal of the U port on the USB4 interface and the 5G signal of the M.2_4G/5G interface are selected. By default, the USB interface on the USB4 interface has a USB3.0 signal, and the M.2_4G/5G interface does not support 5G signals;
USB interface:
supports 4*USB after changing to M.2 4G and Bluetooth;
supports 6*USB after changing to M.2 4G and Bluetooth;
Dual network board: supports 10 USB (4*USB3.2 Gen1, 6*USB2.0), does not support M.2 5G; supports 8*USB after changing to M.2 4G and Bluetooth;
(Note: 5G needs to occupy USB3.0 signal, 4G needs to occupy USB2.0 signal)
on the motherboard default to S power (no power after shutdown), external USB ports can be changed to A power (power after shutdown), and built-in USB pins cannot be changed to A power;
COM port:
The motherboard supports 6*COM ports, and supports RS232 by default; COM1 can optionally support RS232/ RS 422/ RS 485 , and COM2 can optionally support RS232/RS485 , which can be set through BIOS;
The 9th pin of the motherboard COM1/2 can be set to 0V/5V/12V through J P COM1/2 , the default is 0V;
Network Card:
The motherboard supports 4*Realtek 8125BGS 2.5G network cards by default ; 3*Realtek 8125BGS 2.5G network cards and 2*Realtek 8125BGS 2.5G network cards are optional ; POE power supply cannot be changed;
Sound Card:
The motherboard supports the Realtek ALC897 sound card by default, and the USB sound card cannot be changed
>> CPU information
CPU Specifications | CPU Brand | CPU Model | Cores/Threads | Frequency | Turbo | CPU basic power consumption (W) | Maximum turbo power consumption (W) |
12th Generation I3 | Core | 1215U | Six cores and eight threads | 1.2G | 4.4G | 15 | 55 |
12th generation I5 | Core | 1235U | Ten cores and twelve threads | 1.3G | 4.4G | 15 | 55 |
1245U | Ten cores and twelve threads | 1.6G | 4.4G | 15 | 55 | ||
12th Generation I7 | Core | 1265U | Ten cores and twelve threads | 1.8G | 4. 8 G | 15 | 55 |
1255U | Ten cores and twelve threads | 1.7G | 4.7 G | 15 | 55 | ||
13th Generation I3 | Core | 1305U | Five cores and six threads | 1.6 G | 4.5G | 15 | 55 |
1315U | Six cores and eight threads | 1.2 G | 4.5G | 15 | 55 | ||
13th Generation I5 | Core | 1334U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 |
1335U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 | ||
1345U | Ten cores and twelve threads | 1.6G | 4.7G | 15 | 55 | ||
13th Generation I7 | Core | 1355U | Ten cores and twelve threads | 1.7G | 5.0G | 15 | 55 |
1365U | Ten cores and twelve threads | 1.8G | 5.2G | 15 | 55 | ||
12th Generation I3 | Core | 1220P | Ten cores and twelve threads | 1.5G | 4.4G | 28 | 64 |
12th generation I5 | Core | 1240P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 |
1250P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 | ||
12th Generation I7 | Core | 1280P | Fourteen cores and twenty threads | 1.8G | 4. 8 G | 28 | 64 |
1260 P | Twelve cores and sixteen threads | 2.1G | 4.7 G | 28 | 64 | ||
1270 P | Twelve cores and sixteen threads | 2.2G | 4. 8 G | 28 | 64 | ||
13th Generation I5 | Core | 1340P | Twelve cores and sixteen threads | 1.8G | 4.6G | 28 | 64 |
1350P | Twelve cores and sixteen threads | 1.9G | 4.7G | 28 | 64 | ||
13th Generation I7 | Core | 1360P | Twelve cores and sixteen threads | 2.2G | 5.0G | 28 | 64 |
1370P | Fourteen cores and twenty threads | 1.9G | 5.2G | 28 | 64 | ||
12th generation I5 | Core | 12450H | Eight cores and twelve threads | 2.0G | 4.4G | 45 | 95 |
12500H | Twelve cores and sixteen threads | 2.5G | 4.5G | 45 | 95 | ||
12600H | Twelve cores and sixteen threads | 2.7G | 4.5G | 45 | 95 | ||
12th Generation I7 | Core | 12650H | Ten cores and sixteen threads | 2.3G | 4.7G | 45 | 115 |
12700H | Fourteen cores and twenty threads | 2.7G | 4.7 G | 45 | 115 | ||
12800H | Fourteen cores and twenty threads | 2.4G | 4. 8 G | 45 | 115 | ||
12th Generation I9 | Core | 12900H | Fourteen cores and twenty threads | 2.5G | 5.0G | 45 | 115 |
13th Generation I5 | Core | 13420H | Eight cores and twelve threads | 2.1G | 4.60G | 45 | 95 |
13500H | Twelve cores and sixteen threads | 2.6G | 4.70G | 45 | 95 | ||
13600H | Twelve cores and sixteen threads | 2.8G | 4.80G | 45 | 95 | ||
13th Generation I7 | Core | 13620H | Ten cores and sixteen threads | 2.4G | 4.90G | 45 | 115 |
13700H | Fourteen cores and twenty threads | 2.4G | 5.00G | 45 | 115 | ||
13800H | Fourteen cores and twenty threads | 2.5G | 5.20G | 45 | 115 | ||
13th Generation I9 | Core | 13900H | Fourteen cores and twenty threads | 2.6G | 5.40G | 45 | 115 |
>> Product Specifications
Motherboard size | 4-inch motherboard 165mm (L) * 115mm (W) * 37mm (H) (including cooling fan height) | |
CPU Processor | Support Intel Alder Lake 12th generation, Raptor Lake 13th generation U/P/H series CPU | |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM, supporting 12V/19V The maximum turbo power consumption of the U series CPU is 55W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the P series CPU is 64W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the H series CPU is 115W, and it is recommended to use a 12V 10A or higher power supply; |
1*DC_ATX (4Pin) optional | ||
Memory | 1*NB-DDR 4 memory slot, supports 2133/2400/2666/3200MHz memory , maximum support 32 GB | |
Display functions | Integrated Intel UHD Graphics ultra-core graphics card , supports single display, dual display/triple display copy, dual display/triple display expansion, dual display under SHELL | |
1*VGA DB15 interface | Support resolution 1920 * 1080@60Hz | |
1*HDMI2 2.0 interface (optional) | Support 4K resolution 4096/3840 * 2160@60Hz | |
VGA and HDMI2 signals are available, VGA is supported by default | ||
1*HDMI1 2.0 interface | Support 4K resolution 4096/3840 * 2160@60Hz | |
1*LVDS/EDP pin | Support resolution 1920*1080@60 Hz (30Pin, 2*15Pin, 2.0mm) | |
1*LVDS_PWR pin | LVDS/EDP voltage control pin (6Pin, 2*3Pin, 2.0mm) | |
1*INVERT pin | LVDS backlight control pin (6Pin, 1*6Pin, 2.0mm) | |
Choose between motherboard LVDS and EDP signals, EDP uses EDP-B screen cable, supports 4K | ||
Network Features | 2/3/4*RJ45_LAN | Supports Realtek 8125BGS 2.5G network card chip , supports network wake-up and PXE diskless boot functions . |
1*M2_4G/5G interface | Supports Key-B interface M.2_5G module, can be changed to support 4G module | |
1*M.2_WIFI interface | Support PCIE3.0 signal, support Key-E interface M.2_2230 WIFI, can be changed to support Bluetooth | |
The 3042 specification 4G/5G module and the M.2_WIFI module cannot be connected at the same time, there will be interference, so choose one of the two; The 3052 specification 5G module and M.2_WIFI module can be connected at the same time without interference; | ||
Hard disk function | 1*NGFF interface | Support PCIE4.0 signal, support Key-M interface default M.2 2280 hard disk, optional M.2 2242 hard disk; By default, NVME (PCIE) protocol and SATA protocol coexist and switch automatically; |
1*SATA1 interface | Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps | |
1*SATA_PWR pin | Hard disk power supply pin, can take 5V, 12V power. (4Pin, 1*4Pin, 2.54mm) | |
Sound Features | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller | |
1*LINE_OUT interface | Support audio output (green) | |
1*MIC_IN interface | Support microphone input (pink) | |
1*INT_SPK pin | The amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm) | |
USB Function | 2/4*USB3.2 interface | Rear standard USB3.2 Gen1 interface , maximum transmission bandwidth is 5Gbps |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
1*F_USB2 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
The USB signal of M.2_WIFI and the 2nd/4th/6th/8th/10th pin of F_USB2 are selected. By default, M.2_WIFI has no USB signal and the pin has USB signal | ||
The 4G USB signal of the M2_4G/5G interface and the 1/3/5/7 pins of F_USB2 are selected. 4G is not supported by default, and the pin has a USB signal | ||
After the motherboard is changed to triple network/dual network, the USB3.0 signal of the U port on the USB4 interface and the 5G signal of the M.2_4G/5G interface are selected. By default, the U port on the USB4 interface has a USB3.0 signal (Note: 5G needs to occupy the USB3.0 signal, and 4G needs to occupy the USB2.0 signal) | ||
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm) |
1*AUTO_SW pin | Support hardware control power on (3Pin, 1*3Pin, 2.0mm) | |
Other I/O | 1*COM1 pin | Serial port, support RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.0mm) |
1*COM2 pin | Serial port, support RS232/RS485 optional (9Pin, 2*5Pin, 2.0mm) | |
1*COM3-6 pin | Serial port, support standard RS232 (39Pin, 2*20Pin, 2.0mm) | |
1*JPCOM1/2 pin | Control COM1/2 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm) | |
1*MSIM card slot | Support SIM card, SIM card is required when using 4G/5G | |
1*CLR_CMOS pin | Motherboard reset and discharge pin (3Pin, 1*3Pin, 2.0mm) | |
1*CPU_FAN pin | CPU fan pin , supports temperature control (4Pin, 1*4Pin, 1.25mm) | |
1*J_GPIO pin | GPIO control pin (10Pin, 2*5Pin, 2.0mm) | |
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Supports Windows 11, Windows 10, Linux, etc. | |
>> The Characteristics of the Motherboard
1. Full variety: ELSKY motherboard covers Intel's entire product line of low-power, high-performance CPUs and chipsets.
2. Small size: Mini-ITX based, with additional embedded specialized structures.
3. High integration: On-board CPU, part of the motherboard with memory, hard disk, integrated sound and graphics network card.
4. Low-power: Within 5W-30W for most motherboards.
5. High speed: Multi-core CPU, DDR3-DDR4-DDR5 memory, M.2-MSATA storage, USB3.0, SATA3.0, Gigabit LAN card.
6. Full interfaces: The IO baffle uses standard interfaces. Multi-USB, Multi-COM, Multi-network, Multi-SATA, Multi-display interfaces.
7. Fanless: Some motherboards use fanless cooling to prevent problems with broken fans.
8. Display interfaces: VGA/HDMI/LVDS/DVI/EDP/DP display interfaces.
9. Extensibility: Provides PCI, PCIE, Mini PCIE and other expansion interfaces.
