| Availability: | |
|---|---|
| Quantity: | |
Motherboard model | CPU | COM | 4K | LAN | USB2.0 | USB3.0 | SSD | Memory | power |

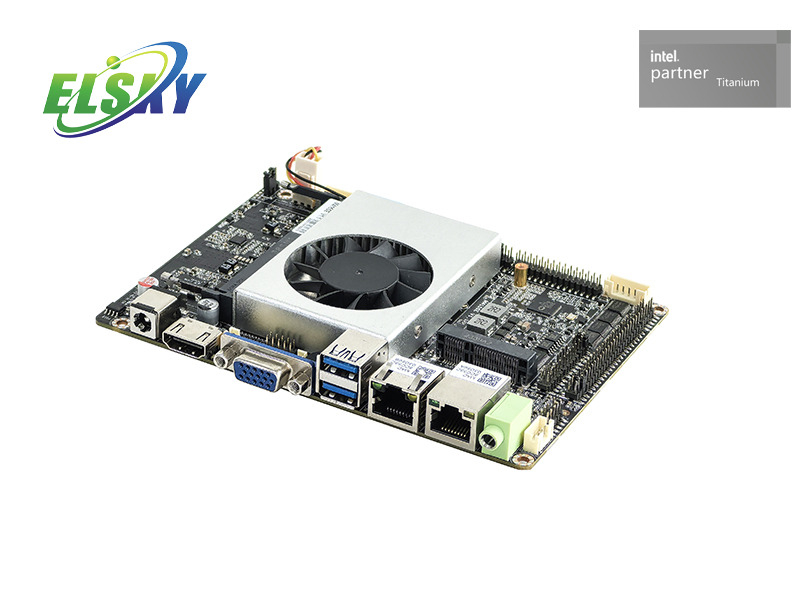

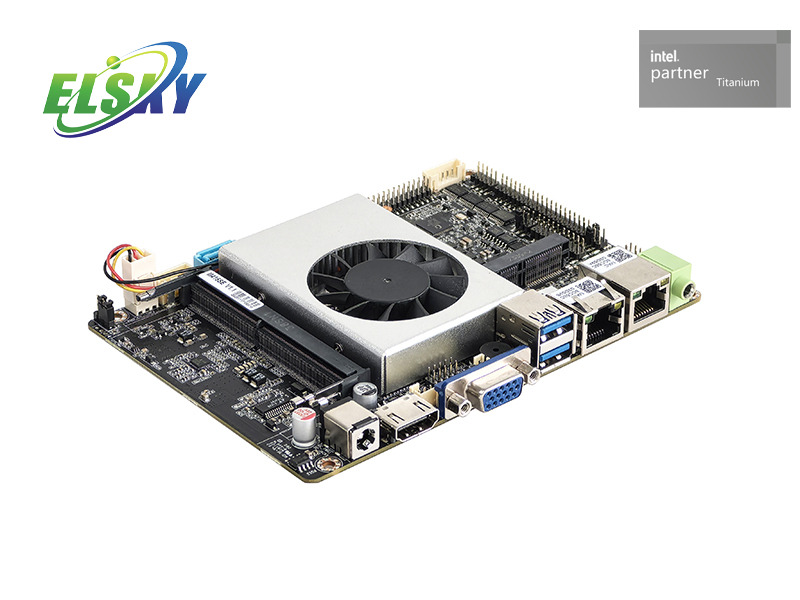

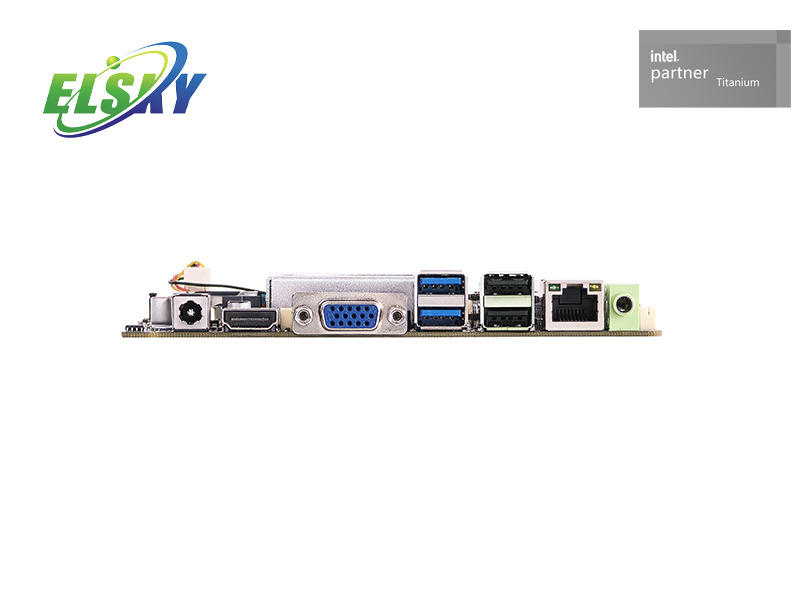

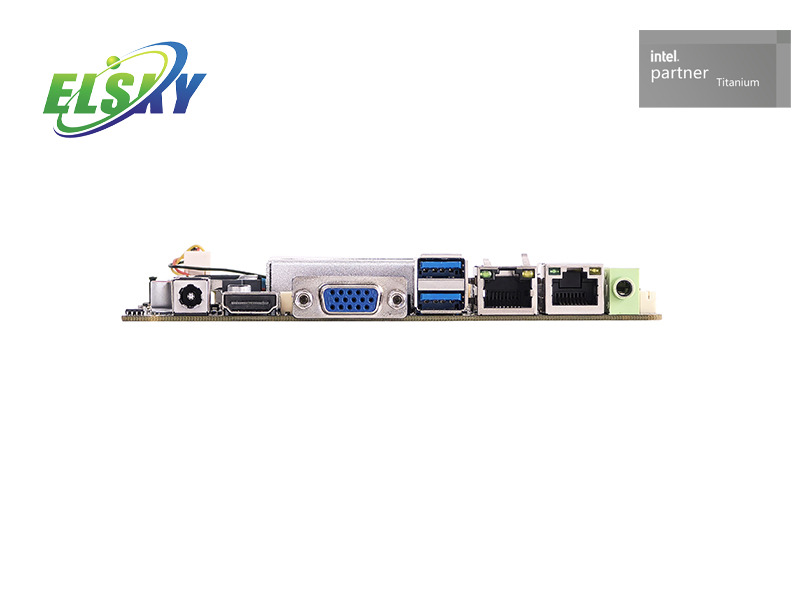

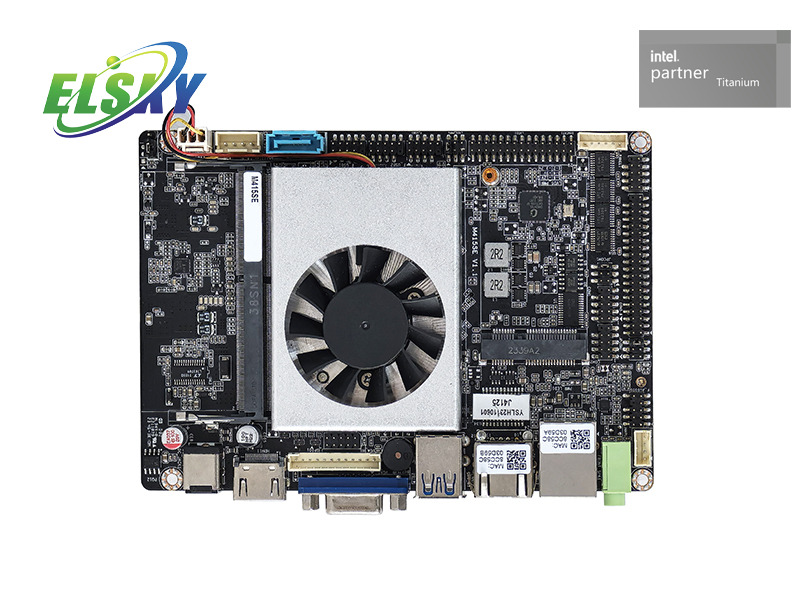

M415SE | Support for Intel Gemini Lake Refresh J and N series CPUs (eg: J4125) | 6 | Support 4K60Hz | 1 | 8 | 2 | 1*MSATA 1*SATA 3.0 | 1*NB-DDR4 8G (MAX) | +12V |
2 | 6 | 2 | |||||||
Single network motherboard defaults to 10USB, dual network motherboard defaults to 8USB | |||||||||
>> Important Note
Power supply interface:
The motherboard DC interface specification 5.5*2.5, optional support for one 4Pin ATX power interface;
The power supply of the motherboard only supports 12V, and the full load is about 30W. It is recommended to use 12V4A or above power supply;
Show interface:
1. The motherboard VGA/VGA pin, HDMI, LVDS/EDP support single display, dual display/triple display copy, dual display/triple display expansion , only single display under DOS;
2. The motherboard supports LVDS by default, and EDP can be changed. EDP uses EDP-B screen cable (20Pin backlight separates independent screen cable); EDP supports resolution 1920*1080@60Hz;
3. The motherboard HDMI interface supports HDMI 2.0 and supports 4K resolution 4096/3840*2160@60Hz;
Mini-PCIE:
1. The motherboard Mini-PCIE supports the coexistence of PCIE signal and USB signal by default, and USB is an independent signal; it supports WiFi/4G/Bluetooth module by default;
2. The motherboard MSATA interface defaults to SATA signal, supports MSATA disk, no USB signal, can be modified to coexist with USB signal, after modification, the built-in F_USB1 pin 1/3/5/7 has no signal; SATA signal can be changed to PCIE signal, after modification, it supports WiFi module;
USB interface:
1. The motherboard supports 10*USB (2*USB3.0, 8*USB2.0) by default;
2. The motherboard USB interface and pins default to S power (no power after shutdown), and can be changed to A power (power after shutdown);
COM port:
1. The motherboard supports 6*COM ports, and supports RS232 by default; among them, COM1 can optionally support RS232/RS422/RS485, which can be set through BIOS;
2. The motherboard JPCOM1/2 pins respectively control COM1/2 pin 9 pin voltage 0V/5V/12V, default 0V;
Network card:
The motherboard supports single Gigabit/100M optional, dual Gigabit/100M optional; Gigabit: single network Realtek 8111H, dual network 8111H+8111H; 100M: single network 8106E, dual network 8106E+8106E; POE cannot be changed powered by;
Sound card:
The motherboard defaults to Realtek ALC662/897 sound card, the green audio interface only supports FRONT_SPK, not MIC_IN, the built-in F_AUDIO pin supports FRONT_SPK and MIC_IN; the USB sound card cannot be changed
>> CPU information
CPU brand | CPU model | Main frequency | Turbo frequency | CPU power consumption | The full load power consumption of the whole board is about |
Intel Celeron | J4025 | Dual core 2.00G | 2.90G | 10W | 30W |
J4125 | Quad-core 2.00G | 2.70G | 10W | 30W | |
N4020 | Dual-core 1.10G | 2.80G | 6W | 30W | |
N4120 | Quad-core 1.10G | 2.60G | 6W | 30W | |
Intel Pentium | J5040 | Quad-core 2.00G | 3.20G | 10W | 30W |
N5030 | Quad-core 1.10G | 3.10G | 6W | 30W |
>> Product Specifications
Motherboard size | 146mm(L)*102mm(W)*23mm(H) | |
CPU processor | Intel® Processor Celeron J4025/J4125/N4020/N4120, Pentium J5040/N5030 | |
Memory support | 1*NB-DDR4 SODIMM memory slot, support single channel 2400MHz memory, low voltage 1.2V, maximum support 8GB | |
Power supply | 1*DC_PWR | Support 12V voltage, the inner diameter of the DC head is 2.5MM The power consumption of the motherboard is about 30W at full load, and it is recommended to use a power supply of 12V/4A or above |
1*DC_JACK ( optional ) | ||
Display function | Intel® UHD Graphics 600 Graphics controller, support single display, double display/triple display copy, double display/triple display expansion, single display under DOS | |
1*VGA DB15 interface | Support resolution 1920*1080@60Hz | |
1*VGA_H1 pin | Support resolution 1920*1080@60Hz (12Pin, 1*12Pin, 2.0mm) | |
1*HDMI 2.0 interface | 4K resolution 4096/3840*2160@60Hz | |
1*LVDS/EDP pin | Support resolution 1920*1080@60 Hz (30Pin, 2*15Pin, 2.0mm) | |
1*LVDS_PWR pin | LVDS voltage control pin (6Pin, 2*3Pin, 2.0mm) | |
1*INVERT pin | LVDS backlight switch control pin (6Pin, 1*6Pin, 2.0mm) | |
Choose one of LVDS and EDP, share a set of pins, default LVDS signal | ||
Internet function | 1/2*RJ45 LAN interface | 100M network card and Gigabit network card are optional, support wake-up on network and PXE diskless boot function (Gigabit: single network 8111H, dual network 8111H+8111H) (100M: single network 8106E, dual network 8106E+8106E) |
1*MINI_PCIE interface | Support WIFI/3G/4G/Bluetooth module | |
Hard disk function | 1*SATA interface | Standard SATA 3.0 hard disk interface |
1*SATA_PWR pin | Hard disk power supply pin, can take power 5V, 12V (4Pin, 1*4Pin, 2.54mm) | |
1*MSATA interface | Supports MSATA 3.0 | |
Sound function | By default, it supports Realtek ALC662/897 HD digital audio codec, 6-channel high-fidelity audio controller | |
1*FRONT_SPK interface | Support audio output | |
1*F_AUDIO pin | Standard audio pin (9Pin, 2*5Pin, 2.0mm) | |
1*JAMP pin | Power amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm) | |
USB function | 2*USB3.0 interface | Rear standard USB3.0 interface, the maximum transmission bandwidth is 5Gbps |
2*USB2.0 interface | Rear standard USB2.0 interface, the maximum transmission bandwidth is 480Mbps (60MB/s) | |
1*F_USB1 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
1*F_USB2 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
1*F_USB3 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
The USB signal of the MSATA interface and the USB2.0 signal of the built-in F_USB1 pin 1/3/5/7 can be selected. | ||
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, reset pin (9Pin, 2*5Pin, 2.0mm) |
1*AUTO-SW pin | Support hardware control to power on and start (3Pin, 1*3Pin, 2.0mm) | |
Other IOs | 1*COM1 pin | Serial port, COM1 supports RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.0mm) |
1*COM2 pin | Serial port, support standard RS232 (9Pin, 2*5Pin, 2.0mm) | |
1*COM3-6 pin | Serial port, support standard RS232 (39Pin, 2*20Pin, 2.0mm) | |
1*JPCOM1/2 pin | Can control COM1/2 pin 9 voltage 0V/5V/12V (6Pin, 2*3Pin, 2.0mm) | |
1*SIM card slot | Support SIM card, need SIM card when using 3G/4G | |
1*CLR_CMOS pin | Motherboard reset and discharge pin (3Pin, 1*3Pin, 2.54mm) | |
1*FAN1 pin | Fan pin, does not support temperature control (3Pin, 1*3Pin, 2.54mm) | |
1*GPIO pin | GPIO control pin (10Pin, 2*5Pin, 2.0mm) | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
BIOS | AMI BIOS, support timing boot, remote switch machine intelligent identification of equipment | |
Watch dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Support Windows 11, Windows 10, Kirin system, Tongxin system, Linux, etc. | |
>> The Characteristics of the Motherboard
1. Full variety: ELSKY motherboard covers Intel's entire product line of low-power, high-performance CPUs and chipsets.
2. Small size: Mini-ITX based, with additional embedded specialized structures.
3. High integration: On-board CPU, part of the motherboard with memory, hard disk, integrated sound and graphics network card.
4. Low-power: Within 5W-30W for most motherboards.
5. High speed: Multi-core CPU, DDR3-DDR4-DDR5 memory, M.2-MSATA storage, USB3.0, SATA3.0, Gigabit LAN card.
6. Full interfaces: The IO baffle uses standard interfaces. Multi-USB, Multi-COM, Multi-network, Multi-SATA, Multi-display interfaces.
7. Fanless: Some motherboards use fanless cooling to prevent problems with broken fans.
8. Display interfaces: VGA/HDMI/LVDS/DVI/EDP/DP display interfaces.
9. Extensibility: Provides PCI, PCIE, Mini PCIE and other expansion interfaces.
>> The Applications of the Motherboard
ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
