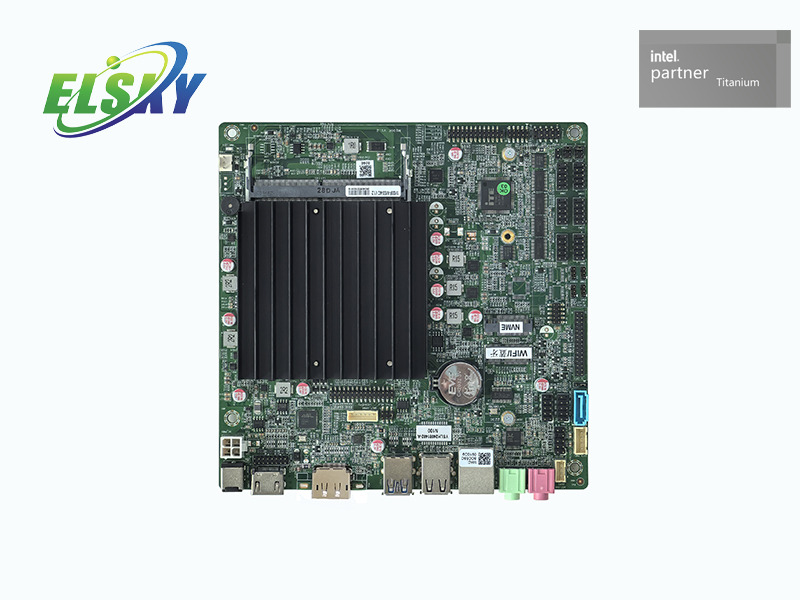

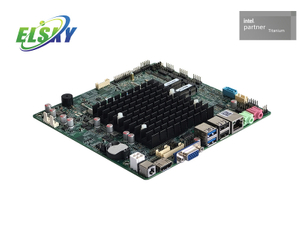

Model | CPU | COM | 4K | LAN | USB2.0 | USB3.2 | SSD | Memory | Power |
M100F | Supports Intel Alder Lake-N series N200, N100, N97, N95, i3-N305, etc | 6C/2C/10C Optional | support | 1 | 6 | 2 | 1*MSATA 1*SATA 3.0 | 1*NB-DDR4 MAX 16G | +12V |
2 | 4 | 2 |
>> Important Note
Power supply interface:
Motherboard DC interface specification 5.5*2.5, supports 1 4pin ATX power interface;
The motherboard only supports 12V power supply, with a full load of about 30W. It is recommended to use a 12V4A or higher power supply;
Display interface:
1. The motherboard supports VGA/DP, HDMI/HDMI-CON pins, LVDS/EDP1, and EDP2 for single display, dual display/triple display replication, and dual display/triple display expansion;
2. The motherboard has either VGA or DP interface, with VGA interface supported by default and DP interface supported. DP interface does not support DP++;
3. The motherboard supports LVDS by default, but can be changed to support EDP 1 with shared pins. After the change, it supports dual EDP;
4. The motherboard EDP 2 cannot be displayed independently and needs to be used in conjunction with EDP 1 or LVDS;
5. EDP 1 uses EDP B screen cable (20 pin backlight separated screen cable), EDP 2 uses EDP A screen cable (30 pin backlight integrated screen cable); EDP 1/EDP 2 does not support 4K resolution;
6. Mainboard DP interface and HDMI interface/HDMI CON pin support 4K resolution 4096/3840* 2160@60Hz；
7. The motherboard DP interface does not support DP++;
M.2：
The motherboard NGFF1 supports Key-M interface with default M.2 2280 hard drive, optional M.2 2242 hard drive, default support for NVME (PCIE), hardware support for SATA protocol can be changed;
Motherboard M2-WIFI supports Key-E interface M.2 2230 WiFi Bluetooth module;
USB Interface：
1. The motherboard supports 8*USB by default (2*USB3.2 Gen1, 6*USB2.0);
2. The USB interface and pins on the motherboard default to S power (not charged after shutdown), and can be changed to A power (charged after shutdown);
COM：
1. The motherboard supports optional 2COM/6COM/10COM versions; The motherboard COM3/4 supports RS232/RS422/RS485;
COM2/COM6 optional support RS232/RS485, set through BIOS; The 10COM motherboard COM7/8/9/10 supports only RS232 with a 3-pin pin configuration;
2. The JPCOM1/2 pins on the motherboard control the voltage of pin 9 of COM1/2 to 0V/5V/12V, with a default of 0V;
3. All serial ports on the motherboard can be modified to support TTL hardware;
Network card:

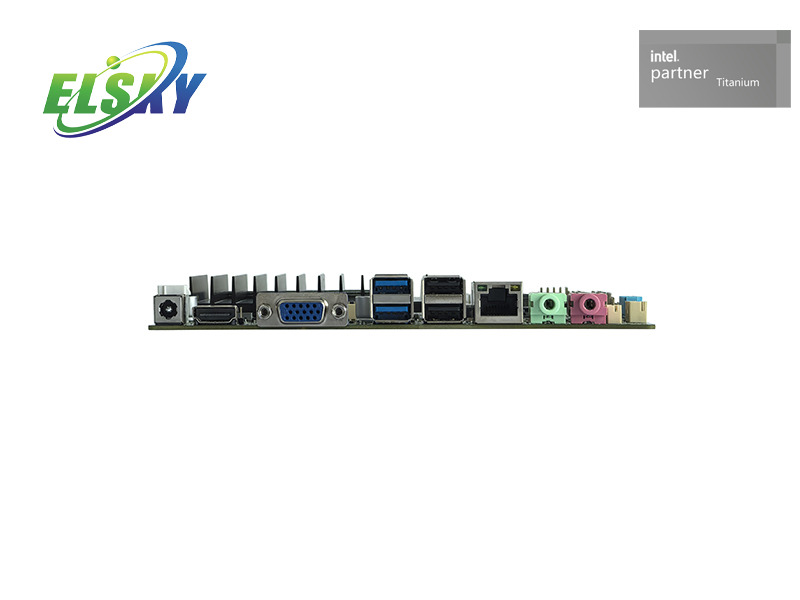

Single network: default Realtek 8111H Gigabit Ethernet card, optional Yutaiwei YT6801 Gigabit Ethernet card;

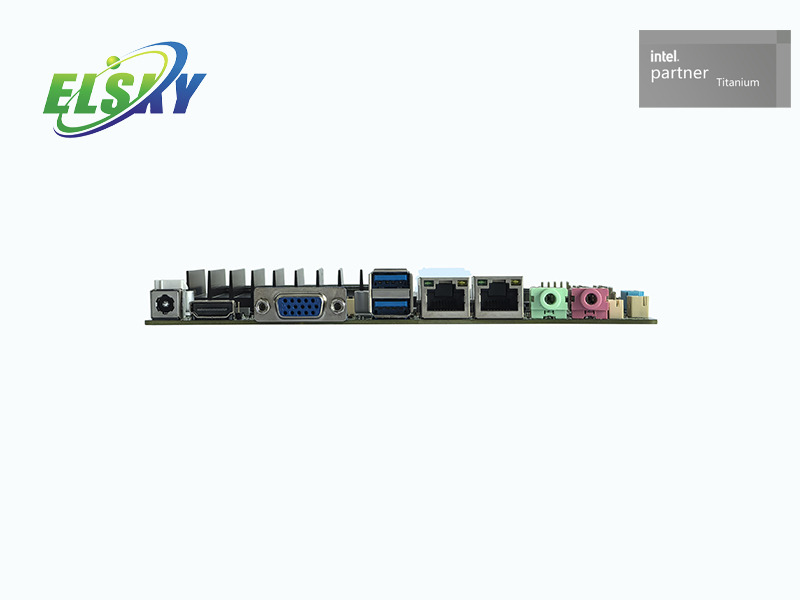

Dual network: Realtek 8111H+Realtek 8111H Gigabit Ethernet card, optional Yutaiwei YT6801+Yutaiwei YT6801 Gigabit Ethernet card;
POE power supply cannot be changed;
Sound card:
The motherboard supports Realtek ALC897 sound card by default and cannot change the USB sound card;
System:
The N100 and i3-N300 have a clock speed of 0.8G and do not support Windows 11 21H2 version. They can support Windows 11 22H2 and 23H2 versions and support Windows 10;
>> CPU information
CPU Brand | CPU Model | dominant frequency | Maximum Turbo frequency | CPU power consumption | The full load power consumption of the entire board |
Intel Core | i3-N300 | Eight core 0.8G | 3.80G | 7W | 20W |
i3-N305 | Eight core 1.8G | 3.80G | 15W | 40W | |
Intel | N50 | 3.40G | 6W | 20W | |
N95 | Quad core 1.7G | 3.40G | 15W | 40W | |
N97 | Quad core 2.0G | 3.60G | 12W | 35W | |
N100 | Quad core 0.8G | 3.40G | 6W | 20W | |
N200 | Quad core 1.0G | 3.70G | 6W | 20W |

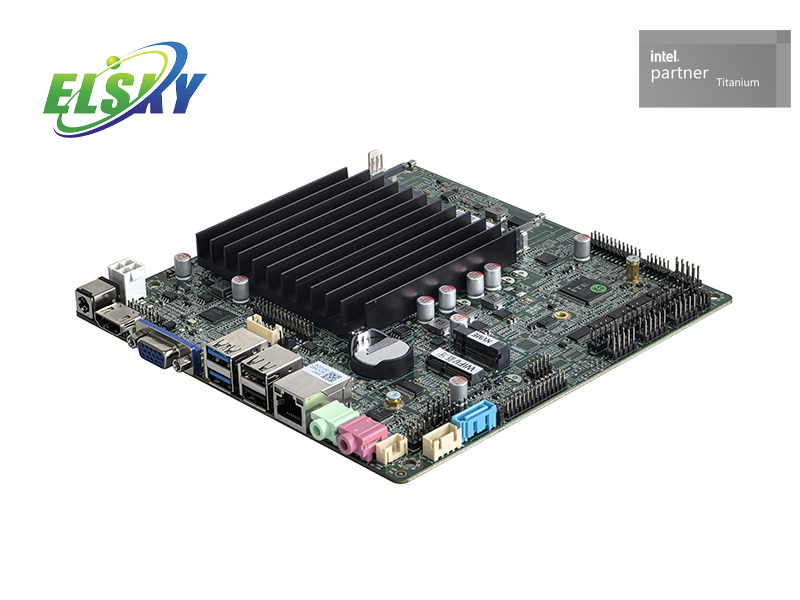

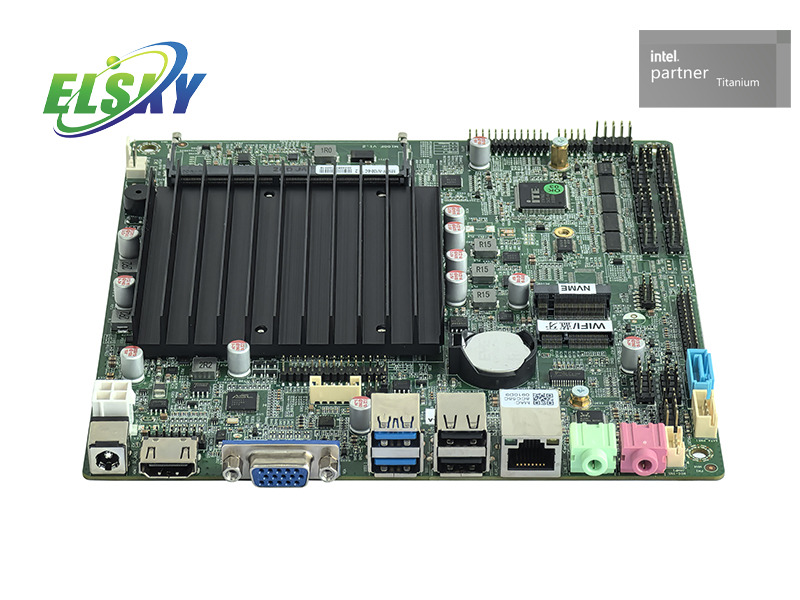

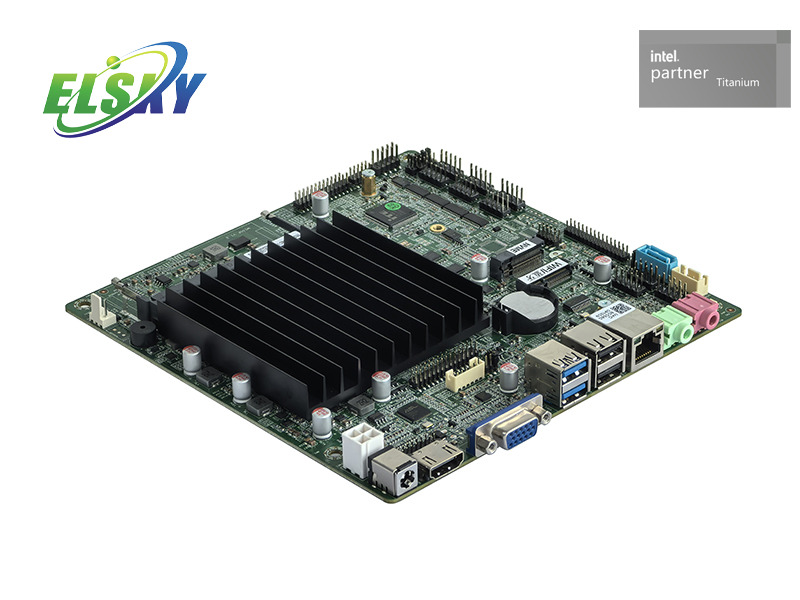

>> Product Specifications
Motherboard | 170mm（L）*170mm（W）*22mm（H） | |
CPU | Supports Intel Alder Lake-N series N200, N100, N97, N95, i3-N305, etc | |
Memory | 1*NB-DDR4 SODIMM Memory slot, supports single channel 3200MHz memory, low voltage 1.2V, maximum support 16GB | |
Power supply | 1*DC_JACK | Supports 12V voltage, with a DC head inner diameter of 2.5mm The full load power consumption of the motherboard is about 30W. Suggest using a 12V/4A or higher power supply |
1*DC_PWR（4Pin） | ||
Display function | Intel UHD Graphics，Support single display, dual display/triple display replication, dual display/triple display expansion | |
1*VGA DB15 interface | Supports a resolution of 1920*1080@60Hz | |
1*DP interface(Optional) | DP Not supporting DP++, supporting 4K resolution 4096/3840* 2160@60Hz | |
VGA interface can be changed to be DP interface | ||
1*HDMI 2.0 interface | 4K resolution 4096/3840*2160@60Hz | |
1*HDMI_CON pin | 4K resolution 4096/3840*2160@60Hz（16Pin，2*8Pin，2.0mm） | |
1*LVDS/EDP1 pin | Support resolution 1920*1080@60Hz（30Pin，2*15Pin，2.0mm) | |
LVDS and EDP1 are optional, sharing pins. EDP1 does not support 4K resolution and uses EDP-B screen cable | ||
1*VCC_SEL pin | LVDS/EDP1 voltage control pin（6Pin，2*3Pin，2.0mm） | |
1*BKLT_CONN pin | LVDS/EDP1 Backlight switch control pin（6Pin，1*6Pin，2.0mm） | |
1*EDP2 pin | Using EDP-A screen cable, supporting resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | |
Network function | 1/2*RJ45 LAN interface | Single network: default Realtek 8111H Gigabit Ethernet card; Optional Yutaiwei YT6801 Gigabit Ethernet Card; Dual network: supports Realtek 8111H+Realtek 8111H Gigabit Ethernet cards; Optional Yutaiwei YT6801+Yutaiwei YT6801 Gigabit Network Card; Support network wake-up and PXE diskless boot function |
1*M2_WIFI interface | PCIE3.0 signal, supports Key Interface M.2 2230 WiFi Bluetooth module | |
Hard disk function | 1*SATA interface | Standard SATA 3.0 hard drive interface |
1*NGFF(M.2) interface | PCIE3.0 signal, supports Key Interface default M.2 2280 hard drive, optional M.2 2242 hard drive, default supports NVME (PCIE) protocol, hardware can be changed to support SATA protocol | |
1*SATA_PWR pin | Hard disk power supply pin, capable of supplying 5V and 12V power（4Pin，1*4Pin，2.54mm） | |
Sound function | Default support for Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller | |
1*LINE_OUT interface | Supports audio output (green) | |
1*MIC_IN interface | Supports microphone input (red) | |
1*JAMP pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers（4Pin，1*4Pin，2.0mm） | |
1*F_AUDIO pin | Standard audio pin（9Pin，2*5Pin，2.54mm） | |
USB function | 2*USB3.2interface | Rear standard USB 3.2 Geni interface, with a maximum transmission bandwidth of 5Gbps |
2*USB2.0interface | Rear standard USB 2.0 interface, maximum transmission bandwidth of 480Mbps | |
1*F_USB1 pin | Front USB 2.0 pins, one set with 2 * USB 2.0（9Pin，2*5Pin，2.54mm） | |
1*F_USB2 pin | Front USB 2.0 pins, one set with 2 * USB 2.0（9Pin，2*5Pin，2.54mm） | |
SWITCH | 1*F_PANEL pin | Switch, power light, hard drive light, restart pin（9Pin，2*5Pin，2.54mm） |
1*JATX pin | Support hardware control for power on and startup（3Pin，1*3Pin，2.0mm） | |
Other I/O | COM1～6 pin | Serial port, supports RS232 by default（9Pin，2*5Pin，2.54mm） |
COM7~10 pin （Optional） | Serial port, default support RS232（3Pin，1*3Pin，2.0mm） | |
COM3/4 pin | Serial port, optional support for RS232/422/485（9Pin，2*5Pin，2.54mm） | |
COM2/6 pin | Serial port, optional support for RS232/485（9Pin，2*5Pin，2.54mm） | |
1*JPCOM1/2 pin | Can control the ninth pin voltage of COM1/2 to 0V/5V/12 （6Pin，2*3Pin，2.0mm） | |
All serial ports can be modified and hardware supports TTL | ||
1*JLPT pin | Parallel printing, standard printing（25Pin，2*13Pin，2.0mm） | |
1*CLR_CMOS pin | Motherboard reset and discharge pin（2Pin，1*2Pin，2.54mm） | |
1*FAN1 pin | CPU Fan pin, supports temperature control （3Pin，1*3Pin，2.54mm） | |
1*FAN2 pin | System fan pin, does not support temperature control (3Pin，1*3Pin，2.54mm) | |
1*J1 pin | Debugging pin（10Pin，2*5Pin，2.0mm） | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS，Support timed startup and intelligent recognition of remote power on/off devices | |
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | |
Operating system | Supports Windows 11, Windows 10, Linux, etc (N100 and i3-N300 support Windows 10, Windows 11 22H2, and 23H2 versions) | |
>> The Characteristics of the Motherboard
1. Full variety: ELSKY motherboard covers Intel's entire product line of low-power, high-performance CPUs and chipsets.
2. Small size: Mini-ITX based, with additional embedded specialized structures.
3. High integration: On-board CPU, part of the motherboard with memory, hard disk, integrated sound and graphics network card.
4. Low-power: Within 5W-30W for most motherboards.
5. High speed: Multi-core CPU, DDR3-DDR4-DDR5 memory, M.2-MSATA storage, USB3.0, SATA3.0, Gigabit LAN card.
6. Full interfaces: The IO baffle uses standard interfaces. Multi-USB, Multi-COM, Multi-network, Multi-SATA, Multi-display interfaces.
7. Fanless: Some motherboards use fanless cooling to prevent problems with broken fans.
8. Display interfaces: VGA/HDMI/LVDS/DVI/EDP/DP display interfaces.
9. Extensibility: Provides PCI, PCIE, Mini PCIE and other expansion interfaces.
