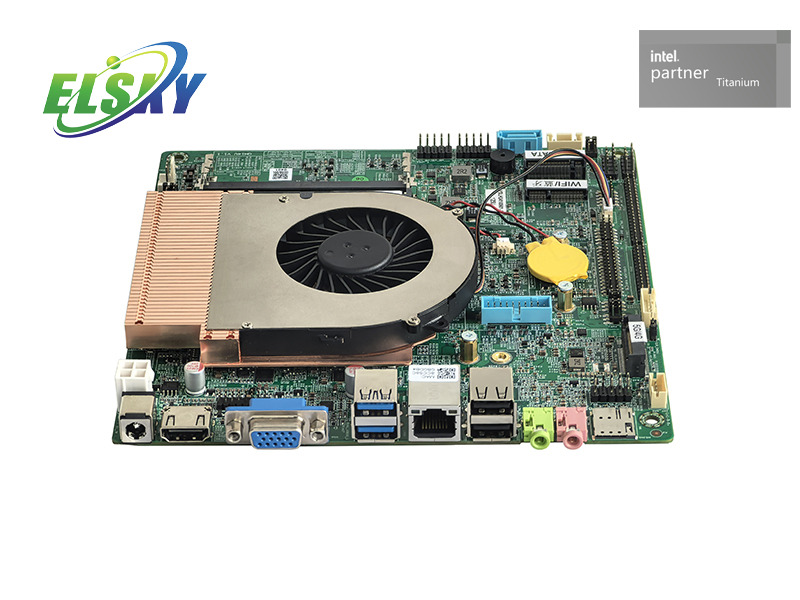

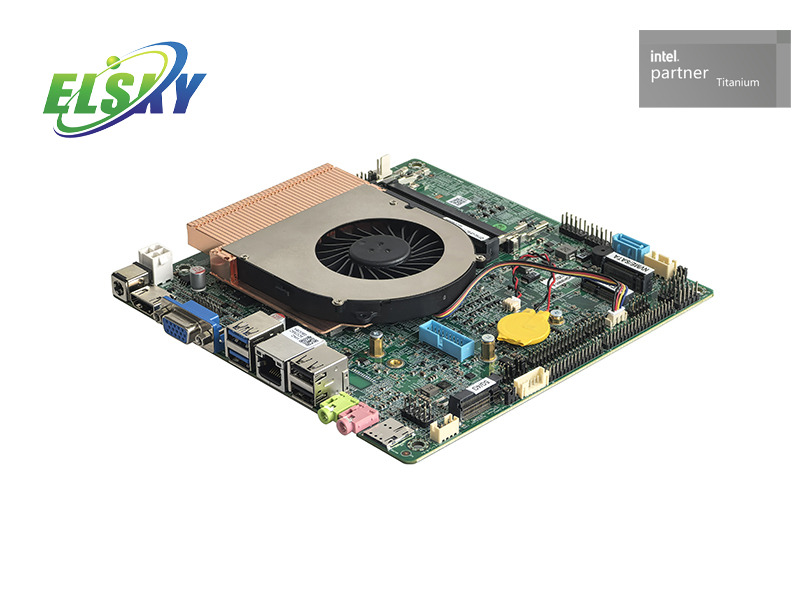

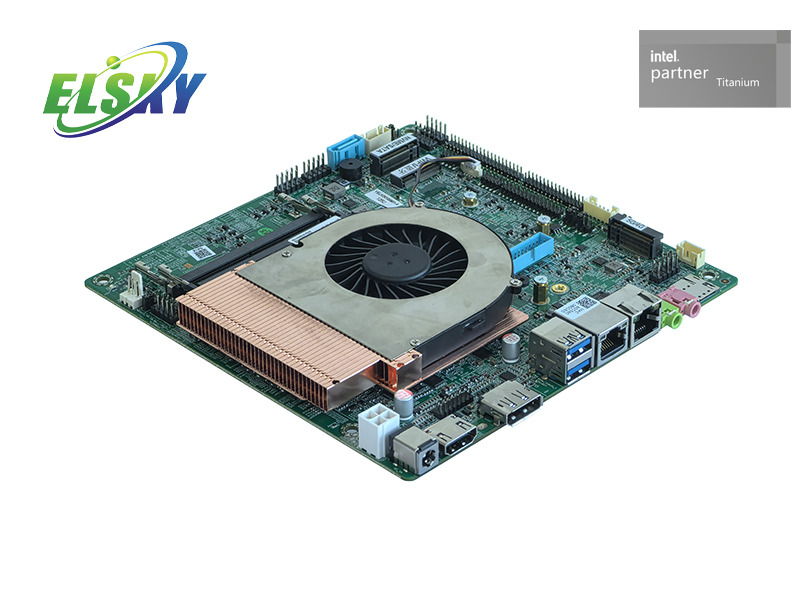

Model | CPU | 4K | LAN | COM | USB2.0 | USB3.2 | SSD | Memory | Power |
QM14U | Support Intel Meteor Lake 14th gen Ultra 5,Ultra 7,Ultra 9 U/H series CPU | 1*HDMI 4K60Hz/ 1*DP 4K60Hz (optional) | 1 | 2/6 | 6 | 4 | 1*M.2 1*SATA | 2*NB-DDR5 MAX 96GB | +12V/19V |
2 | 2/6 | 4 | 4 |
>> Important Note
Power supply interface：
Motherboard DC interface specification 5.5 * 2.5, a 4 Pin ATX power supply interface;
Motherboard power supply support of 12V or 19V;
The maximum power consumption of U series CPU is 57W, and it is recommended to use 12V 7A or 19V5A or above;
H series CPU maximum core frequency power consumption is 115W, it is recommended to use 12V 10A or 19V 6.3A above the power supply;
Display port：
1. Motherboard VGA/DP, HDMI, HDMI_CON pin, EDP 1, LVDS 1/EDP 2 support single display, double/three-developing/four-development replication, double/three/four-development extension, SHELL under double display;
2. Motherboard VGA interface and DP interface are optional interfaces. VGA interface is supported by default, and DP interface can be changed;
3. DP support DP + + (DP cable and DP HDMI/active cable) support 4K resolution 4096/3840*2160@60Hz；
4. Motherboard HDMI interface supports HDMI 2.0 with 4K resolution 4096/3840*2160@60Hz; HDMI_CON pin is independent signal and supports 4K resolution 4096/3840*2160@60Hz；
5. Motherboard LVDS 1/EDP 2 pin support LVDS 1 by default, can be changed to support EDP 2, common pin;
6. The motherboard can be modified to support dual EDP; EDP 1, EDP 2; EDP 1 EDP-C (30 Pin backlight); EDP 2 (EDP-B 20 Pin backlight); EDP 1/EDP 2 supports 4K resolution 4096/3840*2160@60Hz；
M.2：
1. Motherboard M.2-WIFI supports Key-E interface M.2 2230 WiFi/Bluetooth module, unchangeable M.2 hard disk；
2. The motherboard M.2-4G/5G supports the Key-B interface M.2 5G (3052/3042) module or the M.2 4G (3042) module;
3. Motherboard M.2-SATA/PCIE supports Key-M interface M.2 2280 hard disk; default supports NVME (PCIE) protocol and SATA protocol;
USB port：
1. Motherboard support 10USB by default (4*USB3.2 Gen1，6*USB2.0);
2. All USB interfaces and pins of the motherboard default S power (not charged after shutdown), can be changed to A power (charged after shutdown);
COM port：
1. Motherboard optional supports 2/6*COM; COM1 optional supports RS232/RS422/RS485 with BIOS setting；
2. Motherboard COM1 can set the ninth foot output 0V/5V/12V through the JCOM 1 jump cap, with the default 0V;
3. All serial ports can be modified by the hardware to support TTL;
Network card：
Single network: Intel I219V Gigabit network card is supported by default;
Dual network: support Intel I219V+Realtek 8111H Gigabit network card; irreversible POE power supply;
Sound card：
Motherboard supports Realtek ALC897 sound card by default, not USB sound card
>> CPU information
| CPU brand | CPU specification | CPU model | Kernel/ | Base frequency | Turbo frequency | CPU base power consumption (W) | Maximum power consumption (W) |
| Thread | |||||||
| Intel Core | 14th gen Ultra 5 | 125U | 12 cores and 14 threads | 1.3G | 4.3G | 15 | 57 |
| 135U | 12 cores and 14threads | 1.6G | 4.4G | 15 | 57 | ||
| 125H | 14 cores and 18 threads | 1.2G | 4.5G | 28 | 115 | ||
| 135H | 14 cores and 18 threads | 1.7G | 4.6G | 28 | 115 | ||
| Intel Core | 14th gen Ultra 7 | 155U | 12 cores and 14 threads | 1.7G | 4.8G | 15 | 57 |
| 165U | 12 cores and 14 threads | 1.7G | 4.9G | 15 | 57 | ||
| 155H | 16 cores and 20 threads | 1.4G | 4.8G | 28 | 115 | ||
| 165H | 16 cores and 20 threads | 1.4G | 5.0G | 28 | 115 | ||
| Intel Core | 14th gen Ultra 9 | 185H | 16 cores and 20 threads | 2.3G | 5.1G | 45 | 115 |

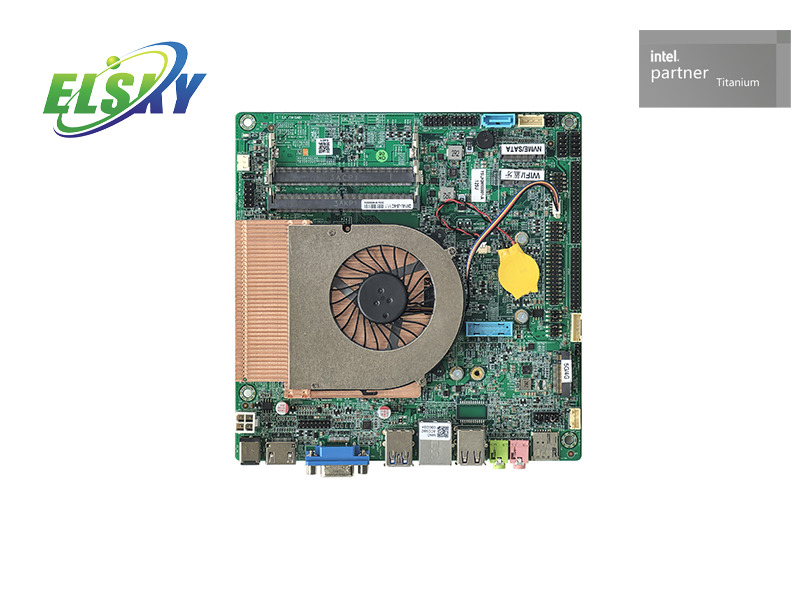

>> Product Specifications

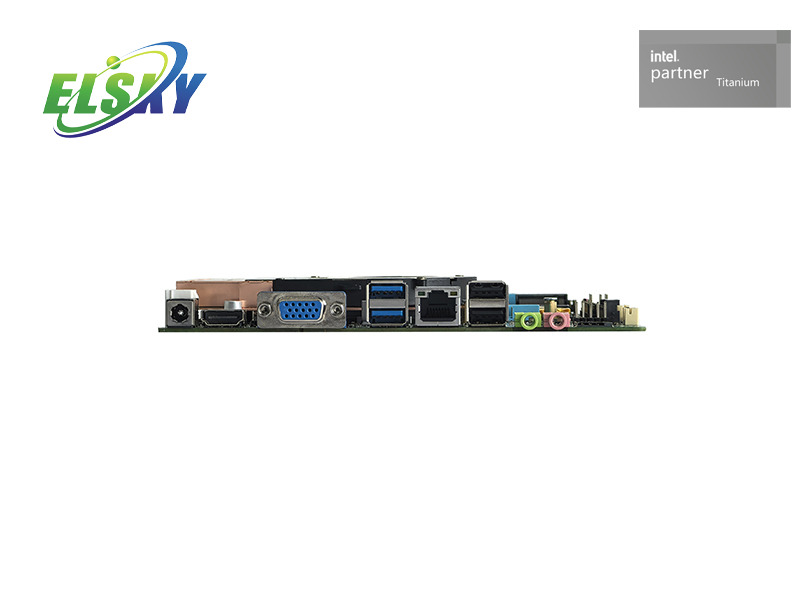

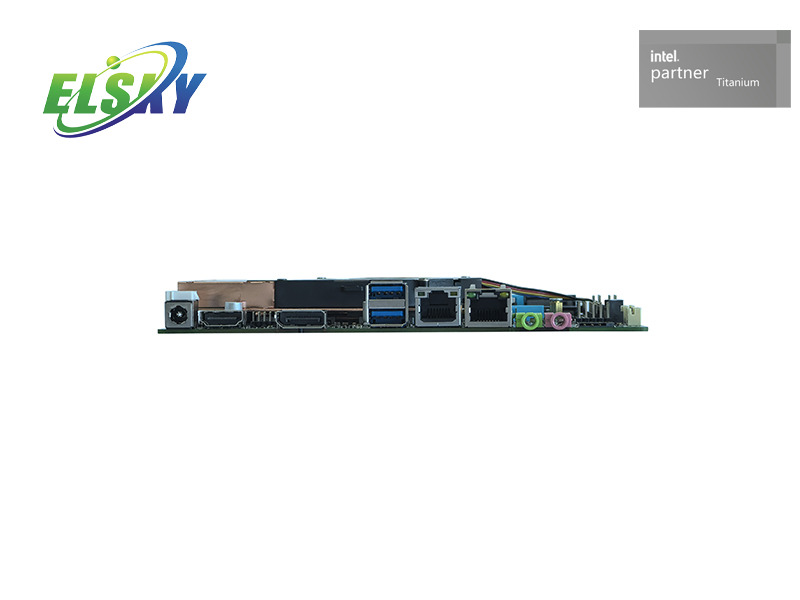

Size | 170mm(L)*170mm(W)*21mm(H) (No fan thickness) | |
CPU | QM14U | Support Intel Meteor Lake 14th gen Ultra 5, Ultra 7, Ultra 9 U/H series CPU |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM and supports 12V/19V The maximum power consumption of U series CPU is 57W, and it is recommended to use 12V 7A or 19V5A; H series CPU maximum core frequency power consumption is 115W, it is recommended to use 12V 10A or 19V 6.3A above the power supply; |
1*DC_ATX（4Pin） | ||
Memory | 2*SODIMM slot | NB-DDR5 memory，support 4800/5600MT/s memory, up to support 96GB |
Internet function | 1/2*RJ45_LAN port | Single network: the default support of Intel I219V gigabit network card; Dual network: support Intel I219V + Realtek 8111H Gigabit network card; Support network wake-up, PXE function; |
1*M.2-WIFI port | PCIE 4.0 signal, support for Key-E interface M.2 2230 WiFi/Bluetooth module | |
1*M.2-4G/5G port | Support the Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module | |
Display function | Integrated Intel Graphics/Intel Arc graphics supercore graphics card Support single display, double/three/four development replication, double/three/four development extension, SHELL double display; | |
1*HDMI2.0 port | Support for 4K resolution 4096/3840*2160@60Hz | |
1*HDMI_CON pin | Support for 4K resolution 4096/3840*2160@60Hz（16Pin，2*8Pin，2.0mm） | |
1*VGA DB15 port | Support resolution 1920*1080@60Hz | |
1*DP port（optional） | Support for DP + +, with 4K resolution 4096/3840*2160@60Hz | |
VGA interface can support DP interface | ||
1*LVDS1/EDP2 pin | LVDS1 support 2K60Hz；EDP2 support 4K60Hz（30Pin，2*15Pin，2.0mm） | |
1*EDP1 pin | With the EDP-C screen line, support for 4K resolution 4096/3840*2160@60Hz（30Pin，2*15Pin，2.0mm） | |
1*LVDS_PWR1 pin | LVDS1/EDP2 operating voltage control pin（6Pin，2*3Pin，2.0mm） | |
1*EDP_PWR pin | The EDP 1 operating voltage control pin（6Pin，2*3Pin，2.0mm） | |
1*INVERT pin | The LVDS backlight control pin（6Pin，1*6Pin，2.0mm） | |
Default support LVDS 1, optional support EDP 2, common pins, with EDP-B screen line | ||
USB function | 2*USB3.2 port | The rear standard USB3.2 Gen1 interface, the maximum transmission broadband of 5 Gbps |
2*USB2.0 port | The rear standard USB2.0 interface, the maximum transmission broadband of 480Mbps | |
1*F_USB3_A pin | Front USB3.2 pin, one group has 2*USB3.2（19Pin，2*10Pin，2.0mm） | |
1*F_USB1 pin | Front USB2.0 pin, one group has 2*USB2.0（9Pin，2*5Pin，2.54mm） | |
1*F_USB2 pin | Front USB2.0 pin, one group has 2*USB2.0（9Pin，2*5Pin，2.54mm） | |
Sound function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; | |
1*LINE_OUT port | Support audio output (green) | |
1*MIC_IN port | Support microphone input (red) | |
1*INT_SPK pin | The power amplifier supports dual-channel output of 8 ohm 5 watt Speakers（4Pin，1*4Pin，2.0mm） | |
1*F_AUDIO pin | Standard audio insert（9Pin，2*5Pin，2.54mm） | |
Hard Disk Function | 1*M.2-SATA/PCIE port | Support PCIE 4.0 signal, support Key-M interface M.2 2280 hard disk, and support NVME and SATA protocol by default |
1*SATA1 port | Standard SATA hard disk interface, with support for SATA 3.0 | |
1*SATA_PWR pin | Hard disk power supply pin, the cable power 5V, 12V（4Pin，1*4Pin，2.54mm） | |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin（9Pin，2*5Pin，2.54mm） |
1*AUTO_SW pin | Hardware control power-on boot pin（3Pin，1*3Pin，2.0mm） | |
Other I/O | 1*COM1 pin | Support for standard RS232/RS422/RS485 optional (BIOS settings)（9Pin，2*5Pin，2.54mm） |
1*COM2 pin | Only the standard RS232 is supported（9Pin，2*5Pin，2.54mm） | |
1*COM3~6 pin | Only the standard RS232 is supported（39Pin，2*20Pin，2.0mm） | |
1*JCOM1 pin | COM19th foot set 0V/5V/12V（6Pin，2*3Pin，2.0mm） | |
1*MSIM1 slot | SIM card supported, SIM card required for 5G/4G | |
1*CLR_CMOS pin | Motherboard zero clearance, discharge plug pin（3Pin，1*3Pin，2.0mm） | |
1*CPU_FAN pin | CPU fan pin, support for temperature control（4Pin，1*4Pin，1.25mm） | |
1*SYS_FAN pin | System fan pin does not support temperature control at full speed（3Pin，1*3Pin，2.54mm） | |
1*J_GPIO pin | GPIO control pin（10Pin，2*5Pin，2.0mm） | |
Operating environment | Working temperature：-10℃~60℃； Working humidity：5%~95% relative humidity, non-condensing | |
BIOS | AMI BIOS，Support power-on boot, scheduled boot, remote switch machine intelligent identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds） | |
Operating system | Support Windows 11，Windows 10，LINUX etc. | |
>> The Characteristics of the Motherboard
1. Full variety: ELSKY motherboard covers Intel's entire product line of low-power, high-performance CPUs and chipsets.
2. Small size: Mini-ITX based, with additional embedded specialized structures.
3. High integration: On-board CPU, part of the motherboard with memory, hard disk, integrated sound and graphics network card.
4. Low-power: Within 5W-30W for most motherboards.
5. High speed: Multi-core CPU, DDR3-DDR4-DDR5 memory, M.2-MSATA storage, USB3.0, SATA3.0, Gigabit LAN card.
6. Full interfaces: The IO baffle uses standard interfaces. Multi-USB, Multi-COM, Multi-network, Multi-SATA, Multi-display interfaces.
7. Fanless: Some motherboards use fanless cooling to prevent problems with broken fans.
8. Display interfaces: VGA/HDMI/LVDS/DVI/EDP/DP display interfaces.
9. Extensibility: Provides PCI, PCIE, Mini PCIE and other expansion interfaces.
>> The Applications of the Motherboard
ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
>> Company Profile
Founded in 2009, ELSKY is a national high-tech enterprise focusing on independent research and development of industrial control motherboards and computers. With more than 16 years of deep development of control terminal industry technology, ELSKY has been at the forefront of industrial control terminal design and development, committed to promoting the automation, intelligence and informationization of high-end manufacturing equipment industry, and providing partners with complete industrial control terminal solutions.
ELSKY has obtained more than 40 intellectual property rights. The products are widely used in industrial control, medical, transportation, network security and other industries, fully supporting the application of visual innovation technology and artificial intelligence technology, and have been strongly recognized by the market and users. ELSKY has won many government recognitions and industry awards, and has passed many major global certifications.
ELSKY is a member of Intel China Intelligent Manufacturing Base, a member of Intel Internet of Things Alliance, and has been awarded Intel Titanium Global Strategic Partner in 2022. The company has launched hundreds of industrial motherboards and OPS based on low-power platforms, industrial PC, with comprehensive functions, exquisite processing, stable operation, which are affirmed by the users and sold well in Europe, America, the Middle East, Southeast Asia and hundreds of other countries and regions. In the field of IoT artificial intelligence innovation, we are willing to work with excellent partners all the way to create a win-win situation!
>> Company Advantage
National High-tech Enterprise, National Specialized New Small Giant Enterprise, Guangdong Industrial Visual Control Terminal Engineering Technology Research Center.
Founded in 2009, with 200+ professional employees, focusing on motherboard and OPS, Industrial Computer solutions for more than sixteen years.
Providing OEM / ODM motherboard and computer service
All kinds of intellectual property rights more than 60 pieces.
Core support: Intel Titanium strategic partner, Intel China Intelligent Manufacturing Base members.
Supply chain support: Intel, ON, Realtek, ITE and other domestic and international OEMs and ODMs.
Wide range of applications: covering Display, Education,Retail, Industrial Automation, Network, Medical, Telecommunications, Metallurgy, Transportation, Electric power, Railroads, aviation, Communications, Finance, etc.
Representative Users and projects: Foxconn, TCL, Lenovo, Daxing Airport, Zhejiang University, etc.
