Motherboard Model | CPU | 4K | LAN | COM | USB 2.0 | USB3.2 | SSD | Memory | Power |

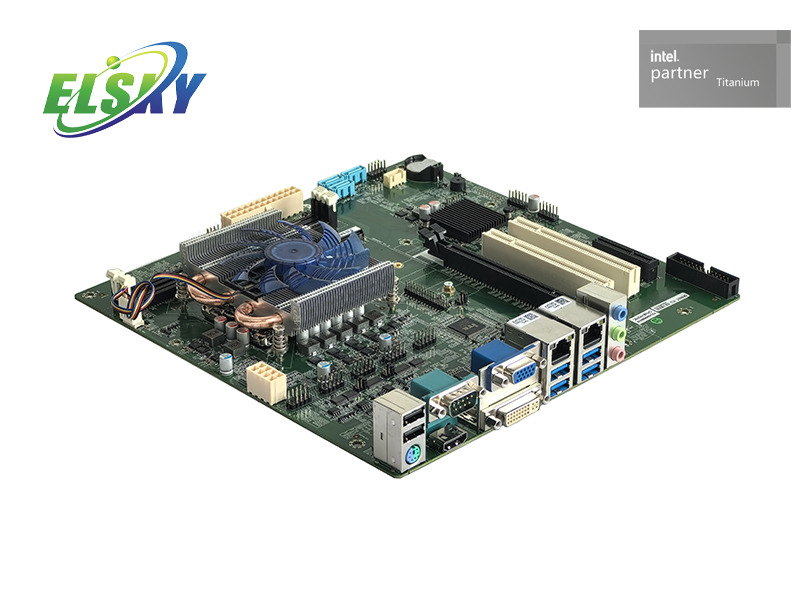

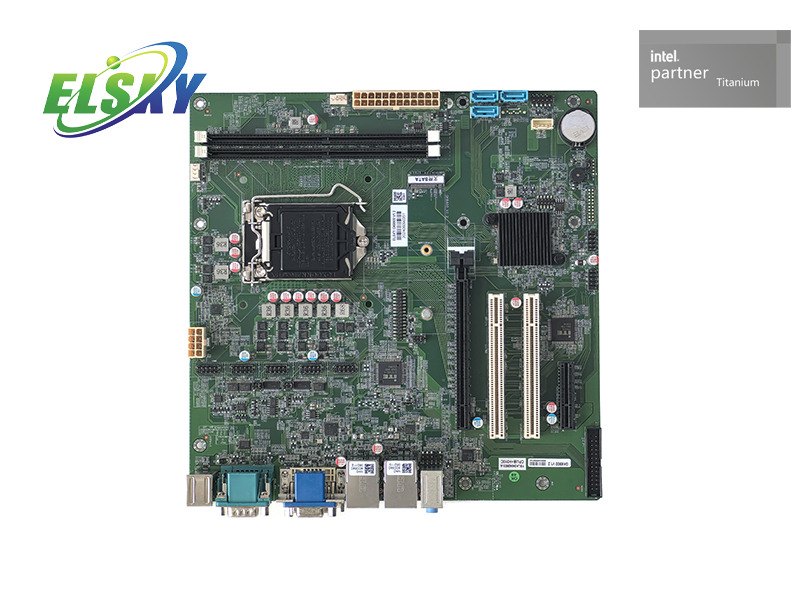

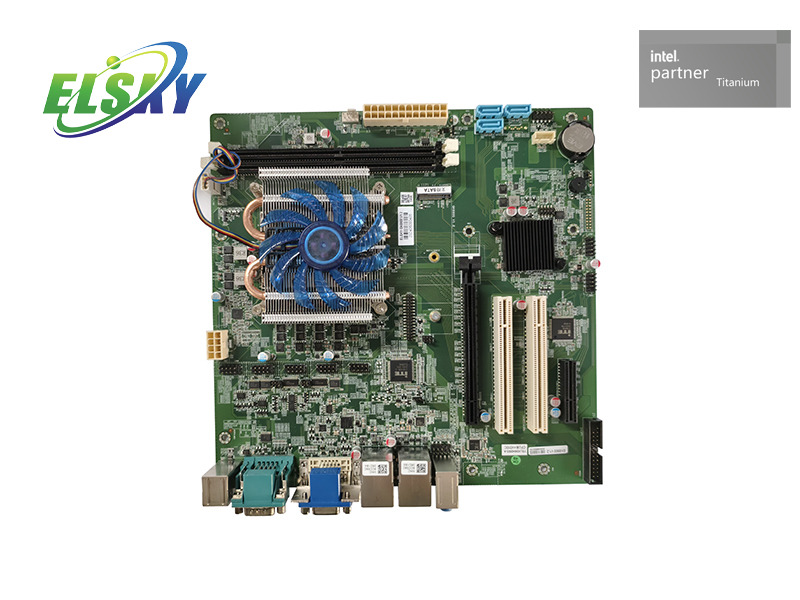

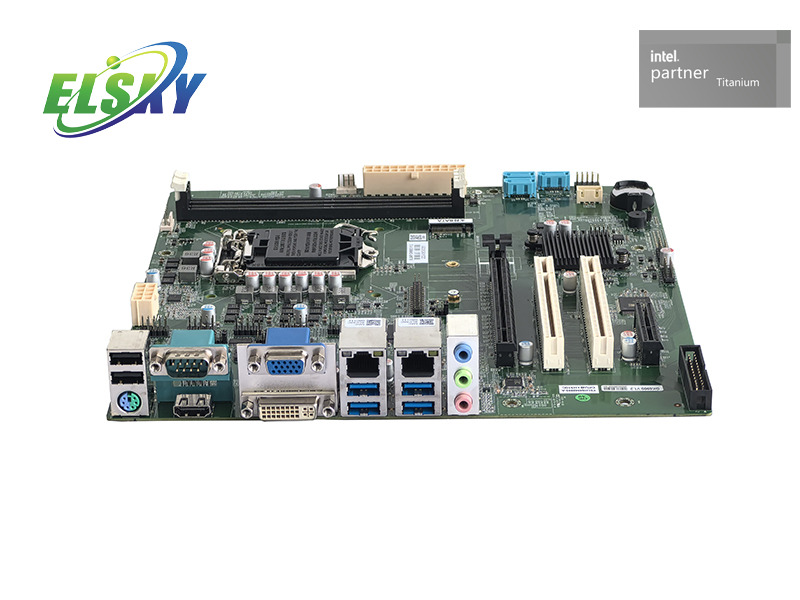

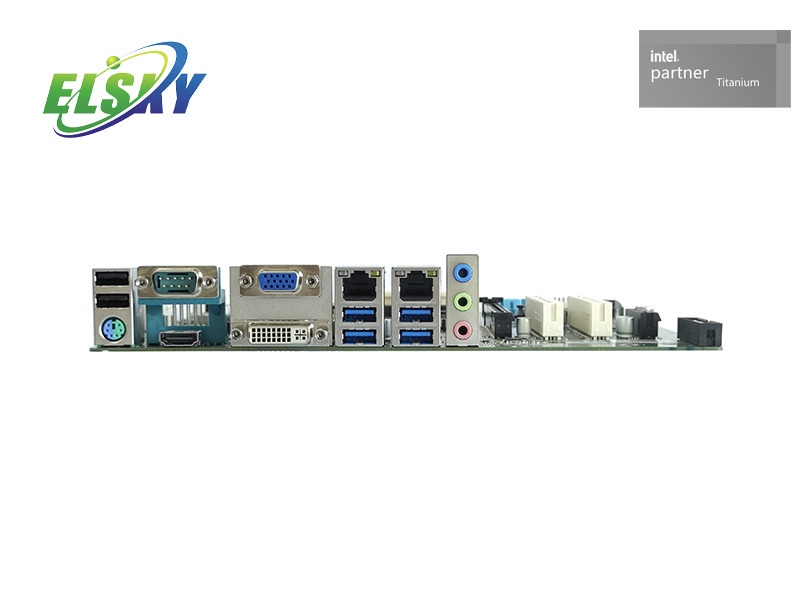

GK6900 | Support Intel 6/7/8/9th generation desktop LGA1151 Core i3, i5, i7, i9 independent CPU | support | 2 | 6 | 6 | 4 | 1*M.2 3*SATA | 2*PC-DDR4 MAX 64G | ATX |
>> Important Note
Power supply interface:
The motherboard supports one 24PinATX and one 8PinATX power supply interface. The power consumption at full load is about 90W. It is recommended to use a power supply of more than 200W;
CPU:
The motherboard supports Intel 6/7/8/9th generation desktop LGA1151 Core i3, i5, i7 and i9 independent CPUs;
Display interface:
1. The motherboard supports HDMI, VGA, DVI, and EDP pins to support single display, dual display duplication, dual display expansion, and single display under DOS;
2. The motherboard supports 1 PCIE
3. The motherboard HDMI supports 4K resolution 4096/3840*2160@30Hz;
4. The motherboard EDP supports resolution 4096/3840*2160@60Hz, and the EDP uses an EDP-C screen cable (30Pin backlight integrated screen cable);
M.2:
The motherboard NGFF supports the Key-M interface. The default M.2 2280 hard drive is optional, and the M.2 2242 hard drive is optional. It only supports the SATA protocol and cannot change the NVME (PCIE) protocol. Choose one of the M.2 SATA signal and SATA4 signal. The default M.2 has signal, SATA4 has no signal;
USB interface:
1. The motherboard supports 10USB by default (4*USB3.2 Gen1, 6*USB2.0);
2. All USB interfaces and pins on the motherboard default to S power (no power when turned off), and can be changed to A power (power on when turned off);
COM port:
The motherboard supports 6*COM ports, of which COM3/4 supports RS232/RS422/RS485 optionally. Through BIOS settings, other COM ports only support RS232;
The motherboard COM3/4 can respectively set the ninth pin output 0V/5V/12V through JCOM3/4/jumping cap, the default is 0V;
Network card:
The motherboard’s dual network ports support Intel I219V+Intel I226 - V Gigabit network card; POE power supply cannot be changed;
Sound card:
The motherboard supports Realtek ALC897 sound card by default, and the USB sound card cannot be changed;
>> CPU information
CPU specifications | CPU brand | CPU model | Main frequency | Turbo frequency | CPU power consumption approximately (W) | CPU full load power consumption (W) |
6th generation i3 | Intel core | 6100 | Dual core 3.7G | 65 | 90 | |
6300 | Dual core 3.8G | 65 | 90 | |||
6320 | Dual core 3.9G | 65 | 90 | |||
6th generation i5 | Intel core | 6400 | Quad core 2.7G | 3.3G | 65 | 90 |
6500 | Quad core 3.2G | 3.6G | 65 | 90 | ||
6600 | Quad core 3.3G | 3.9G | 65 | 90 | ||
6th generation i7 | Intel Core | 6700 | Quad core 3.4G | 4.0G | 65 | 90 |
7th generation i3 | Intel core | 7100 | Dual core 3.9G | 65 | 90 | |
7300 | Dual core 4.0G | 65 | 90 | |||
7320 | Dual core 4.1G | 65 | 90 | |||
7th generation i5 | Intel core | 7400 | Quad core 3.0G | 3.5G | 65 | 90 |
7500 | Quad core 3.4G | 3.8G | 65 | 90 | ||
7600 | Quad core 3.5G | 4.,1G | 65 | 90 | ||
7th generation i7 | Intel Core | 7700 | Quad core 3.6G | 4.2G | 65 | 90 |
8th generation i3 | Intel core | 8100 | Quad core 3.6G | 65 | 90 | |
8300 | Quad core 3.7G | 65 | 90 | |||
8th generation i5 | Intel core | 8400 | Six-core 2.8G | 4.0G | 65 | 90 |
8500 | Six-core 3.0G | 4.1G | 65 | 90 | ||
8600 | Six-core 3.2G | 4.3G | 65 | 90 | ||
8th generation i7 | Intel Core | 8700 | Six-core 3.2G | 4.6G | 65 | 90 |
9th generation i3 | Intel Core | 9100 | Quad core 3.6G | 4.2G | 65 | 90 |
9300 | Quad core 3.7G | 4.2G | 65 | 90 | ||
9th generation i5 | Intel core | 9400 | Six-core 2.9G | 4.1G | 65 | 90 |
9500 | Six-core 3.0G | 4.4G | 65 | 90 | ||
9600 | Six-core 3.1G | 4.6G | 65 | 90 | ||
9th generation i7 | Intel Core | 9700 | Octa-core 3.0G | 4.7G | 65 | 90 |
9th generation i9 | Intel Core | 9900 | Octa-core 3.1G | 5.0G | 65 | 90 |
>> Product Specifications
Motherboard size | 244mm (L)*244mm (W)*42mm(H) | ||
CPU | Support Intel 6/7/8/9th generation desktop LGA1151 Core i3, i5, i7, i9 independent CPU | ||
Chipset | Intel H310C Chipset | ||
Power supply | 1*24Pin_ATX | Standard desktop power supply The power consumption of the motherboard is about 90W when fully loaded. It is recommended to use a power supply of more than 200W. | |
1*8Pin ATX | |||
Memory | 2*DIMM slots | PC-DDR4 memory, supports 2133/2400/2666 MHz memory, supports up to 64G | |
Internet function | 2*LAN interface | Dual network ports support Intel I219V+Intel I226-V Gigabit network card, support network wake-up, PXE function | |
Display function | graphics card | Intel HD Graphics 530/630 super core graphics card, supports single display, dual display copy, dual display expansion, single display under DOS | |
1*HDMI 1.4 interface | Support 4K resolution 4096/3840*2160@30Hz | ||
1*DVI-I interface | Support resolution 1920*1080@60Hz | ||
1*VGA DB15 interface | Support resolution 1920*1080@60Hz | ||
1*PCI-E X16 interface | PCIE3.0 signal, optional PCI-E X16 interface, can be connected to independent graphics card | ||
1*EDP pin | EDP-C screen line; supports resolution 1920*1080@60Hz (30Pin, 2*15Pin, 2.0mm) | ||
1*EDP_PWR pin | EDP voltage control pin (6Pin, 2*3Pin, 2.0mm) | ||
USB function | 4*USB3.2 interface | Rear standard USB3. 2 Gen1 interface, maximum transmission bandwidth is 5Gbps | |
2*USB2.0 interface | Rear standard USB2.0 interface, maximum transmission bandwidth is 480Mbps | ||
1*F_USB1 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) | ||
1*F_USB2 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) | ||
Sound function | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller | ||
1*LINE_IN interface | Support line input (blue) | ||
1*LINE_OUT interface | Support audio output (green) | ||
1*MIC_IN interface | Support microphone input (red) | ||
1*F_AUDIO pin | Standard audio pins (9Pin, 2*5Pin, 2.54mm) | ||
Hard drive function | 1* NGFF interface | Supports Key-M interface default M.2 2280 hard drive, optional M.2 2242 hard drive; only supports SATA protocol, NVME (PCIE) protocol cannot be changed | |
1*SATA1/2/3/4 interface | Standard SATA hard disk interface, supports SATA 3.0 | ||
Choose between M.2 SATA signal and SATA4 signal. By default, M.2 has signal. By default, the motherboard does not have a SATA4 interface. | |||
1*SATA_PWR1 pin | Hard drive power supply pin, can take power 5V, 12V (4Pin, 1*4Pin, 2.54mm) | ||
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2. 54 mm) | |
1*AUTO_SW pin | Support hardware control power on (3Pin, 1*3Pin, 2.0mm) | ||
Other I/O | 1*PCI-E X4 interface | PCIE2.0 signal; standard PCI-E X4 interface | |
2*PCI interface | Standard PCI interface, can be connected to PCI devices | ||
1*PS/2 interface | Standard PS/2 interface, supports PS/2 keyboard/mouse | ||
1*COM1 DB9 interface | External serial port, only supports RS232; | ||
1*COM2/5/6 pin | Serial port, supports RS232 by default (9Pin, 2*5Pin, 2.54mm) | ||
1*COM3/4 pin | Support standard RS232 /RS422/ RS485 optional (BIOS setting) (9Pin, 2*5Pin, 2.54mm) | ||
1*JCOM3 pin | Control COM3 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm) | ||
1*JCOM4 pin | Control COM4 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm) | ||
1*CPU_FAN 1 pin | CPU fan pin, supports temperature control (4 Pin, 1*4 Pin, 2.54mm) | ||
1*SYS_FAN 1 pin | System fan pin, supports temperature control (4 Pin, 1* 4 Pin, 2.54mm) | ||
1*CLR_CMOS pin | Motherboard reset and discharge pin (3Pin, 1*3Pin, 2.0mm) | ||
1*GPIO _CN pin | GPIO control pin (10 Pin, 2*5Pin, 2.0 mm) | ||
1*LPT1 pin | Parallel port, standard printing port pins (25Pin, 2*13Pin, 2.54mm) | ||
1*TPM pin (optional) | Standard TPM pin, supports TPM encryption device (20Pin, 2*10Pin, 2.0mm) | ||
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | ||
BIOS | AMI BIOS supports power-on, scheduled boot, and intelligent identification of remote power on and off devices. | ||
Watch Dog | Watchdog programming (level 256, 0~255 seconds) | ||
Operating system | Support Windows 11, Windows 10, Windows 8, Windows 7, Linux, etc. | ||
>> The Characteristics of the Motherboard
1. Full variety: ELSKY motherboard covers Intel's entire product line of low-power, high-performance CPUs and chipsets.
2. Small size: Mini-ITX based, with additional embedded specialized structures.
3. High integration: On-board CPU, part of the motherboard with memory, hard disk, integrated sound and graphics network card.
4. Low-power: Within 5W-30W for most motherboards.
5. High speed: Multi-core CPU, DDR3-DDR4-DDR5 memory, M.2-MSATA storage, USB3.0, SATA3.0, Gigabit LAN card.
6. Full interfaces: The IO baffle uses standard interfaces. Multi-USB, Multi-COM, Multi-network, Multi-SATA, Multi-display interfaces.
7. Fanless: Some motherboards use fanless cooling to prevent problems with broken fans.
8. Display interfaces: VGA/HDMI/LVDS/DVI/EDP/DP display interfaces.
9. Extensibility: Provides PCI, PCIE, Mini PCIE and other expansion interfaces.
