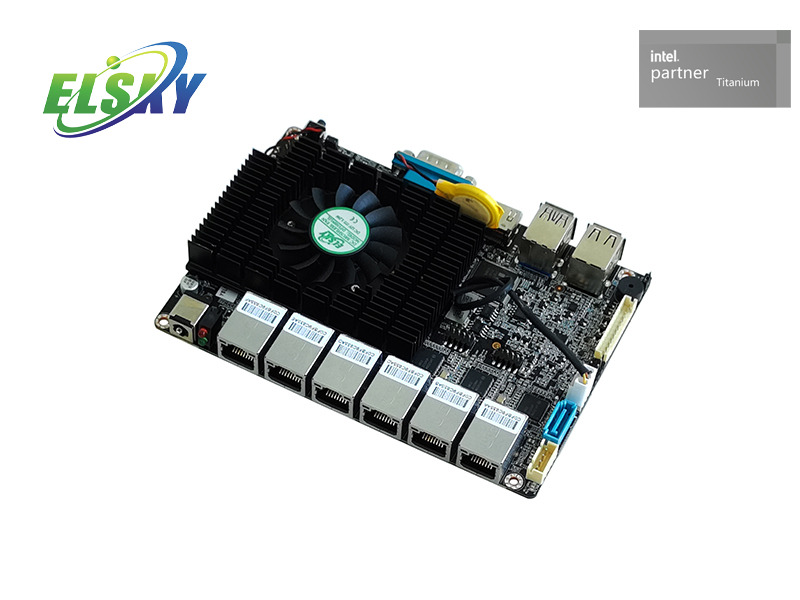

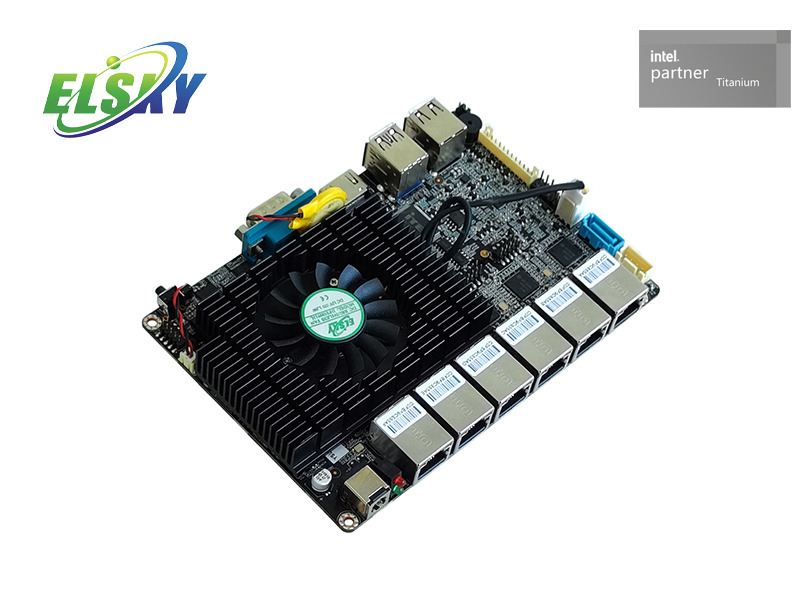

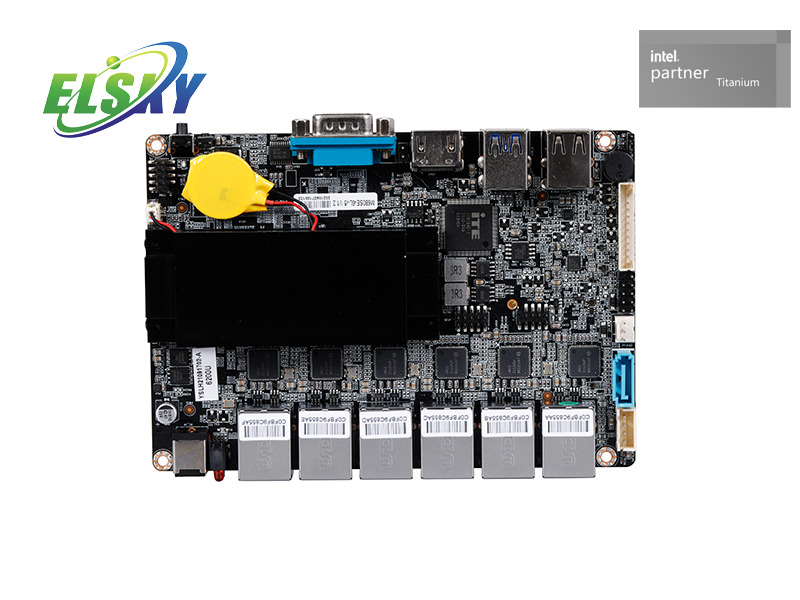

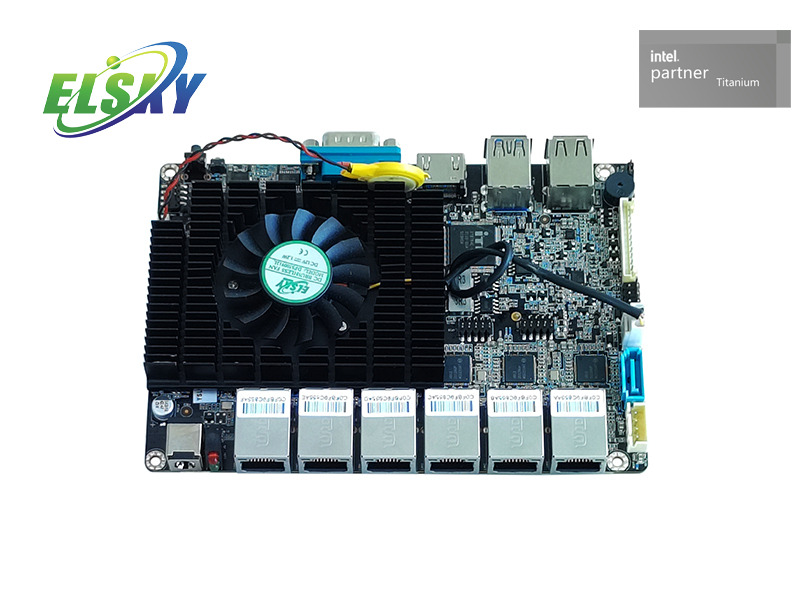

Motherboard model | CPU | 4K | RJ45-LAN | COM | USB2.0 | USB3.0 | Memory | Power |
M680SE-6L | Supports Intel 6th generation Skylake Celeron 3855U and Core i3, i5, i7 | support | 6 | 2 | 4 | 2 | 1*NB-DDR4 MAX 32G | +12V |
M780SE-6L | Support Intel 7th generation Kaby Lake Celeron 3865U and Core i3, i5, i7 | support | 6 | 2 | 4 | 2 |
>> Important Note
Power supply interface:
The motherboard DC interface specification 5.5*2.5
The motherboard supports 12V power supply, and the full load power consumption is about 40W. It is recommended to use 12V5A or above power supply;
Show interface:
The motherboard VGA pin, HDMI interface supports single display, dual display/copy, dual display/extension;
The motherboard HDMI supports 4K resolution 4096/3840*2160@30Hz;
Mini_PCIE:
The MSATA interface of the main board supports the coexistence of SATA signal and USB signal by default, and can be connected to the WIFI module of MSATA disk or USB signal, and the SATA signal cannot be changed to PCIE;
The Mini-PCIE interface of the motherboard supports USB signals by default , without PCIE signals, does not support WiFi modules by default, supports 4G/Bluetooth modules by default; PCIE signals can be changed to coexist with USB signals, and after modification, it supports WiFi modules/4G/Bluetooth modules. LAN6 has no PCIE signal (the LAN6 PCIE signal and the PCIE signal of the Mini-PCIE interface are optional);
USB interface:
The motherboard supports 6*USB by default (2*USB3.0 , 4*USB2.0)
The motherboard's external USB interface and built-in USB pin support S power by default (no power after shutdown), and can be changed to A power (power after shutdown);
COM port:
The motherboard COM1/COM2 only supports RS232, the default is 0V, and the voltage cannot be set;
Network card:
The motherboard supports 6* Intel i211-AT Gigabit network card, and the POE power supply cannot be changed
>> CPU information
CPU specification | CPU brand | CPU model | Main frequency | Turbo frequency | CPU power consumption (W) | The full load power consumption of the whole board is about |
6th generation | Celeron | 3855U | Dual core 1.6G | 15 | 40 | |
3955U | Dual-core 2.0G | 15 | 40 | |||
6th generation I3 | core | 6006U | Dual-core 2.0G | 15 | 40 | |
6100U | Dual-core 2.3G | 15 | 40 | |||
6157U | Dual-core 2.4G | 28 | 50 | |||
6167U | Dual-core 2.7G | 28 | 50 | |||
6th generation I5 | core | 6200U | Dual-core 2.3G | 2.8G | 15 | 40 |
6260U | Dual core 1.8G | 2.9G | 15 | 40 | ||
6267U | Dual-core 2.9G | 3.3G | 28 | 50 | ||
6287U | Dual-core 3.1G | 3.5G | 28 | 50 | ||
6300U | Dual-core 2.4G | 3.0G | 15 | 40 | ||
6360U | Dual-core 2.0G | 3.1G | 15 | 40 | ||
6th generation I7 | core | 6500U | Dual-core 2.5G | 3.1G | 15 | 40 |
6560U | Dual-core 2.2G | 3.2G | 15 | 40 | ||
6567U | Dual-core 3.3G | 3.6G | 28 | 50 | ||
6600U | Dual-core 2.6G | 3.4G | 15 | 40 | ||
6650U | Dual-core 2.2G | 3.4G | 15 | 40 | ||
6660U | Dual-core 2.4G | 3.4G | 15 | 40 | ||
7th generation | Celeron | 3865U | Dual core 1.8G | 15 | 40 | |
3965U | Dual-core 2.2G | 15 | 40 | |||
7th generation I3 | core | 7020U | Dual-core 2.3G | 15 | 40 | |
7100U | Dual-core 2.4G | 15 | 40 | |||
7130U | Dual-core 2.7G | 15 | 40 | |||
7th generation I5 | core | 7200U | Dual-core 2.5G | 3.1G | 15 | 40 |
7260U | Dual-core 2.2G | 3.4G | 15 | 40 | ||
7267U | Dual-core 3.1G | 3.5G | 28 | 50 | ||
7287U | Dual-core 3.3G | 3.7G | 28 | 50 | ||
7300U | Dual-core 2.6G | 3.5G | 15 | 40 | ||
7360U | Dual-core 2.3G | 3.6G | 15 | 40 | ||
7th generation I7 | core | 7500U | Dual-core 2.7G | 3.5G | 15 | 40 |
7560U | Dual-core 2.4G | 3.8G | 15 | 40 | ||
7567U | Dual-core 3.5G | 4.0G | 28 | 50 | ||
7600U | Dual-core 2.8G | 3.9G | 15 | 40 | ||
7660U | Dual-core 2.5G | 4.0G | 15 | 40 |
>> Product Specifications
Motherboard size | 146 mm*102 mm* 25 mm (bottom to top) | ||
CPU processor | Support Skylake 6th generation and Kaby Lake 7th generation Celeron and Core i3, i5, i7 | ||
Chipset | Kaby Lake, Skylake express chipset | ||
Memory support | 1*NB-DDR4 SODIMM memory slot, support 2133/2400 MHz memory, maximum support 32 GB | ||
Power supply | 1*DC_IN | Support 12V voltage, the inner diameter of the DC head is 2.5MM The full load power consumption of the motherboard is about 40 W, it is recommended to use 12V 5 A or above power supply | |
Display function | 6th generations | Intel HD Graphics 510/520 graphics controller | Support single display, dual display, dual display copy/extend |
7th generations | Intel HD Graphics 610/620 graphics controller | ||
1*VGA_OUT pin | Support resolution 1920*1 080 @60HZ (12Pin, 1*12Pin, 2.0mm) | ||
1*HDMI 1.4 interface | Support 4K resolution 4096/3840*2160@30HZ | ||

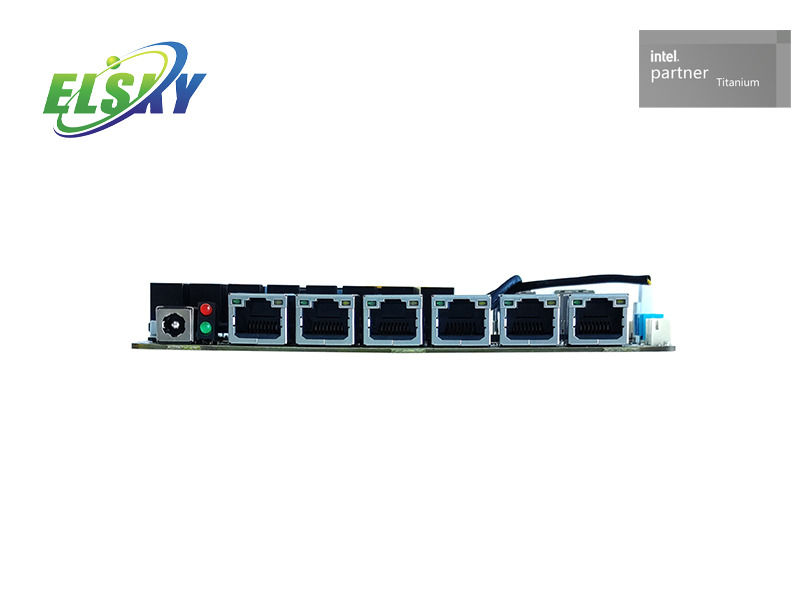

Network function | 6*RJ45 LAN interface | Intel i211-AT Gigabit network card, support wake-up on LAN and PXE diskless boot function | |
1*Mini-PCIE interface | Support 3G/4G (WiFi optional, choose one with LAN6) | ||
Hard disk function | 1*SATA interface | Standard SATA3.0 hard disk interface, the maximum transmission speed is 6.0 Gbps | |
1*SATA-PWR pin | Hard disk power supply pin, available voltage 5V, 12V (4Pin, 1*4Pin, 2.54mm) | ||
1*MSATA interface | Support MSATA disk, support MSATA 3.0 | ||

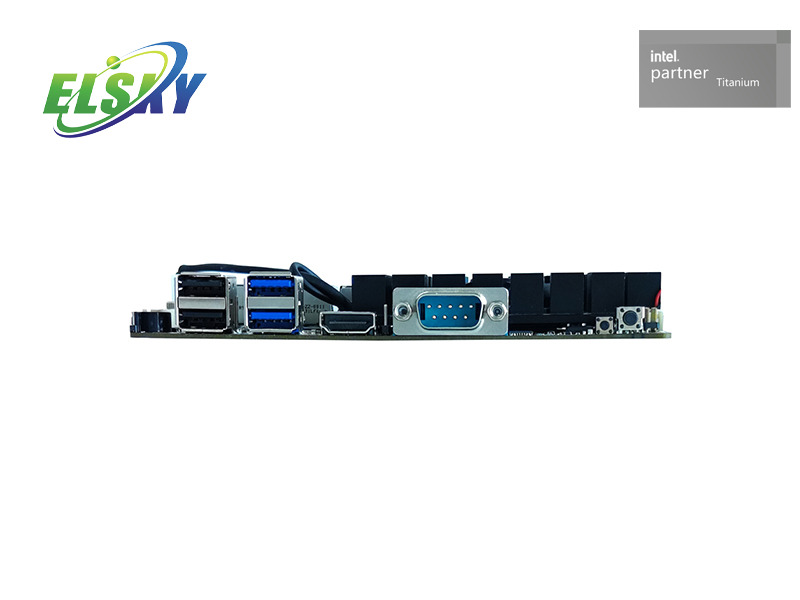

USB function | 2*USB3.0 interface | Rear standard USB3.0 interface | |
2*USB2.0 interface | Rear standard USB2.0 interface | ||
1*F_USB1 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | ||
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, reset pin (9Pin, 2*5Pin, 2.54 mm ) | |
1*PWR_BUTN button | Switch button | ||
1*RST_BUTN button | Restart button | ||
Other I/O | 1*AT_ATX pin | Hardware control power-on pin (3Pin, 1*3Pin, 2.0mm) | |
1*COM1 interface | External serial port, only supports RS232 | ||
1*COM2 pin | Built-in serial pin, only supports RS232 (9Pin, 2*5Pin, 2.0mm) | ||
1*SIM_CARD card slot | Support SIM card, need SIM card when using 3G/4G | ||
1*CLR-CMOS pin | Motherboard reset and discharge pin (1*2Pin, 2.54mm) | ||
1*CPU_FAN pin | CPU fan pin, does not support temperature control(3 Pin, 1* 3 Pin, 2.54 mm) | ||
1*J_GPIO pin | Standard GPIO pin (10Pin, 2*5Pin, 2.0mm) | ||
1*LED1 | Power light, HDD light | ||
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | ||
BIOS | AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment | ||
Watch dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | ||
Operating system | Support Windows 10, Windows 8, Windows 7, Linux, etc. | ||
