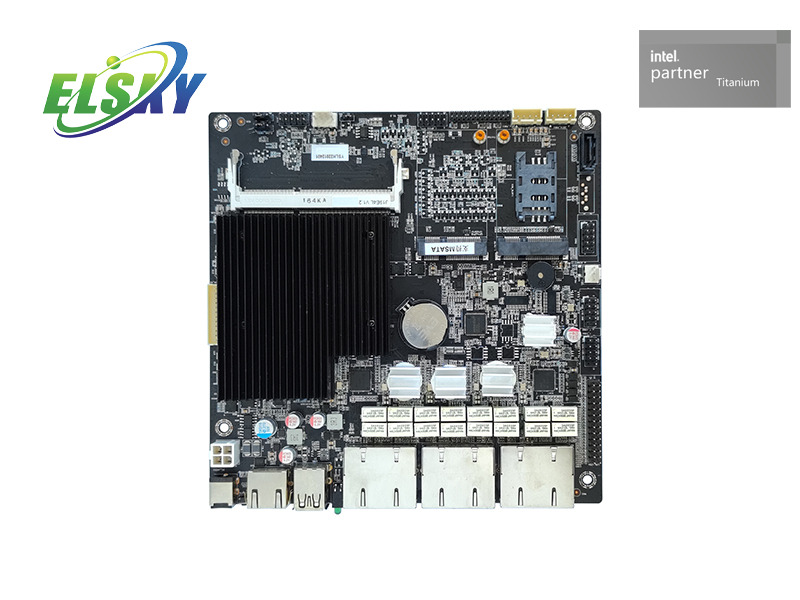

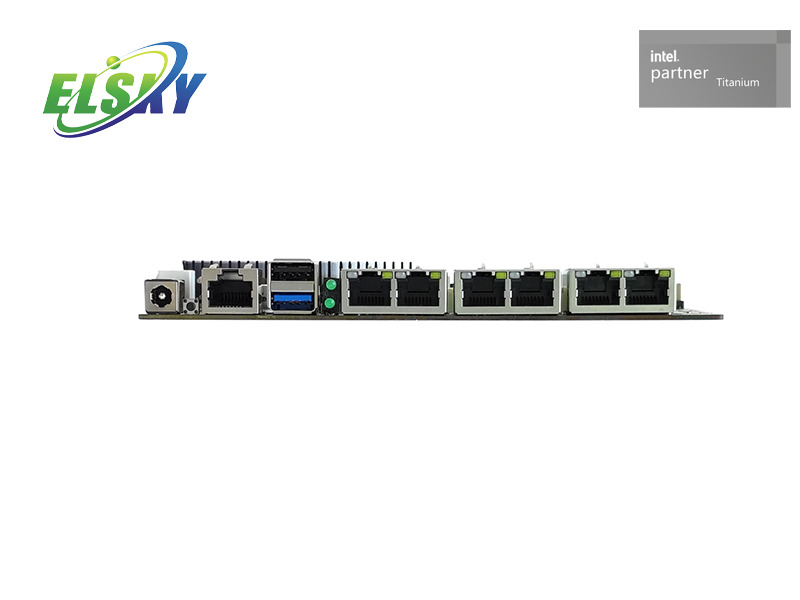

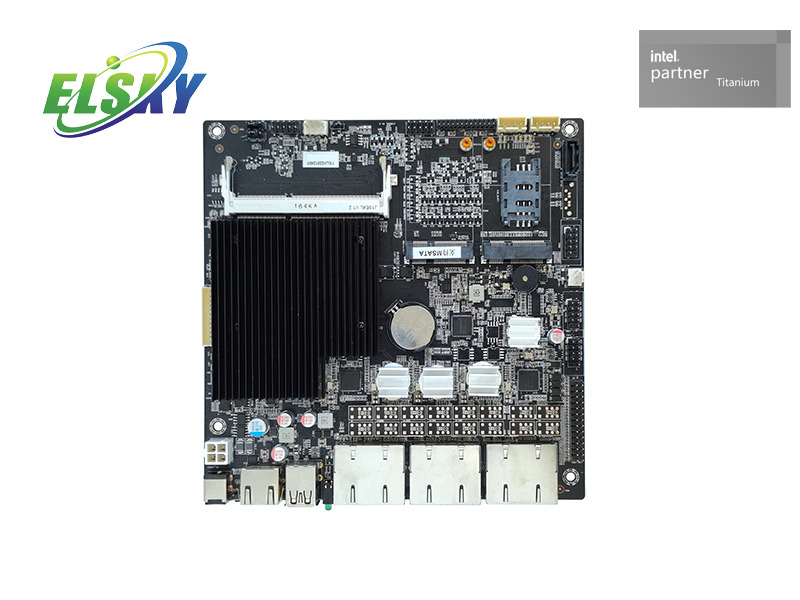

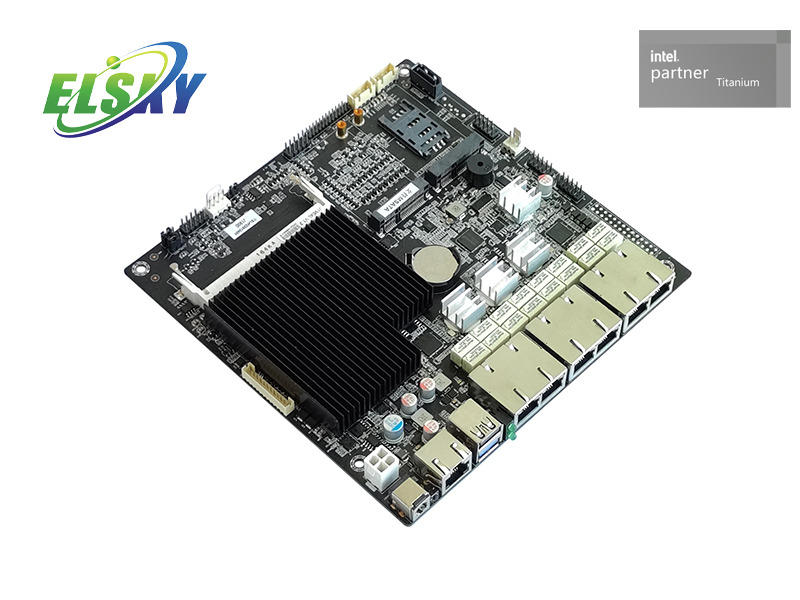

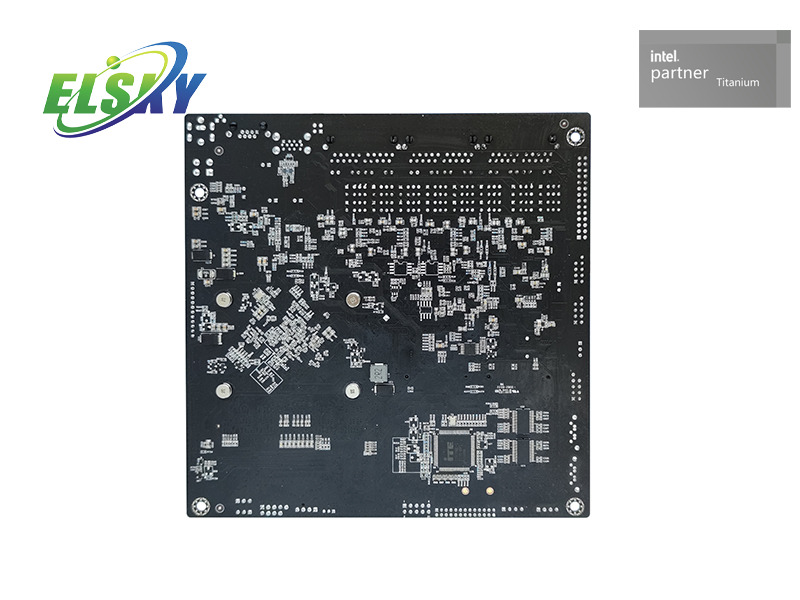

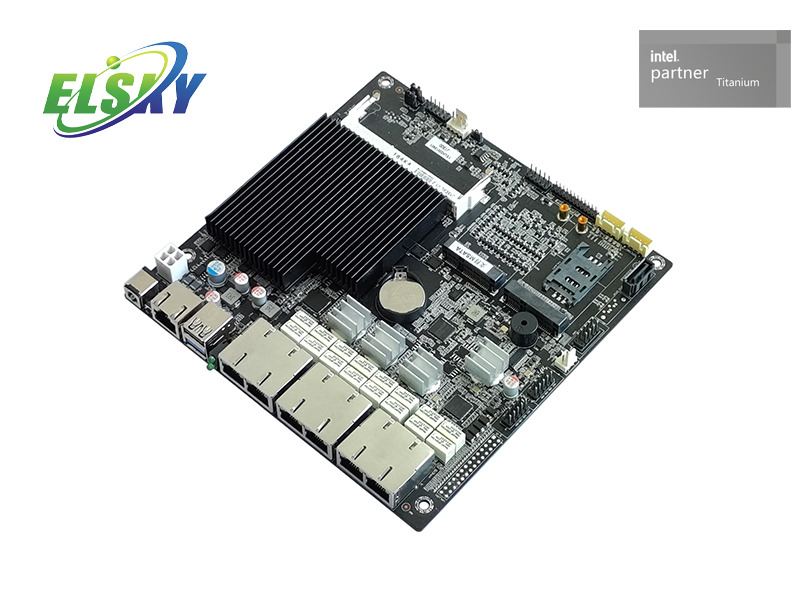

Motherboard model | CPU | Bypass | LAN | COM | USB2.0 | USB3.0 | SSD | Memory | power |
J19E6L | Celeron J1800 Celeron J1900 Pentium J2900 optional | / | 6 | 2 | 5 | 1 | 1*MSATA 1*SATA | 1*NB-DDR3 MAX 8G | +12V |
J19EB6L | support | 6 | 2 | 5 | 1 | ||||
J19E4L | / | 4 | 2 | 5 | 1 | ||||
J19EB4L | support | 4 | 2 | 5 | 1 | ||||
The J19EB4L/6L model indicates that it has the Bypass function | |||||||||
>> Important Note
Power supply interface:
The motherboard DC interface specification 5.5*2.5; support 4Pin power socket;
The motherboard only supports 12V power supply, and the power consumption of the CPU is about 30W at full load. It is recommended to use 12V 4A or above power supply;
Show interface:
The motherboard display output interface only supports VGA pin;
Mini-PCIE:
The Mini-PCIE interface on the motherboard supports the coexistence of PCIE signals and USB signals by default, and supports WIFI/3G/4G/Bluetooth modules;
The motherboard MSATA interface supports the coexistence of SATA signals and USB signals by default, and can support MSATA disks or USB signal WIFI modules; SATA signals and SATA1 signals can be selected, and MSATA is supported by default, and there is no SATA1 interface by default; SATA signals cannot be changed to PCIE;
USB interface:
The motherboard supports 6*USB (5*USB2.0, 1*USB3.0) by default; 1*USB3.0 interface, 1*USB2.0 interface, 4*USB2.0 pin;
The motherboard's external USB interface and built-in USB pin support S power by default (no power after shutdown), and can be changed to A power (power after shutdown);
COM port:
The motherboard supports 2*COM; respectively 1*COM1 (RJ45 interface), 1*COM2 pin;
The motherboard COM 1/COM2 only supports RS232 , the default is 0V, and the voltage cannot be set;
Network card:
The motherboard supports 4/6*Intel i210/i211-AT Gigabit network card optional, does not support and cannot be changed to POE power supply;
The motherboard LAN1/2/3/4 can optionally support the Bypass function (the order of LAN1/2/3/4/5/6 is subject to the order of the device manager in the system)
>> CPU information
| CPU brand | CPU model | main frequency | turbo frequency | CPU power consumption | The full load power consumption of the whole board is about |
| Intel Celeron | J1800 | Dual-core 2.41G | 2.58G | 10W | 30W |
| Intel Celeron | J1900 | Quad-core 1.99G | 2.41G | 10W | 30W |
| Intel Pentium | J2900 | Quad-core 2.41G | 2.66G | 10W | 30W |
>> Product Specifications
Motherboard size | 170mm(L)*170mm(W)*21mm(H) | |
CPU processor | Intel® Processor Celeron J1900, Celeron J1800, Pentium J2900 | |
Chipset | Intel Bay trail SOC chipset | |
Memory | 1*NB-DDR3L memory, low voltage 1.35V memory, support 1333/1600MHz memory, maximum support 8G | |
Power supply | 1*DC_JACK | Support 12V voltage, the inner diameter of the DC head is 2.5MM power consumption of the motherboard is about 30 W at full load, and it is recommended to use a 12V 4 A or above power supply |
Display function | Intel(R) HD Graphics graphics controller , support single display | |
1*VGA_H pin | Support resolution 1920*1080 @60HZ (12Pin, 1*12Pin, 2.0mm) | |
Network features | 4/6*RJ45 LAN interface | Intel i210/i211-AT Gigabit network card , support wake-up on LAN and PXE diskless boot function |
1*Mini-PCIE interface | Support WiFi/3G/4G/Bluetooth, etc. | |
1*LAN_LED pin | Network port light pin (28 Pins, 2*14 Pins, 2.54mm ) | |
Hard disk function | 1*SATA 2 interface | Standard SATA2.0 hard disk interface, the maximum transmission speed is 3.0 Gbps |
2*SATA-PWR pin | Hard disk power supply pin, available voltage 5V, 12V (4Pin, 1*4Pin, 2.54mm) | |
1*MSATA interface | Support MSATA disk, support MSATA 2.0 | |
USB function | 1*USB3.0 interface | Rear standard USB3.0 interface |
1*USB2.0 interface | Rear standard USB2.0 interface | |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm ) | |
1*F_USB 2 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54 mm ) | |
Switch function | 1*J FP pin | Switch, power light, hard disk light, reset pin (9Pin, 2*5Pin, 2.54 mm ) |
1*RST BTN button | restart button | |
1*AT_ATX pin | Hardware control power-on pin (3Pin, 1*3Pin, 2.54 mm ) | |
Other I/O | 1*COM1 interface | RJ45-COM only supports RS232 |
1*COM2 pin | Built-in serial pin, only supports RS232 (9Pin, 2*5Pin, 2.54mm) | |
1*SIM_SLOT card slot | Support SIM card, need SIM card when using 3G/4G | |
1*CLEAR-CMOS pin | Motherboard reset and discharge pin (3Pin, 1*3Pin, 2. 54 mm) | |
1*CPU_FAN pin | CPU fan pin, does not support temperature control (3 Pin, 1*3 Pin, 2.54 mm) | |
1*FAN 1 pin | Fan pin, does not support temperature control (3Pin , 1*3Pin, 2.54mm ) | |
1*J_GPIO pin | Standard GPIO pin (10Pin, 2*5Pin, 2.54mm ) | |
1*JLPT pin | Standard print port pin (25 Pins, 2*13 Pins, 2.0mm) | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
BIOS | AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment | |
Watch dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Support Windows 10, Windows 8, Windows 7, Linux, etc. | |
>> The Characteristics of the Motherboard
1. Full variety: ELSKY motherboard covers Intel's entire product line of low-power, high-performance CPUs and chipsets.
2. Small size: Mini-ITX based, with additional embedded specialized structures.
3. High integration: On-board CPU, part of the motherboard with memory, hard disk, integrated sound and graphics network card.
4. Low-power: Within 5W-30W for most motherboards.
5. High speed: Multi-core CPU, DDR3-DDR4-DDR5 memory, M.2-MSATA storage, USB3.0, SATA3.0, Gigabit LAN card.
6. Full interfaces: The IO baffle uses standard interfaces. Multi-USB, Multi-COM, Multi-network, Multi-SATA, Multi-display interfaces.
7. Fanless: Some motherboards use fanless cooling to prevent problems with broken fans.
8. Display interfaces: VGA/HDMI/LVDS/DVI/EDP/DP display interfaces.
9. Extensibility: Provides PCI, PCIE, Mini PCIE and other expansion interfaces.
>> The Applications of the Motherboard
ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
