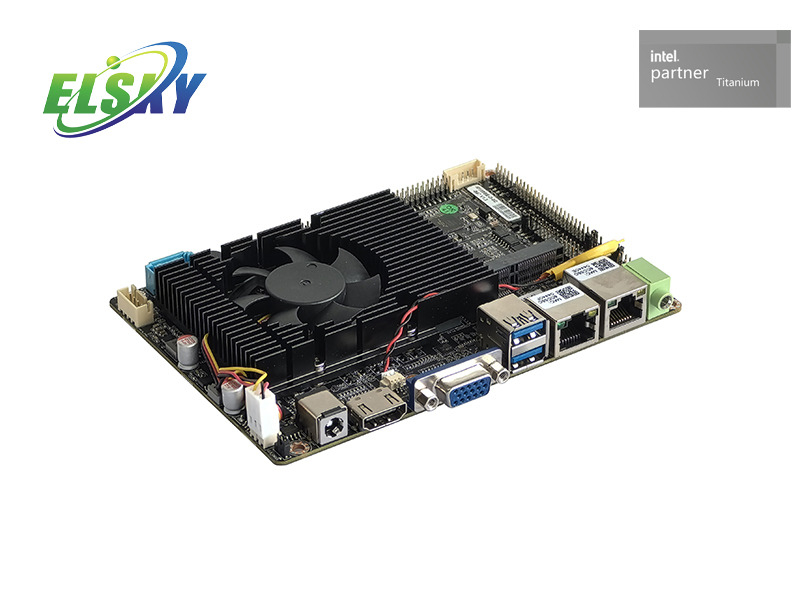

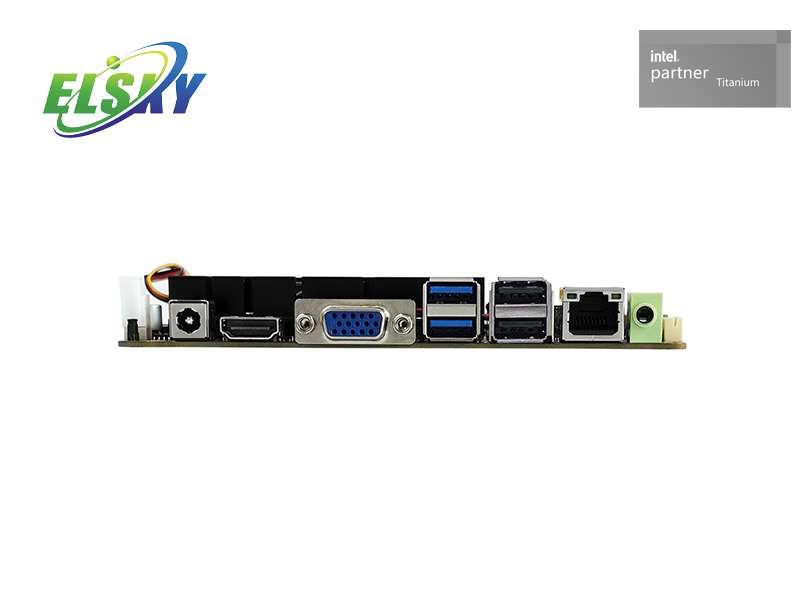

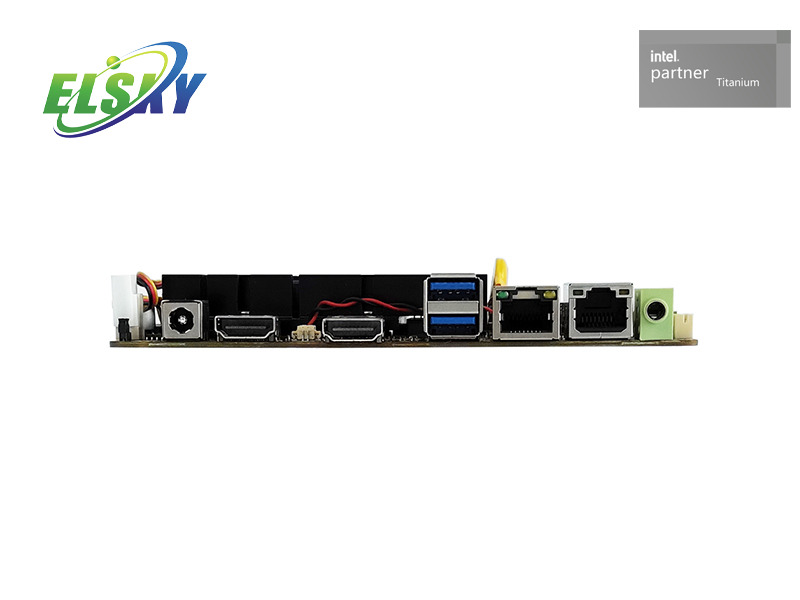

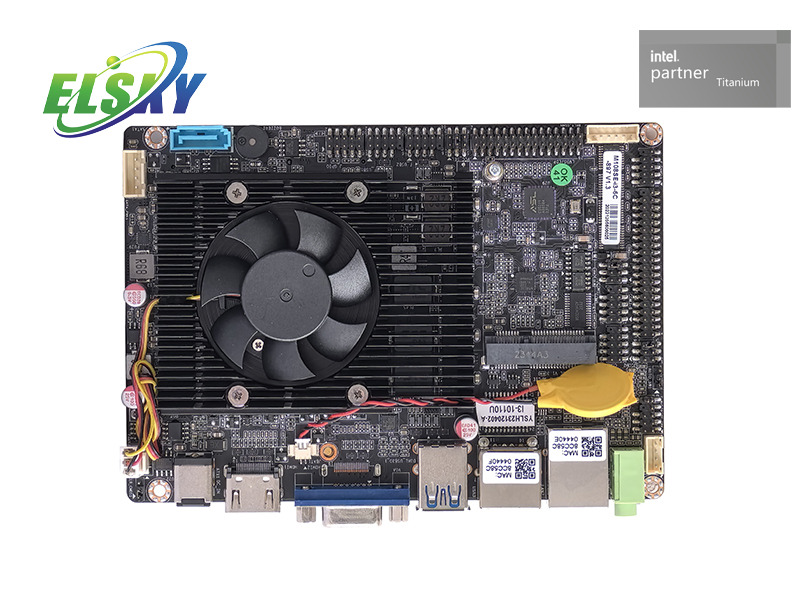

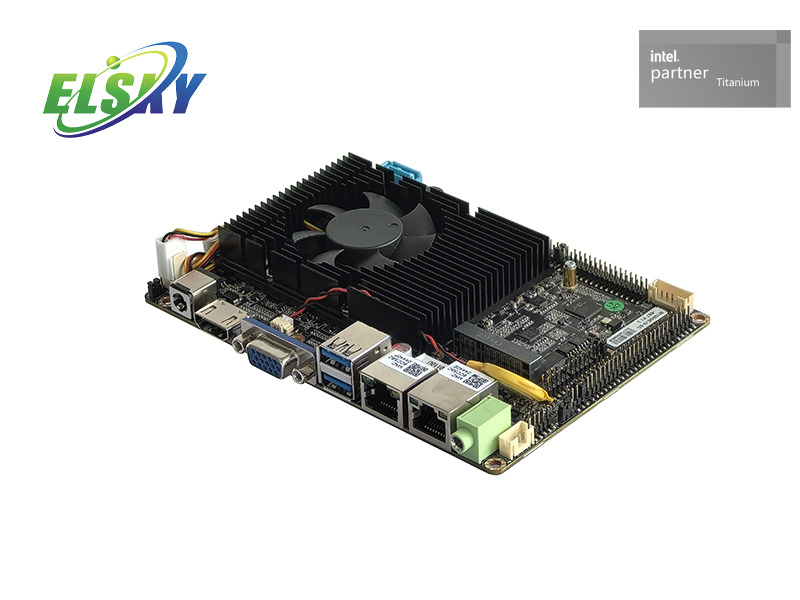

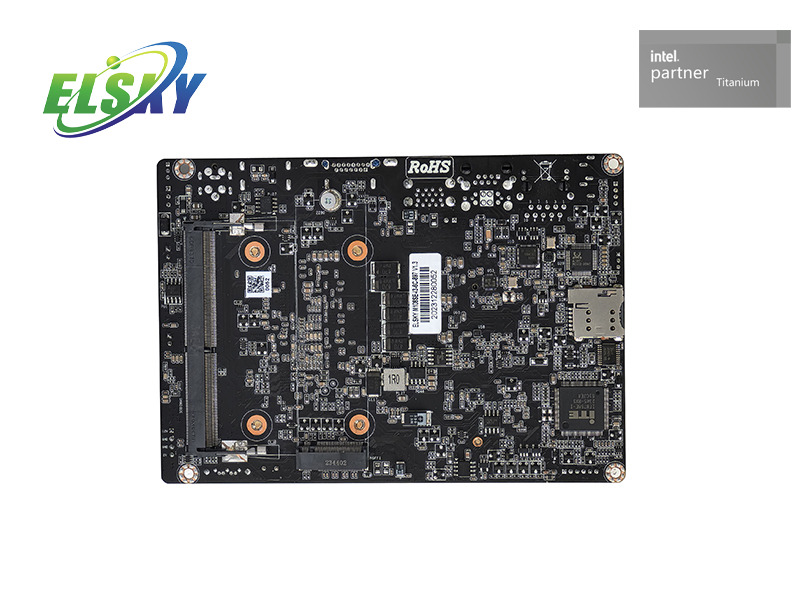

| Motherboard model | CPU | 4K | LAN | COM | USB2.0 | USB3.1 | Memory | SSD | power |
| M108SE | Support Whiskey Lake 8th generation / Comet Lake 10th generation Core i3, i5, i7 | support | 1 | 6 | 6 | 2 | 1*NB-DDR4 MAX 32G | 1*M.2 1*MSATA can be modified to support Mini-PCIE | +12V/19V |
| 2 | 6 | 4 | 2 | ||||||
| Single network supports 8*USB by default | |||||||||
>> Important Note
Power supply interface:
The Motherboard DC interface specification 5.5*2.5, can be changed to 4Pin ATX interface for power supply;
The motherboard supports 12V or 19V power supply, and the full load is about 60W. It is recommended to use 12V7A or 19V4A power supply;
Display interface:
1. The motherboard HDMI1, VGA/HDMI2, LVDS/EDP single display, double display/triple display copy, double display/triple display expansion, single display under DOS;
2. The motherboard VGA interface and HDMI2 interface are optional, the default supports VGA interface, and can be changed to support HDMI2 interface;
3. The motherboard HDMI1/HDMI2 interface supports 4K resolution 4096/3840*2160@30Hz;
4. The motherboard LVDS and EDP are two options, the default supports LVDS, can be changed to support EDP, share pins; EDP uses EDP-B 20Pin backlight to separate independent screen lines;
Mini-PCIE:
1. The motherboard Mini-PCIE defaults to coexistence of SATA signal and USB signal, and supports MSATA disk or USB signal WIFI module by default; SATA signal can be changed to PCIE signal, and then supports WIFI/4G/Bluetooth WiFi module;
2. The motherboard supports M.2 2280 hard drives; the default supports the coexistence of SATA protocol and NVME (PCIE) protocol;
USB port:
1. The single network motherboard supports 8*USB (2*USB3.1 6*USB2.0) by default;
2. All USB ports and pins on the motherboard are defaulted to S power (no power after shutdown), and can be changed to A power (power after shutdown);
COM port:
1. The motherboard supports 6*COM, RS232 is supported by default, COM1 supports RS232/422/485 optional, set by BIOS;
2. The 9th pin of COM1/2 of the motherboard can be set to live 0V/5V/12V through JCOM1/JCOM2 respectively, and the default is 0V;
Network card:
The motherboard single network/dual network optional, single network supports intel WG i219V Gigabit network card by default, dual network supports intel WG i219V+Realtek 8111H dual Gigabit network card; POE power supply cannot be changed;
Sound card:
The motherboard supports Realtek sound card by default, and does not support changing USB sound card. The blue audio interface only supports LINE_OUT, not MIC_IN. The built-in F_AUDIO pin supports LINE_OUT and MIC_IN
>> CPU information
| CPU specifications | CPU brand | CPU model | main frequency | turbo frequency | CPU power consumption (W) | Full load power consumption approx. ( W ) |
| 8th generation I3 | core | 8145U | Dual-core 2.1G | 3.9G | 15 | 60 |
| 8 generation I5 | core | 8365U | Quad-core 1.6G | 4.1G | 15 | 60 |
| 8265U | Quad-core 1.6G | 3.9G | 15 | 60 | ||
| 8th generation I7 | core | 8565U | Quad-core 1.8G | 4.6G | 15 | 60 |
| 8665U | Quad-core 1.9G | 4.8G | 15 | 60 | ||
| 10th generation I3 | core | 10110U | Dual-core 2.1G | 4.1G | 15 | 60 |
| 10th generation I5 | core | 10310U | Quad-core 1.7G | 4.4G | 15 | 60 |
| core | 10210U | Quad-core 1.6G | 4.2G | 15 | 60 | |
| 10th generation I7 | core | 10510U | Quad-core 1.8G | 4.9G | 15 | 60 |
| core | 10610U | Quad-core 1.8G | 4.9G | 15 | 60 | |
| core | 10810U | Six-core 1.1G | 4.9G | 15 | 60 | |
| core | 10710U | Six-core 1.1G | 4.7G | 15 | 60 |
>> Product Specifications
| Motherboard size | 145mm(L)*100mm(W)*25mm(H) | |
| CPU processor | Support 8th generation Whiskey Lake CPU: I3-8145U, I5-8265U, I7-8665U, etc. | |
| Support 10th generation Comet Lake CPU: I3-10110U, I5-10210U, I7-10510U, etc. | ||
| Memory | 1*NB-DDR4 memory slot, support 2133/2400/2666/2933MHz memory, maximum support 32 GB | |
| Power supply | 1*DC_IN/ATX | The inner diameter of the DC plug is 2.5MM, supporting 12V/19V full load power consumption of the motherboard is about 60W, it is recommended to use a power supply of 12V/7A or 19V/4A or more |
| Display function | Integrated Intel UHD Graphics ultra-core graphics card , support single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS | |
| 1*VGA DB15 interface | Support resolution 1920*1080@60Hz | |
| VGA interface and HDMI2 interface are optional, the default supports VGA interface, can be changed to support HDMI2 interface | ||
| 1*HDMI 1.4 interface | Support 4K resolution 4096/3840*2160@30Hz | |
| 1*LVDS pin (EDP optional) | Support resolution 1920*1080@60Hz (30Pin, 2*15Pin, 2.0mm) | |
| 1*VCC_SEL pin | LVDS/EDP voltage control pin (6Pin, 2*3Pin, 2.0mm) | |
| 1*BKLT_CONN pin | LVDS backlight control pin (6Pin, 1*6Pin, 2.0mm) | |
| Network features | 1/2*LAN interface | Integrated Intel WG i219V gigabit network card chip, supports network switch and PXE diskless boot function. Dual network can be changed to support intel WG i219V+Realtek 8111H Gigabit network card |
| Hard disk function | 1*SATA1 interface | Standard SATA3.0 hard disk interface, the maximum transmission speed is 6.0 Gbps |
| 1*SATA_PWR | Hard disk power supply pin, can take 5V/12V (4Pin, 1*4Pin, 2.54mm) | |
| 1*MSATA interface | Support MSATA disk, optional support WIFI/4G/Bluetooth, etc. | |
| 1*NGFF1 interface (M.2) | Only supports M.2 2280 hard drives, and supports SATA and NVME (PCIE) protocols by default | |
| Sound function | Integrated Realtek ALC662/660/892 and other HD digital audio decoders, 6-channel high-fidelity audio controller | |
| 1*LINE_OUT interface | Support audio output | |
| 1*F_AUDIO pin | Standard audio pin (9Pin, 2*5Pin, 2.0mm) | |
| 1*INT_SPK pin | Power amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm) | |
| USB function | 2*USB3.1 interface | Rear standard USB3. 1 Gen2 interface, the maximum transmission bandwidth is 10.0Gbps |
| 2*USB2.0 interface | Rear standard USB2.0 interface, the maximum transmission bandwidth is 480Mbps (60MB/s) | |
| 1*F_USB1 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
| 1*F_USB2 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
| Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, reset pin (9Pin, 2*5Pin, 2.0mm) |
| 1*AUTO_SW pin | Hardware control power-on pin (3Pin, 1*3Pin, 2.0mm) | |
| Other I/O | COM1 pin | Serial port, COM1 supports RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.0mm) |
| COM2 pin | Serial port , support standard RS232 (9Pin, 2*5Pin, 2.0mm) | |
| COM3~6 pins | Serial port, support standard RS232 (39Pin, 2*20Pin, 2.0mm) | |
| JCOM1/JCOM2 pin | Control COM1/2 pin 9 voltage 0V/5V/12V (6Pin, 2*3Pin, 2.0mm) | |
| 1*SIM card slot | Support SIM card, need SIM card when using 3G/4G | |
| 1*CLR_CMOS pin | Motherboard reset and discharge pin (3Pin, 1*3Pin, 2.0mm) | |
| 1*FAN3 pin | CPU fan pin supports temperature control (3Pin, 1*3Pin, 2.54mm) | |
| 1*J_GPIO pin | GPIO control pin (10Pin, 2*6Pin, 2.0mm) | |
| Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
| BIOS | AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment | |
| Watch dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
| Operating system | Windows 11, Windows 10, LINUX, etc. | |
>> The Characteristics of the Motherboard
1. Full variety: ELSKY motherboard covers Intel's entire product line of low-power, high-performance CPUs and chipsets.
2. Small size: Mini-ITX based, with additional embedded specialized structures.
3. High integration: On-board CPU, part of the motherboard with memory, hard disk, integrated sound and graphics network card.
4. Low-power: Within 5W-30W for most motherboards.
5. High speed: Multi-core CPU, DDR3-DDR4-DDR5 memory, M.2-MSATA storage, USB3.0, SATA3.0, Gigabit LAN card.
6. Full interfaces: The IO baffle uses standard interfaces. Multi-USB, Multi-COM, Multi-network, Multi-SATA, Multi-display interfaces.
7. Fanless: Some motherboards use fanless cooling to prevent problems with broken fans.
8. Display interfaces: VGA/HDMI/LVDS/DVI/EDP/DP display interfaces.
9. Extensibility: Provides PCI, PCIE, Mini PCIE and other expansion interfaces.
>> The Applications of the Motherboard
ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
