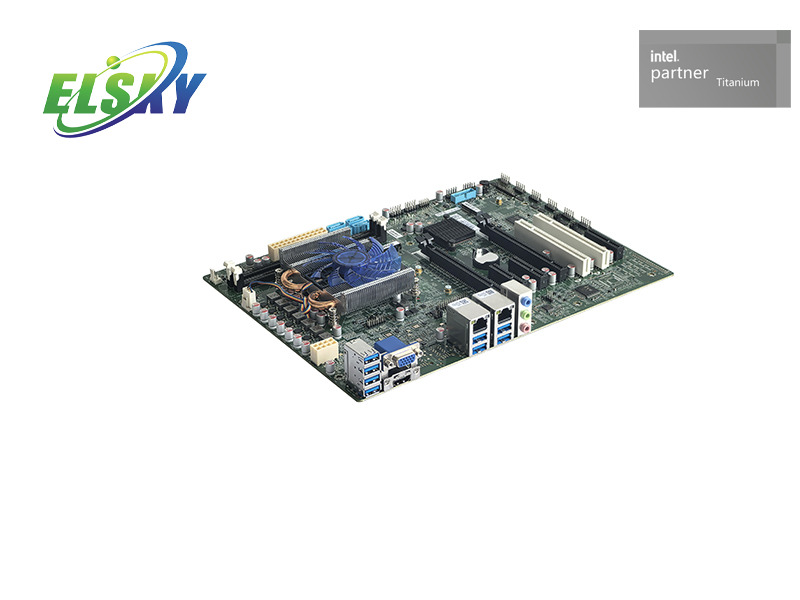

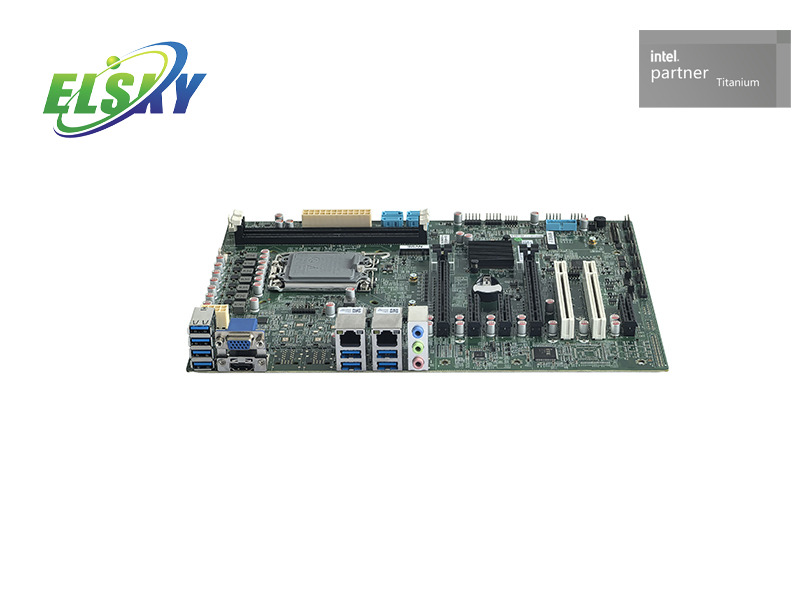

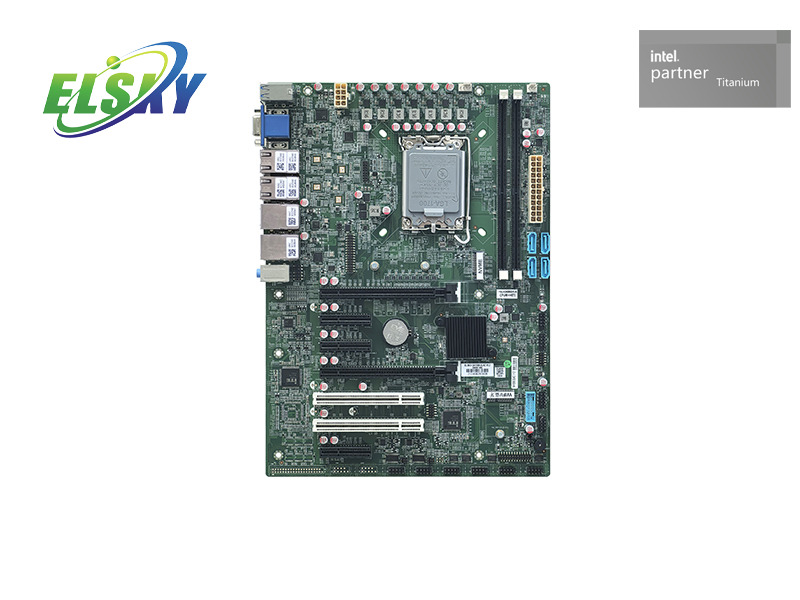

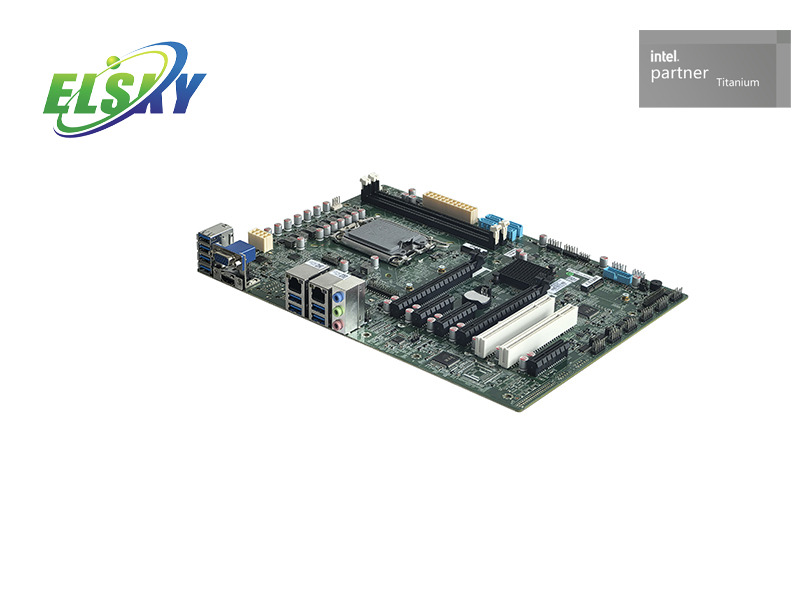

Motherboard GK1200

>> Important Note

• Power supply interface:

The motherboard supports one 24PinATX and one 8PinATX power supply interface. The power consumption at full load is about 90W~219W. It is recommended to use a desktop power supply of 220W or above;

• CPU:

The motherboard supports Intel Alder Lake 12th, 13th, and 14th generation LGA1700 Core i3, i5, i7, and i9 independent CPUs;

• Display interface:

1. The motherboard supports HDMI, HDMI_CON, VGA, and EDP pins to support single display, dual display/triple display duplication, and dual display/triple display expansion;

2. The motherboard supports 2 PCI-E X16 interfaces and supports independent graphics cards and PCI-E X16 devices;

3. The motherboard supports 3 PCI-E X4 interfaces and supports independent graphics cards and PCI-E X4 devices;

4. The motherboard HDMI 2.0 interface supports 4K resolution 4096/3840*2160@60Hz, and the motherboard HDMI_CON pin supports 4K resolution 4096/3840*2160@30Hz;

5. EDP-C screen cable for EDP (30Pin backlight integrated screen cable);

• M.2:

The motherboard M.2_WIFI supports the Key-E interface M.2 WiFi/Bluetooth module. By default, PCIE and USB signals coexist, and the M.2 hard drive cannot be changed;

The motherboard NGFF supports Key-M interface M.2 2280 hard drive, optional M.2 2242 hard drive; the default supports PCIE (NVME) protocol, and the hardware can be modified to support SATA protocol;

• USB interface:

The motherboard supports 16USB by default (10*USB3.2 Gen1, 6*USB2.0);

All USB interfaces and pins on the motherboard default to S power (no power when turned off), and can be changed to A power (power on when turned off);

• COM port:

The motherboard supports 12*COM ports, of which COM1 and COM2 are optional and support RS232/422/485 through BIOS settings;

The motherboard COM1/2 can respectively set the ninth pin output 0V/5V/12V through JCOM1/2/jumping cap, the default is 0V;

• Network card:

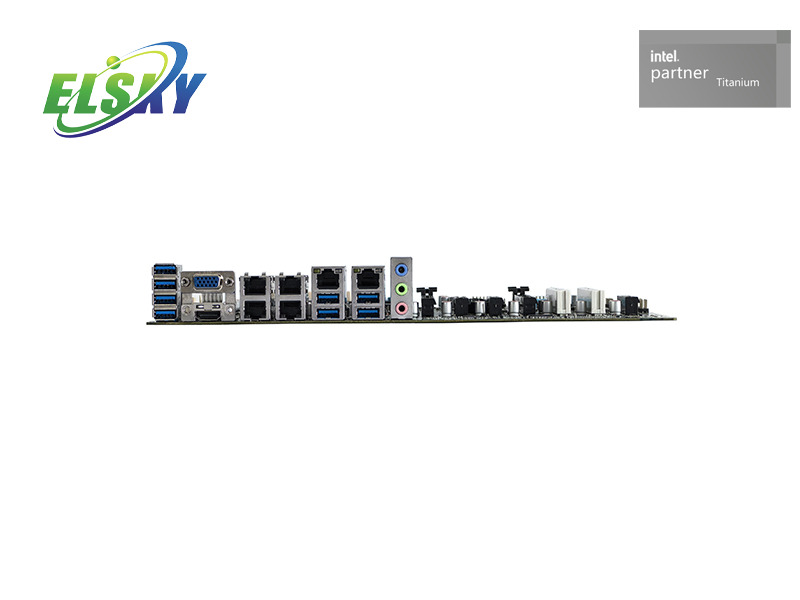

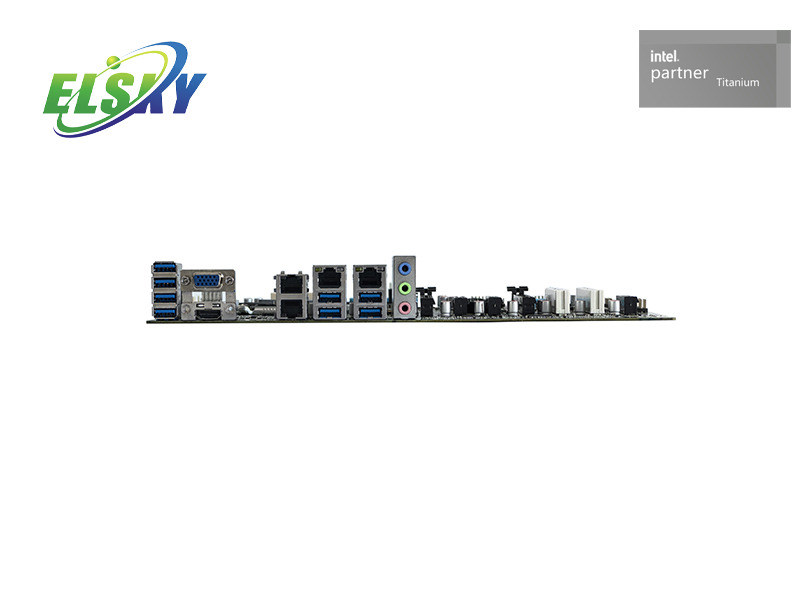

The motherboard supports 1*Intel I219V+5*Intel I226 - V six-way Gigabit network card; POE power supply cannot be changed;

• Sound card:

The motherboard supports Realtek ALC897/662 sound card

>> CPU information

>> Product Specifications

>> The Characteristics of the Motherboard

1. Full variety: ELSKY motherboard covers Intel's entire product line of low-power, high-performance CPUs and chipsets.

2. Small size: Mini-ITX based, with additional embedded specialized structures.

3. High integration: On-board CPU, part of the motherboard with memory, hard disk, integrated sound and graphics network card.

4. Low-power: Within 5W-30W for most motherboards.

5. High speed: Multi-core CPU, DDR3-DDR4-DDR5 memory, M.2-MSATA storage, USB3.0, SATA3.0, Gigabit LAN card.

6. Full interfaces: The IO baffle uses standard interfaces. Multi-USB, Multi-COM, Multi-network, Multi-SATA, Multi-display interfaces.

7. Fanless: Some motherboards use fanless cooling to prevent problems with broken fans.

8. Display interfaces: VGA/HDMI/LVDS/DVI/EDP/DP display interfaces.

9. Extensibility: Provides PCI, PCIE, Mini PCIE and other expansion interfaces.
