PC model | HD6001 |
Motherboard model | QM10U |

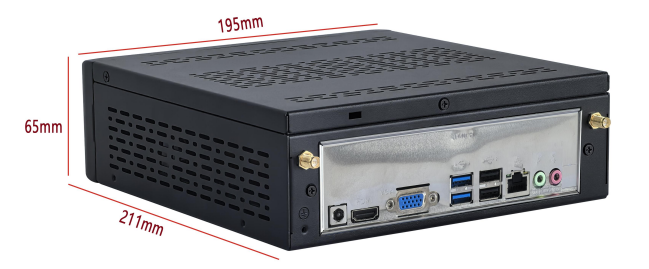

PC size | Color: Black Optional Case material :Aluminium 195mm（L）*211mm（W）*65mm（H） |
Cooling | With a Fan |

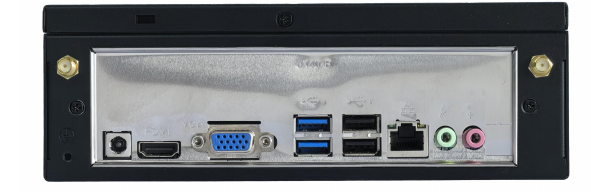

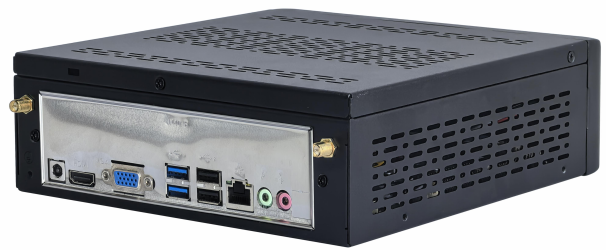

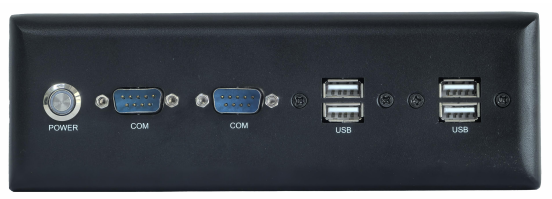

I/O on chassis | 1*1000LAN ,2*COM, 1*DC _IN , 1*HDMI,1*VGA,1*SPK, 1*Mic-in,2*wifi holes,power button,4*USB3.0 4USB2.0 |
| 10th gen Comet Lake CPU：I3-10110U、I5-10210U、I7-10510U |
RAM supply | 2*NB-DDR4 slot，supplrt 2133/2400/2666MHz RAM，the maximum support 32GB |
Power supply | 1*DC_IN | 12V/19VVoltage，DC is 2.5MM The power consumption of the motherboard is about 85W at full load. It is recommended to use 12V7A or above power supply |
1*DC_ATX |
display | Integrated Intel UHD Graphics ultra-core graphics card, support single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS |
1*VGA DB15 port | Support the highest resolution 1920*1200@60HZ |
1*DP poet | Support 4K resolution 4096/3840*2160@60HZ |
Choose one of VGA interface and DP interface |
1*HDMI 1.4 port | Support 4K resolution 4096/3840*2160@30HZ |
Network functiuon | 1*LAN port | Realtek 8111H Gigabit network card chip, support Wake on LAN and PXE diskless boot function 2*LAN optional |
1*Mini-PCIE port | Support WIFI/3G/4G/GPS/Bluetooth module, etc., optional support MSATA |
Hard Disk Function | 1*M.2 port | Support M.2 2280 by default, 2242 is optional; NVME (PCIE) protocol by default, SATA protocol can be changed |
1*SATA1 port | Standard SATA3.0 hard disk interface, maximum transfer speed 6.0 Gbps |
Choose one of SATA1 signal and MSATA signal, support SATA1 by default |
1*SATA2 port | Standard SATA3.0 hard disk interface, maximum transfer speed 6.0 Gbps |
Sound | Integrated Realtek ALC662 HD Digital audio decoder, 6-channel high-fidelity audio controller |
1*LINE_OUT port | Support audio output (green) |
1*MIC_IN port | Support microphone input (red) |
USB | 4*USB3.0 port | Rear standard USB3.1 interface |
4*USB2.0 port | Rear standard USB2.0 interface |
SWITCH | 1*Power button |
Other I/O | COM1/COM2 | Serial port, COM1 supports RS232, RS422/RS485 is optional （9Pin，2*5Pin，2.54mm） |
Operating environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing |
BIOS | AMI BIOS，Support power-on boot, timing boot, remote switch machine intelligent identification |
Watch Dog | Watchdog programming, support hardware reset function（256 level，0~255 second） |
operating system | Compatible with Windows 11,Windows 10,Linux,etc. If you want to install Windows 11 OS ,please inform us in advance. |
