Overview

The ELSKY U608/U608F is a versatile and robust mini PC designed for professional applications. It is powered by Intel 6th and 7th generation processors (Celeron, Core i3, i5, i7) and supports up to 16GB of DDR4 memory. This model stands out with its rich connectivity, featuring eight RJ45 LAN ports and an optional two fiber LAN interfaces, making it ideal for network-intensive tasks.

For storage, the device offers multiple options, including SATA 3.0, mSATA, and M.2 interfaces. It also provides a variety of I/O ports such as USB 3.0, USB 2.0, VGA, COM, and LPT. This broad feature set makes it a top choice for demanding environments.

The U608/U608F is built for reliability, with a fanless design that operates in temperatures ranging from -20°C to 60°C. It is primarily used for network security, edge computing, high-end firewalls, and as a network storage gateway. Its compatibility with Windows and Linux operating systems provides great flexibility for various business needs. Overall, this mini PC offers a powerful and compact solution for specialized network and industrial applications.

Features

Here are the key features of the ELSKY U608,U608F mini PC.

1. Powerful Processing: This mini PC uses Intel 6th and 7th generation Celeron, Core i3, i5, and i7 CPUs. It supports up to 16GB of DDR4 memory for smooth performance in various tasks.

2. Flexible Storage: The system offers multiple storage options. It includes interfaces for SATA 3.0, mSATA, and M.2 SSDs. This allows for fast and expandable data storage.

3. Extensive Network Ports: It provides eight RJ45 LAN ports for multiple network connections. You can also add two optional fiber LAN ports. The system supports network wake-up functions.

4. Diverse Connectivity: The device has a Mini-PCIE slot for WIFI, 3G, or 4G modules. It also includes a SIM card slot and an external antenna mast for remote connectivity.

5. Rich I/O: The mini PC features a variety of ports. These include two USB 3.0 ports, four USB 2.0 ports, one VGA port, a COM port, and an LPT port.

6. Durable Design: The unit is built to withstand extreme temperatures, operating from -20°C to 60°C. It functions in humidity from 5% to 95% without condensation.

Application

Here are the main uses for the ELSKY U608,U608F mini PC.

1. Network Security: The device can be used for network monitoring, troubleshooting, and data analysis. It serves as a platform for protecting network infrastructure.

2. Edge Computing: The mini PC is suitable for 5G network edge deployments. It supports local data processing and reduces latency for real-time applications.

3. Network Storage Gateway: This unit functions as a bridge between storage and computing networks. It helps manage and transfer data efficiently.

4. High-End Firewalls: The device can be deployed as a next-generation firewall (NGFW). It also supports intrusion detection and prevention systems (IDS/IPS) and unified threat management (UTM).

5. Telecommunications: It can be used in telecom sectors for various functions. Its design allows it to handle data traffic and network management tasks.

Service

ELSKY provides strong after-sales support for our U608,U608F mini PC. We aim for your satisfaction.

1. Warranty Coverage : All ELSKY pc hosts come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.

2. Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.

3. Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.

4. Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your pc hosts.

Product Specifications

PC model	U608/U608F
PC size	340mm(L)*265mm(W)*44mm(H)
Motherboard model	QM618L / QM718L
CPU	Supports Intel Skylake 6th generation and Kabylake 7th generation Celeron and Core i3, i5, i7
Memory support	1*NB-DDR4 memory, supports 2133/2400MHz memory, maximum support 16GB
power supply	1*DC_IN	The inner diameter of the DC head is 2.5mm and supports 12V The motherboard has a full load power consumption of approximately 35W, and it is recommended to use a 12V5A or higher power supply
display function	1*VGA DB15 interface		Supports a resolution of 1920*1200@60Hz

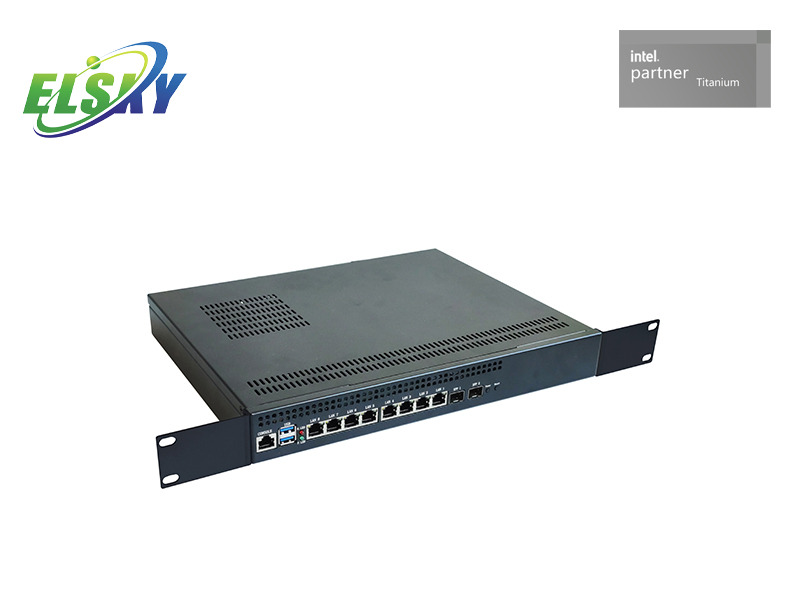

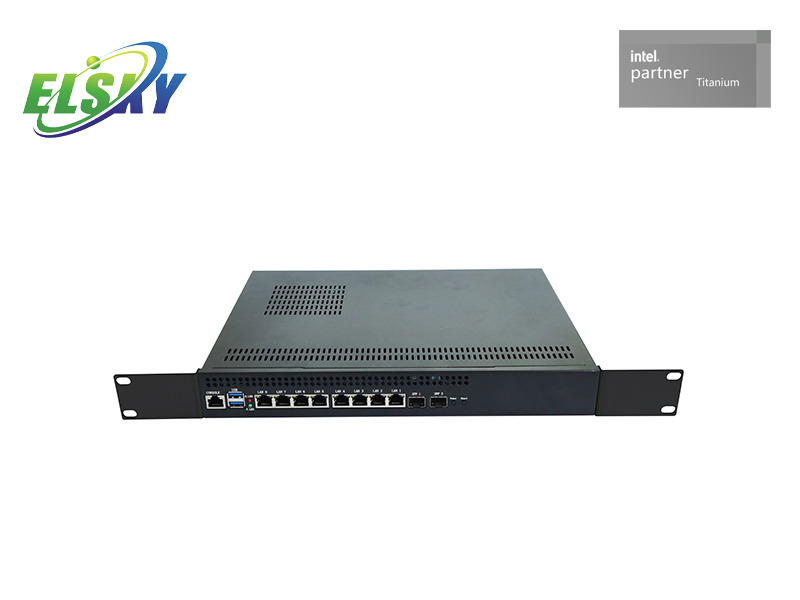

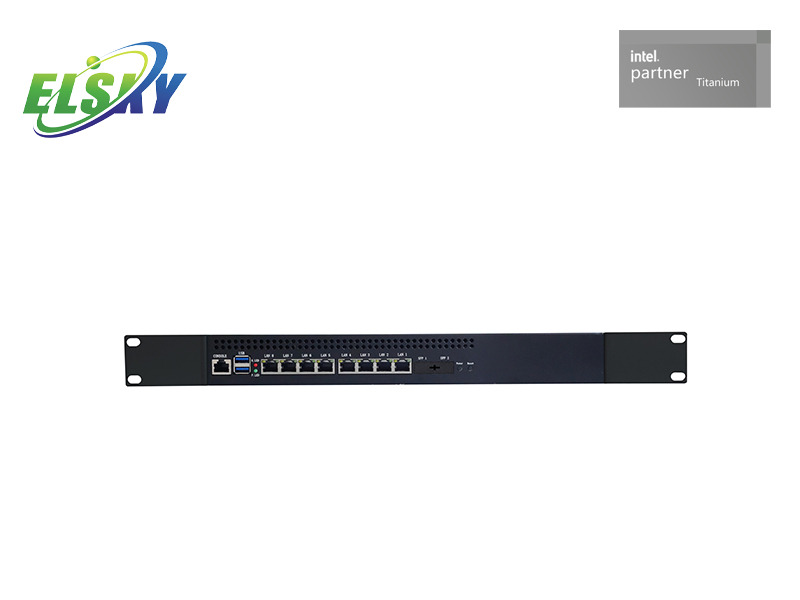

Network function	8*RJ45 LAN interface		Support network wake-up and network PXE function
	2*Fiber LAN interface (optional)
	1*Mini-PCIE interface		Supports WIFI/3G/4G, supports external antenna mast
Hard disk function	1*SATA interface		Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps
	1*MSATA interface		Support MSATA disk
	1*M.2 interface		Default support for M.2 2280, optional 2242; Only supports SATA protocol
	1*SIM Card Slot		Supports SIM card, SIM card is required when using 3G/4G

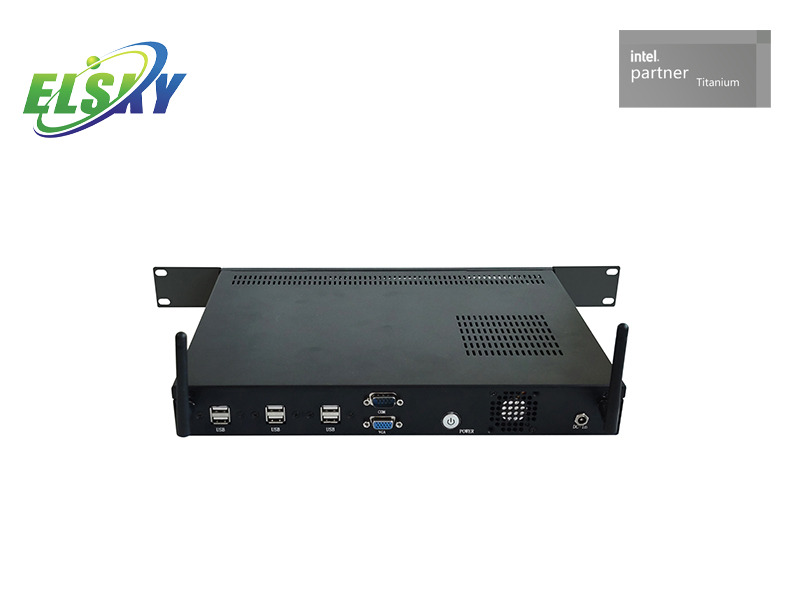

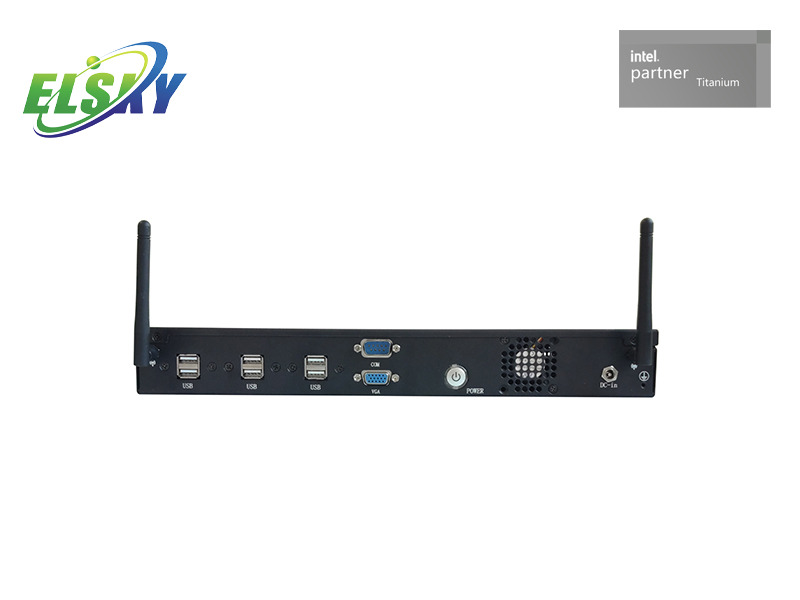

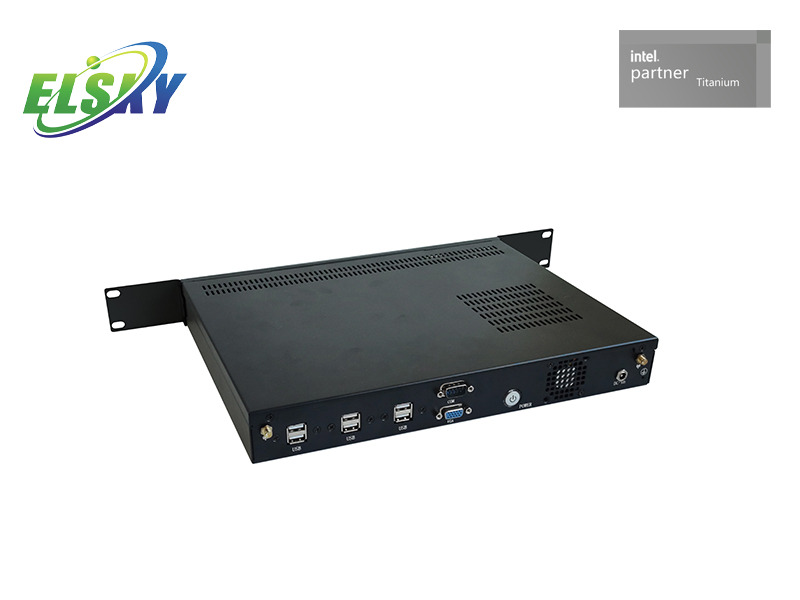

USB function	2*USB3.0 interface		Rear standard USB 3.0 interface,The maximum transmission bandwidth is 5Gbps (500MB/s)
	4*USB2.0 interface		Rear standard USB 2.0 interface
SWITCH	2*Switch button
	1*Restart button
Other I/O	1*COM interface		Serial port, supports RS232
	1*RJ45-COM interface		COM port in RJ45 interface form
	1*LPT interface		Standard LPT printing interface
Operating environment	Working temperature: -20 ℃~60 ℃;  Working humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS,supports power on, timed power on, and intelligent recognition of remote power on/off devices
Watch Dog	Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)
operating system	Supports Windows 10, Windows 8, Windows 7, Linux, etc

CPU Information

The following CPU information is for reference only, please consult sales for specific needs!

CPU	CPU brand	CPU model	Main frequency	Turbo	CPU power consumption(W)
6th gen	Celeron	3855U	Dual core 1.6G		15
		3955U	Dual core 2.0G		15
6th gen I3	Core	6006U	Dual core 2.0G		15
		6100U	Dual core 2.3G		15
		6157U	Dual core 2.4G		28
		6167U	Dual core 2.7G		28
6th gen I5	Core	6200U	Dual core 2.3G	2.8G	15
		6260U	Dual core 1.8G	2.9G	15
		6267U	Dual core 2.9G	3.3G	28
		6287U	Dual core 3.1G	3.5G	28
		6300U	Dual core 2.4G	3.0G	15
		6360U	Dual core 2.0G	3.1G	15
6th gen I7	Core	6500U	Dual core 2.5G	3.1G	15
		6560U	Dual core 2.2G	3.2G	15
		6567U	Dual core 3.3G	3.6G	28
		6600U	Dual core 2.6G	3.4G	15
		6650U	Dual core 2.2G	3.4G	15
		6660U	Dual core 2.4G	3.4G	15
7th gen	Celeron	3865U	Dual core 1.8G		15
		3965U	Dual core 2.2G		15
7th gen I3	Core	7020U	Dual core 2.3G		15
		7100U	Dual core 2.4G		15
		7130U	Dual core 2.7G		15
7th gen I5	Core	7200U	Dual core 2.5G	3.1G	15
		7260U	Dual core 2.2G	3.4G	15
		7267U	Dual core 3.1G	3.5G	28
		7287U	Dual core 3.3G	3.7G	28
		7300U	Dual core 2.6G	3.5G	15
		7360U	Dual core 2.3G	3.6G	15
7th gen I7	Core	7500U	Dual core 2.7G	3.5G	15
		7560U	Dual core 2.4G	3.8G	15
		7567U	Dual core 3.5G	4.0G	28
		7600U	Dual core 2.8G	3.9G	15
		7660U	Dual core 2.5G	4.0G	15

FAQ

1. What is the ELSKY U608/U608F Mini PC used for?

This mini PC is primarily designed for network-intensive applications. It's an ideal solution for network security, edge computing, and high-end firewalls. It can also function as a network storage gateway.

2. What type of processors does the U608/U608F support?

It supports a range of Intel Skylake 6th generation and Kabylake 7th generation processors, including Celeron, Core i3, i5, and i7 models.

3. How much memory can the mini PC handle?

The system has one NB-DDR4 memory slot and supports a maximum of 16GB of RAM running at 2133/2400MHz.

4. What storage options are available?

You have multiple choices for storage: one SATA 3.0 port, one mSATA port, and one M.2 slot that supports the SATA protocol.

5. How many network ports does it have?

The U608/U608F comes with eight RJ45 LAN ports. There is also an option to add two fiber LAN interfaces.

6. Can I install my own operating system?

Yes, the mini PC is compatible with several operating systems, including Windows 7, Windows 8, Windows 10, and Linux.

7. Is the U608/U608F suitable for use in demanding environments?

Yes, it is designed for a wide range of conditions. It can operate in temperatures from -20°C to 60°C and in 5% to 95% humidity without condensation.
