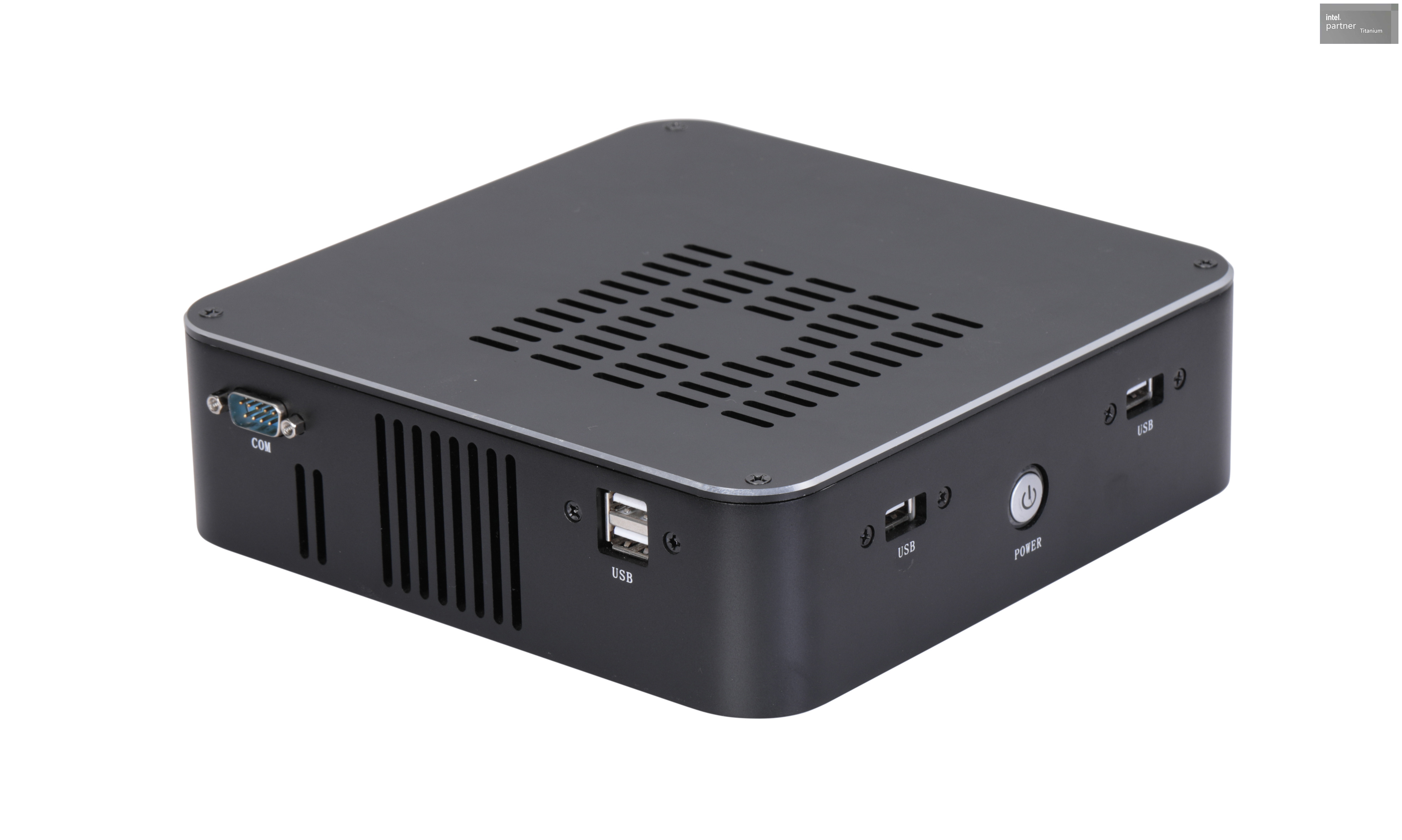

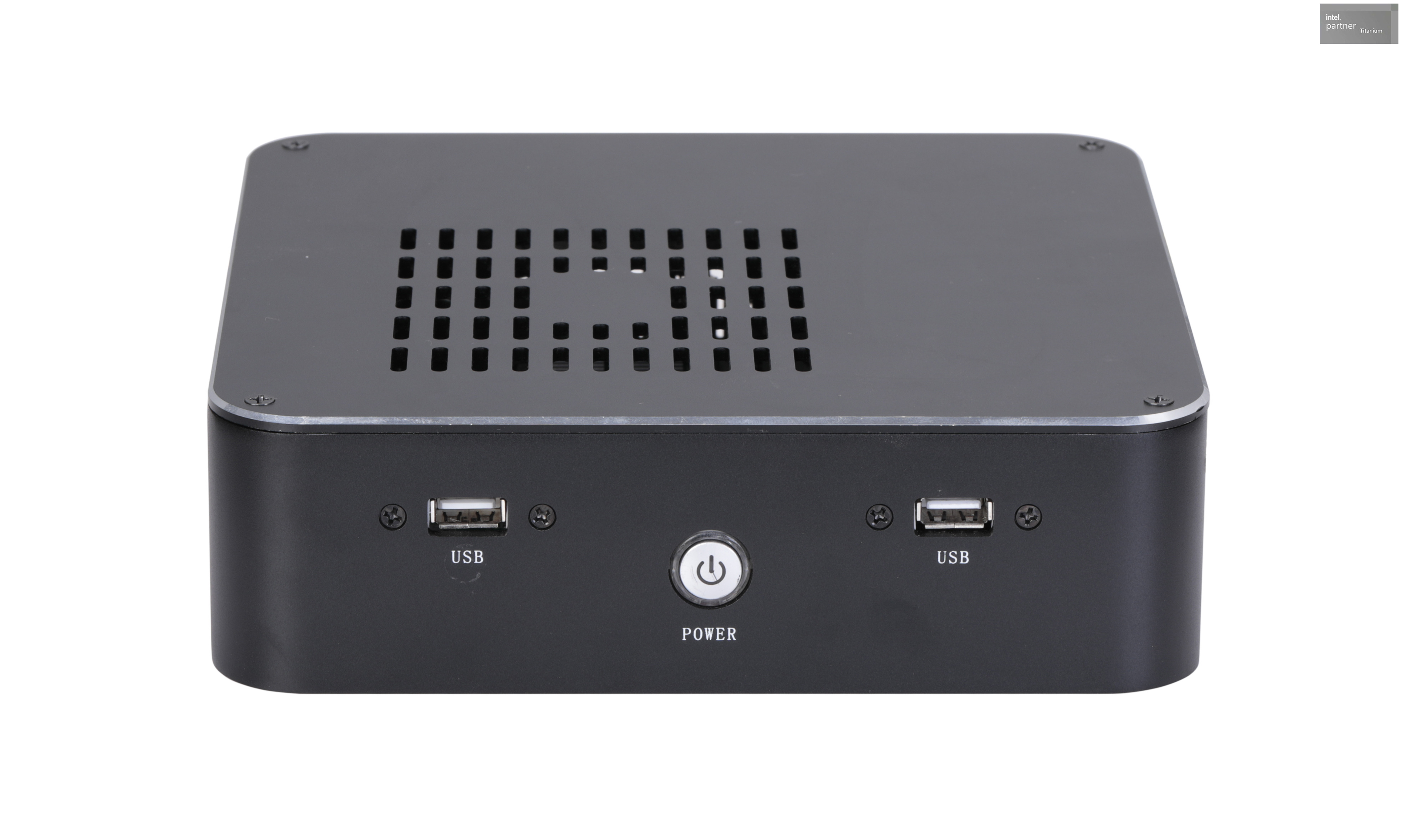

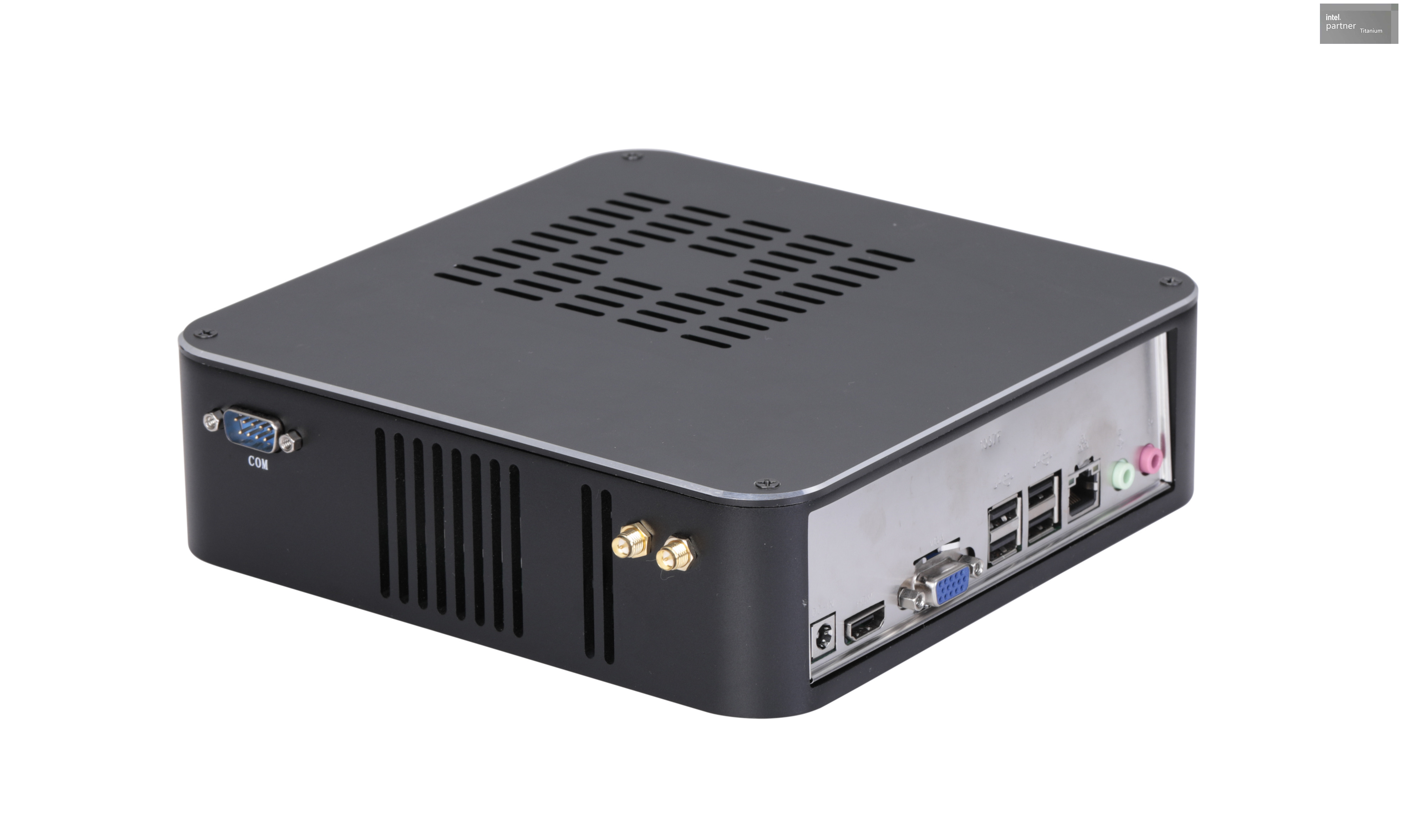

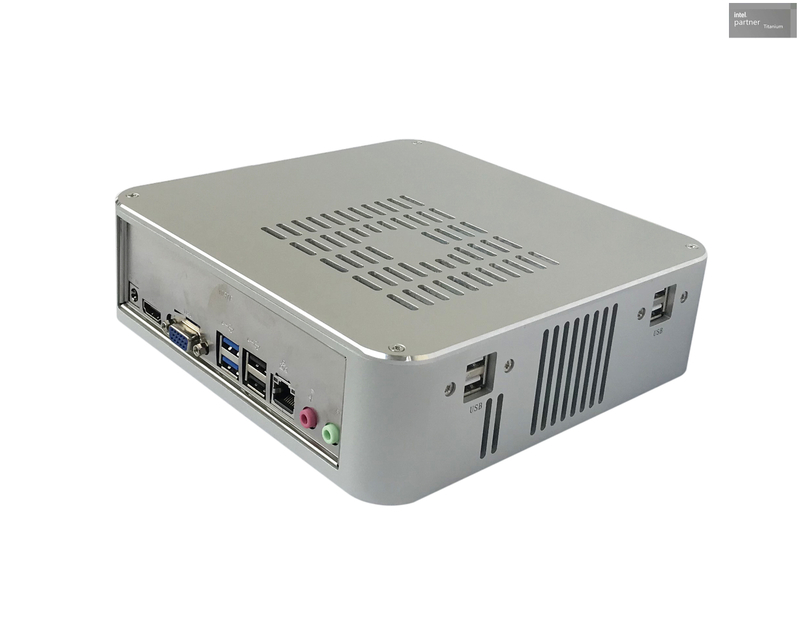

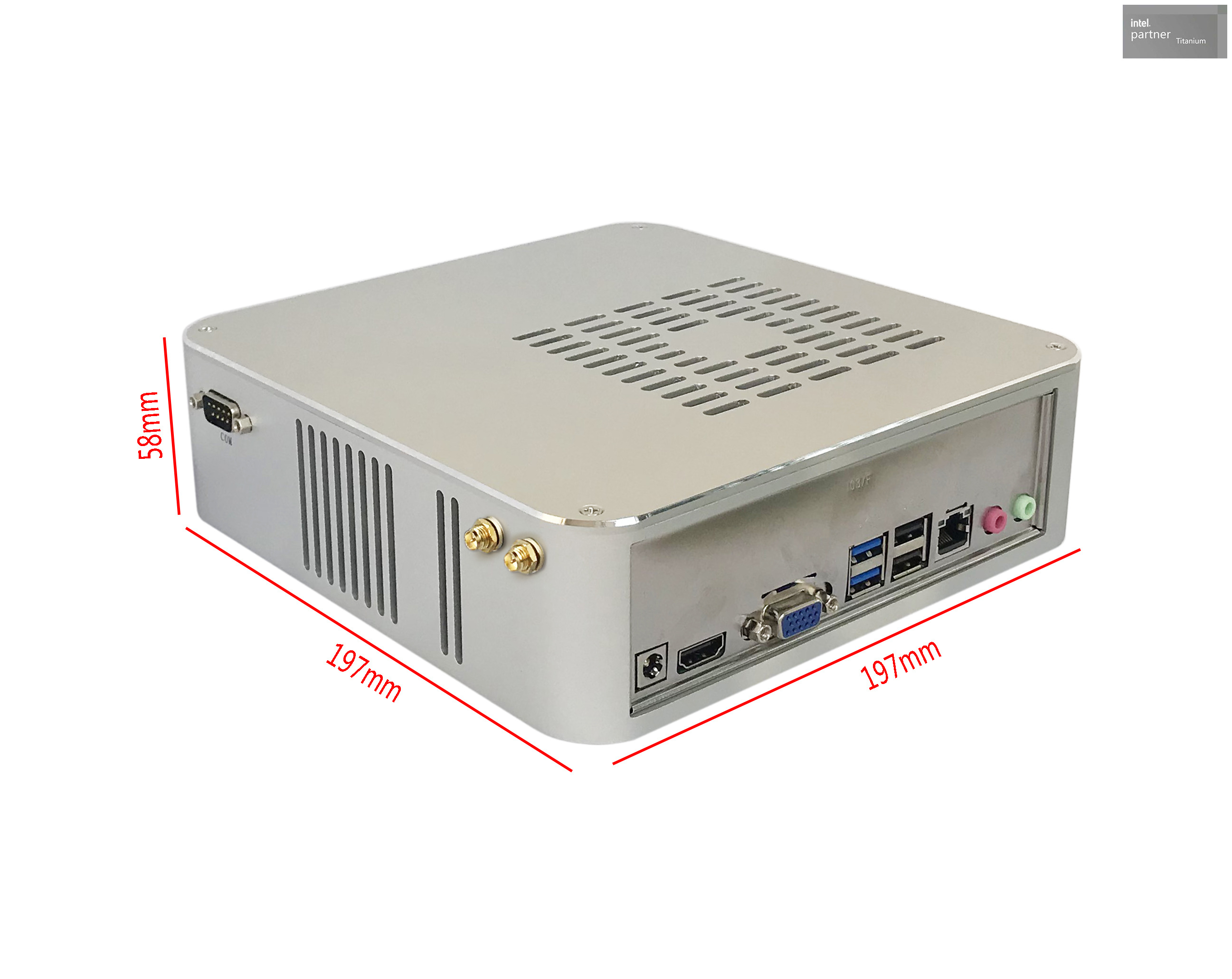

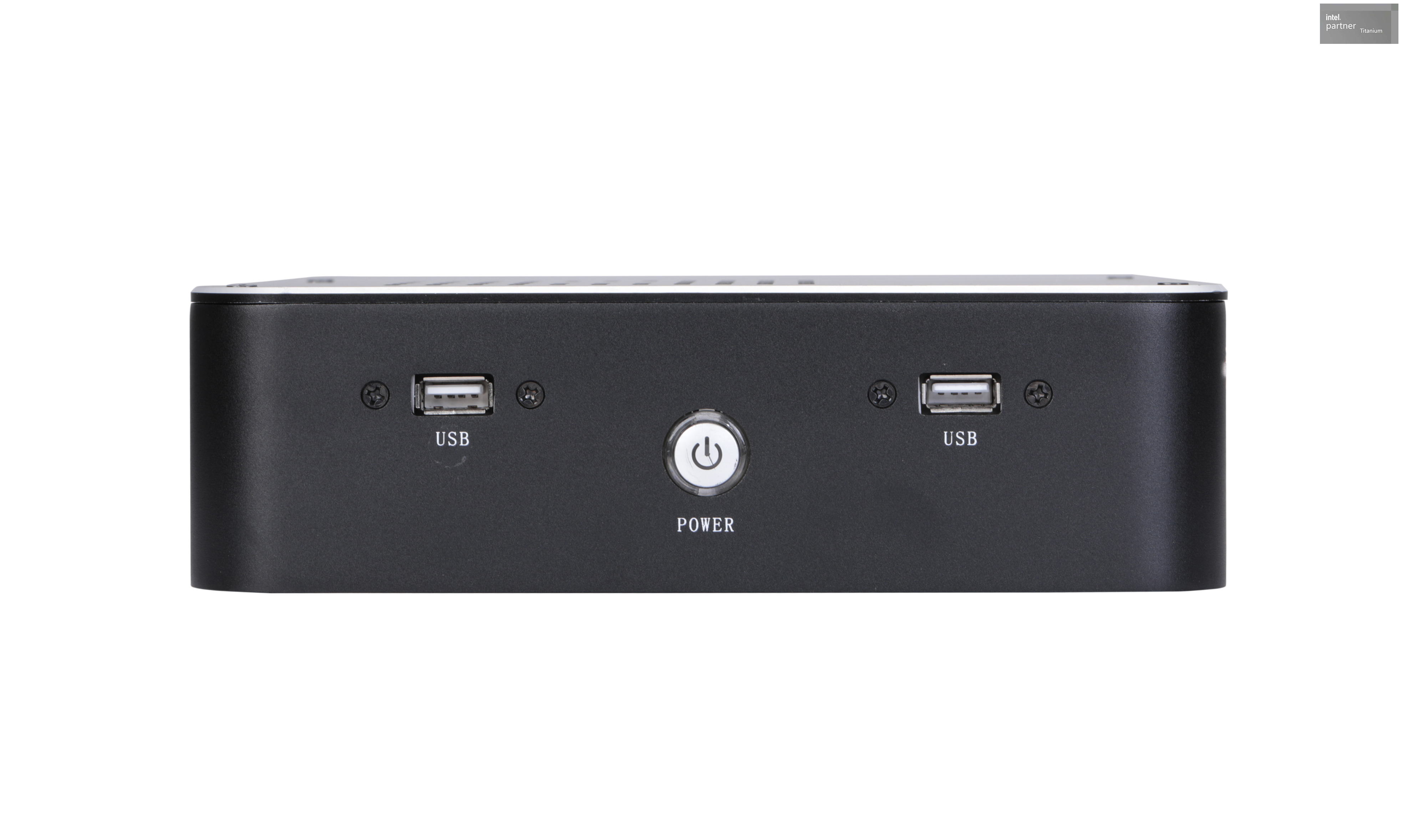

HD4009-QM14U-U9-185H
ELSKY ODM/OEM
8471414000
In the year of 2009, Shenzhen ELSKY Technology Co., Ltd. is specially engaged in the research, production and sales of all kinds of Mini-ITX motherboard and Mini PC for POS, ALL-in-one PC, Digital Signage, Advertising LCD Player, Network, Tele communication and other industries. Meanwhile, we have OEM & ODM service for global customers. At present, our company has become one of the famous manufacturers for motherboard in China, with advanced equipment, more than 190 Skilled workers, scientific management, on time delivery, large production capacity and strong financial back up, market share rapidly expanding in global market.
With more than 16 years growth, we stick to focusing on Mini-ITX motherboard and Mini PC products; we stick to enhancing technological cooperation; we stick to increasing self-innovation; we stick to enlarging global sales! We do our best in making ELSKY a world-famous brand!
Our products have a good sale in China, Southeast Asia and Middle East, America, Europe, because the products design are suitable for the Market request with their stable performance and competitive price. Our company is confident to make great efforts, and sincerely welcomes friends worldwide to cooperate with us for mutual development.

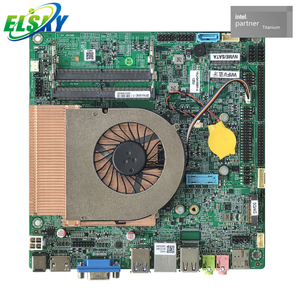

| Size | 170mm（L）*170mm（W）*21mm（H）(No fan thickness) | |
| CPU | QM14U | Support Intel Meteor Lake14 gen Ultra 5 、Ultra 7、Ultra 9 U/H series CPU |
| Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM and supports 12V / 19V The maximum power consumption of U series CPU is 57W, and it is recommended to use 12V 7A or 19V5A; H series CPU maximum core frequency power consumption is 115W, it is recommended to use 12V 10A or 19V 6.3A above the power supply; |
| 1*DC_ATX（4Pin） | ||
| Memory | 2*SODIMM slot | NB-DDR5 memory，support 4800/5600MT/s memory，up to support 96GB |
| Internet function | 1/2*RJ45_LAN port | Single network: the default support of Intel I219V gigabit network card; Dual network: support Intel I219V + Realtek 8111H Gigabit network card; Support network wake-up, PXE function; |
| 1*M.2-WIFI port | PCIE 4.0 signal, support for Key-E interface M.2 2230 WiFi / Bluetooth module | |
| 1*M.2-4G/5G port | Support the Key-B interface M.2 5G (3052 / 3042) module or M.2 4G (3042) module | |
| Display function | Integrated Intel Graphics / Intel Arc graphics supercore graphics card Support single display, double / three / four development replication, double / three / four development extension, SHELL double display; | |
| 1*HDMI2.0 port | Support for 4K resolution 4096/3840*2160@60Hz | |
| 1*HDMI_CON pin | Support for 4K resolution 4096/3840*2160@60Hz （16Pin，2*8Pin，2.0mm） | |
| 1*VGA DB15 port | Support resolution 1920*1080@60Hz | |
| 1*DP port（optional） | Support for DP + +, with 4K resolution 4096 / 3840 * 2160@60Hz | |
| VGA interface can support DP interface | ||
| 1*LVDS1/EDP2 pin | LVDS1 support 2K60Hz；EDP2 support 4K60Hz （30Pin，2*15Pin，2.0mm） | |
| USB function | 2*USB3.2 port | The rear standard USB3.2 Gen1 interface, the maximum transmission broadband of 5 Gbps |
| 2*USB2.0 port | The rear standard USB2.0 interface, the maximum transmission broadband of 480Mbps | |
| 1*F_USB3_A pin | Front USB3.2 pin, one group has 2 * USB3.2 （19Pin，2*10Pin，2.0mm） | |
| 1*F_USB1 pin | Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.54mm） | |
| 1*F_USB2 pin | Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.54mm） | |
| Sound function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; | |
| 1*LINE_OUT port | Support audio output (green) | |
| 1*MIC_IN port | Support microphone input (red) | |
| 1*INT_SPK pin | The power amplifier supports dual-channel output of 8 ohm 5 watt Speakers （4Pin，1*4Pin，2.0mm） | |
| 1*F_AUDIO pin | Standard audio insert （9Pin，2*5Pin，2.54mm） | |
| Hard Disk Function | 1*M.2-SATA/PCIE port | Support PCIE 4.0 signal, support Key-M interface M.2 2280 hard disk, and support NVME and SATA protocol by default |
| 1*SATA1 port | Standard SATA hard disk interface, with support for SATA 3.0 | |
| 1*SATA_PWR pin | Hard disk power supply pin, the cable power 5V, 12V （4Pin，1*4Pin，2.54mm） | |
| Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
| 1*AUTO_SW pin | Hardware control power-on boot pin （3Pin，1*3Pin，2.0mm） | |
| Other I/O | 1*COM1 pin | Support for standard RS232 / RS422 / RS485 optional (BIOS settings) （9Pin，2*5Pin，2.54mm） |
| 1*COM2 pin | Only the standard RS232 is supported （9Pin，2*5Pin，2.54mm） | |
| 1*COM3~6 pin | Only the standard RS232 is supported （39Pin，2*20Pin，2.0mm） | |
| 1*JCOM1 pin | COM19th foot set 0V / 5V / 12V （6Pin，2*3Pin，2.0mm） | |
| 1*MSIM1 slot | SIM card supported, SIM card required for 5G / 4G | |
| 1*CLR_CMOS pin | Motherboard zero clearance, discharge plug pin （3Pin，1*3Pin，2.0mm） | |
| 1*CPU_FAN pin | CPU fan pin, support for temperature control （4Pin，1*4Pin，1.25mm） | |
| 1*SYS_FAN pin | System fan pin does not support temperature control at full speed （3Pin，1*3Pin，2.54mm） | |
| 1*J_GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | |
| Operating environment | Working temperature：-10℃~60℃； Working humidity：5%~95% relative humidity, non-condensing | |
| BIOS | AMI BIOS ， Support power-on boot, scheduled boot, remote switch machine intelligent identificatio | |
| Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds） | |
| operating system | Support Windows 11，Windows 10，LINUX etc. | |
All of prices are barebone Motherboard(Motherboard+CPU).
If you need Memory,SSD,HDD,WIFI,License operating system,3G,4G,GPS,power adapter and other accessories, please contact us to get the prices.
MOQ:1 piece;
Delivery: within 1~3 working days after received buyer's payment.
Shipping ways: optional DHL/FedEx/TNT/UPS,CDEK,EMS,Aramex,Epacket,etc.
Product Support:After-Sales-Service,Technical Support,Product Manual,etc.
Warranty:1 year
Trade Term:EXW/FOB,CFR,FCA,etc.
Q: What we do?
A: We develop,produce,sell industrial motherboard,fanless industrial PC,mini PC,OPS PC, Server,touch panel PC,etc.
