Overview

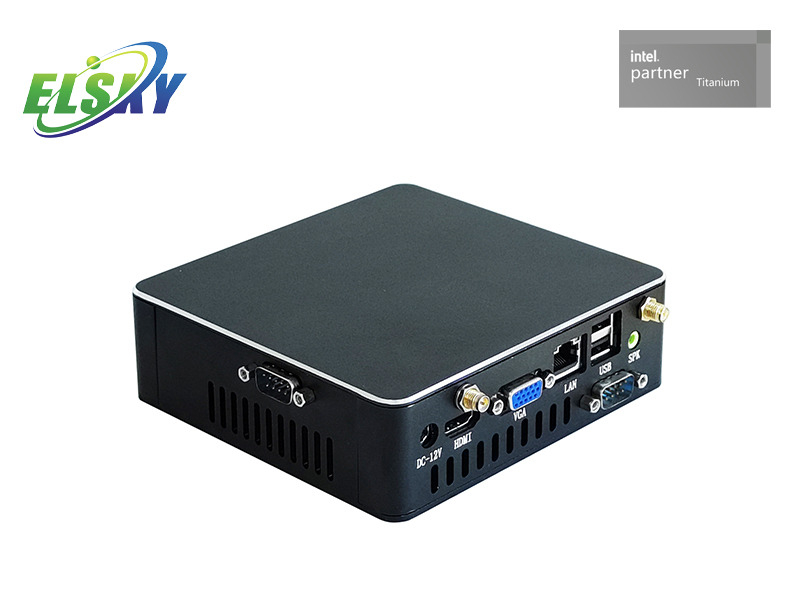

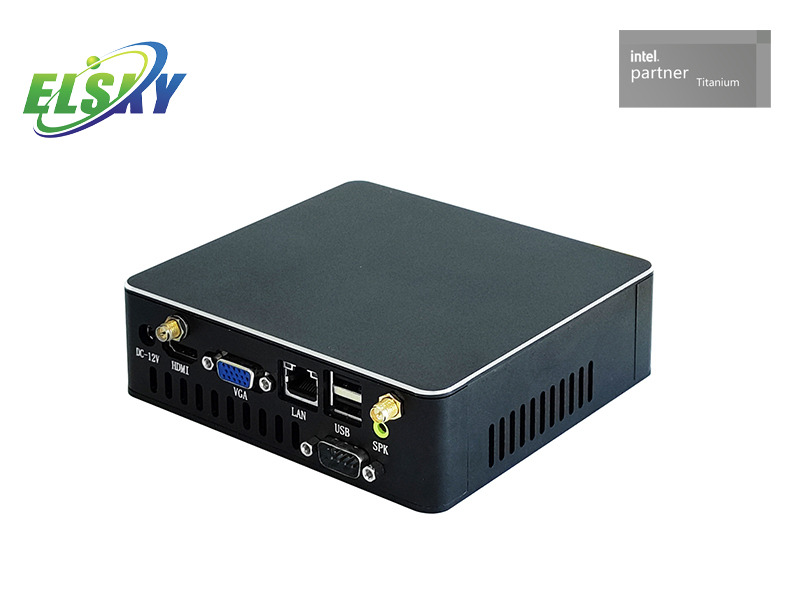

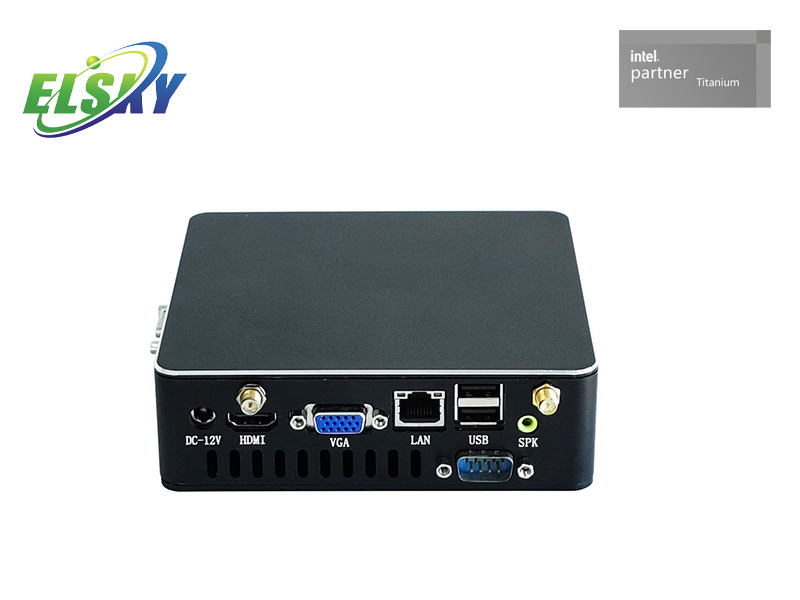

The ELSKY NANO10 is a compact and durable mini PC. It is built for tough industrial jobs. It features a fanless, rugged design, making it perfect for factory automation and other demanding environments. The PC supports Intel 8th and 10th generation processors and offers flexible connectivity with multiple I/O ports. It can also handle 4K displays.

Features

Here are the key features of the ELSKY NANO10 mini PC.

1. Powerful Processing:The mini PC uses Intel Core processors and It supports both 8th and 10th generation models. This gives you strong and reliable performance for your needs.

2. Flexible Memory: It has a single DDR4 memory slot. The system supports up to 32GB of RAM. This setup helps the system run smoothly.

3. Fast Networking: You can connect to a network with one or two gigabit RJ45 ports. This ensures quick data transfer. The ports provide a stable and fast internet connection for all tasks.

4. Diverse Storage Options: The device offers multiple storage interfaces. It has a dedicated M.2 slot. There is also a Mini-PCIE slot. This provides flexibility for installing different types of drives.

5. Multiple Ports for Connectivity: The NANO10 includes many ports. It has two COM ports that support several standards. There are also eight USB ports in total, including four high-speed USB 3.1 ports.

6. Expansion Ready:An extra Mini-PCIE slot is included. This allows for adding more functions. You can install modules for WiFi, 3G, 4G, GPS or Bluetooth. An MSATA storage option is also available.

7. High-Quality Display:The integrated Intel UHD Graphics handles visuals. It has both HDMI and VGA ports. The system supports 4K resolution. You can also connect up to three monitors at once.

8. Broad OS Support: This mini PC is versatile. It is compatible with many operating systems. You can use it with Windows 11, Windows 10, or Linux. This offers great flexibility for various applications.

Application

Here are the main uses for the ELSKY NANO10 mini PC.

1. Industrial Control: Use this PC in factories or labs. It controls machines and collects data. It runs monitoring software. Its small size allows it to fit inside many cabinets.

2. IoT Gateway: The NANO10 acts as an edge computing node. It connects to various sensors. It processes data from these sensors on site. This helps with many IoT tasks.

3. Office PC: This mini PC handles office work easily. It runs software like Office suites. It is perfect for ERP and CRM systems. Its small size saves desk space. This creates a clean workspace.

4. Digital Signage: Hang the PC behind a display. It runs 24/7. It plays videos and shows pictures. This makes it a stable player for digital signs and ads.

Service

ELSKY provides strong after-sales support for our NANO10 mini PC. We aim for your satisfaction.

1. Warranty Coverage : All ELSKY pc hosts come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.

2. Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.

3. Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.

4. Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your pc hosts.

Product Specifications

PC model	NANO10
Applicable motherboard	NANO8U-UA/NANO10U-UA
PC size	136mm(L)*127mm(W)*42mm(H)
CPU processor	NANO8U-UA	Support 8th generation Whiskey Lake CPU: I3-8145U , I5-8265U, I7-8665U, etc.
	NANO10U-UA	Support 10th generation Comet Lake CPU: I3-10110U, I5-10210U, I7-10510U, etc.
Memory support	1*DDR4 SODIMM memory slot, support 2133/2400/2666MHz memory , low voltage 1.2V, maximum support 32GB

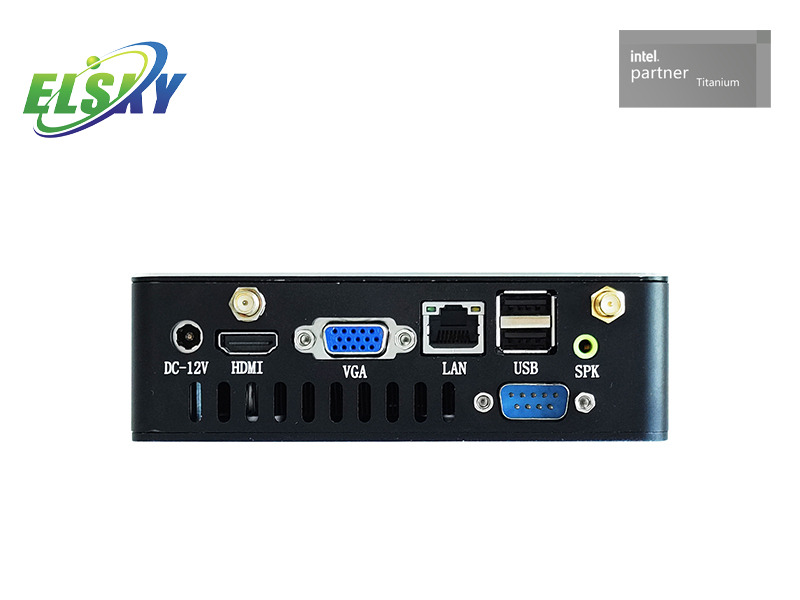

Power supply	1*DC_IN		Support 12V/19V voltage, the inner diameter of DC head is 2.5mm; full load power consumption of the motherboard is about 55W, it is recommended to use a power supply of 12V7A or 19V5A or above
Display function	Integrated Intel UHD graphics card , support single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS
	1*HDMI 1.4 interface		Support 4K resolution 4096/3840*2160@ 30Hz
	1*VGA DB15 interface		Support resolution 1920*1080@60Hz
Network function	1/2*RJ45 LAN interface		Single or dual network Realtek 8111 H Gigabit LAN chip, support wake on LAN and PXE diskless boot function; Optional Realtek 8106E Fast Ethernet chip;
	1*Mini-PCIE interface		Support WIFI/3G/4G/GPS/Bluetooth module, optional support MSATA
Hard disk function	1*M.2 interface		Default support M.2 2280, optional 2242;  support NVME (PCIE) protocol and SATA protocol disk;
	1*Mini-PCIE interface		Can be changed to support MSATA
Sound function	Integrated Cmedia HS_100B USB audio chip
	1*LIN_OUT interface		Support audio output (green)
	1*MIC_IN interface		Support microphone input (red)

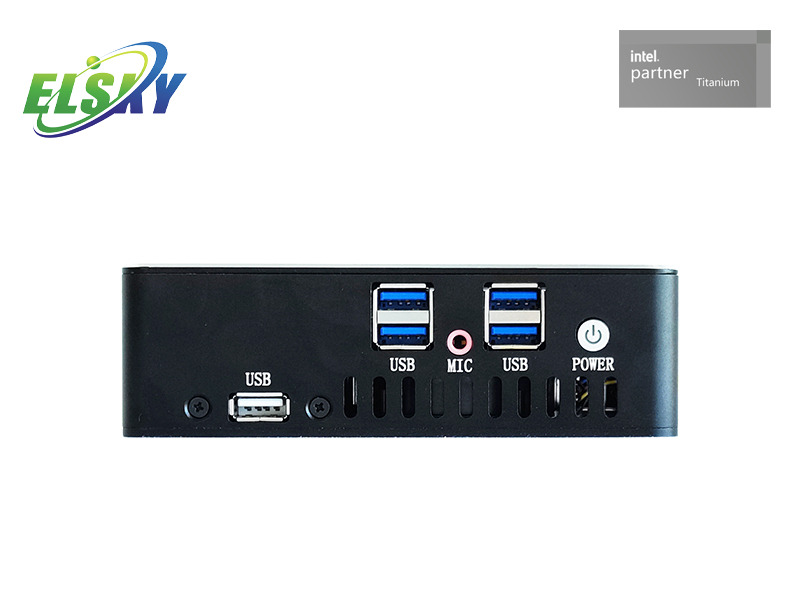

USB function	4*USB3.1 interface		Rear standard USB3.1 Gen2 interface , the maximum transmission bandwidth is 10.0Gbps
	4*USB2.0 interface		Rear standard USB2.0 interface
Switch function	1*PWR_SW button		Switch button
Other I/O	1*COM interface		Serial port, optional support RS232/RS422/RS485
	1*SIM_card slot		Support SIM card, SIM card is required when using 3G/4G
Operating environment	Working temperature: -1℃~60℃; Working humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS, support power-on, scheduled power-on, remote power-on and power-on device intelligent identification
Watch Dog	Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)
Operating system	Support Windows 11, Windows 10, Linux, etc.

CPU Information

The following CPU information is for reference only, please consult sales for specific needs!

CPU Specification	CPU brand	CPU model	main frequency	Turbo	CPU power consumption (W)	Full load power consumption (W)
8th gen I3	core	8145U	Dual core 2.1G	3.9G	15	60
8th gen I5	core	8365U	Quad core 1.6G	4.1G	15	60
		8265U	Quad core 1.6G	3.9G	15	60
8th gen I7	core	8665U	Quad core 1.9G	4.8G	15	60
10th gen I3	core	10110U	Dual core 2.1G	4.1G	15	60
10th gen I5	core	10310U	Quad core 1.7G	4.4G	15	60
	core	10210U	Quad core 1.6G	4.2G	15	60
10th gen I7	core	10510U	Quad core 1.8G	4.9G	15	60
	core	10610U	Quad core 1.8G	4.9G	15	60
	core	10810U	Six-core 1.1G	4.9G	15	60
	core	10710U	Six-core 1.1G	4.7G	15	60

FAQ

1.Q: What processors does the NANO10 support?

A: The ELSKY NANO10 works with Intel 8th and 10th generation Core processors. This gives you strong performance for many tasks.

2.Q: How much RAM can the NANO10 support?

A: It has a single DDR4 memory slot. It can support up to 32GB of RAM. The memory runs at speeds up to 2666MHz.

3.Q: What are the networking options?

A: The NANO10 has one or two RJ45 gigabit LAN ports. This provides a fast and stable network connection.

4.Q: Can I add more storage?

A: Yes. It includes one M.2 slot and one Mini-PCIE slot for storage drives.

5.Q: What are the main uses for this mini PC?

A: The NANO10 is ideal for industrial control, IoT gateways, office use, and digital signage. Its durable design is perfect for tough environments.

6.Q: Can I connect multiple monitors?

A: Yes. With Intel UHD Graphics and both HDMI and VGA ports, it supports up to three displays at once, with 4K resolution.

7.Q: What operating systems are compatible with the NANO10?

A: This mini PC is compatible with Windows 11, Windows 10, and Linux.
