HD4009 QM12
ELSKY/ODM/OEM

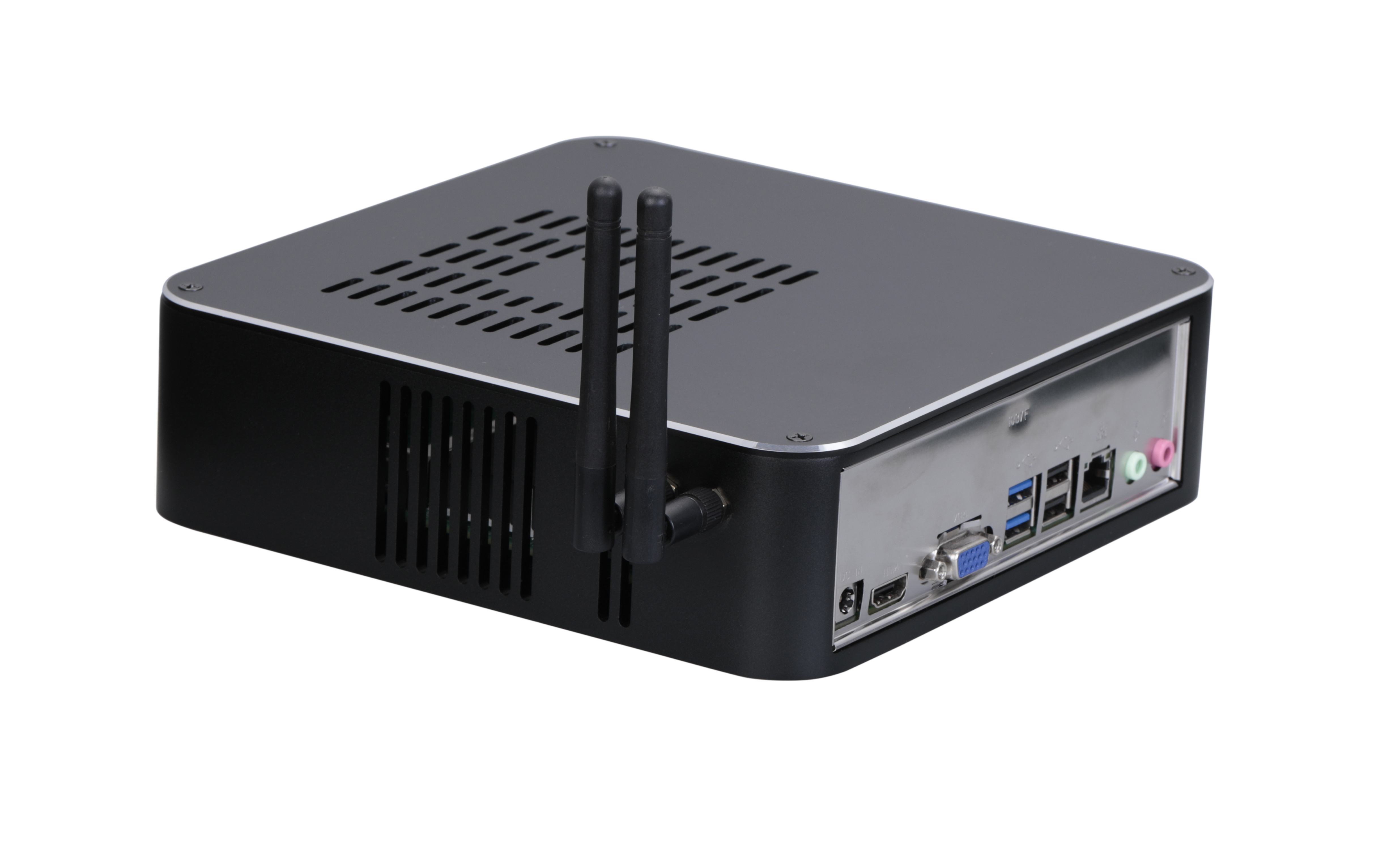

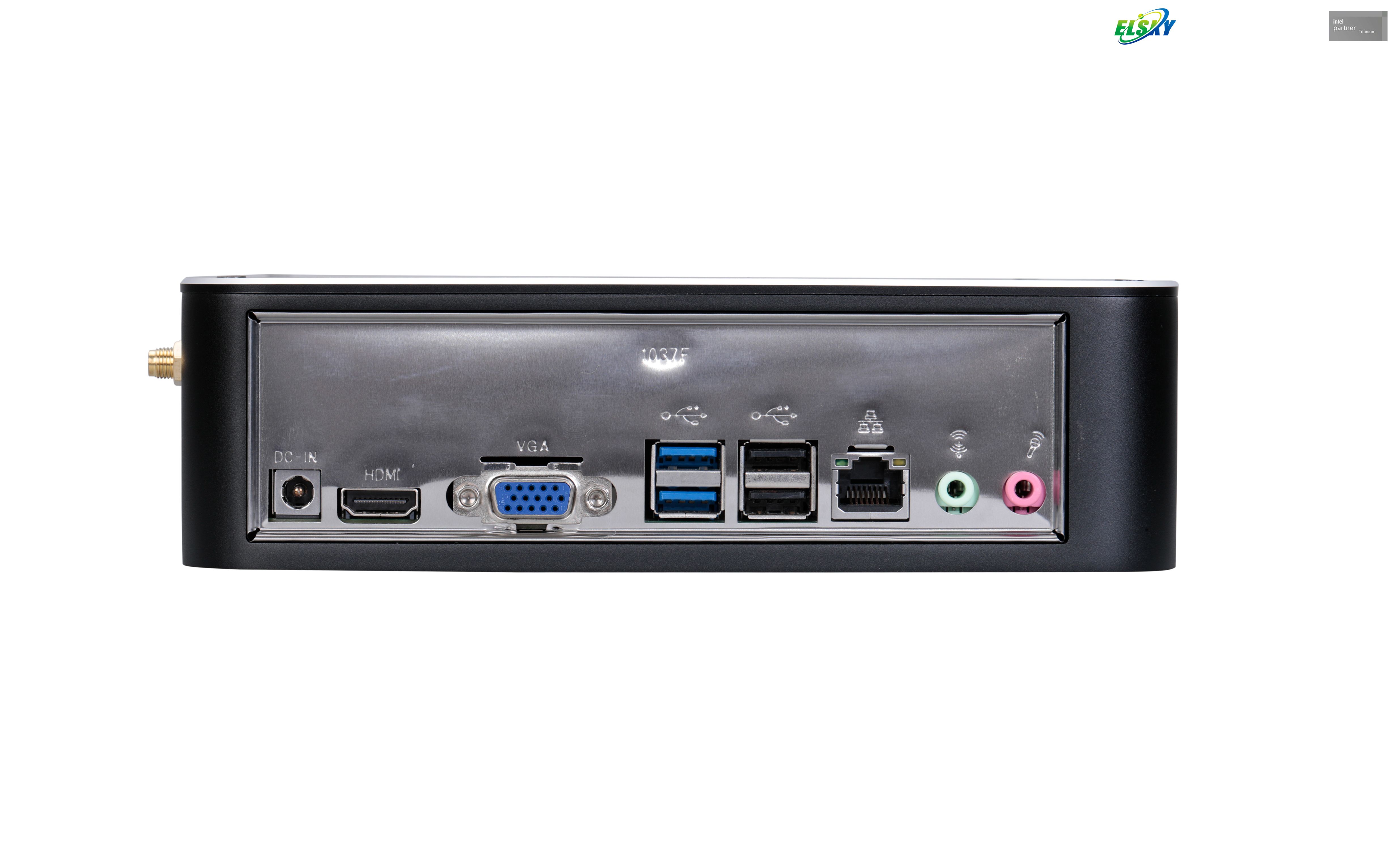

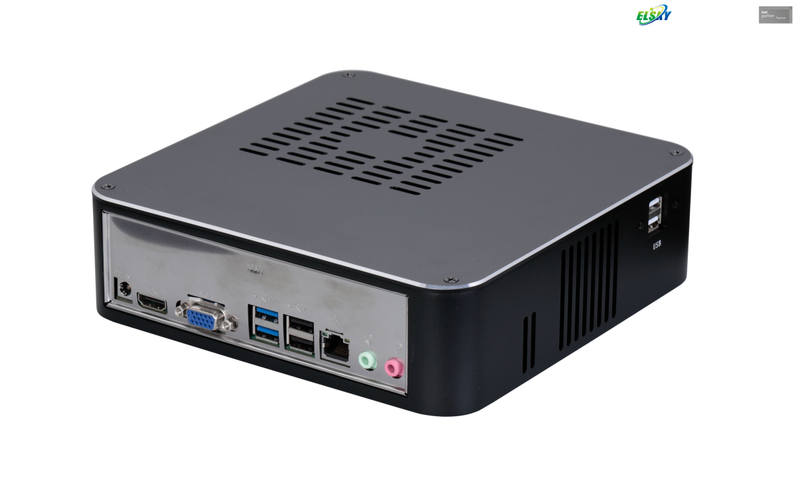

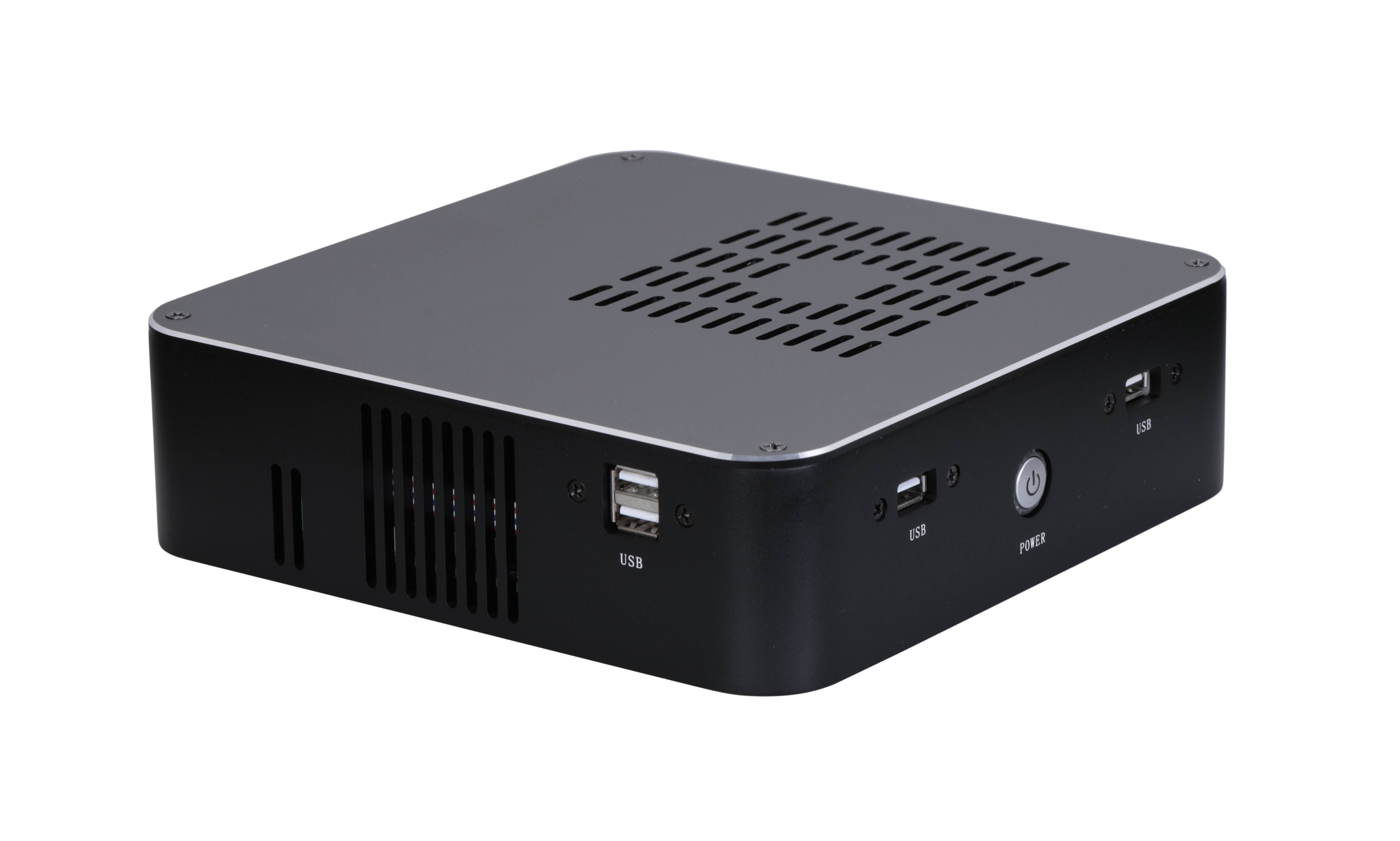

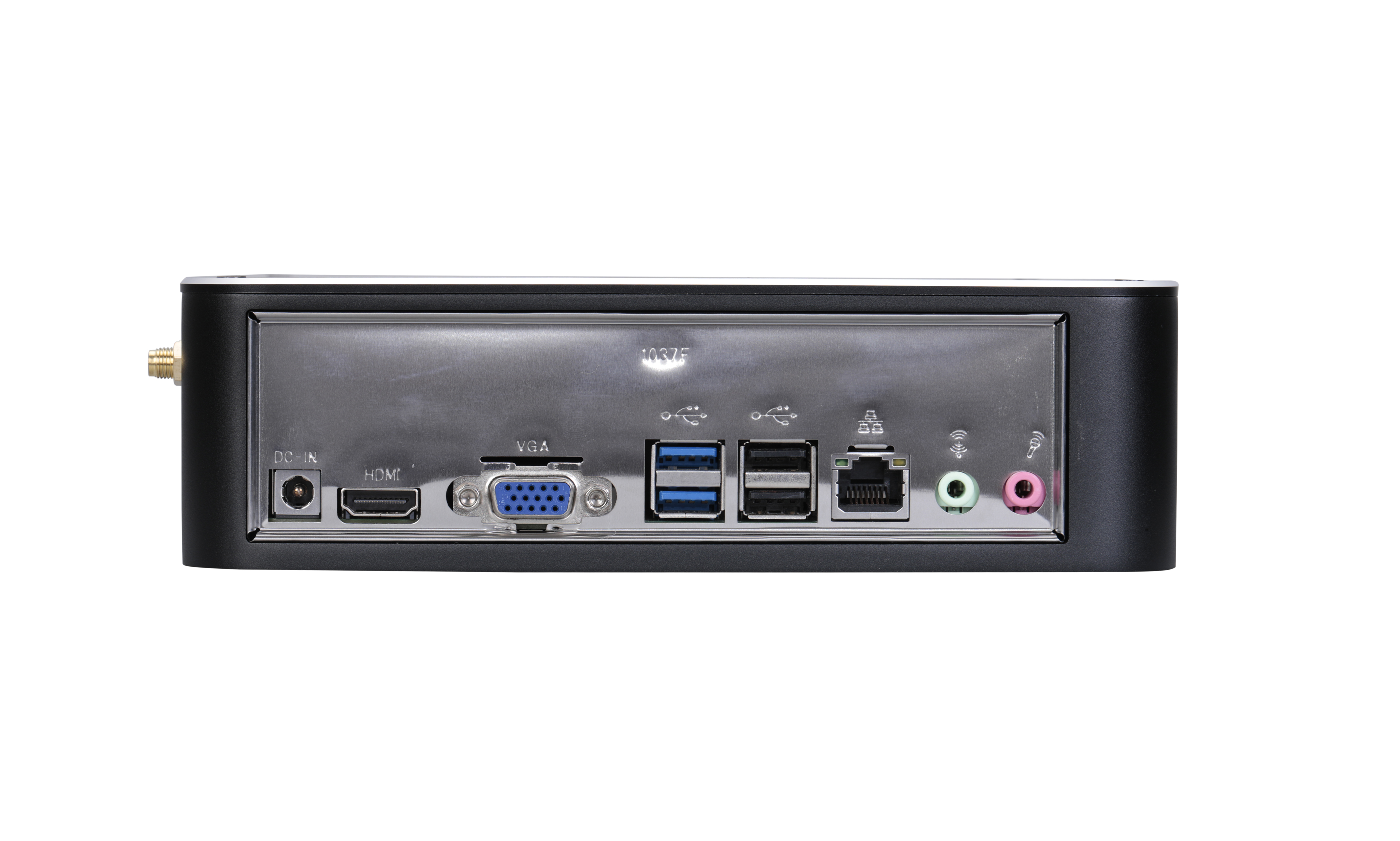

Black Mini PC schematic diagram
Ordering Information：
PC model | Processor | LAN | USB2.0 | USB3.0 | Hard disk | Memory | Power |
HD4009 | Support Alder Lake12th gen I3、I5、I7 | 1 | 8 | 2 | 1*M.2 1*SATA | 2*NB-DDR4 MAX 64G | +12V Or19V |
2 | 6 | 2 |
The following CPU information is for reference only, please consult sales for specific needs!(CPU marked in Blue color is suppprted by default , if need other model CPU, please contact us in advance)
CPU model | CPU brand | CPU | Core | Frequency | CPU Power consumption（W） | Full load power consumption（W） |
12th gen I3 | intel core | 1200P | Ten core | 4.4G | 28 | 64 |
1215U | six core | 4.4G | 15 | 55 | ||
1210U | six core | 4.4G | 9 | 29 | ||
12th gen I5 | intel core | 1240P | twelve core | 4.4G | 28 | 64 |
1250P | twelve core | 4.4G | 28 | 64 | ||
1235U | Ten core | 4.4G | 15 | 55 | ||
1240U | Ten core | 4.4G | 9 | 29 | ||
1230U | Ten core | 4.4G | 9 | 29 | ||
1245U | Ten core | 4.4G | 15 | 55 | ||
12450H | eight core | 4.4G | 45 | 95 | ||
12500H | twelve core | 4.5G | 45 | 95 | ||
12th gen I7 | intel core | 1280p | fourteen core | 4.8G | 28 | 64 |
1260p | twelve core | 4.7G | 28 | 64 | ||
1270p | twelve core | 4.8G | 28 | 64 | ||
1250U | Ten core | 4.7G | 9 | 29 | ||
1260U | Ten core | 4.7G | 9 | 29 | ||
1265U | Ten core | 4.8G | 15 | 55 | ||
1255U | Ten core | 4.7G | 15 | 55 | ||
12800H | fourteen core | 4.8G | 45 | 115 | ||
12700H | fourteen core | 4.7G | 45 | 115 | ||
12650H | twelve core | 4.7G | 45 | 115 | ||
12600H | twelve core | 4.5G | 45 | 95 | ||
12th gen I9 | intel core | 12900H | fourteen core | 5.0G | 45 | 115 |
Specification：

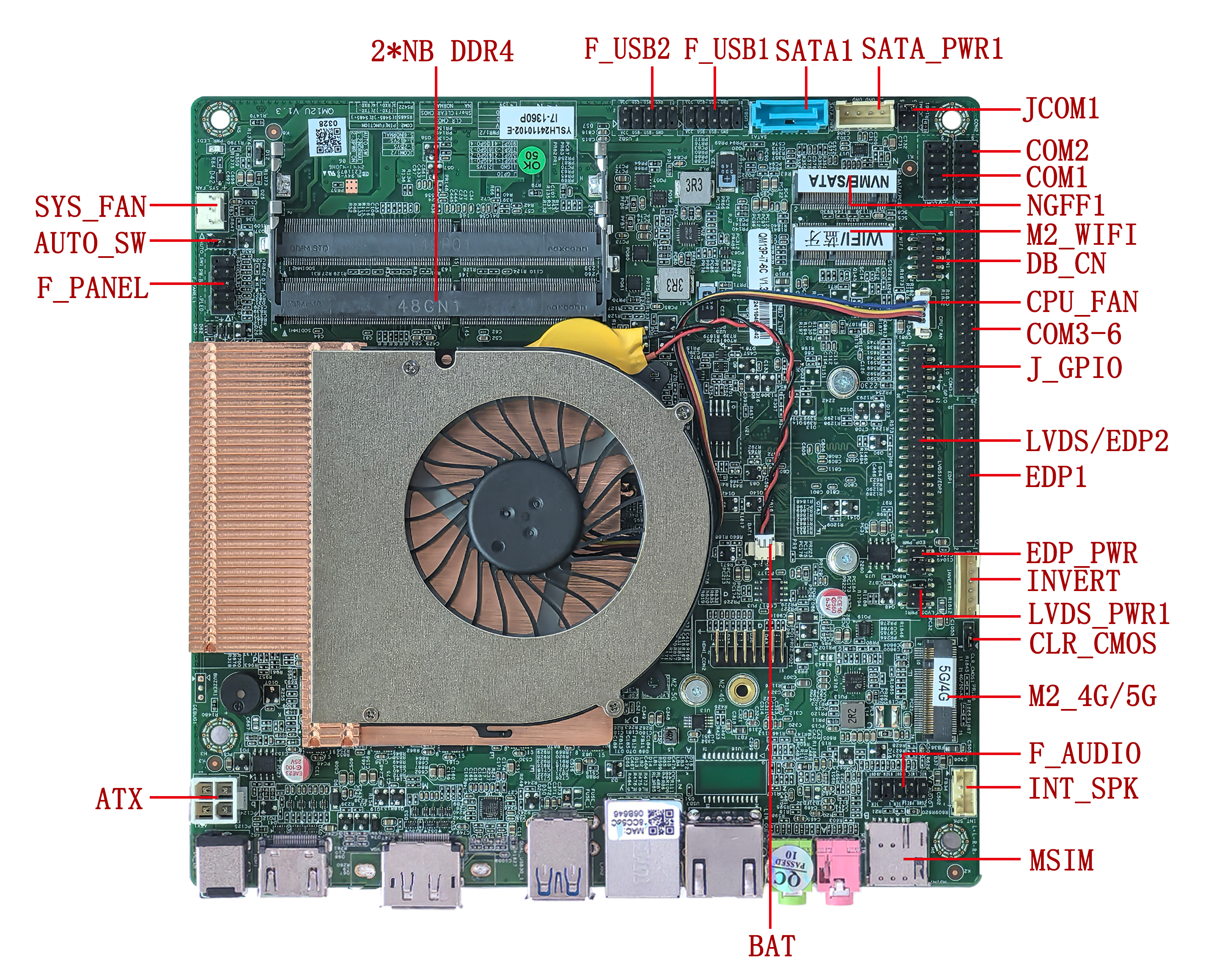

PC model | HD4009 | ||
Motherboard model | QM12U/QM13U | ||

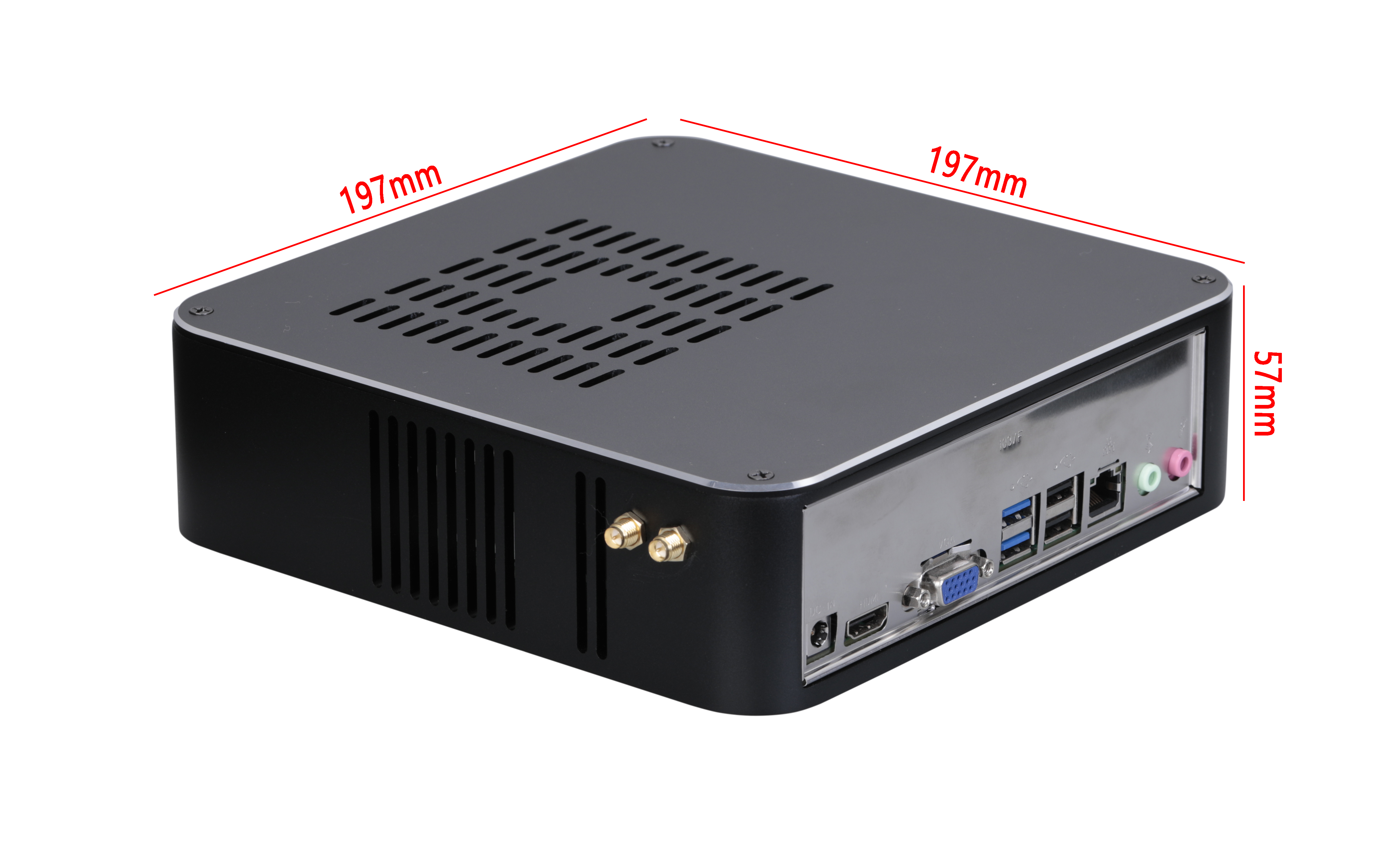

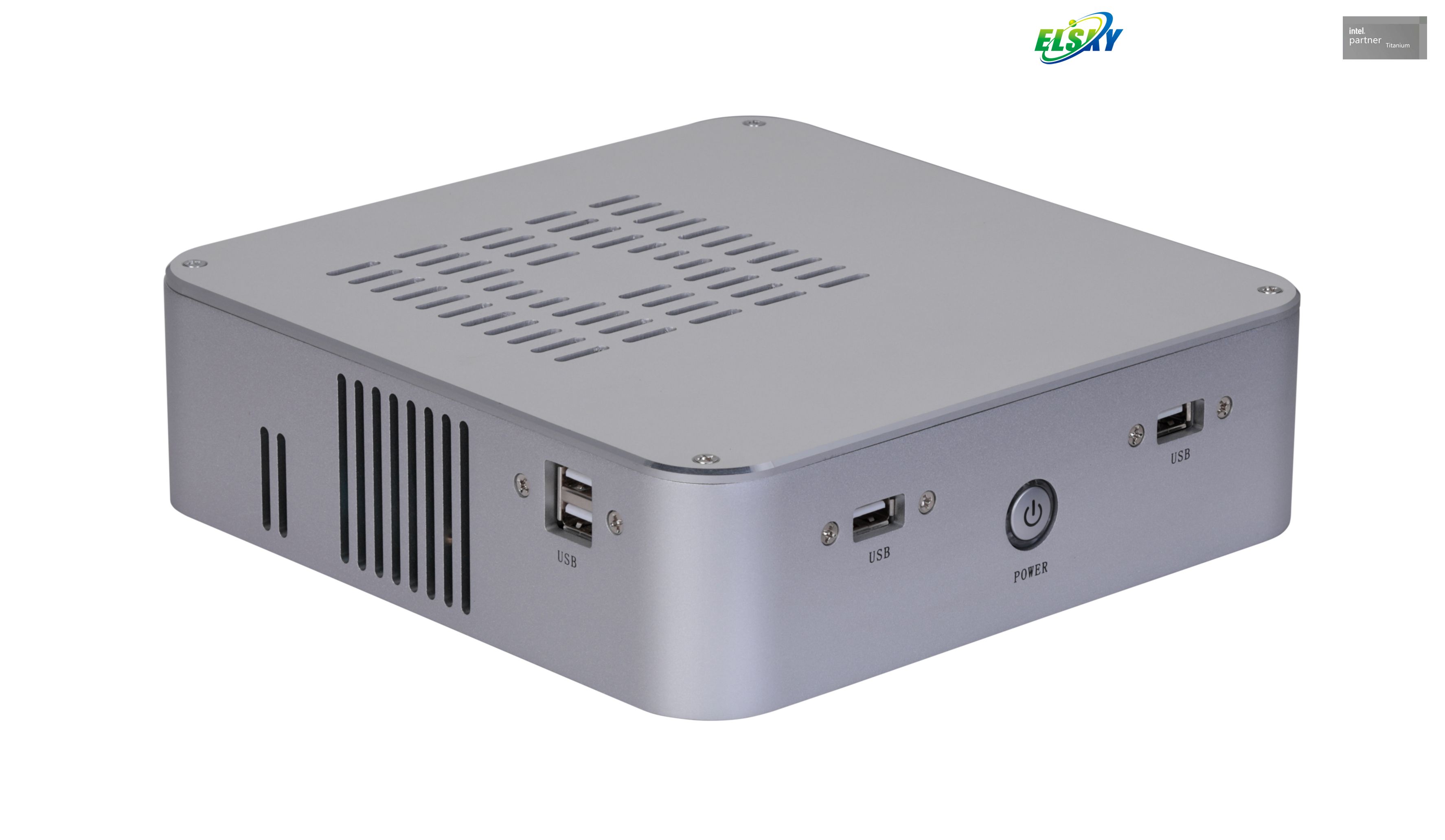

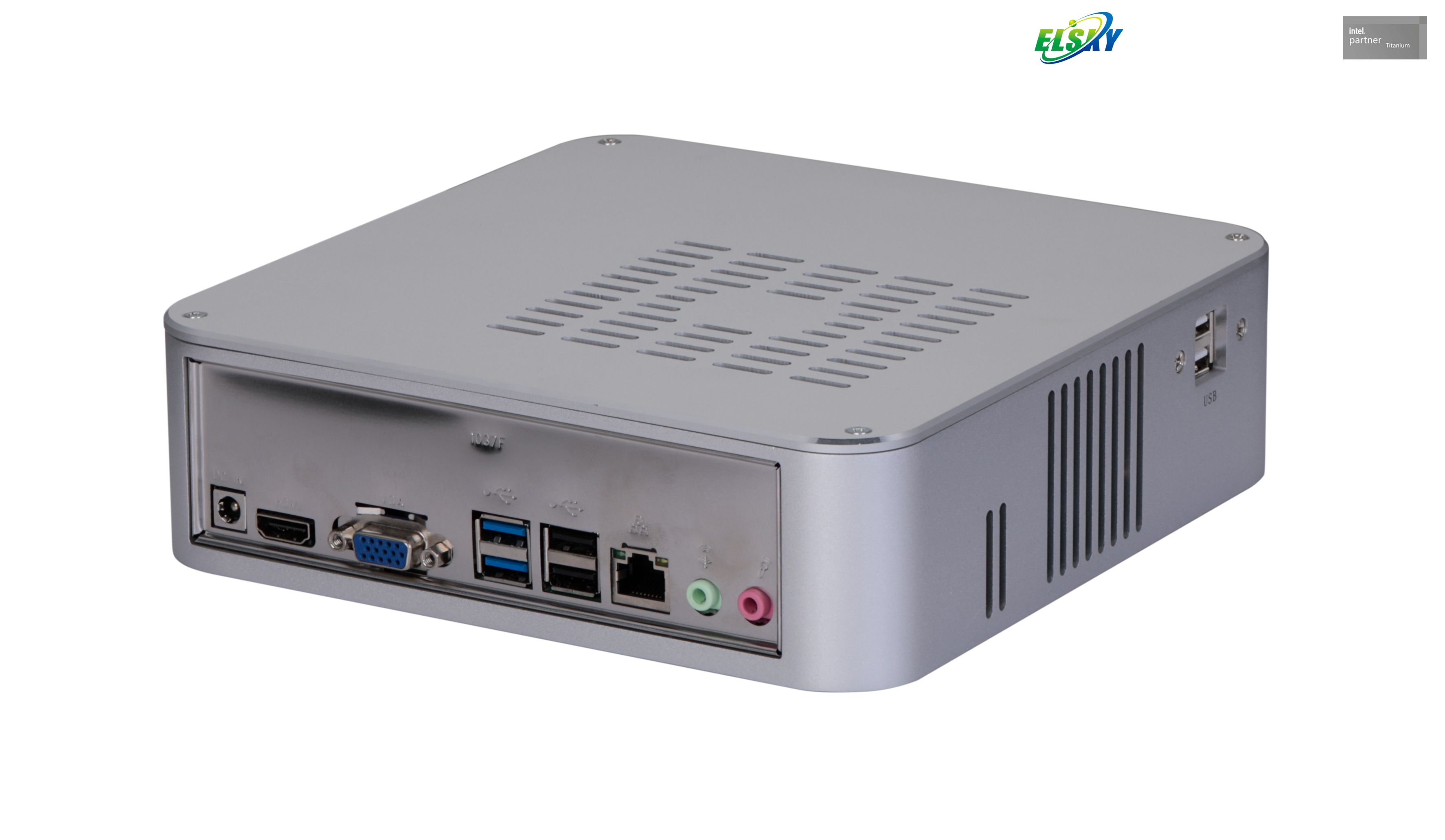

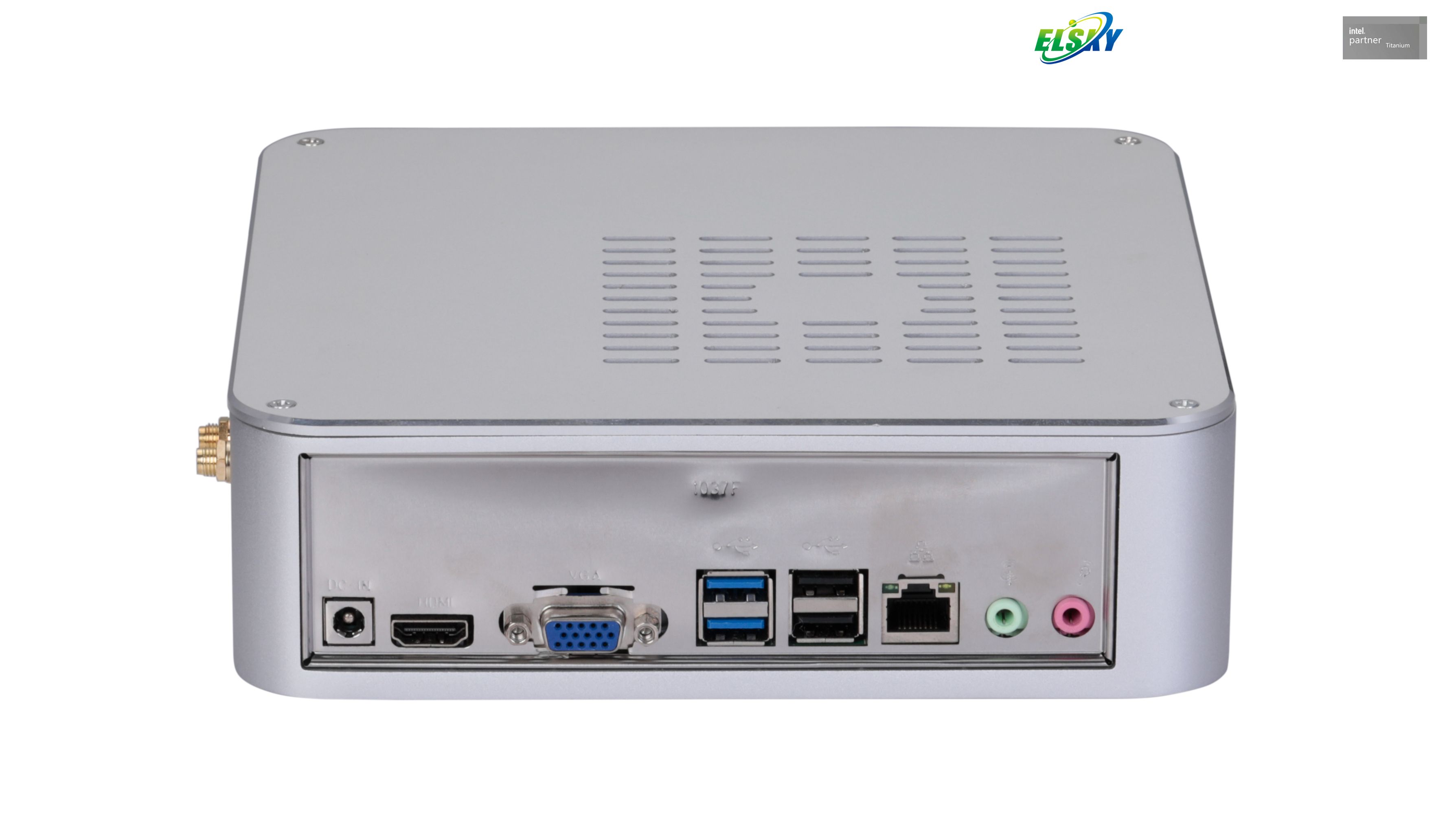

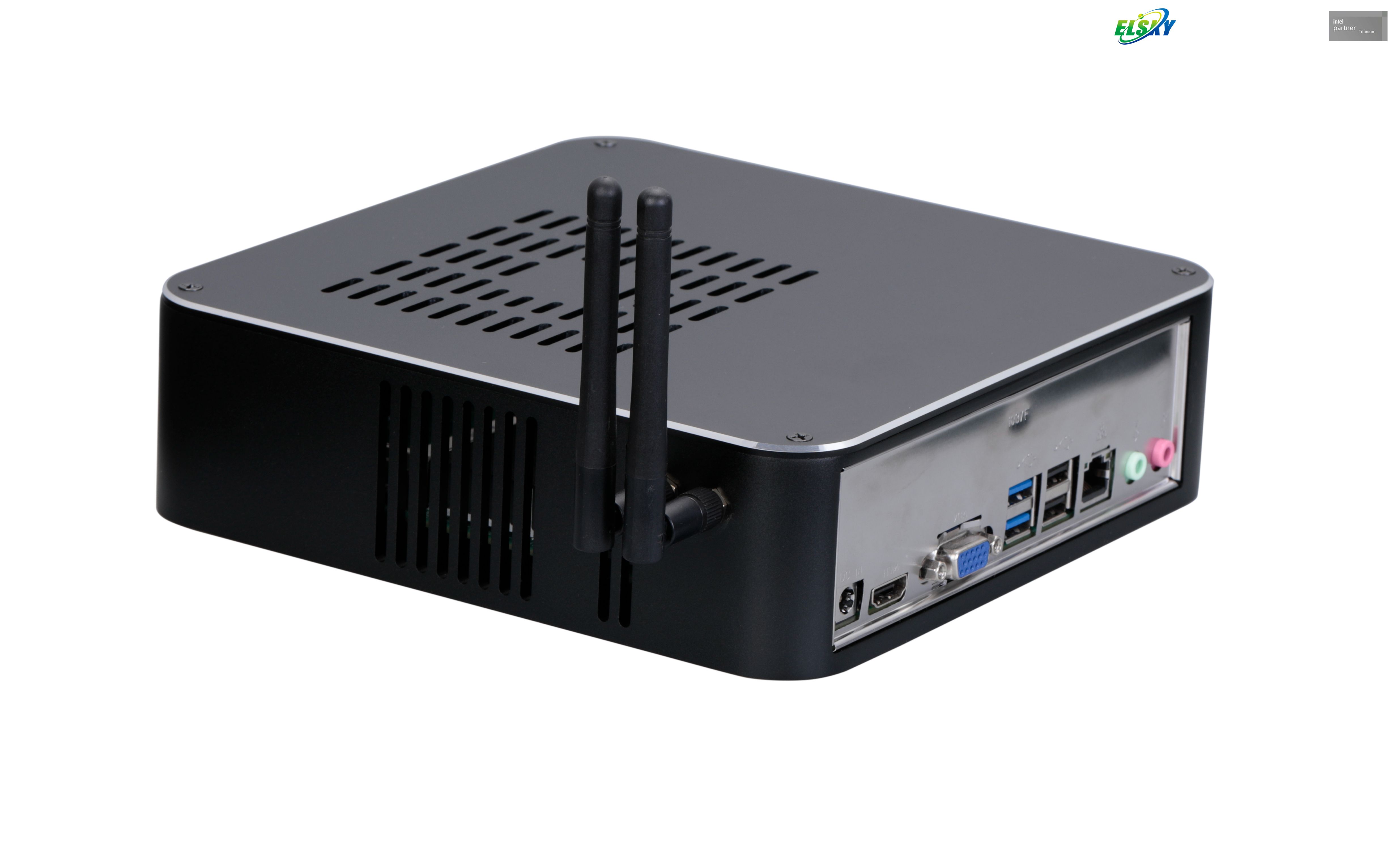

PC size | Color: Silver( Black Optional) Case material :Aluminium Size197mm*197mm*58mm | ||
Cooling | With a Fan | ||
Power supply | 1*DC_IN | Support 12V/19V voltage, the inner diameter of DC head is 2.5MM The full load power consumption of the motherboard is about 110W. It is recommended to use DC 12V10A/19V 6.3A or above power supply | |
CPU | Support Alder Lake 12th gen 、I3-1215U、、I5-1235U、I7-1250U etc CPU | ||
Support Raptor Lake 13th gen 、I3-1315U、、I5-1335U、I7-1355U etc CPU | |||
Memory | 2*SODIMM Memory slot, NB-DDR4 memory，support 2133/2400/2666/2933/3200MHz memory，max support 64G | ||
Network function | 1*RJ45_LAN port(Optional 2*LAN) Single lan support Intel I219V Gigabit LAN chip dual Lan support Intel I219 V +Realtek 8111H Gigabit network card ; Supports Wake-on-LAN and PXE diskless boot function | ||
1*M.2-WIFI port,Support Key-E port WiFi/Bluetooth module | |||
1*4G/5G-M.2 port, Support Key-B port M.2 5G（3052/3042）module or M.2 4G（3042）module | |||
Display function | Intel（R） UHDGraphics super Core graphics card Support single display, double display replication and extension Support Three display replication and extension Supportfour display replication and extension, Double display in SHELL; | ||
1*VGA Port | Support for resolution 1920*1080@60Hz | ||
1*HDMI Port | Support 4K resolution 4096/3840*2160@60Hz | ||
Optional 1*DP Port | Support 8K resolution 7680*4320P@60Hz | ||
The VGA, DP interfaces cannot exist at the same time. By default, VGA works, DP doesn't work; Option DP. IF you need DP , please tell us in advance | |||
USB Function | 2*USB3.1 | Blue group is USB3.1 speed | |
8*USB2.0 | Black group is USB2.0speed | ||
Serial port Function | 1*COM | SupportRS232 / RS422 / RS485 Optional | |
Sound Function | Integrated Realtek ALC662 HD Digital audio decoder，6-channel high-fidelity audio controller | ||
1*SPK | Support Audio output | ||
1*MIC | Support Microphone input | ||
Hard disk Function | 2.5inch SSD、HDD、M.2 disk Optional （ Capacity 64G to 2TB Optional ） | ||
Switch Function | POWER | Switch button | |
Operating environment | Working temperature：-20℃~60℃； Working humidity：5%~95% Relative humidity， No condensation | ||
BIOS | AMI BIOS， Support auto power on， Timing boot， Remote boot | ||
Watch Dog | Watchdog programming, Support hardware reset Function (256 levels, 0~255 seconds) | ||
Operating system | Compatible with Windows 11,Windows 10,Linux,etc. If you want to install Windows 11 OS ,please inform us in advance. | ||
