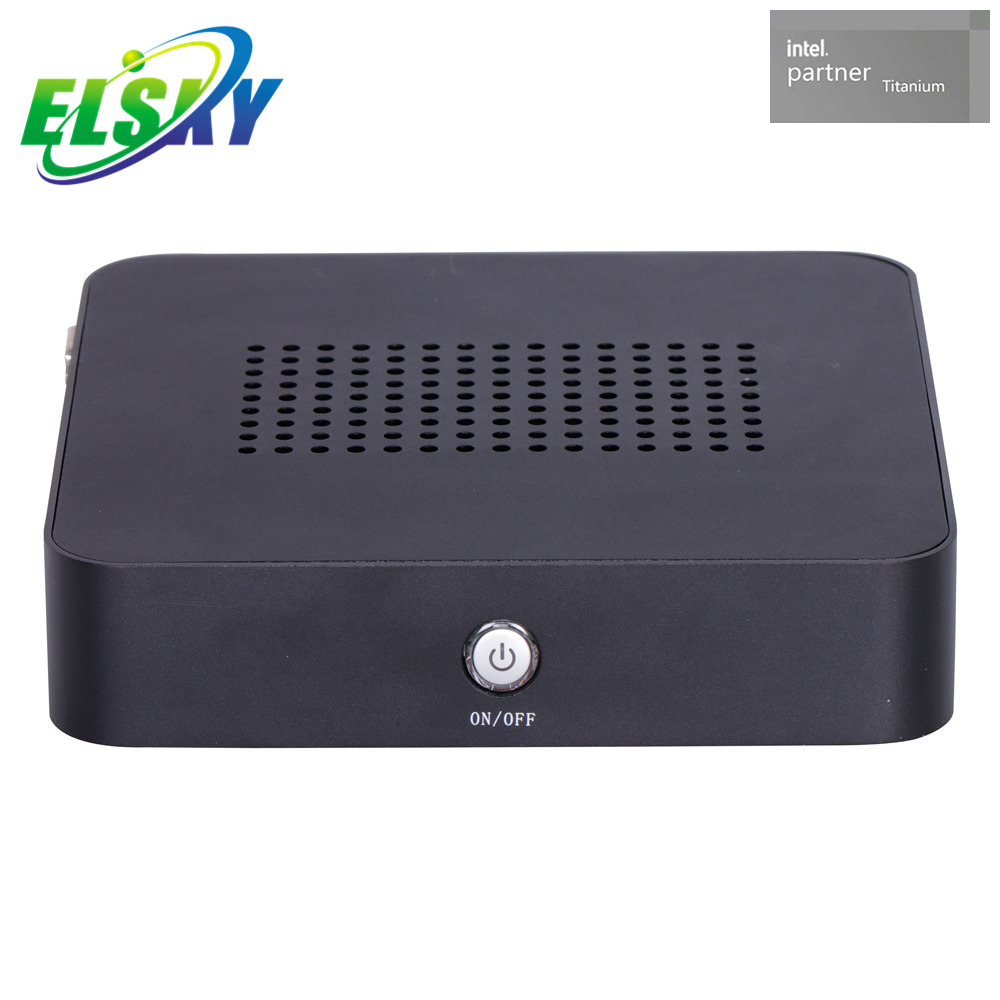

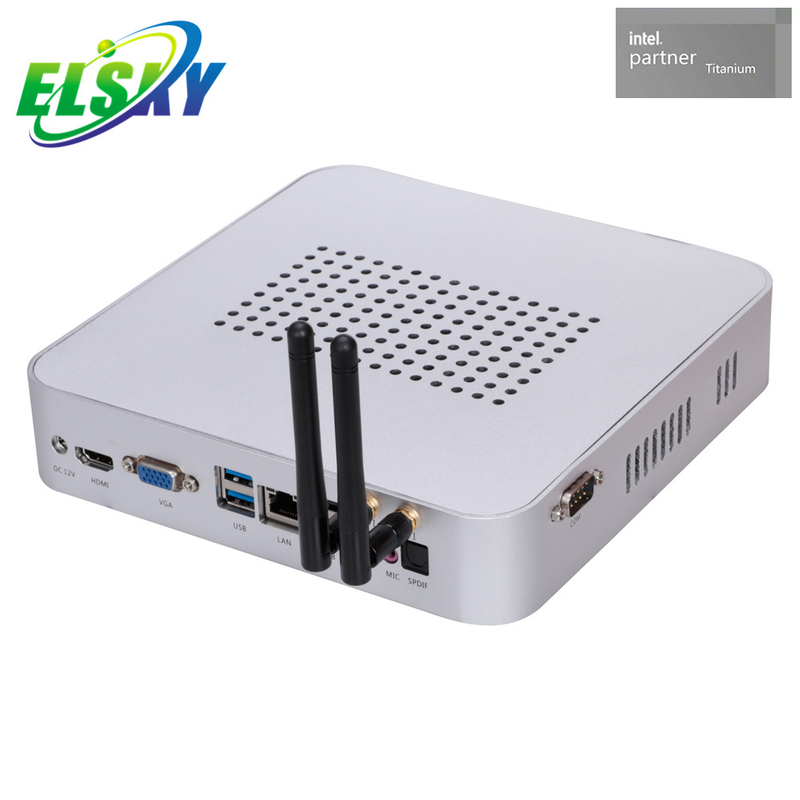

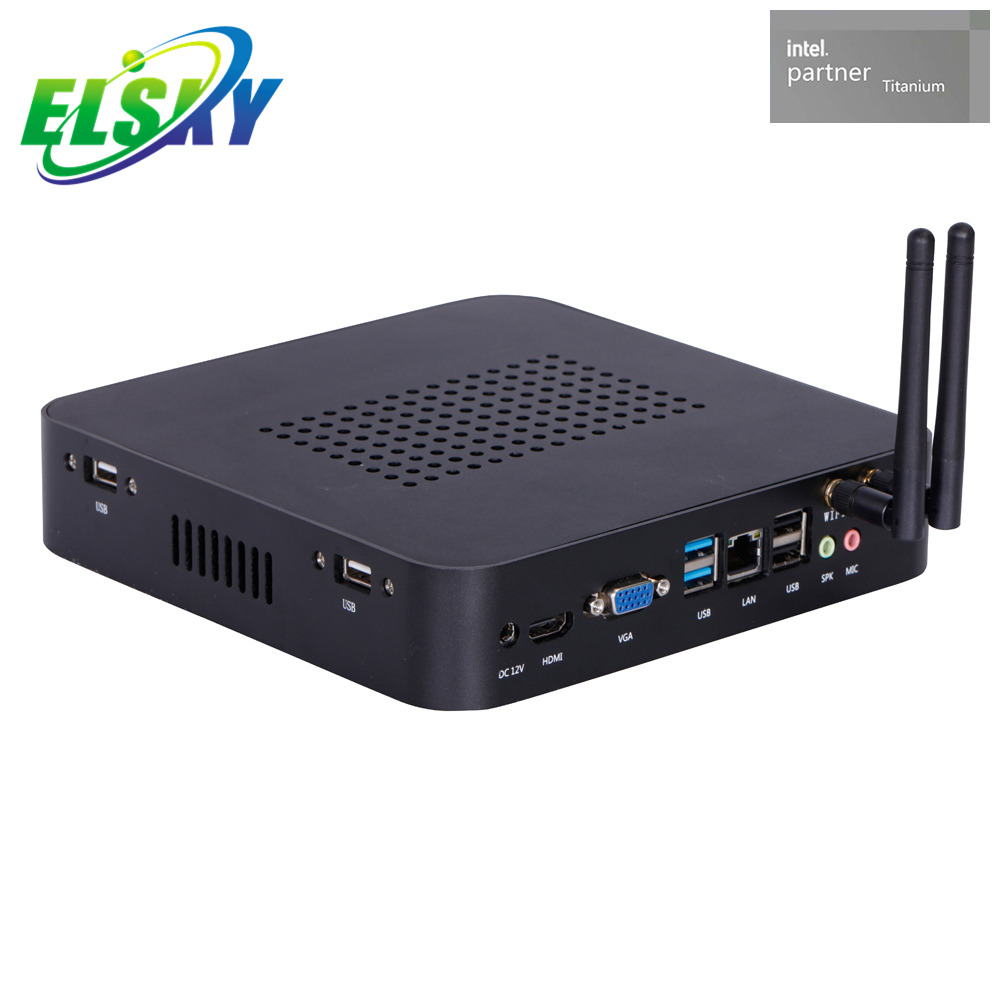

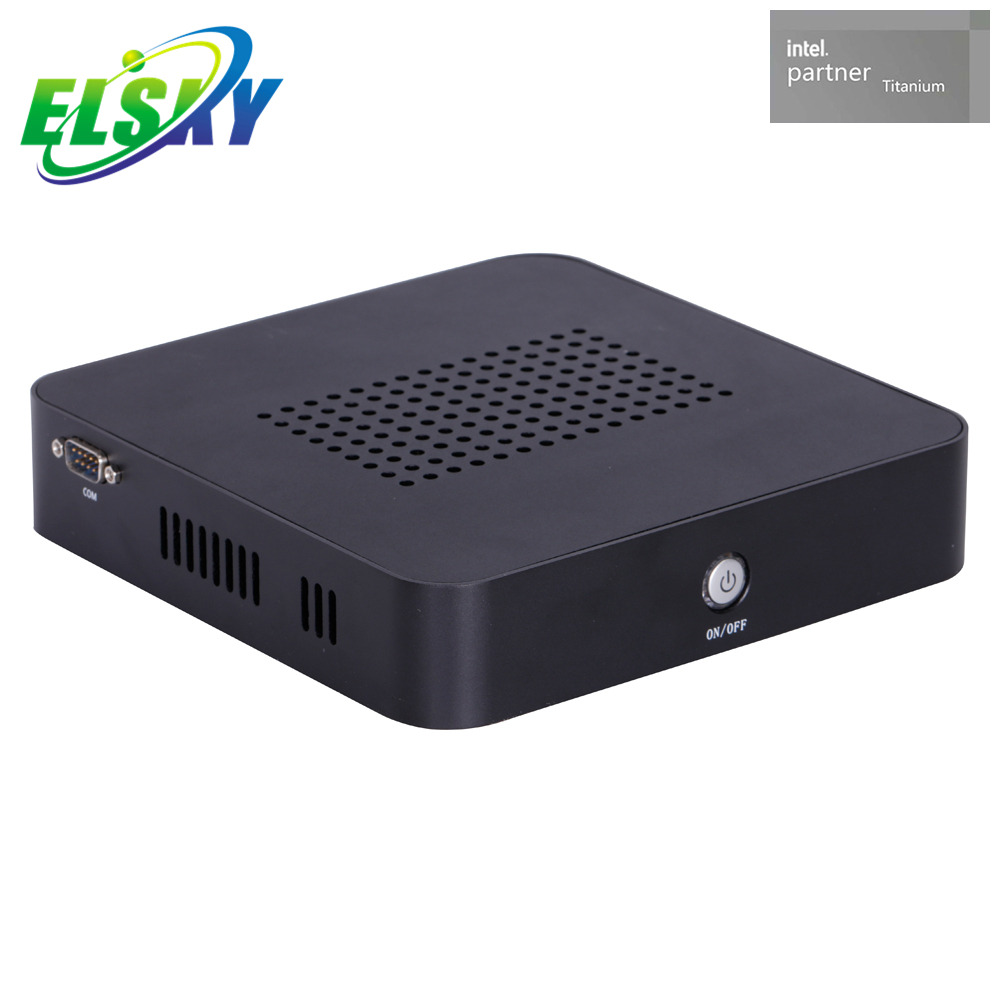

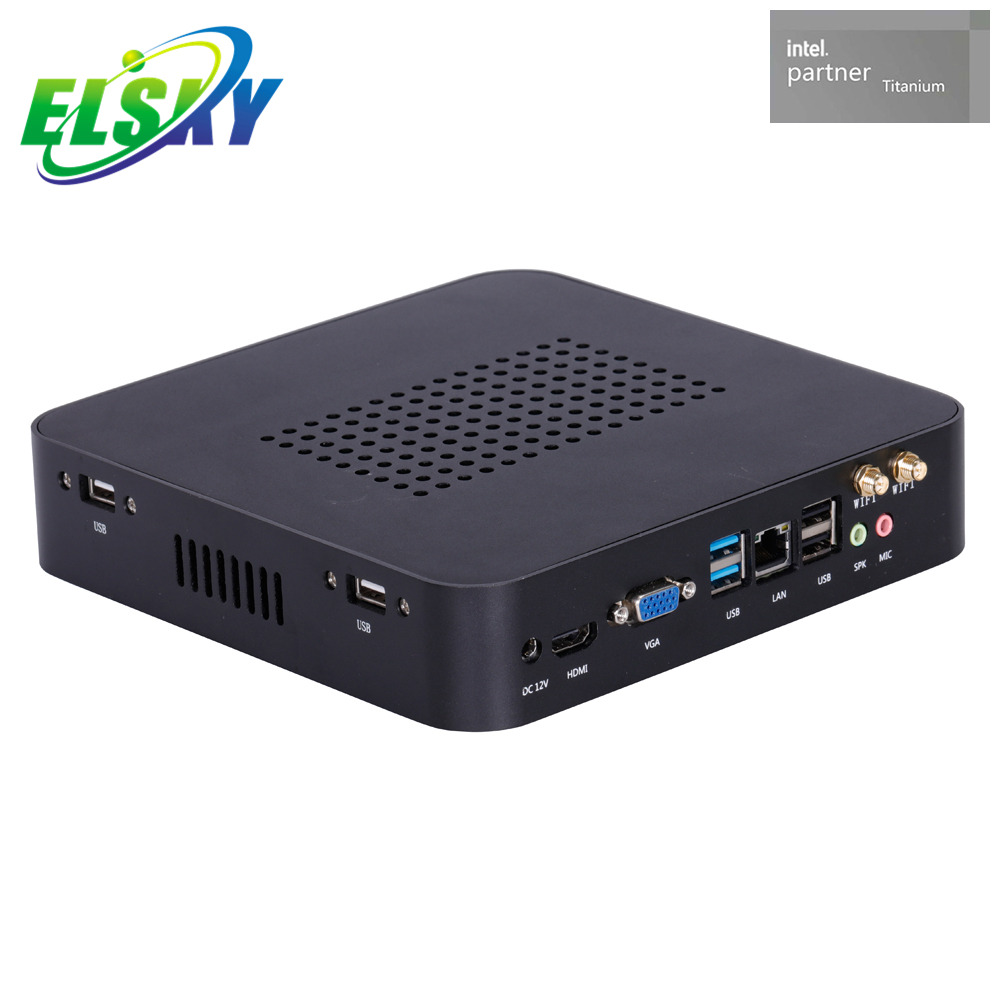

High-Performance Factory Cheap Mini PC with Intel I3 I5 I7 From 2nd-5th Gen CPU with HDMI VGA WiFi Bluetooth

Model

HD4006

Chassis Size

(L*W*H)197*197*41mm

Colors

Silver,Black

Fitted Motherboards

QM6600,QM9400,QM9500

Processor

v Intel Sandy Bridge CPU:

I3-2310M,I3-2330M,I3-2350M,I3-2348M,I3-2370M,I5-2410M,I5-2520M,I5-2540M,

I5-2560M,I7-2640M.

v Intel Ivy Bridge CPU:

I3-3110M,I5-3210M,I5-3360M,I5-3380M,I7-3540M,I7-3610QM.

v Intel Haswell CPU:

I3-4005U,I3-4010U,I3-4030U,I5-4200U,I5-4210U,I7-4500U,I7-4510U.

v Intel Broadwell CPU:

I3-5005U,I5-5200U,I5-5250U,I7-5500U.

Memory

Supports 1*NB-DDR3-2G memory channel;

Having 2G,4G,8G RAM to choose;

QM9400/QM9500 motherboard needs low voltage 1.35V memory.

Hard Disk(Storage)

Supports these hard disks:

v MSATA:8GB,16GB,32GB,64GB,120GB,etc;

v SSD:8G,16GB,32GB,64GB,120GB,etc;

v Laptop:320GB,500GB,1TB,etc.

Operating System

Windows XP,Windows 7(32bit,64bit),Windows 8.1 , Windows 10,Linux(Ubuntu).

Power Supply

DC 12V power adapter;

But QM9400/QM9500 motherboard needs DC19V power adapter.

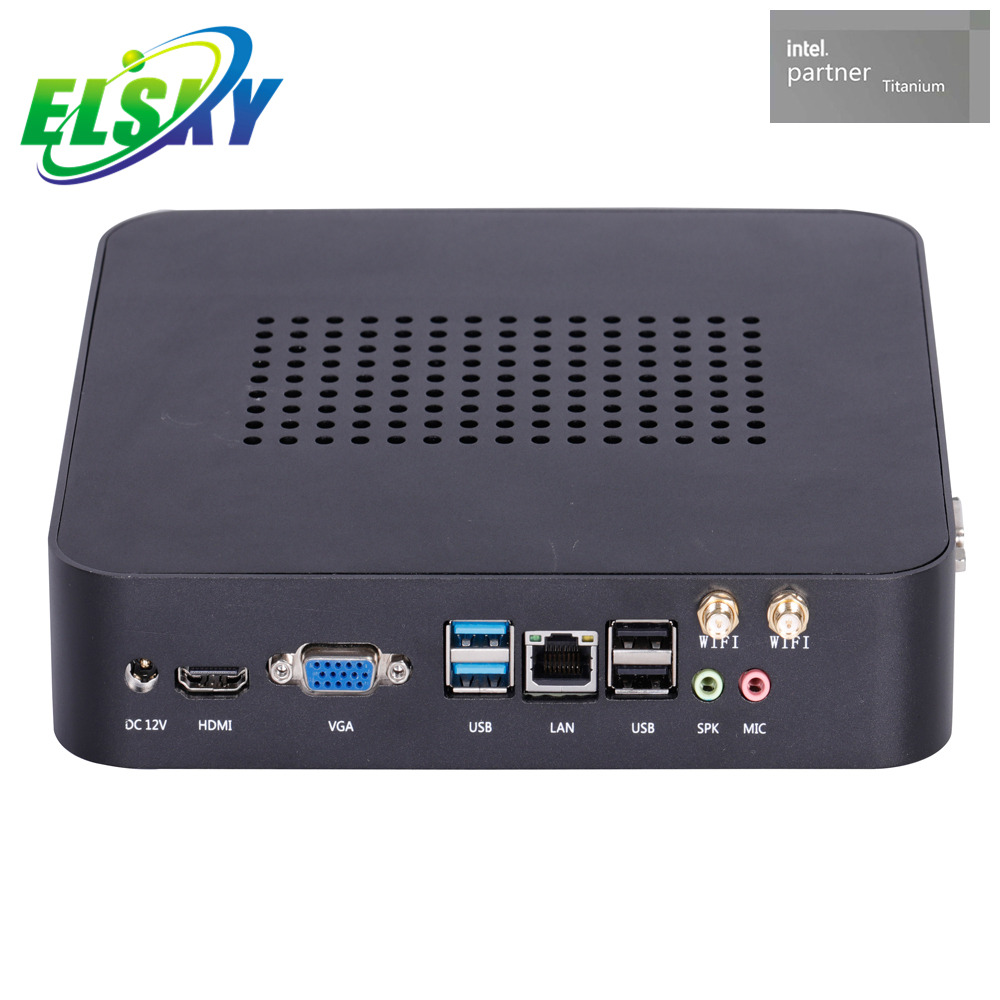

I/O Interfaces

(External)

1*DC-in, 1*HDMI,1*VGA,2*USB3.0 ,4*USB2.0 ,1*RJ45 1000Mbps LAN,1*Speaker,

1*Mic-in,1*RS232 COM,1*ON/OFF.

Heat Dissipation

Cool mute thin fan

Support

2*WIFI antenna poles;

Wall hanging(This mini PC is wall-mounted).
