Firewall Mini Pc J1900 Fanless RJ45 1000M 6lan or Bypass,PfSense Software,Firewall

MINI PC Model

M104 4*1000LAN

Appearance

Color: Black

Case material :Aluminium   Size:200mm(L)*190mm(W)*43.8mm(H)

Cooling

Fanless

Motherboard Model

J19E6L

Processor

Supporting Intel Bay Trail Celeron J1900 Quad core 2.0GHZ processor.

Chip set

Intel SOC single chip design.

Memory

1*DDR3L low voltage(1.35V) memory channel,Max.RAM 8GB.

Storage

1*MSATA SSD (8G/16G/32G/64G/120G);

1*SATA SSD/HDD (8G/16G/32G/64G/120G);

Network Card

6*1000Mbps RJ45 LAN ports with high-end Intel I210AT network cards;

Option: On-board 2*Bypasses.

(If you need Bypass , please tell us in advance)

Graphics Card

Integrating Intel HD Graphics Card,supports 1080P,H264,3D Play.

Display

1*VGA

Power Supply

DC 12V 5A power adapter or above

I/O Interfaces

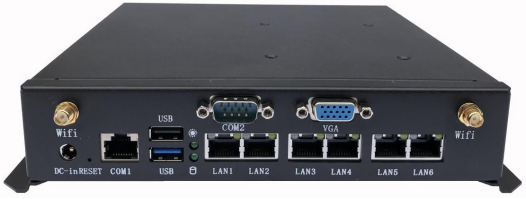

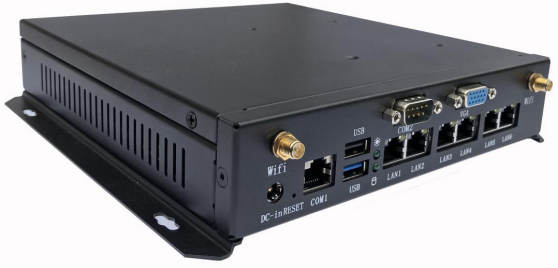

1*DC-in , 1*VGA , 3*USB2.0 , 1*USB3.0 , 6*LAN , 1*RJ45 COM , 1*COM(RS232).

Expansion

2*Mini PCI-E slots,supports Wifi,3G,Bluetooth,GPS,MSATA.

Wifi

Supporting wifi antenna stick.

Operating Environment

Working temperature: -10℃~60℃;

Storage temperature:-40℃~80℃;

Relative humidity:0%~90%,non-condensation.

Operating System

Windows 7(64bit,32bit),Windows 8,Windows 10,Linux.

This mini PC doesn’t support Windows XP.

Options:

laser-engraving LOGO on the case

Support VESA 75MM*75MM mounting,Din mounting, Wall-mounting.

GPIO terminal block
