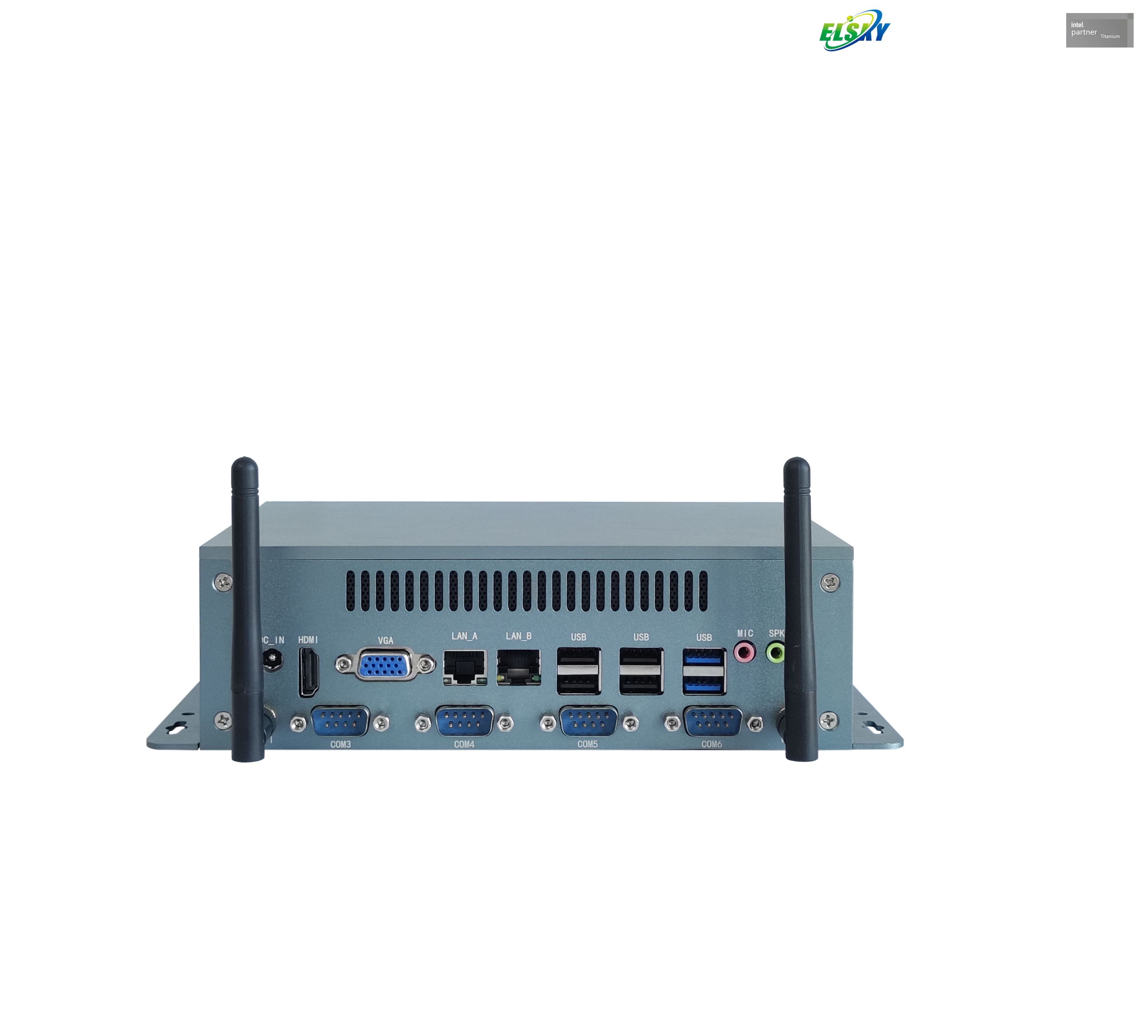

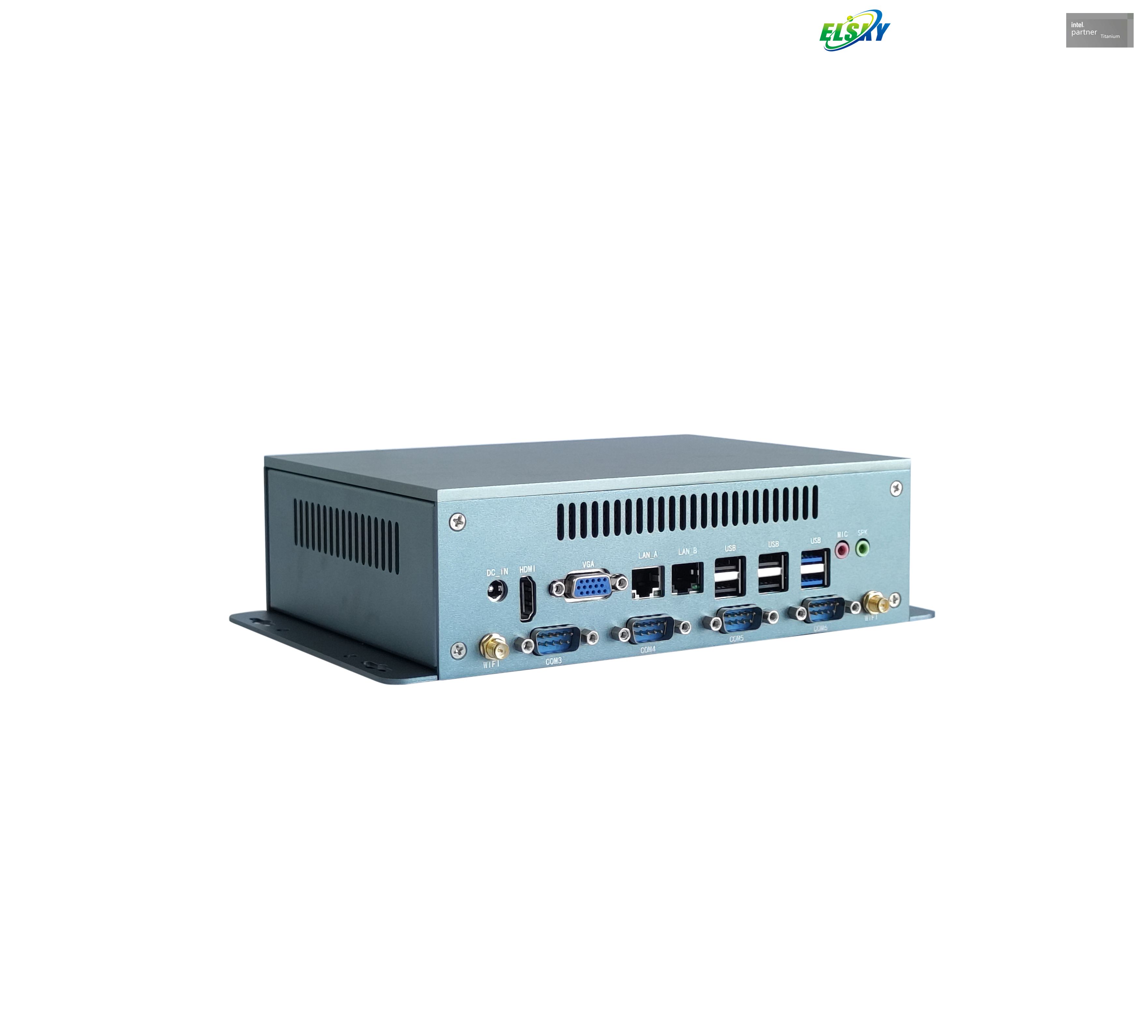

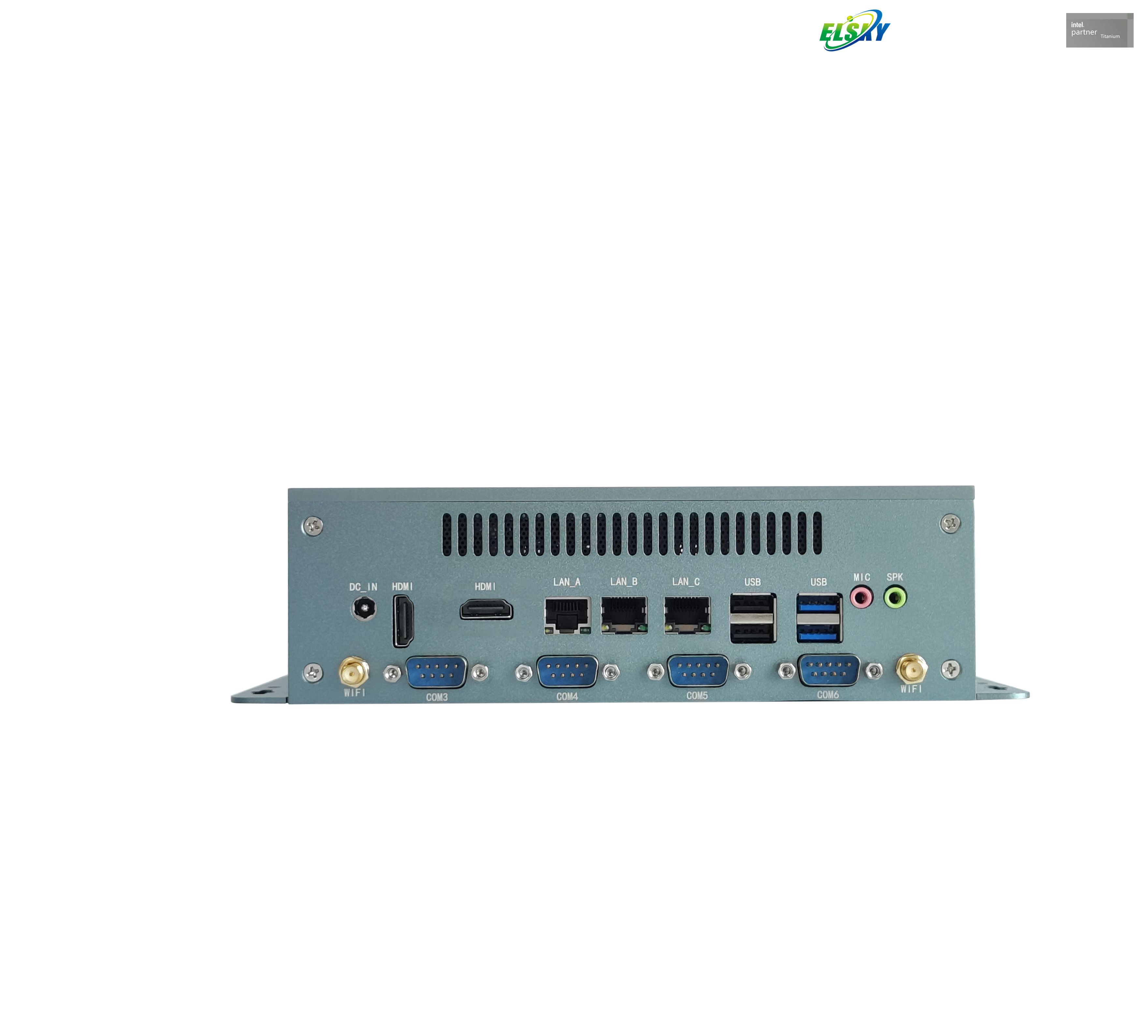

Mini PC with Multiple LAN 2/3/4*RJ45-LAN with Intel 8th/10th Generation CPU I3-8145U/10110U I5-8365U/10210U I7-8665U/10510U

4K 30Hz

VGA

2K 60Hz

2

8

2

6

1*MSATA

1*2.5 inch SSD

1*NB-DDR4

MAX 32G

+12V

3

6

2

6

4

4

2

6

PC model

M10U-M100SE Series

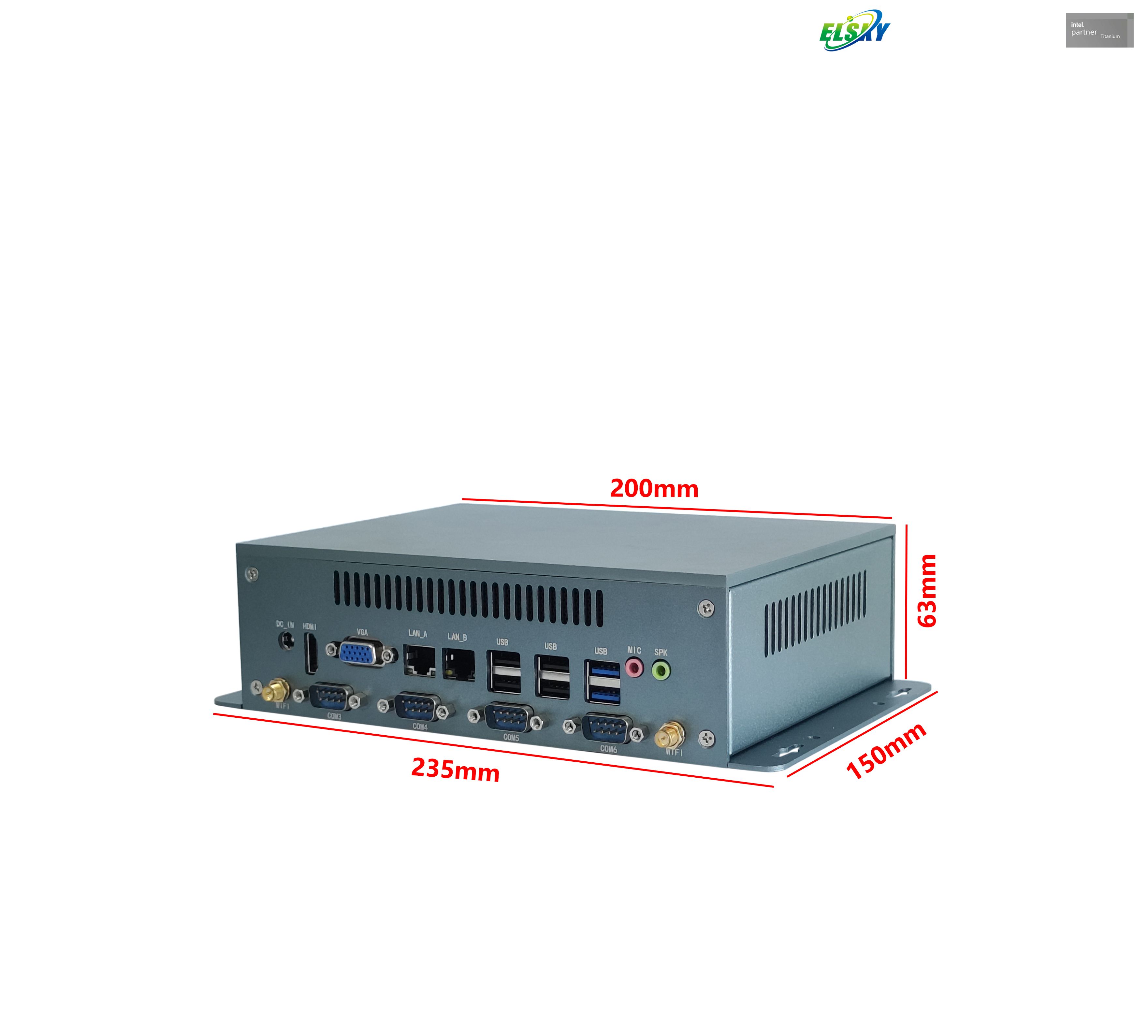

PC size

235mm（L）*150mm（W）*63mm（H）

COOLING SYSTEM

Equipped with heat dissipation holes, silent fan for heat dissipation

colour

steel gray

Adapt to motherboard models

M100SE

power supply

1*DC_IN

The inner diameter of the DC head is 2.5mm and supports 12V. It is recommended to use a 12V7A or higher power supply

8th generation CPU

Whiskey Lake: Intel Core i3-8145U dual core 2.1GHz, turbo 3.9GHz;

Intel Core i5-8365U quad core 1.6GHz, turbo 4.1GHz; Core i5-8265U quad core 1.6GHz, Turbo 3.9GHz

Intel Core i7-8665U quad core 1.9GHz, turbo 4.8GHz;

10th generation CPU

Comet Lake: Intel Core i3-10110U dual core 2.1GHz, turbo 4.1GHz;

Intel Core i5-10210U quad core 1.6GHz, turbo 4.2GHz; Core i5-10310U quad core 1.7GHz, turbo 4.4GHz

Intel Core i7-10510U quad core 1.8GHz, turbo 4.9GHz; Core i7-10610U quad core 1.8GHz, turbo 4.9GHz

Intel Core i7-10710U six core 1.1GHz, turbo 4.7GHz; Core i7-10810U six core 1.1GHz, turbo 4.9GHz

chipset

Haswell-U, Broadwell-U high-speed chipset

Memory

1 * NB-DDR4 memory slot, supports 2133/2400/2666MHz memory, maximum support 32GB

Network function

2*RJ45_LAN

(Optional three network/four network)

Supports Intel i226-V Gigabit Ethernet card chip

Support network wake-up and PXE diskless boot function

Supports WIFI, supports 2 * WIFI antenna poles (supports 3G/4G/Bluetooth/WIFI optional)

display function

Integrated Intel UHD Graphics ultra core graphics card, supporting single display, dual display replication, and dual display expansion

1*VGA DB15  interface

Supports a resolution of 1920* 1080@60Hz

1*HDMI 1.4 interface

Supports 4K resolution of 4096/3840* 2160@30Hz

USB function

2*USB3.2 interface

Rear standard USB 3.2 Gen1 interface

8*USB2.0 interface

Rear standard USB 2.0 interface

The three network PC supports 6 * USB2.0 interfaces; The three network PC supports 4 * USB2.0 interfaces

Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller

1 * SPK interface

Support audio output

1 * MIC interface

Support microphone input

HDMI interface supports HDMI audio output

Hard disk function

1 * MSATA disk;

1 * 2.5-inch SSD or HDD mechanical hard drive

SWITCH

POWER button

switch button

Other I/O

6 * COM interface

Supports RS232 (customizable to support RS485)

Operating environment

Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation

Storage temperature: -20 ℃~70 ℃;

BIOS

AMI BIOS， Support power on, timed power on, remote power on/off, etc

Watch Dog

Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)

operating system

Supports Windows 10, Windows 11, Linux, etc
