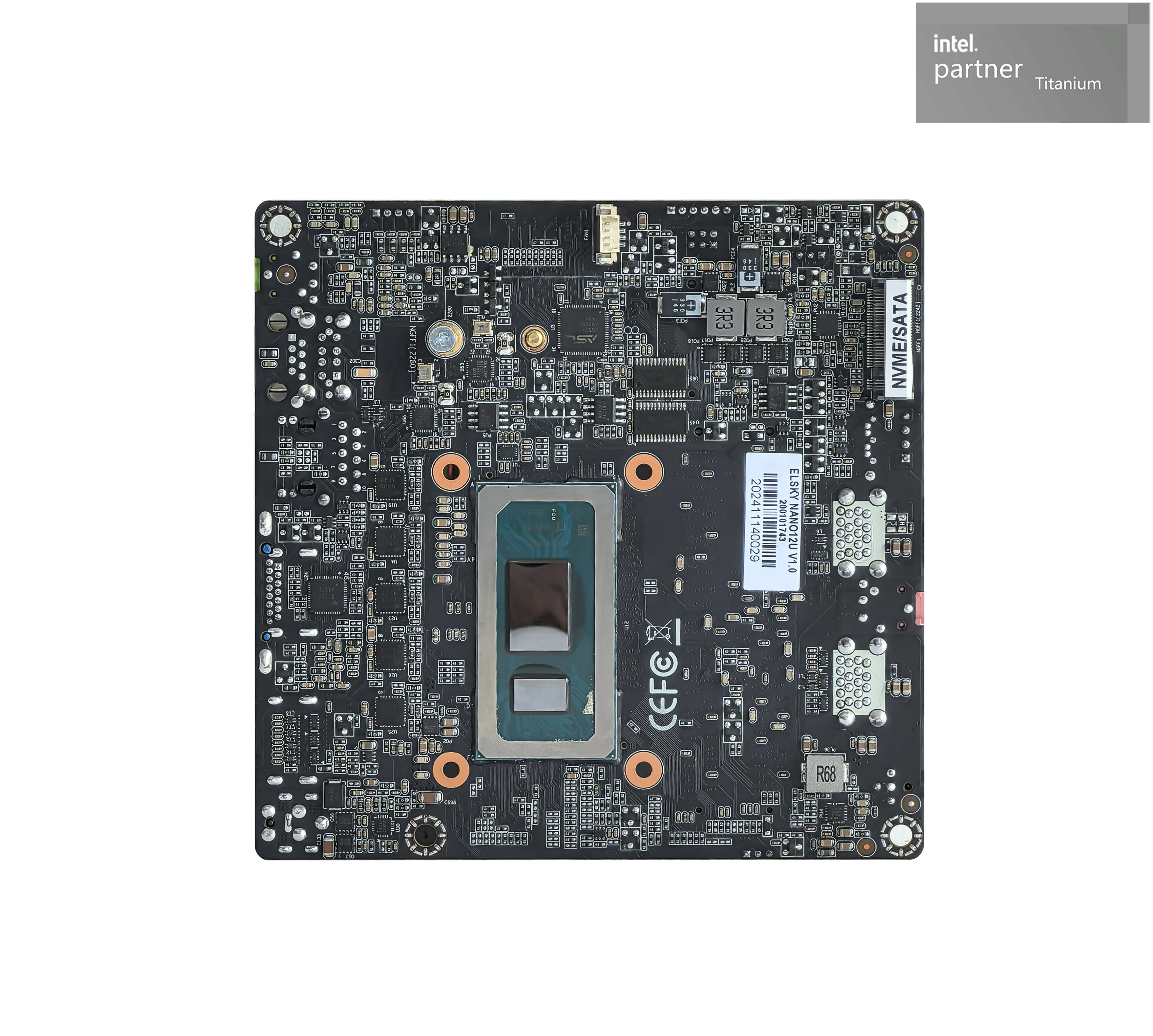

Intel 13Gen NANO motherboard with HDMI DP Dual Display M.2 Type-C Support 9V-24V Power Max 32GB RAM for Business Computer

NANO12

Support Intel Alder Lake 12th generation U/P/H series i3, i5, i7, i9

support

2

1

6

4

1*M.2

1*SATA

2*NB-DDR4

MAX 64G

12V~24V wide voltage power supply

2

2

4

4

NANO13

Support Intel Raptor Lake 13th generation U/P/H series i3, i5, i7, i9

2

1

6

4

2

2

4

4

12th Generation I3

Core

1215U

Six cores and eight threads

1.2G

4.4G

15

55

12th generation I5

Core

1235U

Ten cores and twelve threads

1.3G

4.4G

15

55

1245U

Ten cores and twelve threads

1.6G

4.4G

15

55

12th Generation I7

Core

1265U

Ten cores and twelve threads

1.8G

4. 8 G

15

55

1255U

Ten cores and twelve threads

1.7G

4.7 G

15

55

13th Generation I3

Core

1305U

Five cores and six threads

1.6 G

4.5G

15

55

1315U

Six cores and eight threads

1.2 G

4.5G

15

55

13th Generation I5

Core

1334U

Ten cores and twelve threads

1.3G

4.6G

15

55

1335U

Ten cores and twelve threads

1.3G

4.6G

15

55

1345U

Ten cores and twelve threads

1.6G

4.7G

15

55

13th Generation I7

Core

1355U

Ten cores and twelve threads

1.7G

5.0G

15

55

1365U

Ten cores and twelve threads

1.8G

5.2G

15

55

12th Generation I3

Core

1220P

Ten cores and twelve threads

1.5G

4.4G

28

64

12th generation I5

Core

1240P

Twelve cores and sixteen threads

1.7G

4.4G

28

64

1250P

Twelve cores and sixteen threads

1.7G

4.4G

28

64

12th Generation I7

Core

1280P

Fourteen cores and twenty threads

1.8G

4. 8 G

28

64

1260 P

Twelve cores and sixteen threads

2.1G

4.7 G

28

64

1270 P

Twelve cores and sixteen threads

2.2G

4. 8 G

28

64

13th Generation I5

Core

1340P

Twelve cores and sixteen threads

1.8G

4.6G

28

64

1350P

Twelve cores and sixteen threads

1.9G

4.7G

28

64

13th Generation I7

Core

1360P

Twelve cores and sixteen threads

2.2G

5.0G

28

64

1370P

Fourteen cores and twenty threads

1.9G

5.2G

28

64

12th Generation I5

Core

12450H

Eight cores and twelve threads

2.0G

4.4G

45

95

12500H

Twelve cores and sixteen threads

2.5G

4.5G

45

95

12th Generation I7

 Core

12800H

Fourteen cores and twenty threads

2.4G

4. 8 G

45

115

12700H

Fourteen cores and twenty threads

2.7G

4.7 G

45

115

12650H

Ten cores and sixteen threads

2.3G

4.7G

45

115

12600H

Twelve cores and sixteen threads

2.7G

4.5G

45

95

12th Generation I9

Core

12900H

Fourteen cores and twenty threads

2.5G

5.0G

45

115

13th Generation I5

Core

13420H

Eight cores and twelve threads

2.1G

4.60G

45

95

13500H

Twelve cores and sixteen threads

2.6G

4.70G

45

95

13600H

Twelve cores and sixteen threads

2.8G

4.80G

45

95

13th Generation I7

Core

13620H

Ten cores and sixteen threads

2.4G

4.90G

45

115

13700H

Fourteen cores and twenty threads

2.4G

5.00G

45

115

13800H

Fourteen cores and twenty threads

2.5G

5.20G

45

115

13th Generation I9

Core

13900H

Fourteen cores and twenty threads

2.6G

5.40G

45

115

CPU

NANO12U

Support Intel Alder Lake 12th generation U/P/H series CPU

NANO13U

Support Intel Raptor Lake 13th generation U/P/H series CPU

Power supply

1* DC_IN

The inner diameter of the DC head is 2.5MM, supporting 12V~24V wide voltage power supply

The maximum turbo power consumption of the U series CPU is 55W. It is recommended to use a 12V 7A or 19V 5A power supply.

The maximum turbo power consumption of the P series CPU is 64W. It is recommended to use a 12V 7A or 19V 5A power supply.

The maximum turbo power consumption of the H series CPU is 115W. It is recommended to use a 12V 10A or 19V 6.3A power supply.

1*ATX1

(4Pin optional)

Memory

2*SO DIMM slots

NB-DDR4 memory, supports 2133/2400/2666/2933/3200 memory, maximum support 64G

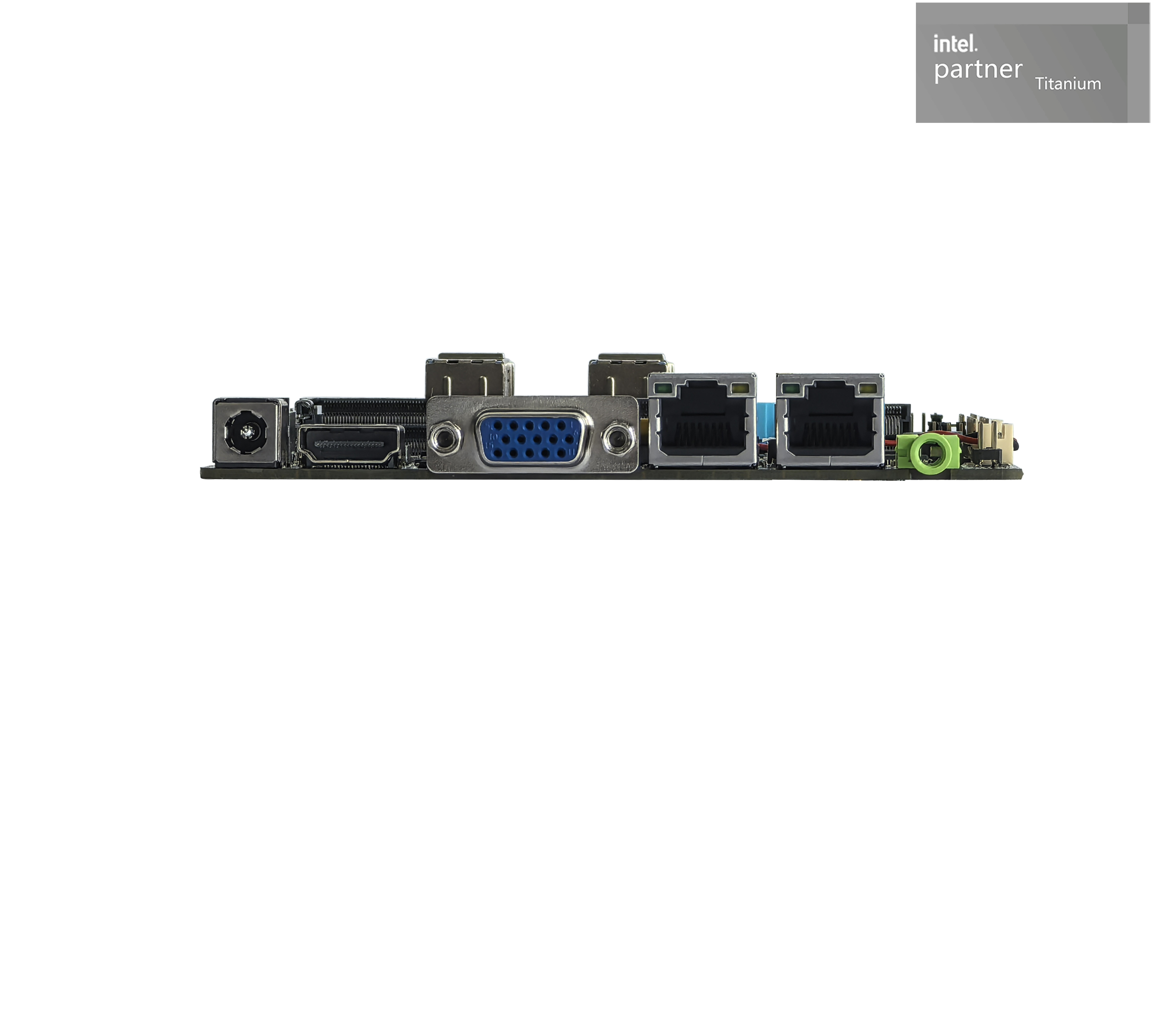

Network Features

1/2*RJ45_LAN interface

The single network supports Realtek 8111H Gigabit network card by default;

Optional support for Yutaiwei YT6801 Gigabit network card;

Dual network supports Realtek 8111H + Realtek 8111H dual Gigabit network cards;

Optional support for YUTAIYT6801+YUTAIYT6801 dual Gigabit network cards;

Support network wake-up and PXE diskless boot function

1*M.2-WIFI interface

PCIE3.0 signal, supports Key-E interface M.2 2230 WiFi module, can be changed to support Bluetooth

Display functions

Intel UHD Graphics

Support single display, dual display/triple display copy, dual display/triple display expansion, and dual display in Shell;

1*HDMI1 2.0 interface

Support 4K resolution 4096/3840*2160@60Hz

1*VGA DB15 interface

resolution 1920*1080@60 Hz

1*HDMI2 interface (optional)

Support 4K resolution 4096/3840*2160@60Hz

VGA interface can be changed to support HDMI2 interface

1*LVDS/EDP pin

Support resolution 1920*1080@60 Hz ( 30Pin, 2*15Pin, 2.0mm)

1*LVDS_PWR pin

LVD S/EDP working voltage control pin   (6Pin, 2*3Pin, 2.0mm)

1*INVERT pin

LVDS backlight control pin                          (6Pin, 1*6Pin, 2.0mm)

Support LVDS by default, optional support EDP, shared pins; EDP supports 4K resolution 4096/3840*2160@60Hz, use EDP-B screen cable

USB Function

4*USB3.2 interface

Rear standard USB3.2 Gen1 interface, maximum transmission bandwidth is 5Gbps

2*USB2.0 interface

Rear standard USB2.0 interface , maximum transmission bandwidth is 480Mbps

1*F_USB 1 pin

Front USB2.0 pin, one set has 2*USB2.0         (9Pin, 2*5Pin, 2.0 mm )

1*F_USB 2 pin

Front USB2.0 pin, one set has 2*USB2.0         (9Pin, 2*5Pin, 2.0 mm )

Choose between the USB signal of M2-WIFI and the 2nd/4th/6th/8th/10th signal of built-in F_USB2;

By default, F_USB2 has signals on the 2nd/4th/6th/8th/10th, but M2-WIFI has no USB signals;

Sound Features

Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller;

1*LIN_OUT interface

Support audio output (green)

1*MIC_IN interface

Support microphone input (red)

1*INT_SPK pin

Support 8 ohm 5 watt speaker output (power amplifier)                      (4Pin, 1*4Pin, 2.0mm)

1*F_AUDIO pin

Standard audio pin                                     (9Pin, 2*5Pin, 2.0 mm )

Hard disk function

1*NGFF1 interface

PCIE4.0 signal, supports Key-M interface, default M.2 2280 hard disk, does not support M.2 2242 hard disk

Support NVME and SATA protocols by default, automatic switching

1*SATA1 interface

hard disk interface, supports SATA 3.0

1*SATA_PWR pin

Hard disk power supply pin, can take 5V, 12V power    (4Pin, 1*4Pin, 2.54mm)

Switch function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin        (9Pin, 2*5Pin, 2.0 mm )

1*AUTO_SW pin

Hardware control power-on pin                          (3Pin, 1*3Pin, 2.0mm)

Other I/O

1*COM1 pin

Support standard RS232 /RS422/ RS485 optional (BIOS setting)

(9Pin, 2*5Pin, 2.0 mm)

1*COM2 pin

Only supports standard RS232                       (9Pin, 2*5Pin, 2.0 mm)

1*JCOM1 pin

COM1 pin 9 is set to 0V/5V/12V               (6Pin, 2*3Pin, 2.0mm)

1*CLR_CMOS pin

Mainboard reset and discharge pins          (3Pin, 1*3Pin, 2.0 mm )

1*FAN 1 pin

CPU fan pin , 12V, supports temperature control       (4 Pin, 1*4 Pin, 1.25 mm)

1* J_GPIO pin

GPIO control pins             (10Pin, 2*5Pin, 2. 0 mm)

1*DB_CN pin

Debug pin                      (10Pin, 2*5Pin, 2.0 mm)

Operating Environment

Working temperature: -10℃~60℃;

Working humidity: 5%~95% relative humidity, no condensation

BIOS

AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification

Watch Dog

Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)

Operating system

Support Windows 11, Windows 10, LINUX, etc.
