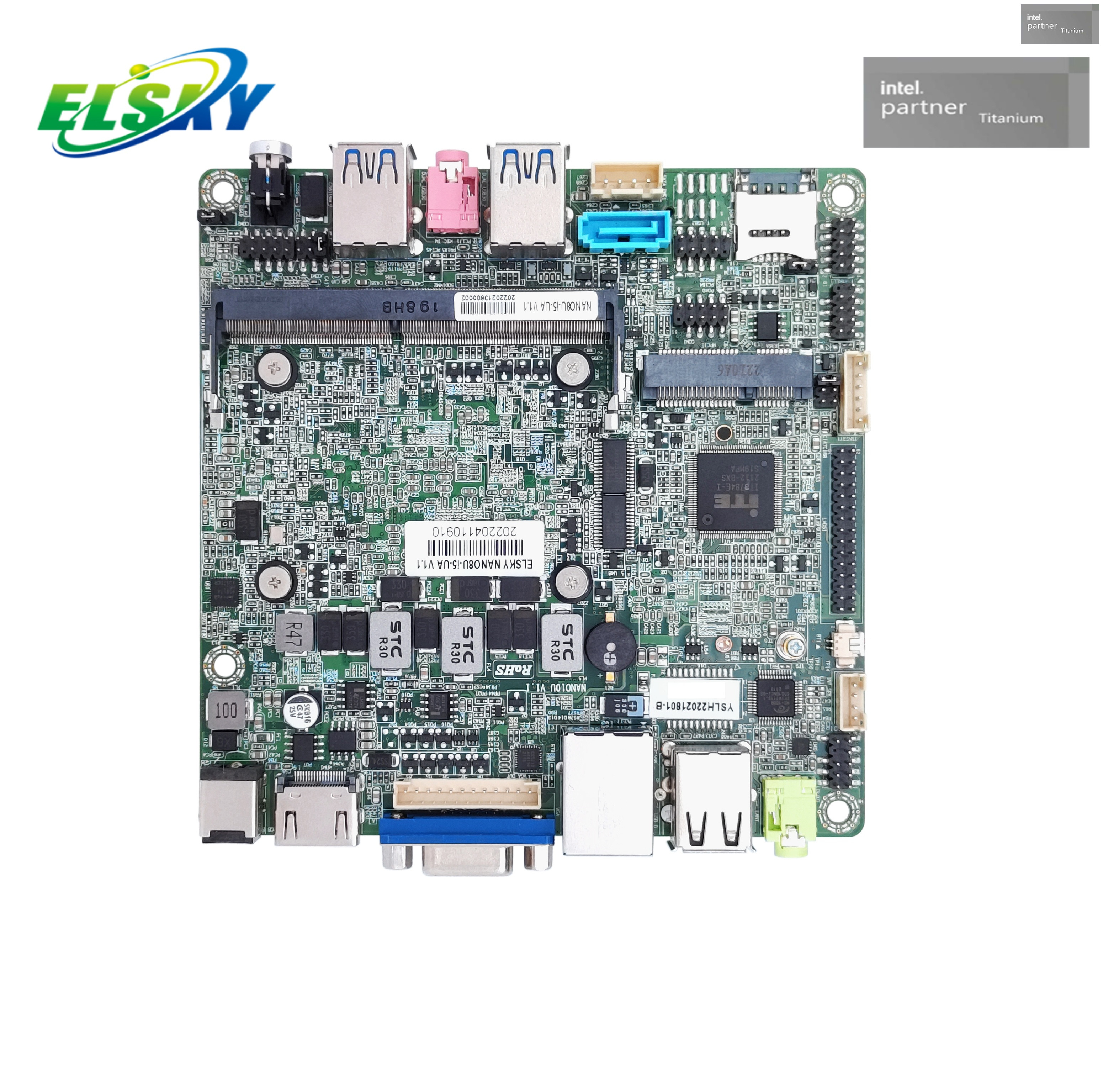

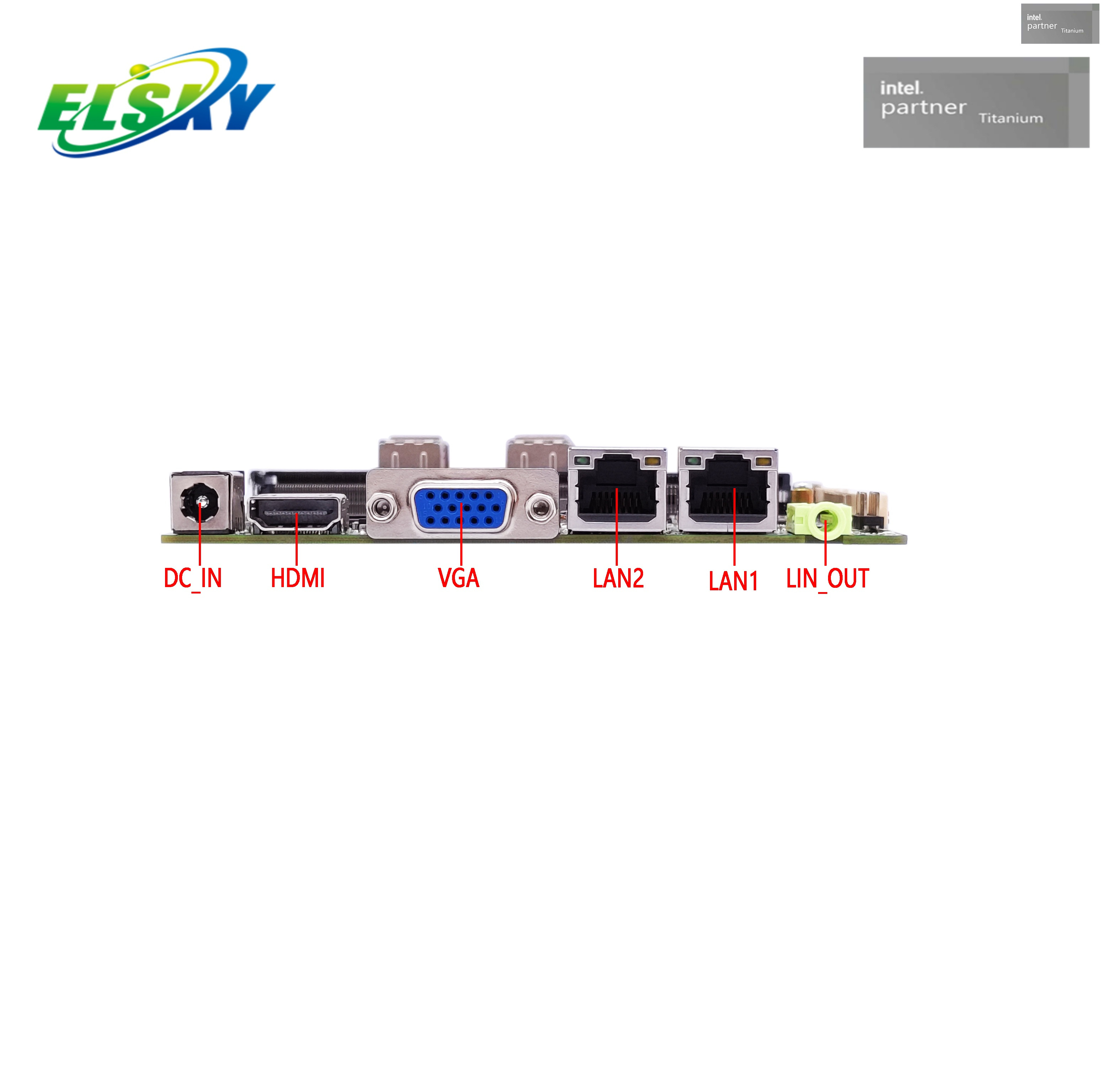

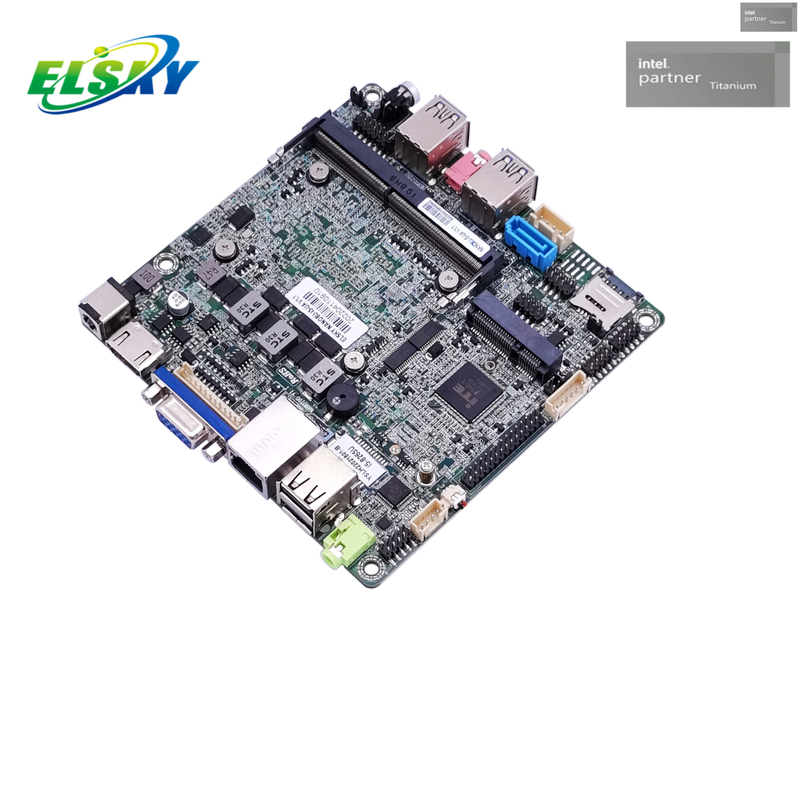

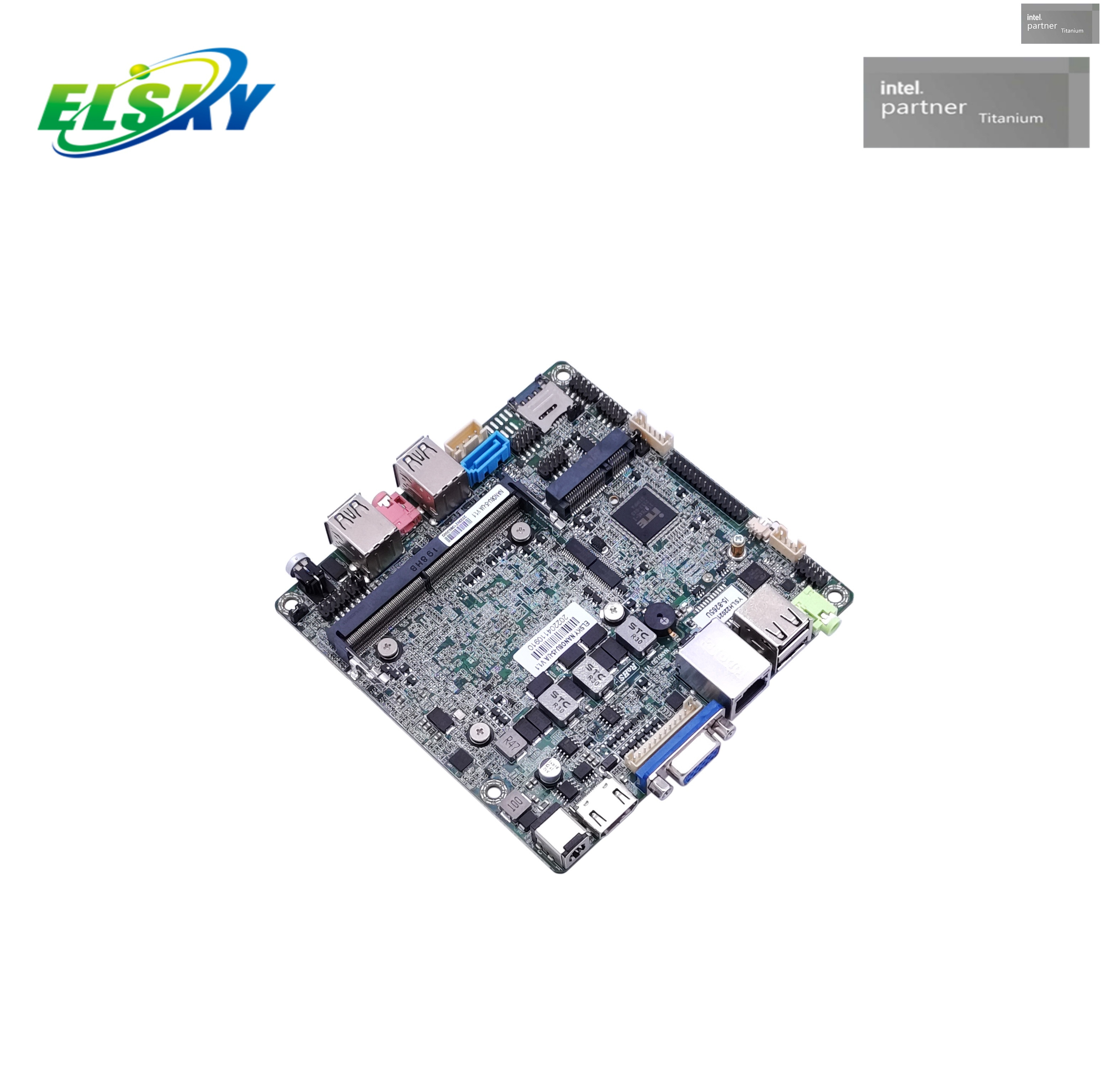

NANO8U/NANO10U-I5
ELSKY/ODM/OEM
Motherboard size | 120mm（L）*120mm（W）*33mm（H） | ||
CPU | NANO8U-UA | Support 8 Gen Whiskey Lake CPU：I3-8145U、I5-8265U、I7-8665U etc。 | |
NANO10U-UA | Support 10 Gen Comet Lake CPU：I3-10110U、I5-10210U、I7-10510U etc。 | ||
memory | 1*DDR4 SODIMM memory slot，support 2133/2400/2666MHz，low voltage 1.2V，up to support 32GB | ||
Power supply | 1*DC_IN | Support 12V / 19V voltage, DC head inner diameter of 2.5MM The full load power consumption of the motherboard is about 60W, and it is recommended to use 12V / 7A or above 19V5A | |

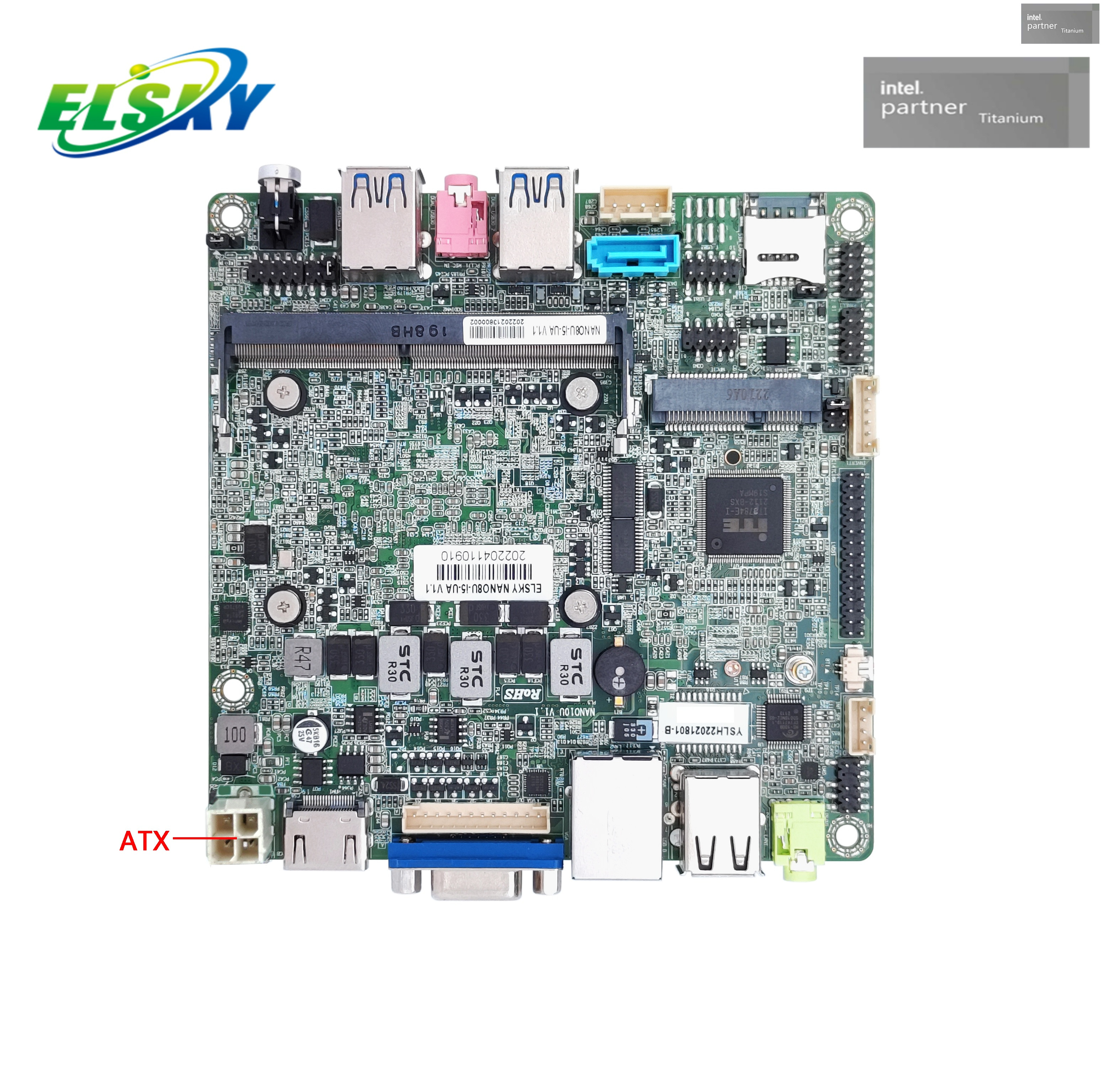

1*DC_ATX | |||
DC _ IN and DC _ ATX are optional, and the motherboard supports DC _ IN by default | |||
Display function
| Integrated Intel UHD Graphics hypercore graphics card, support single display, double display/triple display copy, double display/triple display extension, DOS single display | ||
1*HDMI 1.4 Port | Support 4k resolution 4096/3840 * 2160@30Hz | ||
1*JVGA PIN | Support resolution 1920 * 1080@60HZ （14Pin，1*14Pin，2.0mm） | ||
1*LVDS/EDP PIN | Support resolution 1920 * 1080@60Hz （30Pin，2*15Pin，2.0mm） | ||
1*INVERT PIN | The LVDS backlighting switch back brightness adjustment control （6Pin，1*6Pin，2.0mm） | ||
1*LVDS_PWR PIN | The LVDS / EDP operating voltage control pin （6Pin，2*3Pin，2.0mm） | ||
Motherboard LVDS and EDP for the two choice, the default support LVDS, if EDP is needed, then change the motherboard | |||
Internet function
| 1/2*RJ45 LAN Port
| Motherboard single network default support Realtek 8111H Gigabit network card; Optional support for Yutawei YT6801 Gigabit network card; Optional Realtek 8106E 100 million abit network card Motherboard dual network support Realtek 8111H + Realtek 8111H double Gigabit network card; Optional support for Yutai YT6801 + Yutai YT6801 double Gigabit network card; Optional support Realtek 8106E + Realtek 8106E double 100 million abit network card; Support network wake up and PXE no disk start function | |
1*Mini-PCIE Port | PCIE 3.0 signal,Support WIFI / 3G / 4G / GPS / Bluetooth module, optional support MSATA | ||
Hard Disk Function
| 1*M.2 Port | PCIE 3.0 signal,By default, support Key-M port M.2 2280, optional 2242; support NVME (PCIE) protocol and SATA protocol disk; | |
1*SATA1 Port | Standard SATA 3.0 hard disk interface, a maximum transmission speed of 6.0 Gbps | ||
1*SATA_PWR1 PIN | Hard disk power supply pin, the cable power 5V, 12V. （4Pin，1*4Pin，2.54mm） | ||
Sound function
| Integrated Cmedia HS_100B USB audio chip | ||
1*LIN_OUT Port | Supports audio output (green) | ||
1*MIC_IN Port | Support for microphone input (red) | ||
1*INT_SPK PIN | The amplifier supports 8 O 5 W horn dual channel output （4Pin，1*4Pin，2.0mm） | ||
1*F_AUDIO PIN | Standard audio insert （9Pin，2*5Pin，2.50mm） | ||
USB function

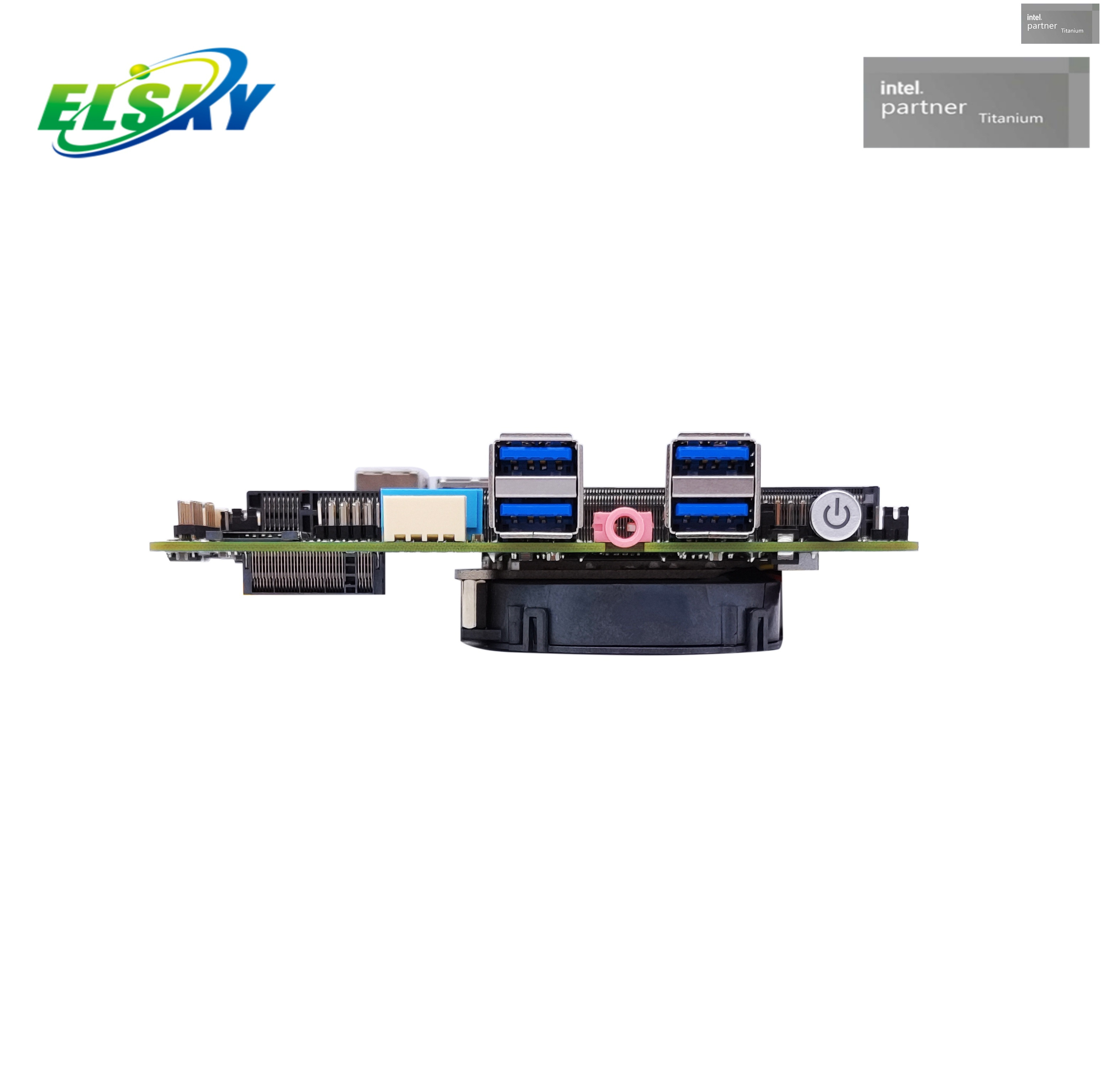

| 4*USB3.1 Port | Rear standard USB3.1 Gen2 interface, the maximum transmission broadband is 10.0Gbps | |
2*USB2.0 Port | Post-mounted standard USB2.0 interface | ||
1*F_USB1 PIN | Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.0mm） | ||
1*F_USB2 PIN
| Front USB2.0 pin, one group has 2 * USB2.0 Default no pin （9Pin，2*5Pin，2.0mm） | ||
Switch function
| 1*F_PANEL PIN | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm） | |
1*PWR_SW button | Switch button | ||
1*AUTO_SW PIN | Hardware control power-on boot pin （3Pin，1*3Pin，2.0mm） | ||
Other I/O | 1*COM1 PIN | Serial port, with optional support RS232 /RS422 /RS485 （9Pin，2*5Pin，2.0mm） | |
1*COM2 PIN | Serial port, Only supportRS232 （9Pin，2*5Pin，2.0mm） | ||
1*JCOM1 PIN | Control COM19th foot voltage 0V / 5V / 12V is optional （6Pin，2*3Pin，2.0mm） | ||
1*SIM_CARD Slot | SIM card supported, SIM card required for 3G / 4G | ||
1*CLR_CMOS PIN | Motherboard with zero clearance, discharge plug pin （3Pin，1*3Pin，2.0mm） | ||
CPU fan pin, support for temperature control （4Pin，1*4Pin，1.25mm） | |||
1*J_GPIO PIN | Standard GPIO pin insert （10Pin，2*5Pin，2.0mm） | ||
Operating environment
| Working temperature：-10℃~60℃； Working humidity：5%~95% relative humidity, non-condensing
| ||
BIOS | AMI BIOS ， Support power-on boot, scheduled boot, remote switch machine intelligent identificatio | ||
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds） | ||
operating system
| Support Windows 11、Windows 10、Linux etc。 | ||
High-Performance Computing: This board supports Intel 8th and 10th Gen Core i3, i5, and i7 CPUs. It features a single DDR4 memory slot and can hold up to 32GB of 2666MHz RAM.
Compact and Efficient Design: The motherboard measures just 120mm by 120mm. Its small size fits in mini PCs and tight spaces, and it uses a 12V or 19V DC power input.
Extensive Display Support: The board supports up to three independent displays. It has a HDMI port with 4K resolution, along with VGA and LVDS/eDP options for various screen setups.
High-Speed Storage: An M.2 port supports NVMe and SATA SSDs for fast data access. The board also has a standard SATA 3.0 port for additional storage.
Reliable Network Connectivity: It provides a choice of one or two Gigabit LAN ports. A Mini-PCIE slot and SIM card slot are on board for optional 3G/4G wireless connections.
Durable Operating Environment: The board is built for tough conditions, operating in temperatures from -10°C to 60°C and a relative humidity of 5% to 95%.
Advanced System Control: The AMI BIOS offers features like power-on and scheduled boot. A watchdog timer provides a hardware reset for improved system stability.
Broad Operating System Support: This motherboard is compatible with modern operating systems. It supports Windows 11, Windows 10, and various Linux distributions.
