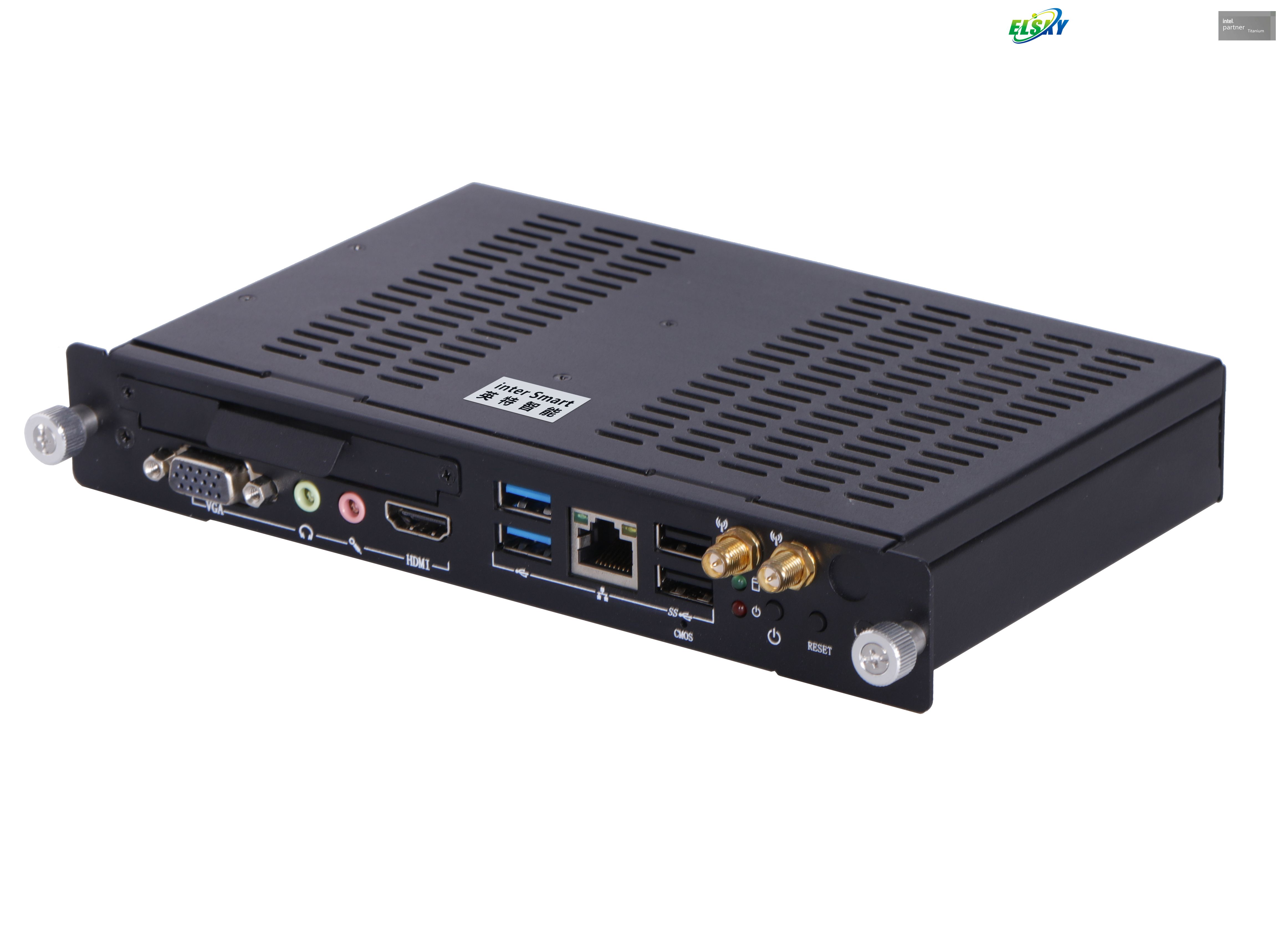

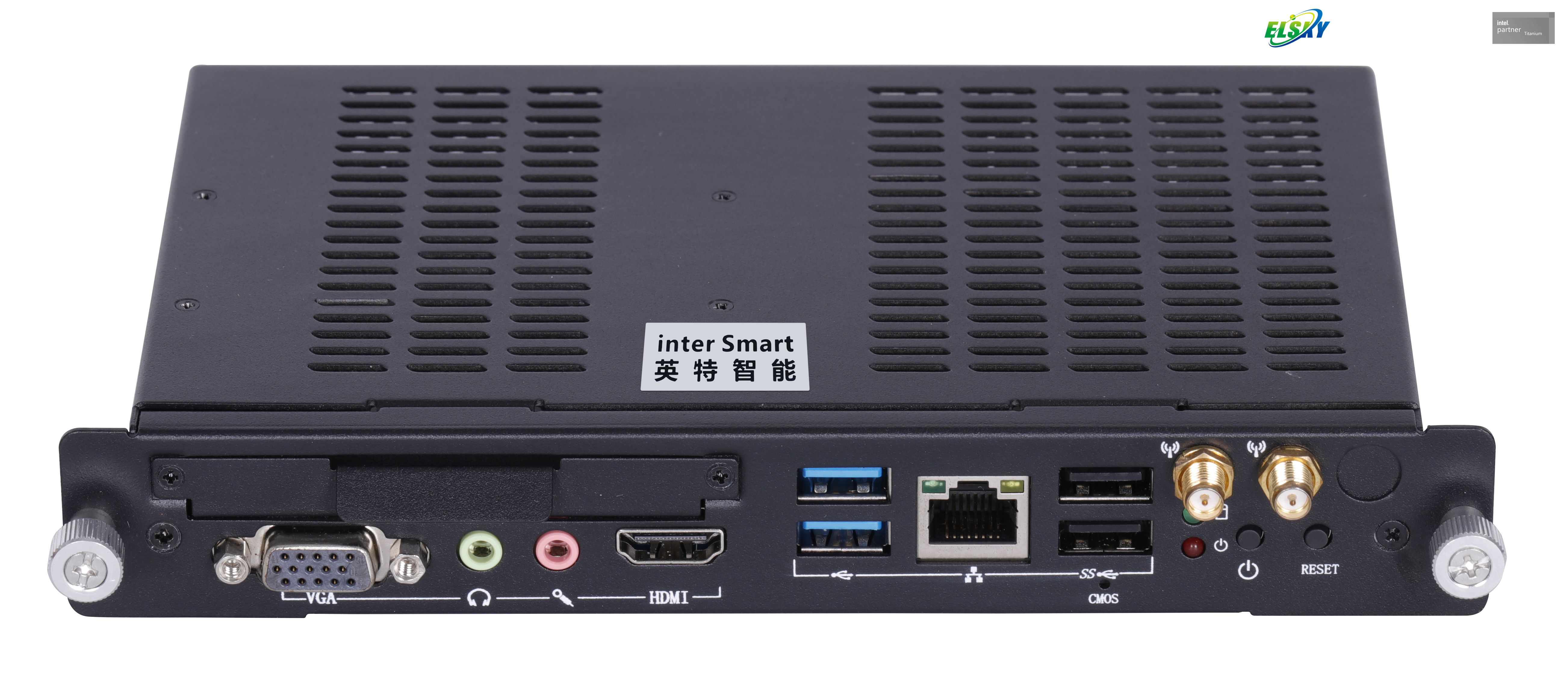

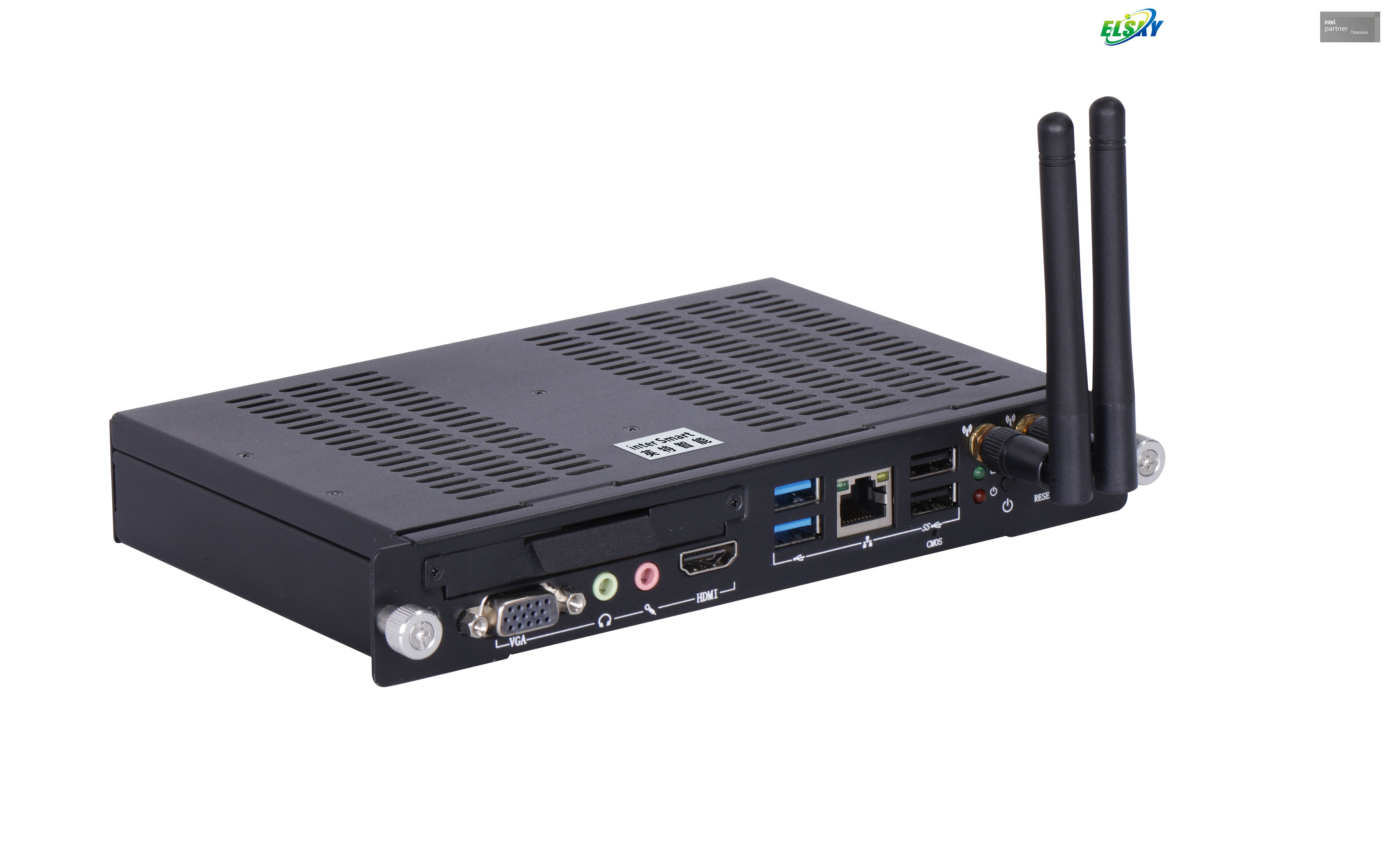

80-Pin OPS PC with Intel 6th/7th Generation CPU I3-6100U/7100U I5-6200U/7200U I7-6500U/7500U for Windows 10 Windows 8 Windows 7 Linux

Motherboard size

165mm*114mm*20mm

CPU processor

6Gen

3855U, 3955U, Skylake i3-6100U, i5-6200U, i7-6500U, etc

7Gen

3865U, 3965U and Kabylake i3-7100U, i5-7200U, i7-7500U, etc

chipset

Single chip integrated into CPU

power supply

1*DC_IN

The inner diameter of the DC head is 2.5mm, supporting 12V/19V power supply

Host power consumption: approximately 35W. Suggest using a 12V5A or higher power supply

Memory

1*DIMM Card slot

NB-DDR3 memory, supports 1600MHz memory, low voltage of 1.35V, maximum support of 8GB

display function

6Gen

Intel HD Graphics 510/520 Graphics Controller

Support single display, dual display/triple display replication, dual display/triple display expansion, single display under DOS

7Gen

Intel HD Graphics 610/620 Graphics Controller

1*VGA DB15 interface

Supports a maximum resolution of 1920* 1200@60HZ

1*JVGA pin

Supports a maximum resolution of 1920* 1200@60HZ（1*14Pin，2.0mm）

1*HDMI 1.4 interface

Supports 4K resolution 4096* 2160@24 /30HZ

1*JHDMI pin

Supports 4K resolution 4096* 2160@24 /30HZ         （2*8Pin，2.0mm）

Network function

1*LAN

RTL8111F Gigabit Ethernet card chip, supports network wake-up and PCIe diskless boot function.

1*Mini-PCIE interface

Supports WIFI/3G/4G/Bluetooth, etc

Hard disk function

1*SATA

2.5-inch hard drive slot, supporting 2.5-inch SSD/mechanical hard drives

1*MSATA

Support MSATA disk

Sound function

Integrated Realtek ALC662 HD digital audio decoder, 6-channel high fidelity audio controller

1*LIN_OUT interface

Supports audio output (green)

1*MIC_IN interface

Support microphone input (pink)

1*SPKER pin

Supports 8-ohm and 5-watt speaker output (amplifier)（1*4Pin，2.0mm）

1*SPDIF pin

Digital audio pin                                       （1*3Pin，2.54mm）

USB function

2*USB3.0 interface

Rear standard USB 3.0 interface

2*USB2.0 interface

Rear standard USB 2.0 interface

1*F_USB1 pin

Front USB 2.0 pins, one set with 2 * USB 2.0           （2*5Pin，2.0mm）

1*F_USB2 pin

Front USB 2.0 pins, one set with 2 * USB 2.0             （2*5Pin，2.0mm）

SWITCH

1*F_PANEL pin

Switch, power light, hard disk light, restart pin        （2*5Pin，2.0mm）

1*PWR_SW button

switch button

1*SYS_RST  button

Restart button

1*AUTO_SW pin

Power on and set the jump cap for startup            （1*3Pin，2.0mm）

Other I/O

COM1/COM2 pin

Serial port, supports standard RS232                 （2*5Pin，2.0mm）

1*JCOM1 pin

Control COM1 pin 9 voltage 0V/5V/12V optional    （2*3Pin，2.0mm）

1*SIM card slot

Supports SIM card, SIM card is required when using 3G/4G

1*CLR_CMOS pin

Motherboard reset and discharge pins              （1*2Pin，2.54mm）

1*JCMOS button

Motherboard reset and discharge button

1*CPU_FAN pin

CPU fan pin                                     （1*4Pin，1.25mm）

1*SYS_FAN pin

System fan pin                                        （1*4Pin，1.25mm）

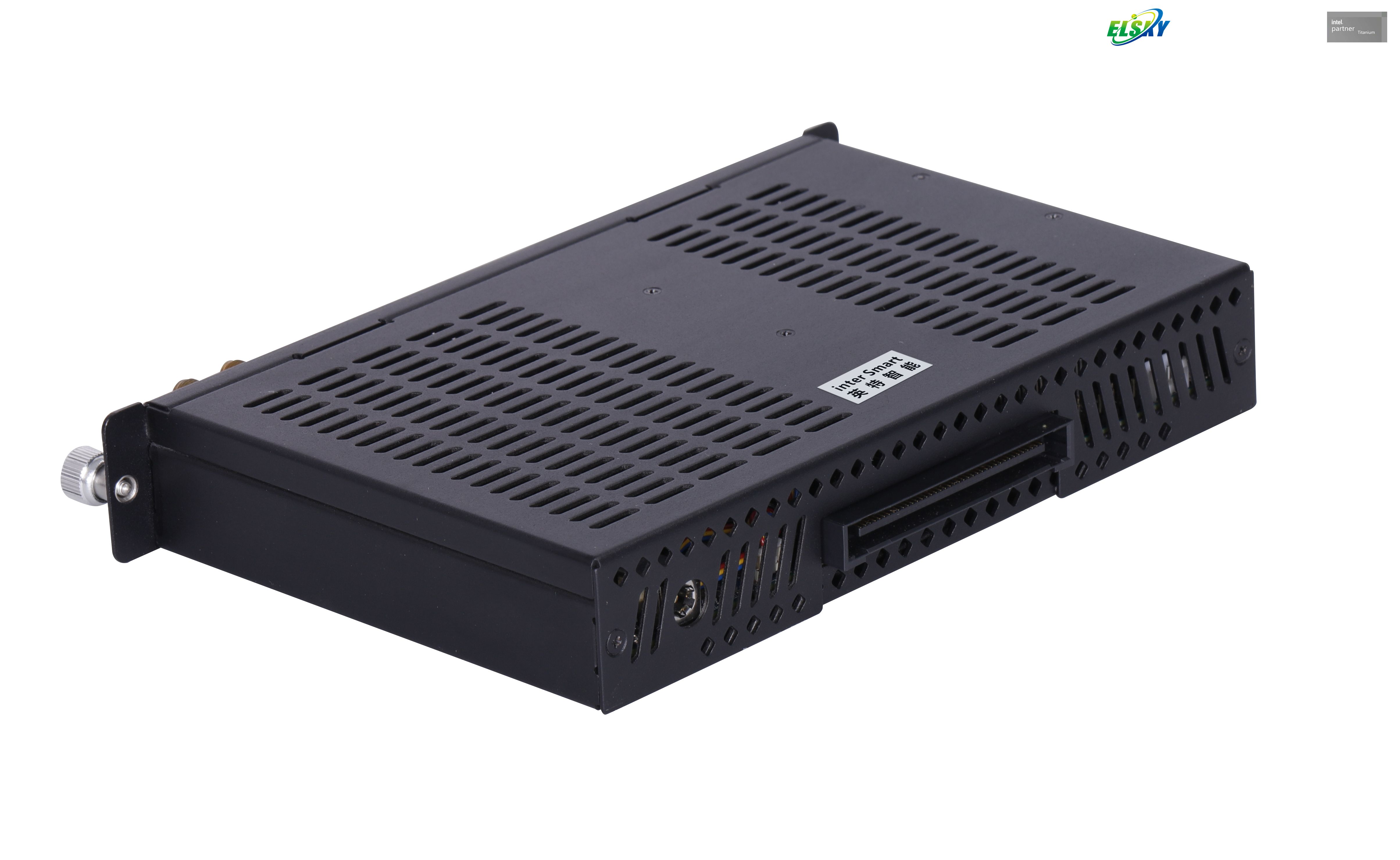

1*OPS interface

80Pin standard OPS interface

Operating environment

Working temperature: -20 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation

BIOS

AMI BIOS， Support power on, timed power on, and intelligent recognition of remote power on/off devices

Watch Dog

Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)

operating system

Supports Windows 10, Windows 8, Windows 7, Linux, etc
