Product specification
Data sheet: |
Model | OPS-13U |
Version | OPS-13U V1.1A |

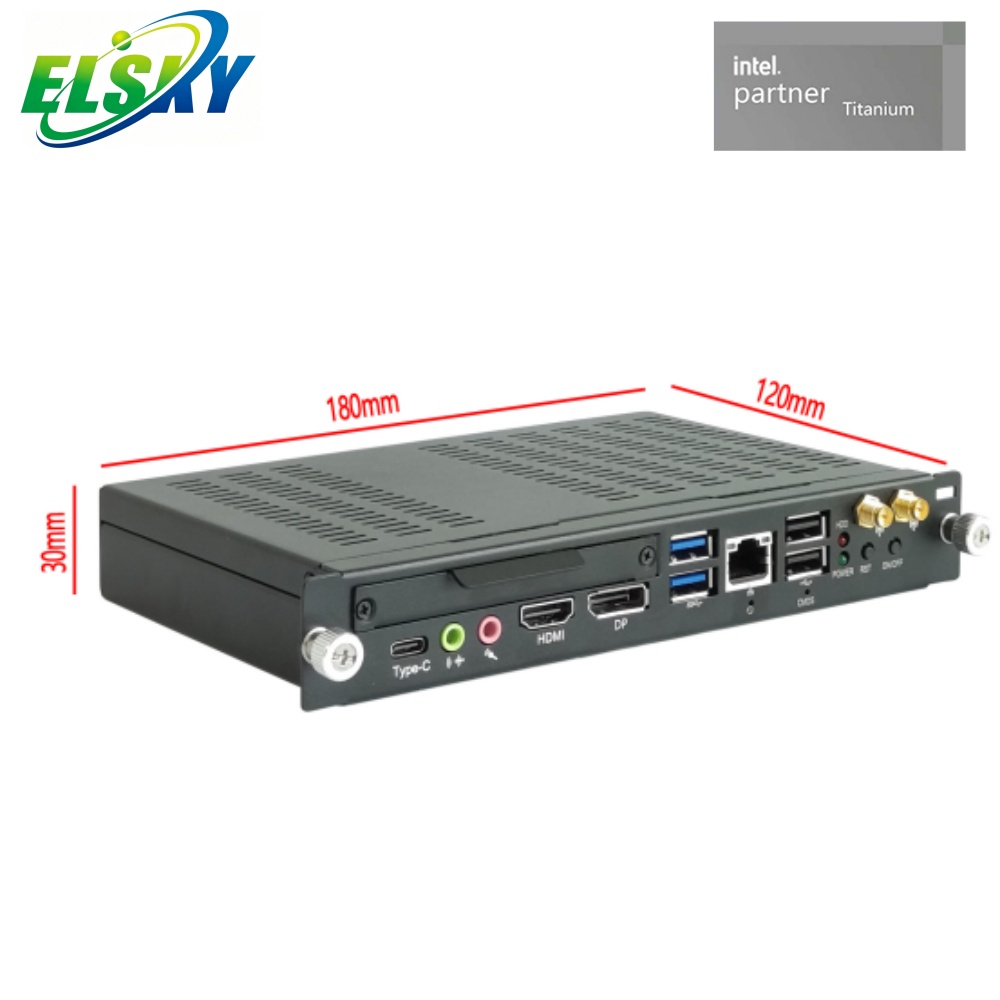

Chassis | Dimensions: 120mm(L) x 180mm(W) x 30mm(H); Chassis material: Metal Option laser-engraving customized logo on the chassis; Option customized VESA mounting bracket. |
Cooling Type | Mute Mini Fan |
Processor | OPS-13U: Supports Intel Raptor Lake 13th generation U/P/H series i3, i5, i7, i9 |
Graphics | Integrated Intel(R) UHD Graphics |
Memory | 1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/3200MHz memory, maximum support 32GB |
Hard Disk | 1*NGFF1 (M.2) interface (PCIE 4.0 signal, supports Key-M interface default M.2 2280 hard disk, optional M.2 2242 hard disk; supports NVME protocol by default, can change hardware to support SATA protocol) 1*JSATA interface (supports SATA3.0 signal by default, supports 2.5-inch SSD/HDD disk) |
Power Supply | DC input 12V or 19V; DC jack: 5.5x2.5mm; U series CPU Power Consumption (Max): 55W, P series CPU Power Consumption (Max): 64W, H series CPU Power Consumption (Max): 115W |
Display Function | Support single display/dual display/triple display/quadruple display copy, dual display/triple display/quadruple display expansion, support dual display in SHELL, not support DOS |
| Motherboard side: 1*HDMI 2.0 interface (supports 4K resolution 4096/3840*2160@60Hz) 1*DP interface (supports DP++; supports 4K resolution 4096/3840*2160@60Hz) Sub card side: 1*HDMI 2.0 interface (supports 4K resolution 4096/3840*2160@60Hz) 1*DP interface (does not support DP++; supports 4K resolution 4096/3840*2160@60Hz) |
WIFI & Bluetooth | 1*M2_WIFI interface (PCIE 3.0 signal, supports Key-E interface M.2_2230 WIF Bluetooth module) |
Ethernet | 1* LAN port (Intel I219V Gigabit network card chip, supports network wake-up and PXE diskless boot function) |
HD Audio | Integrated Realtek ALC897 HD digital audio decoder, Can be modified to support BBH621 USB sound card; 1xLine_out interface, 1xMic-in interface. |

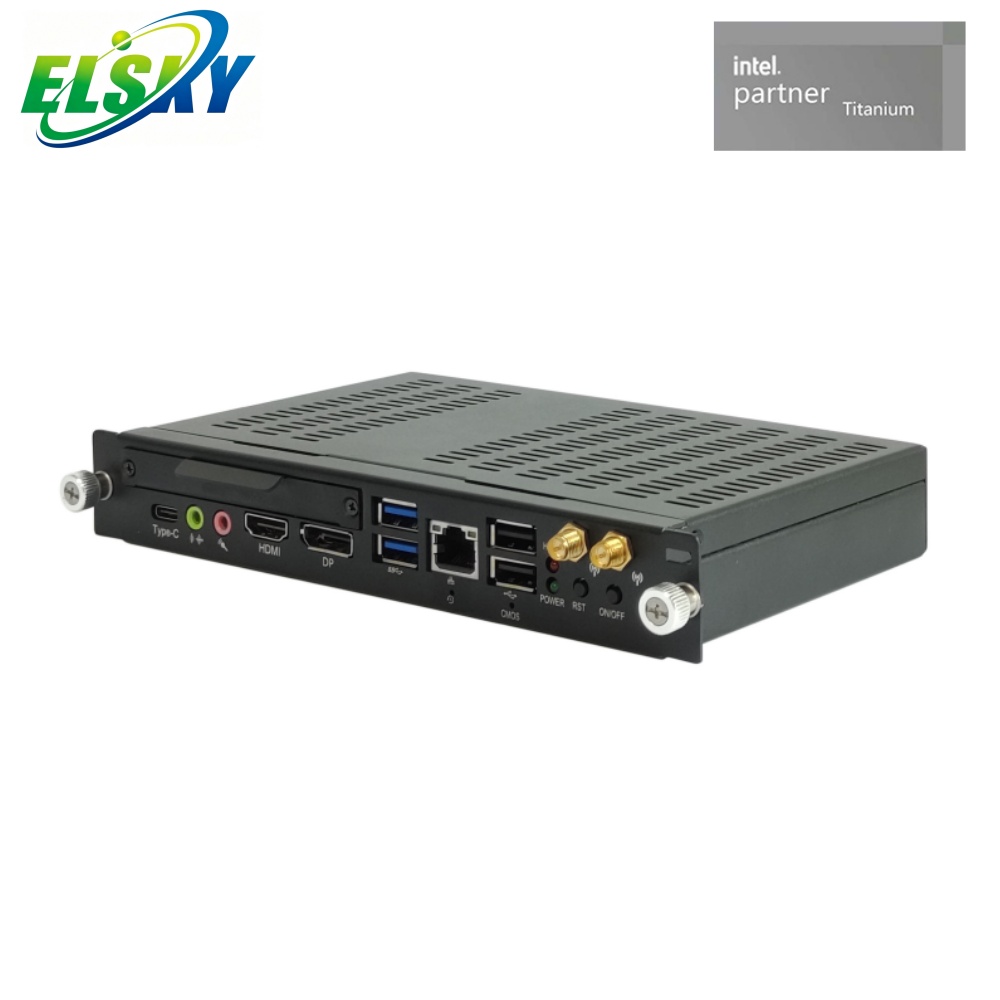

USB Quantity | 2*USB3.2 interface 2*USB2.0 interface 1*Type-C interface (standard Type-C interface, only supports USB function, not display function) |
Serial Port (COM) | COM1 pin (COM1 only supports RS232 by default, no signal by default, can be changed to hardware support Choose between COM1 and daughter card TTL signal, daughter card TTL has signal by default, motherboard COM1 has no signal |

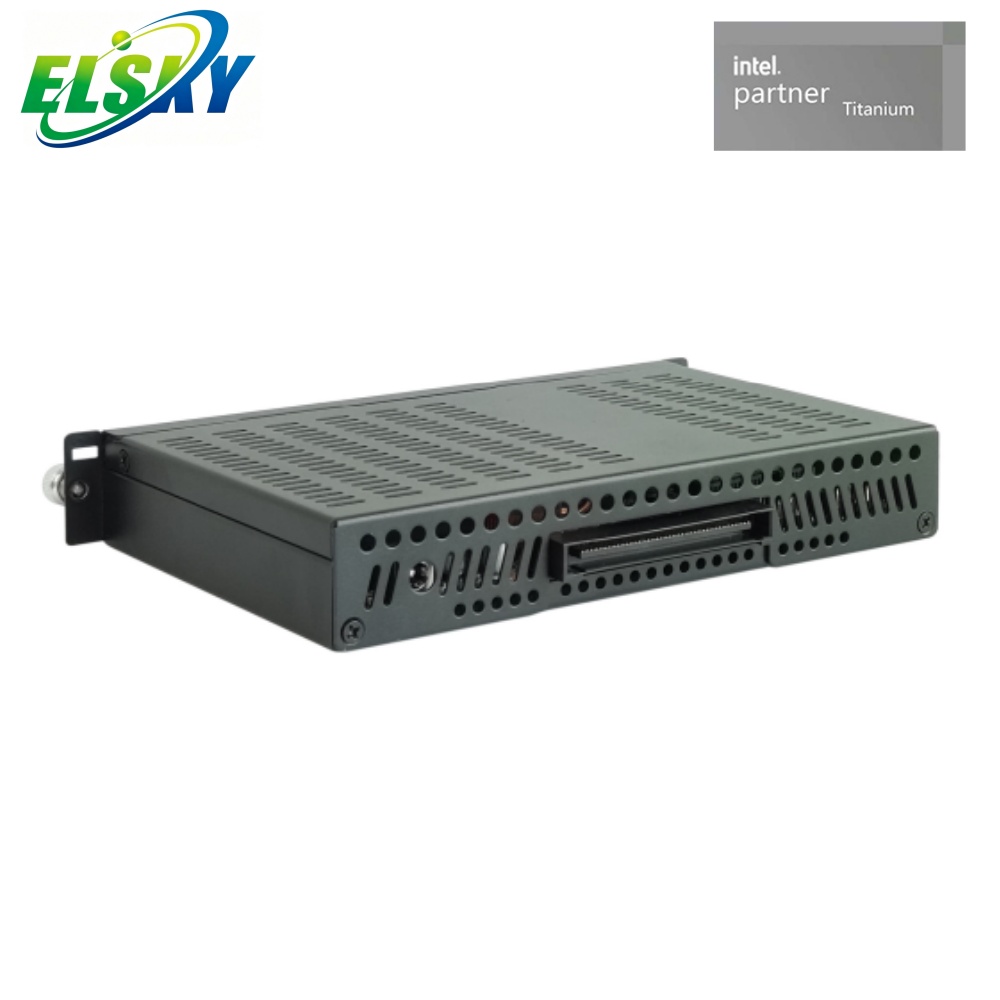

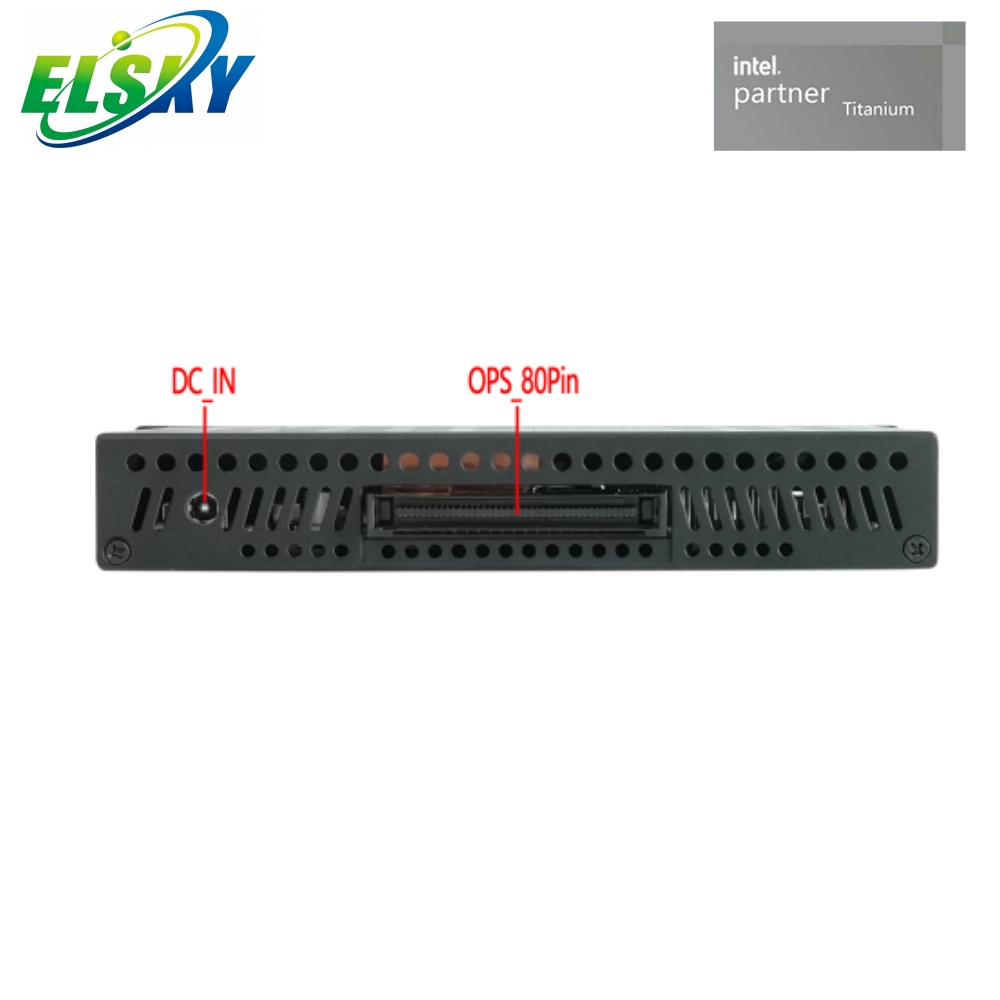

OPS Interface | 1*OPS interface (Standard 80Pin OPS interface) |
CMOS Battery | CR2032 3V battery (Detachable) |
Built-in Pins/Slots | 1*F_PANEL pin, 1*AUTO_SW pin, 1*JCOM1 pin, 1*CPU_FAN pin, etc. |
Watch Dog | Watchdog programming; Support hardware reset function (256 levels, 0~255 seconds). |
AMI BIOS | Support power on,timing switch,remote switch,intelligently identify devices. Option Secure Boot; Option Trusted Platform Module (TPM) version 2.0; Option customized boot logo in OS. |
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation |
Operating System | Compatible with Windows 11, Windows 10, Linux, etc.. |
OEM | Front / Rear IO shield (Customize interfaces according to customer needs). |
Standard Warranty | 12 months |
Product Advantages
High-Performance Processing: Powered by Intel's 12th (Alder Lake) and 13th (Raptor Lake) generation U, P, and H series processors for robust computing power.
Quad-Display 4K Support: Capable of simultaneous single, dual, triple, or quadruple display configurations with crisp 4K resolution at 60Hz via dual HDMI 2.0 and DisplayPort interfaces.
Compact & Durable Design: Built into a space-saving 120x180x30mm metal chassis featuring a mute mini fan and a wide operating temperature range (-10°C to 60°C).
Flexible Storage & Expansion: Equipped with a standard 80-pin OPS interface, support for up to 32GB DDR4 memory, and high-speed M.2 NVMe storage (with SATA protocol flexibility).
Robust Connectivity: Features Gigabit LAN with wake-on-LAN/PXE support, M.2 Wi-Fi/Bluetooth, USB 3.2, and serial COM ports.
Enterprise-Grade Reliability: Includes an AMI BIOS with smart device identification, programmable watchdog hardware reset, and broad compatibility with Windows 11, 10, and Linux.
Customizable OEM Options: Offers tailor-made flexibility including custom front/rear I/O shields, laser-engraved logos, and boot logo personalization.
Frequently Asked Questions (FAQ)
1. What processor generations do the OPS-13U support?
The OPS-13U supports Intel 13th Generation Raptor Lake U, P, and H series processors (i3, i5, i7, i9).
2. What are the physical dimensions of the chassis?
The metal chassis measures 120mm (L) $\times$ 180mm (W) $\times$ 30mm (H), making it extremely compact and space-efficient.
3. Does the system support multiple displays simultaneously?
Yes, it supports single, dual, triple, and quadruple display configurations (both copy and expansion modes) with 4K resolution at 60Hz via its HDMI and DisplayPort interfaces.
4. What is the maximum memory capacity supported?
It features one NB-DDR4 SODIMM memory slot supporting 2133/2400/2666/3200MHz speeds, with a maximum capacity of up to 32GB.
5. What type of storage drives can be installed?
It includes one M.2 (NGFF1) interface (PCIE 4.0/NVMe default, modifiable to SATA, supporting Key-M 2280/2242) and one JSATA interface for a 2.5-inch SSD or HDD disk.
6. Does the Type-C port support video output?
No, the standard Type-C interface only supports data/USB functions and does not support display output.
7. Which operating systems are compatible with these mini PCs?
They are fully compatible with Windows 11, Windows 10, and Linux operating systems.
8. What kind of power supply is required?
They operate on a DC input of either 12V or 19V using a standard 5.5 $\times$ 2.5mm DC jack. Power consumption ranges from 55W up to 115W depending on the CPU series installed.
9. Are there built-in security and recovery features?
Yes, it comes with an AMI BIOS that supports optional Secure Boot, an optional Trusted Platform Module (TPM 2.0), and a programmable hardware watchdog with a 256-level reset function (0–255 seconds).
10. Can the hardware interfaces or exterior branding be customized?
Yes, OEM customization is available, including custom front/rear I/O shields, laser-engraved logo options on the chassis, custom VESA mounting brackets, and customized OS boot logos.
