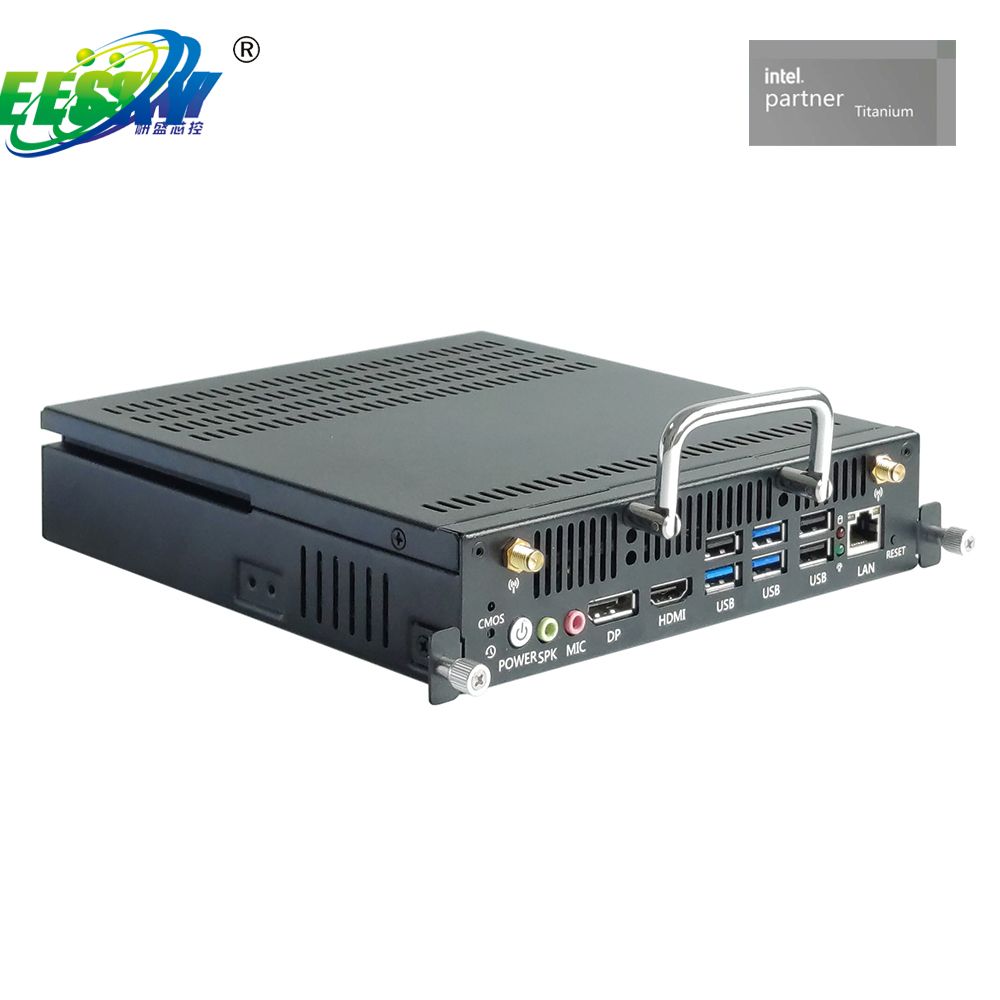

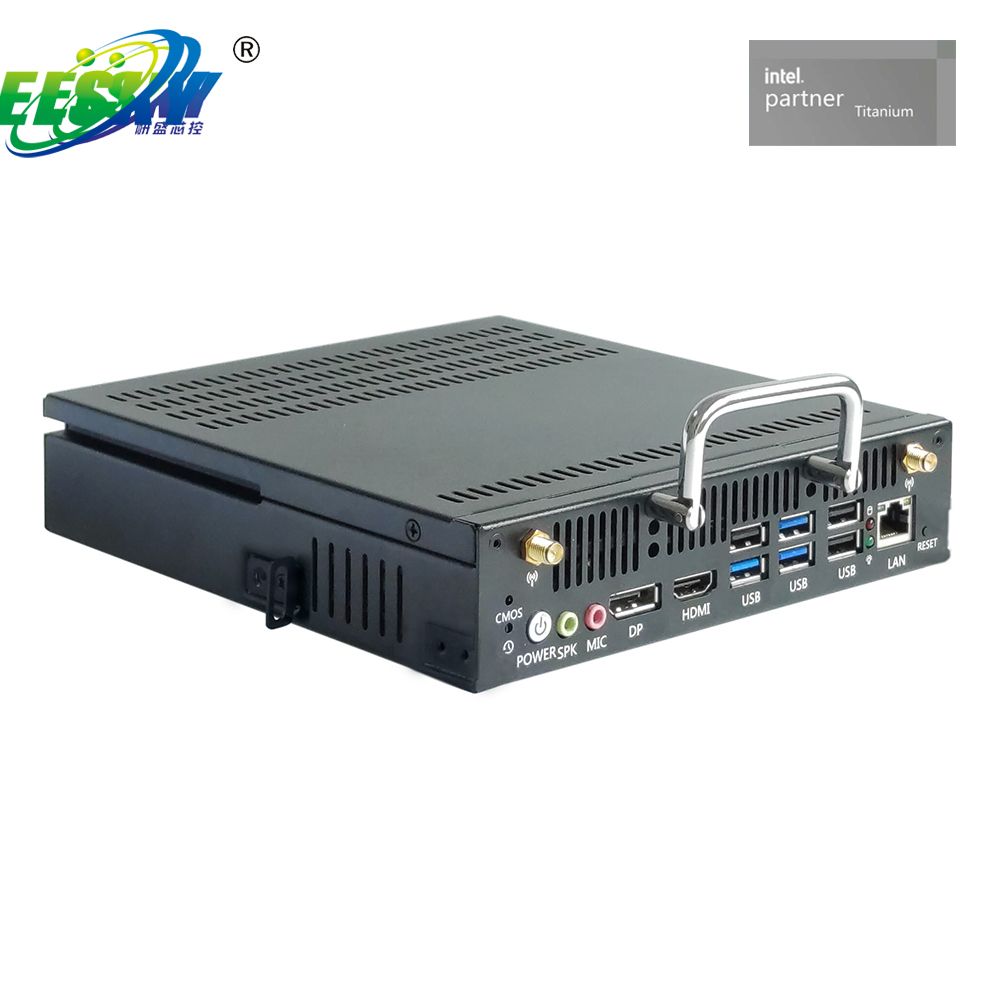

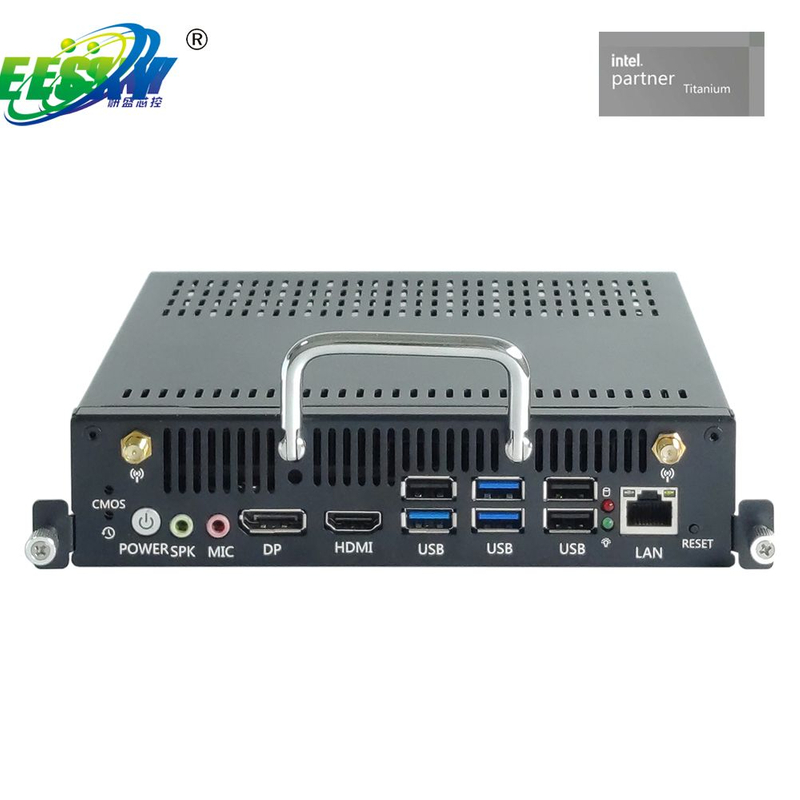

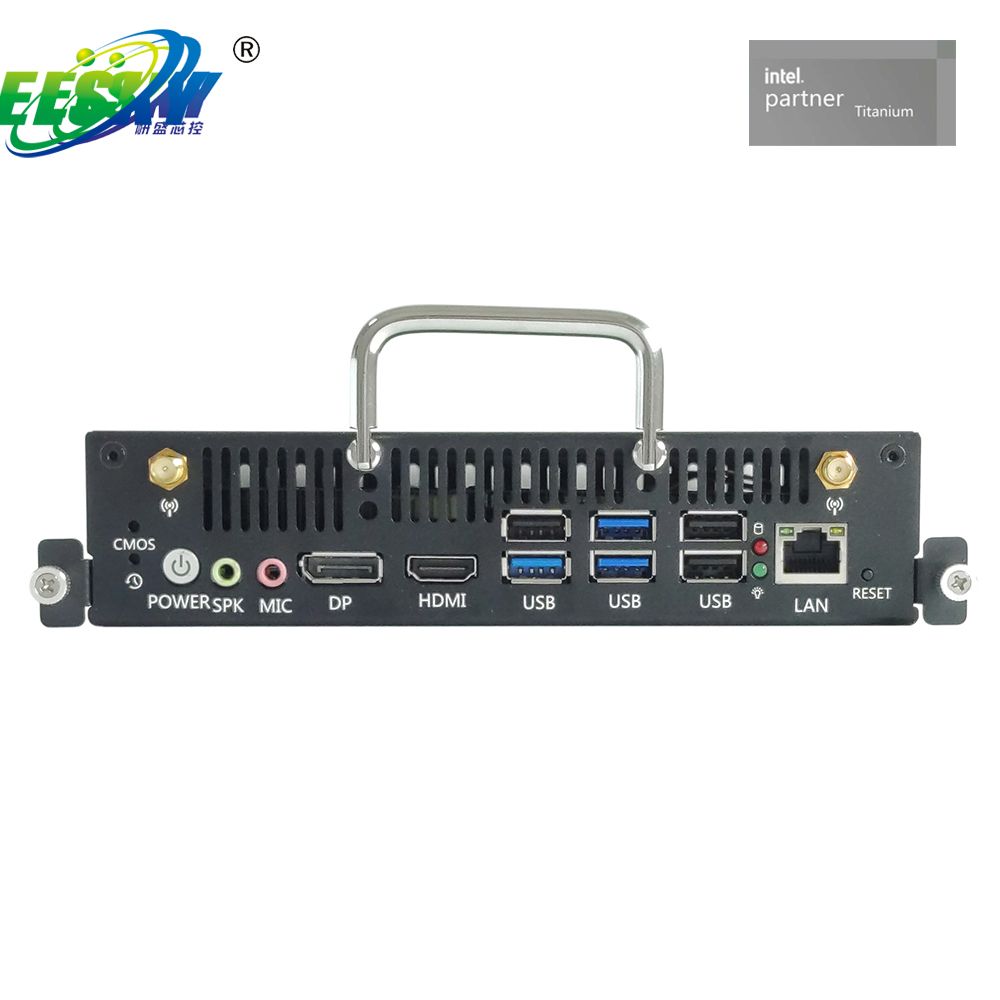

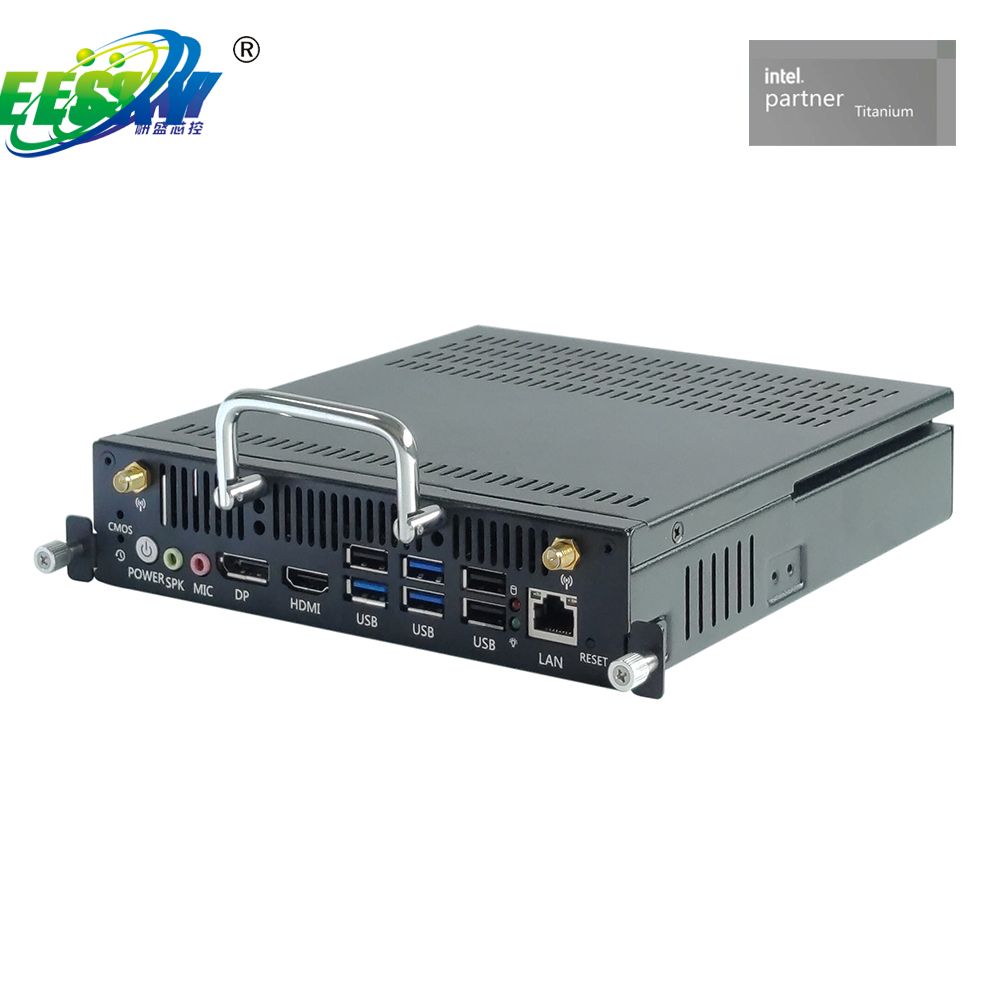

OPS PC with Intel H310 Coffee Lake 8th Gen 9th Gen LGA1151 Core I3 I5 I7 I9

Model

MX30/MX42-OPS-MX8900

Motherboard Version

OPS-MX8900

Chassis

Dimensions: 180mm(L)*195mm(W)*30mm(H);

180mm(L)*195mm(W)*42mm(H);

Chassis material: Metal;

Option laser-engraving customized logo on the chassis;

Option customized VESA mounting bracket.

Cooling Type

Mute Mini Fan

Processor

Support optional Intel Coffee Lake 8th Gen 9th Gen LGA1151 Core i3、i5、i7、i9

Chipset

Intel H310 Chipset

Graphics

CPU GPU: Integrated Intel® UHD Graphics 630 Ultra HD Graphics in CPU.

Memory

2xSODIMM DDR4 Memory socket, up to 64 GB RAM.

Hard Disk

1*M.2  2280/2242 SATA  interface (Option NVME signal);

1*SATA 3.0 interface (Support 2.5-inches SSD/HDD; Do not support 3.5-inches SSD/HDD);

1*MSATA(Optional )

Power Supply

DC input 12V or 19V;  DC jack: 5.5x2.5mm;

Power Consumption (Board+CPU+GPU Max): 90W

Display Function

Support single display, dual display copy / expansion.

1* HDMI 2.0 Interface（4096/3840*2160@60Hz）

1*DP Interface（4096/3840*2160@60Hz）

WIFI & Bluetooth

1*Mini PCIE socket (PCIE, USB signal)

Expansion Slot

1*PCI-E (Support 4G/WiFi/Bluetooth modules)

Ethernet

1*LAN: By default, it supports the Realtek 8111H Gigabit Ethernet port, and optionally supports the Motorcomm YT6801 Gigabit Ethernet card;

Supports Wake-on-LAN and PXE functions

HD Audio

Integrated Realtek ALC897 HD Audio chip;

1*Line_out interface, 1*Mic-in interface.

USB Quantity

1*LAN: 6USB (3*USB3.1, 3*USB2.0);

Serial Port (COM)

2*COM interfaces (The COM 1: Option RS232/RS422/RS485);

COM2 and TTL are two-way interfaces with the same signal;

COM1 can set the output of the 9th pin to 0V/5V/12V through the JCOM1 jumper cap

OPS Interface

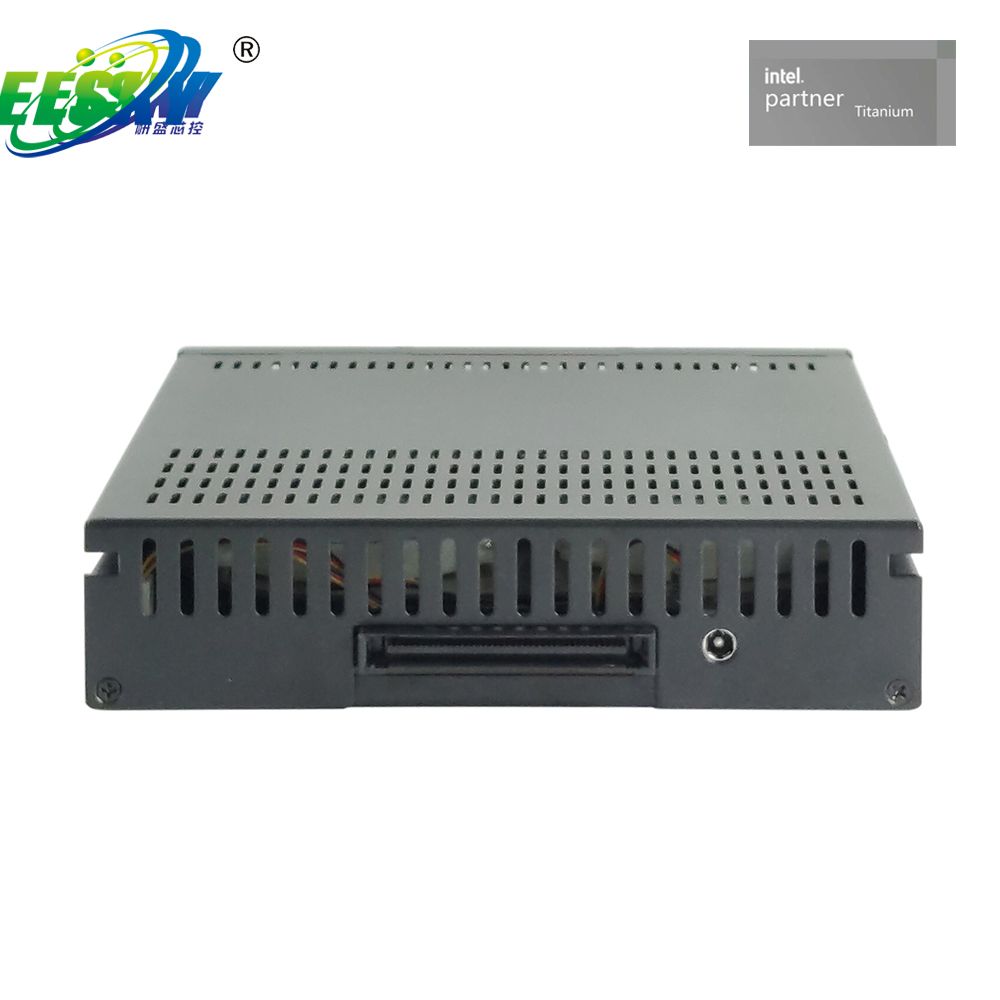

1* 80-Pin OPS Interface (Can be connected to a daughter card)

CMOS Battery

1* CMOS (Host Reset and Discharge Button)

Built-in Pins/Slots

1*F_PANEL, 1*AUTO_SW, 2*FAN, etc.

Watch Dog

Watchdog programming; Support hardware reset function (256 levels, 0~255 seconds).

AMI BIOS

Support power on,timing switch,remote switch,intelligently identify devices.

Operating Environment

Operating temperature: -10℃~60℃;

Storage Temperature: -20℃~70℃;

Working humidity: 5%~95% Relative humidity, no condensation;

Vibration during operation: 0.5g rms/5-500Hz/random/operating.

Operating System

Compatible with Windows 11, Windows 10, Linux, etc.

OEM

Front / Rear IO shield (Customize interfaces according to customer needs).

Standard Warranty

12 months
