Wholesale Intel 13th Raptor Lake OPS Mini PC for Smart Education

Name: Wholesale Intel 13th Raptor Lake OPS Mini PC for Smart Education
Brand: ELSKY
SKU: 510684507
Rating: 5.0 (70 reviews)

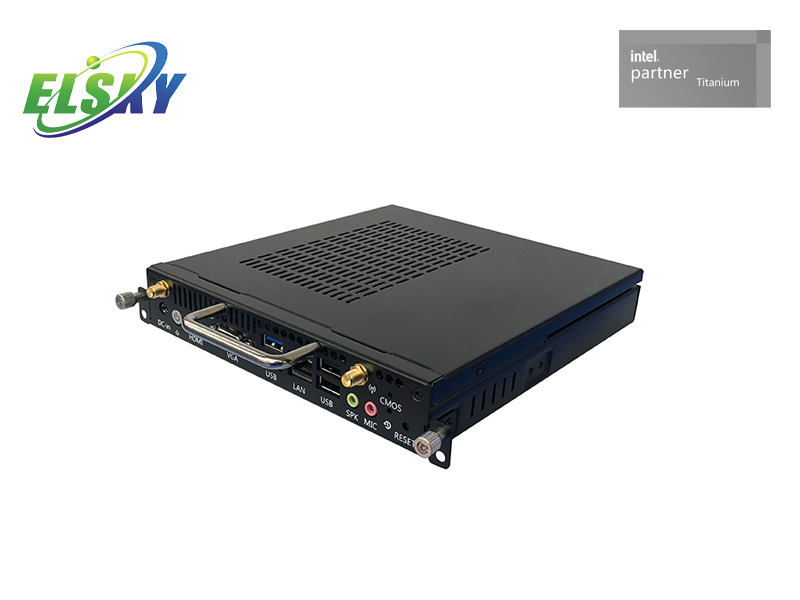

The ELSKY OPS-13H Mini PC is a powerful, ultra-compact solution for professional use. It features the Intel 13th Gen Raptor Lake CPU and the Standard 80-Pin OPS Interface for tool-free integration into displays.

OPS-C national standard size specifications;
Support Intel Raptor Lake 13th generation U/P/H series CPU;
PC side supports HDMI and VGA/DP output display optional, sub card side supports HDMI and DP, up to quad displays;
Support 1*M.2 SSD and 1*2.5-inch SSD/HDD;
Support 6*USB by default (3*USB3.2,3*USB2.0);
Support 1*Standard 80Pin OPS interface.

Color:	Black
Availability:

Quantity:



Inquire Add to Basket

Model:
OPS-13H
Brand:
ELSKY

Intel Raptor Lake OPS OPS PC with Quad Display fanless OPS PC OPS Education PC Industrial OPS Control OPS Kiosk computer

Product Description

Overview

The OPS-13H from ELSKY is a highly integrated, feature-rich, and rugged embedded OPS mini-computer. It is distinguished by its professional OPS interface, robust multi-display 4K capabilities, and a comprehensive set of expansion options, including serial ports and 4G module support. This device is engineered for B2B sectors such as digital signage, industrial automation, collaborative education, and smart terminal solutions.

Features

Processor Support: Supports Intel Raptor Lake U, P, and H series CPUs. It offers high-performance computing power for demanding professional and educational tasks.
Multi-Display Output: Supports Quad Display setup simultaneously via multiple ports. Users can drive four screens at up to 4K60Hz resolution for expansive visual content.
High-Speed Storage: Provide an M.2 slot with PCIE 4.0 (NVMe) signal.¹ This provides fast system boot and application loading speeds. It also has a $2.5$-inch bay for an HDD/SSD.

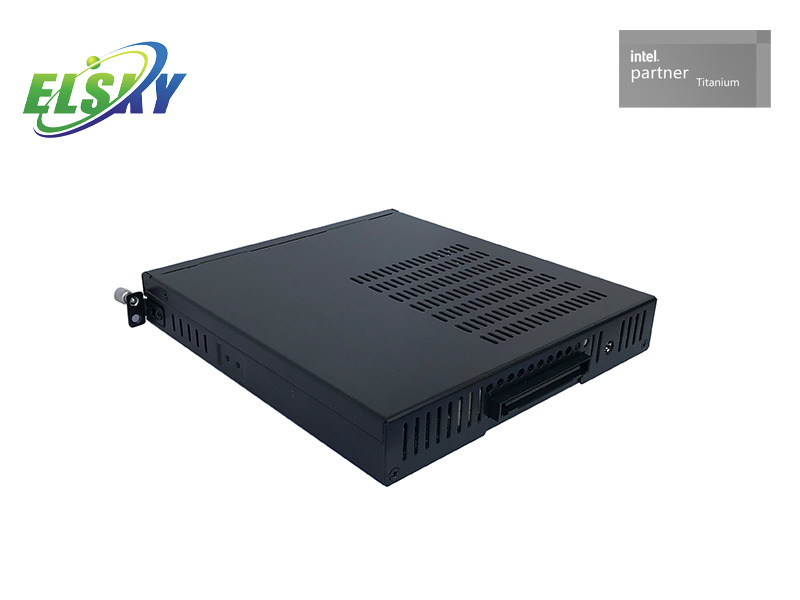

Standard OPS Compliance: The unit features a Standard 80-Pin OPS Interface. This allows easy integration into interactive displays and digital signage without extra cables.

Application

Education and Collaboration: Connect the PC to projectors and high-definition displays in classrooms. It enhances learning with high-resolution video and seamless presentation tools for students and teachers.
Conference Room Use: The unit supports multi-display setups for large meeting rooms. It enables video conferencing and content sharing without complex cable management.
Intelligent Retail: It drives both the transaction screen and the advertising screen on one terminal. This works well for point-of-sale (POS) systems and customer interaction displays.
Industrial Control: Use this PC to link to industrial equipment, sensors, or field controllers. It manages data and facilitates remote deployment in factory automation and control systems.

Service

ELSKY provides strong after-sales support for our OPS-13H computer. We aim for your satisfaction.

Warranty Coverage : All ELSKY products come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.
Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.
Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.
Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your pc hosts.

Product Specification

PC size	195mm(L)180mm(W)30mm(H)/33mm/42mm

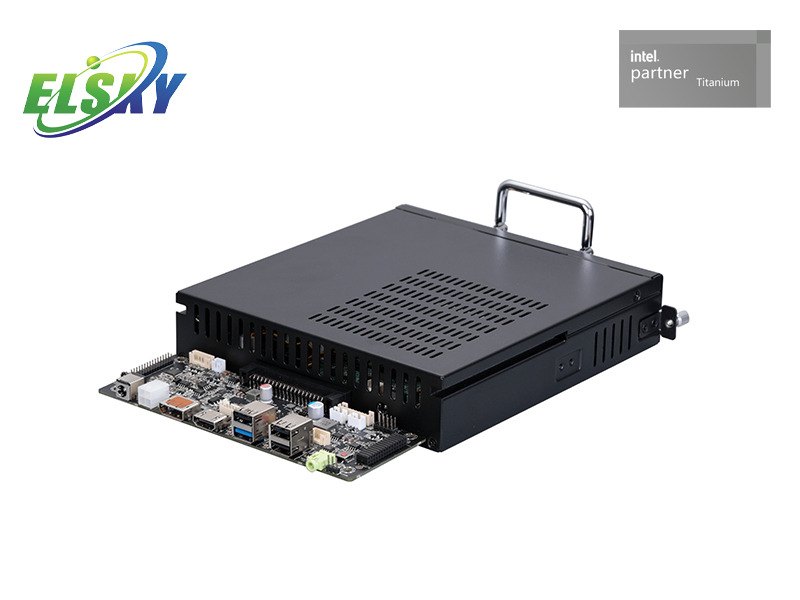

Motherboard size	170mm(L)190mm(W)21mm(H)
CPU	Supports Intel Raptor Lake13th generation U/P/H series CPU

Memory support	1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/3200 MHz memory, supports up to 32 GB
Power supply	1*DC_IN	Supports 12V/19V voltage, the inner diameter of the DC head is 2.5MM The maximum turbo power consumption is 115W. It is recommended to use a 12V 10 A or 19V 6.3A or above power supply.
	1*4Pin ATX
Display function	Integrated Intel UHD Graphics super core graphics card, supports single display, dual display/triple display/quad display duplication, dual display/triple display/quad display expansion, dual display under SHELL

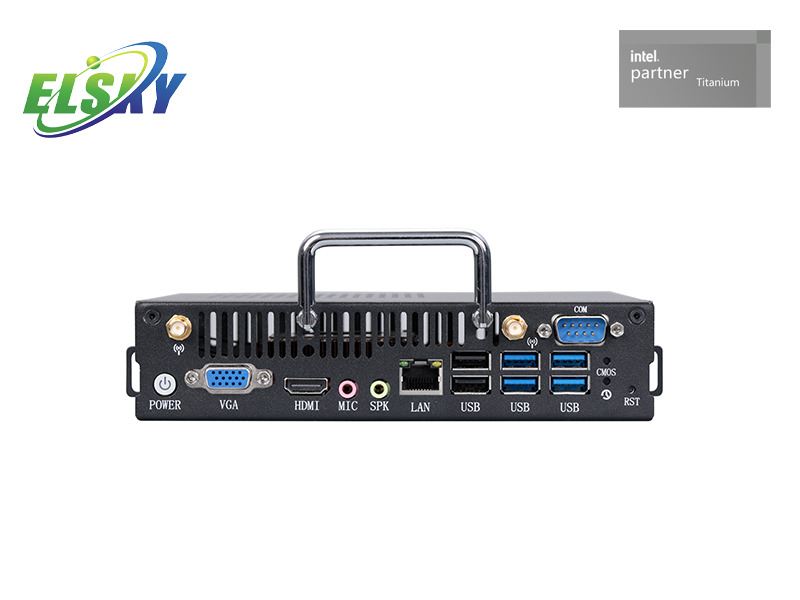

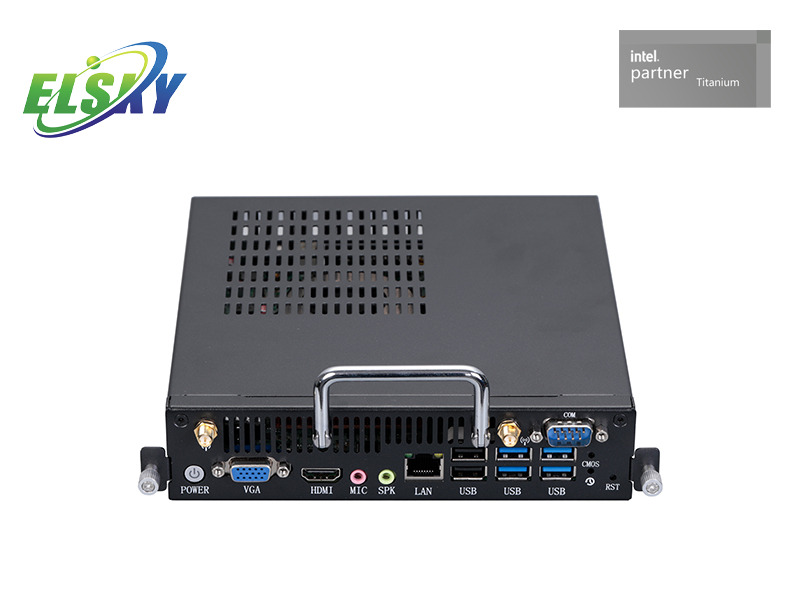

	1*HDMI 2.0 port (motherboard side)	Support 4K resolution 4096/3840*2160@60Hz
	1*VGA DB15 port (motherboard side)	Support 1920X1080@60Hz
	1*DP port (motherboard side) (optional)	Does not support DP++; supports 4K resolution 4096/3840*2160@60Hz
	Supports VGA interface by default, optionally supports DP interface
	1*HDMI 2.0 port (sub card side)	Support 4K resolution 4096/3840*2160@60Hz
	1*DP port (sub card side)	Does not support DP++; supports 4K resolution 4096/3840*2160@60Hz
Network function	1*LAN-RJ45 port	Realtek 8111H Gigabit network card supports wake-on-LAN and PXE diskless boot functions

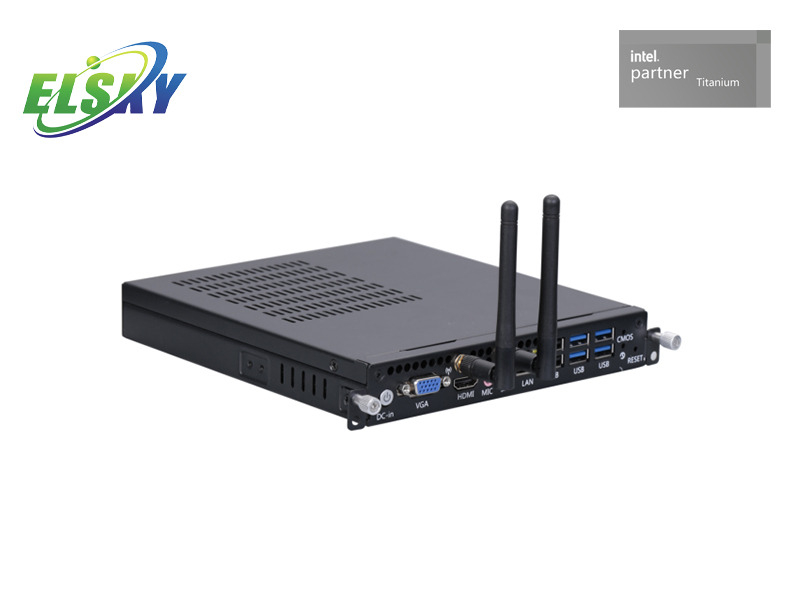

	1*Mini-PCIE port	PCIE3.0 signal; supports WIFI by default, can be changed to support WIFI/4G/Bluetooth module
Hard disk function	1*NGFF1 (M.2) port	PCIE4.0 signal; supports Key-M interface, default M.2 2280 hard drive, optional M.2 2242 hard drive ; supports PCIE (NVMe) protocol by default, and can change the hardware to support SATA protocol;
	1*SATA1 port (no signal by default)	Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps
	1*SATA2 port	2.5-inch hard drive bay, supports 2.5-inch SSD/HDD
	The motherboard SATA1 and SATA2 signals are optional. By default, SATA2 has a signal and SATA1 has no signal.
Sound function	Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller Modifiable hardware supports BBH621 USB sound card
	1*LIN_OUT interface	Support audio output (green)
	1*MIC_IN interface	Support microphone input (red)
USB function	3*USB3.2 interface	Rear standard USB 3.2 Gen1 interface, maximum transmission bandwidth is 5.0Gbps
	3*USB2.0 interface	Rear standard USB2.0 interface , maximum transmission bandwidth is 480Mbps
	External blue DUAL_USB30_ 2 upper USB interface is USB2.0 signal
Switch function	1*PWR_SW 1 button	switch button
	1*RST_BTN button	Support hardware restart
Other I/O	1*TTL (sub card side)	By default, the subcard TTL has a signal, and the motherboard COM2 has no signal. Choose one of the COM2 and subcard TTL signals.
	1*SIM_CARD card slot	Supports SIM card, SIM card is required when using 4G
	1* CLR_GHO_SW button	System hardware one-click restore button and motherboard reset and discharge buttons
	1*OPS interface	Standard 80Pin OPS interface
Operating environment	Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS supports power-on, scheduled boot, and intelligent identification of remote power on and off devices.
Watch Dog	Watchdog programming, supports hardware reset function (level 256, 0~255 seconds)
Operating system	Support Windows 11 , Windows 10, Linux, etc.

CPU Information:

The following CPU information is for reference only, please contact us for specific needs!

CPU	CPU brand	CPU model	Kernel/thread	Main frequency	Turbo	CPU basic power consumption (W)	Maximum Turbo Power Consumption (W)
13th gen I3	Intel core	1305U	5 cores and 6 threads	1.6G	4.5G	15	55
13th gen I3	Intel core	1315U	6 cores and 8 threads	1.2G	4.5G	15	55
13th gen I5	Intel core	1334U	10 cores and 12 threads	1.3G	4.6G	15	55
		1335U	10 cores and 12 threads	1.3G	4.6G	15	55
		1345U	10 cores and 12 threads	1.6G	4.7G	15	55
13th gen I7	Intel core	1355U	10 cores and 12 threads	1.7G	5.0G	15	55
13th gen I7	Intel core	1365U	10 cores and 12 threads	1.8G	5.2G	15	55
13th gen I5	Intel core	1340P	12 cores and 16 threads	1.8G	4.6G	28	64
13th gen I5	Intel core	1350P	12 cores and 16 threads	1.9G	4.7G	28	64
13th gen I7	Intel core	1360P	12 cores and 16 threads	2.2G	5.0G	28	64
13th gen I7	Intel core	1370P	14 cores and 20 threads	1.9G	5.2G	28	64
13th gen I5	Intel core	13420H	8 cores and 12 threads	2.1G	4.60G	45	95
		13500H	12 cores and 16 threads	2.6G	4.70G	45	95
		13505H	12 cores and 16 threads	2.6G	4.70G	45	115
		13600H	12 cores and 16 threads	2.8G	4.80G	45	95
13th gen I7	Intel core	13620H	10 cores and 16 threads	2.4G	4.90G	45	115
		13700H	14 cores and 20 threads	2.4G	5.00G	45	115
		13705H	14 cores and 20 threads	2.4G	5.00G	45	115
		13800H	14 cores and 20 threads	2.5G	5.20G	45	115
13th gen I9	Intel core	13900H	14 cores and 20 threads	2.6G	5.40G	45	115

FAQ

Q1: What is the main CPU series supported by the OPS-13H Mini PC?

A: The PC supports Intel 13th Generation Raptor Lake U, P, and H series CPUs. This provides robust performance for professional applications.

Q2: What are the display capabilities of the OPS-13H?

A: It supports a maximum of Quad Display output simultaneously. Outputs include HDMI 2.0, DP, and VGA, with resolutions up to 4*4K 60Hz.

Q3: Can I connect to the internet wirelessly?

A: Yes. It has a Mini-PCIE slot that allows installation of optional Wi-Fi, 4G, or Bluetooth modules. A SIM card slot is also present for 4G use.

Q4: What is the core application market for this product?

A: Its main applications are Intelligent Education (interactive whiteboards), Conference Collaboration, Digital Signage, and Industrial Control systems.
