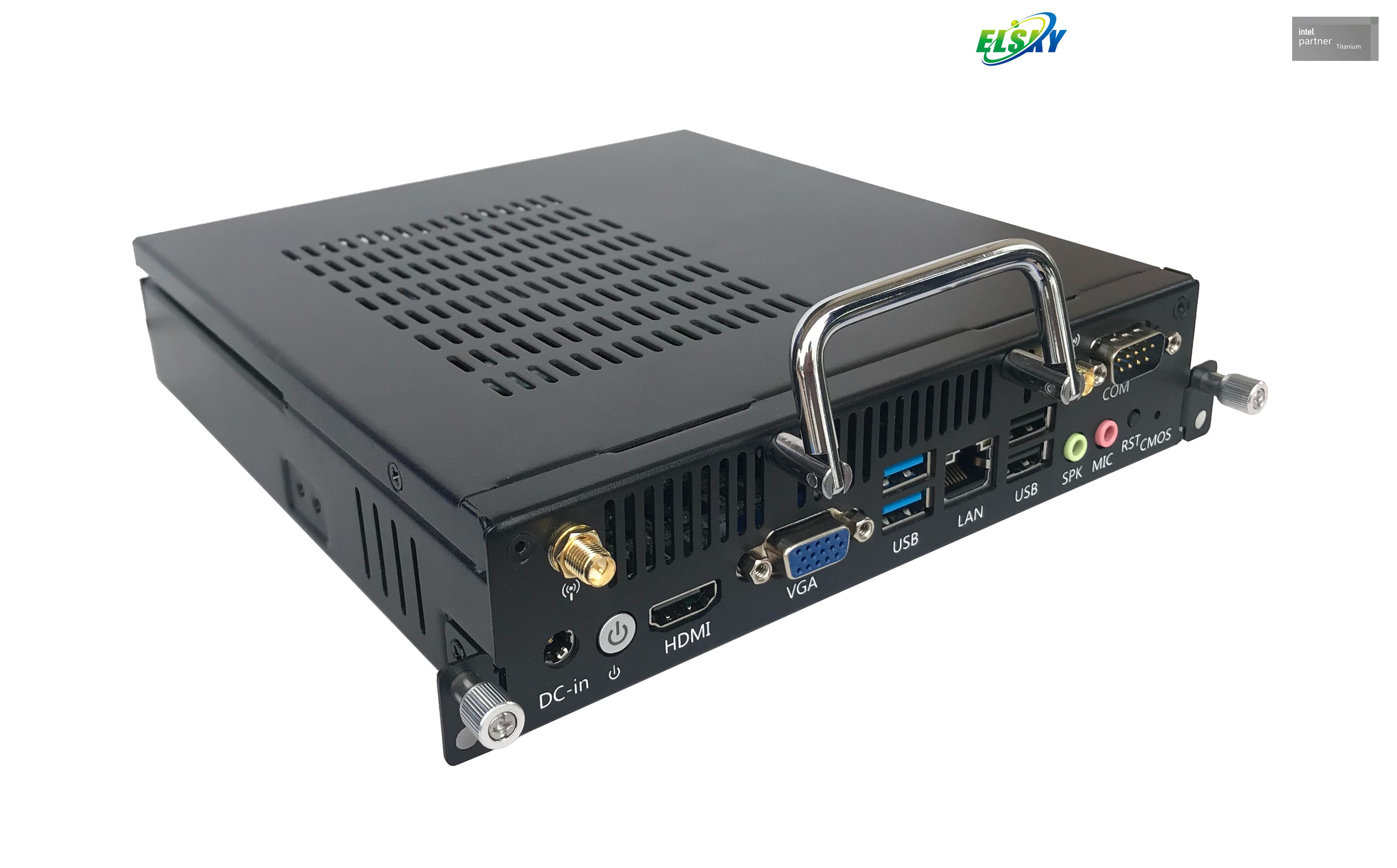

80-Pin OPS PC with Intel 5th Generation CPU I3- I3-5010U I5-5200U I7-5500U for School Education Conference

Model

P42-OPS5000

Version

OPS5000

Chassis

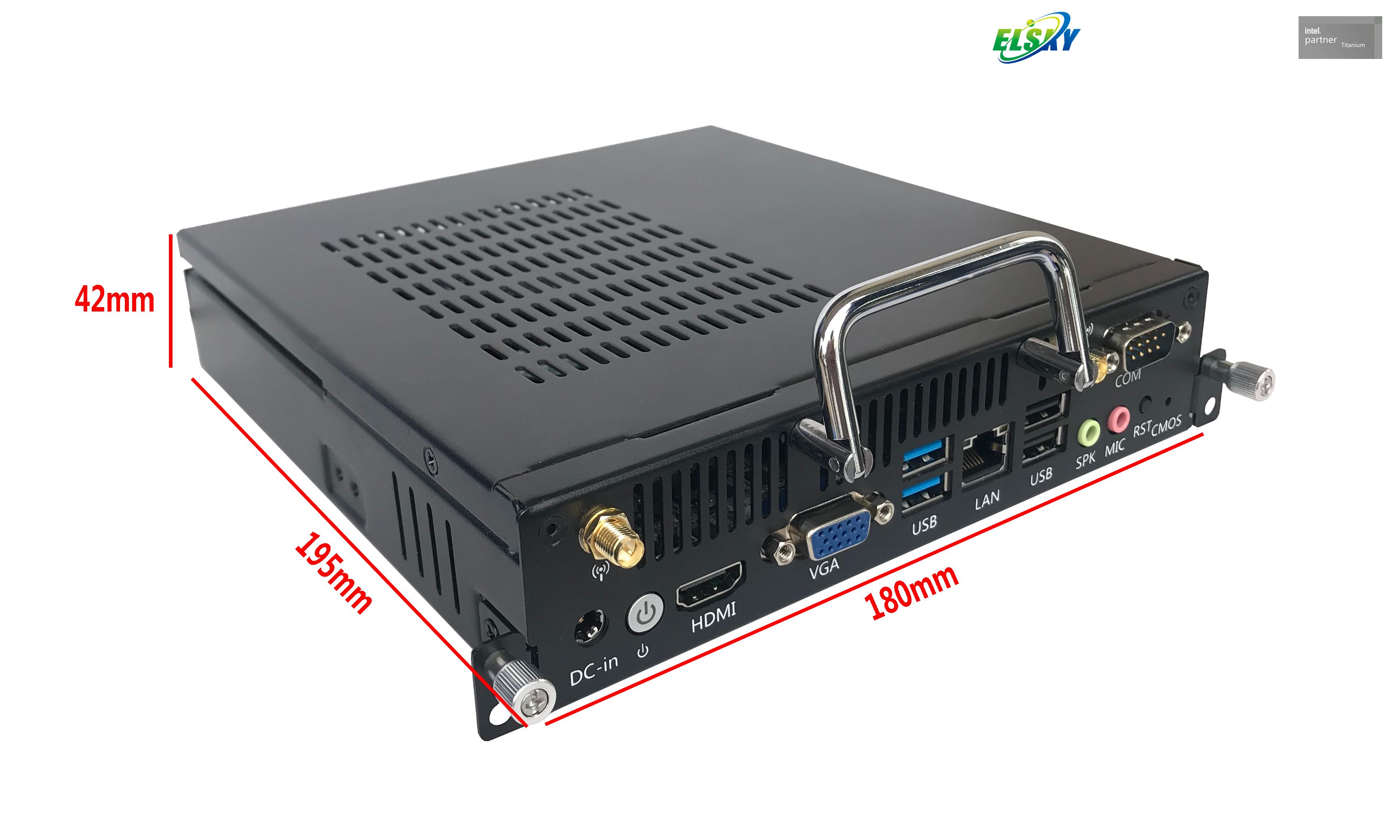

Dimensions: 180mm(L) x 195mm(W) x 42mm(H); Chassis material: Metal

Option laser-engraving customized logo on the chassis;

Option customized VESA mounting bracket.

Cooling Type

Mute Mini Fan

Processor

OPS5000 supports 5 generations of CPU: I3-5010U, I5-5200U, I7-5500U, etc.

Chip set

Has well-U Express Chip set

Graphics

P42-OPS5000: 5th generation integrated Intel® HD5500 graphics controller

Memory

1*DDR3 SODIMM memory slot, supports 1600MHz memory, low voltage 1.35V, maximum support 8GB

Hard Disk

1*SATA1 interface (2.5-inch SATA3.0 laptop hard disk slot, can directly install hard disk)

1*SATA2 interface (standard SATA3.0 hard disk interface, maximum transmission speed 6.0 G bps)

1*MSATA interface (supports MSATA disk)

Power Supply

DC input 12V or 19V;  DC jack: 5.5x2.5mm;  Power Consumption (Max): 30W

Display Function

Support single display/dual display copy/dual display expansion, single display under DOS

1*VGA DB15 interface (supports the highest resolution of 1920*1200@60HZ)

1*HDMI 1.4 interface (supports the highest resolution of 4096*2304@24HZ)

WIFI & Bluetooth

1*MINI_PCIE interface (support WIFI/3G/4G module)

Expansion Slot

1xPCI-E

Ethernet

1*RJ45 LAN port (RTL8111F Gigabit network card chip, supports network wake-up and PXE diskless boot function)

HD Audio

Integrated Realtek ALC662 HD digital audio decoder,

1xLine_out interface, 1xMic-in interface.

USB Quantity

2*USB3.0 interface

2*USB2.0 interface

Serial Port (COM)

2xCOM interfaces (The COM2: Option RS232/RS485);

OPS Interface

1*OPS card slot (supports OPS daughter card, standard 80Pin)

CMOS Battery

CR2032 3V battery (Detachable)

Built-in Pins/Slots

1*INT_SPK pin, 1*F_PANEL pin, 1*F_AUDIO pin, 1*F_USB2 pin, 1*F_PANEL pin, 1*AUTO_SW pin, 1*CLR_CMOS pin, 1*SYS_FAN pin, 1*CPU_FAN pin, etc.

Watch Dog

Watchdog programming; Support hardware reset function (256 levels, 0~255 seconds).

AMI BIOS

Support power on,timing switch,remote switch,intelligently identify devices.

Option Secure Boot;

Option Trusted Platform Module (TPM) version 2.0;

Option customized boot logo in OS.

Operating Environment

Working temperature: -20℃~60℃;

Working humidity: 5%~95% relative humidity, no condensation

Operating System

Compatible with Windows 10, 8, 7, Linux.

OEM

Front / Rear IO shield (Customize interfaces according to customer needs).

Standard Warranty

12 months
