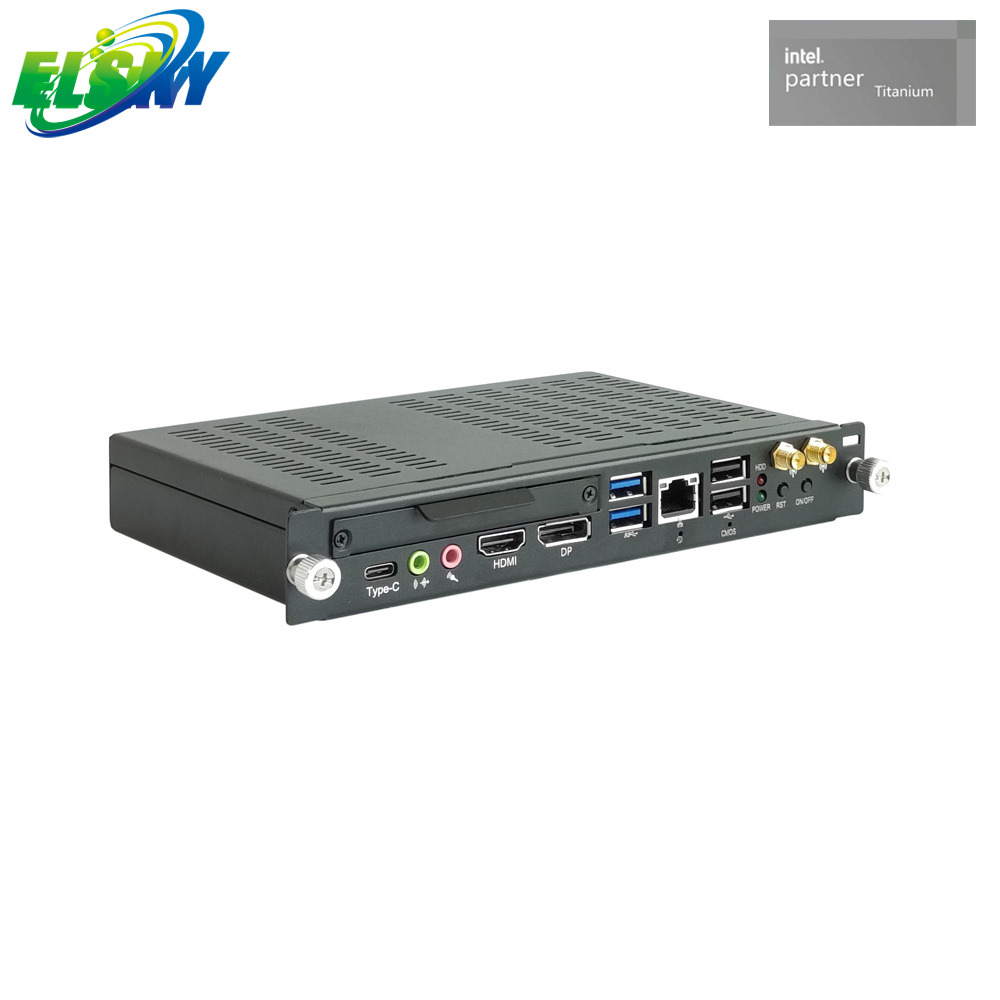

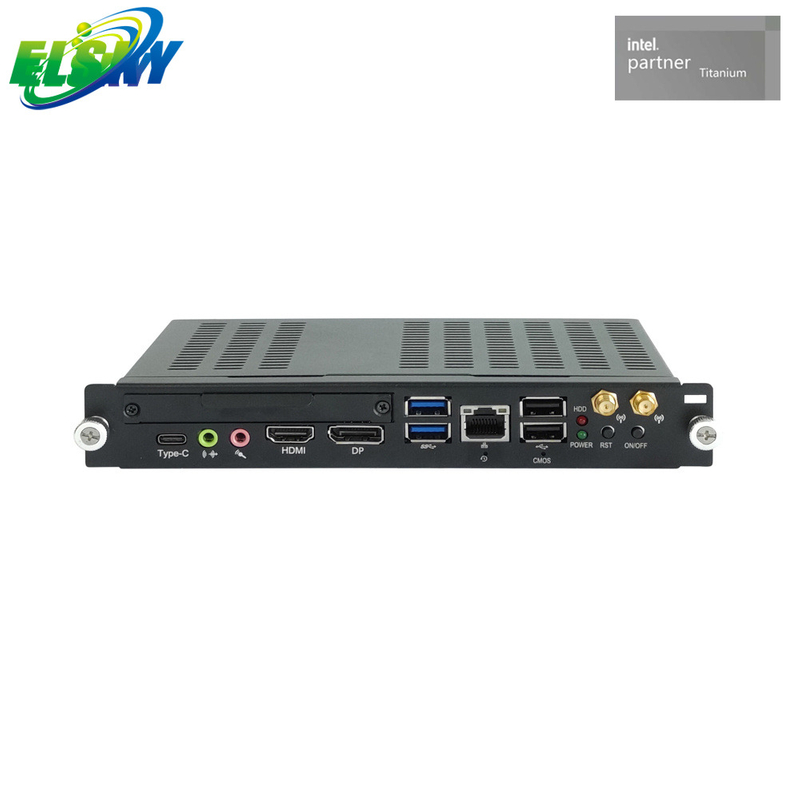

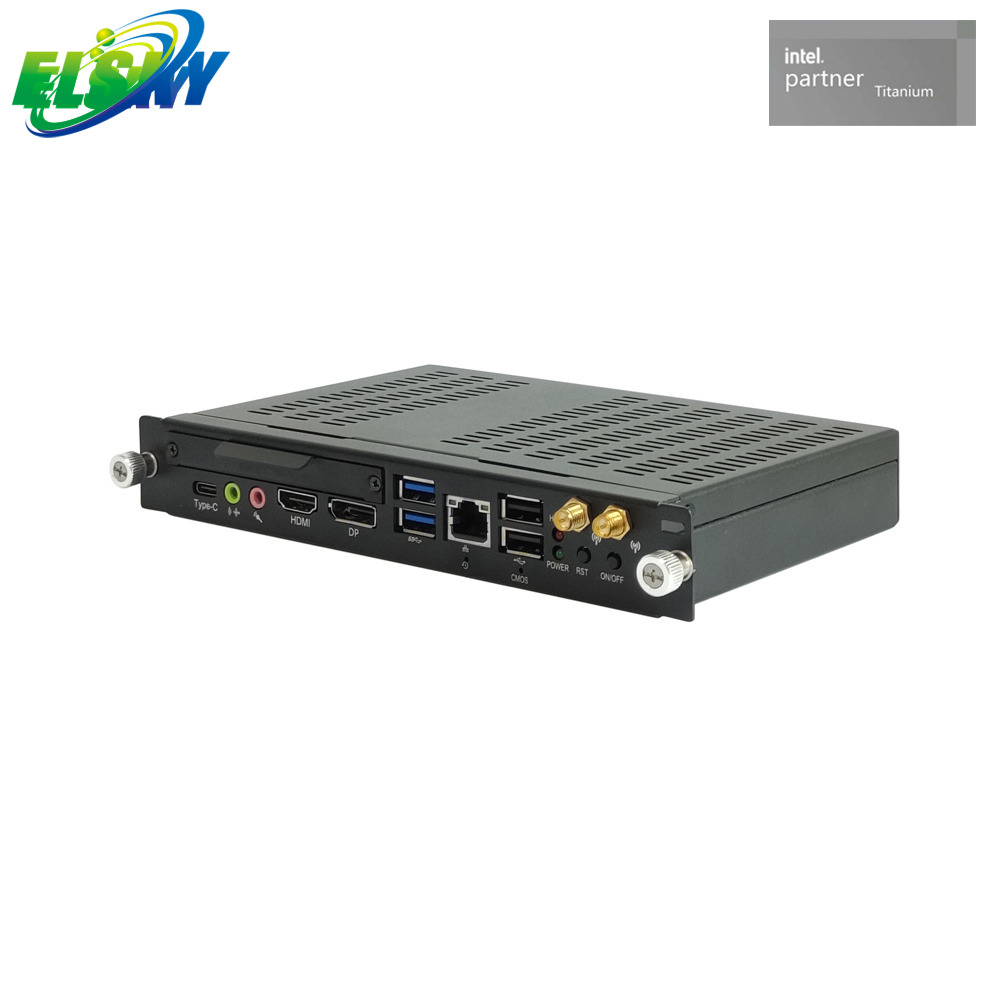

OPS-12U
ELSKY
The High - Performance OPS 12U is a cutting - edge Open Pluggable Specification (OPS) PC designed to meet the evolving needs of digital display systems. This compact yet powerful device serves as the brain behind digital signage, interactive kiosks, and other display - centric applications. By integrating all the essential computing components into a standardized form factor, it simplifies the setup and management of display systems, enabling seamless content delivery and interaction. Whether for large - scale commercial deployments or small - scale projects, the OPS 12U offers a reliable and efficient computing solution that ensures smooth operation and high - quality visual output.
Powerful Processing Capability: Equipped with high - end processors, the OPS 12U delivers exceptional computing performance. It can handle complex tasks such as 4K video playback, real - time content rendering, and multitasking with ease, ensuring that digital displays run smoothly without any lag or stutter.
Standardized OPS Form Factor: Adhering to the industry - recognized OPS standard, this PC can be easily plugged into compatible display devices. This standardized design allows for quick installation, replacement, and maintenance, reducing downtime and operational costs for businesses.
Rich Connectivity Options: The OPS 12U comes with a comprehensive set of connectivity ports, including HDMI, DisplayPort, USB, Ethernet, and more. These ports enable seamless integration with various peripherals, such as cameras, touchscreens, and external storage devices, expanding the functionality of the display system.
Efficient Cooling System: To ensure stable operation even under heavy loads, the OPS 12U features an advanced cooling system. The combination of heat sinks, fans, and intelligent thermal management algorithms effectively dissipates heat, preventing overheating and extending the lifespan of the components.
Digital Signage: Ideal for digital signage applications in shopping malls, airports, train stations, and other public spaces. The OPS 12U can drive high - resolution displays to showcase dynamic advertisements, wayfinding information, and promotional content, capturing the attention of audiences.
Interactive Kiosks: Used in interactive kiosks for self - service check - ins, information kiosks, and retail kiosks. Its powerful processing and connectivity capabilities support touch - based interactions, allowing users to access information, make transactions, and engage with the content effortlessly.
Educational Displays: In educational institutions, the OPS 12U can be integrated into smart boards and interactive displays. It enables teachers to deliver engaging lessons with multimedia content, interactive presentations, and real - time collaboration tools, enhancing the learning experience for students.
In - Depth Industry Expertise: Our team consists of experienced professionals with in - depth knowledge of the OPS PC and digital display industry. We understand the unique requirements of different applications and can provide tailored solutions that meet your specific needs.
Strict Quality Control: We implement rigorous quality control measures at every stage of production. From component sourcing to final assembly and testing, each OPS 12U undergoes multiple inspections to ensure it meets the highest standards of performance, reliability, and durability.
Customization Services: Recognizing that different projects may have unique requirements, we offer extensive customization options. Whether it's adjusting the hardware configuration, adding specific software, or customizing the appearance, we can work with you to create a personalized OPS PC solution.
Responsive Technical Support: Our dedicated technical support team is available around the clock to assist you with any issues or questions. We provide timely remote support, on - site maintenance services when needed, and regular software updates to keep your OPS 12U running smoothly.
Small Size OPS PC Series
180*120*30MM European Standard Series
Supports single and dual LAN ports
4K HD
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Supports daughter card
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
PC model | CPU | 4K | LAN | Daughter card TTL | USB 2.0 | USB3.2 | Type-C | SSD | Memory | Power |
OPS-12U | Support Intel Alder Lake 12th generation U series i3, i5, i7, i9 | support | 1 | 1 | 2 | 2 | 1 | 1*M.2 1*JSATA 2.5-inch SSD/HDD optional | 1*NB-DDR4 MAX 32G | 12/19V |
OPS-13U | Support Intel RaptorLake 13th generation U/P/H series i3, i5, i7, i9 |
>> Important Note
Power supply interface:
The motherboard supports 12V or 19V power supply; the motherboard DC interface specification is 5.5*2.5, and can be changed to support 4Pin ATX;
The maximum turbo power consumption of U series CPU is 55W. It is recommended to use a power supply of 12V 7A or 19V 5A or above;
The maximum turbo power consumption of P series CPU is 64W. It is recommended to use a power supply of 12V 7A or 19V 5A or above;
The maximum turbo power consumption of H series CPU is 115W. It is recommended to use a 12V 10A or 19V 6.3A or above power supply;
Display interface:
1. The Mini PC HDMI, DP, daughter card HDMI, daughter card DP support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion, dual display is supported under SHELL, and DOS is not supported;
2. PC-side HDMI and daughter-card side HDMI are independent HDMI 2.0 signals, supporting 4K resolution 4096/3840*2160@60Hz;
3. The PC-side DP and the daughter card DP are independent signals, supporting 4K resolution 4096/3840*2160@60Hz; the PC-side DP supports DP++ (supports DP cables and DP to HDMI ordinary cables/active adapter cables). The card-side DP does not support DP++ (supports DP cables and DP to HDMI active adapter cables, but does not support DP to HDMI ordinary cables);
4. The Mini PC does not support subcard LVDS;
Mini-PCIE:
1. The motherboard NGFF supports the Key-M interface, the default M.2 2280 hard drive, the optional M.2 2242 hard drive; the default support NVME (PCIE) protocol, optional support SATA protocol, only need to change the hardware, no need to update the BIOS;
2. The motherboard M2_WIFI supports the Key-E interface M.2 2230 WiFi Bluetooth module, and the default PCIE signal and USB signal coexist;
3. The motherboard’s JSATA interface supports SATA3.0 signals by default and supports 2.5-inch SSD/HDD disks; the host has optional hard drive bays or no hard drive bays;
USB interface:
1. The Mini PC supports 4*USB by default (2*USB3.2 Gen1; 2*USB2.0);
2. The Mini PC supports 1 Type-C interface, which only supports USB function and does not support display function. Its USB signal is an independent signal;
4. All USB interfaces and pins of the Mini PC are defaulted to S power (no power when powered off), and can be changed to A power (power off when powered off);
COM port:
The Mini PC daughter card supports TTL, no need to change the hardware;
Network card:
The Mini PC supports Intel I219V single Gigabit network port; it cannot be changed to dual network and POE power supply cannot be changed;
Sound card:
The Mini PC supports Realtek ALC897 sound card by default, and optionally supports BBH621 USB sound card.
>> CPU information
CPU specifications | CPU brand | CPU model | Core/Thread | Main frequency | Turbo frequency | CPU basic power consumption (W) | Maximum Turbo Power Consumption (W) |
12th generation i3 | core | 1215U | Six cores and eight threads | 1.2G | 4.4G | 15 | 55 |
1210U | Six cores and eight threads | 1.0G | 4.4G | 9 | 29 | ||
12th generation i5 | core | 1235U | Ten cores and twelve threads | 1.3G | 4.4G | 15 | 55 |
1240U | Ten cores and twelve threads | 1.1G | 4.4G | 9 | 29 | ||
1230U | Ten cores and twelve threads | 1.0G | 4.4G | 9 | 29 | ||
1245U | Ten cores and twelve threads | 1.6G | 4.4G | 15 | 55 | ||
12th generation I7 | core | 1250U | Ten cores and twelve threads | 1.1G | 4.7G | 9 | 29 |
1260U | Twelve cores and sixteen threads | 1.1G | 4.7G | 9 | 29 | ||
1265U | Ten cores and twelve threads | 1.8G | 4.8G | 15 | 55 | ||
1255U | Ten cores and twelve threads | 1.7G | 4.7G | 15 | 55 | ||
12th generation i3 | core | 1220P | Ten cores and twelve threads | 1.5G | 4.4G | 28 | 64 |
12th generation i5 | core | 1240P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 |
1250P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 | ||
12th generation I7 | core | 1280P | Fourteen cores and twenty threads | 1.8G | 4.8G | 28 | 64 |
1260P | Twelve cores and sixteen threads | 2.1G | 4.7G | 28 | 64 | ||
1270P | Twelve cores and sixteen threads | 2.2G | 4.8G | 28 | 64 | ||
12th generation i5 | core | 12450H | Eight cores and twelve threads | 2.0G | 4.4G | 45 | 95 |
12500H | Twelve cores and sixteen threads | 2.5G | 4.5G | 45 | 95 | ||
12th generation I7 | core | 12800H | Fourteen cores and twenty threads | 2.4G | 4.8G | 45 | 115 |
12700H | Fourteen cores and twenty threads | 2.7G | 4.7G | 45 | 115 | ||
12650H | Ten cores and sixteen threads | 2.3G | 4.7G | 45 | 115 | ||
12600H | Twelve cores and sixteen threads | 2.7G | 4.5G | 45 | 95 | ||
12th generation I9 | core | 12900H | Fourteen cores and twenty threads | 2.5G | 5.0G | 45 | 115 |
13th generation i3 | core | 1305U | Five cores and six threads | 1.6G | 4.5G | 15 | 55 |
1315U | Six cores and eight threads | 1.2G | 4.5G | 15 | 55 | ||
13th generation i5 | core | 1334U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 |
1335U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 | ||
1345U | Ten cores and twelve threads | 1.6G | 4.7G | 15 | 55 | ||
13th generation I7 | core | 1355U | Ten cores and twelve threads | 1.7G | 5.0G | 15 | 55 |
1365U | Ten cores and twelve threads | 1.8G | 5.2G | 15 | 55 | ||
13th generation i5 | core | 1340P | Twelve cores and sixteen threads | 1.8G | 4.6G | 28 | 64 |
1350P | Twelve cores and sixteen threads | 1.9G | 4.7G | 28 | 64 | ||
13th generation I7 | core | 1360P | Twelve cores and sixteen threads | 2.2G | 5.0G | 28 | 64 |
1370P | Fourteen cores and twenty threads | 1.9G | 5.2G | 28 | 64 | ||
13th generation i5 | core | 13420H | Eight cores and twelve threads | 2.1G | 4.60G | 45 | 95 |
13500H | Twelve cores and sixteen threads | 2.6G | 4.70G | 45 | 95 | ||
13505H | Twelve cores and sixteen threads | 2.6G | 4.70G | 45 | 115 | ||
13600H | Twelve cores and sixteen threads | 2.8G | 4.80G | 45 | 95 | ||
13th generation I7 | core | 13620H | Ten cores and sixteen threads | 2.4G | 4.90G | 45 | 115 |
13700H | Fourteen cores and twenty threads | 2.4G | 5.00G | 45 | 115 | ||
13705H | Fourteen cores and twenty threads | 2.4G | 5.00G | 45 | 115 | ||
13800H | Fourteen cores and twenty threads | 2.5G | 5.20G | 45 | 115 | ||
13th generation I9 | core | 13900H | Fourteen cores and twenty threads | 2.6G | 5.40G | 45 | 115 |
>> Product Specifications
PC model | OPS-12U OPS-13U | |

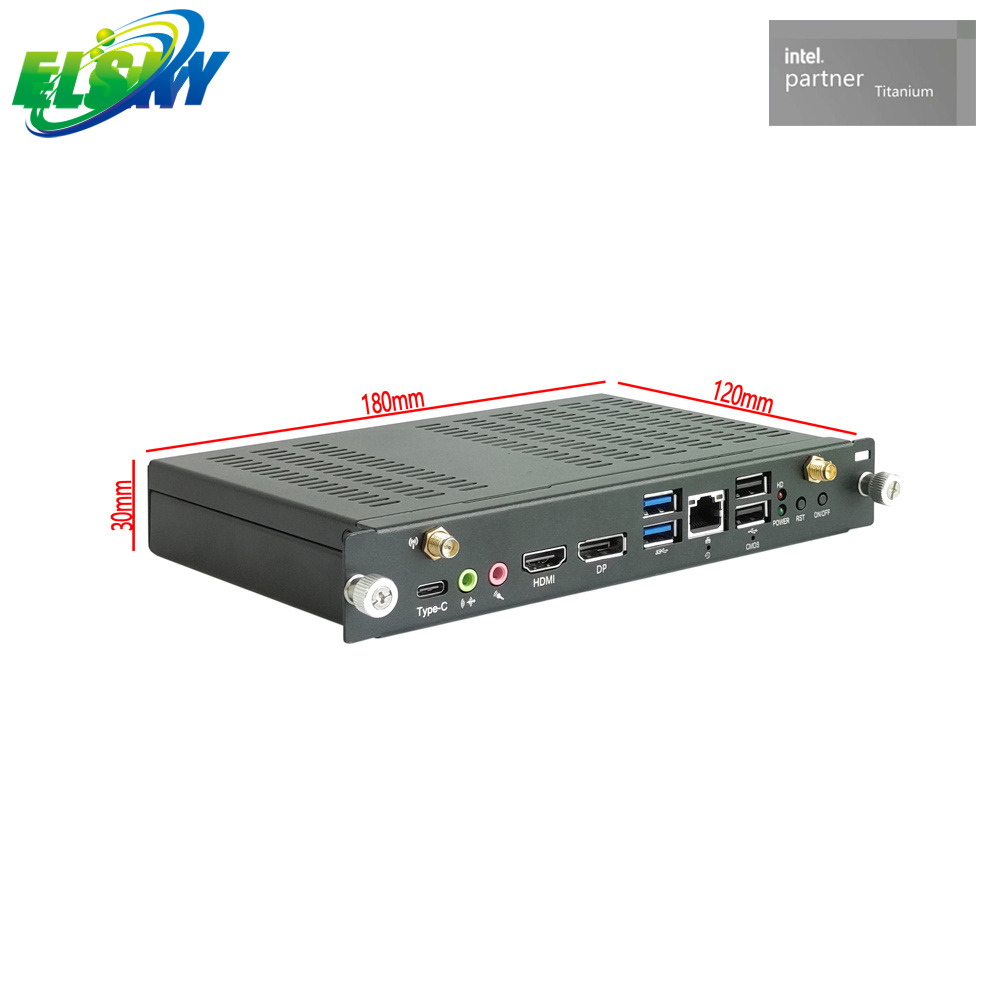

PC size | 120mm(L)*180mm(W)*30mm(H) | |
CPU processor | OPS-12U | Supports Intel Alder Lake 12th generation U/P/H series CPUs |
OPS-13U | Supports Intel Raptor Lake 13th generation U/P/H series CPUs | |
Memory support | 1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/3200 MHz memory, supports up to 32 GB | |
Power supply | 1*DC_IN | Supports 12V/19V voltage, the inner diameter of the DC head is 2.5MM The maximum turbo power consumption of U series CPU is 55W. It is recommended to use a power supply of 12V 7A or 19V5A or above; The maximum turbo power consumption of P series CPU is 64W. It is recommended to use a power supply of 12V 7A or 19V5A or above; The maximum turbo power consumption of H series CPU is 115W. It is recommended to use a 12V 10A or 19V 6.3A or above power supply; |
Display function | Integrated Intel UHD Graphics super core graphics card , supports single display, dual display/triple display/quad display copy, dual display/triple display/quad display expansion, supports dual display under SHELL, does not support DOS | |
1*HDMI 2.0 interface (mainboard side) | Support 4K resolution 4096/3840*2160@60Hz | |
1*DP interface (motherboard side) | Support DP++; support 4K resolution 4096/3840*2160@60Hz | |
1*HDMI 2.0 interface (daughter card side) | Support 4K resolution 4096/3840*2160@60Hz | |
1*DP interface (daughter card side) | Does not support DP++; supports 4K resolution 4096/3840*2160@60Hz | |
Internet function | 1*LAN interface | Intel I219V Gigabit network card chip, supports network wake-up and PXE diskless boot function |
1* M2_WIFI interface | PCIE 3.0 signal, supports Key-E interface M.2_2230 WIF Bluetooth module | |
Hard drive function | 1*NGFF1 (M.2) interface | PCIE 4.0 signal, supports Key-M interface, default M.2 2280 hard drive, optional M.2 2242 hard drive; It supports NVME protocol by default, and the hardware can be changed to support SATA protocol. |
1*JSATA interface | Supports SATA3.0 signal by default and supports 2.5-inch SSD/HDD disks | |
Sound function | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller; The hardware can be modified to support BBH621 USB sound card; | |
1*LIN_OUT interface | Support audio output (green) | |
1*MIC_IN interface | Support microphone input (red) | |
USB function | 2*USB3.2 interface | Rear standard USB3. 2 Gen1 interface, maximum transmission bandwidth is 5Gbps |
2*USB2.0 interface | Rear standard USB2.0 interface , maximum transmission bandwidth is 480Mbps | |
1*Type-C interface | Standard Type-C interface, only supports USB function and does not support display function | |
Switch function | 1*PWR_SW 1 button | switch button |
1*RST_SW1 button | Support hardware restart | |
Other I/O | 1*J CMOS button | Motherboard reset and discharge buttons |

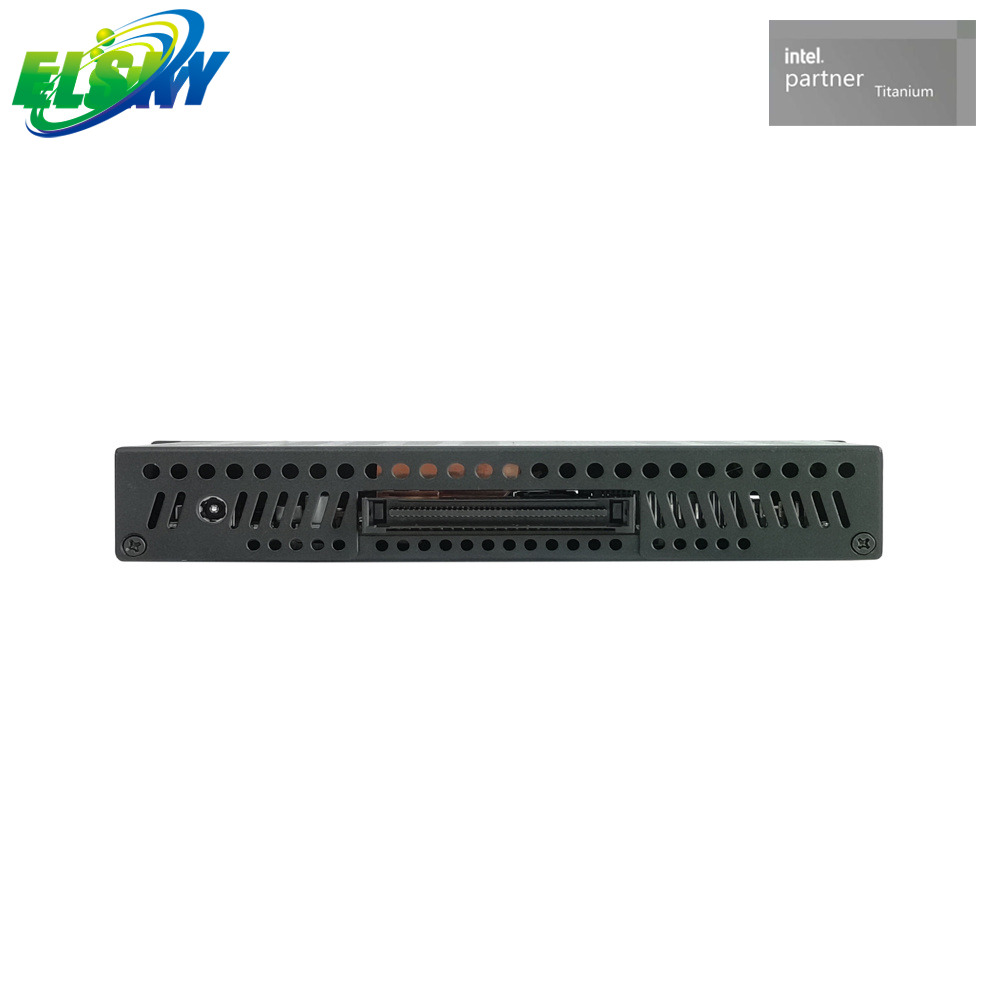

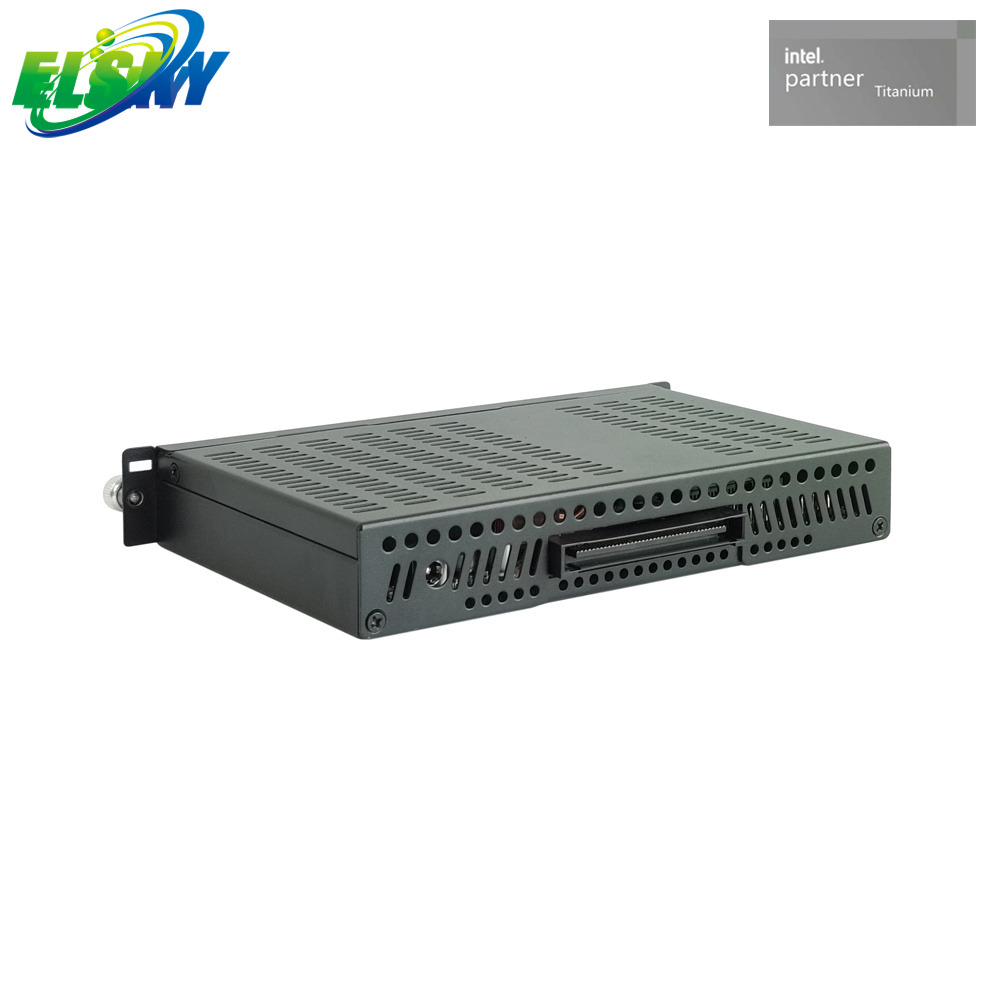

1*OPS interface | Standard 80Pin OPS interface | |
1*GHOST button | Support system one-click restore | |
1*LED | Power and hard drive status indicators | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS supports power on, scheduled boot, and remote power on/off device intelligent identification | |
Watch Dog | Watchdog programming, supports hardware reset function (level 256, 0~255 seconds) | |
Operating system | Supports Windows 11, Windows 10, Linux, etc. | |
80Pin OPS interface definition:
| Pins | Signal | Describe | Aisle |
| 1 | DDP_3N | DisplayPort | OUT |
| 2 | DDP_3P | DisplayPort | OUT |
| 3 | GND | Ground | - |
| 4 | DDP_2N | DisplayPort | OUT |
| 5 | DDP_2P | DisplayPort | OUT |
| 6 | GND | Ground | - |
| 7 | DDP_1N | DisplayPort | OUT |
| 8 | DDP_1P | DisplayPort | OUT |
| 9 | GND | Ground | - |
| 10 | DDP_0N | DisplayPort | OUT |
| 11 | DDP_0P | DisplayPort | OUT |
| 12 | GND | Ground | - |
| 13 | DDP_AUXN | DisplayPort | I/O |
| 14 | DDP_AUXP | DisplayPort | I/O |
| 15 | DDP_HPD | DisplayPort | IN |
| 16 | GND | Ground | - |
| 17 | TMDS_CLK- | DVI-D | OUT |
| 18 | TMDS_CLK+ | DVI-D | OUT |
| 19 | GND | Ground | - |
| 20 | TMDS0- | DVI-D | OUT |
| 21 | TMDS0+ | DVI-D | OUT |
| 22 | GND | Ground | - |
| 23 | TMDS1- | DVI-D | OUT |
| 24 | TMDS1+ | DVI-D | OUT |
| 25 | GND | Ground | - |
| 26 | TMDS2- | DVI-D | OUT |
| 27 | TMDS2+ | DVI-D | OUT |
| 28 | GND | Ground | - |
| 29 | DVI_DDC_DATA | DVI-D | I/O |
| 30 | DVI_DDC_CLK | DVI-D | I/O |
| 31 | DVI_HPD | DVI-D | IN |
| 32 | GND | Ground | - |
| 33 | +12V~+19V | Power | - |
| 34 | +12V~+19V | Power | - |
| 35 | +12V~+19V | Power | - |
| 36 | +12V~+19V | Power | - |
| 37 | +12V~+19V | Power | - |
| 38 | +12V~+19V | Power | - |
| 39 | +12V~+19V | Power | - |
| 40 | +12V~+19V | Power | - |
| 41 | RSVD | Reserved pins | - |
| 42 | RSVD | Reserved pins | - |
| 43 | RSVD | Reserved pins | - |
| 44 | RSVD | Reserved pins | - |
| 45 | RSVD | Reserved pins | - |
| 46 | GHOST | GHOST_OPS | - |
| 47 | RSVD | Reserved pins | - |
| 48 | RSVD | Reserved pins | - |
| 49 | SYSRST | SYS_RESET | - |
| 50 | SYS_FAN | System Fan Control | OUT |
| 51 | UART_RXD | UART 3.3V | IN |
| 52 | UART_TXD | UART 3.3V | OUT |
| 53 | GND | Ground | - |
| 54 | StdA_SSRX- | USB3.0 | IN |
| 55 | StdA_SSRX+ | USB3.0 | IN |
| 56 | GND | Ground | - |
| 57 | StdA_SSTX- | USB3.0 | OUT |
| 58 | StdA_SSTX+ | USB3.0 | OUT |
| 59 | GND | Ground | - |
| 60 | USB_PN2 | USB | I/O |
| 61 | USB_PP2 | USB | I/O |
| 62 | GND | Ground | - |
| 63 | USB_PN1 | USB | I/O |
| 64 | USB_PP1 | USB | I/O |
| 65 | GND | Ground | - |
| 66 | USB_PN0 | USB | I/O |
| 67 | USB_PP0 | USB | I/O |
| 68 | GND | Ground | - |
| 69 | AZ_LINEOUT_L | Audio-Lch | OUT |
| 70 | AZ_LINEOUT_R | Audio-Rch | OUT |
| 71 | CEC | Consumer Electronic Control | I/O |
| 72 | PB_DET | Pluggable Board Detect | OUT |
| 73 | PS_ON# | Pluggable Signal ON | IN |
| 74 | PWR_STATUS | PowerGood | OUT |
| (OC) | |||
| 75 | GND | Ground | - |
| 76 | GND | Ground | - |
| 77 | GND | Ground | - |
| 78 | GND | Ground | - |
| 79 | GND | Ground | - |
| 80 | GND | Ground | - |
1. The I/O column definition is in reference to the pluggable board.
2. OC=Open Collector.
3. For USB3.0 implementation, pins #60 and #61 shall be used to complement the Super Speed USB signals.
