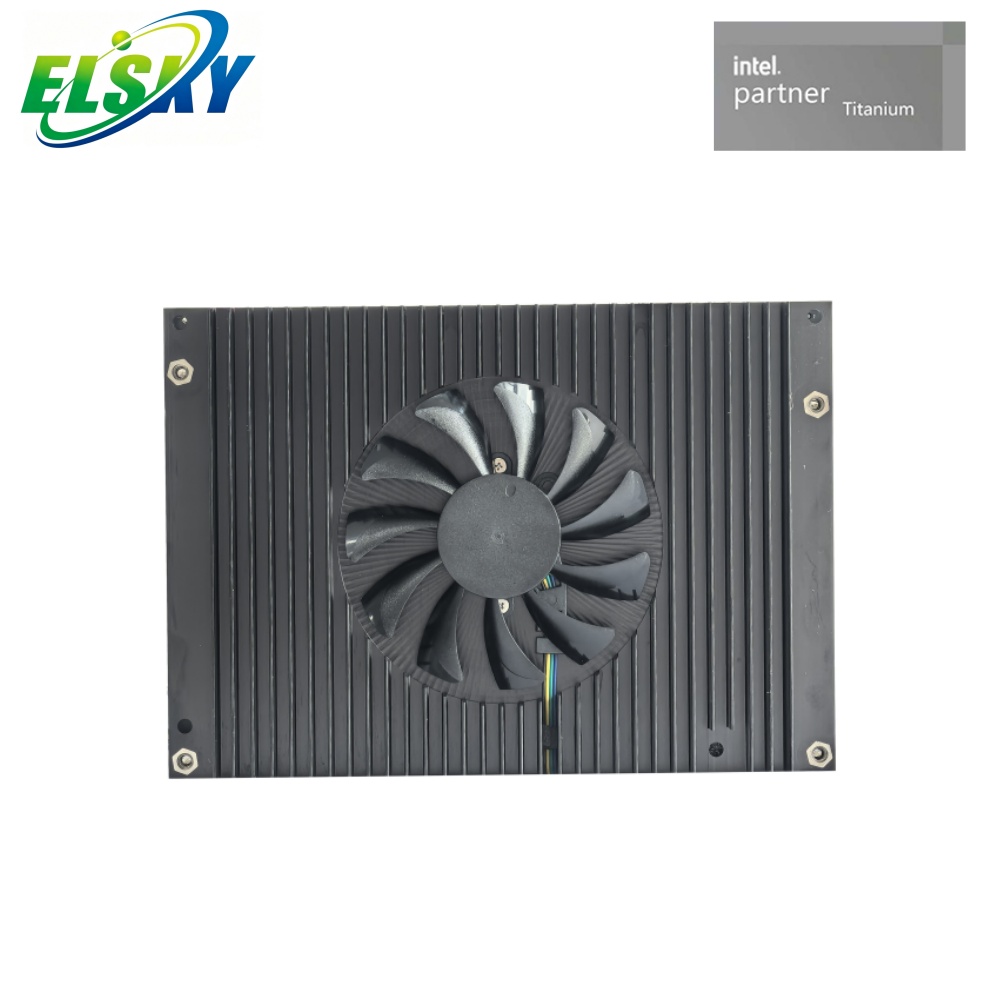

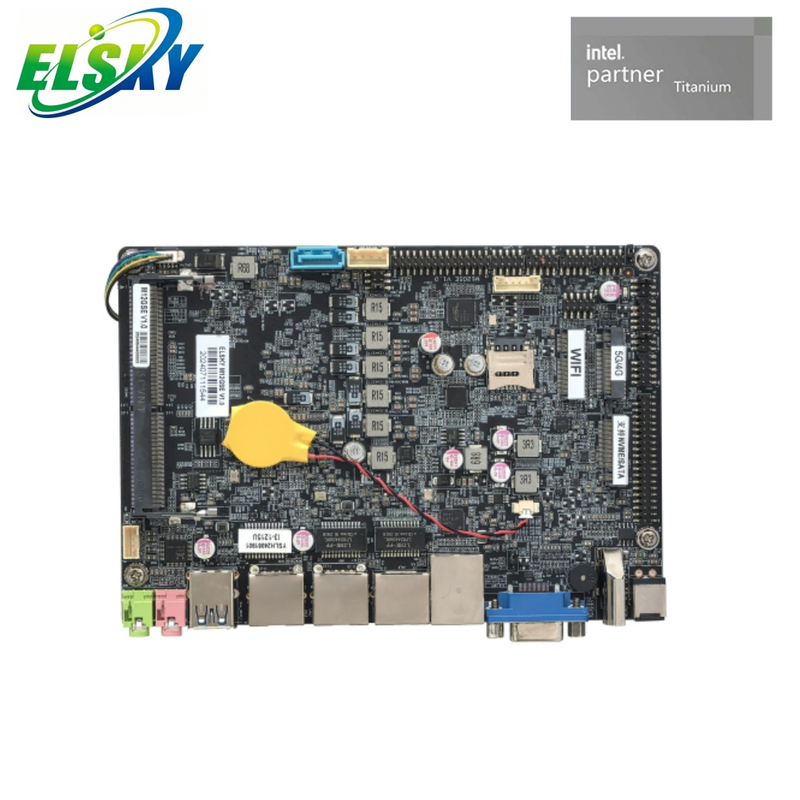

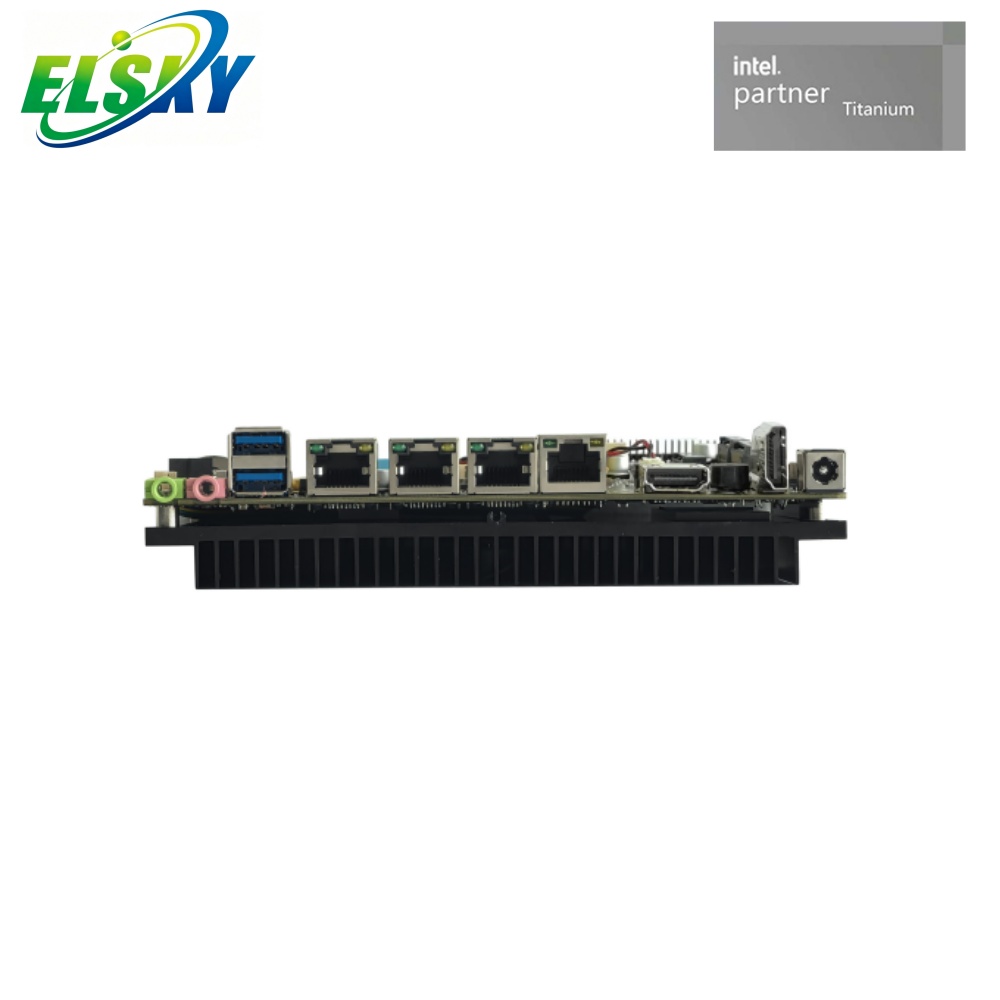

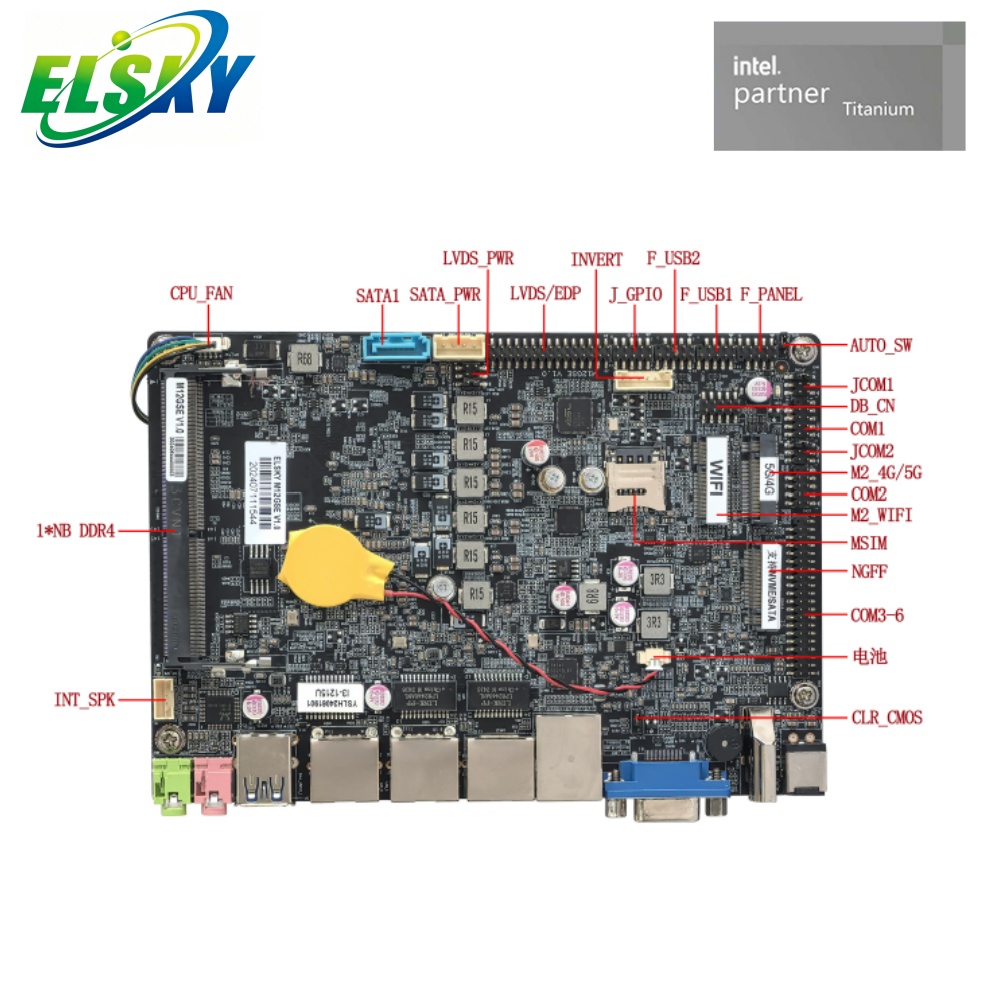

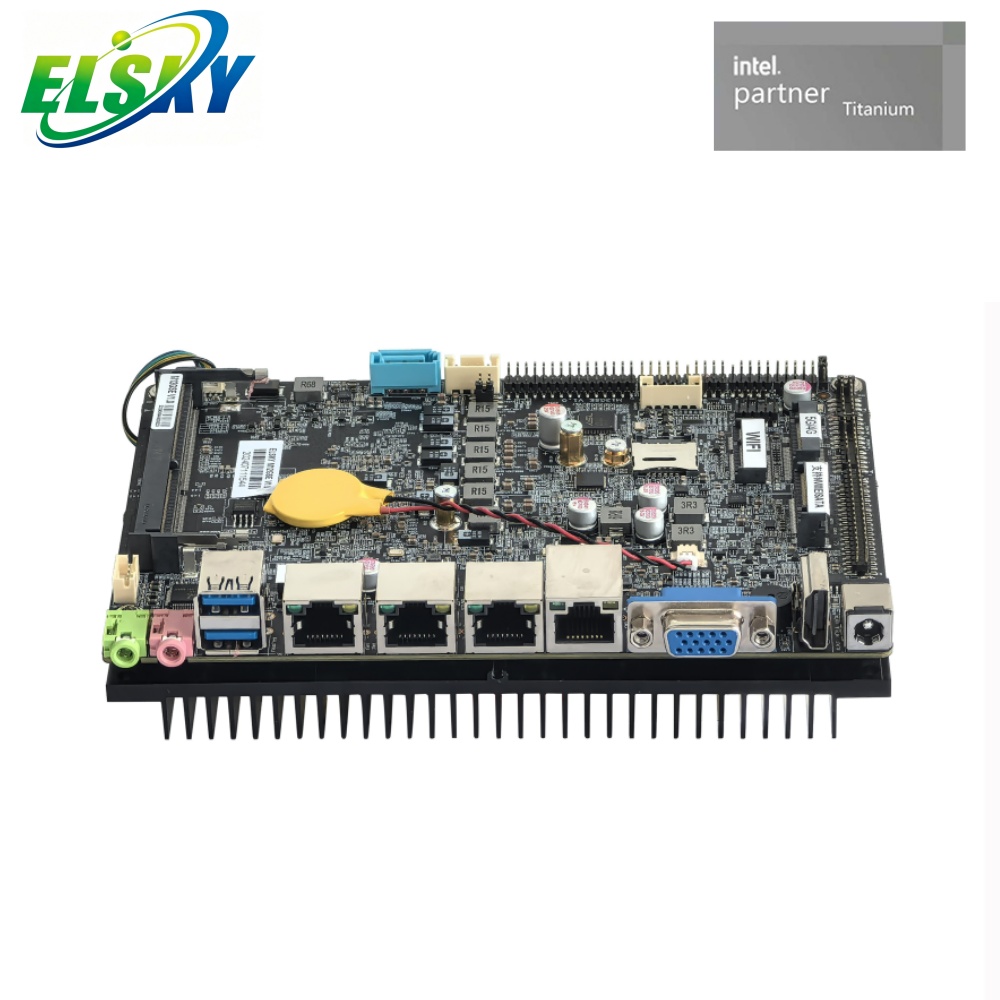

Size | 4 inch motherboard: 165mm(L)*115mm(W)*37mm(H) (including cooling fan height) |
CPU | Supports Intel Alder Lake 12th gen,Raptor Lake 13th gen U/P/H series CPU |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm, supporting 12V/19V The maximum turbo power consumption of the U series CPU is 55W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the P series CPU is 64W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the H series CPU is 115W, and it is recommended to use a 12V 10A or higher power supply; |
| 1*DC_ATX（4Pin）optional | |
Memory | 1*NB-DDR4 memory slot, supports 2133/2400/2666/320MHz memory, maximum support 32GB |
Display function | Integrated Intel UHD Graphics ultra core graphics card, supporting single display, dual display/triple display replication, dual display/triple display expansion, dual display under SHELL |
| 1*VGA DB15 interface | Supports resolution 1920*1080@60Hz |
| 1*HDMI2 2.0 interface (optional) | Supports 4K resolution 4096/3840*2160@60Hz |
| Choose between VGA and HDMI2 signals, default supports VGA |
| 1*HDMI1 2.0 interface | Supports 4K resolution 4096/3840*2160@60Hz |
| 1*LVDS/EDP pin | Supports resolution1920*1080@60Hz （30Pin，2*15Pin，2.0mm） |
| 1*LVDS_PWR pin | LVDS/EDP voltage control pin （6Pin,2*3Pin，2.0mm） |
| 1*INVERT pin | LVDS backlight control pin （6Pin,1*6Pin，2.0mm） |
| Choose between LVDS and EDP signals on the motherboard, EDP uses EDP-B screen cable, supports 4K |
Network function | 2/3/4*RJ45_LAN | Supports Realtek 8125BGS 2.5G network card chip, supports network wake-up and PXE diskless boot function. |
| 1*M2_4G/5G interface | Supports Key-B interface M.2.5G module, can be modified to support 4G module |
| 1*M.2_WIFI interface | Supports PCIE3.0 signal, Key-E interface M.2_2230 WIFI, can be changed to support Bluetooth |
| The 4G/5G module of 3042 specification cannot be connected to the M.2.WIFI module at the same time due to interference. Choose one of the two options; The 5G module of 3052 specification can be connected simultaneously with the M.2_WIFI module without interference; |
Hard disk function | 1*NGFF interface | Supports PCIE4.0 signal, supports Key-M interface default M.2 2280 hard drive, optional M.2 2242 hard drive; Default coexistence of NVME (PCIE) protocol and SATA protocol, automatic switching; |
| 1*SATA1 interface | Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps |
| 1*SATA_PWR pin | Hard drive power supply pin can be powered with 5V or 12V. （4Pin,1*4Pin，2.54mm） |
Sound function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller |
| 1*LINE_OUT interface | Supports audio output (green) |
| 1*MIC_IN interface | Supports microphone input (pink) |
| 1*INT_SPK pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin,1*4Pin，2.0mm） |
USB function | 2/4*USB3.2 interface | Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps |
| 1*F_USB1 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin,25Pin，2.0mm） |
| 1*F_USB2 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin,25Pin，2.0mm） |
| The USB signal of M.2_WIFI and the 2nd/4th/6th/8th/10th pins of F_USB2 are optional. By default, M.2.WIFI has no USB signal and the pins have USB signal |
| M2_4G/5G interface 4G USB signal and F_USB2 pins 1/3/5/7 are optional, default does not support 4G, pins have USB signal |
| After the motherboard is changed to triple network/dual network, choose between the USB 3.0 signal on the USB4 interface upper U port and the 5G signal on the M.2_4G/5G interface. By default, there is a USB 3.0 signal on the USB4 interface (note: 5G requires USB 3.0 signal, 4G requires USB 2.0 signal) |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin,2*5Pin，2.0mm） |
| 1*AUTO_SW pin | Support hardware control for power on and startup （3Pin,1*3Pin，2.0mm） |
Other I/O | 1*COM1 pin | Serial port, supports RS232/RS422/RS485 optional （9Pin,2*5Pin，2.0mm） |
| 1*COM2 pin | Serial port, supports RS232/RS485 optional （9Pin,2*5Pin，2.0mm） |
| 1*COM3-6 pin | Serial port, supports standard RS232 （39Pin,2*20Pin，2.0mm） |
| 1*JPCOM1/2 pin | Control COM1/2 pin 9 voltage 0V/5V/12V optional （6Pin,2*3Pin，2.0mm） |
| 1*MSIM slot | Supports SIM card, SIM card is required when using 4G/5G |
| 1*CLR_CMOS pin | Motherboard reset and discharge pins （3Pin,1*3Pin，2.0mm） |
| 1*CPU_FAN pin | CPU fan pin, supports temperature control （4Pin,1*4Pin，1.25mm） |
| 1*J_GPIO pin | GPIO control pin （10Pin,2*5Pin，2.0mm） |
Operating Environment | Working temperature:-10℃~60℃； Working humidity: 5%~95% relative humidity, no condensation |
BIOS | AMI BIOS,Support power on, timed power on, and intelligent recognition of remote power on/off devices |
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) |
Operating system | Supports Windows 11, Windows 10, Linux, etc |
