Product Advantages:
1. Ultra-compact 100×100mm tiny size, space-saving for embedded equipment
2. Dual CPU platform support: 8th & 10th Gen Intel Comet Lake U-series processors
3. Max 64GB dual DDR4 memory, smooth multi-task operation
4. Dual 4K display output via Mini-DP + HDMI 1.4 for multi-screen expansion
5. Multiple storage options: M.2 2230, mSATA, SATA3 high-speed interfaces
6. Intel Gigabit LAN with PXE & wake-on-LAN for remote management
7. Rich I/O ports: USB3.2, Type-C, audio jack, customizable front panel pins
8. Wide temperature range (-10℃~60℃) with anti-condensation design for industrial use
9. Built-in watchdog timer, AMI BIOS, hardware reset for stable long-running work
10. Multi-system compatibility: Windows 10/11 & all mainstream Linux distributions
11. Flexible power supply: 12V DC-IN or optional 4Pin ATX, total 60W power budget
CPU information：
CPU | CPU brand | CPU model | main frequency | Turbo | CPU Power consumption（W） |
8th gen I3 | Core | 8145U | Dual core 2.1G | 3.9G | 15 |
8th gen I5 | Core | 8365U | Quad core1.6G | 4.1G | 15 |
| | 8265U | Quad core1.6G | 3.9G | 15 |
8th gen I7 | Core | 8565U | Quad core1.8G | 4.6G | 15 |
| | 8665U | Quad core1.9G | 4.8G | 15 |
10th gen I3 | Core | 10110U | Dual core 2.1G | 4.10 G | 15 |
10th gen I5 | Core | 10310U | Quad core1.7G | 4.40 G | 15 |
| Core | 10210U | Quad core1.6G | 4.20 G | 15 |
10th gen I7 | Core | 10510U | Quad core1.8G | 4.90 G | 15 |
| Core | 10610U | Quad core1.8G | 4.90 G | 15 |
| Core | 10810U | Six core1.1G | 4.90 G | 15 |
| Core | 10710U | Six core1.1G | 4.70 G | 15 |

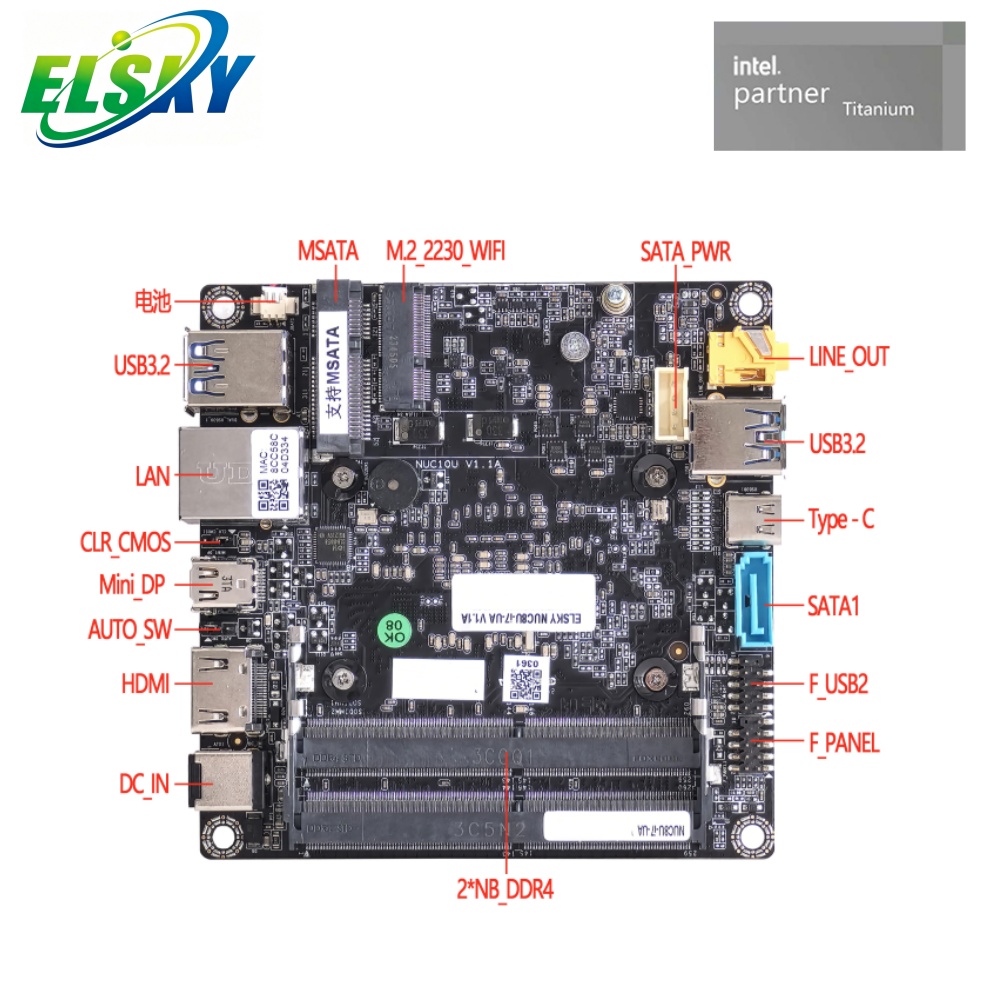

Product specification:
Motherboard size | 100mm（L）*100mm（W）*32mm（H） |
CPU processor | NUC8U | Support 8th gen Comet Lake CPU：I3-8145U、I5-8365U、I7-8665U etc. |
| NUC10U | Support 10th gen Comet Lake CPU：I3-10110U、I5-10210U、I7-10510U etc. |
Power supply | 1*DC_IN （can change to 4Pin ATX） | DC inner diameter of the DC head is 2.5MM and supports 12V The power consumption of the motherboard is about 60W, it is recommended to use a power supply of 12V7A or above |
Ram | 2*NB-DDR4 support 2133/2400/2666MHz memory，max support64G |
Display function | Integrated Intel UHD Graphics super core chip graphic card,Support single display, double display copy, double display extension, DOS single display |
| 1*Mini-DP port | Support 4K resolution4096/3840*2160@60Hz |
| 1*HDMI 1.4 port | Support 4K resolution4096/3840*2160@30Hz |
Network function | 1*LAN port | Intel WGi219V Gigabit network card，Support Network wake-up and PXE function |
| 1*M.2_2230 port | PCIE 3.0 signal,Support Key-E port M.2_2230 WIFI/BT（Bluetooth）etc. |
Hard disk function | 1*MSATA port | Standard SATA3.0 hard disk port，max transmission speed 6.0 Gbps |
| 1*SATA1 port | Standard SATA3.0 hard disk port，max transmission speed 6.0 Gbps |
| 1*SATA_PWR pin | It is hard disk power supply pin and can take the 5V,12V electricity. （4Pin，1*4Pin，2.54mm） |
sound function | Integrated Cmedia HS_100B USB Audio chip |
| 1*LINE_OUT port | Support LINE_OUT output and MIC_IN input |
| Motherboard HDMI port support HDMI Display audio output |
| Motherboard Mini-DP port support DP Display audio output |

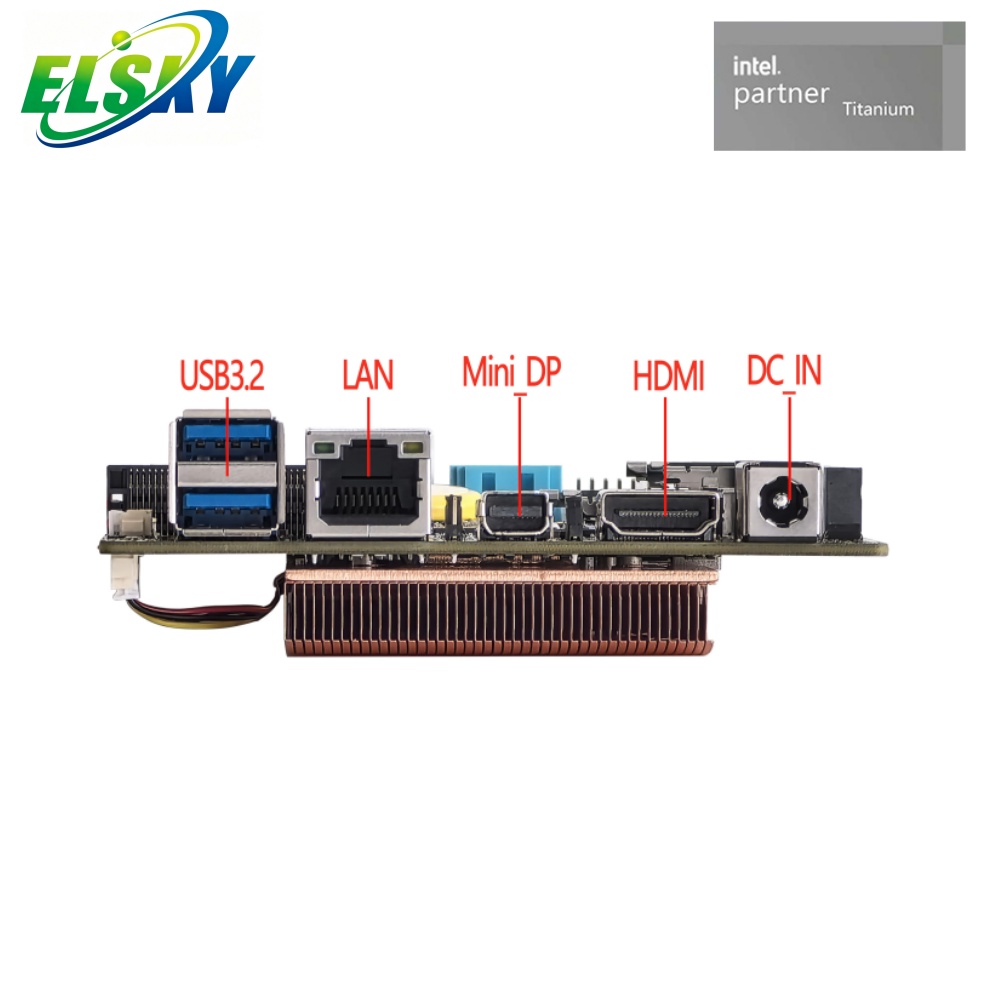

USB function | 3*USB3.2 port | Rear standard USB3.2 Gen1 port, The maximum transmission broadband band is 5 Gbps |
| 1*Type -C port | Standard Type-C 3.0 port，can connect USB device, display function is not supported |
| 1*F_USB2 pin | Front USB2.0 pin，one group has 2*USB2.0 （9Pin，2*5Pin，2.0mm） |
switch function | 1*F_PANEL pin | switch、power LED、 Hard disk LED、restart pin （9Pin，2*5Pin，2.0mm） |
| 1*AUTO_SW pin | hardware control power on pin （3Pin，1*3Pin，2.0mm） |
Other I/O | 1*CLR_CMOS pin | Motherboard zero clearing, discharge pin （3Pin，1*3Pin，2.0mm） |
| 1*CPU_FAN pin | CPU fan pin，support temperature control （4Pin，1*4Pin，1.25mm） |
Operating environment | working temperature ：-10℃~60℃； Working humidity：5%~95% relative humidity， No condensation |
BIOS | AMI BIOS，Support Power up，RTC，Intelligent identification of remote switching equipment |
Watch Dog | Watchdog programming，Support Hardware reset function（256level，0~255second） |
operating system | Support Windows 10，Windows 11，Linux etc. |
