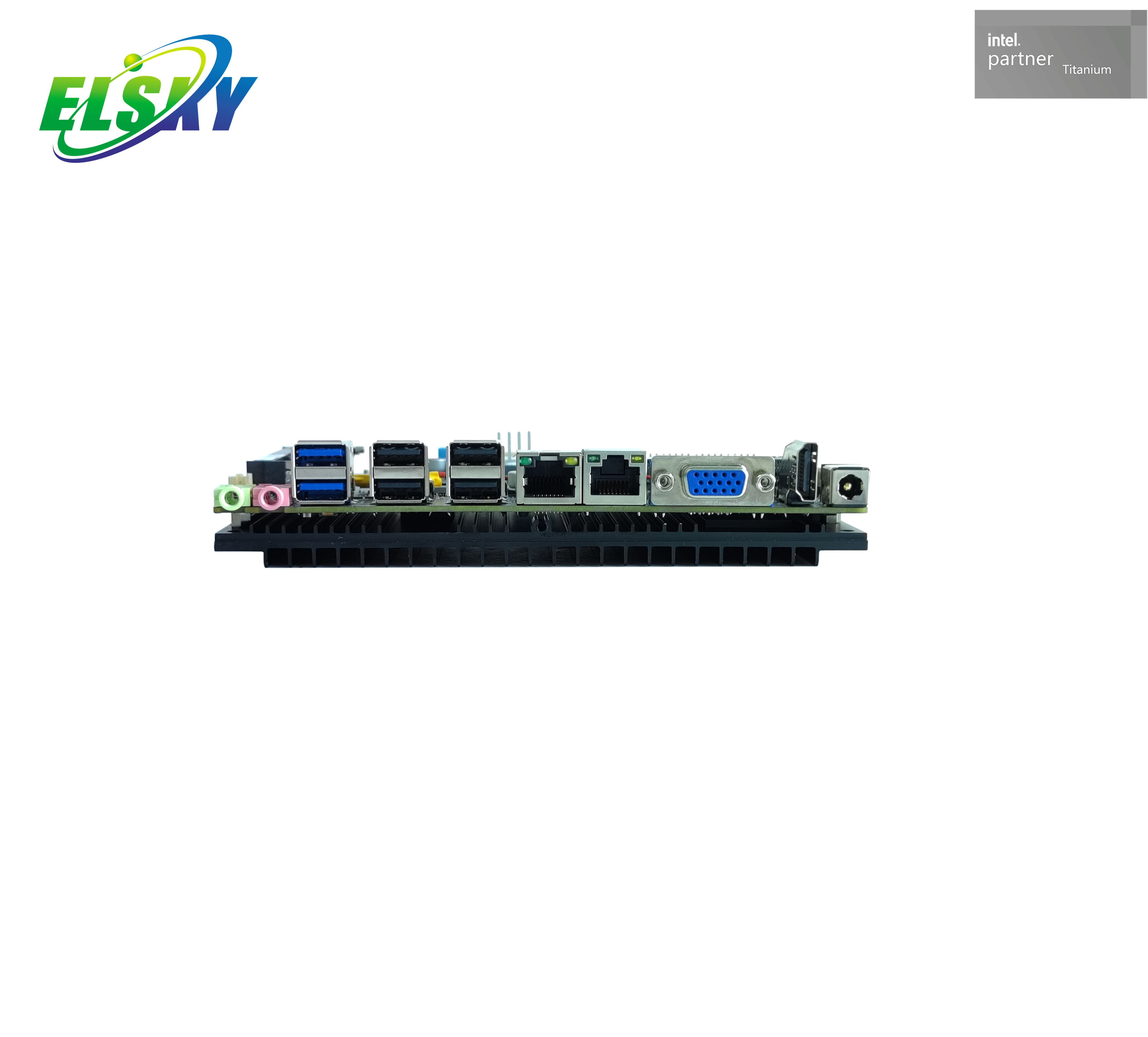

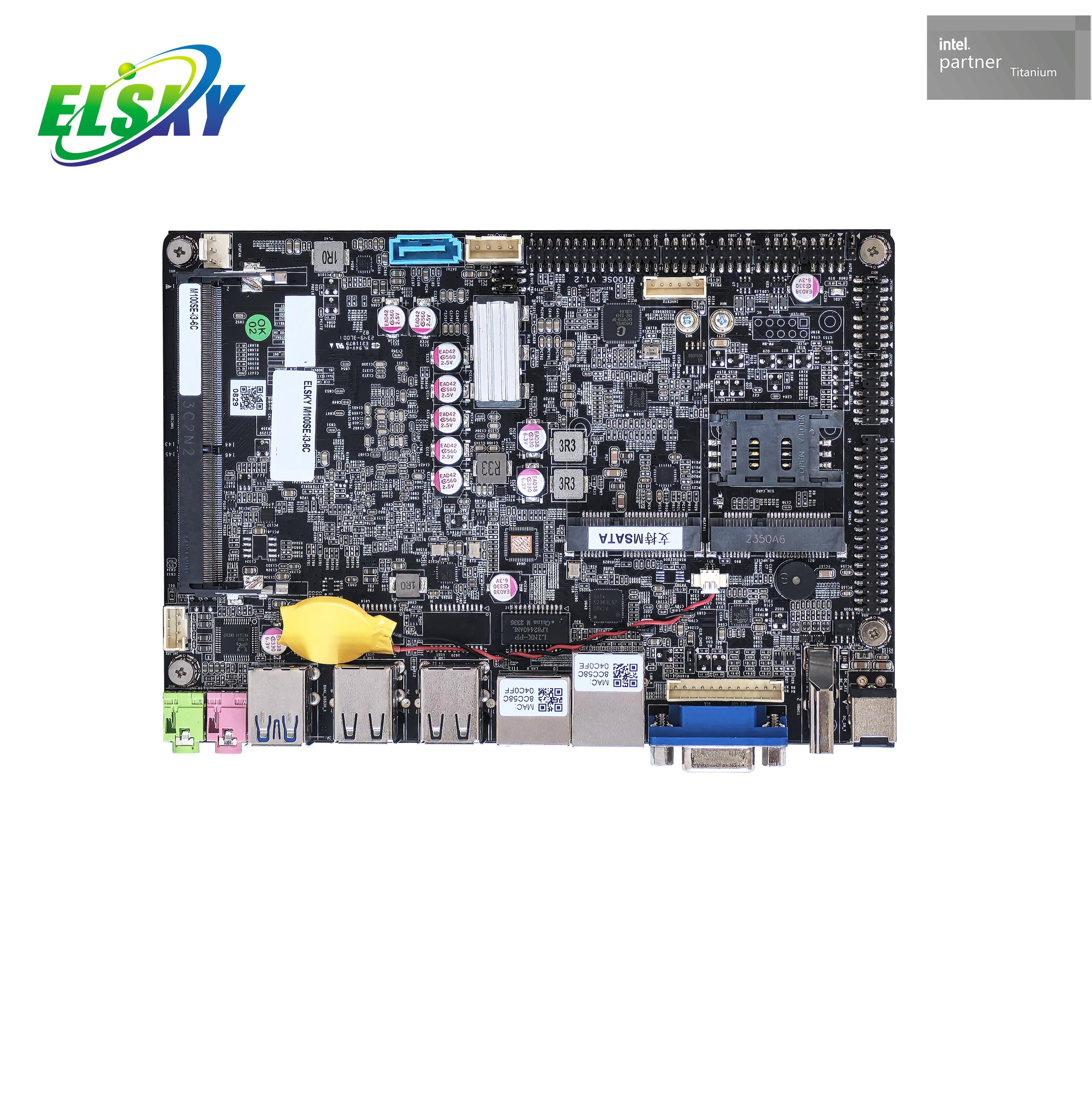

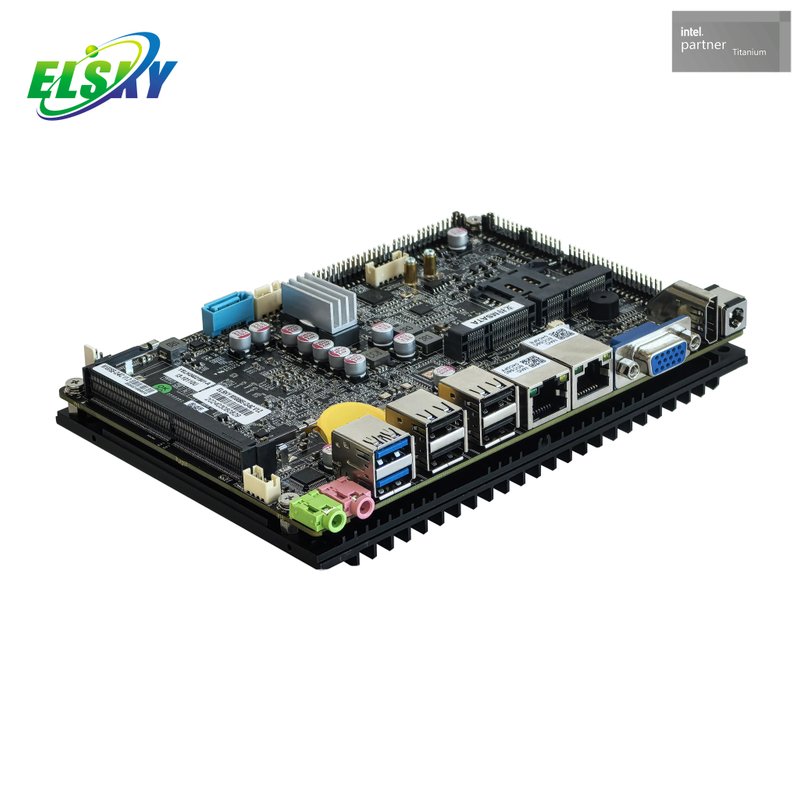

Motherboard size:4inch;165*115*31mm
Application:industry machine
CPU:Intel 8gen,10gen core i3 i5 i7
| Availability: | |
|---|---|
| Quantity: | |
M100SE
ELSKY
Feature:
Power supply interface:
The DC interface specification of the motherboard is 5.5*2.5, and the power supply can be changed to 4Pin TX interface;
The mainboard supports 12V power supply only. Full load power consumption is about 60W, 12V7A or above power supply is recommended;
Display interface:
1, motherboard VGA, HDMI, LVDS/EDP support single display, double display/triple display replication, double display/triple display extension, DOS single display;
2, the motherboard support vertical 1.4 HDMI interface, support 4K output; Support resolution 4096/3840*2160@30Hz;
3, the motherboard LVDS and EDP signal two options, the default support LVDS, can be changed to support EDP, pin sharing, EDP with EDP-B screen line (20Pin backlight separate independent);
Mini-PCIE:
By default, the MSATA port on the mainboard supports SATA disks. No USB signal and cannot be changed to co-exist with USB signal, SATA signal can be changed to PCIE signal, after the change to support WiFi module;
By default, the Mini-PCIE port on the mainboard has PCIE signals but no USB signals. By default, only the WIFI module is supported. It can coexist with USB signals and support 4G/ Bluetooth /WIFI modules after modification. The 2/4/6/8/10 F_USB2 pin has no signal and the Mini-PCIE interface cannot change SATA signals.
USB interface:
The motherboard supports 10USB (2*USB3.0, 8*USB2.0) by default, and 9USB after changing to support 4G/ Bluetooth;
All USB ports and pins on the motherboard default S power (no power after shutdown), external USB ports can be changed to A power (power after shutdown), built-in USB pins can not change A power;
COM port:
Motherboard support 6*COM port, default support RS232; COM1 supports RS232/422/485 optional, which is set through the BIOS (page 21).
Mainboard COM1/2 pin 9 can be set through JPCOM1/2 power 0V/5V/12V, the default is 0V;
Network card:
The motherboard supports intel i225-LM dual gigabit network card, three gigabit network card, four gigabit network card optional; POE power supply cannot be changed.
Sound card:
The motherboard supports Realtek sound card by default, not USB sound card;
CPU Information
CPU spec | CPU brand | CPU model | Base Frequency | Turbo Frequency | CPU TDP（W） | Full load power consumption（W） |
8gen I3 | core | 8145U | Dual core 2.1G | 3.9G | 15 | 60 |
8gen I5 | core | 8365U | Quad core 1.6G | 4.1G | 15 | 60 |
8265U | Quad core 1.6G | 3.9G | 15 | 60 | ||
8gen I7 | core | 8665U | Quad core 1.9G | 4.8G | 15 | 60 |
10gen I3 | core | 10110U | Dual core 2.1G | 4.1G | 15 | 60 |
10gen I5 | core | 10310U | Quad core 1.7G | 4.4G | 15 | 60 |
core | 10210U | Quad core 1.6G | 4.2G | 15 | 60 | |
10gen I7 | core | 10510U | Quad core 1.8G | 4.9G | 15 | 60 |
core | 10610U | Quad core 1.8G | 4.9G | 15 | 60 | |
core | 10810U | Six core 1.1G | 4.9G | 15 | 60 | |
core | 10710U | Six core 1.1G | 4.7G | 15 | 60 |

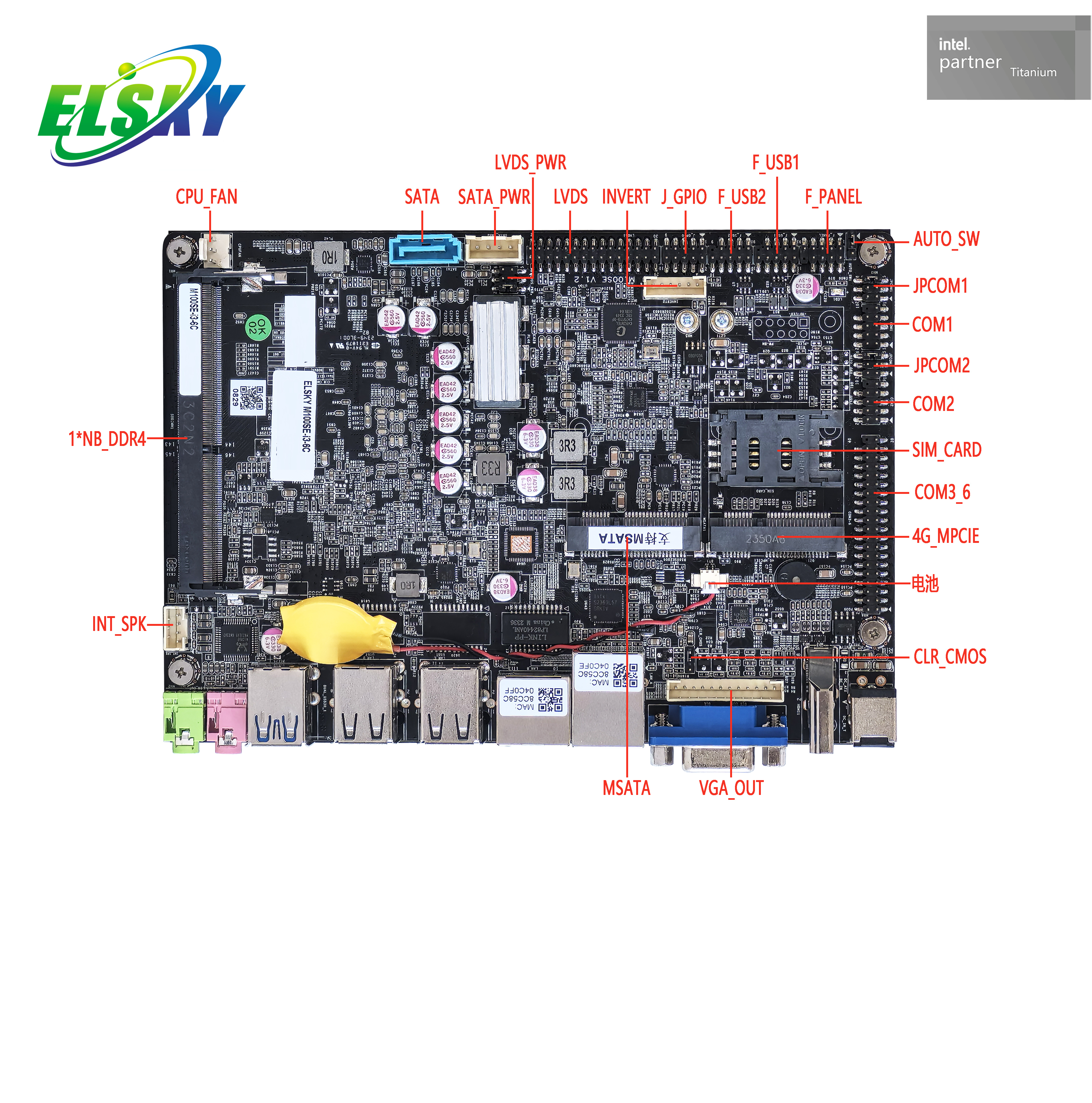

Sepcification
Motherboard size | 4 inch motherboard 165mm（L）*115mm（W）*31mm（H） | |
CPU processor | Support 8 gen Whiskey Lake CPU：I3-8145U、I5-8265U、I7-8665U Etc. | |
Support 10 gen Comet Lake CPU：I3-10110U、I5-10210U、I7-10510U Etc. | ||
Chipset | Haswell-U、Broadwell-U high speed chipset | |
Power | 1*DC_IN Can change to 1*ATX（4Pin） | The inner diameter of the DC head is 2.5MM and supports 12V Full load power consumption of the motherboard is about 60W. 12V7A or above power supply is recommended |
Memory | 1*NB-DDR4 memory slots supporting 2133 MHZ, 2400 MHZ, and 2666MHz memory, up to 32GB | |
Display | Integrated Intel UHD Graphics hypercore graphics card, support single display, double display/triple display copy, double display/triple display extension, DOS single display | |
1*VGA DB15 interface | Support resolution 1920 * 1080@60Hz | |
1*VGA_OUT pin | Support resolution 1920 * 1200@60Hz （12Pin，1*12Pin，2.0mm） | |
1*HDMI 1.4 interface | Support 4K resolution 4096/3840 * 2160@30Hz | |
1*LVDS pin | Support resolution 1920 * 1080@60Hz （30Pin,2*15Pin，2.0mm） | |
1*LVDS_PWR pin | LVDS Voltage control pin （6Pin,2*3Pin，2.0mm） | |
1*INVERT pin | LVDS Backlight control pins （6Pin,1*6Pin，2.0mm） | |
Mainboard LVDS and EDP signal two options, the default support LVDS, can be changed to support EDP, pin sharing | ||

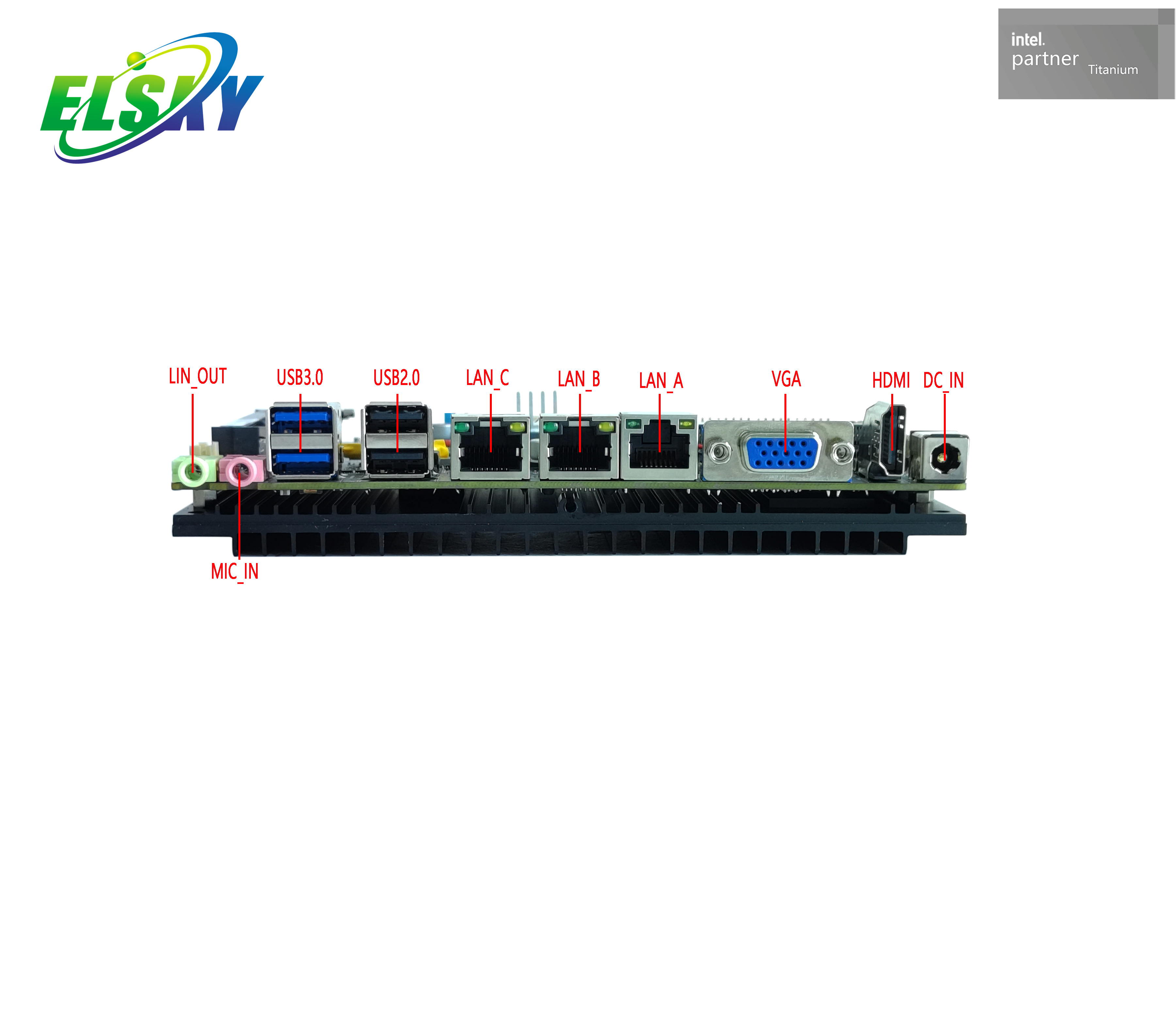

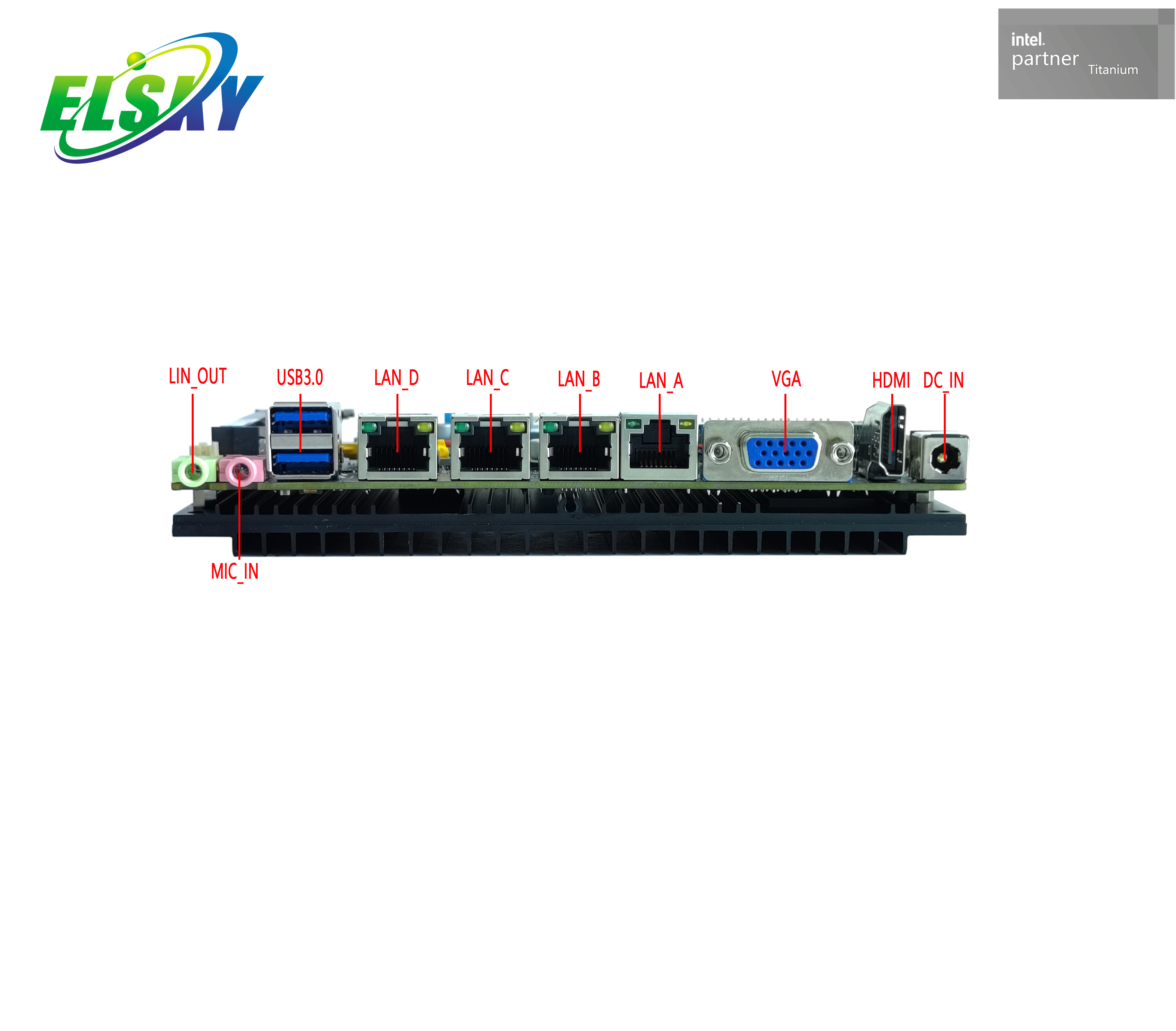

Network | 2*LAN/3*LAN/4*LAN | It supports Intel i226-V gigabit network adapter chips and supports network wake up and PXE diskless startup. |
1*4G_MPCIE interface | Support WIFI, can be changed to support 3G/4G/ Bluetooth /WIFI, etc | |
Hard disk | 1*MSATA interface | Support MINI_SATA，support MSATA3.0 |
1*SATA1 interface | Standard SATA3.0 hard disk interface, max transmission speed 6.0 Gbps | |
1*SATA_PWR pin | The hard disk power supply pins provide 5V or 12V power. （4Pin,1*4Pin，2.54mm） | |
Sound function | Integrated Realtek ALC897 HD digital audio decoder with 6-channel hi-fi audio controller | |
1*LINE_OUT interface | Audio output support (green) | |
1*MIC_IN interface | Support microphone input (pink) | |
1*INT_SPK pin | Power amplifier support 8 OH5 watt speaker dual channel output （4Pin,1*4Pin，2.0mm） | |
USB | 2*USB3.0 interface | A standard USB3.0 port is installed at the rear |
4*USB2.0 interface | A standard USB2.0 port is installed at the rear | |
1*F_USB1 pin | Front USB2.0 pins, a set of 2*USB2.0 （9Pin,2*5Pin，2.0mm） | |
1*F_USB2 pin | Front USB2.0 pins, a set of 2*USB2.0 （9Pin,2*5Pin，2.0mm） | |
The USB signal for Mini-PCIE and F_USB2 2/4/6/8/10 are optional. By default, Mini-PCIE has no USB signal | ||
Switching function | 1*F_PANEL pin | Switch, power indicator, hard disk indicator, restart pin （9Pin,2*5Pin，2.0mm） |
1*AUTO_SW pin | Supports hardware control power-on and power-on （3Pin,1*3Pin，2.0mm） | |
Other I/O | COM1 pin | Com port, RS232, RS422, or RS485 Optional （9Pin,2*5Pin，2.0mm） |
COM2 pin | Comport,supporting standard RS232 （9Pin,2*5Pin，2.0mm） | |
COM3~6 pin | Comport,supporting standard RS232 （39Pin,2*20Pin，2.0mm） | |
1*JPCOM1/2 pin | Control COM1/2 pin 9 Voltage 0V/5V/12V Optional （6Pin,2*3Pin，2.0mm） | |
1*SIM slot | Support SIM card, 3G/4G need SIM card | |
1*CLR_CMOS pin | Motherboard reset and discharge pins （2Pin,1*2Pin，2.0mm） | |
1*CPU_FAN pin | CPU fan pins: Full speed, temperature control is not supported （3Pin,1*3Pin，2.54mm） | |
1*J_GPIO pin | GPIO control pin （10Pin,2*5Pin，2.0mm） | |
Operating environment | Operating temperature：-10℃~60℃； Operating humidity: 5% to 95% relative humidity, no condensation | |
BIOS | AMI BIOS supports power-on and power-on, timed power-on, and intelligent identification of remote power-on and power-off devices | |
Watch Dog | Watch dog programming, support hardware reset function (256 level, 0~255 seconds) | |
OS | Support Windows 10，Windows 11，Linux Etc. | |
FAQ
Power Supply Interface:
DC Interface:5.5*2.5mm, with an option to switch to a 4Pin ATX interface.
Power Requirements: Supports 12V input only, with recommended power supply of 12V7A or higher. Full load power consumption is around 60W.
Display Interface:
Supports VGA, HDMI, LVDS/EDP for single, double, or triple display configurations.
HDMI 1.4 supports 4K output at 4096/3840*2160@30Hz.
LVDS/EDP Signal: Default is LVDS, but can be switched to EDP with pin sharing; EDP uses a separate backlight.
Mini-PCIE:
MSATA Port: Supports SATA disks by default; can be modified to support WiFi by changing the SATA signal to PCIe.
Mini-PCIE Port: Supports PCIe signals by default, and can coexist with USB signals to support 4G, Bluetooth, or WiFi modules after modification.
USB Interface:
Ports: 10 USB ports by default (2x USB 3.0, 8x USB 2.0), with 9 ports when supporting 4G/Bluetooth.
Power:All USB ports default to S power (no power after shutdown), but external USB ports can be set to A power (power on after shutdown). Built-in USB pins do not support A power.
COM Ports:
Supports 6 COM ports, with COM1 being configurable for RS232/422/485 through BIOS.
COM1/2 Pin Configuration: Supports power settings for 0V/5V/12V.
Network:
Dual Gigabit Ethernet:Default configuration is Intel i225-LM; optional 3 or 4 Gigabit NICs.
POE Support:Not changeable.
Sound Card:
Audio: Integrated Realtek ALC897 HD sound card with 6-channel audio output. No USB sound card support.
CPU Specifications:
Supports 8th and 10th generation Intel Core CPUs, with base frequencies ranging from 1.1 GHz to 2.1 GHz, and turbo frequencies up to 4.9 GHz.
TDP for all CPUs is 15W, and full load power consumption is approximately 60W.
Additional Specifications:
Motherboard Size:165mm x 115mm x 31mm.
Memory Support: 1 DDR4 slot supporting up to 32GB.
Chipset: Haswell-U, Broadwell-U chipset support.
Display Options:
VGA, HDMI, LVDS: Supports resolutions up to 4K, with VGA offering up to 1920x1080 at 60Hz and HDMI up to 4096x2160 at 30Hz.
Network and Storage:
Network Interfaces: Multiple LAN options (2, 3, or 4 Gigabit Ethernet ports).
Storage: Supports MSATA, SATA interfaces, with speeds up to 6Gbps for SATA3.0.
4G Support: Through a mini-PCIE interface.
Operating Environment:
Temperature Range: -10°C to 60°C.
Humidity: 5% to 95% relative humidity (no condensation).
BIOS and Watchdog:
BIOS:Supports features like power-on, timed power-on, and remote device identification.
Watchdog: Hardware reset support with programmable intervals (0-255 seconds).
OS Support:
Compatible with Windows 10, Windows 11, and Linux
