M12GSE
ELSKY

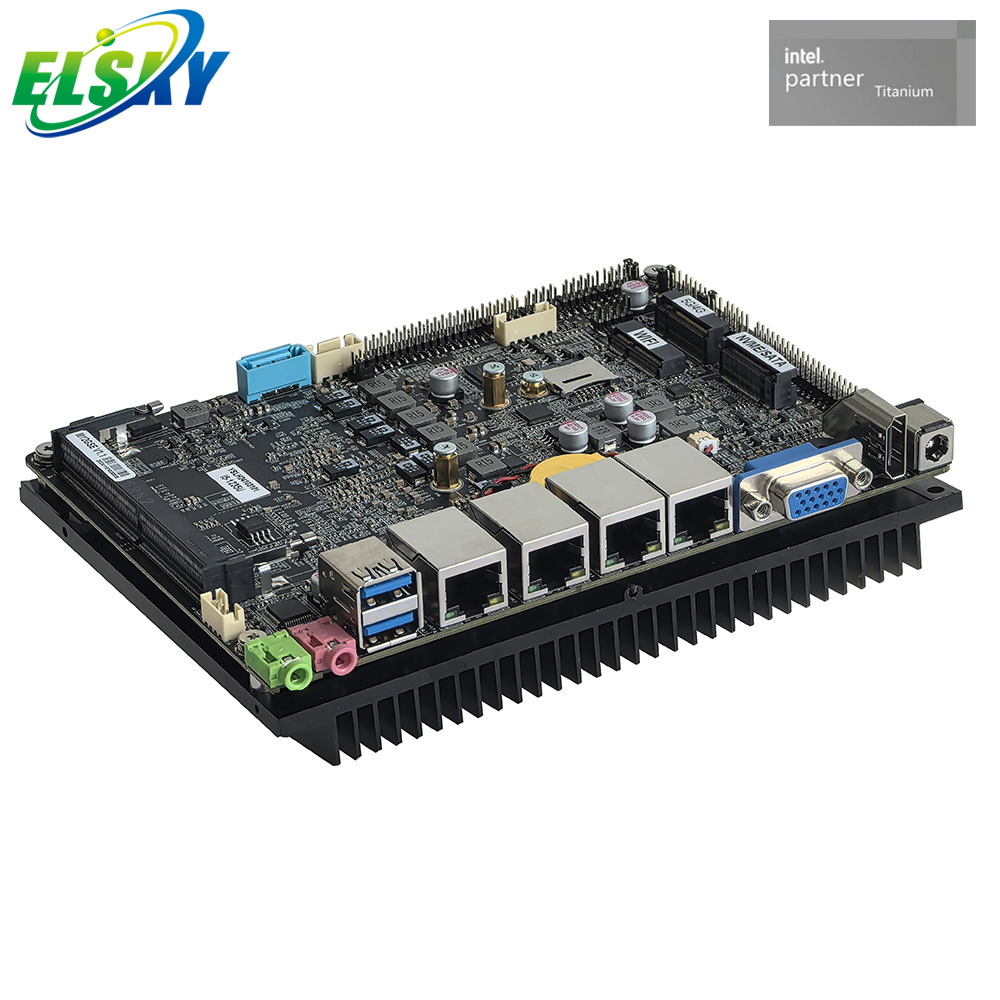

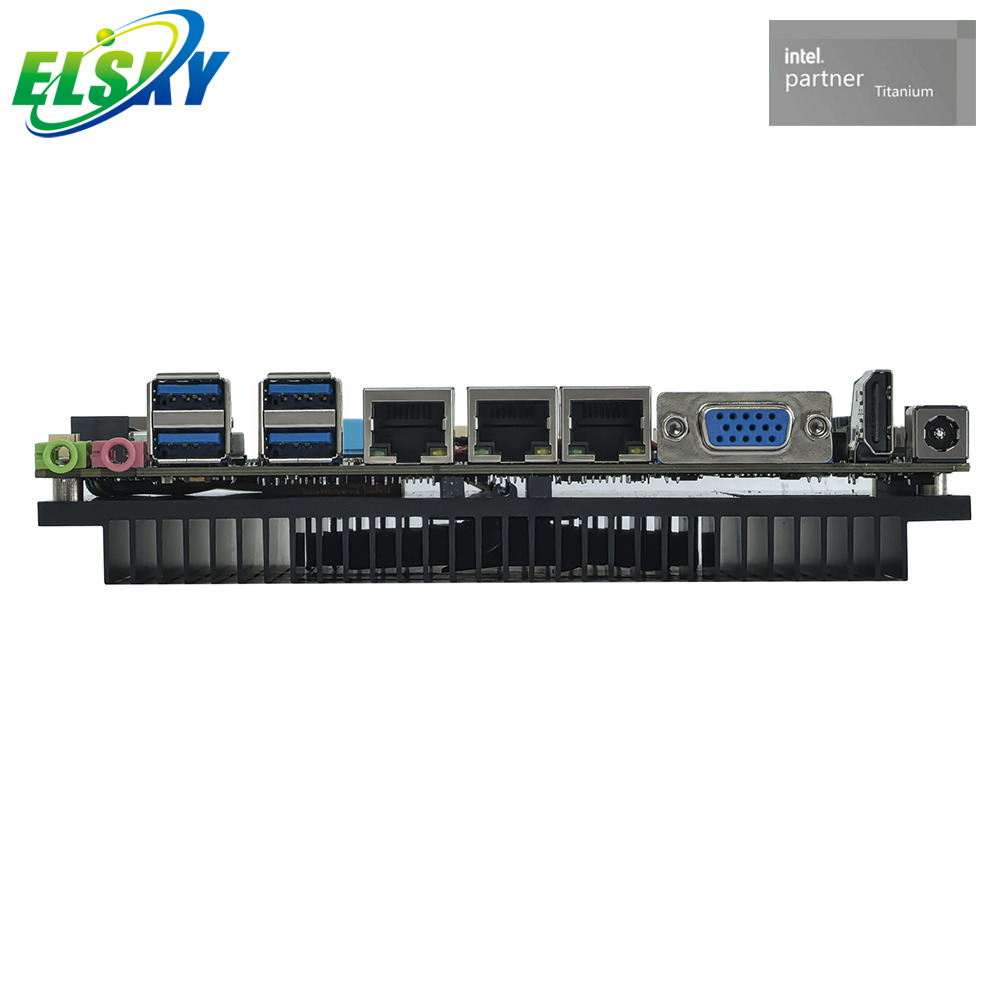

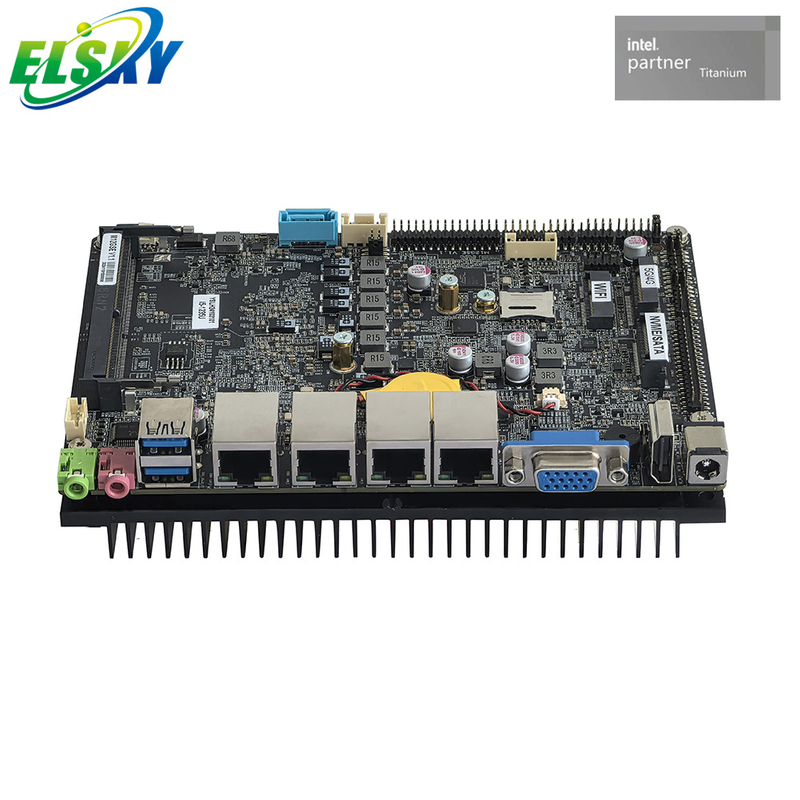

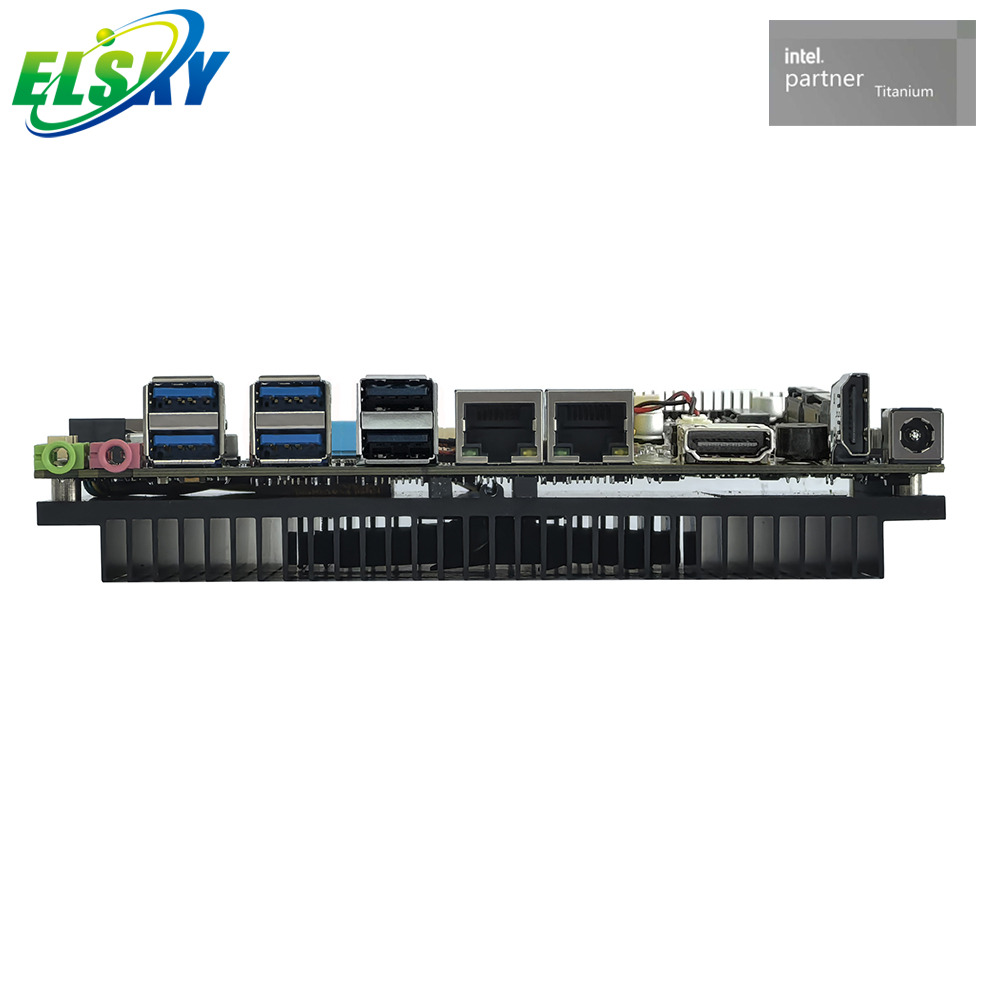

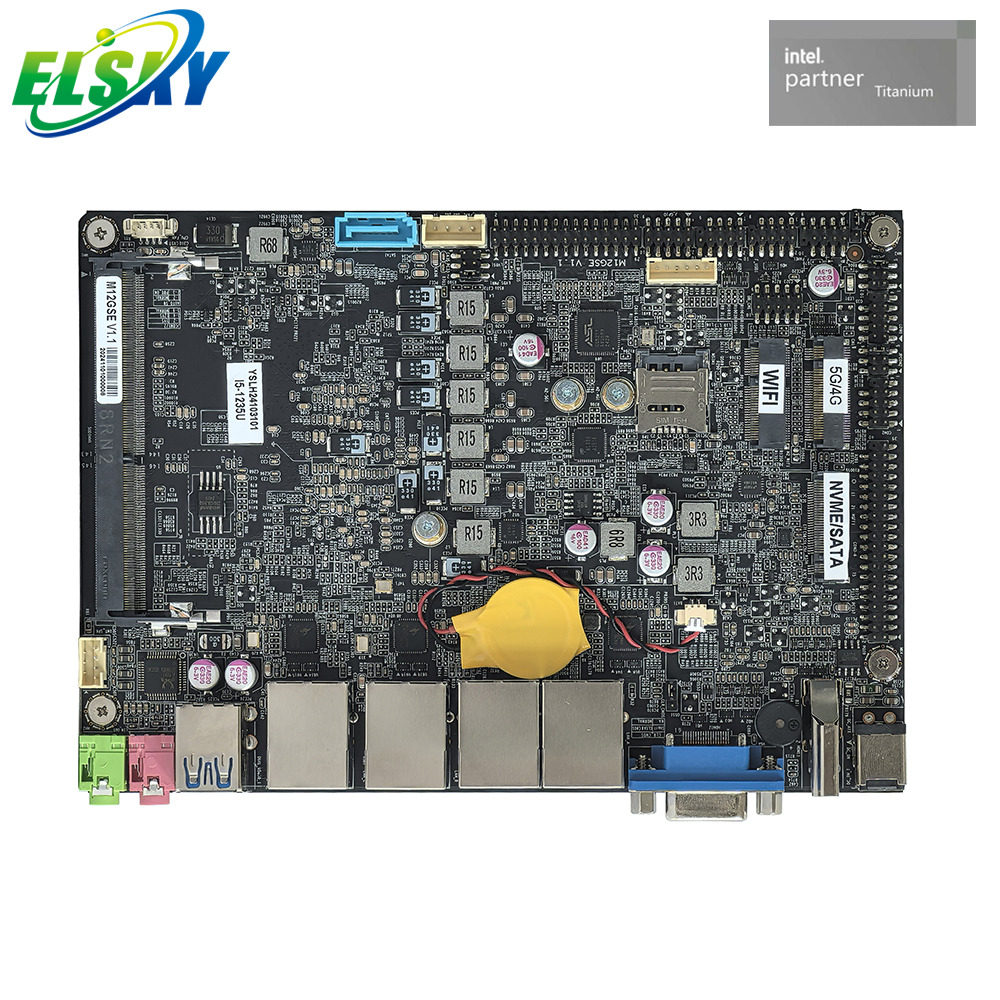

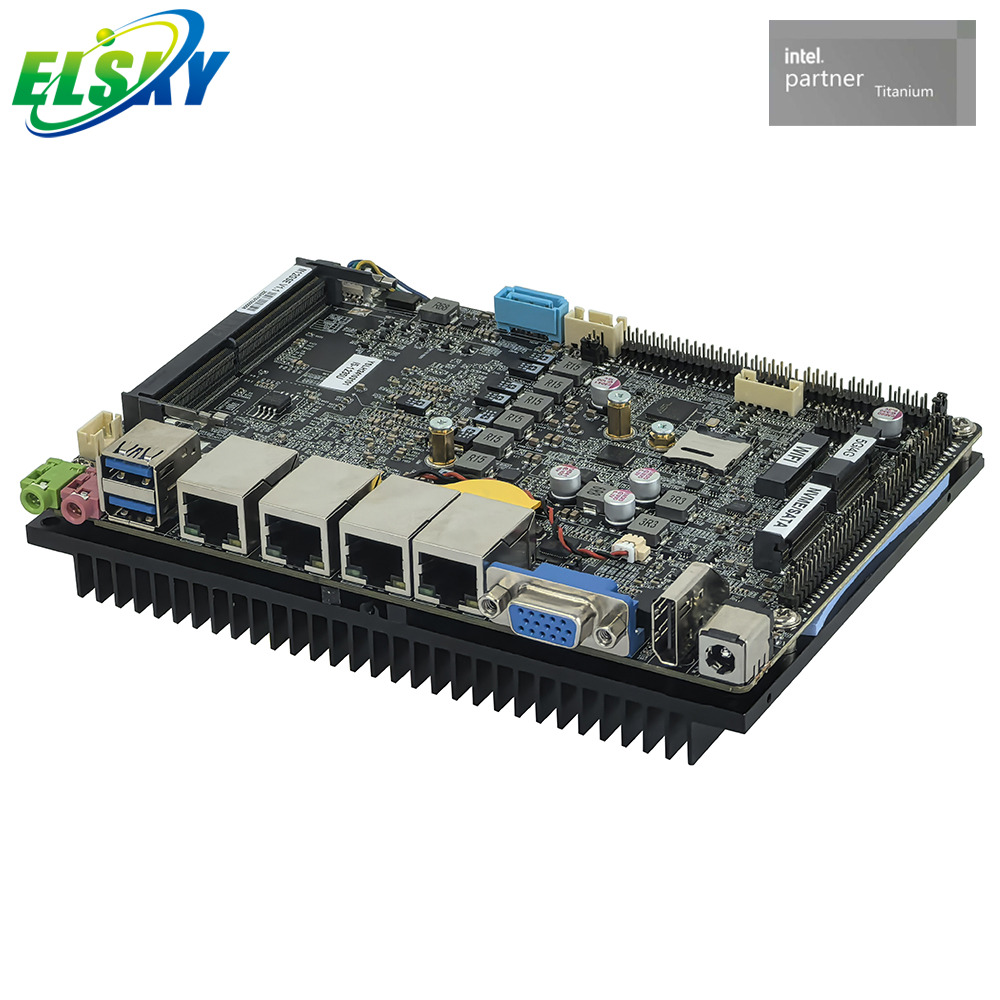

The Versatile M12GSE Motherboard is a feature - rich and adaptable solution designed to meet the diverse needs of various computing devices. From compact mini - PCs and industrial control systems to multimedia centers, this motherboard offers a balanced combination of performance, connectivity, and energy efficiency. Its modular design and wide range of supported components make it a flexible choice for both consumer and commercial applications, enabling users to build customized systems tailored to their specific requirements.
Broad Component Compatibility: The M12GSE motherboard is engineered to support a wide variety of processors, memory modules, and storage devices. It is compatible with both low - power and high - performance CPUs, allowing for the creation of systems optimized for different usage scenarios, from energy - efficient home media servers to powerful office workstations.
Integrated Graphics and Display Options: Featuring integrated graphics with support for multiple display outputs, including HDMI, VGA, and DisplayPort, the motherboard provides sufficient graphical performance for everyday tasks such as web browsing, video playback, and office work. It also supports multi - monitor setups, enhancing productivity and multitasking capabilities.
Rich I/O Interface: The motherboard comes with an extensive I/O interface, including USB 3.0, USB 2.0, Ethernet, audio jacks, and serial ports. This comprehensive connectivity allows for easy connection to a wide range of peripherals, such as keyboards, mice, printers, and network devices, making it suitable for a variety of applications.
Energy - Efficient Design: With advanced power management features, the M12GSE motherboard optimizes power consumption based on the system's workload. This not only helps reduce electricity costs but also extends the lifespan of the components by minimizing heat generation. The energy - efficient design makes it an ideal choice for devices that require continuous operation, such as network storage servers and industrial control units.
Mini - PCs and Home Media Centers: For users looking to build compact and energy - efficient mini - PCs or home media centers, the M12GSE motherboard is an excellent option. Its integrated graphics and multiple display outputs support seamless video playback on high - definition TVs, and the rich I/O interface allows for easy connection of media devices like Blu - ray players and gaming consoles.
Industrial Control Systems: In industrial automation and control applications, the motherboard's reliability, wide temperature range support, and diverse connectivity options make it a suitable choice. It can be integrated into industrial control panels, robotics systems, and factory automation equipment, ensuring stable and efficient operation in harsh industrial environments.
Office and Educational Computing: For office use and educational institutions, the M12GSE provides a cost - effective and reliable computing solution. Its performance is sufficient for running office productivity software, web applications, and educational programs, and the multiple display support enables teachers to conduct interactive lessons with ease.
Adaptable Design Philosophy: We understand that different applications have unique requirements. The M12GSE motherboard's adaptable design allows it to be customized and configured to meet the specific needs of various devices. Our team can provide guidance and support to help you select the right components and optimize the system for your intended use.
Quality and Reliability: We use only high - quality components in the manufacturing of the M12GSE motherboard. Each unit undergoes rigorous testing to ensure its stability, compatibility, and durability. Our commitment to quality ensures that the motherboard can withstand the rigors of continuous use in different environments, providing you with a reliable computing foundation.
Technical Support and Documentation: We offer comprehensive technical support and detailed documentation for the M12GSE motherboard. Our technical team is available to answer your questions, assist with installation and configuration, and provide troubleshooting support. The detailed user manuals and online resources make it easy for both novice and experienced users to set up and maintain their systems.
Competitive Pricing: Despite its advanced features and high - quality construction, the M12GSE motherboard is offered at a competitive price. We strive to provide cost - effective solutions without compromising on performance or quality, making it accessible to a wide range of users, from individual consumers to large - scale enterprises.
Motherboard model | CPU | 4K | LAN | COM | USB2.0 | USB3.2 | Memory | SSD | Power |
4-inch motherboard M12GSE | Support Intel Alder Lake 12th generation U/P/H series i3, i5, i7, i9 Support Intel Raptor Lake 13th generation U/P/H series i3, i5, i7, i9 | support | 2 | 6 | 6 | 4 | 1*NB-DDR4 32G (MAX) | 1*M.2 1*SATA | +12V/19V |
3 | 6 | 4 | 4 | ||||||
4 | 6 | 4 | 2 | ||||||
| The default setting of the quad-network motherboard is 6*USB available, and 4*USB can be available after supporting M.2 4G and Bluetooth | |||||||||
>> CPU information
CPU Specifications | CPU Brand | CPU Model | Cores/Threads | Frequency | Turbo | CPU basic power consumption (W) | Maximum turbo power consumption (W) |
12th Generation I3 | Core | 1215U | Six cores and eight threads | 1.2G | 4.4G | 15 | 55 |
12th generation I5 | Core | 1235U | Ten cores and twelve threads | 1.3G | 4.4G | 15 | 55 |
1245U | Ten cores and twelve threads | 1.6G | 4.4G | 15 | 55 | ||
12th Generation I7 | Core | 1265U | Ten cores and twelve threads | 1.8G | 4. 8 G | 15 | 55 |
1255U | Ten cores and twelve threads | 1.7G | 4.7 G | 15 | 55 | ||
13th Generation I3 | Core | 1305U | Five cores and six threads | 1.6 G | 4.5G | 15 | 55 |
1315U | Six cores and eight threads | 1.2 G | 4.5G | 15 | 55 | ||
13th Generation I5 | Core | 1334U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 |
1335U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 | ||
1345U | Ten cores and twelve threads | 1.6G | 4.7G | 15 | 55 | ||
13th Generation I7 | Core | 1355U | Ten cores and twelve threads | 1.7G | 5.0G | 15 | 55 |
1365U | Ten cores and twelve threads | 1.8G | 5.2G | 15 | 55 | ||
12th Generation I3 | Core | 1220P | Ten cores and twelve threads | 1.5G | 4.4G | 28 | 64 |
12th generation I5 | Core | 1240P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 |
1250P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 | ||
12th Generation I7 | Core | 1280P | Fourteen cores and twenty threads | 1.8G | 4. 8 G | 28 | 64 |
1260 P | Twelve cores and sixteen threads | 2.1G | 4.7 G | 28 | 64 | ||
1270 P | Twelve cores and sixteen threads | 2.2G | 4. 8 G | 28 | 64 | ||
13th Generation I5 | Core | 1340P | Twelve cores and sixteen threads | 1.8G | 4.6G | 28 | 64 |
1350P | Twelve cores and sixteen threads | 1.9G | 4.7G | 28 | 64 | ||
13th Generation I7 | Core | 1360P | Twelve cores and sixteen threads | 2.2G | 5.0G | 28 | 64 |
1370P | Fourteen cores and twenty threads | 1.9G | 5.2G | 28 | 64 | ||
12th generation I5 | Core | 12450H | Eight cores and twelve threads | 2.0G | 4.4G | 45 | 95 |
12500H | Twelve cores and sixteen threads | 2.5G | 4.5G | 45 | 95 | ||
12600H | Twelve cores and sixteen threads | 2.7G | 4.5G | 45 | 95 | ||
12th Generation I7 | Core | 12650H | Ten cores and sixteen threads | 2.3G | 4.7G | 45 | 115 |
12700H | Fourteen cores and twenty threads | 2.7G | 4.7 G | 45 | 115 | ||
12800H | Fourteen cores and twenty threads | 2.4G | 4. 8 G | 45 | 115 | ||
12th Generation I9 | Core | 12900H | Fourteen cores and twenty threads | 2.5G | 5.0G | 45 | 115 |
13th Generation I5 | Core | 13420H | Eight cores and twelve threads | 2.1G | 4.60G | 45 | 95 |
13500H | Twelve cores and sixteen threads | 2.6G | 4.70G | 45 | 95 | ||
13600H | Twelve cores and sixteen threads | 2.8G | 4.80G | 45 | 95 | ||
13th Generation I7 | Core | 13620H | Ten cores and sixteen threads | 2.4G | 4.90G | 45 | 115 |
13700H | Fourteen cores and twenty threads | 2.4G | 5.00G | 45 | 115 | ||
13800H | Fourteen cores and twenty threads | 2.5G | 5.20G | 45 | 115 | ||
13th Generation I9 | Core | 13900H | Fourteen cores and twenty threads | 2.6G | 5.40G | 45 | 115 |
>> Product Specifications
Motherboard size | 4-inch motherboard 165mm (L) * 115mm (W) * 37mm (H) (including cooling fan height) | |
CPU Processor | Support Intel Alder Lake 12th generation, Raptor Lake 13th generation U/P/H series CPU | |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM, supporting 12V/19V The maximum turbo power consumption of the U series CPU is 55W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the P series CPU is 64W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the H series CPU is 115W, and it is recommended to use a 12V 10A or higher power supply; |
1*DC_ATX (4Pin) optional | ||
Memory | 1*NB-DDR 4 memory slot, supports 2133/2400/2666/3200MHz memory , maximum support 32 GB | |
Display functions | Integrated Intel UHD Graphics ultra-core graphics card , supports single display, dual display/triple display copy, dual display/triple display expansion, dual display under SHELL | |
1*VGA DB15 interface | Support resolution 1920 * 1080@60Hz | |
1*HDMI2 2.0 interface (optional) | Support 4K resolution 4096/3840 * 2160@60Hz | |
VGA and HDMI2 signals are available, VGA is supported by default | ||
1*HDMI1 2.0 interface | Support 4K resolution 4096/3840 * 2160@60Hz | |
1*LVDS/EDP pin | Support resolution 1920*1080@60 Hz (30Pin, 2*15Pin, 2.0mm) | |
1*LVDS_PWR pin | LVDS/EDP voltage control pin (6Pin, 2*3Pin, 2.0mm) | |
1*INVERT pin | LVDS backlight control pin (6Pin, 1*6Pin, 2.0mm) | |
Choose between motherboard LVDS and EDP signals, EDP uses EDP-B screen cable, supports 4K | ||
Network Features | 2/3/4*RJ45_LAN | Supports Realtek 8125BGS 2.5G network card chip , supports network wake-up and PXE diskless boot functions . |
1*M2_4G/5G interface | Supports Key-B interface M.2_5G module, can be changed to support 4G module | |
1*M.2_WIFI interface | Support PCIE3.0 signal, support Key-E interface M.2_2230 WIFI, can be changed to support Bluetooth | |
The 3042 specification 4G/5G module and the M.2_WIFI module cannot be connected at the same time, there will be interference, so choose one of the two; The 3052 specification 5G module and M.2_WIFI module can be connected at the same time without interference; | ||
Hard disk function | 1*NGFF interface | Support PCIE4.0 signal, support Key-M interface default M.2 2280 hard disk, optional M.2 2242 hard disk; By default, NVME (PCIE) protocol and SATA protocol coexist and switch automatically; |
1*SATA1 interface | Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps | |
1*SATA_PWR pin | Hard disk power supply pin, can take 5V, 12V power. (4Pin, 1*4Pin, 2.54mm) | |
Sound Features | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller | |
1*LINE_OUT interface | Support audio output (green) | |
1*MIC_IN interface | Support microphone input (pink) | |
1*INT_SPK pin | The amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm) | |
USB Function | 2/4*USB3.2 interface | Rear standard USB3.2 Gen1 interface , maximum transmission bandwidth is 5Gbps |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
1*F_USB2 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
The USB signal of M.2_WIFI and the 2nd/4th/6th/8th/10th pin of F_USB2 are selected. By default, M.2_WIFI has no USB signal and the pin has USB signal | ||
The 4G USB signal of the M2_4G/5G interface and the 1/3/5/7 pins of F_USB2 are selected. 4G is not supported by default, and the pin has a USB signal | ||
After the motherboard is changed to triple network/dual network, the USB3.0 signal of the U port on the USB4 interface and the 5G signal of the M.2_4G/5G interface are selected. By default, the U port on the USB4 interface has a USB3.0 signal (Note: 5G needs to occupy the USB3.0 signal, and 4G needs to occupy the USB2.0 signal) | ||
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm) |
1*AUTO_SW pin | Support hardware control power on (3Pin, 1*3Pin, 2.0mm) | |
Other I/O | 1*COM1 pin | Serial port, support RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.0mm) |
1*COM2 pin | Serial port, support RS232/RS485 optional (9Pin, 2*5Pin, 2.0mm) | |
1*COM3-6 pin | Serial port, support standard RS232 (39Pin, 2*20Pin, 2.0mm) | |
1*JPCOM1/2 pin | Control COM1/2 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm) | |
1*MSIM card slot | Support SIM card, SIM card is required when using 4G/5G | |
1*CLR_CMOS pin | Motherboard reset and discharge pin (3Pin, 1*3Pin, 2.0mm) | |
1*CPU_FAN pin | CPU fan pin , supports temperature control (4Pin, 1*4Pin, 1.25mm) | |
1*J_GPIO pin | GPIO control pin (10Pin, 2*5Pin, 2.0mm) | |
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Supports Windows 11, Windows 10, Linux, etc. | |
