Product Description:
Data sheet: | |
Model | OPS-12U OPS-13U |
Version | OPS-12U V1.1A OPS-13U V1.1A |

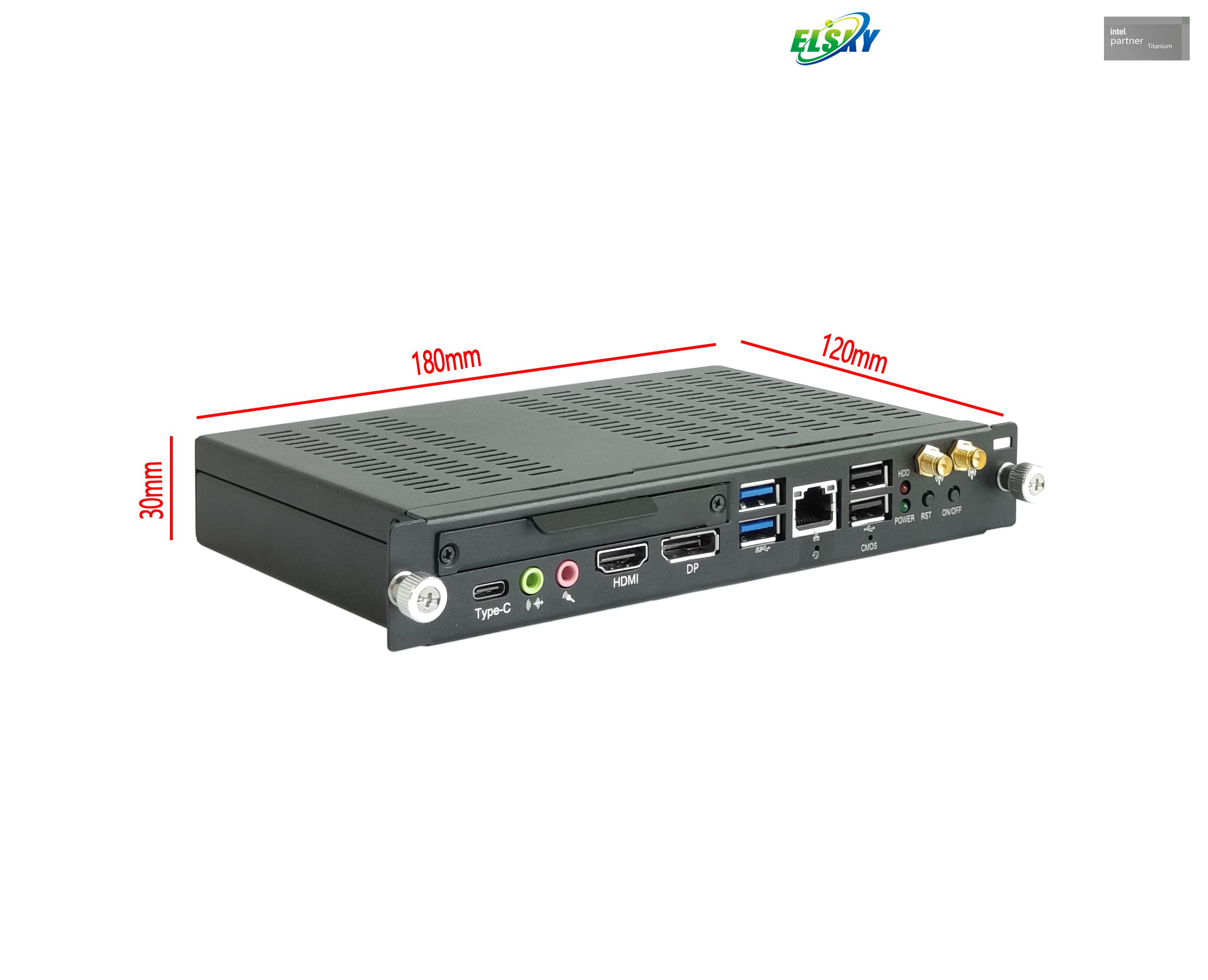

Chassis | Dimensions: 120mm(L) x 180mm(W) x 30mm(H); Chassis material: Metal Option laser-engraving customized logo on the chassis; Option customized VESA mounting bracket. |
Cooling Type | Mute Mini Fan |
Processor | OPS-12U: Supports Intel Alder Lake 12th generation U series i3, i5, i7, i9 OPS-13U: Supports Intel Raptor Lake 13th generation U/P/H series i3, i5, i7, i9 |
Graphics | Integrated Intel(R) UHD Graphics |
Memory | 1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/3200MHz memory, maximum support 32GB |
Hard Disk | 1*NGFF1 (M.2) interface (PCIE 4.0 signal, supports Key-M interface default M.2 2280 hard disk, optional M.2 2242 hard disk; supports NVME protocol by default, can change hardware to support SATA protocol) 1*JSATA interface (supports SATA3.0 signal by default, supports 2.5-inch SSD/HDD disk) |
Power Supply | DC input 12V or 19V; DC jack: 5.5x2.5mm; U series CPU Power Consumption (Max): 55W, P series CPU Power Consumption (Max): 64W, H series CPU Power Consumption (Max): 115W |
Display Function | Support single display/dual display/triple display/quadruple display copy, dual display/triple display/quadruple display expansion, support dual display in SHELL, not support DOS |
Motherboard side: 1*HDMI 2.0 interface (supports 4K resolution 4096/3840*2160@60Hz) 1*DP interface (supports DP++; supports 4K resolution 4096/3840*2160@60Hz)
Sub card side: 1*HDMI 2.0 interface (supports 4K resolution 4096/3840*2160@60Hz) 1*DP interface (does not support DP++; supports 4K resolution 4096/3840*2160@60Hz) | |
WIFI & Bluetooth | 1*M2_WIFI interface (PCIE 3.0 signal, supports Key-E interface M.2_2230 WIF Bluetooth module) |
Ethernet | 1* LAN port (Intel I219V Gigabit network card chip, supports network wake-up and PXE diskless boot function) |
HD Audio | Integrated Realtek ALC897 HD digital audio decoder, Can be modified to support BBH621 USB sound card; 1xLine_out interface, 1xMic-in interface. |
USB Quantity | 2*USB3.2 interface 2*USB2.0 interface 1*Type-C interface (standard Type-C interface, only supports USB function, not display function) |
Serial Port (COM) | COM1 pin (COM1 only supports RS232 by default, no signal by default, can be changed to hardware support Choose between COM1 and daughter card TTL signal, daughter card TTL has signal by default, motherboard COM1 has no signal |

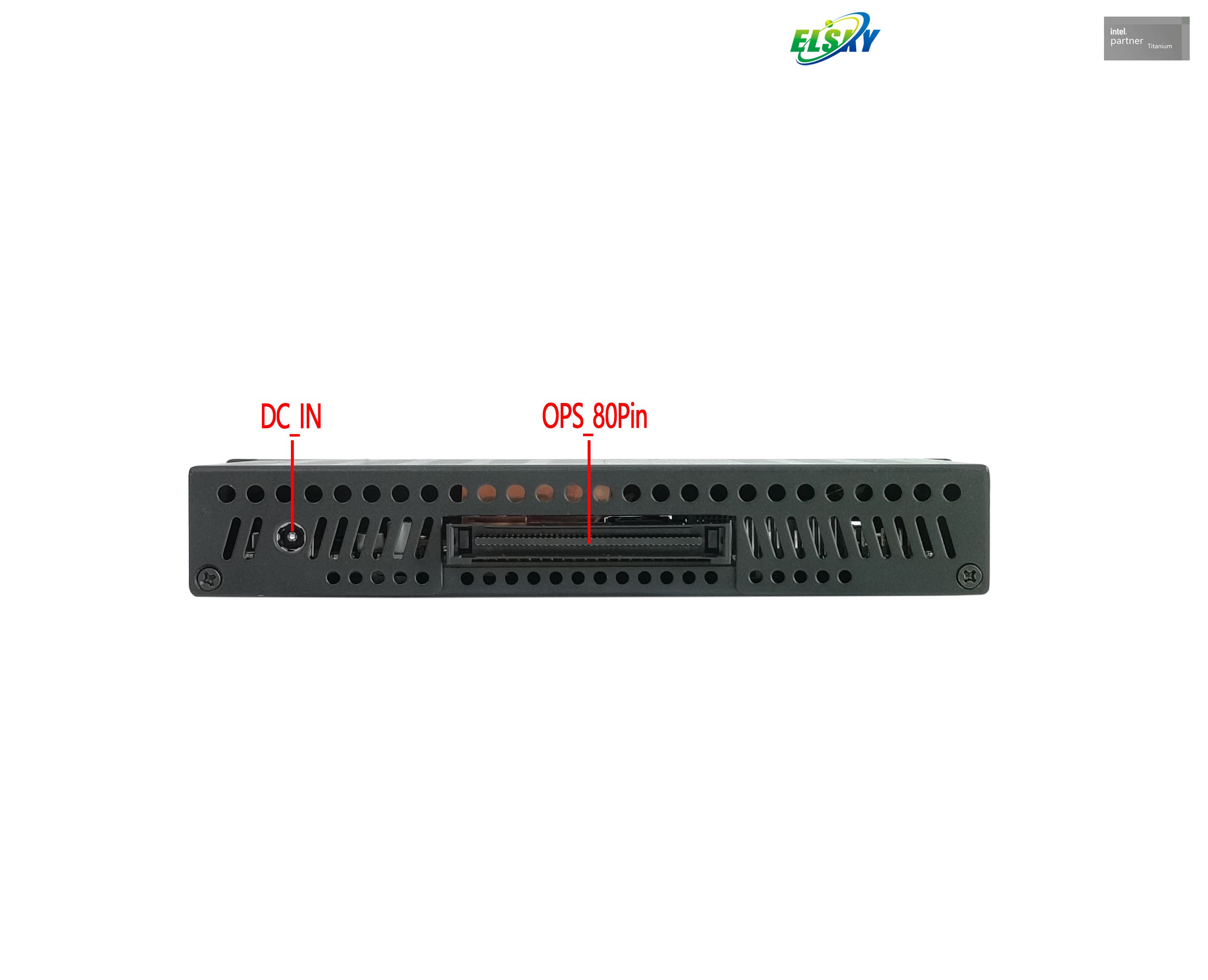

OPS Interface | 1*OPS interface (Standard 80Pin OPS interface) |
CMOS Battery | CR2032 3V battery (Detachable) |
Built-in Pins/Slots | 1*F_PANEL pin, 1*AUTO_SW pin, 1*JCOM1 pin, 1*CPU_FAN pin, etc. |
Watch Dog | Watchdog programming; Support hardware reset function (256 levels, 0~255 seconds). |
AMI BIOS | Support power on,timing switch,remote switch,intelligently identify devices. Option Secure Boot; Option Trusted Platform Module (TPM) version 2.0; Option customized boot logo in OS. |
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation |
Operating System | Compatible with Windows 11, Windows 10, Linux, etc.. |
OEM | Front / Rear IO shield (Customize interfaces according to customer needs). |
Standard Warranty | 12 months |
Packing & Shipping:
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 0.8-1.2KG);
5Pieces/Carton(G.W. : 3.0-6.0KG);
10Pieces/Carton(G.W. : 5.0-12.0KG);
20Pieces/Carton(G.W. : 10.0-23.0KG);

Shipping
DHL: 2-4 working days; tracking website: www.dhl.com
EMS: 5-7 working days; tracking website: www.ems.com
UPS: 2-4 working days; tracking website: www.ups.com
FedEx: 3-5 working days; tracking website: www.fedex.com
TNT: 3-5 working days; tracking website: www.tnt.com
