Intel Alder Lake-N N97/N100 3.5" Motherboard for Industrial Automation

The M198SE: A High-Performance 3.5-inch Industrial Motherboard

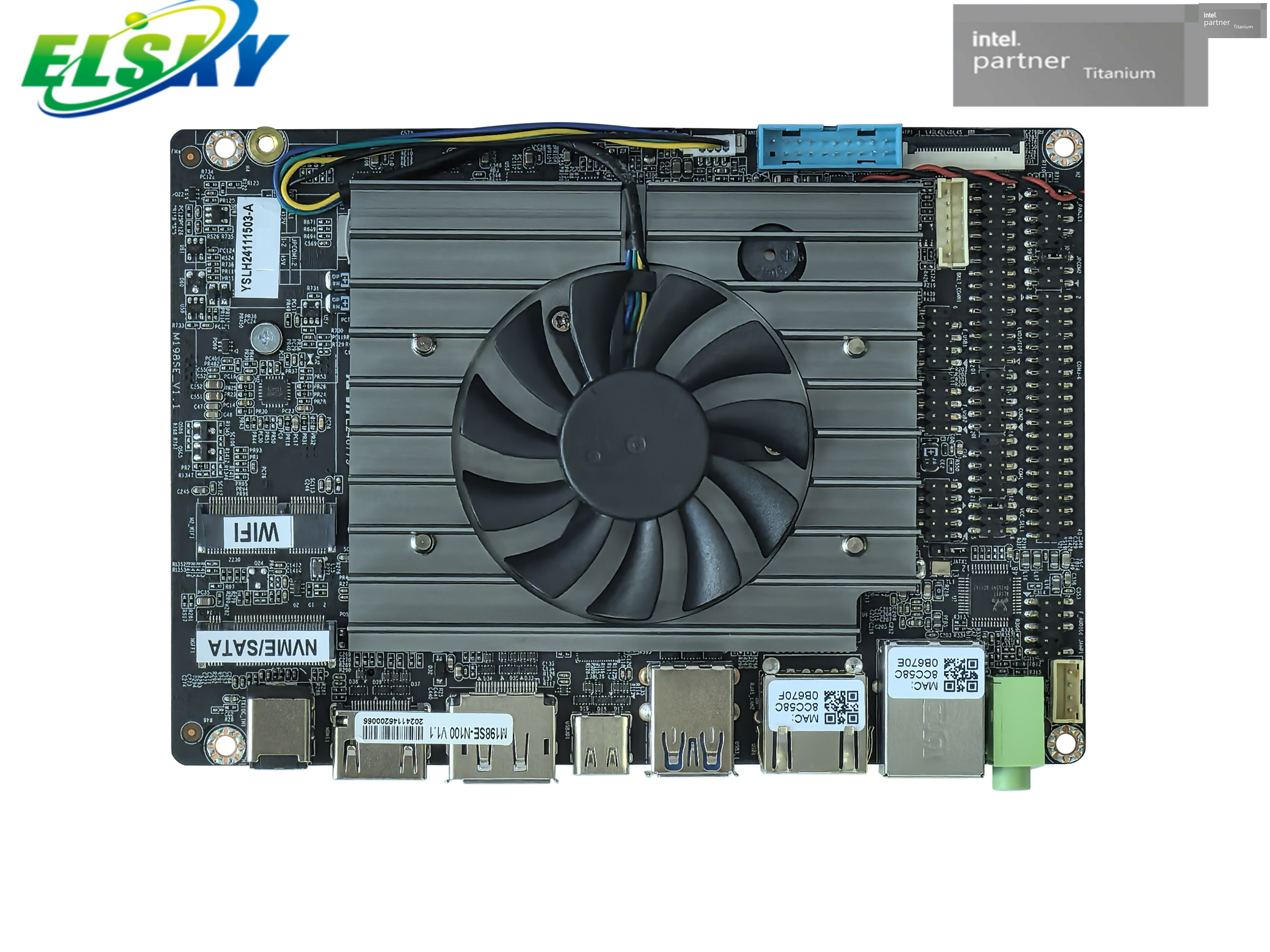

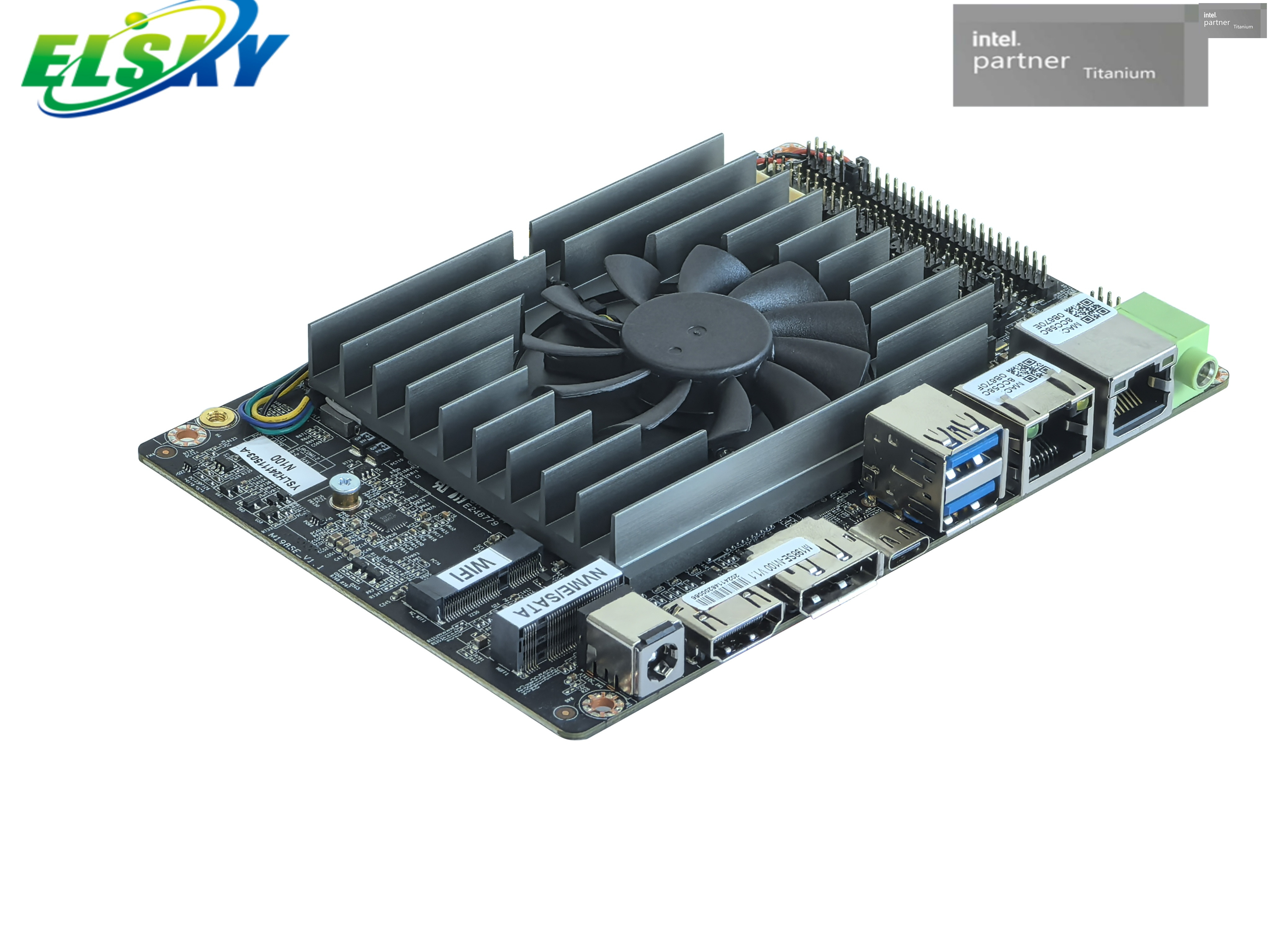

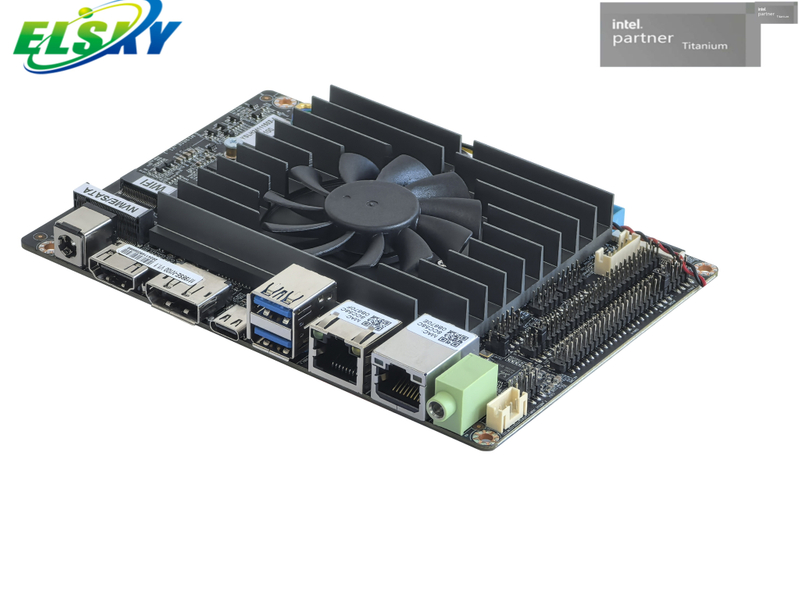

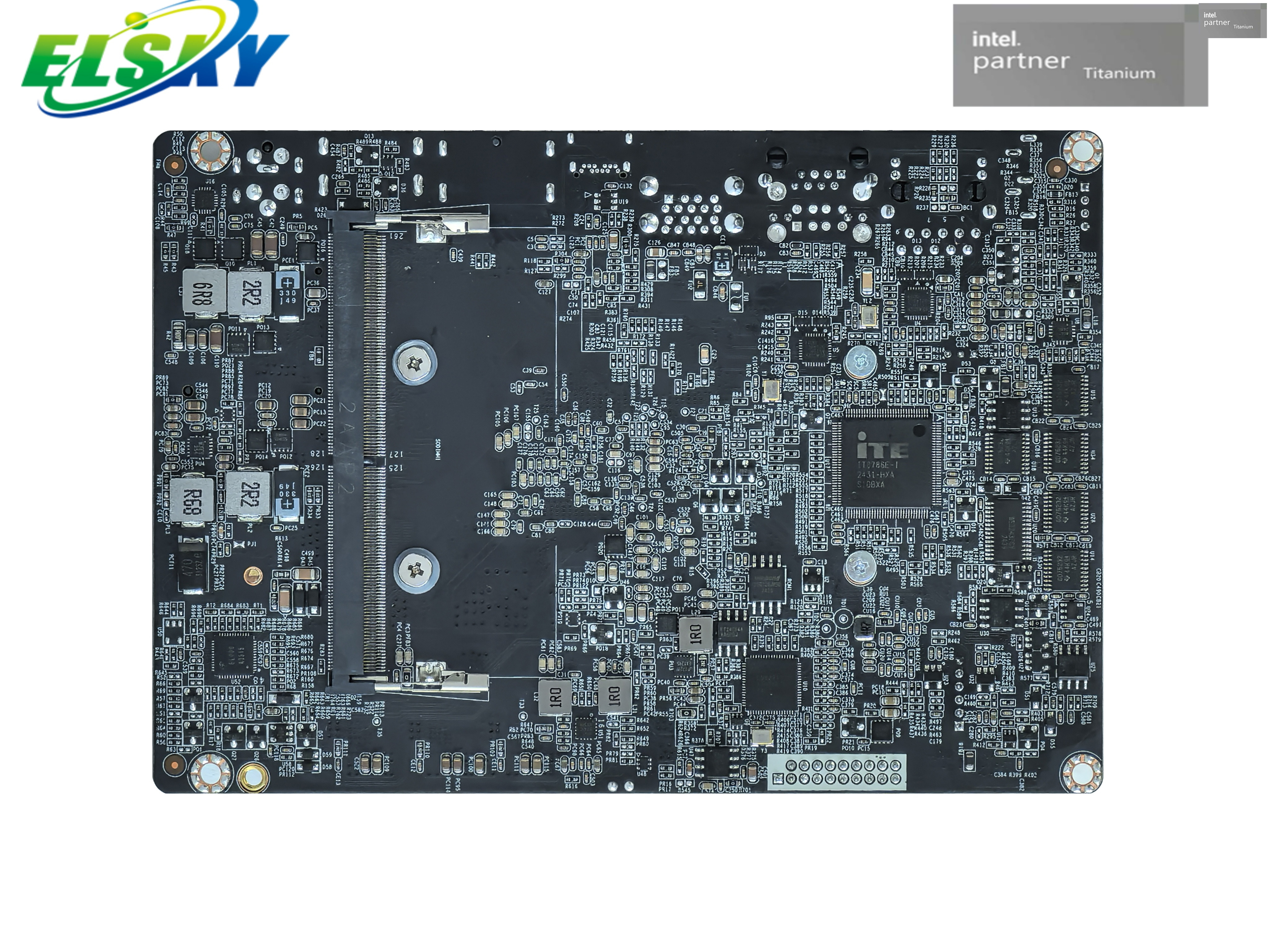

The M198SE is a compact yet powerful 3.5-inch industrial motherboard, measuring just 146mm x 102mm x 23mm. Designed for a wide range of embedded and industrial applications, this board offers a blend of performance, connectivity, and reliability. It supports the latest Intel Alder Lake-N series CPUs, including the N200, N100, and i3-N305, ensuring efficient processing for demanding tasks.

Availability:

Quantity:



Inquire Add to Basket

Model:
M198SE-I3
Brand:
ELSKY/ODM/OEM

Embedded Motherboard with Wi-Fi gigabit lan motherboard 3.5-inch Industrial Motherboard Intel Alder Lake-N Motherboard IoT & Edge Computing Medical Equipment

Product Description

Parameter

Motherboard size	*3.5 inches：146mm（L）102mm（W）23mm（H）*
CPU processor	Support Intel Alder Lake-N series N200, N100, N97, N95, i3-N305, etc.
Memory support	*1NB-DDR5 SODIMM memory slot, supports 4800MT/s memory, maximum supports 16GB**
power supply	*1DC_IN**	Supports 12V~24V wide voltage power supply, with a DC head inner diameter of 2.5MM The full load power consumption of the motherboard is about 30W. Suggest using a power supply of 12V/4A or 24V2A or higher
power supply	*Can be changed to 1ATX (4Pin)**
Display functions	Intel UHD Graphics， Supports single display, dual display/triple display replication, dual display/triple display expansion, and dual display under SHELL;
	*1HDMI 2.1 interface**	*4K resolution 4096/3840 2160@60Hz**
	*1DP interface**	*DP does not support DP++, supports 4K resolution 4096/3840 2160@60Hz**
	*1LVDS/EDP1 pin**	*Supports a resolution of 1920 1080@60Hz （30Pin，215Pin，2.0mm）*
	*1VCC_SEL pin**	*LVDS/EDP1 voltage control pin (6Pin, 2 3Pin, 2.0mm)**
	LVDS and EDP1 are optional and share pins. EDP1 does not support 4K resolution and uses EDP-B screen cable
	*1Type_C interface**	Support display function and USB data transfer
	*1MIPI interface**	Supports CSI-2 protocol and MIPI camera devices
Network Features	1/2*RJ45 LAN interface	Single network: default Realtek 8111H Gigabit Ethernet card;
Network Features	1*M2-WIFI interface	Optional Yutaiwei YT6801 Gigabit Ethernet Card;
Hard disk function	1*NGFF interface	Dual network: supports Realtek 8111H+Realtek 8111H Gigabit Ethernet cards;
Sound Features	Default support for Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller
	*1LINE_OUT interface**	Supports LINE-OUT output, does not support MIC-IN input
	*1F_AUDIO pin**	*Standard audio pins (9Pin, 2 5Pin, 2.0mm)**
	*1JAMP pin**	*The amplifier supports dual channel output with 8 ohms and 5 watts speakers (4Pin, 1 4Pin, 2.0mm)**

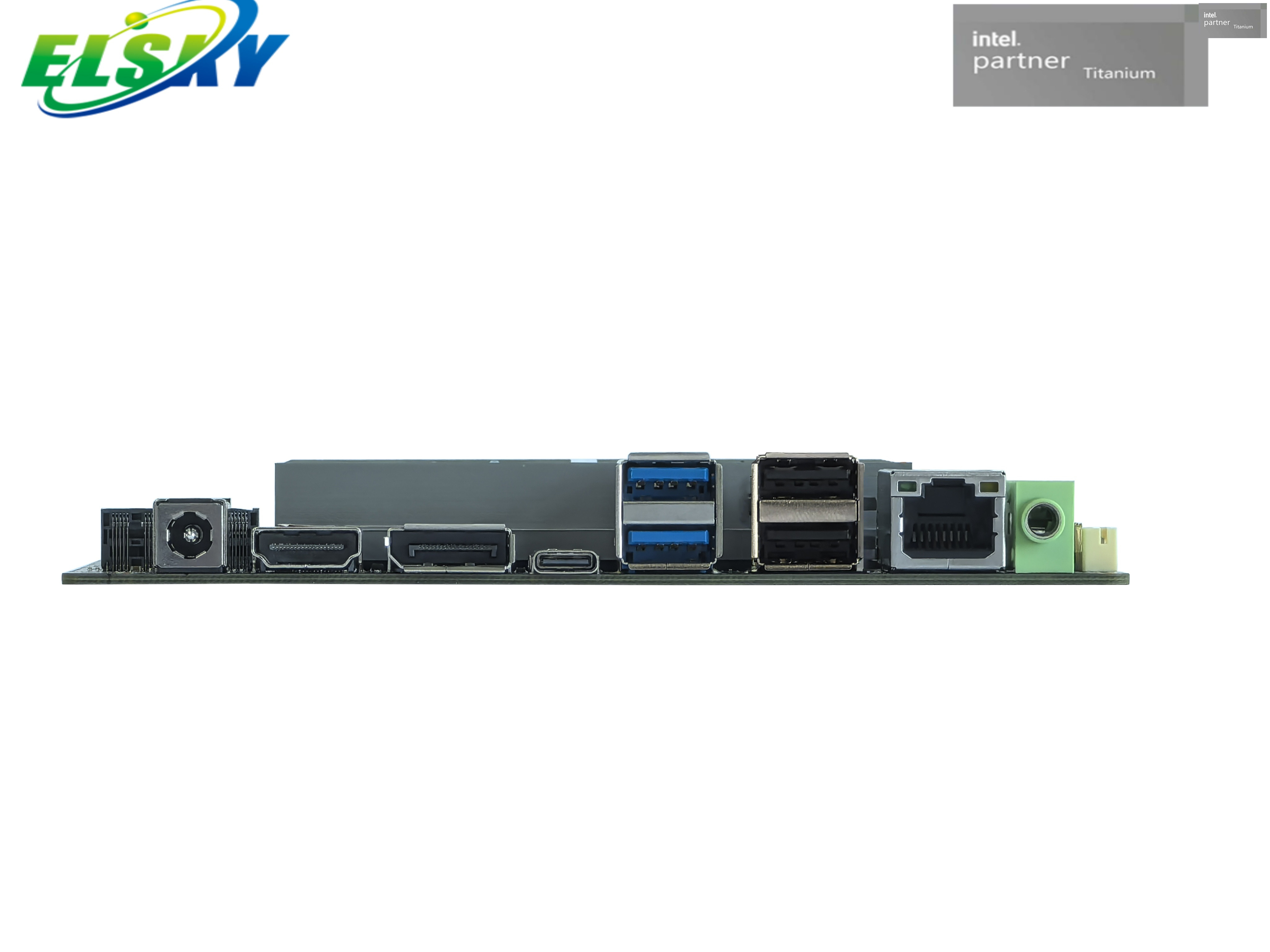

USB Function	*2USB3.2 interface**	Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps
	*2USB2.0 interface**	Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps (not available on dual network motherboards)
	*1F_USB3_A pin**	*Front USB 3.2 pins, one set with 2 USB 3.2 (19Pin, 2 * 10Pin, 2.0mm)**
	*1F_USB1 pin**	*Front USB 2.0 pins, one set with 2 USB 2.0 (9 pins, 2 * 5 pins, 2.0mm)**
	*1F_USB2 pin**	*Front USB 2.0 pins, one set with 2 USB 2.0 (9 pins, 2 * 5 pins, 2.0mm)**
	*1Type_C interface**	Support display function and USB data transfer
Switch function	*1F_PANEL pin**	*Switch, power light, hard disk light, restart pin (9Pin, 2 5Pin, 2.0mm)**
Switch function	*1JATX pin**	*Hardware control power on plug (3Pin, 1 3Pin, 2.0mm)**
Other IO	*1COM1 pin**	*Serial port, supports standard RS232 (9Pin, 2 5Pin, 2.0mm)**
	*1COM2 pin**	*Serial port, COM2 supports RS232/RS422/RS485 optional (9Pin, 2 5Pin, 2.0mm)**
	*1COM3-6 pin**	*Serial port, supports standard RS232 (39Pin, 2 20Pin, 2.0mm)**
	All serial ports can be modified and hardware supports TTL
	*1JCOM2 pin**	*Can control the ninth pin voltage of COM2 to 0V/5V/12V (6Pin, 2 3Pin, 2.0mm)**
	*1CLR_CMOS pin**	*Motherboard reset and discharge pins (default not installed) (2Pin, 1 2Pin, 2.0mm)**
	*1FAN1 pin**	*CPU fan pin, supports temperature control (3Pin, 1 3Pin, 2.54mm)**
	*1GPIO_CN pin**	*GPIO control pins (10Pin, 2 5Pin, 2.0mm)**
Operating Environment	Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS, supports scheduled startup, remote power on/off, and intelligent device identification
Watch Dog	Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)
Os	Supports Windows 11, Windows 10, Linux, etc (N100 and i3-N300 support Windows 10, Windows 11 22H2 and above versions)

Product Features

Compact DesignMeasuring 146mm x 102mm x 23mm, this 3.5-inch motherboard is perfect for space-constrained applications. Its small form factor allows for easy integration into various industrial devices.
Powerful ProcessingSupports Intel Alder Lake-N CPUs, including the N200, N100, and i3-N305. This delivers efficient performance for industrial automation and other demanding tasks.
High-Speed MemoryOne NB-DDR5 SODIMM slot supports up to 16GB of 4800MHz memory. This ensures fast data access and smooth operation for your applications.
Flexible NetworkingEquipped with one or two Gigabit LAN ports. Options for Realtek 8111H or YT6801 chipsets are available. It supports network wake-up and PXE boot.
Wireless ConnectivityA dedicated M.2 Key-E 2230 slot supports WiFi and Bluetooth modules. This allows for wireless communication, enhancing device flexibility and connectivity.
Reliable OperationAMI BIOS supports scheduled boot-up and remote power control. A 256-level hardware watchdog timer ensures system stability by automatically resetting the device.
Wide OS SupportThe motherboard is compatible with various operating systems, including Windows 11, Windows 10, and Linux. This offers flexibility for software development and integration.
