QM6100
Elsky
The Elsky QM6100 is a powerful motherboard. It is a Mini-ITX size. This makes it perfect for small computers. It supports Intel's 12th, 13th, and 14th Gen CPUs. You can use it for many different tasks. It works well for gaming. It also fits into small office builds. It is great for home theater PCs.
This motherboard is very versatile. It has multiple display outputs. You can use VGA, HDMI, or DP. This lets you connect to many screens. The QM6100 can handle 4K resolution. This is great for clear visuals. It has strong networking features. It supports single or dual LAN. This ensures fast and stable connections. You can also add Wi-Fi or 4G.
The QM6100 is built to last. It is FCC and CE certified. It has a durable design. The board is waterproof. It is also fire-resistant. It has UV protection. It is even anti-bacterial. These features make it reliable. It is a solid choice for many uses. It comes with a one-year warranty. Elsky offers online tech support.
Product Pictures:

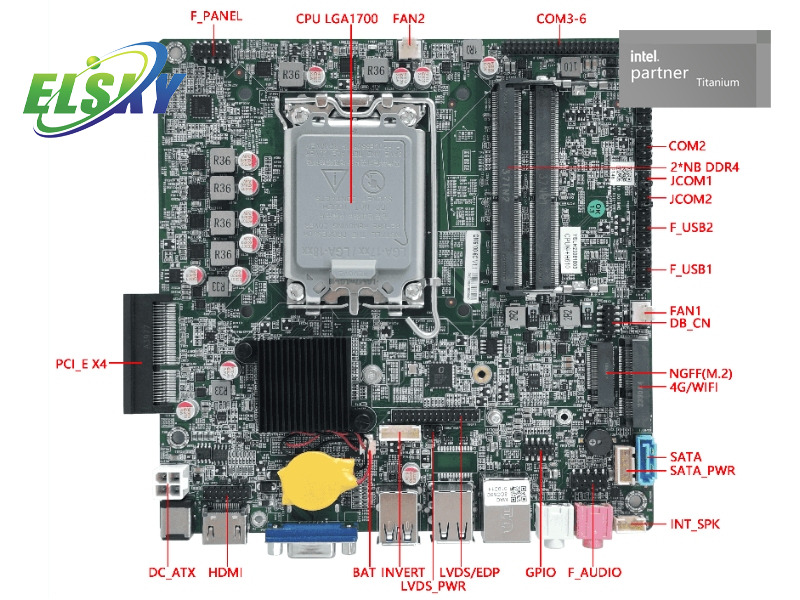

QM6100 schematic diagram↓

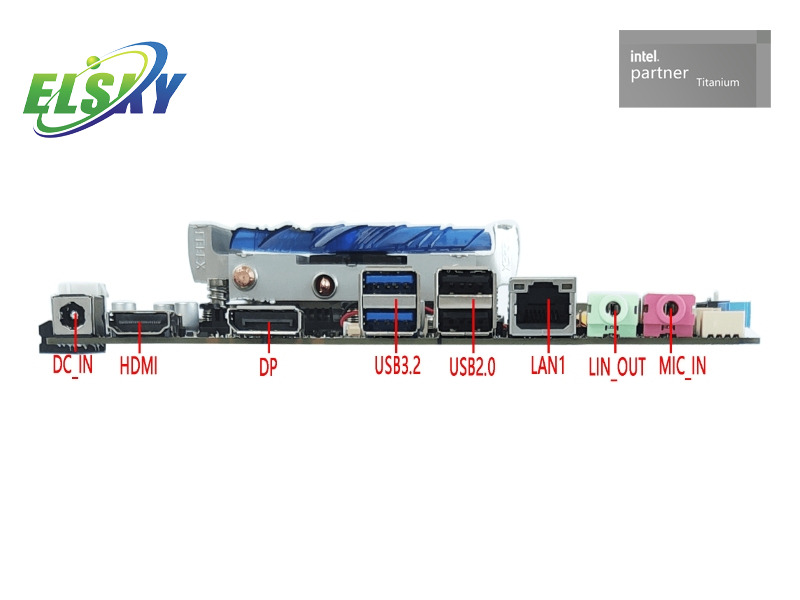

DP+HDMI Single Network Interface Schematic Diagram↓

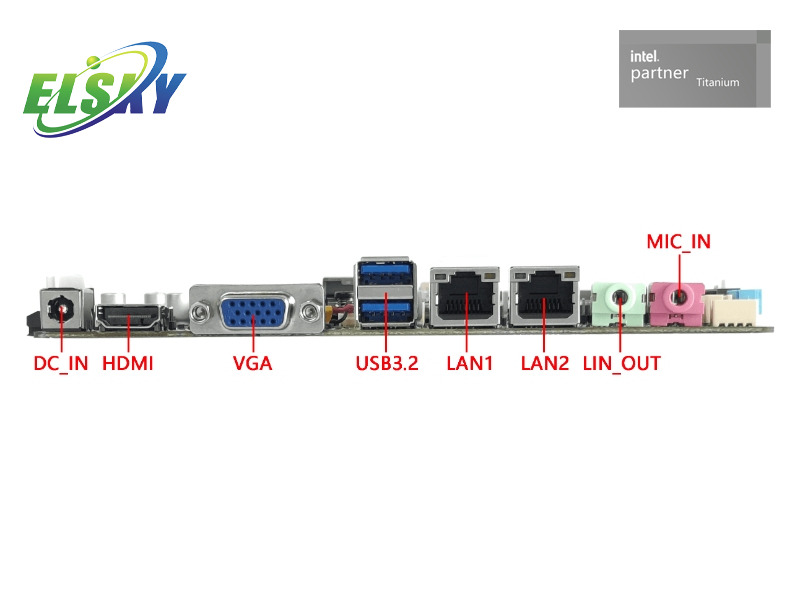

VGA+HDMI Dual Network Interface Schematic Diagram↓
VGA+HDMI Single Network Interface Schematic Diagram↓

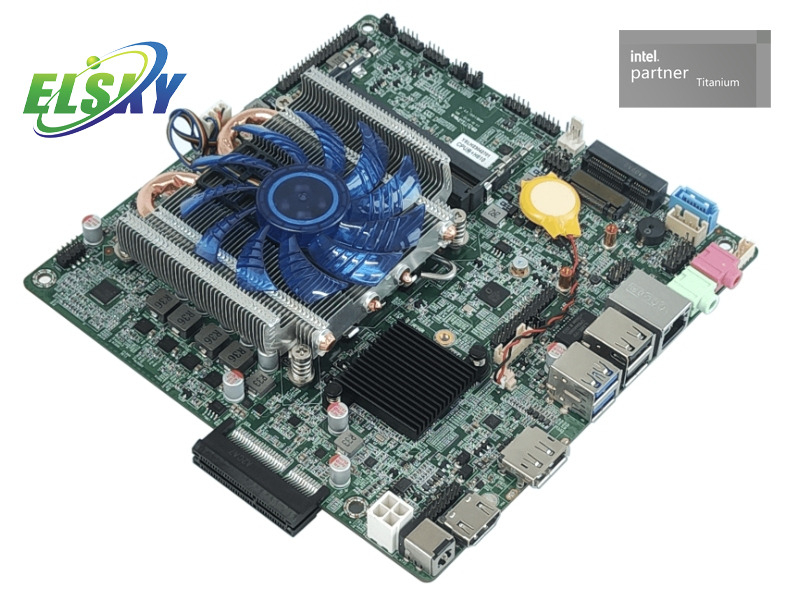

115X Double-tube radiator↓

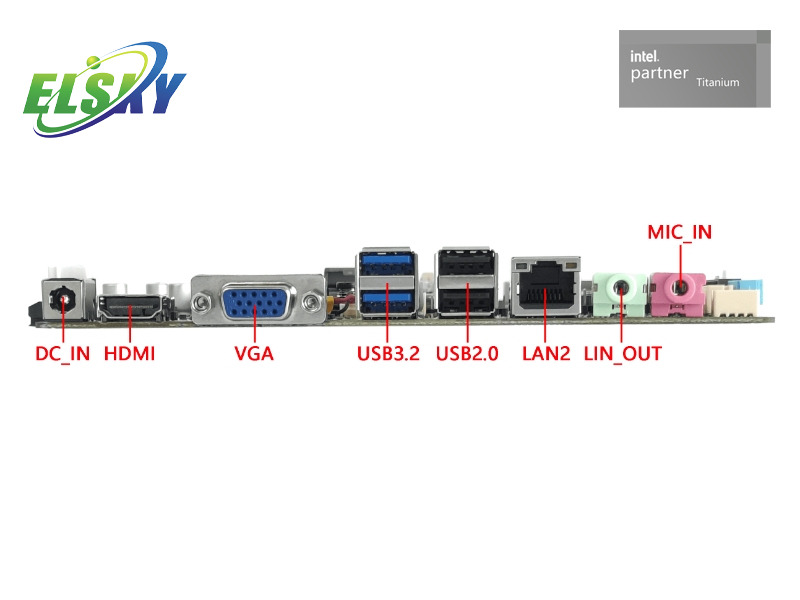

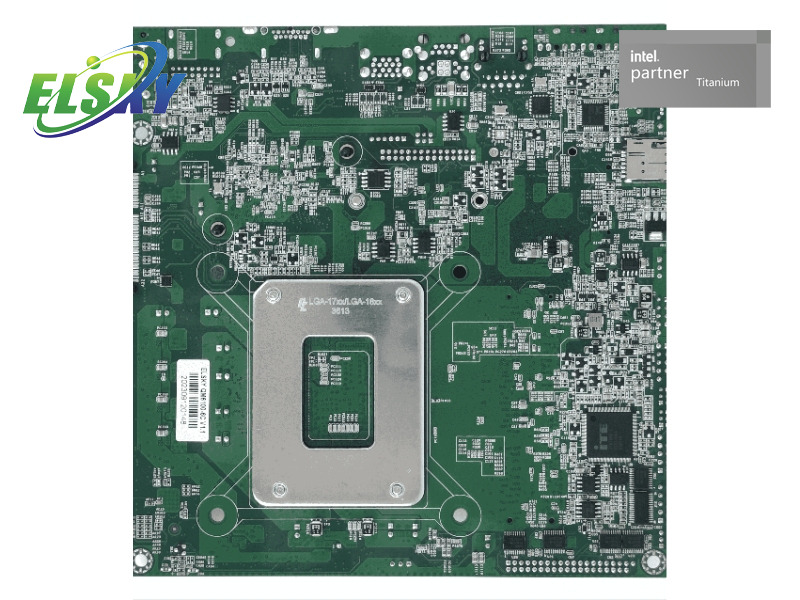

Motherboard Rear Schematic Diagram↓
Note: All the product pictures are for your reference only, the price of different RAM and Hard Disk capcity will not the same, if you want to get a complete quotation about QM6100 Mini ITX motherboard, please contact us!
Product Datasheet:
1. ordering choose option:
Model | CPU | 4K | LAN | COM | USB2.0 | USB3.2 | SSD | Memory | Power |
QM6100 | Support Alder Lake 12th Gen 13th Gen 14th Gen I3、I5、I7、I9 | ✔ | 1 | 2/6 | 6*USB2.0 | 2*USB3.2 | 1*M.2 1*SATA |
2*NB DDR4 MAX 128G
| +12V/19V |
2 | 2/6 | 4*USB2.0 | 2 | ||||||
Single-network motherboards support 8*USB by default. | |||||||||
2. CPU choose informations as below:
CPU Specification | CPU Brand | CPU Model | Main frequency | Turbo frequency | CPU basic power consumption（W） | Maximum Turbo Power Consumption （W） |
12th Gen I3 | Intel Core | 12100 | 4 cores 3.3G | 4.3G | 60 | 89 |
Intel Core | 12300 | 4 cores 3.5G | 4.4G | 60 | 89 | |
12th Gen I5 | Intel Core | 12400 | 6 cores 2.5G | 4.4G | 65 | 117 |
12500 | 6 cores 3.0G | 4.6G | 65 | 117 | ||
12600 | 6 cores 3.3G | 4.8G | 65 | 117 | ||
12th Gen I7 | Intel Core | 12700 | 12 cores 2.1G | 4.9G | 65 | 180 |
12th Gen I9 | Intel Core | 12900 | 16 cores 2.4G | 5.1G | 65 | 202 |
13th Gen I3 | Intel Core | 13100 | 4 cores 3.4G | 4.5G | 60 | 89 |
13th Gen I5 | Intel Core | 13400 | 10 cores 2.5G | 4.6G | 65 | 154 |
13th Gen I5 | Intel Core | 13500 | 14 cores 2.5G | 4.8G | 65 | 154 |
13th Gen I5 | Intel Core | 13600 | 14 cores 2.7G | 5.3G | 65 | 154 |
13th Gen I7 | Intel Core | 13700 | 16 cores 2.1G | 5.2G | 65 | 219 |
13th Gen I9 | Intel Core | 13900 | 24 cores 2.3G | 5.6G | 65 | 219 |
14th Gen i3 | Intel Core | 14100 | 4 cores 3.5GHz | 4.7G | 60 | 154 |
14th Gen i5 | Intel Core | 14400 | 10 cores 2.5GHz | 4.7G | 65 | 219 |
14th Gen i5 | Intel Core | 14500 | 14 cores 2.6GHz | 5.0G | 65 | 219 |
14th Gen i5 | Intel Core | 14600 | 14 cores 2.7GHz | 5.2G | 65 | 219 |
14th Gen i7 | Intel Core | 14700 | 20 cores 2.1GHz | 5.4G | 65 | 219 |
14th Gen i9 | Intel Core | 14900 | 24 cores 2.0GHz | 5.8G | 65 | 219 |
Note: The CPU price sometime will change depend on the market price, please also kindly send an inquiry before you going to buy QM6100 motherboard, thanks for your understanding!
3.Specification of QM6100 Mini ITX motherboard:
Motherboard Size | 170mm（L）*170mm（W）*23mm（H Thickness without the fan) (With an 115X double-tube fan, the thickness is 38mm) | |||
CPU | Supports Alder Lake 12th Gen i3-12300 、i5-12400 、i7-12700、i9-12900, etc. | |||
Supports Alder Lake 13th Gen i3-13100 、i5-13400 、i7-13700、i9-13900, etc. | ||||
Supports Alder Lake 14th Gen i3-14100 、i5-14400、i7-14700 、i9-14900, etc. | ||||
Chipset | H610、H670 | |||
Power Supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM, and it supports 12V/19V. The maximum turbo power consumption of the motherboard is approximately 110W. It is recommended to use a power supply of 12V15A or above, or 19V 10A or above. | ||
1*DC_ATX（4Pin） | ||||
RAM | 2*SODIMM Slot | NB-DDR4 memory, supporting 2133/2400/2666/2933/3200MHz memory, with a maximum support of 128GB; | ||
Network function | 1/2*LAN interface | Single network: Supports the Intel WG 1219V Gigabit Ethernet card. Dual network: Supports the combination of Intel WG 1219V + Realtek 8111H Gigabit Ethernet cards. It supports network wake-up and PXE function. | ||
1*MINI_PCIE interface | Support WIFI/3G/4G/Bluetooth module | |||
Display function | Intel® UHD Graphics 730/770 | Supports single display, dual-display/triple-display duplication, and dual-display/triple-display extension. Single display is supported in the SHELL. | ||
1*VGA DB15 Interface | Supports a resolution of 1920*1080@60Hz | |||
1*HDMI Interface | Supports a 4K resolution of 4096/3840*2160@60Hz | |||
1*HDMI_CON Pin | Supports a 4K resolution of 4096/3840*2160@60Hz （16Pin，2*8Pin，2.0mm） | |||
1*DP Interface (Optional) | Supports a 4K resolution of 4096/3840*2160@60Hz | |||
The VGA interface can be modified to support the DP interface. | ||||
1*LVDS/EDP Pin | Supports a resolution of 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | |||
1*LVDS_PWR1 Pin | LVDS/EDP Operating voltage control pin header （6Pin，2*3Pin，2.0mm） | |||
1*INVERT Pin | LVDS Backlight control pin header （6Pin，1*6Pin，2.0mm） | |||
LVDS is supported by default. EDP can be optionally supported, and they share the same pin headers. EDP supports 4K. | ||||
1*PCI-E X4 Interface | A standard PCI - E X4 interface that can be externally connected to an independent graphics card. | |||
USB function | 2*USB3.2 interface | Rear standard USB 3.2 Geni interface, with a maximum transmission bandwidth of 5Gbps | ||
2*USB2.0 interface | Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps | |||
1*F_USB1 pin | Front USB 2.0 pin，One set with 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |||
1*F_USB2 pin | Front USB2.0 pin，One set with 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |||
Sound function | It integrates the Realtek ALC 897HD digital audio decoder and a 6-channel high-fidelity audio controller. | |||
1*LINE_OUT interface | Supports audio output (green) | |||
1*MIC_IN interface | Supports microphone input (red) | |||
1*INT_SPK pin | Support the output of an 8Ω, 5W speaker (power amplifier). （4Pin，1*4Pin，2.0mm） | |||
1*F_AUDIO pin | Standard audio pins（When the motherboard is a USB sound card, this pin is useless.) （9Pin，2*5Pin，2.54mm） | |||
Hard disk function | 1*M.2 Interface | Supports M.2 hard drives with Key - M interface. By default, it supports the NVME protocol and can be modified in hardware to support the SATA protocol. | ||
1*SATA1 Interface | A standard SATA hard drive interface that supports SATA 3.0. | |||
1*SATA_PWR Pin | A pin header for hard drive power supply, which can provide 5V and 12V power （4Pin，1*4Pin，2.54mm） | |||
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2 * 5Pin, 2.0mm) | ||
1*JATX pin | Hardware control power on pin （3Pin，1*3Pin，2.0mm） | |||
Other I/O | 1*COM1 pin | Support standard RS232/RS422/RS485 optional (BIOS settings) (9Pin, 2 * 5Pin, 2.0mm) | ||
1*COM2 pin | Only supports standard RS232 (9Pin, 2 * 5Pin, 2.0mm) | |||
1*COM3~6 pin | Only supports standard RS232 (39Pin, 2 * 20Pin, 2.0mm) | |||
1*JCOM1/2 pin | Set the 9th pin of COM1 to 0V/5V/12V (6Pin, 2 * 3Pin, 2.0mm) | |||
1*MSIM slot | Support SIM cards. A SIM card is required when using 3G/4G. | |||
1*CLR_CMOS pin | Motherboard reset and discharge pins (3Pin, 1 * 3Pin, 2.0mm) | |||
1*FAN1 pin | CPU fan pin, supporting temperature control （3Pin，1*3Pin，2.54mm） | |||
1*FAN2 pin | System fan pin （3Pin，1*3Pin，2.54mm） | |||
1*GPIO_CN pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | |||
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |||
BIOS | AMI BIOS，Supports power-on, scheduled power-on, and remote on/off device intelligent identification | |||
Watch Dog | Watchdog programming, supports hardware reset function (level 256, 0~255 seconds) | |||
OS | Support Windows 11, Windows 10, LINUX, etc. | |||
Accept Paying Method:
We are support T/T, Paypal, Western Union, L/C, Alipay, Wechat pay etc.
Digital Signage: This board is great for digital signs. It can power large displays in stores or public places. Its small size makes installation easy and discreet.
Vending Machines: The QM6100 is ideal for smart vending machines. It can handle payment systems and inventory tracking. Its compact design fits well inside the machine's limited space.
Medical Carts: It is suitable for mobile medical carts. The board's small size and robust features are perfect for hospital environments. It can run diagnostic software and display patient data.
Small POS Systems: It can be used in small point-of-sale systems. The board's compact size and low power use are good for retail. It helps create a tidy and efficient checkout area.
Industrial Automation: This motherboard works for industrial control systems. It can be used in factories and for robotics. The durable design ensures it can handle tough conditions.
Packing stata:
Shipping Method:
We are support shipping by FeDex, DHL, UPS and etc. If you need we quotate for your the freight, please send the product quantity and receivere address(including the country, city name, zip code and detail address) to us.
After-sales service:
Support repair service.
Sample order allowed return when our product not past the testing in 1 months.
Other special situations please contact is to get more support!
Q: What CPUs are compatible with the QM6100 motherboard?
A: The QM6100 motherboard supports a wide range of Intel processors, including the 12th, 13th, and 14th Gen Core i3, i5, i7, and i9 CPUs.
Q: What size is this motherboard?
A: It is a Mini-ITX motherboard, measuring 170mm x 170mm. This makes it ideal for small form factor (SFF) PC builds.
Q: Can I use this motherboard for a gaming PC?
A: Yes, with its support for high-end CPUs and a PCI-E X4 slot for an external graphics card, the QM6100 is suitable for building a compact gaming PC.
Q: Does the QM6100 support dual monitors?
A: Yes, it supports single, dual, and triple displays. It features VGA, HDMI, and an optional DP interface for multiple screen setups.
Q: What kind of power supply does this motherboard need?
A: It requires a DC power supply. It can use either 12V or 19V, with a recommended power supply of 12V 15A or 19V 10A for optimal performance.
Q: Is the QM6100 motherboard durable?
A: Yes, it has special features that make it very durable. It is waterproof, fireproof, anti-bacterial, and resistant to UV damage.
Q: Where can this motherboard be used?
A: The QM6100 is highly versatile. It is commonly used in digital signage, vending machines, medical carts, small POS systems, and industrial automation.
