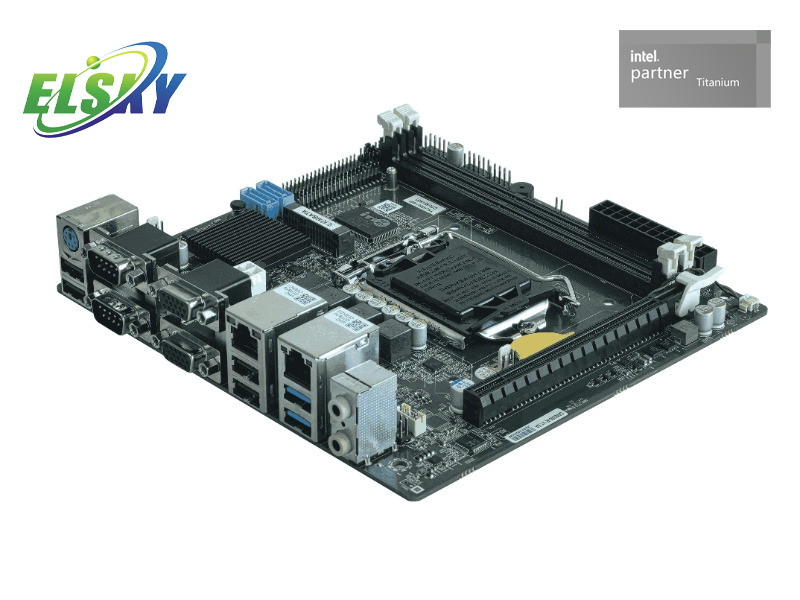

This is an H81 Embedded ITX Motherboard. It offers strong and reliable performance. The board supports Intel 4th generation CPUs. This includes Celeron, Pentium, and Core i3/i5/i7 models. It uses the Intel H81 chipset.
The motherboard has many connections. It includes dual VGA outputs. It has two Gigabit LAN ports. This ensures stable network access. There are multiple USB ports. This includes USB 3.0 for fast data transfer. The board provides rich I/O options. It features 10 COM ports in total. This is great for industrial use.
It is designed for tough work. The board operates in wide temperatures. It has a watchdog function. This ensures system stability. The board is also waterproof. This adds extra protection.
This motherboard is very versatile. It is a good solution for PLC control. It can run robot systems. It also works in factory monitoring equipment. Use it to power bank ATMs. You can also use it for station screens. It is perfect for retail self-checkout machines. The board has a warranty of over one year.
| Quantity: | |
|---|---|
QM8200-R
Elsky/OEM/ODM
Here are the key features of the H81 Embedded ITX Motherboard, presented in a clear, easy-to-read list. Each point highlights a specific strength or capability of the product.
Robust CPU Support: This board supports a range of Intel 4th generation CPUs (LGA1150). It works with Celeron, Pentium, Core i3, i5, and i7 processors. This flexibility lets you choose the right performance level for your project.
Multiple I/O and Expansion: The motherboard is designed for broad connectivity. It features two VGA ports for display. It has two Gigabit LAN ports for reliable network connections. A PCI-E X16 slot is available for adding a dedicated graphics card or other expansion cards.
Extensive Serial Port Connectivity: For industrial and commercial uses, this board excels. It provides up to 10 COM ports. Two are external DB9 ports. The rest are internal pins. This is ideal for connecting multiple serial devices like bar code readers or controllers.
Reliable and Durable Design: This board is built to last in demanding environments. It has a watchdog function for system resets. It operates in temperatures from -10℃ to 60℃. This ensures stable performance in varied conditions.
Flexible Storage Options: You can install a variety of storage drives. The board has two SATA 3.0 interfaces. It also includes an mSATA slot. This allows for a compact solid-state drive installation, saving space inside your chassis.
Here are some key application scenarios for the H81 Embedded ITX Motherboard. Each point shows how the board's features can be used in a real-world setting.
Bank ATMs and Kiosks: This motherboard is reliable for self-service machines. Its compact size fits well inside kiosks. The multiple COM ports can connect to card readers and printers. This makes it a great choice for financial and retail services.
Vehicle Control Systems: The board's wide temperature range and solid build make it suitable for vehicles. It can power vehicle control units. This includes systems for fleet management or in-car entertainment. Its stable performance is crucial for moving environments.
Digital Signage and Information Displays: This board can drive large information screens. The dual VGA ports allow for flexible display setups. Its sturdy design ensures 24/7 operation. It is perfect for advertising boards and public information screens at stations or malls.
Factory Automation and Robotics: With its rich I/O and watchdog function, the motherboard is ideal for industrial control. It can be used in PLC control systems or robotics. The many serial ports connect to a variety of sensors and machines. This provides a stable base for automated tasks.
Railway Information Screens: The motherboard works well in demanding transport settings. It can power displays on trains or in stations. Its durable design handles vibrations and temperature changes. It ensures real-time information is always available to passengers.
Product Pictures:

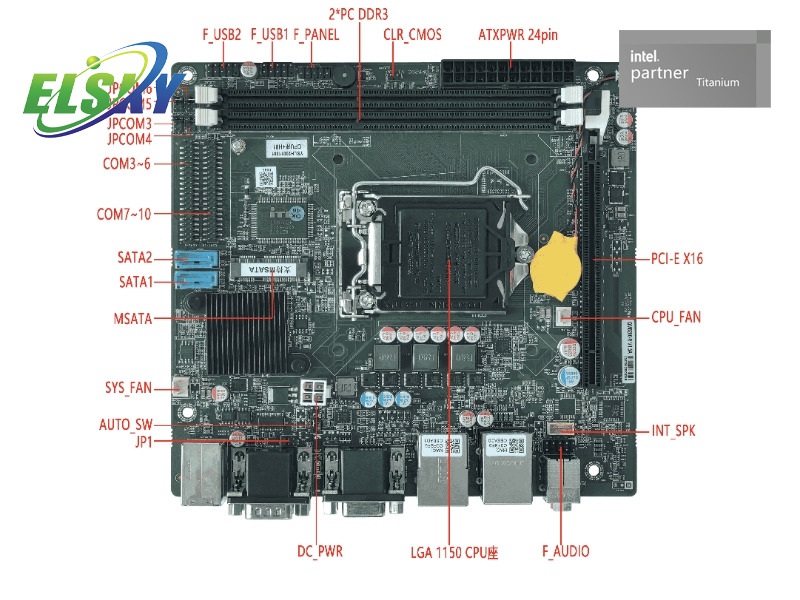

Motherboard diagram↓

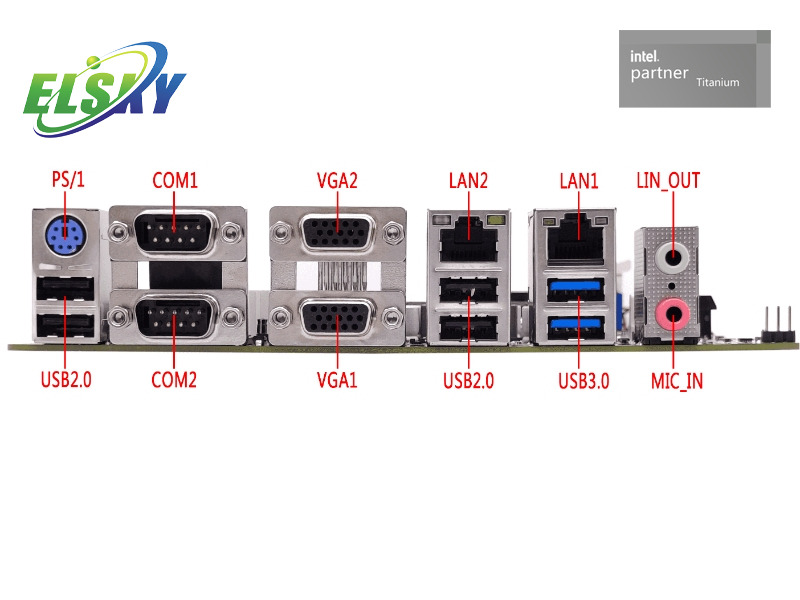

Motherboard interface diagram↓

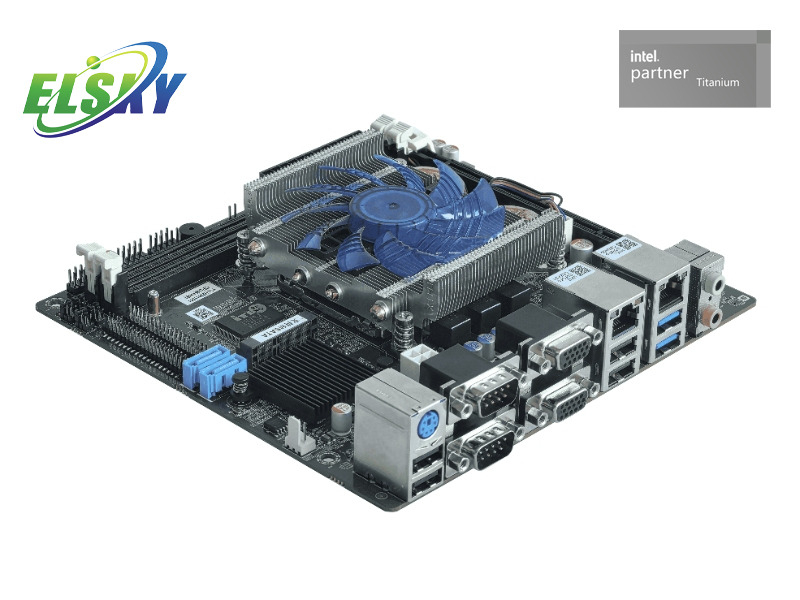

115X double tube radiator↓

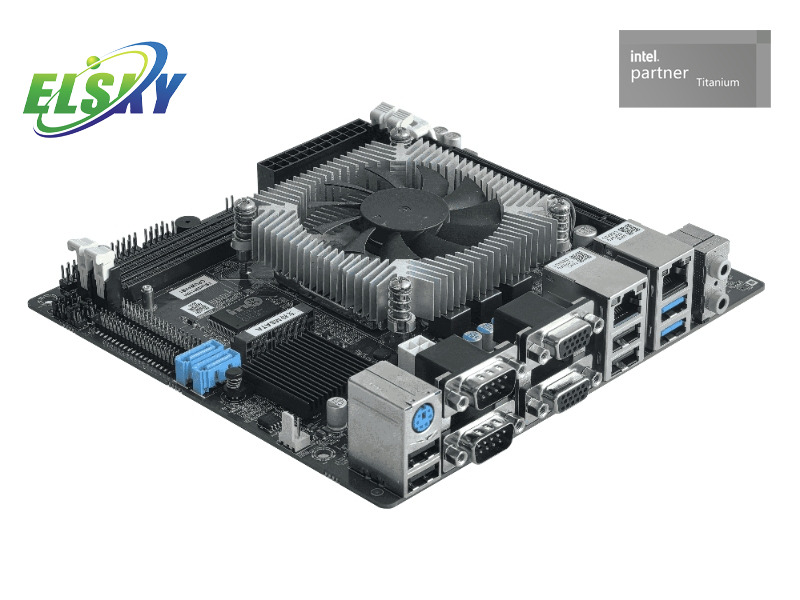

115X Radiator↓

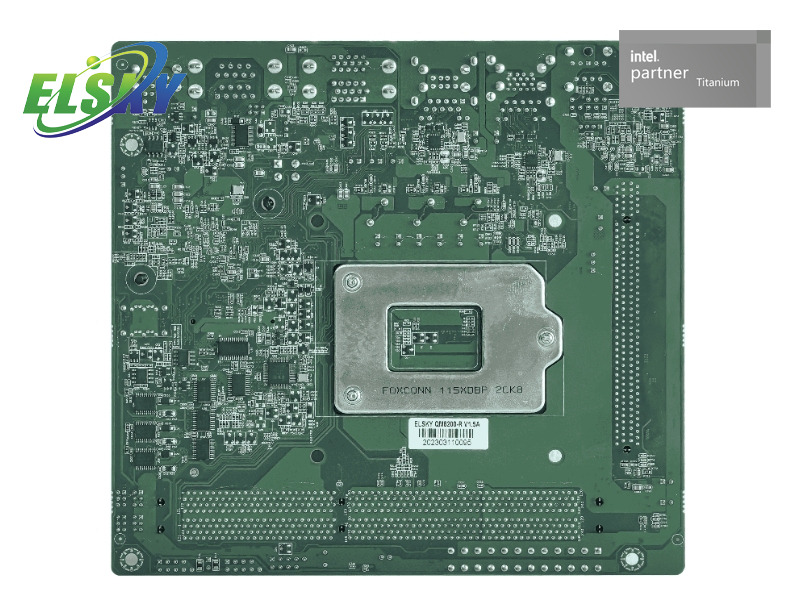

Back sight of the motherboard↓
Note: All the product pictures are for your reference only, the price of different RAM and Hard Disk capcity will not the same, if you want to get a complete quotation about QM6100 Mini ITX motherboard, please contact us!
Product Datasheet:
1. ordering choose option:
Motherboard module | CPU | LAN | COM | USB2.0 | USB3.0 | Memory | SSD | Power |
QM8200-R | Intel Haswell 4th generation LGA1150 Celeron, Pentium and Core i3, i5, i7 | 2LAN | 10 | 8 | 2 | 2*PC-DDR3 16G（MAX） | 1*MSATA 2*SATA | 24Pin ATX |
The "R" in the model number is a Realtek network card; the motherboard defaults to a Realtek sound card, which supports 10*USB ports; when the motherboard is changed to a USB sound card, it supports 9*USB ports. | ||||||||
2. CPU choose informations as below:
CPU specification | CPU brand | CPU module | Main frequency | Turbo Frequency | CPU power consumption (W) | Full load power consumption of the whole board (W) |
1150 | Intel Celeron | G1820 | Dual Cores 2.7G | 53 | 80 | |
G1840 | Dual Cores 2.8G | 53 | 80 | |||
1150 | Intel Pentium | G3220 | Dual Cores 3.0G | 53 | 80 | |
G3240 | Dual Cores 3.1G | 53 | 80 | |||
G3250 | Dual Cores 3.2G | 53 | 80 | |||
G3260 | Dual Cores 3.3G | 53 | 80 | |||
1150 4代I3 | Intel Core | I3-4130 | Dual Cores 3.4G | 54 | 80 | |
I3-4150 | Dual Cores 3.5G | 54 | 80 | |||
I3-4160 | Dual Cores 3.6G | 54 | 80 | |||
I3-4170 | Dual Cores 3.7G | 54 | 80 | |||
1150 4代I5 | Intel Core | I5-4430 | Quad Cores 3.0G | 3.2G | 84 | 110 |
I5-4460 | Quad Cores 3.2G | 3.4G | 84 | 110 | ||
I5-4570 | Quad Cores 3.2G | 3.6G | 84 | 110 | ||
I5-4590 | Quad Cores 3.3G | 3.7G | 84 | 110 | ||
I5-4690 | Quad Cores 3.5G | 3.9G | 84 | 110 | ||
1150 4代I7 | Intel Core | I7-4770 | Quad Cores 3.4G | 3.9G | 84 | 110 |
I7-4790 | Quad Cores 3.6G | 4.0G | 84 | 110 |
Note: The CPU price sometime will change depend on the market price, please also kindly send an inquiry before you going to buy QM6100 motherboard, thanks for your understanding!
3.Specification of QM6100 Mini ITX motherboard:
Motherboard size | 170mm（L）*180mm（W）*38mm（H） | |
CPU | Supports Intel Haswell 4th generation LGA1150 Celeron, Pentium and Core i3, i5, i7 | |
Chipset | Intel Chipset H81 | |
Power supply | 1*ATX_PWR | Standard desktop 24Pin ATX power interface, The motherboard's full load power consumption is about 80W~110W, and it is recommended to use a power supply of more than 200W |
1*DC_PWR | CPU power supply | |
Memory | 2*PC-DDR3 memory slots, support 1333/1600MHz memory, maximum support 16GB | |
Display function | 2*VGA DB15 interface | Support resolution 1920*1080@60Hz |
1*PCI-E X16 slot | Standard PCI-E X16 slot, can be connected to external independent graphics card and other devices | |
Network function | 2*RJ45_LAN interface | Realtek 8111H Gigabit NIC chip, supports network wake-up and PXE diskless boot function |
USB function | 4*USB2.0 interface | Rear standard USB2.0 interface |
2*USB3.0 interface | Rear standard USB3.0 interface | |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) | |
1*F_USB2 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) | |
F_USB2 Pin 2/4/6/8/10 and MSATA USB signal can be selected; F_USB2 Pin 1/3/5/7 and USB sound card signal can be selected | ||
Sounds function | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller; Motherboard can be modified to support Cmedia HS_100B USB sound card | |
1*AUDIO_JACK | The green port supports audio output (upper position), and the pink port supports MIC input (lower position) | |
1*F_AUDIO pin | Standard audio pin (9Pin, 2*5Pin, 2.54mm) | |
1*INT_SPK pin | Support 8 ohm 5 watt speaker output (amplifier) (4Pin, 1*4Pin, 2.0mm) | |
The motherboard has a Realtek sound card and a USB sound card, and the F_AUDIO pins have signals. | ||
Hard disk function | 1*SATA1 interface | Standard SATA3.0 hard disk interface |
1*SATA2 interface | Standard SATA3.0 hard disk interface | |
1*MSATA interface | Supports MINI SATA disk by default, optional support for WIFI/Bluetooth | |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.54mm) |
1*AUTO_SW pin | Hardware power-on jumper cap (3Pin, 1*3Pin, 2.0mm) | |
Other I/O | 2*COM DB9 interface | External serial port, COM2 supports RS232/RS422/RS485 optional |
COM3~6 pin | Serial port pin, COM3 can optionally support RS232/RS422/RS485 (39Pin, 2*20Pin, 2.0mm) | |
COM7~10 pin | Serial port pin, supports RS232 (39Pin, 2*20Pin, 2.0mm) | |
1*JP1 pin | Control COM2 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*JPCOM3 pin | Control COM3 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*JPCOM4 pin | Control COM4 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*JPCOM5 pin | Control COM5 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*JPCOM6 pin | Control COM6 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*PS/1 interface | PS/1 keyboard and mouse interface | |
1*CLR_CMOS pin | Motherboard reset and discharge pin (2Pin, 1*2Pin, 2.54mm) | |
1*CPU FAN pin | CPU fan power pin (supports temperature control) (3Pin, 1*3Pin, 2.54mm) | |
1*SYS FAN pin | System fan power pin (full speed, does not support temperature control) (3Pin, 1*3Pin, 2.54mm) | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Supports Windows 10, Windows 8, Windows 7, LINUX, etc. | |
Accept Paying Method:
We are support T/T, Paypal, Western Union, L/C, Alipay, Wechat pay etc.
Packing stata:
Shipping Method:
We are support shipping by FeDex, DHL, UPS and etc. If you need we quotate for your the freight, please send the product quantity and receivere address(including the country, city name, zip code and detail address) to us.
After-sales service:
Support repair service.
Sample order allowed return when our product not past the testing in 1 months.
Other special situations please contact is to get more support!
1. What CPUs are compatible with this motherboard?This motherboard supports Intel 4th generation CPUs with an LGA1150 socket. This includes Celeron, Pentium, and Core i3/i5/i7 processors.
2. Does this motherboard support multiple displays?Yes, it comes with two VGA ports. You can also add an external graphics card using the PCI-E X16 slot for more display options.
3. Is this motherboard suitable for industrial use?Yes, it is designed for industrial applications. It features a wide operating temperature range (-10℃ to 60℃) and a hardware watchdog function for system stability.
4. How many serial ports does this board have?The board has up to 10 COM ports. Two are external DB9 ports. The rest are internal pins, which are great for connecting various industrial devices.
5. Can I use an SSD with this motherboard?Yes, you can. It has two SATA 3.0 interfaces and one mSATA interface. This gives you flexible options for storage drives.
