Parameter
PC model | N67 |
Motherboard model | NANO6F, NANO7F |
PC size | 136mm*125mm*44mm |
power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm, and it supports 12V~19V wide voltage power supply. It is recommended to use a power supply of 12V5A or above |
6th generation CPU | Intel Celeron 3855U dual-core 1.6GHz; Intel Celeron 3955U dual-core 2.0GHz; Intel Core i3-6006U dual-core 2.0GHz; Intel Core i3-6100U dual-core 2.3GHz; Intel Core i5-6200U dual-core 2.3GHz, turbo frequency 2.8GHz; Intel Core i5-6300U dual-core 2.4GHz, turbo frequency 3.0GHz; Intel Core i7-6500U dual-core 2.5GHz, turbo frequency 3.1GHz; Intel Core i7-6600U dual-core 2.6GHz, turbo frequency 3.4GHz; |
7th generation CPU | Intel Celeron 3865U dual-core 1.8GHz; Intel Celeron 3965U dual-core 2.2GHz; Intel Core i3-7020U dual-core 2.3GHz; Intel Core i3-7100U dual-core 2.4GHz; Intel Core i3-7130U dual-core 2.7GHz; Intel Core i5-7200U dual-core 2.5GHz, turbo frequency 3.1GHz; Intel Core i5-7300U dual-core 2.6GHz, turbo frequency 3.5GHz; Intel Core i7-7500U dual-core 2.7GHz, turbo frequency 3.5GHz; Intel Core i7-7600U dual-core 2.8GHz, turbo frequency 3.9GHz; |
Chipset | Integrated in CPU single chip |
Memory | 1*NB-DDR4 memory, support 1.2V, support 2133/2400MHz memory, maximum support 16G |
Network Features | Integrated Realtek 8111F Gigabit network card, supports network wake-up, network PXE function |
Support WIFI/3G/4G |
Display functions | 6th generation integrated Intel HD Graphics 510/520 graphics controller, supports single display, dual display copy, dual display expansion 7th generation integrated Intel HD Graphics 610/620 graphics controller, supports single display, dual display copy, dual display expansion |

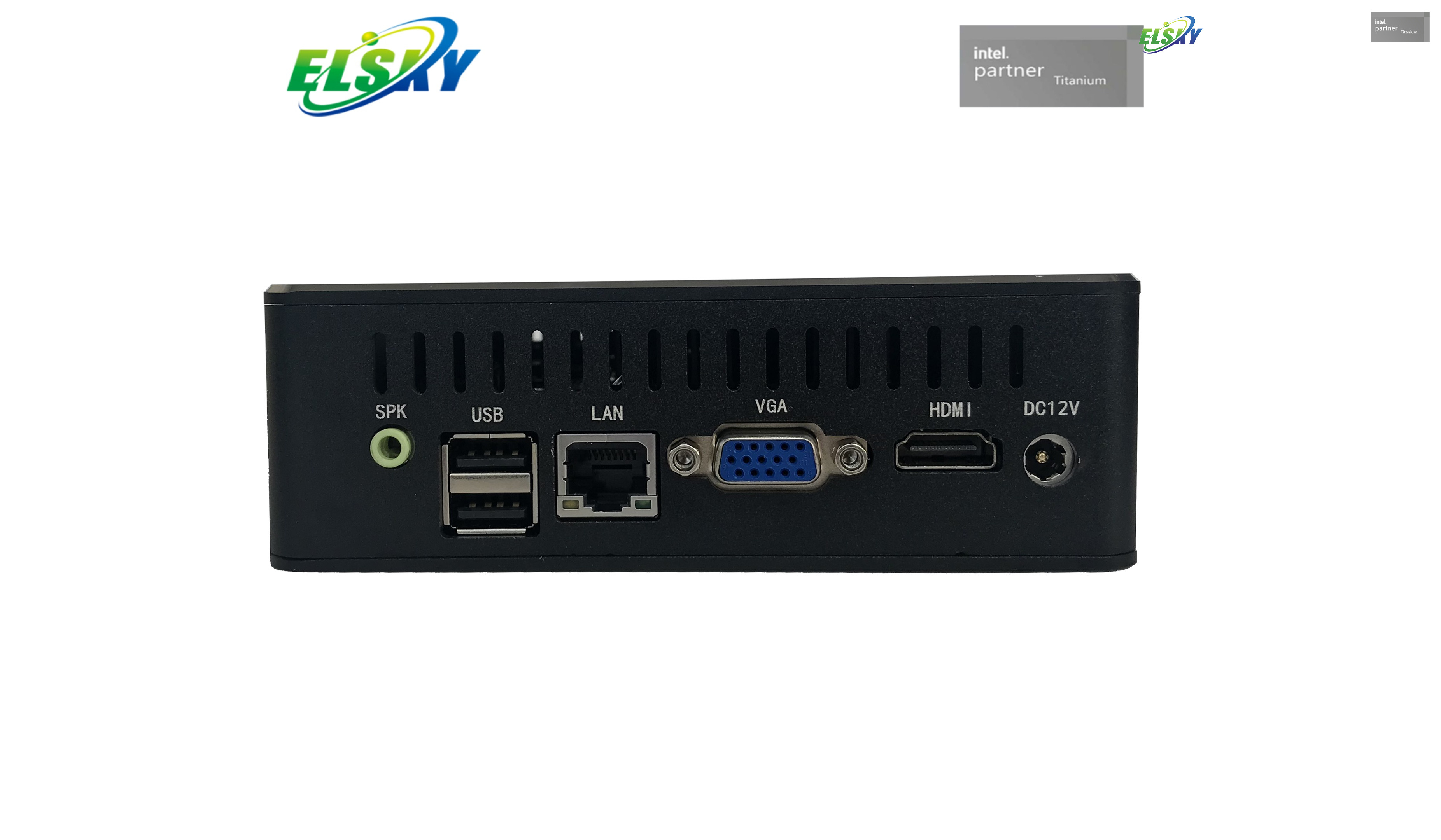

1*VGA | Supports the highest resolution of 1920*1200@60Hz |
1*HDMI | Support 4K resolution 3840*2160@24/30Hz |

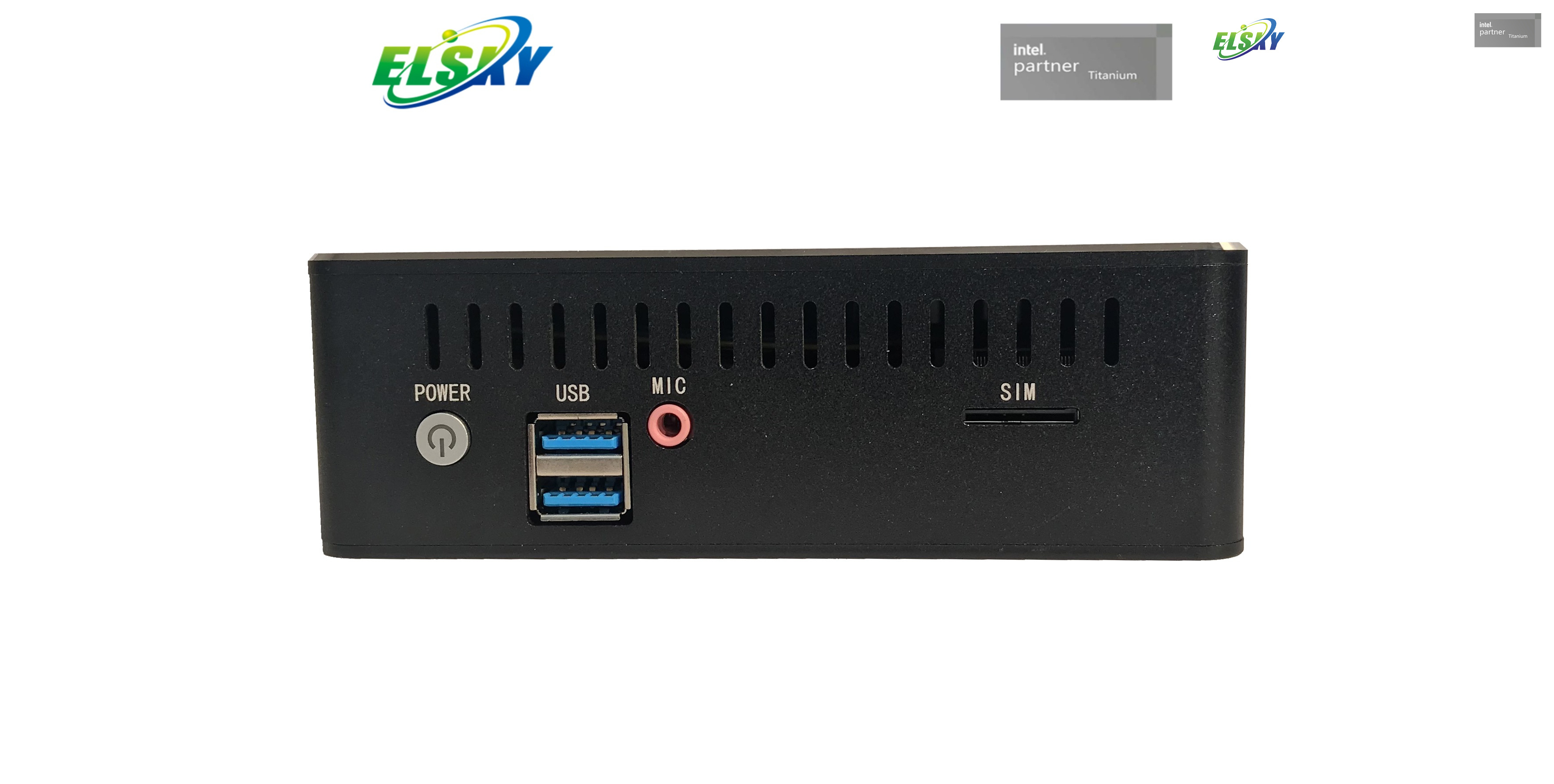

USB Function | 2*USB3.0 | The blue USB group is USB 3.0 speed |
2*USB2.0 | The black USB is USB 2.0 speed |
Sound Features | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller |
1*SPK | Support audio output |
1*MIC | Support microphone input |
HDMI interface supports HDMI audio output |
Hard disk function | MSATA disk (8G/16G/32G/64G/120G/128G/240G/256G, etc.) |
M.2 2242/2280 hard disk (64G/120G/128G/240G/256G/512G, etc.) |
Switch function | POWER | Switch button |
Operating Environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, no condensation |
BIOS | AMI BIOS, supports power-on, scheduled startup, and remote startup |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) |
Operating system | Windows 10, Windows 8, Windows 7, Linux, etc. |
N67 Industrial PC Features
Compact Design: The N67's 136mm x 125mm x 44mm size makes it easy to integrate. Its small footprint is ideal for tight spaces.
Flexible Power Input: It uses a single DC_IN port. The PC supports 12V-19V wide voltage input. A 12V5A power supply is recommended.
Powerful Processor Options: The PC supports both 6th and 7th Generation Intel CPUs. This includes a variety of Celeron, Core i3, i5, and i7 processors.
Advanced Chipset: The single-chip design is integrated into the CPU. This simplifies the architecture and improves overall reliability.
Expandable Memory: The N67 has one NB-DDR4 memory slot. It supports up to 16GB of RAM. This provides the performance you need for demanding applications.
Flexible Storage Options: It supports two types of drives. You can use either an MSATA drive or an M.2 2242/2280 drive.
Broad OS Compatibility: The PC supports multiple operating systems. These include Windows 10, Windows 8, Windows 7, and Linux.
