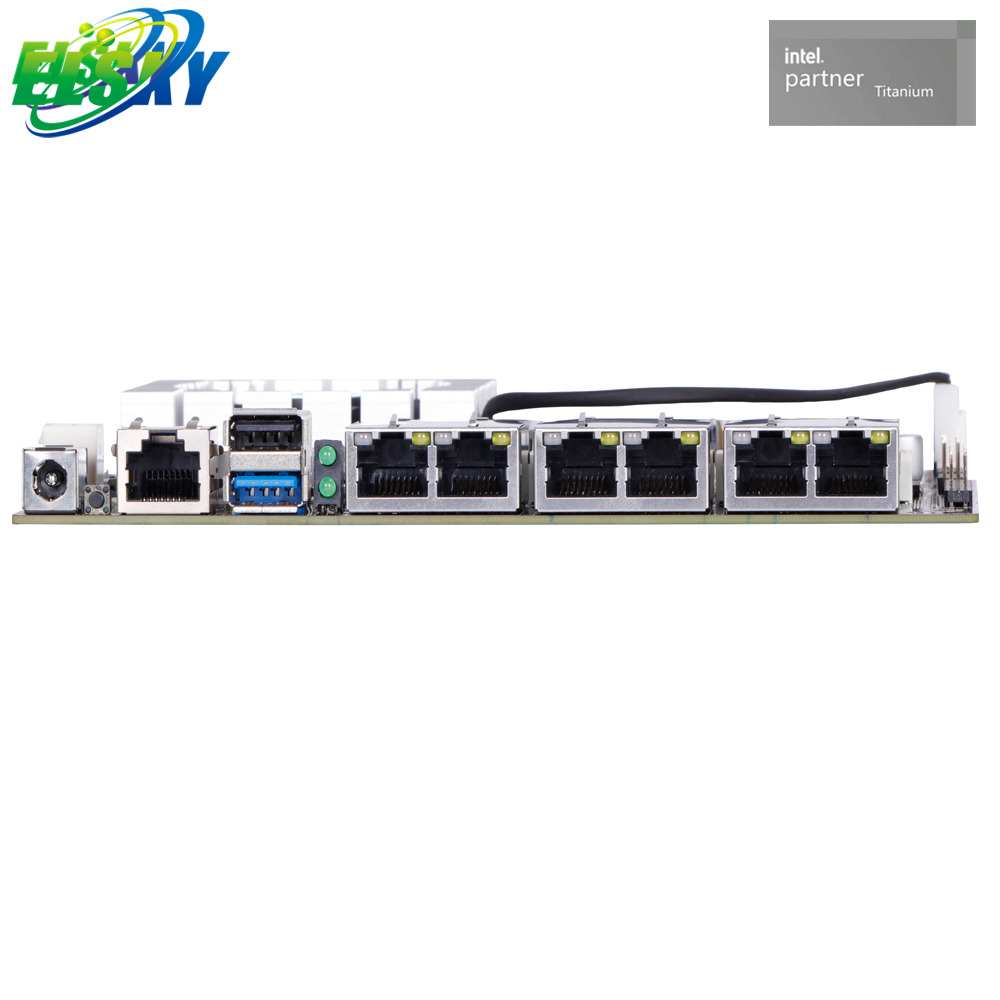

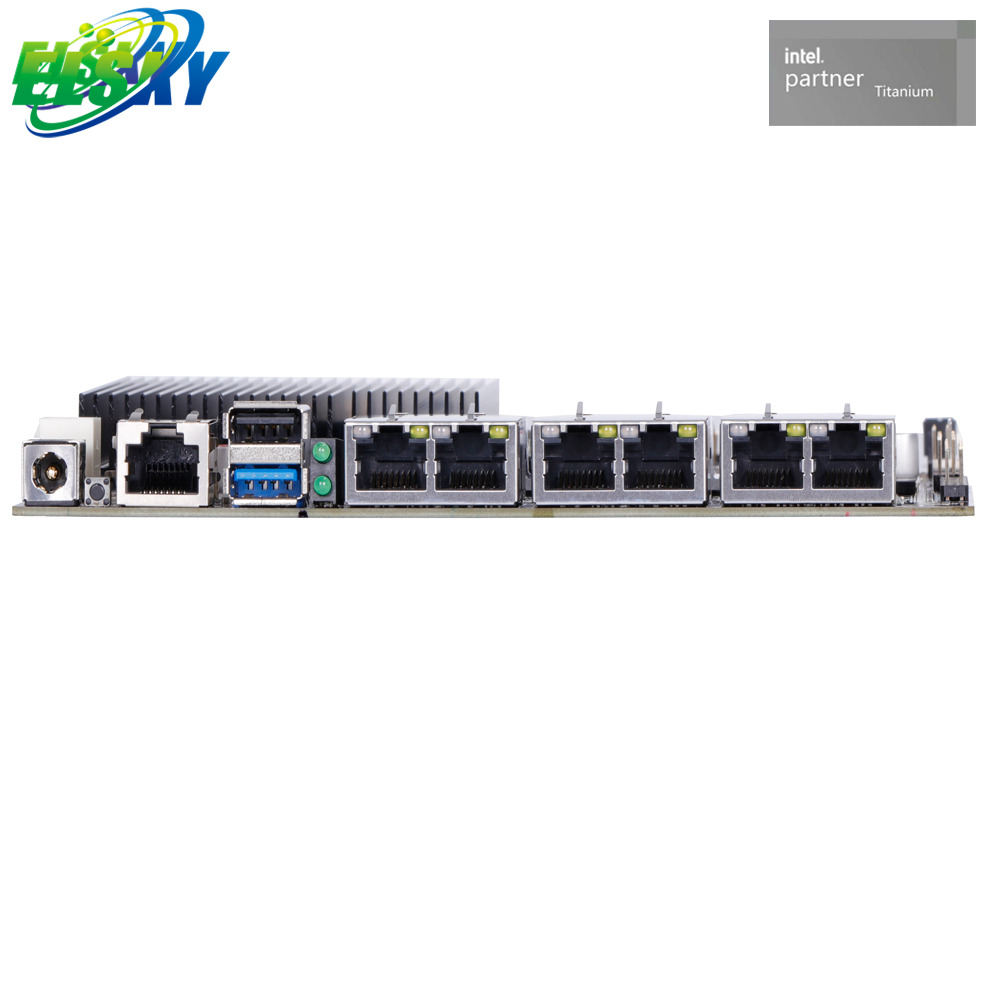

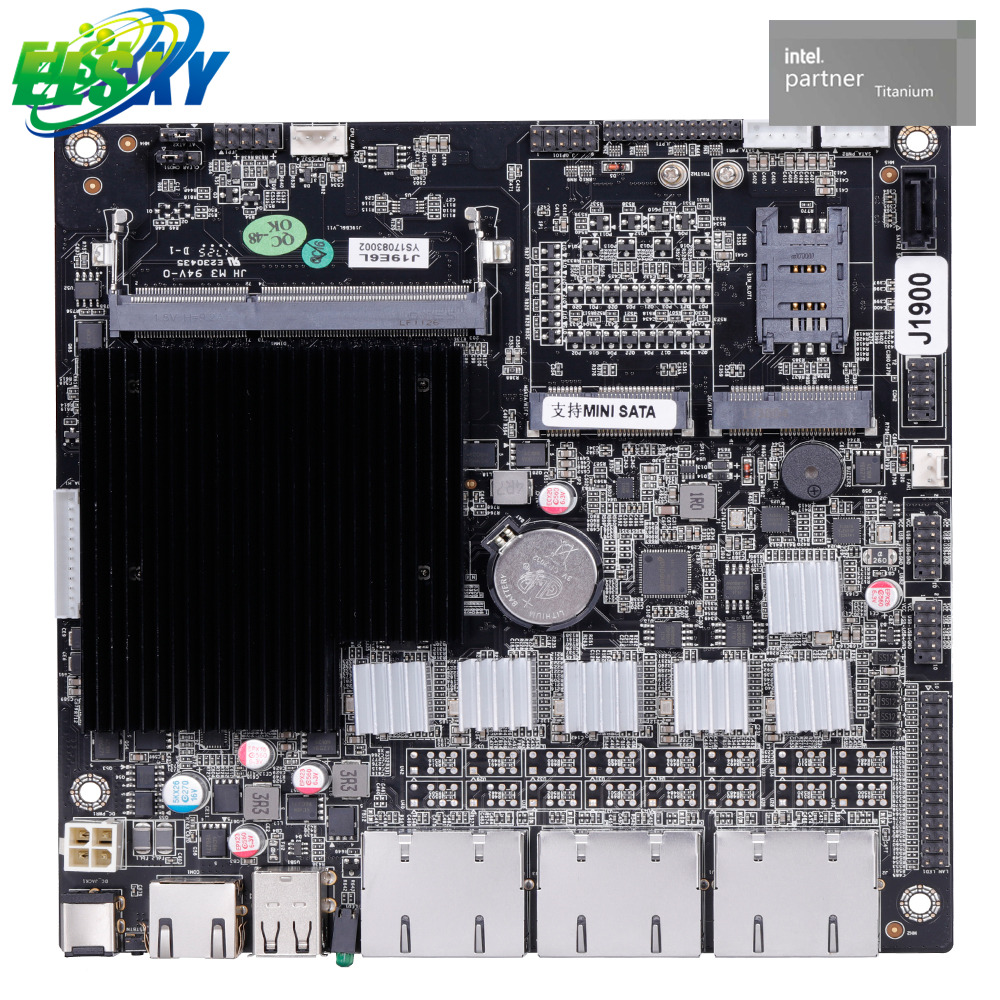

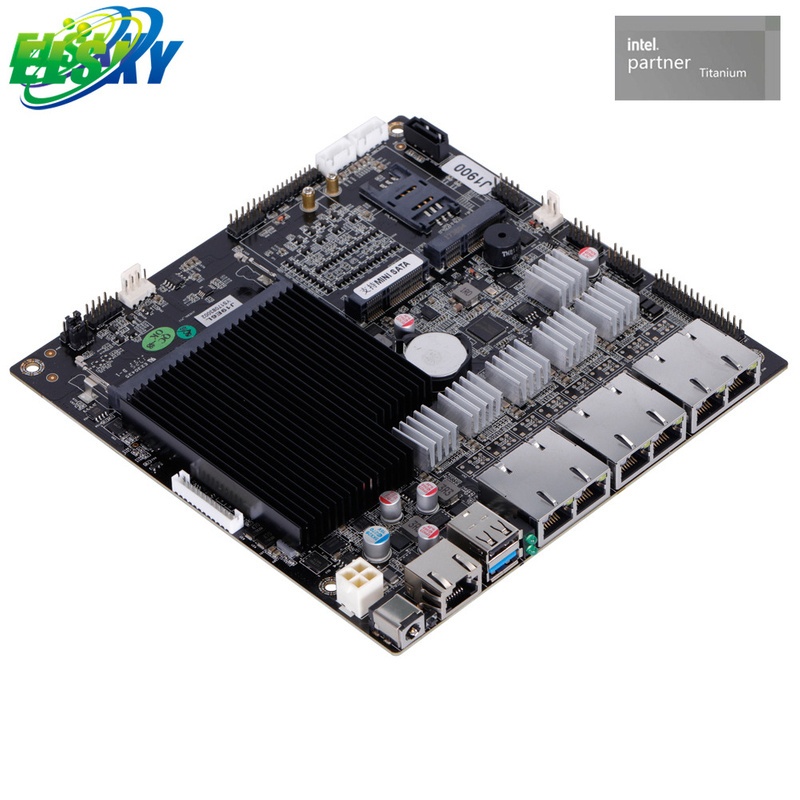

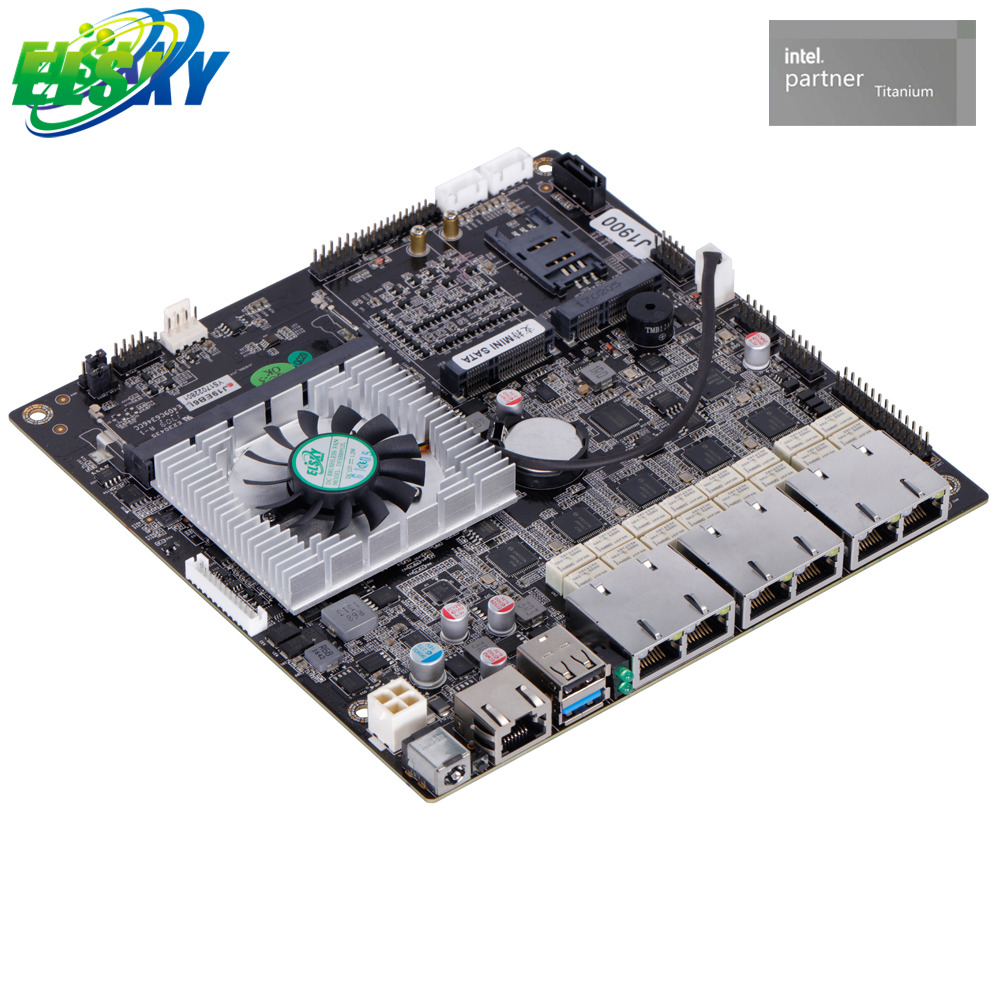

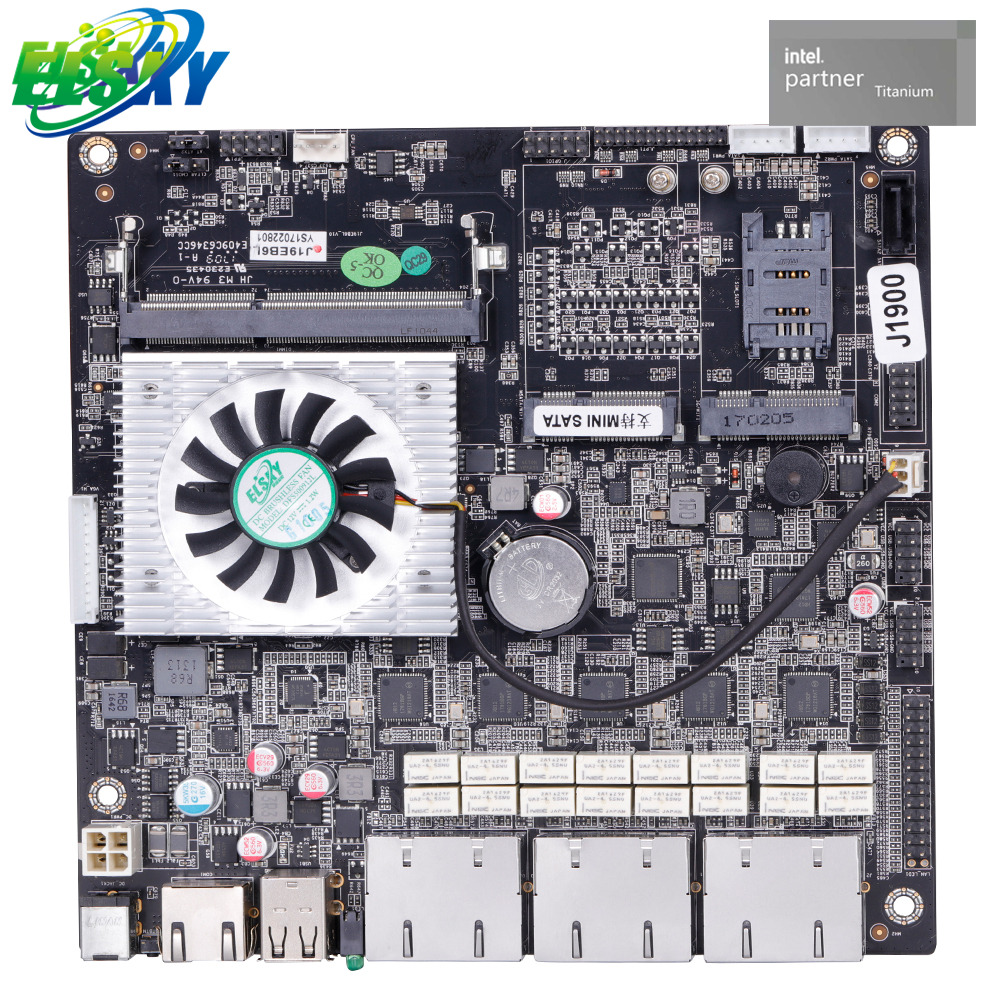

The Compact J19E6L Motherboard is a specialized solution meticulously crafted for embedded applications, where space constraints, power efficiency, and reliable performance are paramount. Engineered with a focus on compactness without sacrificing functionality, this motherboard offers a complete computing platform in a small form factor. It serves as the ideal foundation for developing embedded systems that require seamless integration into various devices, enabling efficient data processing and control in a wide range of scenarios.
Ultra - Compact Form Factor: With its extremely small dimensions, the J19E6L motherboard can fit into the tightest of spaces, making it suitable for embedded devices such as industrial control boxes, smart home hubs, and wearable electronics. Its compact design allows for easy integration into existing systems or the creation of new, space - saving devices.
Low - Power Consumption Components: Built with low - power processors and energy - efficient chipsets, this motherboard minimizes power usage while still delivering sufficient computing power for embedded tasks. This not only extends the battery life of portable embedded devices but also reduces operational costs for continuously running systems in industrial settings.
Rich Embedded - Specific Connectivity: The J19E6L comes equipped with a comprehensive set of interfaces tailored to embedded applications. It includes serial ports (RS - 232, RS - 485), GPIO pins, CAN bus interfaces, and Ethernet ports, enabling seamless communication with a variety of sensors, actuators, and other embedded components. This wide range of connectivity options ensures smooth integration into complex embedded systems.
Wide Operating Temperature Range: Designed to withstand harsh environmental conditions, the motherboard can operate reliably within a broad temperature range. Whether in extreme cold or high - heat environments, such as industrial plants or outdoor installations, the J19E6L maintains stable performance, ensuring the reliability of the embedded systems it powers.
Industrial Automation: In industrial automation systems, the Compact J19E6L motherboard plays a crucial role in controlling and monitoring various processes. Its embedded - specific connectivity allows it to interface with industrial sensors, motors, and programmable logic controllers (PLCs), enabling precise automation and real - time data collection for enhanced productivity and efficiency.
Smart Home Devices: For smart home applications, this motherboard can be integrated into devices like smart thermostats, security cameras, and home automation hubs. Its low - power consumption and compact size make it suitable for battery - powered or space - constrained devices, while the connectivity features ensure seamless communication with other smart home components, creating a unified and intelligent home ecosystem.
Medical Equipment: In the medical field, the J19E6L motherboard is well - suited for use in portable medical devices, patient monitoring systems, and diagnostic equipment. Its reliability, low - power operation, and ability to function in diverse environments make it a trusted choice for ensuring accurate and continuous medical data processing and device control.
Deep Embedded Expertise: Our team has extensive experience in developing motherboards for embedded applications. We understand the unique challenges and requirements of the embedded market, allowing us to design the J19E6L with features that precisely meet the needs of our customers in this field.
Rigorous Quality Assurance: We adhere to strict quality control measures throughout the manufacturing process of the J19E6L motherboard. Each unit undergoes comprehensive testing, including stress testing, thermal testing, and compatibility testing, to ensure its reliability and durability. Our commitment to quality ensures that you receive a product that performs consistently in even the most demanding embedded environments.
Customization Services: Recognizing that every embedded project has unique requirements, we offer customization options for the J19E6L motherboard. Whether it's adjusting the I/O configuration, adding specific features, or optimizing the power management for your specific application, our technical team can work closely with you to create a customized solution that perfectly fits your needs.
Comprehensive Technical Support: Our dedicated technical support team is available to assist you at every stage, from product selection and integration to post - sales service. We provide detailed documentation, software updates, and prompt assistance for any technical issues, ensuring that your embedded systems powered by the J19E6L motherboard operate smoothly and efficiently.
Motherboard model | CPU | Bypass | LAN | COM | USB2.0 | USB3.0 | SSD | Memory | power |
J19E6L | Celeron J1800 Celeron J1900 Pentium J2900 optional | / | 6 | 2 | 5 | 1 | 1*MSATA 1*SATA | 1*NB-DDR3 MAX 8G | +12V |
J19EB6L | support | 6 | 2 | 5 | 1 | ||||
J19E4L | / | 4 | 2 | 5 | 1 | ||||
J19EB4L | support | 4 | 2 | 5 | 1 | ||||
The J19EB4L/6L model indicates that it has the Bypass function | |||||||||
>> CPU information
| CPU brand | CPU model | main frequency | turbo frequency | CPU power consumption | The full load power consumption of the whole board is about |
| Intel Celeron | J1800 | Dual-core 2.41G | 2.58G | 10W | 30W |
| Intel Celeron | J1900 | Quad-core 1.99G | 2.41G | 10W | 30W |
| Intel Pentium | J2900 | Quad-core 2.41G | 2.66G | 10W | 30W |
>> Product Specifications
Motherboard size | 170mm(L)*170mm(W)*21mm(H) | |
CPU processor | Intel® Processor Celeron J1900, Celeron J1800, Pentium J2900 | |
Chipset | Intel Bay trail SOC chipset | |
Memory | 1*NB-DDR3L memory, low voltage 1.35V memory, support 1333/1600MHz memory, maximum support 8G | |
Power supply | 1*DC_JACK | Support 12V voltage, the inner diameter of the DC head is 2.5MM power consumption of the motherboard is about 30 W at full load, and it is recommended to use a 12V 4 A or above power supply |
Display function | Intel(R) HD Graphics graphics controller , support single display | |
1*VGA_H pin | Support resolution 1920*1080 @60HZ (12Pin, 1*12Pin, 2.0mm) | |
Network features | 4/6*RJ45 LAN interface | Intel i210/i211-AT Gigabit network card , support wake-up on LAN and PXE diskless boot function |
1*Mini-PCIE interface | Support WiFi/3G/4G/Bluetooth, etc. | |
1*LAN_LED pin | Network port light pin (28 Pins, 2*14 Pins, 2.54mm ) | |
Hard disk function | 1*SATA 2 interface | Standard SATA2.0 hard disk interface, the maximum transmission speed is 3.0 Gbps |
2*SATA-PWR pin | Hard disk power supply pin, available voltage 5V, 12V (4Pin, 1*4Pin, 2.54mm) | |
1*MSATA interface | Support MSATA disk, support MSATA 2.0 | |
USB function | 1*USB3.0 interface | Rear standard USB3.0 interface |
1*USB2.0 interface | Rear standard USB2.0 interface | |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm ) | |
1*F_USB 2 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54 mm ) | |
Switch function | 1*J FP pin | Switch, power light, hard disk light, reset pin (9Pin, 2*5Pin, 2.54 mm ) |
1*RST BTN button | restart button | |
1*AT_ATX pin | Hardware control power-on pin (3Pin, 1*3Pin, 2.54 mm ) | |
Other I/O | 1*COM1 interface | RJ45-COM only supports RS232 |
1*COM2 pin | Built-in serial pin, only supports RS232 (9Pin, 2*5Pin, 2.54mm) | |
1*SIM_SLOT card slot | Support SIM card, need SIM card when using 3G/4G | |
1*CLEAR-CMOS pin | Motherboard reset and discharge pin (3Pin, 1*3Pin, 2. 54 mm) | |
1*CPU_FAN pin | CPU fan pin, does not support temperature control (3 Pin, 1*3 Pin, 2.54 mm) | |
1*FAN 1 pin | Fan pin, does not support temperature control (3Pin , 1*3Pin, 2.54mm ) | |
1*J_GPIO pin | Standard GPIO pin (10Pin, 2*5Pin, 2.54mm ) | |
1*JLPT pin | Standard print port pin (25 Pins, 2*13 Pins, 2.0mm) | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
BIOS | AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment | |
Watch dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Support Windows 10, Windows 8, Windows 7, Linux, etc. | |
