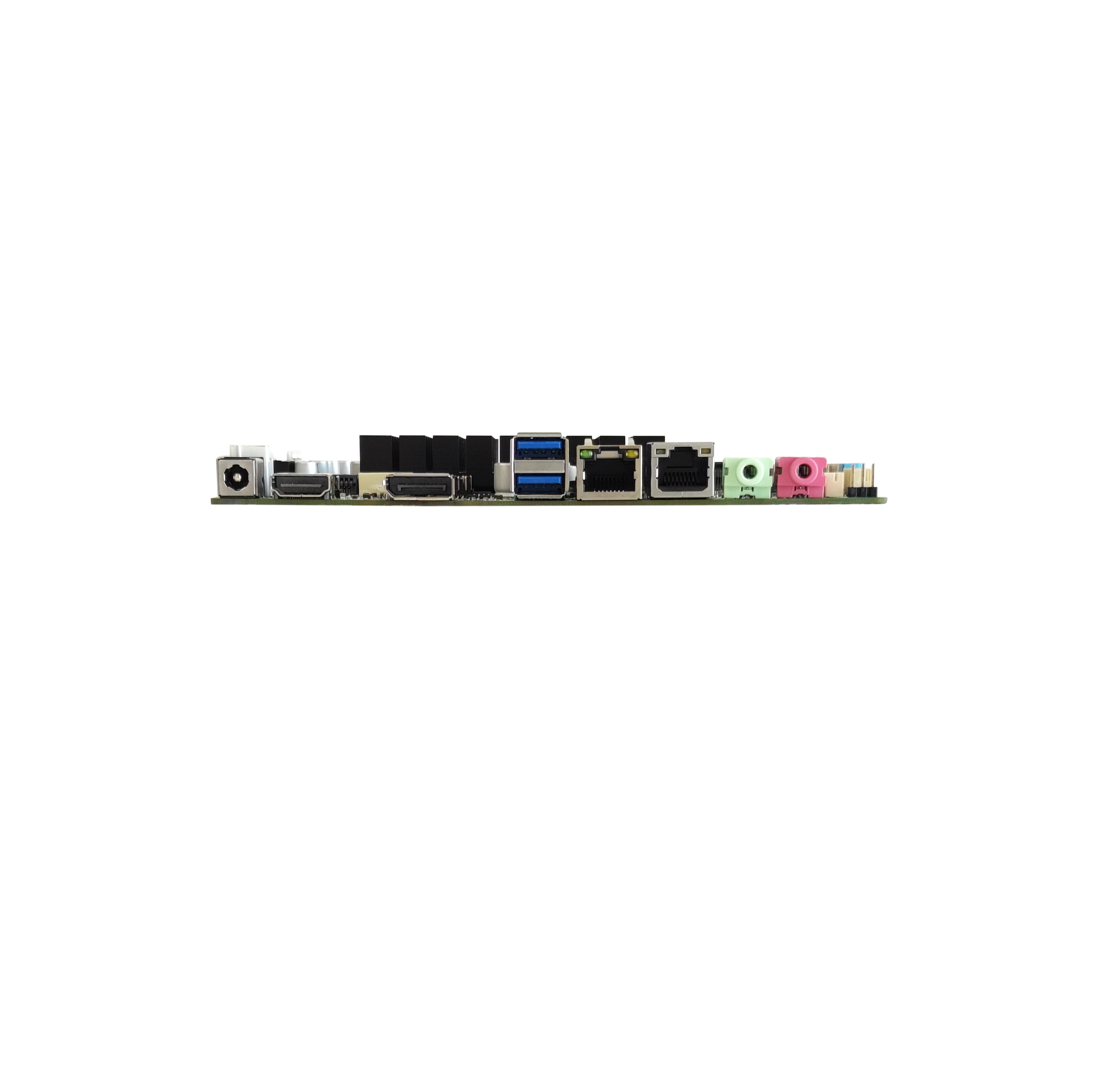

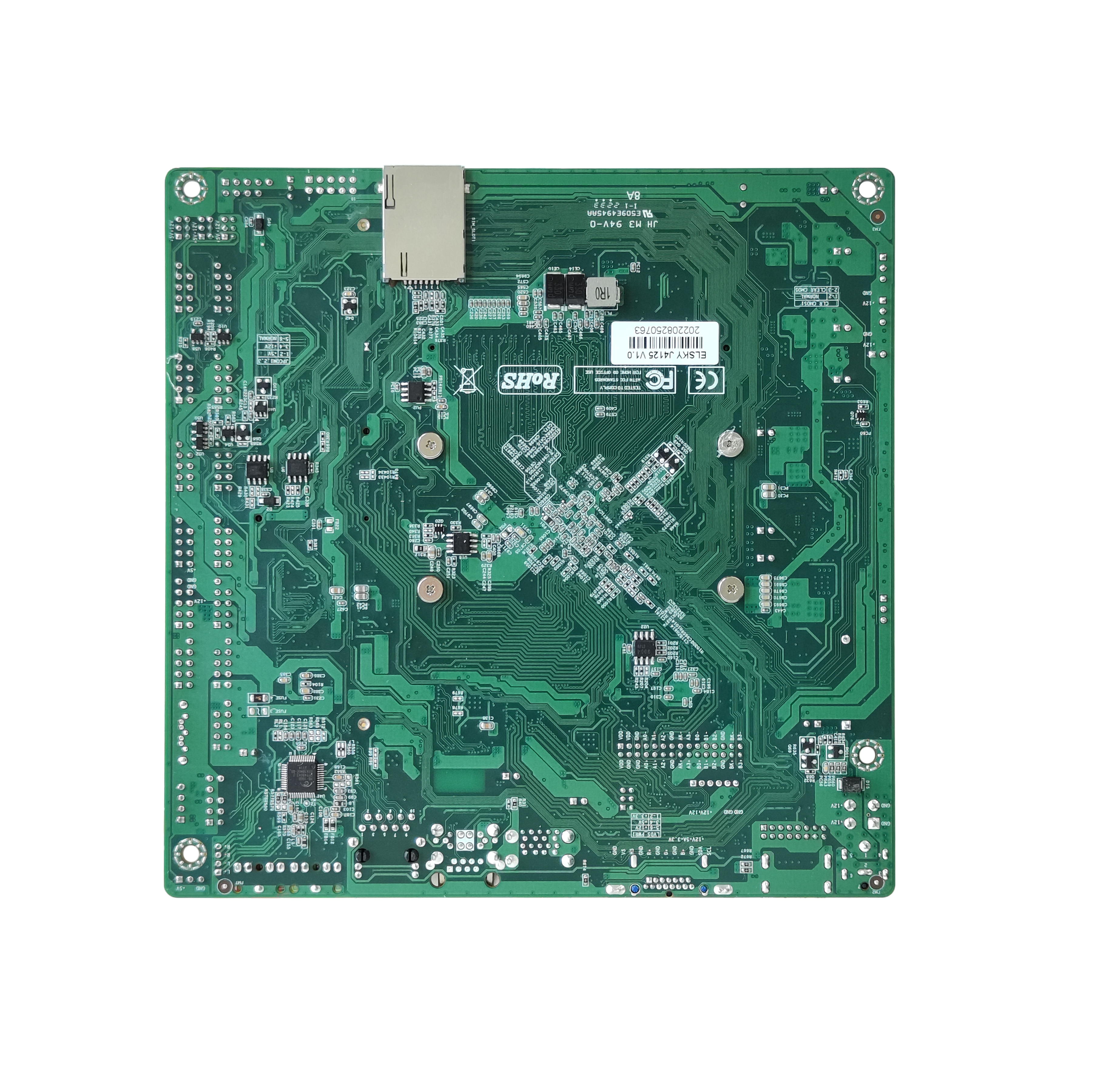

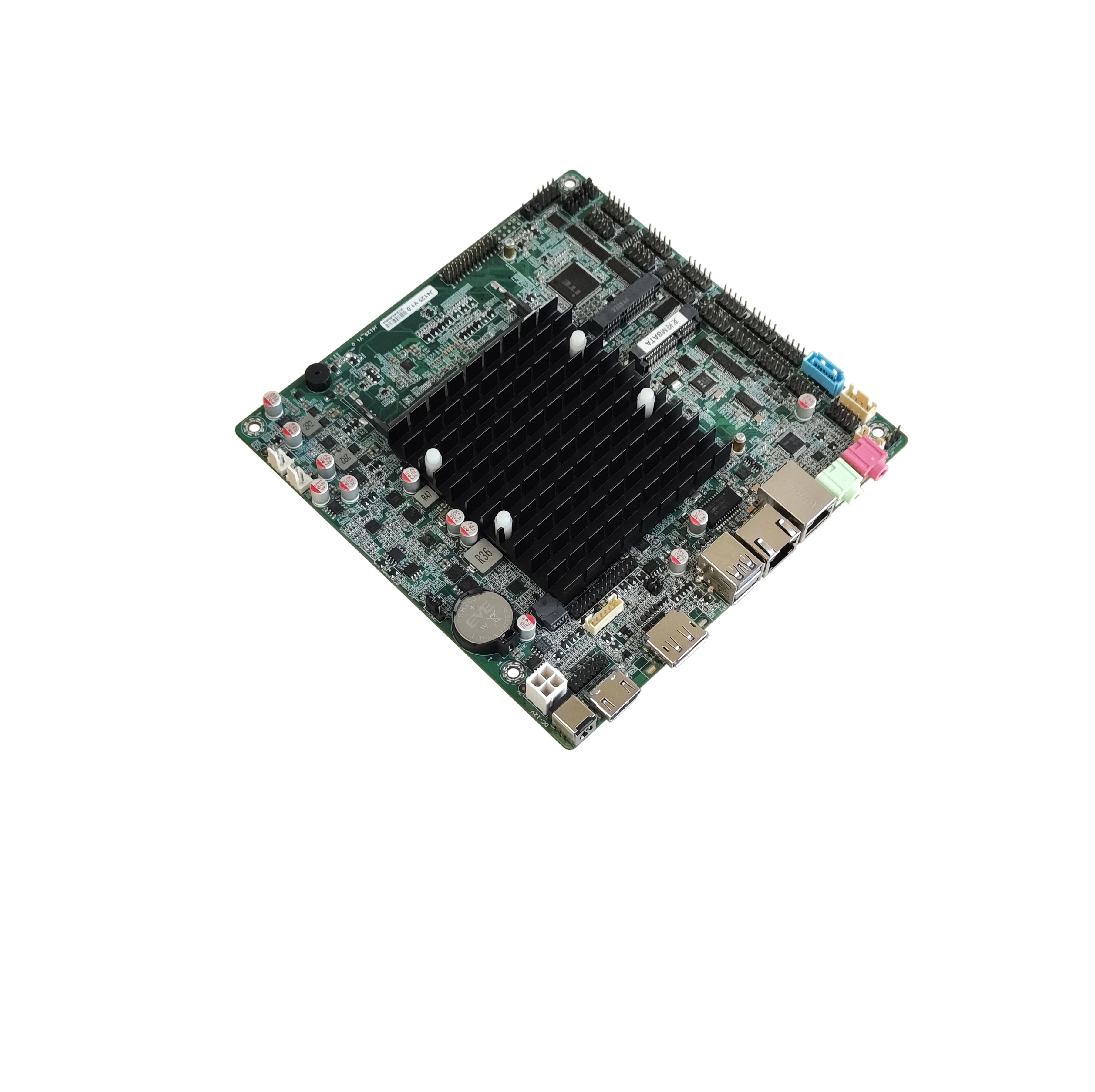

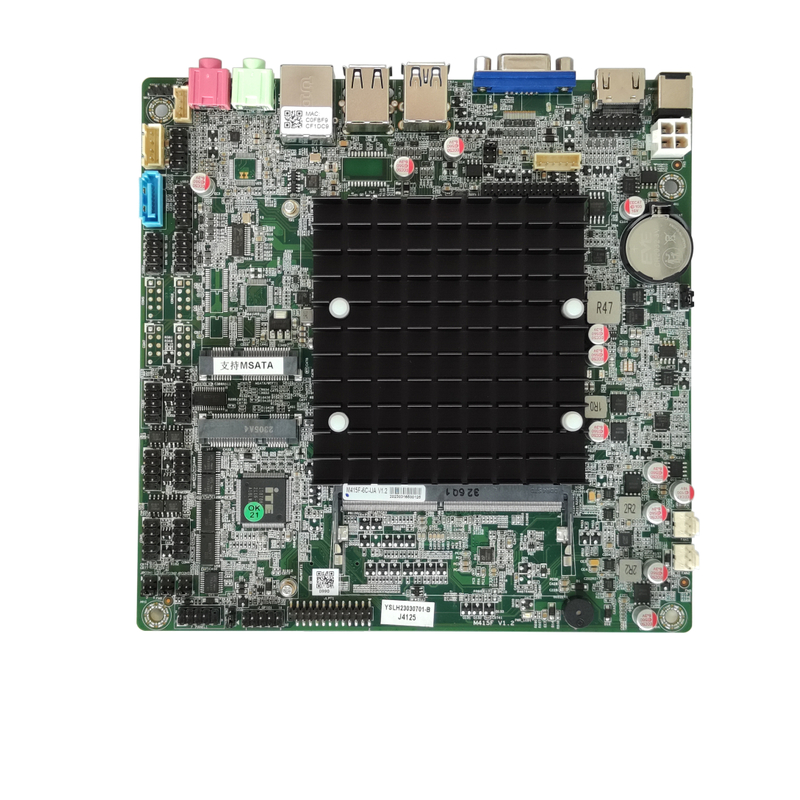

Motherboard size |
170mm（L）*170mm（W）*22mm（H） |
CPU |
Intel Celeron J4025/J4125/N4020/N4120 、pentium J5040 /N5030 |
memory |
1*NB-DDR4 SODIMM Memory slot，support 2400MHz memory，Low voltage 1.35V，Maximum support 8GB |
Power adapter |
1*DC_JACK |
Supports 12V voltage and the inner diameter of the DC head is 2.5MM Full load power consumption of the main board is about 30W. A power supply of 12V/4A or above is recommended |
1*DC_PWR |
Display function |
Intel ® Ultra HD Graphics card 600 graphics controller, support single display, dual display/triple display copy, dual display/triple display expansion, DOS single display |

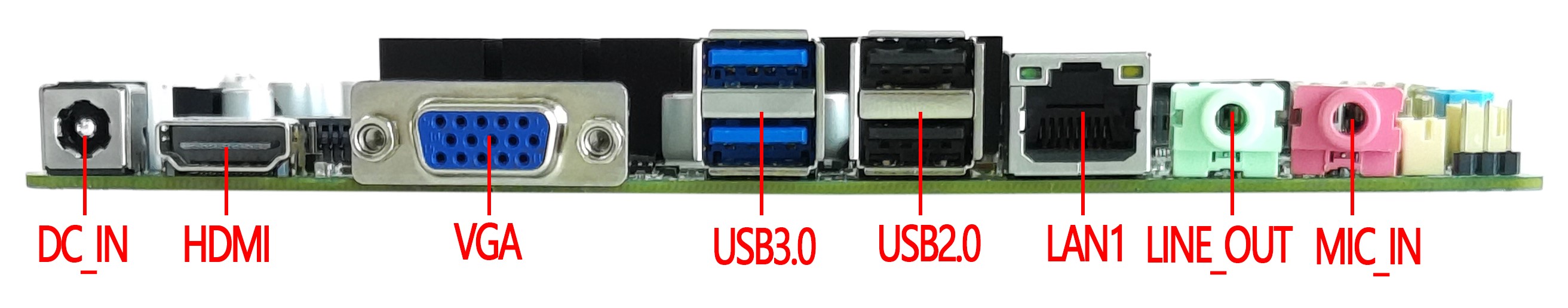

1*VGA DB15 port |
Support resolution 1920*1080@60Hz |

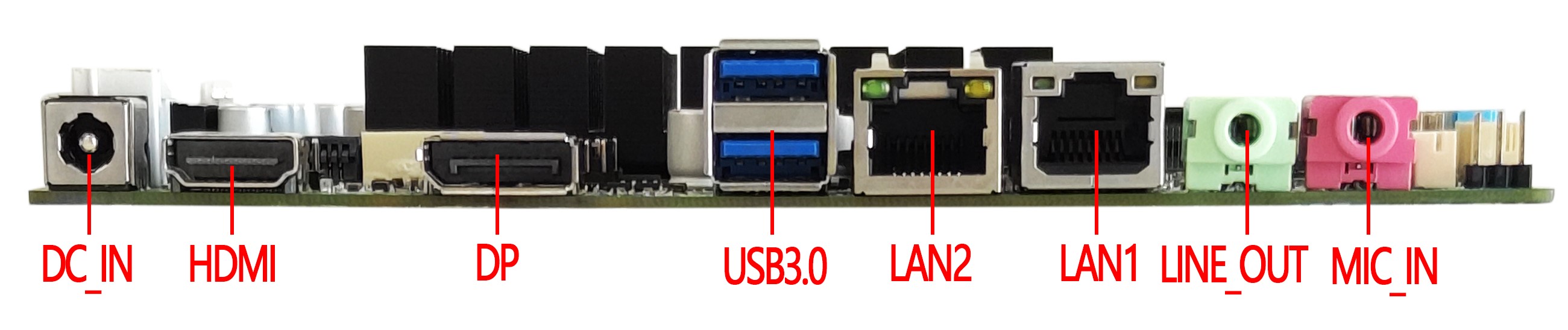

1*DP port(optional) |
4K resolution 4096/3840*2160@60Hz |
The VGA port supports DP ports |
1*HDMI 2.0 port |
4K resolution 4096/3840*2160@60Hz |
1*HDMI_CON1 pin |
4K resolution 4096/3840*2160@30Hz （16Pin，2*8Pin，2.0mm） |
1*LVDS/EDP pin |
Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） |
1*LVDS_PWR pin |
LVDS Voltage control pin （6Pin，2*3Pin，2.0mm） |
1*INVERT pin |
LVDS The backlight switch controls the pin （6Pin，1*6Pin，2.0mm） |
Either LVDS or EDP share one set of pins |
Network function |
1/2*RJ45 LAN port |
100 Mbit/s and Gigabit nics optional and supports network wake up and PXE diskless boot (Gigabit: Single network 8111H, dual network 8111H+8111H) (100 Mbit/s: Single network 8106E, dual network 8106E+8106E) |
1*MINI_PCIE port |
Support WIFI/3G/4G/ Bluetooth module |
Hard disk function |
1*SATA port |
Standard SATA 3.0 hard drive interface |
1*MSATA port |
Supports MSATA 3.0 |
1*SATA_PWR pin |
The hard disk power supply pin can supply 5V or 12V （4Pin，1*4Pin，2.54mm） |
Sound function |
Cmedia HS-100B high fidelity USB audio chip is supported by default Optional Realtek ALC662/660/892/897 HD digital audio decoder, 6-channel hi-fi audio controller |
1*LINE_OUT port |
Audio output supported (green) |
1*MIC_IN port |
Support microphone input (red) |
1*JAMP pin |
The amplifier supports 8 OHM 5 watt speaker dual channel output （4Pin，1*4Pin，2.0mm） |
1*F_AUDIO pin |
Standard audio pi （9Pin，2*5Pin，2.54mm） |
1*SPDIF_OUT pin |
Digital audio interface |
USB function |
2*USB3.0 port |
Rear standard USB3.0 port |
2*USB2.0 port |
Standard USB2.0 interface at the rear |
1*F_USB1 pin |
Front USB2.0 pins, a set of 2*USB2.0 （9Pin，2*5Pin，2.54mm） |
1*F_USB2 pin |
Front USB2.0 pins, a set of 2*USB2.0 （9Pin，2*5Pin，2.54mm） |
1*F_USB3 pin |
Front USB2.0 pins, a set of 2*USB2.0 （9Pin，2*5Pin，2.54mm） |
When the motherboard is a USB sound card, the F_USB1 2/4/6/8/10 pin has no signal |
Switching function |
1*F_PANEL pin |
Switch, power indicator, hard disk indicator, restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO-SW pin |
Supports hardware control to power on and power on （3Pin，1*3Pin，2.0mm） |
Other I/O |
10*COM pin |
Serial port，support RS232 by default，COM1/3/4 optional RS232/RS422/RS485（9Pin，2*5Pin，2.54mm） |
1*JPCOM1/2/3 pin |
Can control COM1/2/3 ninth pin voltage 0V/5V/12V （6Pin，2*3Pin，2.0mm） |
1*JLPT1 pin |
Parallel port, standard print interface pin （25Pin，2*13Pin，2.0mm） |
1*SIM Card slot |
Support SIM card, SIM card is required for 3G/4G |
1*CLR_CMOS pin |
Motherboard reset and discharge pins （3Pin，1*3Pin，2.54mm） |
1*FAN1 pin |
CPU Fan pins do not support temperature control （3Pin，1*3Pin，2.54mm） |
1*FAN2 pin |
The system fan pins do not support temperature control （3Pin，1*3Pin，2.54mm） |
1*J_GPIO pin |
GPIO Control pin （10Pin，2*5Pin，2.54mm） |
Operating environment |
Working temperature：-10℃~60℃； Working humidity：5%~95% relative humidity, non-condensing |
BIOS |
AMI BIOS ， Support power-on boot, scheduled boot, remote switch machine intelligent identificatio |
Watch Dog |
Watchdog programming, support hardware reset function (256 levels, 0~255 seconds） |
Operating system |
Support Windows 11，Windows 10，Linux etc. |
