OPS-H310
ELSKY

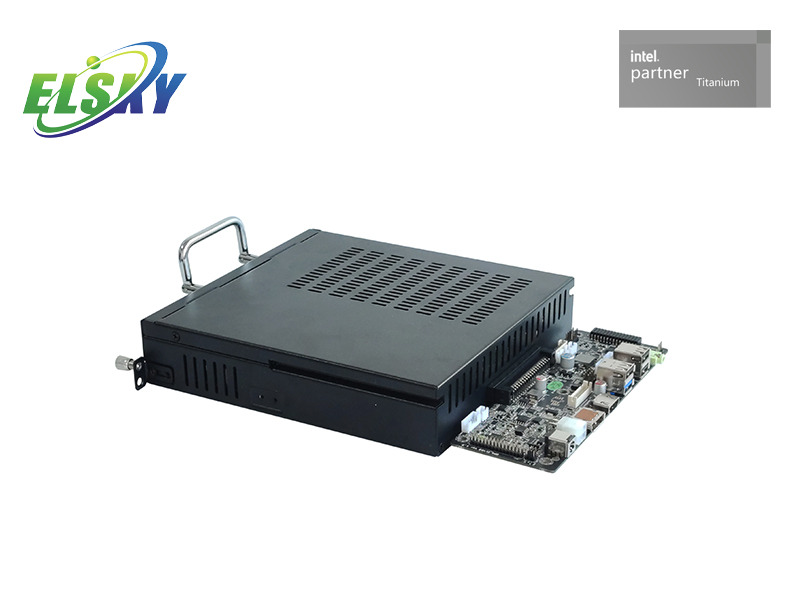

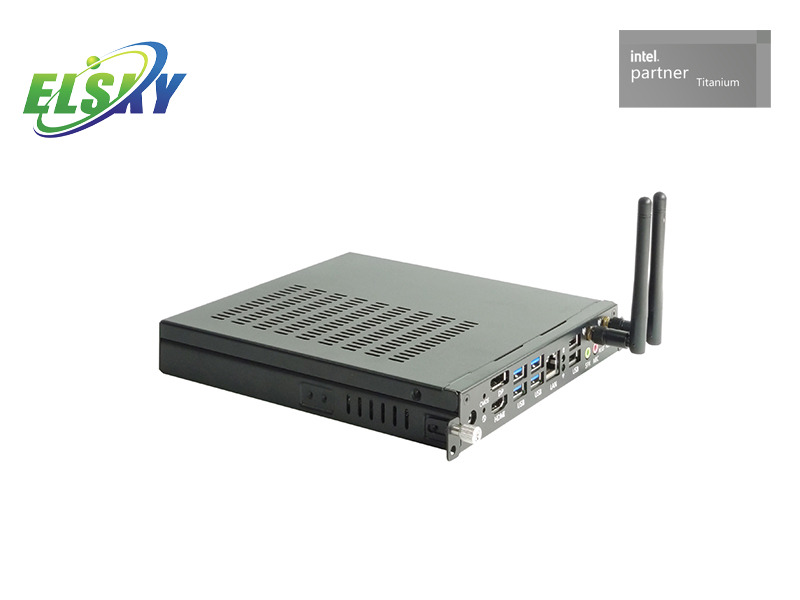

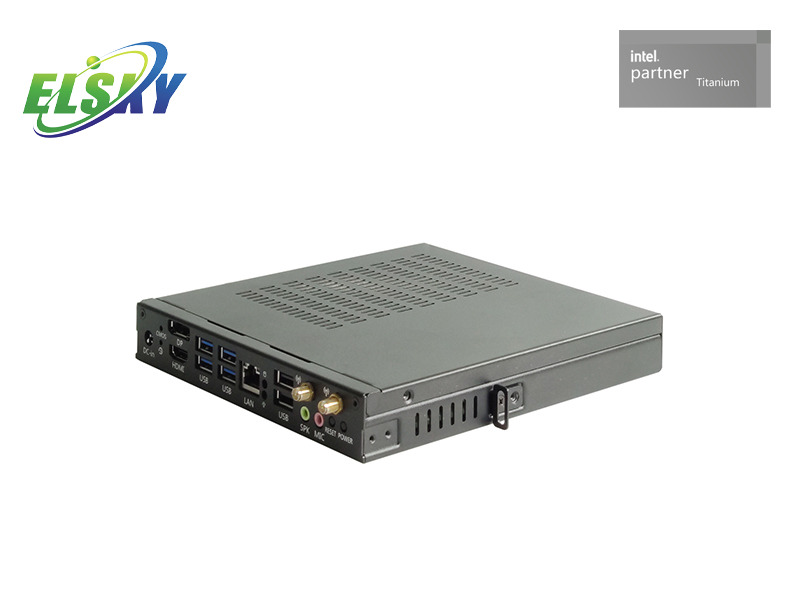

The ELSKY OPS-H310 Computer is a powerful modular solution for professional display systems. It supports Intel 8th/9th generation Core CPUs and H310 chips, providing high performance and dual 4K display output. It is designed according to open and pluggable specifications, easy to integrate, simplifies maintenance through one click recovery function, and provides flexible storage (M.2/SATA). Its application scope covers interactive education panels, financial signage, and high-performance retail kiosks.
Processor Support: Supports Intel 8th and 9th generation Core i3, i5, and i7 CPUs. This provides a range of processing power to meet different performance demands for various applications.
Graphics and Display: Integrated Intel UHD Graphics 630 drives two independent displays. Connect one 4K monitor at 60Hz via DisplayPort and another 4K monitor at 30Hz via HDMI for an expanded visual workspace.
Peripheral Connectivity: Provides six external USB ports for peripherals. It includes three USB 3.1 ports for fast data A:transfer and three USB 2.0 ports for standard devices like keyboards and mice.
Storage Versatility: Offers multiple storage options. It has an M.2 slot for fast NVMe SSDs, an mSATA slot, and a standard 2.5-inch SATA interface for a traditional SSD or HDD.
Wireless Expansion: Contains a Mini-PCIE slot for system expansion. This allows the addition of modules for Wi-Fi, Bluetooth, or 4G cellular connectivity to meet wireless networking needs.
OPS Standard Interface: Integrates into displays using the standard 80-pin OPS interface. This connection provides power, video, and control signals through a single slot, eliminating external cable clutter.
Retail Digital Signage: Drives digital signs in retail stores and malls. It displays advertisements, promotional videos, and product information to engage customers.
Financial Information Displays: Powers information screens in banks and financial institutions. The system shows currency exchange rates, service announcements, and market data.
Public Transportation Hubs: Manages information displays in airports and subway stations. The unit provides real-time flight schedules, train arrival times, and directional guidance to travelers.
Interactive Panels and Whiteboards: Functions as the integrated computer for interactive displays. It plugs into the panel to enable touch controls, digital writing, and content presentation for classrooms and meeting rooms.
Self-Service Kiosks: Acts as the computing module for various self-service terminals. It manages functions for automated ticket machines, food ordering kiosks, and information lookup stations.
ELSKY provides strong after-sales support for our OPS-H310 computer. We aim for your satisfaction.
Warranty Coverage : All ELSKY products come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.
Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.
Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.
Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your pc hosts.
HDMI | DP | LAN | USB3.1 | USB2.0 | COM | SSD | Memory | Power | |
4K 30Hz | 4K 60Hz | 1 | 3 | 3 | 1 | 1*M.2 1*MSATA 1*SATA | 2*NB-DDR4 MAX 32G | 12V/19V | |
PC model | P42H-OPS-H310 | ||||||||
PC size | 180mm(L)*195mm(W)*42mm(H) | ||||||||
Color | Black | ||||||||
Motherboard model | OPS-H310 | ||||||||
Motherboard | CPU | Support Intel Coffee Lake 8th generation LGA 1151 Core i3-8100, i5-8400, i7-8700, etc Support Intel Coffee Lake 9th generation LGA 1151 Core i3-9100, i5-9400, i7-9700, etc | |||||||
Graphics card | Intel UHD Graphics 630 Ultra core graphics card | Support single display, dual display replication/expansion | |||||||
Memory | 2*NB-DDR4 memory, supports 2133/2400/2666MHZ memory, maximum supports 32G | ||||||||

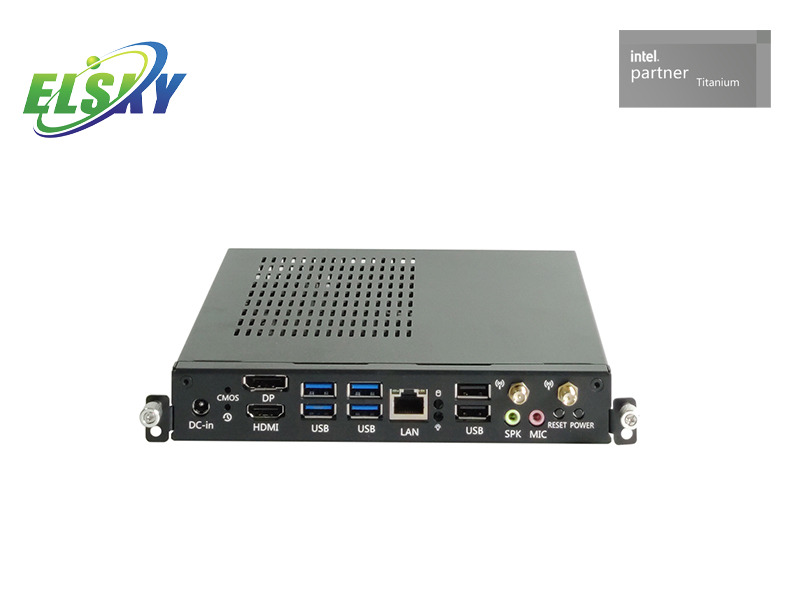

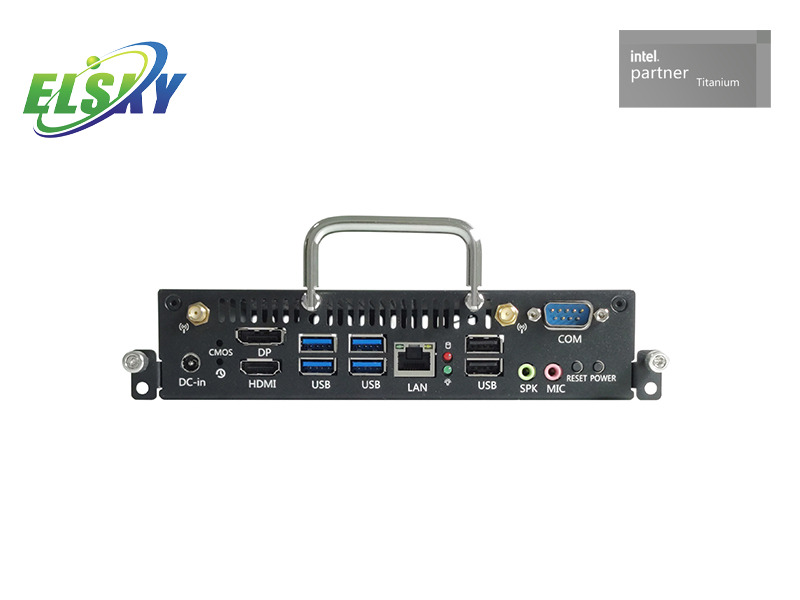

Front panel interface (PC side) | Power interface | 1*DC_IN power interface, supports 12V/19V, recommended to use 12V10A or 19V6A or above power supply | |||||||
POWER | 1*Switch button | ||||||||
RESET | 1*Restart switch | ||||||||
Display | 1*HDMI 1.4 interface (4096/3840*2160@30Hz) 1*DP 1.4 interface (4096/3840*2160@60Hz) | ||||||||
USB | 3*USB2.0 interface 3*USB3.1 Gen1 interface | ||||||||
LAN | 1*LAN； Default support for Realtek 8111H Gigabit Ethernet card, optional support for Matorcomm YT6801 Gigabit Ethernet card; Supports Wake on LAN and PXE function. | ||||||||
Audio | 1*LINE_OUT interface, audio output; 1*MIC_IN interface, microphone input; | ||||||||
COM | 1*COM, supports RS232 | ||||||||
GHOST | 1*One click restore button | ||||||||
CMOS | 1*CMOS(Host reset and discharge button) | ||||||||
LED | 1*Power light, 1*hard drive light | ||||||||

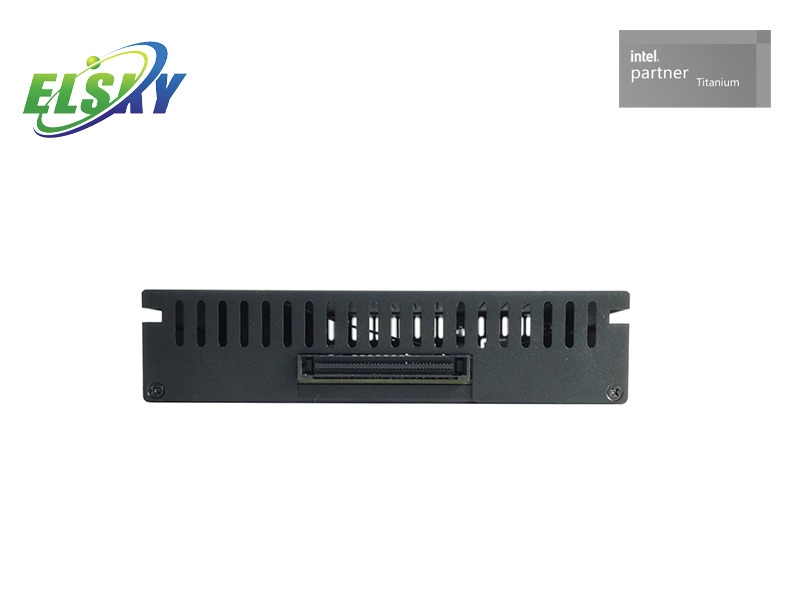

Rear panel interface (OPS side) | OPS | 1*80Pin OPS interface (Can be connected to sub cards) | |||||||
Storage | M.2_SSD | 1*M. 2 Key-M slots, supporting M.2 2280 NVME PCIE2.0 x4/SATA dual protocol adaptive standard SSD; Optional M.2 2242 hard drive; | |||||||
MSATA | 1*MSATA, Supports MINI_SATA disks and MSATA 3.0 | ||||||||
SATA | 1*2.5-inch hard drive interface, supporting 2.5-inch SSD/HDD hard drives | ||||||||
Expansion | Mini-PCIE | 1*Mini-PCIE slot, supports WiFi/Bluetooth/4G modules | |||||||
Environment | Working temperature | -10℃ ~ 60℃ | |||||||
Storage temperature | -20℃ ~ 70℃ | ||||||||
Relative humidity | 5%-95% relative humidity, no condensation | ||||||||
Working vibration | 0.5g rms/5-500HZ/random/operating | ||||||||
BIOS | AMI BIOS，Support power on, timed power on, and intelligent recognition of remote power on/off devices | ||||||||
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | ||||||||
Operating system | Supports Windows 11, Windows 10, Linux, etc | ||||||||
HDMI | DP | LAN | USB3.1 | USB2.0 | COM | SSD | Memory | Power | |
4K 30Hz | 4K 60Hz | 1 | 3 | 3 | / | 1*M.2 1*MSATA 1*SATA | 2*NB-DDR4 MAX 32G | 12V/19V | |
PC model | P30H-OPS-H310 | ||||||||
PC size | 180mm(L)*195mm(W)*30mm(H) | ||||||||
Color | Black | ||||||||
Motherboard model | OPS-H310 | ||||||||
Motherboard | CPU | Support Intel Coffee Lake 8th generation LGA 1151 Core i3-8100, i5-8400, i7-8700, etc Support Intel Coffee Lake 9th generation LGA 1151 Core i3-9100, i5-9400, i7-9700, etc | |||||||
Graphics card | Intel UHD Graphics 630Ultra core graphics card | Support single display, dual display replication/expansion | |||||||
Memory | 2*NB-DDR4 memory, supports 2133/2400/2666MHZ memory ,maximum supports 32G | ||||||||
Front panel interface (PC side) | Power interface | 1*DC_IN power interface, supports 12V/19V, recommended to use 12V10A or 19V6A or above power supply | |||||||
POWER | 1*Switch button | ||||||||
RESET | 1*Restart button | ||||||||
Display | 1*HDMI 1.4 interface (4096/3840*2160@30Hz) 1*DP 1.4 interface (4096/3840*2160@60Hz) | ||||||||
USB | 3*USB2.0 interface 3*USB3.1 Gen1 interface | ||||||||
LAN | 1*LAN; Default support for Realtek 8111H Gigabit Ethernet card, optional support for Matorcomm YT6801 Gigabit Ethernet card; Supports Wake on LAN and PXE function; | ||||||||
Audio | 1*LINE_OUT interface, audio output; 1*MIC_IN interface, microphone input; | ||||||||
GHOST | 1*One click restore button | ||||||||
CMOS | 1*CMOS(Host reset and discharge button) | ||||||||
LED | 1*Power light, 1*hard drive light | ||||||||
Rear panel interface (OPS side) | OPS | 1*80Pin OPS interface (Can be connected to sub cards) | |||||||
Storage | M.2_SSD | 1*M. 2 Key-M slots, supports M.2 2280 NVME PCIE2.0 x4/SATA dual protocol adaptive standard SSD; Optional M.2 2242 hard drive; | |||||||
MSATA | 1*MSATA， Supports MINI_SATA disks and MSATA 3.0 | ||||||||
SATA | 1*2.5-inch hard drive interface, supports 2.5-inch SSD/HDD hard drives | ||||||||
Expansion | Mini-PCIE | 1*Mini-PCIE slot, supports WiFi/Bluetooth/4G modules | |||||||
Environment | Working temperature | -10℃ ~ 60℃ | |||||||
Storage temperature | -20℃ ~ 70℃ | ||||||||
Relative humidity | 5%-95% relative humidity, no condensation | ||||||||
Working vibration | 0.5g rms/5-500HZ/random/operating | ||||||||
BIOS | AMI BIOS,support power on, timed power on, and intelligent recognition of remote power on/off devices | ||||||||
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | ||||||||
Operating system | Supports Windows 11, Windows 10, Linux, etc | ||||||||
The following CPU information is for reference only, please consult us for specific needs!
CPU specification | CPU brand | CPU model | Main frequency | Turbo | CPU power consumption(W) | The full load power consumption(W) |
8th gen I3 | Intel core | 8100 | 4 core 3.6G | 65 | 90 | |
8300 | 4 core 3.7G | 62 | 90 | |||
8th gen I5 | Intel core | 8400 | 6 core 2.8G | 4.0G | 65 | 90 |
8500 | 6 core 3.0G | 4.1G | 65 | 90 | ||
8600 | 6 core 3.2G | 4.3G | 65 | 90 | ||
8th gen I7 | Intel core | 8700 | 6 core 3.2G | 4.6G | 65 | 90 |
9th gen I3 | Intel core | 9100 | 4 core 3.6G | 4.2G | 65 | 90 |
9300 | 4 core 3.7G | 4.2G | 62 | 90 | ||
9th gen I5 | Intel core | 9400 | 6 core 2.9G | 4.1G | 65 | 90 |
9500 | 6 core 3.0G | 4.4G | 65 | 90 | ||
9600 | 6 core 3.1G | 4.6G | 65 | 90 | ||
9th gen I7 | Intel core | 9700 | 8 core 3.0G | 4.7G | 65 | 90 |
9th gen I9 | Intel core | 9900 | 8 core 3.1G | 5.0G | 65 | 90 |
Q1: What is the primary purpose of the OPS-H310 Host?
A:The OPS-H310 is a modular computer built to the Open Pluggable Specification (OPS). Its main role is to provide integrated Windows PC functionality for interactive flat panel displays and digital signage.
Q2: Which Intel CPUs are compatible with this OPS host?
A:This host supports both 8th and 9th Generation Intel Core processors (LGA 1151 socket), including Core i3, i5, i7 and i9 models. It offers high-performance computing flexibility.
Q3: What are the display capabilities of the OPS-H310?
A:The unit supports dual independent 4K displays. You can connect one 4K screen at 60Hz via DisplayPort (DP) and another 4K screen at 30Hz via the HDMI interface.
Q4: How is the OPS-H310 managed or maintained?
A:Maintenance is simple. The host features a one-click restore button (GHOST) for quick system recovery, plus a CMOS button for system hardware resets.
Q5: Can I use this OPS host for wireless applications?
A:Yes. It includes a Mini-PCIE slot. This slot allows for the installation of separate expansion modules for wireless connectivity, such as Wi-Fi, Bluetooth, or 4G data access.
Q6: What are the power requirements for this host?
A:The unit requires a DC power input and supports a flexible voltage range of 12V or 19V. A 12V/10A or 19V/6A supply or better is recommended for stable operation.
