Parameter

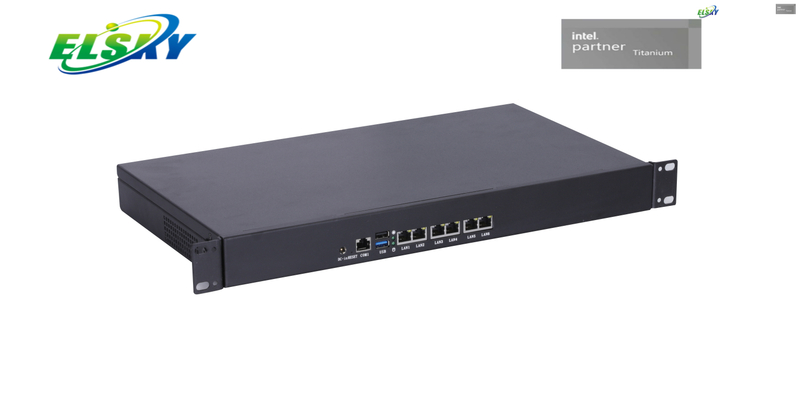

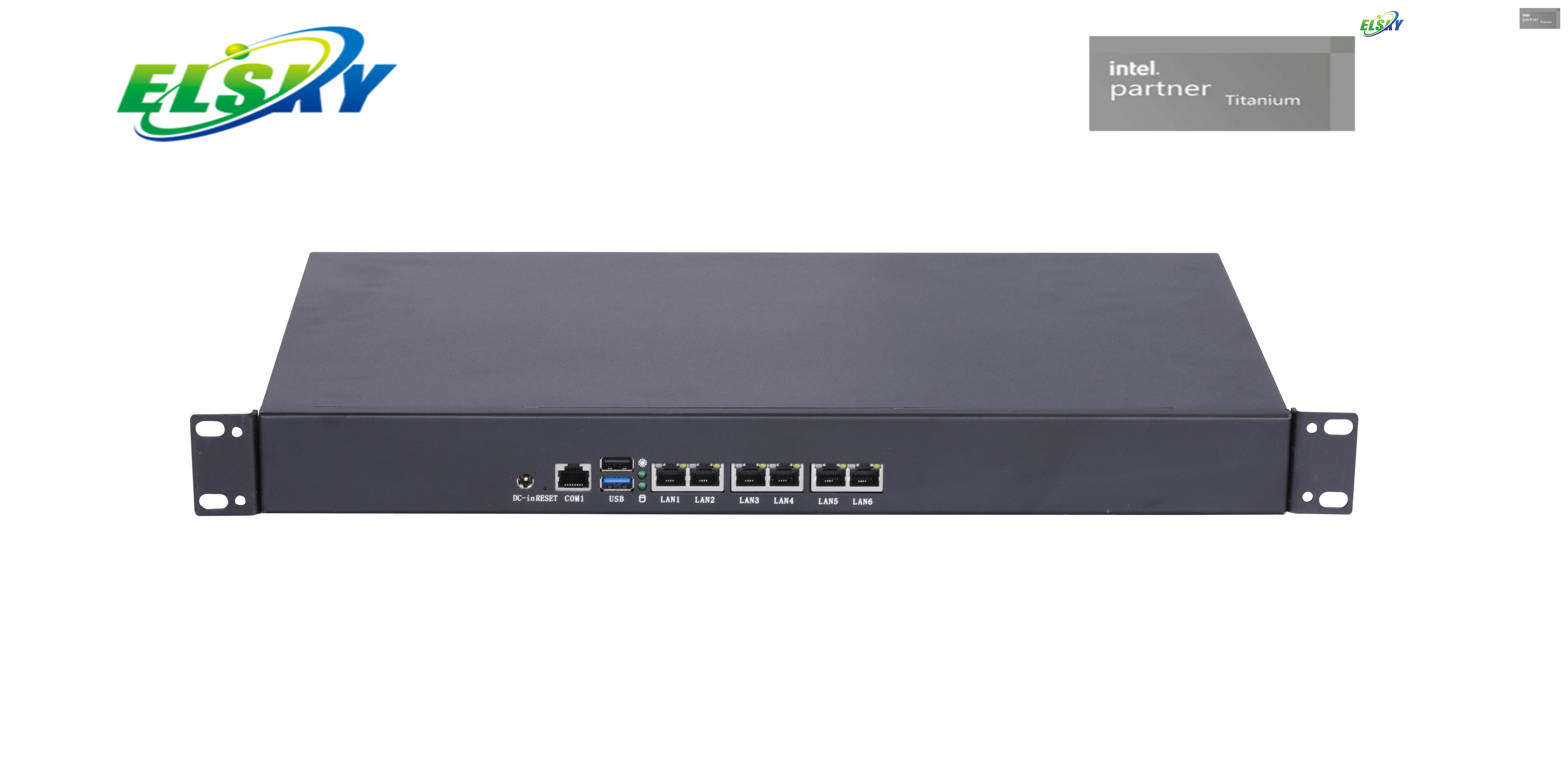

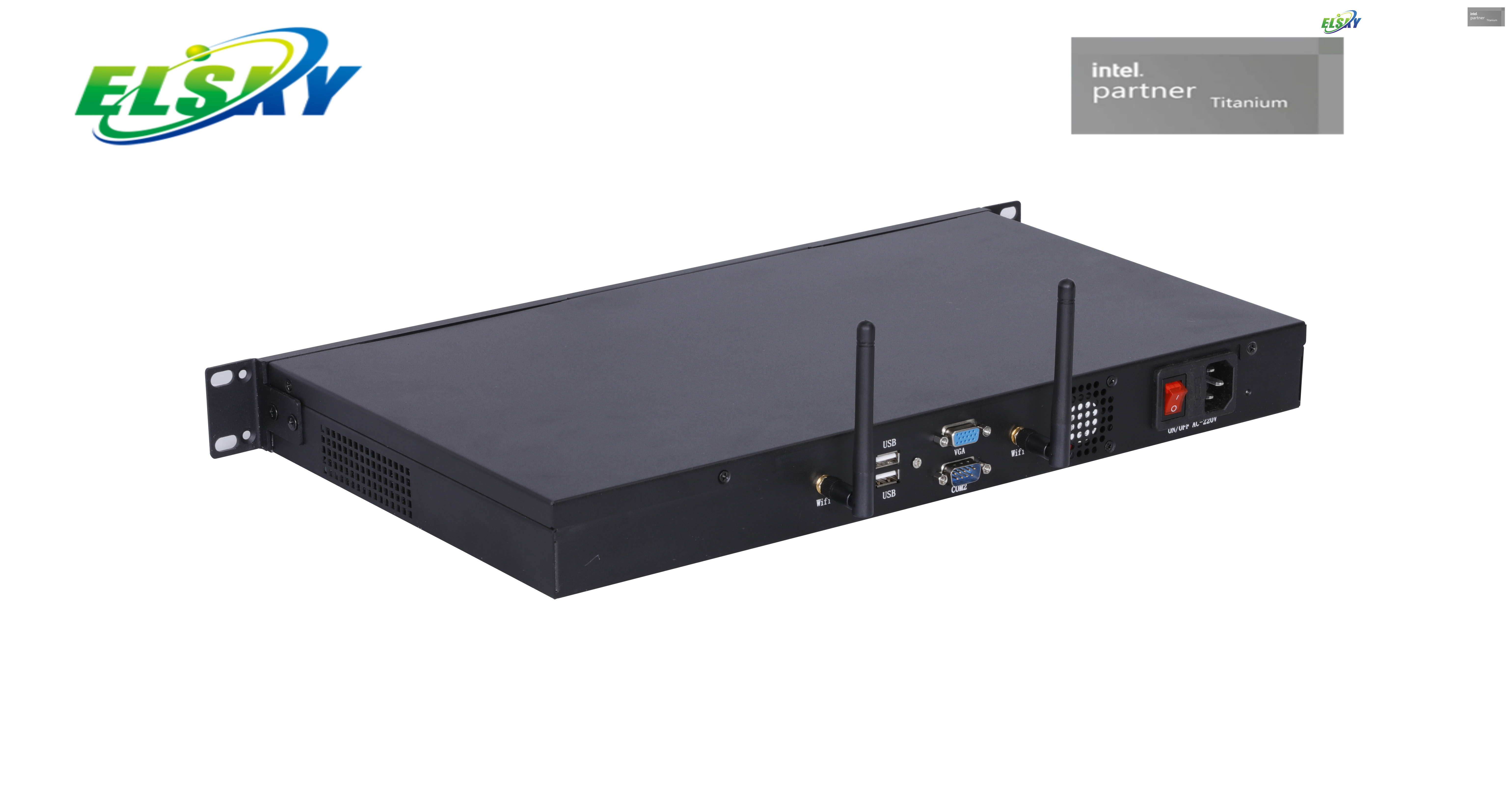

Host size | 427mm（L）*248mm（W）*44.5mm（H） |
Motherboard size | 170mm（L）*170mm（W）*21mm（H） |
CPU | Intel ® processors: Celeron J1900, Celeron J1800, Pentium J2900 |
chip set | Intel Bay trail SOC chip set |
memory | 1*NB-DDR3L memory, low voltage 1.35V memory, supports 1333/1600MHz memory, up to 8G |
source | 1*DC_IN or 1*4Pin ATX | Support 12V voltage \ standard desktop 1U power supply, or DC head inner diameter of 2.5MM The full load power consumption of the motherboard is about 30W. It is recommended to use a power supply of 12V4A or above |
Display function | Intel(R) HD Graphics Graphics controller, supports single display |
1*VGA DB15 interface | Supports resolution 1920 * 1080@60HZ |
Network functions | 6*RJ45 LAN interface | Intel i210/i211-AT Gigabit network card, supports network wake up and PXE diskless boot function Optional support for Bypass |
1*Mini-PCIE interface | Support WiFi/3G/4G/broadband, etc |
Hard disk function | 1*SATA2 interface | Standard SATA2.0 hard disk interface, maximum transmission speed 3.0 Gbps |
2*SATA-PWR pin | The power supply pin of the disk can take 5V and 12V voltage （4Pin，1*4Pin，2.54mm） |
1*MSATA interface | Supports MSATA disk and MSATA 2.0 |
USB function | 1*USB3.0 interface | Standard USB3.0 port at the rear |
3*USB2.0 interface | Standard USB2.0 interface at the rear |
1*RSTBTN button | Restart the button |
other I/O | 1*COM1 interface | RJ45-COM Only RS232 is supported |
1*COM2 interface | The DB9 interface only supports RS232 |
1*SIM_SLOT card slot | Support SIM card, 3G/4G requires SIM card |
2*WiFi interface | It can be connected to an external WiFi antenna pole |
Operating environment | Working temperature: -10℃~60℃; working humidity: 5%~95% relative humidity, no condensation |
BIOS | AMI BIOS，Support power on, scheduled power on, remote power on and off device intelligent identification |
Watch Dog | Dog watchdog programming, supports hardware reset function (256 levels, 0~255 seconds) |
OS | Support Windows 10, Windows 8, Windows 7, Linux, etc |
Key Product Features
Compact Size: The board measures just 170mm by 170mm, fitting easily into small spaces. Its slim profile and design make it suitable for compact systems and embedded applications.
Low Power CPU: It uses an Intel Celeron or Pentium J-series processor. This CPU design keeps power consumption low, which is good for systems that run for a long time.
Memory Support: The motherboard has one memory slot. It takes low-voltage DDR3L memory, with a maximum of 8GB. This is enough for most industrial tasks.
Multiple LAN Ports: The board includes six Gigabit network ports. This feature allows for many network connections and is useful for firewalls or routers.
Versatile Storage: You can use a standard SATA drive or a smaller mSATA SSD. The board offers both options, giving you flexibility for different storage needs.
Wide Temperature Range: The board works in temperatures from -10°C to 60°C. This means it can function well in both cold and hot environments.
Watchdog Function: A built-in watchdog timer resets the system if it stops responding. This feature helps the device run without interruption, making it very reliable.
Diverse I/O: The board has USB 3.0, USB 2.0, and serial ports. It also has a SIM card slot for mobile data. These ports connect to many different devices.
Application Scenarios
Network Security Appliances: With six LAN ports, the board is an ideal core for firewalls, VPN gateways, or network intrusion detection systems.
Industrial Automation: Its wide-temperature operation and watchdog function make it perfect for factory machinery control, data acquisition systems, or robotics.
Digital Signage: The board's support for HD video and multiple network connections allows it to power advertising screens and information kiosks in malls, airports, or public spaces.
Self-Service Kiosks: In ATMs, vending machines, or hospital check-in kiosks, the board's stability and rich I/O options meet demanding requirements.
Intelligent Transportation Systems: Its compact size and durability make it suitable for in-vehicle computers, traffic monitoring systems, or toll booth equipment.
Edge Computing Devices: The low power consumption and robust network processing capabilities allow this board to function as an IoT or edge computing gateway, handling data processing and analysis locally.
Company Information
In the year of 2009,Shenzhen Elsky Technology Co.,Ltd. is specially engaged in the research,production and sales of all kinds of mini-ITS motherboard and mini PC for POS,ALL-IN-ONE PC,Digital signage,Advertising LCD Player,Network,Telecommunication and other industries.Meanwhile,we have OEM/ODM service for global customers.
As a motherboard and mini pc manufacture, ELSKY concern with the design,development and production more than 16 year's, We won the CCTV Securities Information Optimizing Brand. and the menbers of Intel Intelligent Manufacture in China and the member of Intel IoT Solutions Alliance.
FAQ
Q:Who are you?
A:We are Shenzhen ELSKY Technology Co.,Ltd.
"ELSKY"is our own brand.
We"Intel Internet of Things(IOT) solutions alliance"member,"Intel Chinese intelligent manufacture base"member,and Intel authorized core partner.
Q:What we do?
A:We design,produce,sell,maintain motherboard,mini PC.
We have many types motherboards,like Mini-itx,Nano-itx,OPS,Firewall,120*120mm,x86 motherboards.
Our products mainly use for industrial production,banking,shops,supermarkets, transportation,
medical and other industries.
They also application to ordering machines, cash registers,ATM,digital signage, advertising machines, spot welders, electronic whiteboards, conference equipment, teaching equipment, multimedia players and other equipments.
Q:How many engineers are there in your company?
A:Now we have 20 engineers and technicians.
For the company to develop better,we moved to a new office address in July 2018,we have expanded our office space,now we have 3500 square meters office space.
Every year we continue to increase our staff to meet the needs of the company's development.
Welcome to visit our company.
Q:What's your payment ways?
A:We accept T/T,L/C,Western Union,Paypal,Trade Assurance,RMB Cash,etc.
Q:What's your shipping ways?
A:DHL/FedEx/TNT/UPS,etc;
Appointing shipping agent by buyer;
Coming to our company to pick up the goods by yourself;
Delivery to your door in Shenzhen;
......
Q: What's your MOQ?
A: No need to customize our products(in stock,MOQ is 1 piece;
Just simply customize our products in stock,MOQ is 1 piece;
If the product is not in stock,MOQ needs to be determined from our production manager;
Tailor-made order,MOQ is 3000 pieces,design fees is US$10000.
Q: What is lead time of the products?
A: Within 2~7 working days after full payment completed.
The delivery period begins when we receive the amount.
Our all motherboards/mini PCs and accessories have been passed the QC testing before delivery.
Q:Can you provide OEM/ODM service?
A: Yes,of course!
You can add or remove the interfaces,modules,pins,etc;
You can add your logo on startup screen or chassis;
You can customize your chassis,motherboard;
......
You can customize freely as you want, but the unit price will be different depends on the configuration of your needs, please contact us to get more details!
Q: If I add our logo on chassis or startup screen,what is MOQ?
A:Under normal circumstances,the MOQ is 1 piece,the price will not change.
Q:What operating system does your motherboard/Mini PC support?
A: Supporting Win 2000,Win CE,Win XP,Win 7,Win 8,Win 10,Linux series,Pfsense etc.
Q: How long is your warranty period?
A: The warranty period of motherboard is 3 years;
The warranty period of processor is 1 year.
Q:What should I do if the motherboard/mini PC is broken?
A:If the motherboard/mini PC is naturally damaged(it is not man-made damage),and the motherboard/mini PC is still under warranty,we will accept the repair.
Please contact us to get more details!
Q:What should I do if my devices can not compatible with the motherboard/mini PC?
A:Sorry,this issue has nothing to do with product quality,we do not accept return the motherboard/mini PC.
If you want to replace the motherboard/mini PC,we accept.We follow the principles"To return the overcharge and demand payment of the shortage".
Please contact us to get more details!
Q: What can our mini PC do for?
A: 1. It application to Word,Excel,PPT,Photoshop,CAD,CoreIDRAW, etc;
2. Using for online shopping and chatting;
3. Connecting to your TV to watch moive and play games;
4. Supporting 3D games/3D movie;
5.They support two or three screens 4K display;
6.Our motherboard/mini PC supports industrial control needs.
