| Quantity: | |
|---|---|
QM8200-R
Elsky
Product Pictures:

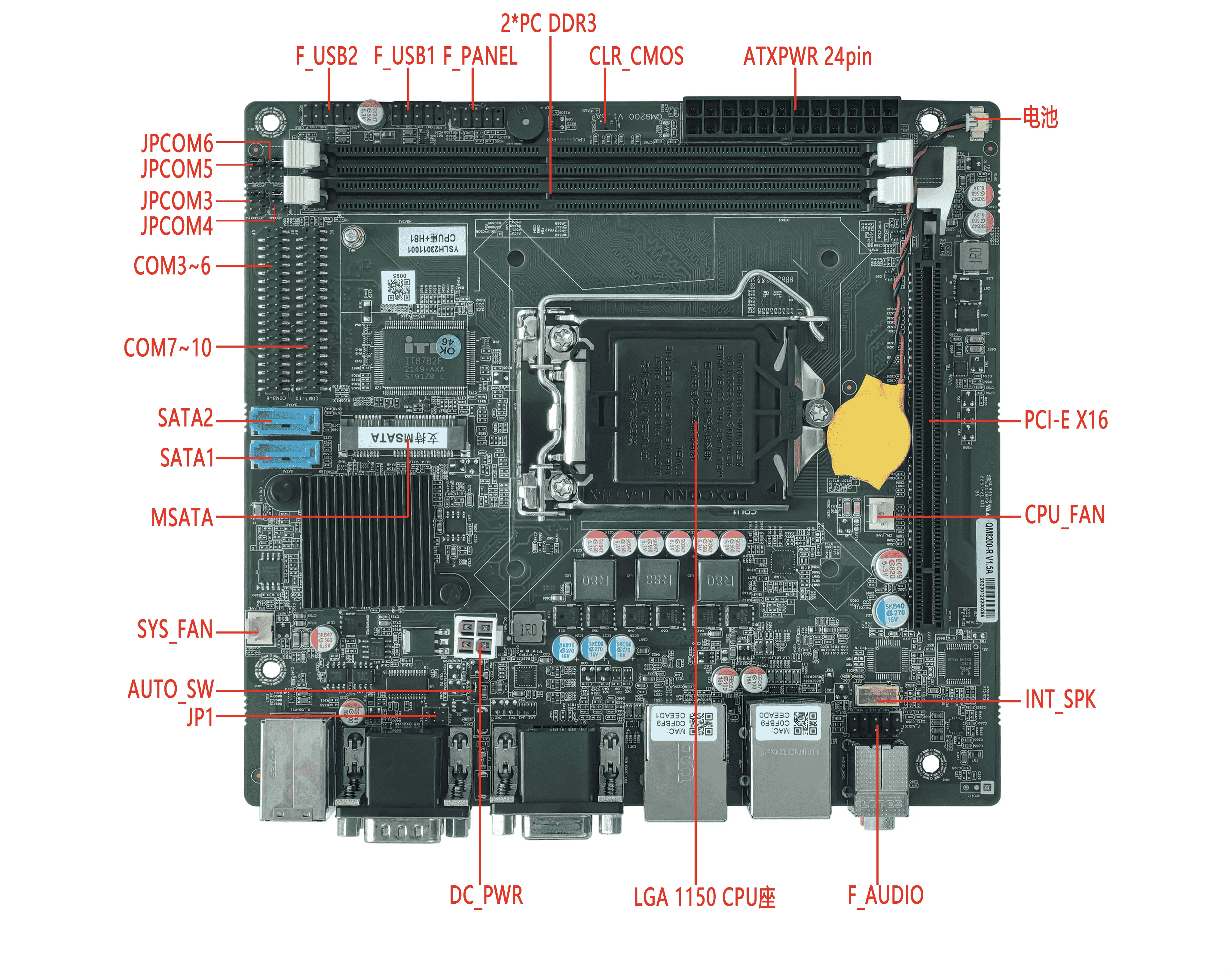

Motherboard diagram↓

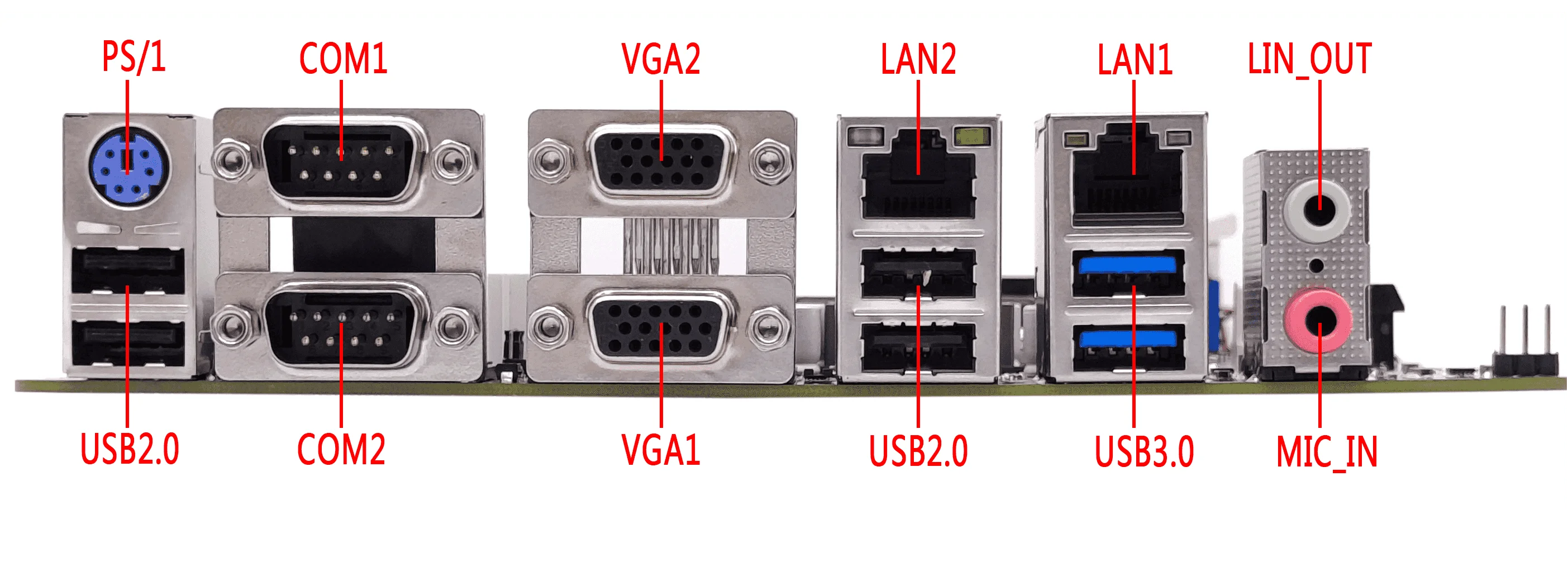

Motherboard interface diagram↓

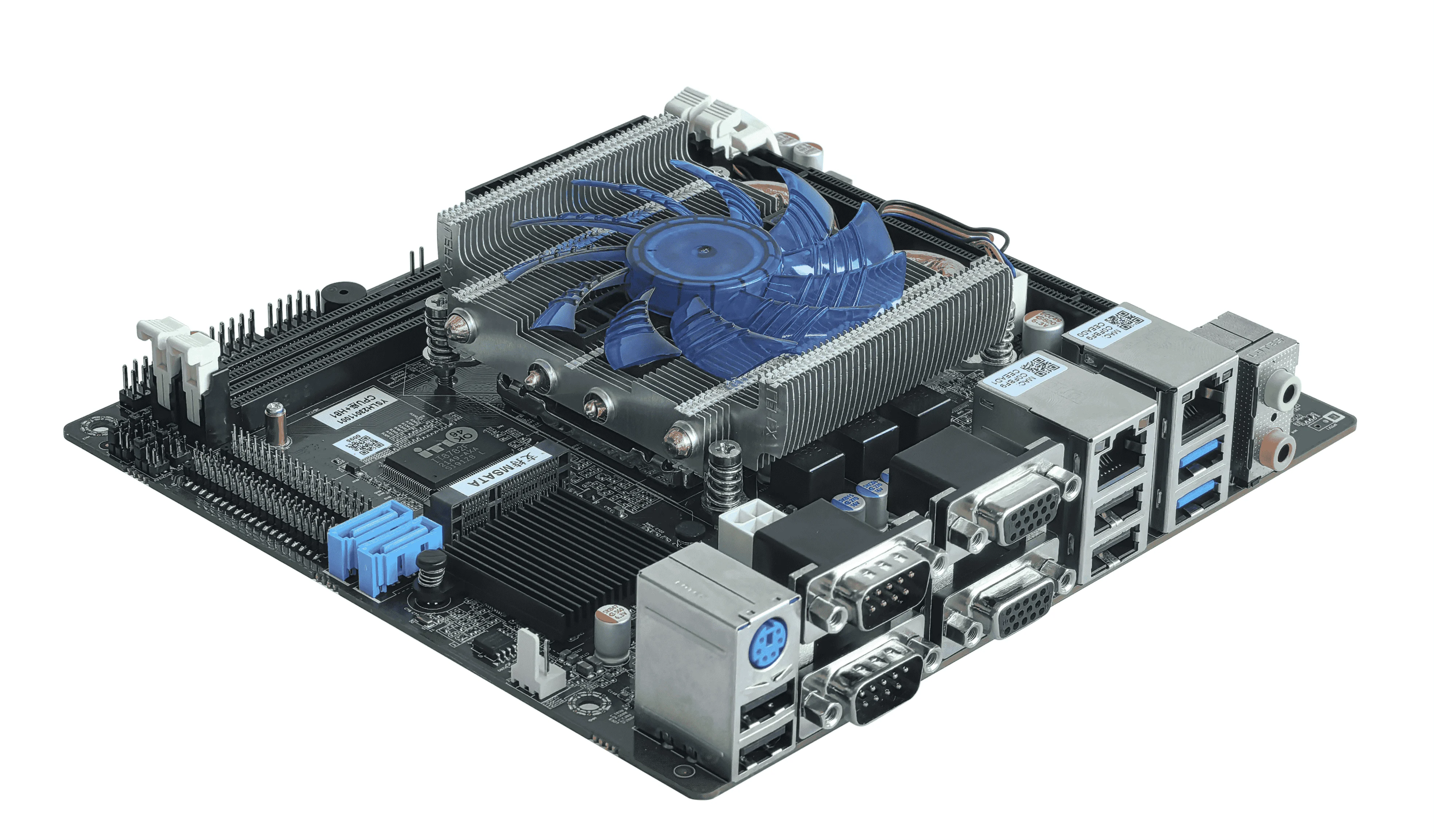

115X double tube radiator↓

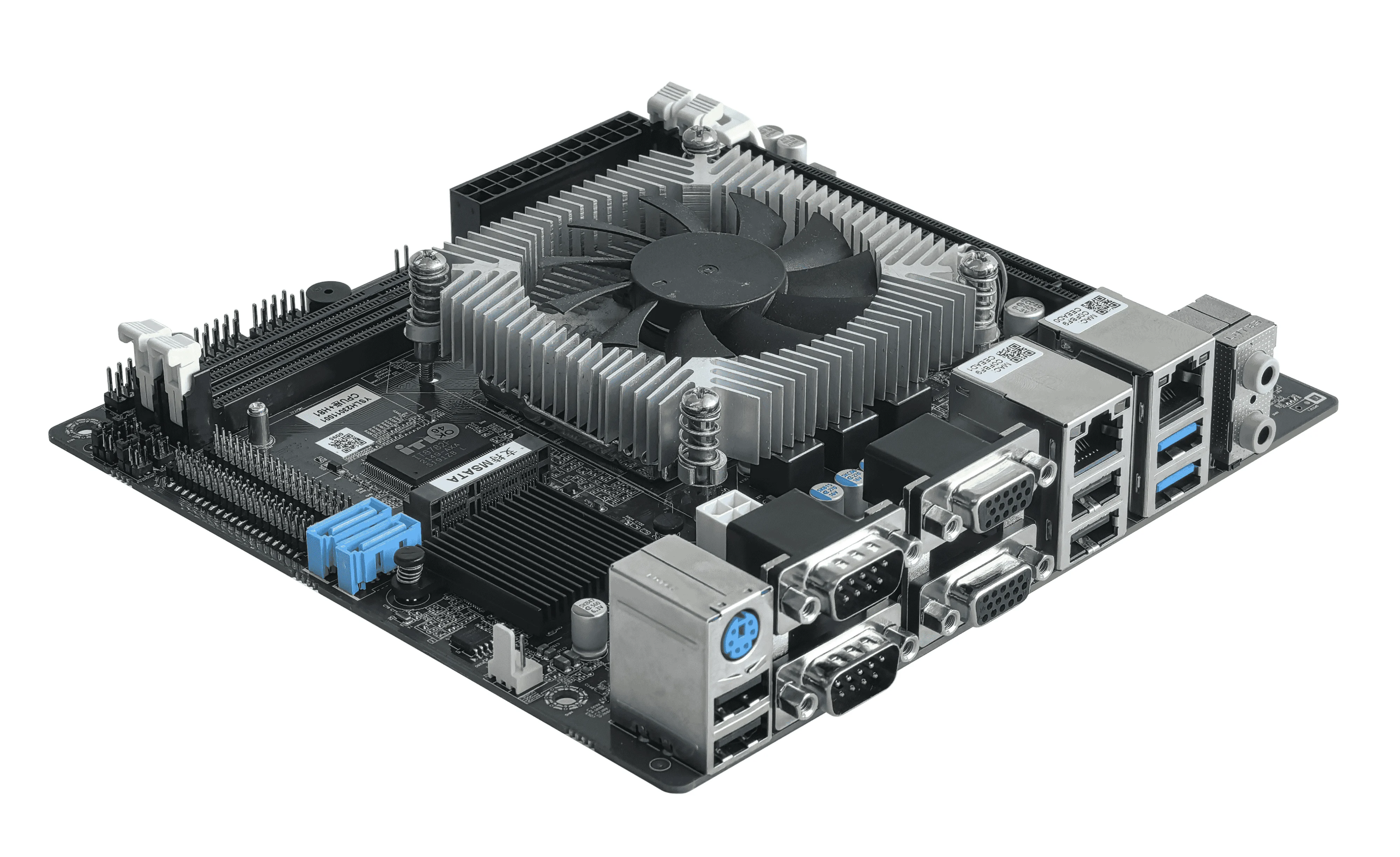

115X Radiator↓

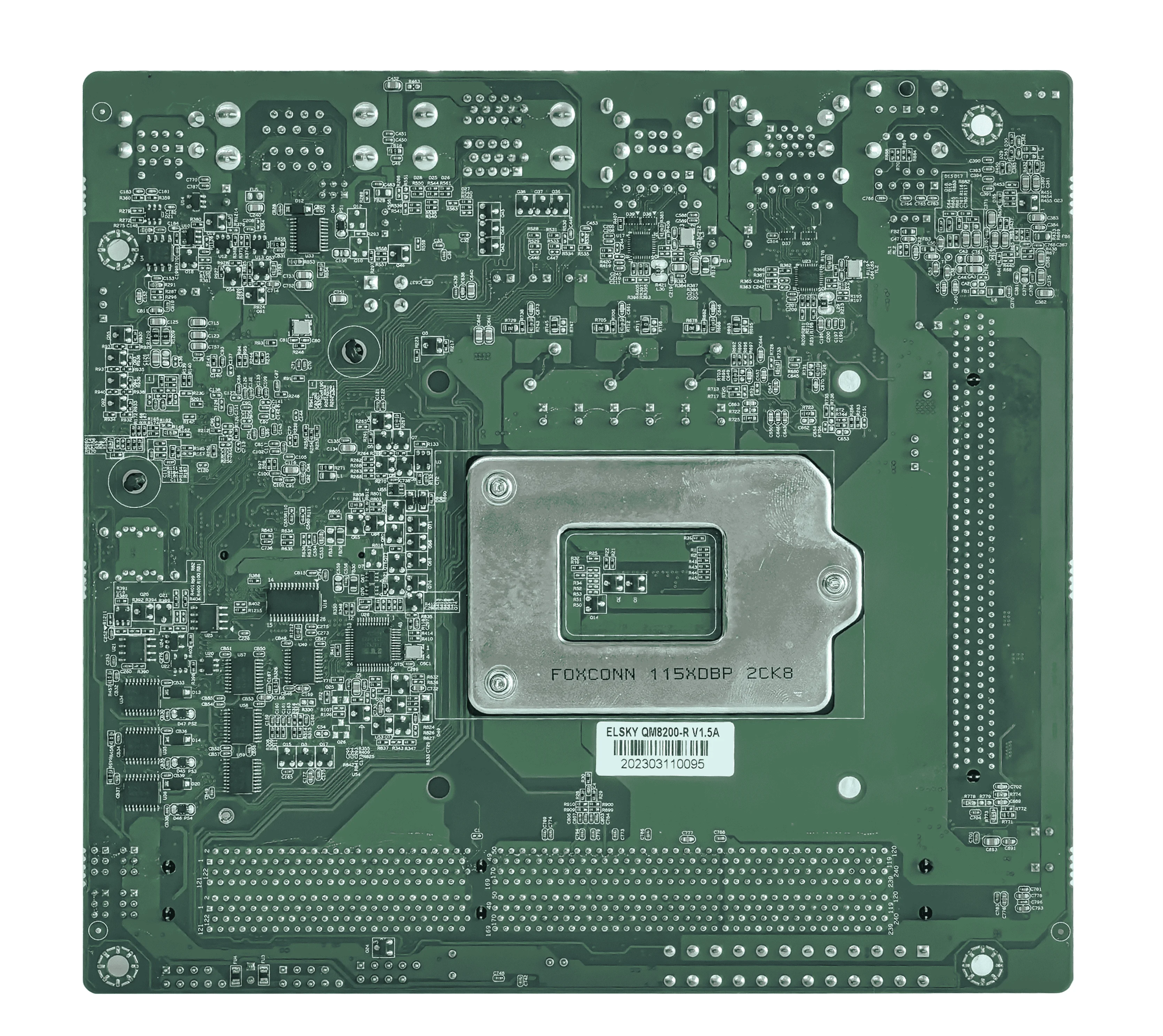

Back sight of the motherboard↓
Note: All the product pictures are for your reference only, the price of different RAM and Hard Disk capcity will not the same, if you want to get a complete quotation about QM6100 Mini ITX motherboard, please contact us!
Product Datasheet:
1. ordering choose option:
Motherboard module | CPU | LAN | COM | USB2.0 | USB3.0 | Memory | SSD | Power |
QM8200-R | Intel Haswell 4th generation LGA1150 Celeron, Pentium and Core i3, i5, i7 | 2LAN | 10 | 8 | 2 | 2*PC-DDR3 16G（MAX） | 1*MSATA 2*SATA | 24Pin ATX |
The "R" in the model number is a Realtek network card; the motherboard defaults to a Realtek sound card, which supports 10*USB ports; when the motherboard is changed to a USB sound card, it supports 9*USB ports. | ||||||||
2. CPU choose informations as below:
CPU specification | CPU brand | CPU module | Main frequency | Turbo Frequency | CPU power consumption (W) | Full load power consumption of the whole board (W) |
1150 | Intel Celeron | G1820 | Dual Cores 2.7G | 53 | 80 | |
G1840 | Dual Cores 2.8G | 53 | 80 | |||
1150 | Intel Pentium | G3220 | Dual Cores 3.0G | 53 | 80 | |
G3240 | Dual Cores 3.1G | 53 | 80 | |||
G3250 | Dual Cores 3.2G | 53 | 80 | |||
G3260 | Dual Cores 3.3G | 53 | 80 | |||
1150 4代I3 | Intel Core | I3-4130 | Dual Cores 3.4G | 54 | 80 | |
I3-4150 | Dual Cores 3.5G | 54 | 80 | |||
I3-4160 | Dual Cores 3.6G | 54 | 80 | |||
I3-4170 | Dual Cores 3.7G | 54 | 80 | |||
1150 4代I5 | Intel Core | I5-4430 | Quad Cores 3.0G | 3.2G | 84 | 110 |
I5-4460 | Quad Cores 3.2G | 3.4G | 84 | 110 | ||
I5-4570 | Quad Cores 3.2G | 3.6G | 84 | 110 | ||
I5-4590 | Quad Cores 3.3G | 3.7G | 84 | 110 | ||
I5-4690 | Quad Cores 3.5G | 3.9G | 84 | 110 | ||
1150 4代I7 | Intel Core | I7-4770 | Quad Cores 3.4G | 3.9G | 84 | 110 |
I7-4790 | Quad Cores 3.6G | 4.0G | 84 | 110 |
Note: The CPU price sometime will change depend on the market price, please also kindly send an inquiry before you going to buy QM6100 motherboard, thanks for your understanding!
3.Specification of QM6100 Mini ITX motherboard:
Motherboard size | 170mm（L）*180mm（W）*38mm（H） | |
CPU | Supports Intel Haswell 4th generation LGA1150 Celeron, Pentium and Core i3, i5, i7 | |
Chipset | Intel Chipset H81 | |
Power supply | 1*ATX_PWR | Standard desktop 24Pin ATX power interface, The motherboard's full load power consumption is about 80W~110W, and it is recommended to use a power supply of more than 200W |
1*DC_PWR | CPU power supply | |
Memory | 2*PC-DDR3 memory slots, support 1333/1600MHz memory, maximum support 16GB | |
Display function | 2*VGA DB15 interface | Support resolution 1920*1080@60Hz |
1*PCI-E X16 slot | Standard PCI-E X16 slot, can be connected to external independent graphics card and other devices | |
Network function | 2*RJ45_LAN interface | Realtek 8111H Gigabit NIC chip, supports network wake-up and PXE diskless boot function |
USB function | 4*USB2.0 interface | Rear standard USB2.0 interface |
2*USB3.0 interface | Rear standard USB3.0 interface | |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) | |
1*F_USB2 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) | |
F_USB2 Pin 2/4/6/8/10 and MSATA USB signal can be selected; F_USB2 Pin 1/3/5/7 and USB sound card signal can be selected | ||
Sounds function | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller; Motherboard can be modified to support Cmedia HS_100B USB sound card | |
1*AUDIO_JACK | The green port supports audio output (upper position), and the pink port supports MIC input (lower position) | |
1*F_AUDIO pin | Standard audio pin (9Pin, 2*5Pin, 2.54mm) | |
1*INT_SPK pin | Support 8 ohm 5 watt speaker output (amplifier) (4Pin, 1*4Pin, 2.0mm) | |
The motherboard has a Realtek sound card and a USB sound card, and the F_AUDIO pins have signals. | ||
Hard disk function | 1*SATA1 interface | Standard SATA3.0 hard disk interface |
1*SATA2 interface | Standard SATA3.0 hard disk interface | |
1*MSATA interface | Supports MINI SATA disk by default, optional support for WIFI/Bluetooth | |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.54mm) |
1*AUTO_SW pin | Hardware power-on jumper cap (3Pin, 1*3Pin, 2.0mm) | |
Other I/O | 2*COM DB9 interface | External serial port, COM2 supports RS232/RS422/RS485 optional |
COM3~6 pin | Serial port pin, COM3 can optionally support RS232/RS422/RS485 (39Pin, 2*20Pin, 2.0mm) | |
COM7~10 pin | Serial port pin, supports RS232 (39Pin, 2*20Pin, 2.0mm) | |
1*JP1 pin | Control COM2 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*JPCOM3 pin | Control COM3 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*JPCOM4 pin | Control COM4 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*JPCOM5 pin | Control COM5 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*JPCOM6 pin | Control COM6 pin 9 to select 0V/5V/12V voltage output (6Pin, 2*3Pin, 2.0mm) | |
1*PS/1 interface | PS/1 keyboard and mouse interface | |
1*CLR_CMOS pin | Motherboard reset and discharge pin (2Pin, 1*2Pin, 2.54mm) | |
1*CPU FAN pin | CPU fan power pin (supports temperature control) (3Pin, 1*3Pin, 2.54mm) | |
1*SYS FAN pin | System fan power pin (full speed, does not support temperature control) (3Pin, 1*3Pin, 2.54mm) | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Supports Windows 10, Windows 8, Windows 7, LINUX, etc. | |
